Elecom UCAM-N1D30 Series User manual

UCAM-N1D30 Series
UCAM-N1D30 Series
Before Use
Package Check.........................................................................2
Precautions in Handling............................................................2
Precautions in Use ...................................................................2
Operating Environment.............................................................3
Names of Parts.........................................................................3
Webcam Installation and Setup
Checking Your Windows Version...............................................4
Installing the Driver Utility.........................................................5
Checking Driver Utility Installation ............................................8
Uninstalling the Driver Utility.....................................................9

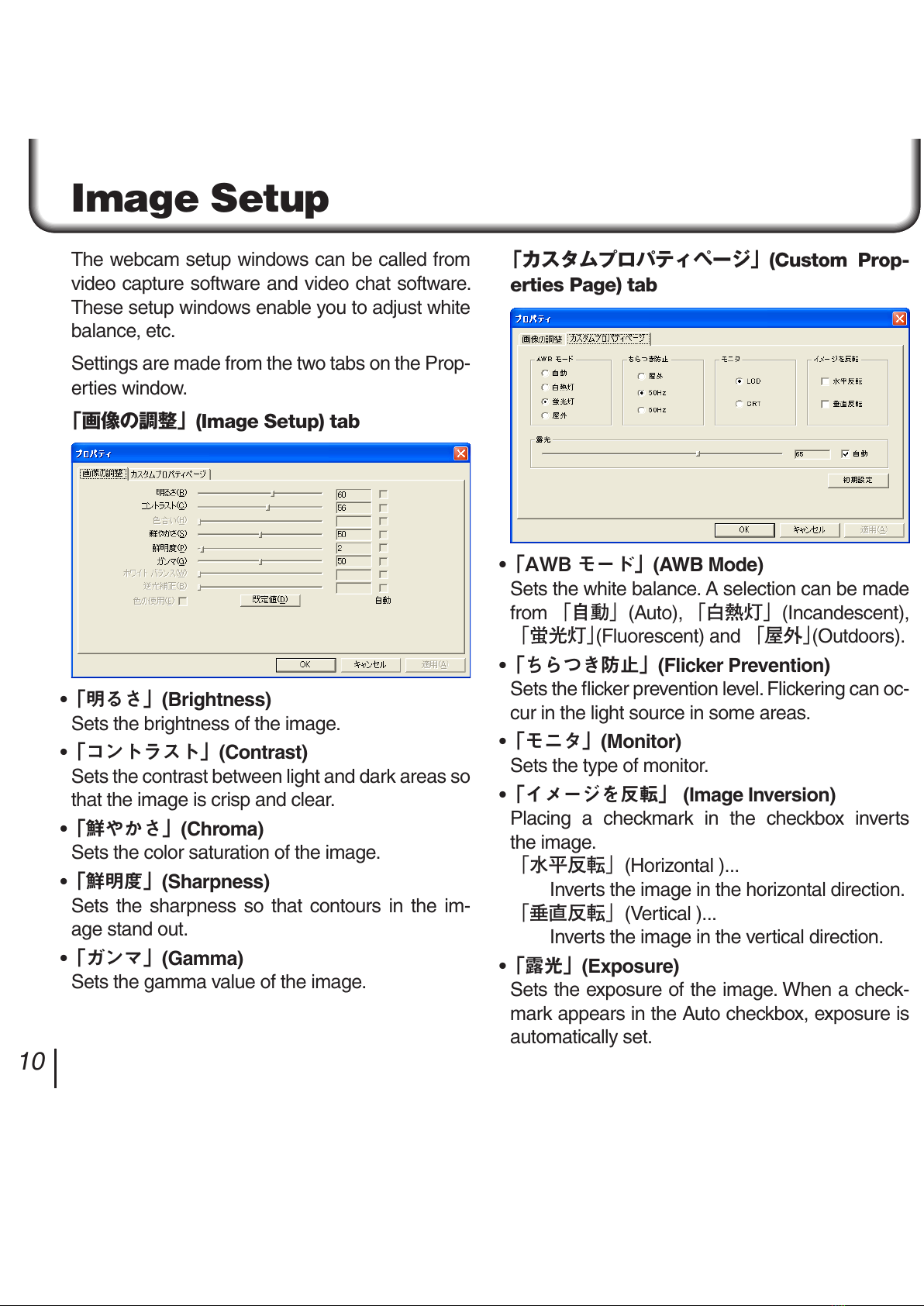

Image Setup
Image Setup ...........................................................................10
Appendix
If the Webcam Does Not Work ...............................................11
For Inquiries About this Product .............................................11
Specications .........................................................................12
* The names of products or companies appearing in this guide are the trademarks or registered trademarks of their respective owners. Symbols ® and ™ are omitted from names in this text.
SETUP GUIDE
SETUP GUIDE

2 3
Before Use
Before using the UCAM-N1D30, read the following.
Package Check
The product package should contain the following
product and accessories. Though the product was
carefully packaged, if something is missing, con-
tact the place of purchase or ELECOM’s Custom-
er Service Center to obtain what is needed.
Webcam ........................................................1
Driver CD-ROM............................................. 1
Setup Guide (This publication).................1
User’s Guide.................................................. 1
Warranty ..... Printed on backside of package
Earphone & Microphone......................... 1 set
Precautions in Handling
• Install the webcam on a supporting object that
can securely hold it. As time goes by, the clip
may slip off if it does not have a good grip on the
supporting object.
• Once the webcam has been installed, do not pull
forcefully on the cable. Pulling excessively on the
cable may dislocate the clip.
• Spring tension holds the webcam in place,
therefore do not install the webcam on structur-
ally weak objects.
• The clip may not hold the webcam securely if in-
stalled on slanted or uneven surfaces.
• Hold the clip rmly with one hand when turning
the webcam.
• Connect the webcam to a USB port that sup-
plies 5V, 500 mA of power or more.
Precautions in Use
• Do not touch the webcam’s lens with ngers.
Use a commercially available lens blower brush
or tissues to remove dust.
• The webcam is designed to receive power over
a bus line.
• Do not connect the earphone plug to any port
other than the headphone output jack of a PC,
etc. Connecting the plug to other ports may
damage the earphone.
• Do not connect the microphone plug to any
port other than the microphone input jack of a
PC, etc. Connecting the plug to other ports may
damage the microphone.
• Do not install the webcam in humid or dusty
places.
• Do not subject the webcam or accessories to
strong impacts.
• Never disassemble, repair or remodel the web-
cam or accessories yourself.
• Do not apply excessive force to connectors.
• Clean the webcam by wiping gently with a dry
soft piece of cloth. Do not use benzine, thinner
or other cleaners.
• If you detect anything strange, stop using the
webcam immediately and contact the place of
purchase or Elecom’s Customer Service Cen-
ter.

2 3
Operating Environment
CPU.........................1 GHz or faster Intel Pentium III
OS ..........................Windows® XP or later, Windows® 2000 SP4 or later
Mac OS not supported.
Memory ...................256 MB or more
HDD.........................260 MB or more
Graphic memory.....32 MB or more
DirectX.....................9.0 or later
USB 2.0 port (Must supply 5V, 500 mA of power.)
Broadband connection such as ADSL, etc.
CD-ROM drive
• Even when used in the above operating environment, audio and video quality may not be as
expected because of hardware processing performance.
• This webcam is specically for use with USB 2.0.
It requires high speed support. It does not support USB 1.1 interfaces.
Names of Parts

Use to capture still pictures
via supporting software.

Lights a green color
while power is ON.

Rotates 360˚ left-right
and swings 180˚ up-
down.

Face towards the
subject. Do not touch
the lens directly with
your hands.

Turn by hand to
focus on the subject.

Use to mount the
webcam on a PC or
to stand it on a flat
surface.

Bend freely to ensure the
most comfort and best
effect in use.


Connect to a microphone
input jack on the PC.

Connect to a headphone
output jack on the PC.
The ear clasp swings to enable


4 5
Checking Your Windows Version
To use this webcam with Windows XP, you re-
quire Service Pack 1 or later. To use it with Win-
dows 2000, you need Service Pack 4 or later.
You can check the version of your Windows OS
as follows.
1. Select「ファイル名を指定して実行」from
the Start menu.
2. Type "winver" into the text line and click
on the button.
The version information of the Windows sys-
tem appears in the window.
3. Check the Windows version.
If you are not running Service Pack 1 or a lat-
er version of Windows XP or Service Pack 4
or a later version of Windows 2000, update
Windows to the most recent version using
Windows Update. For update procedures,
see the user’s guide of your PC or contact the
PC manufacturer.
For Windows XP
Service Pack 1 or a later version of Windows
XP is required to use this webcam. If a support-
ing Service Pack is not installed in your PC, up-
date Windows XP to the most recent version us-
ing Windows Update.
Check the version here.
This example shows Service Pack 2.
For Windows 2000
Service Pack 4 or a later version of Windows
2000 is required to use this webcam. If a sup-
porting Service Pack is not installed in your
PC, update Windows 2000 to the most recent
version using Windows Update.
Webcam Installation and Setup
This section explains how to install the included Driver Utility and connect the webcam. The webcam can
be used with Adobe®Photoshop and Microsoft Imaging, as well as operated as a TWAIN device. When
used with these image processing applications, VGA size still pictures can be taken.

4 5

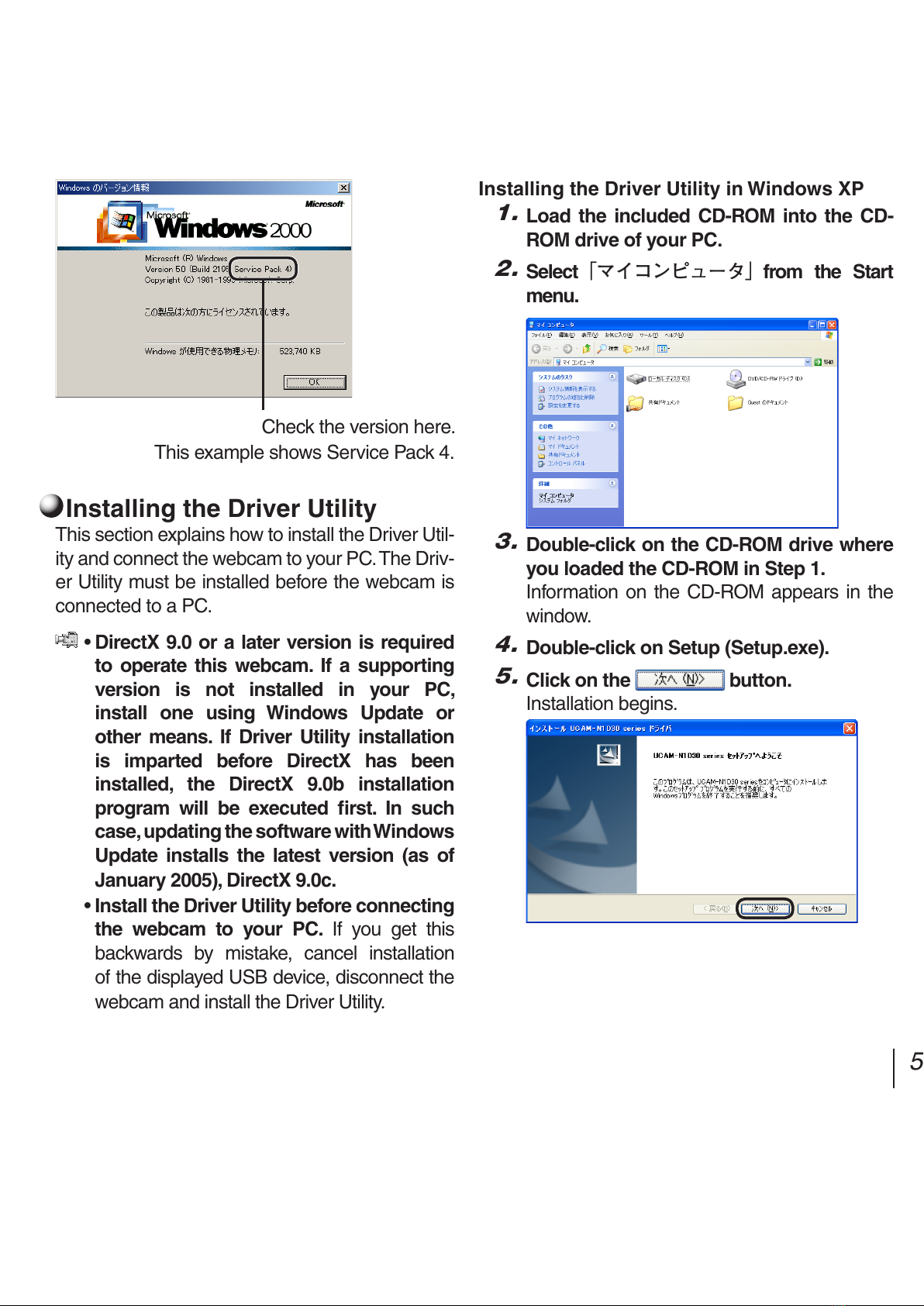

Check the version here.
This example shows Service Pack 4.
Installing the Driver Utility
This section explains how to install the Driver Util-
ity and connect the webcam to your PC. The Driv-
er Utility must be installed before the webcam is
connected to a PC.
• DirectX 9.0 or a later version is required
to operate this webcam. If a supporting
version is not installed in your PC,
install one using Windows Update or
other means. If Driver Utility installation
is imparted before DirectX has been
installed, the DirectX 9.0b installation
program will be executed rst. In such
case, updating the software with Windows
Update installs the latest version (as of
January 2005), DirectX 9.0c.
• Install the Driver Utility before connecting
the webcam to your PC. If you get this
backwards by mistake, cancel installation
of the displayed USB device, disconnect the
webcam and install the Driver Utility.
Installing the Driver Utility in Windows XP
1.
Load the included CD-ROM into the CD-
ROM drive of your PC.
2. Select「マイコンピュータ」from the Start
menu.
3. Double-click on the CD-ROM drive where
you loaded the CD-ROM in Step 1.
Information on the CD-ROM appears in the
window.
4. Double-click on Setup (Setup.exe).
5. Click on the button.
Installation begins.

6 7
6.
Click on the button.
7.
Peel the sticker off the USB connector of
the webcam.
8. Plug the USB connector
of the webcam into a
USB port of the PC that
supports USB 2.0.
The New Hardware Detection Wizard ap-
pears.
The webcam can be disconnected from
the PC even when power to the PC is ON.
Connect the webcam by properly
orienting the USB connector to the port.
9. Select 「ソフトウェアを自動的にインストー
ルする」and click on the button.
Hardware Installation window appears on
the monitor.
10.
Click on the button.
Installation begins.
11.
Click on the button.
This completes Driver Utility installation. Now,
check the Driver Utility has been correctly in-
stalled. Proceed to "Checking Driver Utility Instal-
lation" on pg. 8.

6 7

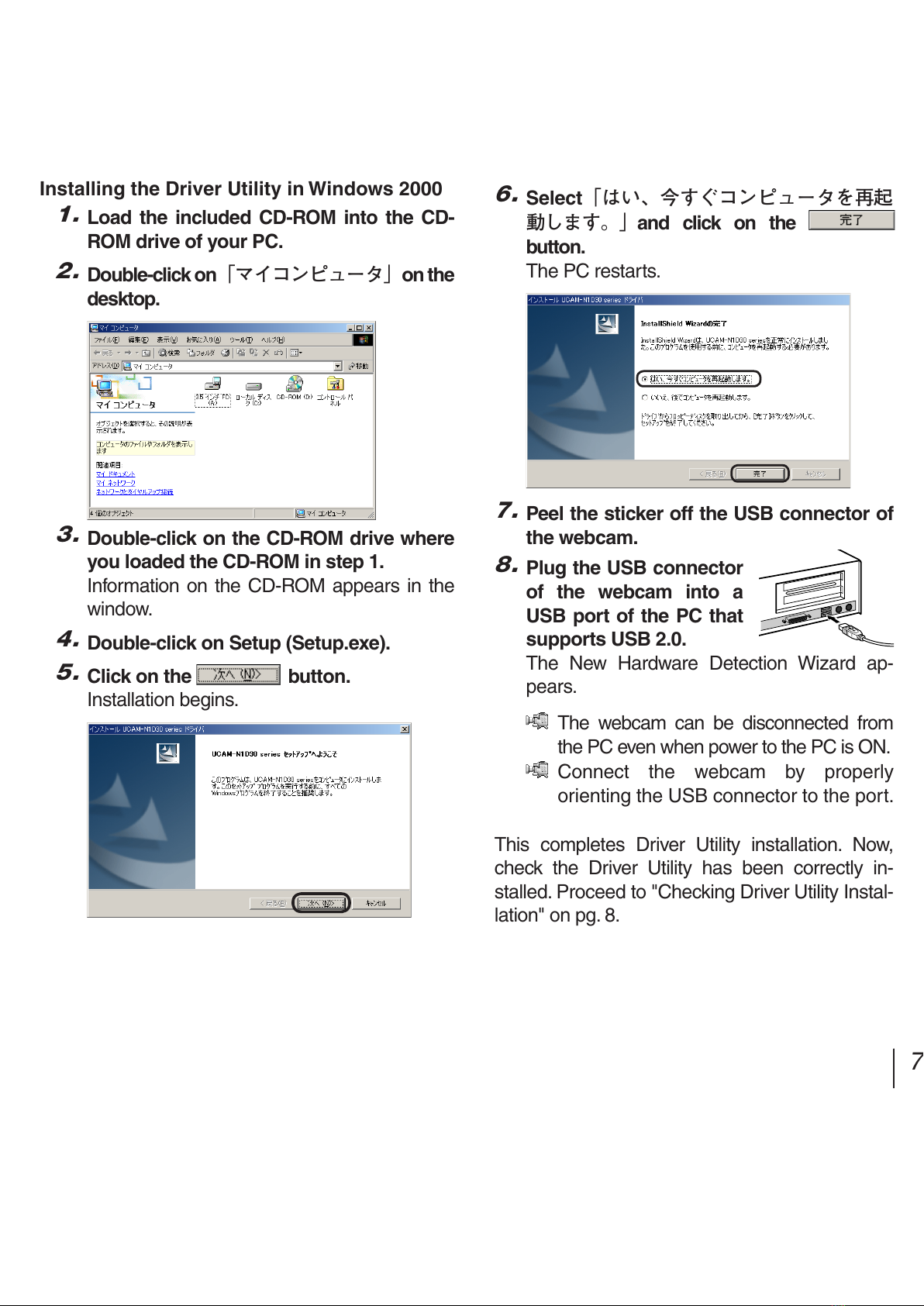

Installing the Driver Utility in Windows 2000
1.
Load the included CD-ROM into the CD-
ROM drive of your PC.
2. Double-click on「マイコンピュータ」on the
desktop.
3. Double-click on the CD-ROM drive where
you loaded the CD-ROM in step 1.
Information on the CD-ROM appears in the
window.
4. Double-click on Setup (Setup.exe).
5. Click on the
button.
Installation begins.
6. Select「はい、今すぐコンピュータを再起
動します。」and click on the
button.
The PC restarts.
7.
Peel the sticker off the USB connector of
the webcam.
8. Plug the USB connector
of the webcam into a
USB port of the PC that
supports USB 2.0.
The New Hardware Detection Wizard ap-
pears.
The webcam can be disconnected from
the PC even when power to the PC is ON.
Connect the webcam by properly
orienting the USB connector to the port.
This completes Driver Utility installation. Now,
check the Driver Utility has been correctly in-
stalled. Proceed to "Checking Driver Utility Instal-
lation" on pg. 8.

8 9
Checking Driver Utility Installation
This section explains how to check whether the
Driver Utility was installed correctly or not.
1. Connect the webcam to the PC.
2. Select「すべてのプログラム」(「プログラ
ム」in Windows 2000) >> "UCAM-N1D30
Series" >> "PCCAM", from the Start menu.
The PCCAM video capture tool starts up.
Note
If a message like
that shown at right
appears on the
monitor, either the
Driver Utility was not correctly installed
or the webcam is not correctly con-
nected to the PC. Click on the [OK]
button and check that the webcam is
correctly connected to the PC. If there
is nothing wrong with the connection,
the Driver Utility was not correctly in-
stalled. Disconnect the webcam from
the PC, uninstall the Driver Utility (see
"Uninstalling the Driver Utility" on pg. 9
for uninstallation procedures) and re-
install the Driver Utility as explained in
"Webcam Installation and Setup".
3. Click on the Devices menu and check that
a checkmark appears next to "UCAM-
N1D30 Series".
If it does not, click on "UCAM-N1D30
Series" so that the checkmark appears.
4. Click on "Preview" in the Options menu
so that a checkmark appears.
The image captured by the webcam appears
in the window.
This conrms that the Driver Utility has been
correctly installed and that webcam is operat-
ing properly.

8 9
Uninstalling the Driver Utility
This section explains how to uninstall the Driver
Utility. Follow this procedure to uninstall the Driv-
er Utility when no longer necessary or for oth-
er reasons.
1. If using Windows XP, select「すべてのプ
ログラム」>> "UCAM-N1D30 Series" >>
"Uninstall", from the Start menu.
If using Windows 2000, select「プロ
グラム」>> "UCAM-N1D30 Series" >>
"Uninstall", from the Start menu.
2.
Select「削除」and click on the
button.
Uninstallation begins.
3.
Click on the button.
Uninstallation begins.
4. Click on the button.
This completes uninstallation.

10 11
Image Setup
「カスタムプロパティページ」(Custom Prop-
erties Page) tab
•「AWBモード」(AWB Mode)
Sets the white balance. A selection can be made
from「自動」(Auto), 「白熱灯」(Incandescent),
「蛍光灯」(Fluorescent) and 「屋外」(Outdoors).
•「ちらつき防止」(Flicker Prevention)
Sets the icker prevention level. Flickering can oc-
cur in the light source in some areas.
•「モニタ」(Monitor)
Sets the type of monitor.
•「イメージを反転」(Image Inversion)
Placing a checkmark in the checkbox inverts
the image.
「水平反転」(Horizontal )...
Inverts the image in the horizontal direction.
「垂直反転」(Vertical )...
Inverts the image in the vertical direction.
•「露光」(Exposure)
Sets the exposure of the image. When a check-
mark appears in the Auto checkbox, exposure is
automatically set.
The webcam setup windows can be called from
video capture software and video chat software.
These setup windows enable you to adjust white
balance, etc.
Settings are made from the two tabs on the Prop-
erties window.
「画像の調整」(Image Setup) tab
•「明るさ」(Brightness)
Sets the brightness of the image.
•「コントラスト」(Contrast)
Sets the contrast between light and dark areas so
that the image is crisp and clear.
•「鮮やかさ」(Chroma)
Sets the color saturation of the image.
•「鮮明度」(Sharpness)
Sets the sharpness so that contours in the im-
age stand out.
•「ガンマ」(Gamma)
Sets the gamma value of the image.

10 11
If the Webcam Does Not Work
Check the version of your OS.
This webcam runs only on Service Pack 4 and
later versions of Windows 2000 and Service Pack
1 and later versions of Windows XP. It also re-
quires a USB interface that supports the high
speed of USB 2.0.
It cannot be used with Windows 98, Windows
98SE, Windows Me or Mac OS.
The webcam was connected to the PC
before installing the Driver Utility.
If the webcam was mistakenly connected to
the PC before the Driver Utility was installed,
cancel installation of the displayed USB de-
vice, disconnect the webcam and then install
the Driver Utility.
For Inquiries About this Product
ELECOM Customer Service Center
TEL : [phone]
FAX : [phone]
[Business Hours] 9:00 - 12:00 13:00 - 18:00
Open all year
Appendix

12 13
Specications
Webcam
Image receiving element 1/4" CCD sensor
Max. resolution 640 x 480 pixel
Max. frame rate 30 fps (Same for VGA, QVGA and CIF)
Colors 16.77 million (24-bit)
Max. current consumption 14 mA while on standby, 104 mA while running
Interface USB 2.0 dedicated (Does not support USB 1.1)
External dimensions W67 x D35 x H102 mm
Weight 130 g
Clip opening 6 - 17 mm
Cable length 180 cm (To connector tip)
Earphone & Microphone
Earphone
Diaphragm diameter 15 mm
Diaphragm type Dynamic
Max. input 10 mW
Impedance 32 Ω
Frequency band 100 - 22,000 Hz
Microphone
Type Condenser microphone
Input sensitivity -60 ±3dB
Frequency band 50 - 16,000 Hz
Common
Cable length 180 cm
Plug conguration 3.5 stereo mini-plug
Dimensions W39 x D18 x H11 mm (Max.)
Weight 20 g
Microphone arm length 75 mm

12 13
-MEMO-

14 15
-MEMO-

14 15
USB Connection PC Camera
Setup Guide
UCAM-N1D30 Series
Published by … ELECOM Corporation
1st Edition … February 18, 2005
C06001 C6-WU-1
©2005 ELECOM Corporation. All rights reserved.

USB Connection PC Camera Setup Guide
