ElectrIQ EIQ-40FHDT2SM User manual

40/50/55 inch LED TV
EIQ-40FHDT2SM
EIQ-50FHDT2SM
EIQ-55FHDT2SM

1of 34
CONTENTS
Safety Information……………………………………………………………… 2
What’s included…………………………………………………………………. 4
TV Stand Installation/Removal……………………………………………. 5
Getting Started…………………………………………………………………… 6
Connecting to External Devices………………………………………….. 8
Remote Control………………………………………………………………….. 9
Settings………………………………………………………………………………12
Smart TV Setup and Settings...……………………………………………24
Specifications……………………………………………………………………..30
Support & Disposal…………………………………………………………….34

2of 34
SAFETY INFORMATION
Read these instructions –All the safety and operating instructions should be read
before this product is operated.
Keep these instructions –The safety and operating instructions should be
retained for future reference.
Heed all warnings –All warnings on the appliance and in the operating
instructions should be adhered to.
Follow all instructions –All operating and usage instructions should be followed.
Do not use this equipment near water –The appliance should not be used near
water or moisture e.g. in a wet basement or near a swimming pool.
Clean only with a dry cloth. Do not use solvents or petroleum based fluids.
Do not block any ventilation openings.
Do not install near any heat sources such as radiators, stoves or other apparatus
(including amplifiers) that produce heat.
Do not tamper with the supplied plug. This plug is a BS1363 standard plug.
Protect the power cord from being walked on or pinched, particularly at the plug
and at the point where they exit from the appliance.
Only use attachments/accessories specified by the manufacturer.
Use only with a cart, stand, tripod, bracket or table specified by the
manufacturer or sold with the apparatus. When a cart or stand is used, use
caution when moving it to avoid any injuries or damage from it tipping over.
Unplug the apparatus during lightning storms or when unused for long periods of
time.
Refer all servicing to qualified personnel. Servicing is required when the
apparatus has been damaged in any way, such as power supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus or it
has been exposed to rain or moisture, it does not operate normally or has been
dropped.
Please keep the unit in a well-ventilated environment.
The TV set should only be connected to a mains power supply as rated on the
back of the equipment.
To prevent overload, do not share the same power supply socket with too many
other electronic components.
Do not place any connecting wires where they may be stepped on or tripped
over.
Do not place heavy items on the cable as this may cause damage.
Hold the main plug, not the wires, when removing from a socket.

3of 34
Pull the plug out immediately and seek professional help if the main plug or cable
is damaged, liquid has spilt onto the set, if accidentally exposed to water or
moisture, if anything accidentally penetrates the ventilation slots or if the set
does not work normally.
Do not remove the safety covers. There are no user serviceable parts inside.
Trying to service the unit yourself is dangerous and may invalidate the product’s
warranty. Only qualified personnel should service this apparatus.
To avoid battery leakage, remove exhausted batteries from the remote control
when not in use for a long period.
Do not block ventilation slots on the back cover. The TV can be placed in a
cabinet but ensure at least 5cm (2”) clearance all around.
Do not tap or shake the TV screen, this may damage internal components.
WARNING: To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture. The apparatus shall not be exposed to dripping or
splashing and objects filled with liquids, such as vases, shall not be placed on the
apparatus.
WARNING: The wall plug socket is used as a disconnection device and should
remain readily accessible.
WARNING: The batteries shall not be exposed to excessive heat such as direct
sunlight or fire.
This warning sign is to
warn of dangerous voltage
inside the product.
CAUTION: To reduce the risk of
electric shock, DO NOT remove the
cover (or back). No user serviceable
parts inside. Refer servicing to
qualified service personnel.
This warning sign is to alert
you of important
instructions accompanying
the product.
This equipment is a Class II or double insulated electrical appliance.
It does not require a grounded connection.
AT FULL VOLUME, PROLONGED LISTENING MAY DAMAGE THE
USER’S HEARING.

4of 34

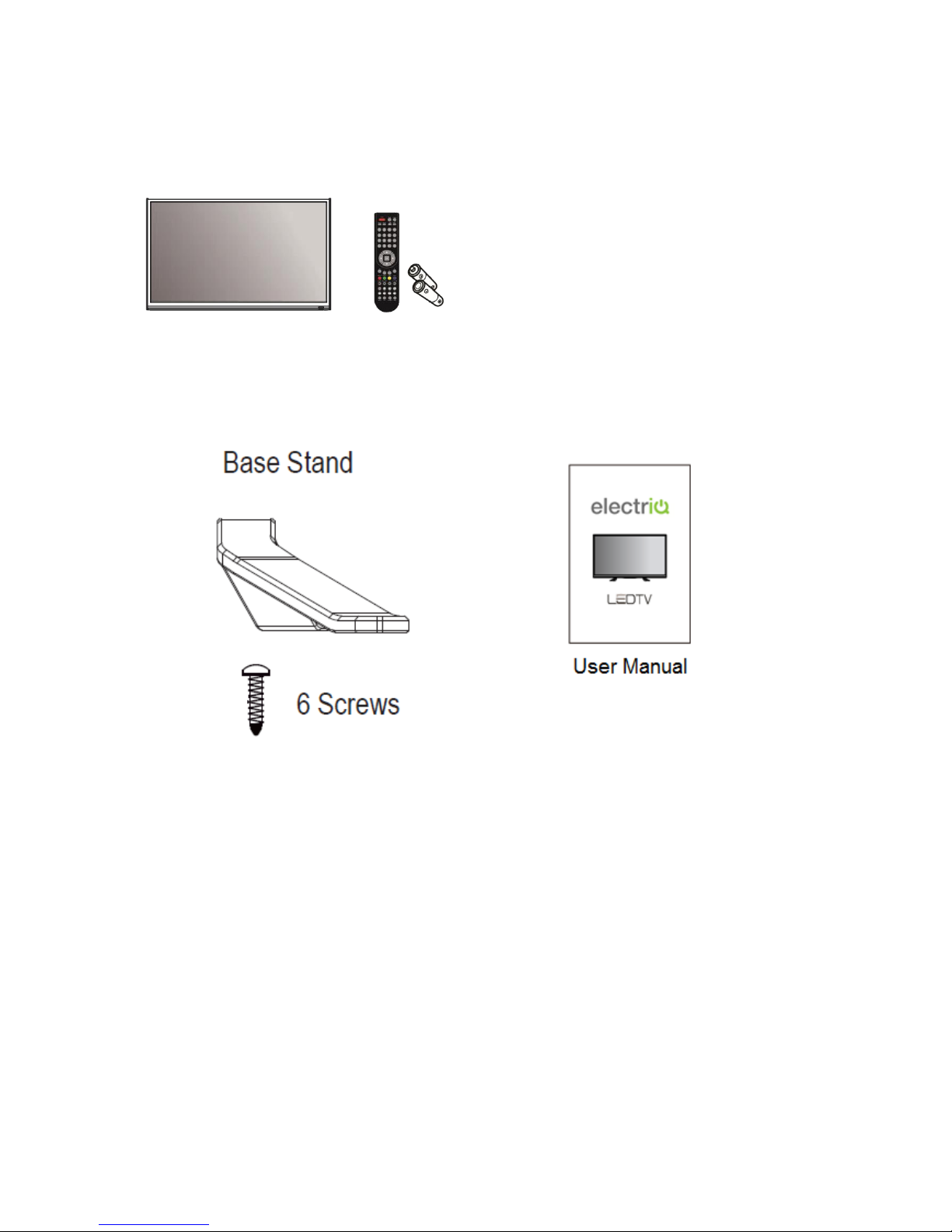

WHAT’S INCLUDED
TV Set Remote Control (2xAAA batteries)

5of 34
TV STAND INSTALLATION/REMOVAL
40 Inch (EIQ-40FHDT2SM)
50 Inch (EIQ-50FHDT2SM)
55 Inch (EIQ-55FHDT2SM)
Four Mounting Holes
(
Size M6 Screws)
200
mm
200
mm
Four Mounting Holes
(
Size M6 Screws)
200
mm
200
mm
Four Mounting Holes
(
Size M6 Screws)
200
mm
400
mm

6of 34
WALL MOUNTING
The TV is provided with mounting holes for a VESA approved wall mounting
bracket (not supplied)
The VESA mounting pattern is:
o40/50Inch - 200x200mm and the size of the screws is 4 x M6 x 12
(not supplied)
o55Inch –400x200mm and the size of the screws is 4 x M6 x 12
(not supplied)
Do not use screws longer than 12mm or damage will occur to the internal
components.
NOTE: As the TV set is considered heavy, please consult with a professional
wall mount installer to perform the installation.
GETTING STARTED

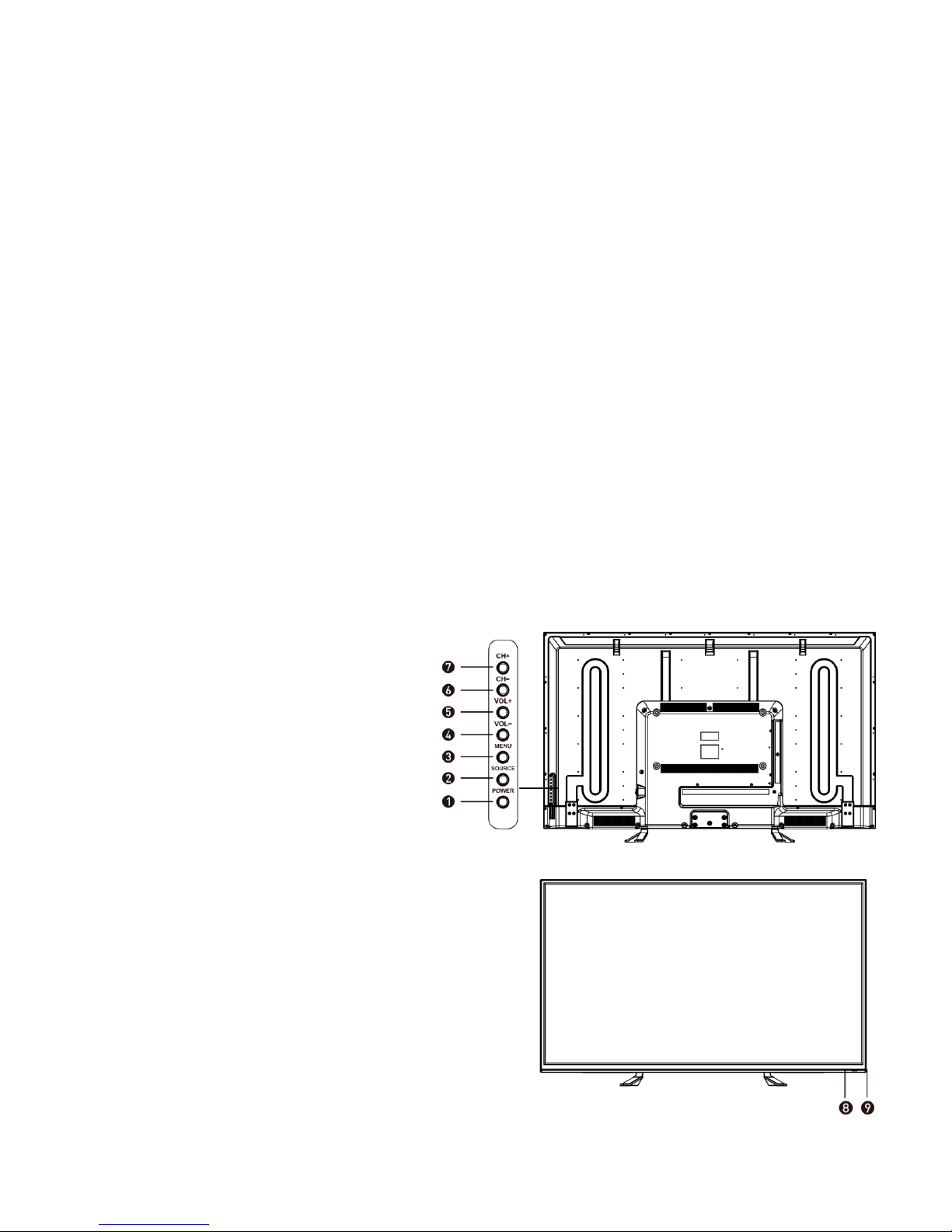

BUTTON FUNCTIONS
1. POWER BUTON: To turn
ON/OFF the TV
2. SOURCE Button: To select
the input source.
3. MENU Button: To enter
menu setting page.
4. VOL-: To decrease the
volume level.
5. VOL+: To increase the volume level
6. CH-: To select previous channel
7. CH+: To select next channel
8. Remote Control Sensor
9. Power Indicator: In standby mode the
indicator light will display red, when
switching on the unit the indicator light
will display green.

7of 34

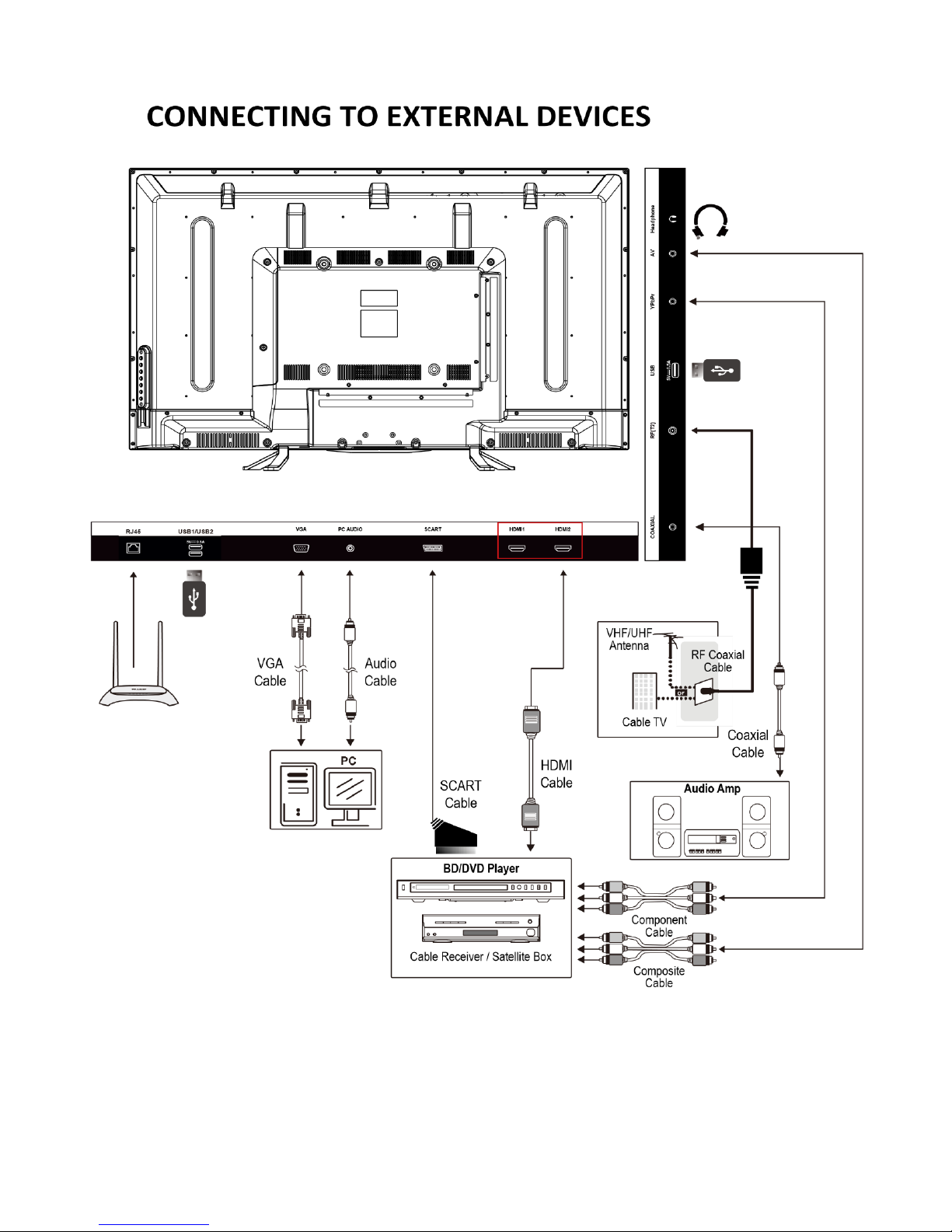

INPUT / OUTPUT TERMINALS
1. Headphones
2. AV input terminal
3. YPbPr: Connect to the YPbPr video output terminal of the DVD player
4. Back USB x2. Provides access to SMART TV. Connect smart remotes,
keyboards, gaming accessories or usb flash drive
Side USB x 1 can be used for DTV recording, timeshift or as a media player
file.
Note: only connect low power USB flash drives or externally powered hard
drives to the 3x USB ports as they only provide 0.5 Amps power
5. RF: Antenna connection
6. Coaxial output terminal
7. HDMI x2
8. Scart input terminal
9. PC Audio: connect it to the audio output terminal of the PC
10. VGA: PC Video input
11. RJ45: Smart TV ethernet connection can be used instead of WIFI
connection

8of 34

9of 34
REMOTE CONTROL
1. POWER: Turn on the TV/Standby
2. MUTE: Mute or restore the sound
3. SOURCE: Press to change the signal source
4. S. MODE: Setting audio options
5. P. MODE: Output image/picture mode
selection
6. AUDIO: Switch the audio channel when DVD or
multimedia playing. I/II: In the TV mode, press
this button to select the stereo size
7. P. SIZE: Press to select the different picture
size.
8. NUMBER KEYS: Change the channel
9. FAV. CH: Show the list of favourite channels
10. SLEEP: Auto Power Off Timer
11. JUMP: Return to the previous selected
channel
12. MENU: Show Menu
13. EXIT: Exit the Menu
14. INFO: Show information about the current
program
15. NAVIGATION KEYS (Up, Down, Left, Right and
OK): To move in the menus and confirm
settings. Also in smart mode used for
navigation or scrolling (with mouse disabled)
16. V+ / V-: Increase / decrease volume
17. P+ / P-: Next / previous channel
18. REPEAT: Repeat mode
19. D.SETUP (disabled, used only in DVD combo
models)
20. ZOOM: Zoom in/out the display frame
21. GOTO: Play from the desired location
22. TIME SHIFT: In DTV mode, press TIME SHIFT button to start the delay
function, press the button to start playing delay program, press the
button to terminate the delay function

10 of 34
Reveals hidden information such as the answers to a quiz in TELETEXT
Mode
23. PVR LIST: IN DTV mode, displays the executed PVR LIST.
Displays the main index in TELETEXT mode.
24. USB: Press to switch to USB signal source directly.
Displays the top, bottom or all of the page.
25. DTV/RADIO: In DTV mode, press DTV/RADIO button to enter DTV or RADIO
mode.
Freeze a multi-page selection on TELETEXT mode.
26. Stop Playback
27. REC: In DTV mode, press REC button to start recording, press button
stop recording.
28. SMART Provides quick access to the smart TV functions
29. Play/Pause
30. Fast Forward playback
31. Rewind playback
32. Previous file or chapter
33. Next file or chapter
34. TEXT: Turn on and off the Teletext function
35. D.MENU (disabled, used for DVD combo model only)
36. SUBTITLE: Select subtitle of media video file (requires the support of disk or
file)
37. GUIDE: Show the Electronic Program Guide (EPG)
Press the appropriate colour to direct access functions in
TELETEXT or EPG OSD mode
SMART CONTROLS
when the TV is in smart mode the following keys are activating android
navigations functions
Use arrows to navigate the smart TV menu and OK key to select. Basic
navigation and text input can be done via those keys. Certain functions
will required virtual remote or the optional all-in-one advanced remote.
While mouse emulation is off the arrow keys deliver basic scrolling.

11 of 34
MENU contextual menu and options
BACK key navigation
Turns on / off the mouse emulation. Use the arrows to navigate and OK to
select. To return to keys navigation press mouse key again.
Search function enable quick text search
HOME function returns to the main smart tv menu
The smart navigation on standard TV remote control provides basic smart tv
navigation and flawless Kodi operation.
How to use mouse emulation button from remote: Press the yellow MOUSE key. You
will get an arrow cursor on the screen. Press the arrow keys to control the cursor
up/down/right/left. Use “OK” button to confirm as left mouse click. Use “Back”
button to confirm as right mouse click.
For an enhanced experience, when you play games or operating other complex apps
we recommend using virtual smart phone remotes or the optional extended
gyroscopic all-in-one remote with keyboard. If using a hardware standard USB mouse
the following functions are mapped: Left click –confirm; Right click –Back
navigation; mouse wheel: scroll, page up and down; Middle click –Menu.
BATTERY INSTALLATION
1. Open the battery cover.
2. Insert 2 AAA batteries in the battery compartment, matching the polarities
correctly.
3. Replace the battery cover.

12 of 34
SETTINGS
INITIAL SETUP
1. Connect the TV set to a power outlet.
2. Press the POWER button on the remote or on the TV set to turn on the TV
(the indicator will be lit green)
NOTE: Pressing the power button on the remote or TV set will place the TV
into standby mode only. If the TV set is expected to be not in use for a long
period of time, please disconnect it from the power source.
3. Press the to choose the preferred item and press OK
button to confirm the settings.
UK

13 of 34

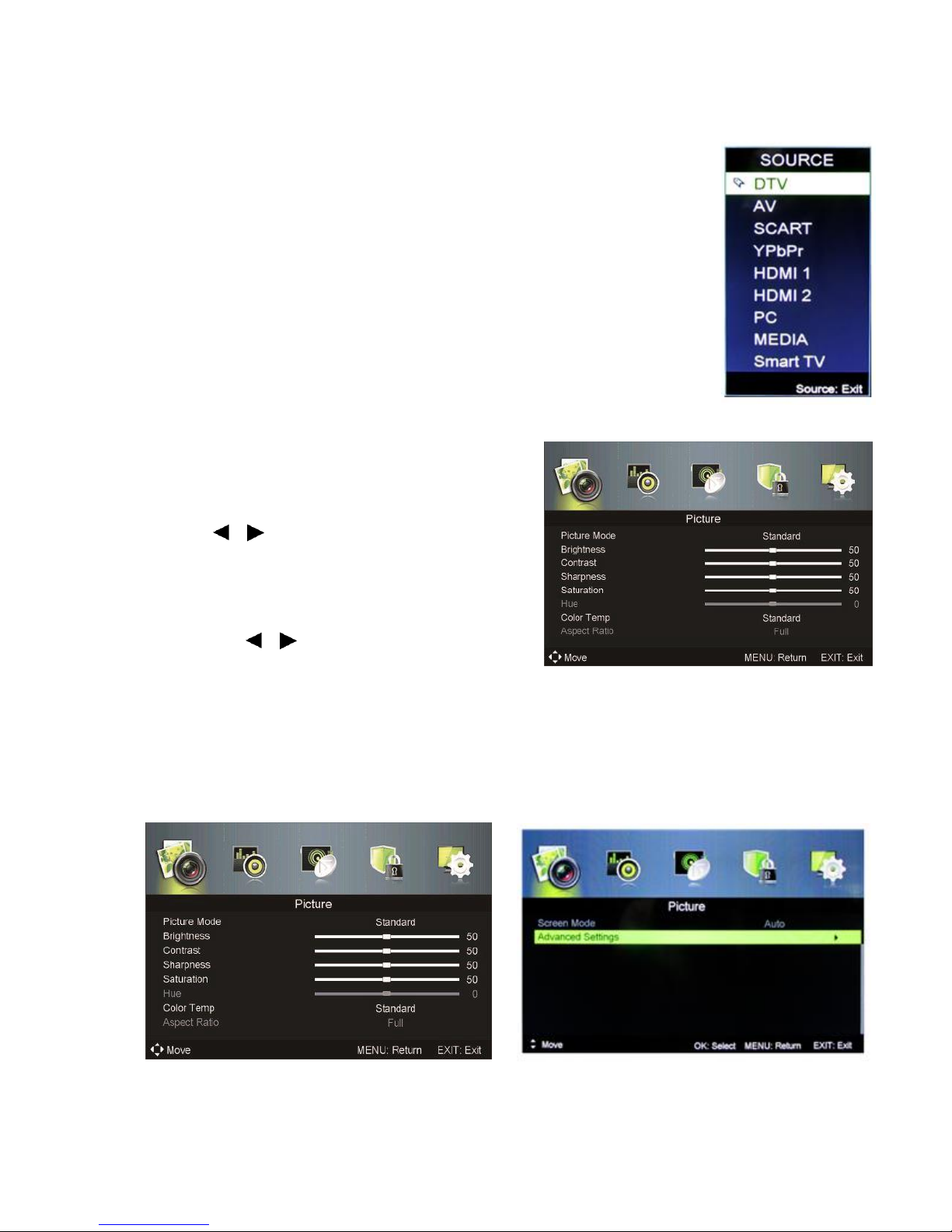

SELECT INPUT SOURCE
Available options: DTV, ATV, AV, SCART, YPbPr, HDMI 1, HDMI 2,
PC, MEDIA, SMART TV
- Press SOURCE button to display the input source list.
- Press ▲/ ▼or SOURCE button to select the preferred input
source.
- Press OK button to confirm.
- Press EXIT button to exit.
BASIC OPERATIONS
1. Press the MENU button on the remote
control or on the TV to enter the menu
page.
2. Use / buttons to select the main
menu options.
3. Use ▲/ ▼buttons to navigate up and
down within the menu.
4. Use the / buttons to alter the
required setting then press the MENU
button to confirm and return to the previous menu page or press EXIT
button to exit the menu.
PICTURE MENU
Press MENU button to enter the main menu.
After the preferred settings are done, press MENU button to confirm and
return to the previous menu page or press EXIT button to exit the menu.

14 of 34

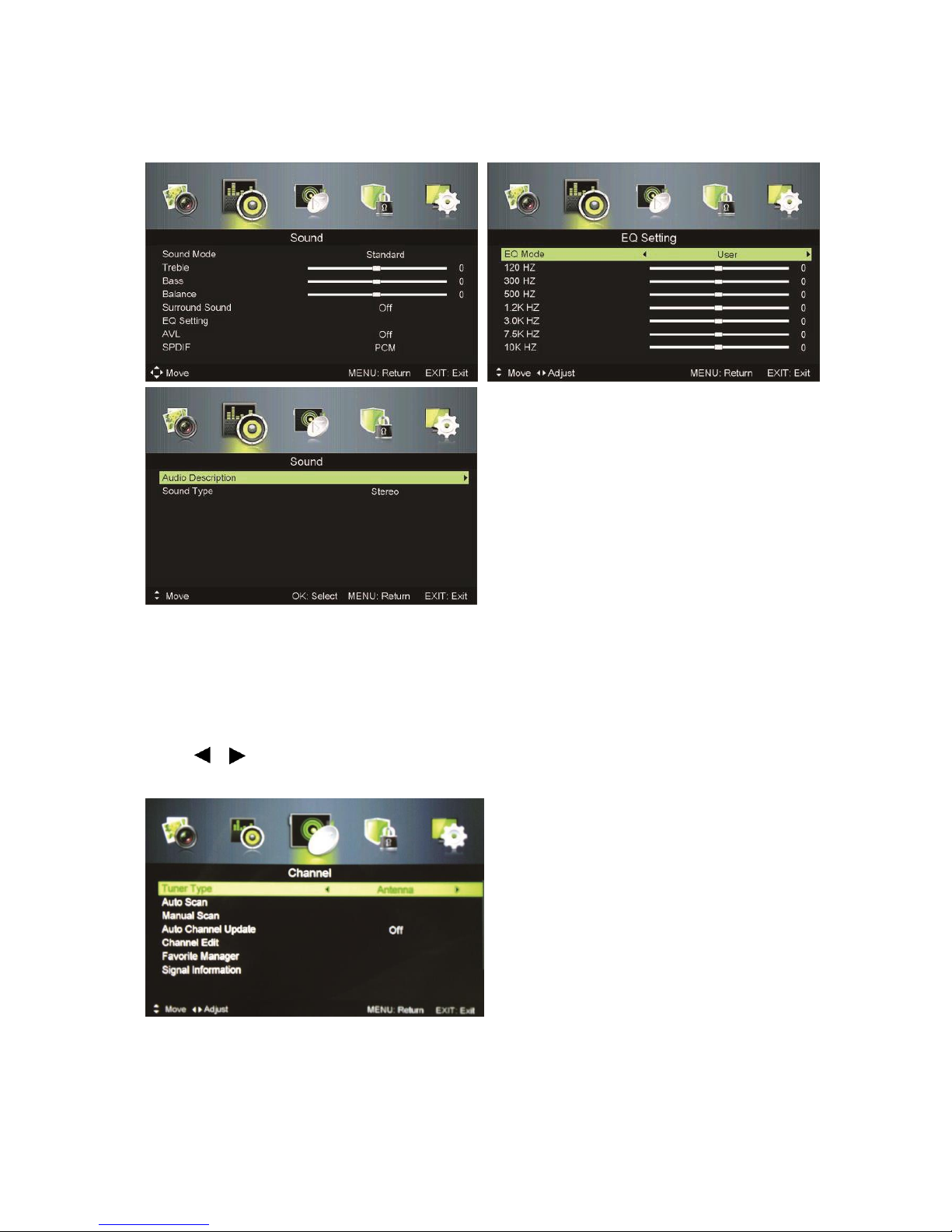

SOUND MENU
Press MENU button to enter the main menu
After the preferred settings are done, press MENU button to confirm and
return to the previous menu page or press EXIT button to exit the menu.
CHANNEL MENU
Press MENU button to enter the main menu.
Press / button to select Channel in the main menu and press OK then ▼to
enter.
1. Press ▲/ ▼button to select the option that you want to select the
preferred item.
2. Press OK button to enter sub-menu

15 of 34
3. Press MENU button to return back to previous menu or press EXIT button
to exit the menu
TUNER TYPE
Press ▲/ ▼button to select tuner type, then press / button to select the
type of antenna, either Antenna or Cable.
Tuner type is Antenna Tuner type is Cable

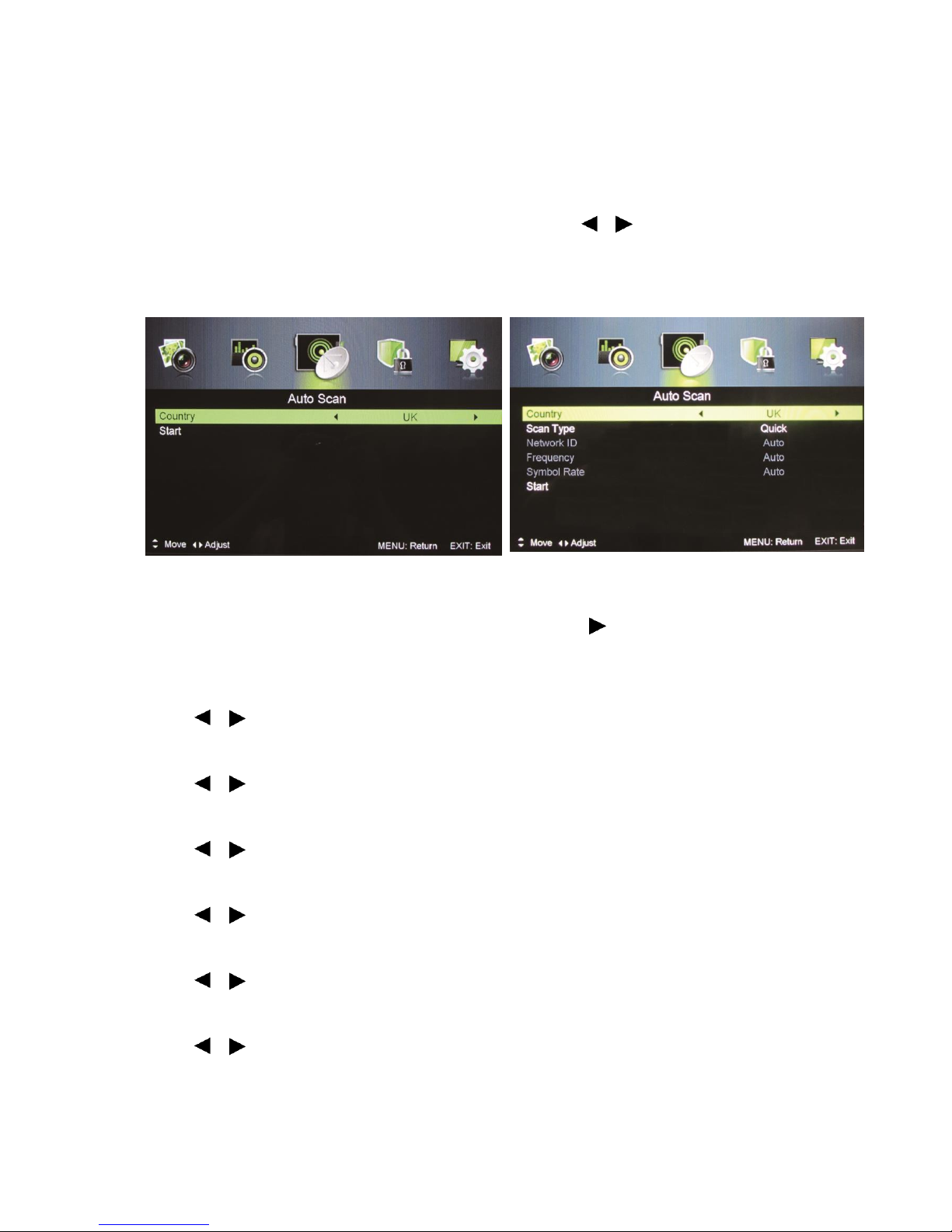

AUTO SCAN
Press ▲/ ▼to select Auto Scan then press OK, then button to enter sub-
menu.
Country
Press / button to select country.
Mode
Press / button to select Mode: DTV+ATV, DTV, ATV.
Scan Type
Press / button to select Scan Type: Advanced, Quick, Full.
Network ID
Press / button to select Network ID: Auto or enter digital numbers.
Frequency
Press / button to select Frequency: Auto or enter digital numbers.
Symbol Rate
Press / button to select Symbol Rate: Auto or digital numbers.

16 of 34
Start
Press OK / button to start the auto searching. It will search digital channels
first, then analogue channels.
Before executing auto channel search please make sure the preferred tuner
type is chosen. Wrongly setting the tuner type may cause failure to find
channels.

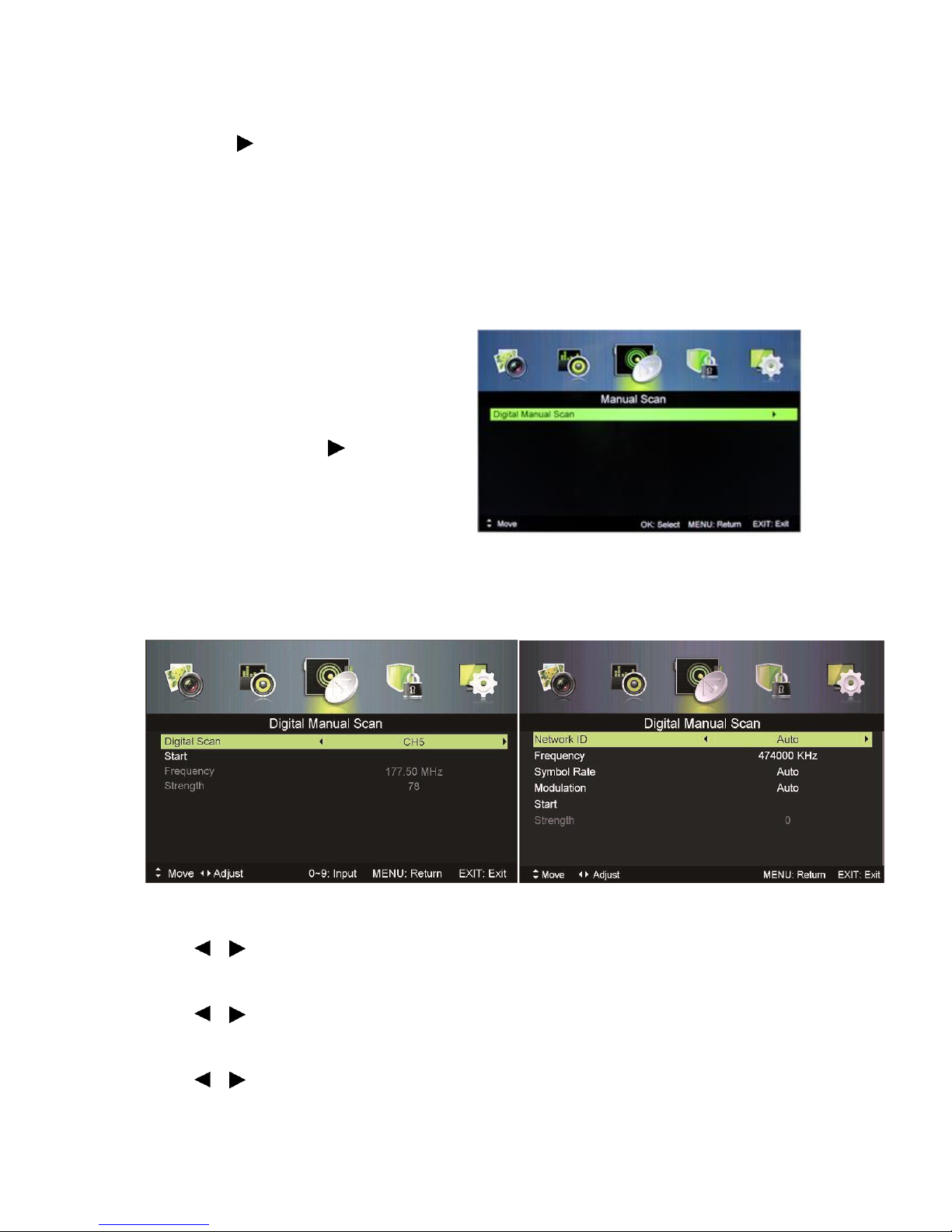

MANUAL SCAN
Search for the channels manually.
Press ▲/ ▼button to select Digital
Scan then press OK / button to
enter sub-menu.
Tuner type is Antenna Tuner type is Cable
Network ID
Press / button to select Network ID: Auto or enter digital numbers.
Frequency
Press / button to select Frequency: Auto or enter digital numbers.
Symbol Rate
Press / button to select Modulation: Auto, 16QAM, 32QAM, 64QAM,
128QAM, 256QAM.

17 of 34
Start
Press OK / button to start the channel searching.
AUTO CHANNEL UPDATE
Press / button to select Auto Channel Update then press OK / button
to select On or Off.
CHANNEL EDIT
Press / button to select Auto Channel Update then press OK / button to
enter sub-menu.

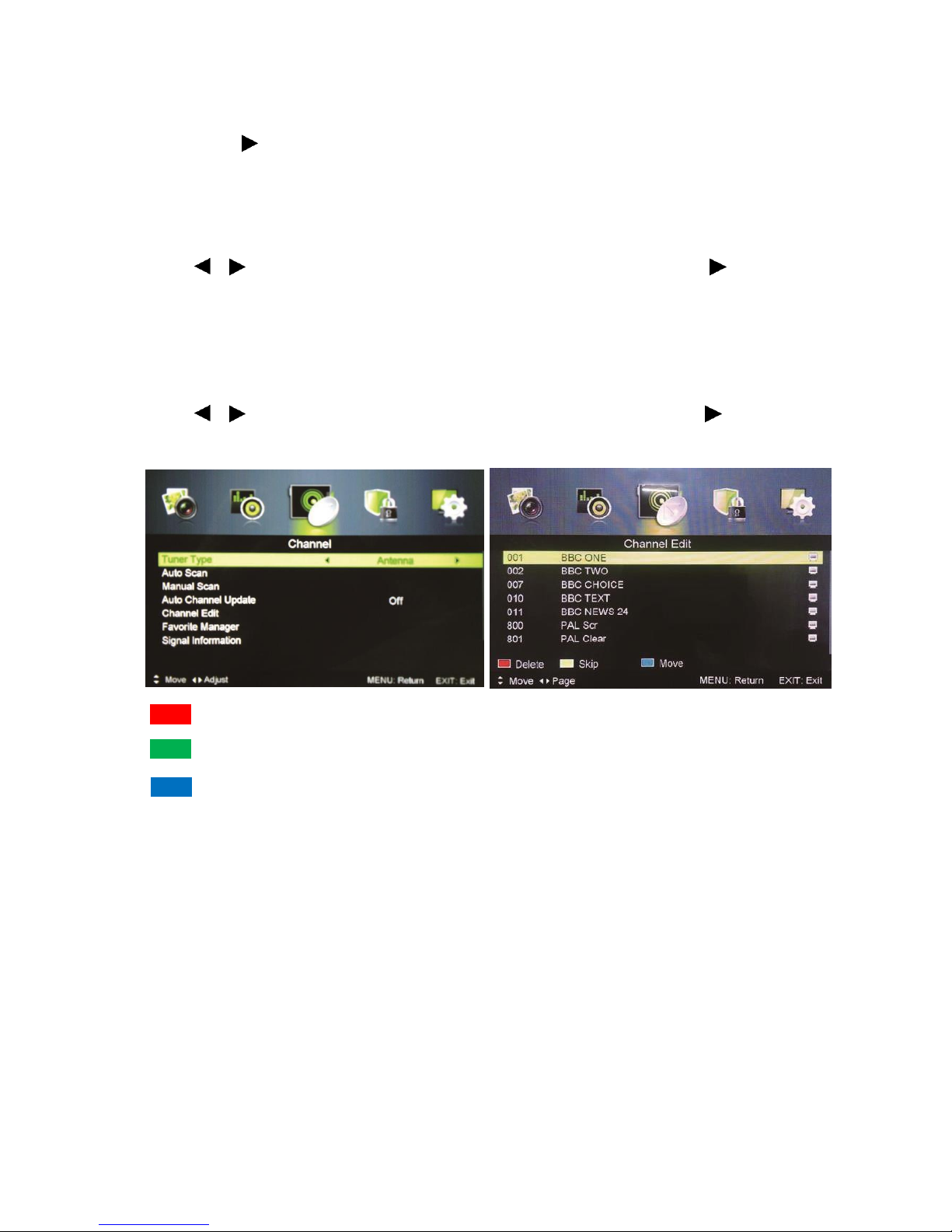

RED button: Delete
GREEN button: Skip
Blue button: Press this button to set the selected channel you want to
move. Press ▲/ ▼to move the selected channel to the preferred position
and press this button again to confirm.
After the setting is done, press MENU button to return to the previous menu
page or press EXIT button to exit the menu.
NOTE: Press the CH+/- to view the channels.

18 of 34

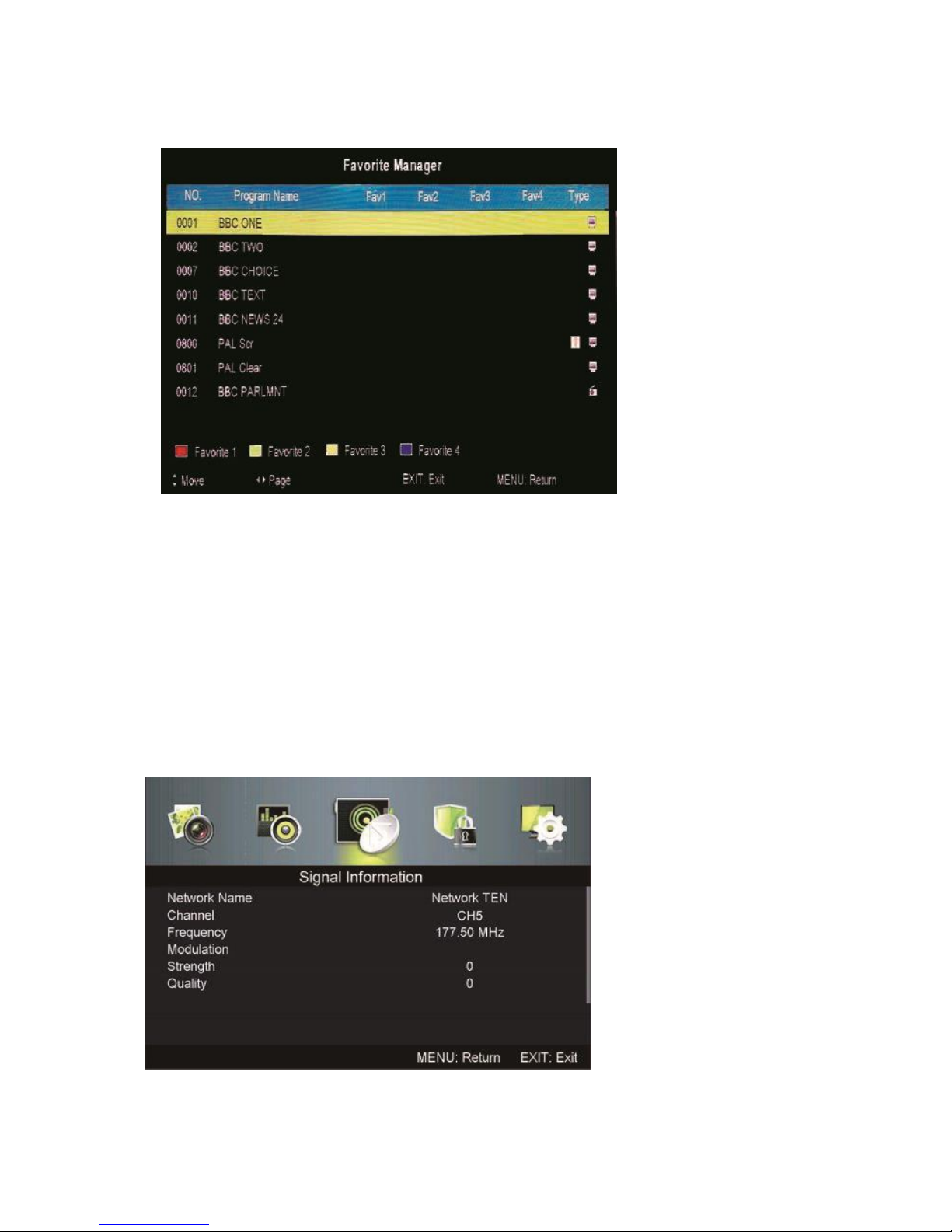

FAVOURITE MANAGER
C
Press ▲/ ▼button to highlight the channel you would like to set as favourite
channel. Press the RED button to set it in favourite group 1. Press the GREEN
button to set it in favourite group 2. Press the YELLOW button to set it in
favourite group 3. Press the BLUE button to set it in favourite group 4.
NOTE: Pressing the FAV button on the remote control will display the Favourite
List.
SIGNAL INFORMATION (Only available in DTV mode)
Press MENU button to enter main menu and select “Signal Information”.

19 of 34
LOCK SYSTEM MENU
Press MENU button to enter the main menu and select “Lock System”
The lock system enables you to put a password on the TV set. The default
password is 0000. To make changes, enter the password and use the ▲/ ▼to
navigate to the required setting. Press the / to make the required
changes then press the MENU button to return or EXIT to exit.
SETUP MENU
Press MENU button to enter the main menu and select “Setup”.
To make changes use the ▲/ ▼to navigate to the required setting. Press the
/ to make the required changes then press the MENU button to return or
EXIT to exit.
First Time Setup
Press ▲/ ▼button to select First Time setup and press OK button to enter.
Audio Languages
Set the Primary and Secondary preferred audio languages.
