ElectrIQ EIQ-49FHDT2SM User manual

49 inch FHD LED TV
EIQ-49FHDT2SM

1
CONTENTS
Safety Informaon………………………………………………………………2
What is included…..……………………………………………………………. 4
TV Stand Installaon/Removal……………………………………………. 5
GengStarted…………………………………………………………………… 6
Connecng to External Devices……………………………………………8
Remote Control………………………………………………………………….. 9
Sengs………………………………………………………………………………11
Smart TV………………………………………………………………………………37
Specificaons……………………………………………………………………..43
Support & Disposal…………………………………………………………….44

2
SAFETY INFORMATION
•Read these instrucons – All the safety and operanginstrucons should be read
before this product is operated.
•Keep these instrucons – The safety and operang instrucons should be
retained for future reference.
•Heed all warnings – All warnings on the appliance and in the operang
instrucons should be adhered to.
•Follow all instrucons – All operang and usage instrucons should be followed.
•Do not use this equipment near water – The appliance should not be used near
water or moisture e.g. in a wet basement or near a swimming pool.
•Clean only with a dry cloth.Do not use solvents or petroleum based fluids.
•Do not block any venlaon openings.
•Do not install near any heat sources such as radiators, stoves or other apparatus
(including am plifiers) that produce heat.
•Do not tamper with the supplied plug.This plug is a BS1363standard plug.
•Protect the power cord from beingwalkedon or pinched, parcularly ahe plug
and at the point where they exit from the appliance.
•Only use at tachments/accessories specified by the manufacturer.
•Use only with a cart, stand, tripod, bracket or table specified by the
manufacturer or sold with the apparatus.When a cart or stand is used, use
cauon when moving it to avoid any injuries or damage from it pping over.
•Unplug the apparatus during lightning storms or when unused for long periods of
me.
•Refer all servicing to qualified personnel.Servicing is required when the
apparatus has been damaged in any way, such as power supply cord or plug is
damaged, liquid has beenspilled or objects have fallen into the apparatus or it
has been exposed to rain or moisture, it does not operate normally or has been
dropped.
•Please keep the unin a well -venlated environment.
•The TV set should only be connected to a mains power supply with 220-240V
50Hz
•To prevent overload, do not share the same power supply socket with too many
other electronic components.
•Do not place any connecng wires where they may be stepped on or tripped
over.
•Do not place heavy items on the cable as this maycause damage.
•Holdthe main plug, notthe wires,whenremovingfrom a socket.

3
•Pull the plug out immediately and seek professional help if the main plug or cable
is damaged, liquid has spilt ontotheset, if accidentally exposed to water or
moisture, if anything accidentally penetrates the venlaon slots or if the set
does not work normally.
•Do not remove the safety covers.Thereare no userserviceable parts inside.
Trying to service the unit yourselfis dangerous and may invalidate the product’s
warranty.Only qualified personnel should service this apparatus.
•To avoid baery leakage,remove exhausted baeries from the remote control
whennot in use for a longperiod.
•Do not block venlaon slots on the back cover.The TV can be placed in a
cabinet but ensure at least 5cm (2”) clearance all around.
•Do not tap or shake the TV screen, this may damage internal components.
•WARNING: To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture.The apparatus shall not be exposed to dripping or
splashing and objectsfilled with liquids, such as vases, shall not be placed on the
apparatus.
•WARNING: The wall plug sockes used as a disconnecon device and should
remain readilyaccessible.
•WARNING: The baeries shall not be exposed to excessive heat such as direct
sunlight or fire.
This warning sign is to
warn of dangerous voltage
inside the product.
CAUTION: To reduce the risk of
electric shock, DO NOT remove the
cover (or back).No user serviceable
parts inside.Refer servicing to
qualified service personnel.
This warning sign is to alert
you of important
instrucons accompanying
the product.
This equipment is a Class II or double insulated electrical appliance.
It does not require a grounded connecon.
AT FULL VOLUME, PROLONGED LISTENING MAY DAMAGE THE
USER’S HEARING.

4

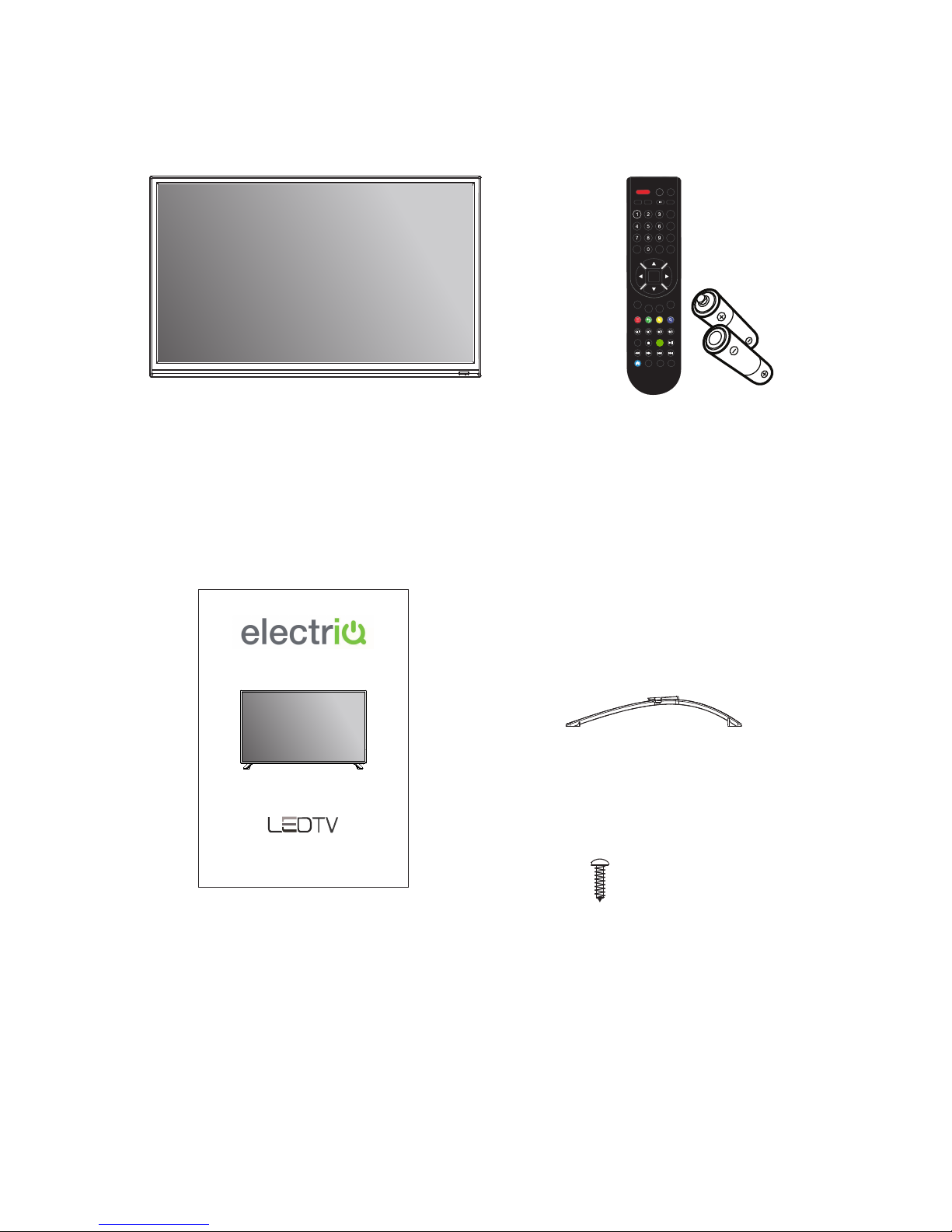

WHAT IS INCLUDED
TV Set Remote Control (2 xAAA Baeries)
Base Stand
Stand Support
6Screws
User’s Manual
V+
V- P-
P+
REPEAT
SMART
SUBTITLE
MUTEPOWER SOURCE
P.MODE S.MODE P.SIZE
JUMP
MENU INFO EXIT
OK
SLEEP
FAV.CH
AUDIO
PVR.LIST TIME SHIFT DTV/RADIO
REC
GUIDETEXTHOME
BACK
PG+
PG-
SEARCHMOUSE
DELETE
MENU
49 inch FHD LED TV
EIQ-49FHDT2SM

5
TV STAND INSTALLATION/REMOVAL
WALL MOUNTING

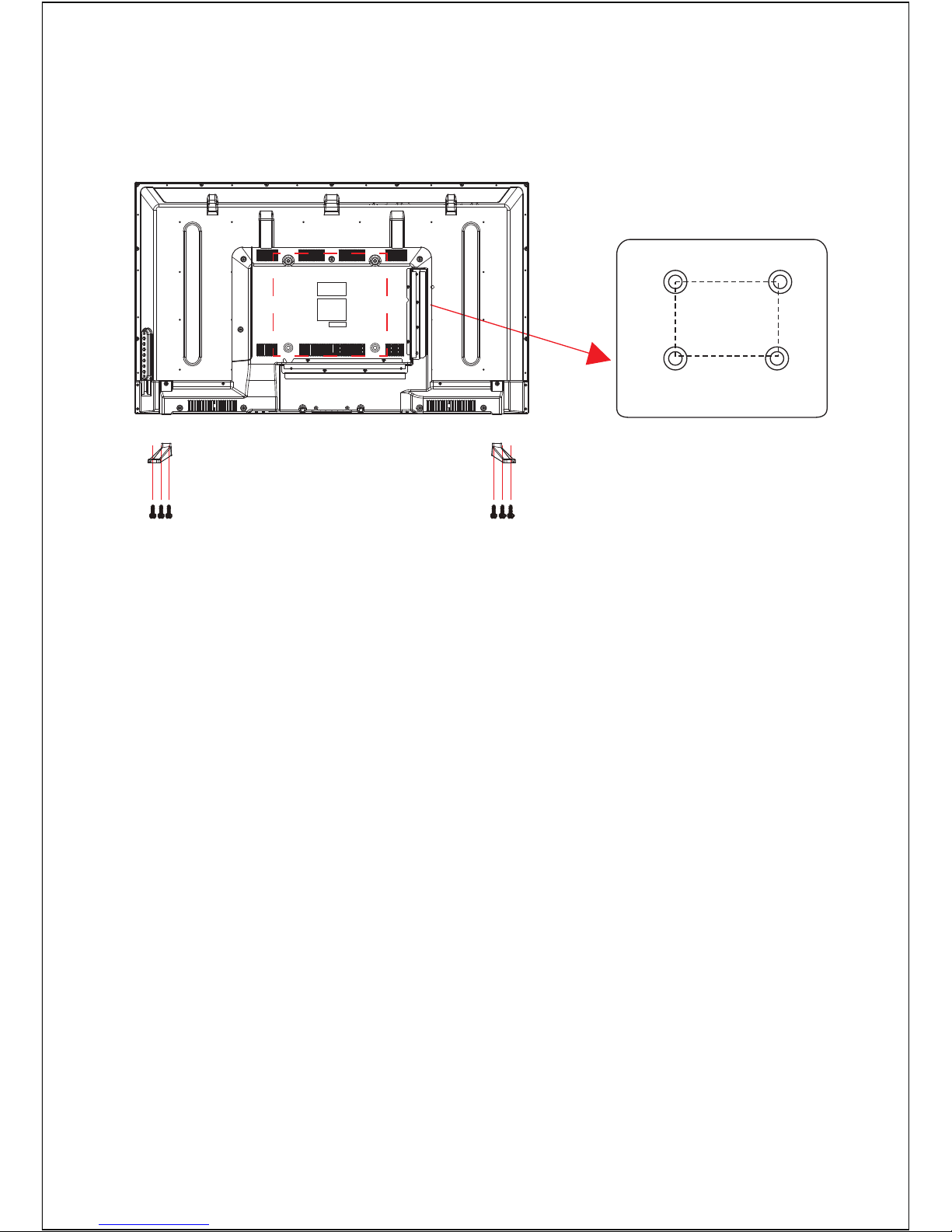

•The TV is provided with mounng holes for a VESA approved wall mounng
bracket (not supplied)
•The VESA mounng paern is 400x200mm and the size of the screws is 4 x
M6x10(not supplied)
•Do not use screws longer than 10mm or damage will occur to the internal
components.
NOTE:As the TV set is considered heavy, please consult with a professional
wall mounn staller to perform the installaon.
Four mounng holes
(size M6 screw)
400mm
200mm
Screws(3）Screws(3)
4*18BMH 4*18BMH

6
GETTING STARTED
BUTTON FUNCTIONS
1.POWER BUTON: To turn ON/OFF the
TV
2.SOURCE Buon: To select the input
source.
3.MENU Buon: To enter menu seng
page.
4.VOL-: To decrease the volume level.
5.VOL+: To increase the volume level
6.CH-: To select previous channel
7.CH+: To select next channel
8.Remote Control Sensor
9.Power Indicator: In standby mode the indicator light will display red,
when switching on the unit theindicator light willdisplay green.

7
INPUT / OUTPUT TERMINALS
1.Headphones
2.YPbPr: Connect to the YPbPr video output terminal of the DVD player
3.Back USB x2. Provides access to SMART TV. Connect smart remotes,keyboards,
gaming accessories or usb flash drive Side USB x 1 can be used for DTV recording,
meshi or as a media player file.
Note: only connect low power USB flash drives or externally powered hard
drives to the 3x USB ports as they only provide 0.5 Amps power
4.RF: Antenna connecon
5. Coaxial：Coaxial output
6.HDMI x2
9.PC Audio: connect it to the audio
10.VGA: PC Video input
11.RJ45
4
5
6
78910311
7. AUDIO IN L/R: Stereo audio input
8. VIDEO: Video input
HDMI1 HDMI2
VGA PC AUDIO VIDEO L RAUDIO RJ45 USB1/USB2
5V 0.5A
YPbPrUSB Headphone
5V 0.5A
RF
COAXIAL

8
CONNECTING TO EXTERNAL DEVICES
HDMI
cable
cable TV
company
VHF/UHF
antenna
cable receiver/satellite box
RF Coaxial
cable
VGA
cable
Audio
cable
Component
cable
Composite
cable
HDMI1 HDMI2
VGA PC AUDIO VIDEO L RAUDIO RJ45 USB1/USB2
5V 0.5A
YPbPrUSB Headphone
5V 0.5A
RF
COAXIAL

V+
V- P-
P+
REPEAT
SMART
SUBTITLE
MUTEPOWER SOURCE
P.MODE S.MODE P.SIZE
JUMP
MENU INFO EXIT
OK
SLEEP
FAV.CH
AUDIO
PVR.LIST TIME SHIFT DTV/RADIO
REC
GUIDETEXTHOME
BACK
PG+
PG-
SEARCHMOUSE
DELETE
MENU
9
1.POWER: Turn on the TV/Standby
2.MUTE: Mute or restore the sound
3.SOURCE: Press to change the signal source
4.S.MODE:Sengaudio opons
5.P.MODE: Output image mode selecon
6.AUDIO: Switch the audio channel when DVD or
mulmedia playing. I/II: In the TV mode, press this
buon to select the stereo size
7.P.SIZE: Press to select the different picture size.
8.NUMBER KEYS:Change the channel
9.FAV.CH: Show the list of favourite channels
10.SLEEP: Auto Power OffTimer
11.JUMP: Return to the previous channel tuned
12.MENU: Show Menu
13.EXIT: Exihe Menu
14.INFO: Show informaon about the current program
15.NAVIGATION KEYS (Up, Down, Le, Right and OK): To
move in themenus and confirmsengs.
16.V+/V-: Increase /decrease volume
17.P+/P-: Next /previous channel
18.BACK: key navigaon.
19.MENU: contextual menu and opons
20.MOUSE: Turns on / off the mouse emulaon.
Use the arrows to navigate and OK to select. To return
to keys navigaon press mouse key again.
21. SEARCH: funcon enable quick text search.
Press the appropriate colour to direct
access funcons in TELETEXT or EPG OSD mode.
22.TIME SHIFT: In DTV mode, press TIME SHIFT buon to start the delay
funcon, press the buon to startplaying delayprogram, press the
buon to terminate the delay funcon
Reveals hiddeninformaon such as the answers to a quiz in TELETEXT Mode.
23.PVR LIST: IN DTV mode, displays the executed PVR LIST.
Displays the main index in TELETEXT mode.
1
4
5
8
12
16
19
22
18
23
26
27
30
31
34
35
2
3
6
7
9
10
11
13
14
17
21
24
20
25
28
29
32
33
36
37
15
REMOTE CONTROL

24.REPEAT: Repeat mode.
10
Displays the top, boom or all of the page.
25.DTV/RADIO: In DTV mode, press DTV/RADIO buon to enter DTV or RADIO
mode.
Freeze a mul-page selecon on TELETEXT mode.
26.Stop Playback
27.REC: In DTV mode, press REC buon to start recording, press buon
stop recording.
28. Smart : Provides quick access to the smart TV funcons.
29.Play/Pause.
30.FastForward playback
31.Rewind playback
32.Previous file or chapter
33.Nexile or chapter
34.TEXT: Turn on and offthe Teletext funcon
35. funcon returns to the main smart tv menu.
36.SUBTITLE: Select subtle of media video file (requires the support of disk or
file)
37.GUIDE: Show the Electronic Program Guide(EPG)
BATTERY INSTALLATION
1.Open the baery cover.
2.Insert 2 AAA baeries in the baery compartment, matching the polaries
correctly.
3.Replace the baery cover.

11
SETTINGS
INITIAL SETUP

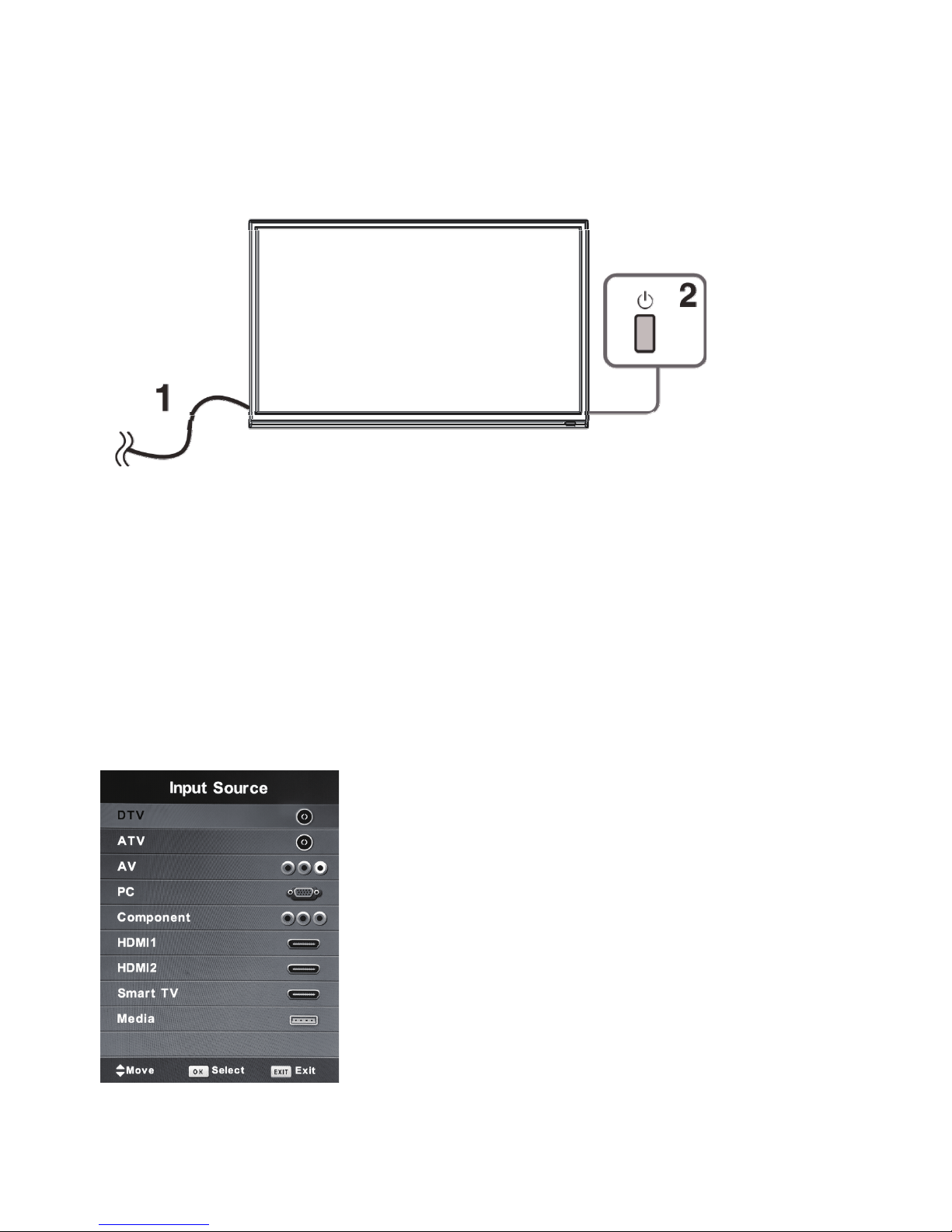

SELECT INPUT SOURCE
Press INPUT buon to display the input source list,
Press ▼ / ▲ or OK buon to select the input source
you want to,
Press OK buon to enter the input source,
Press EXIT buon to quit.
1.Connect the TV setto a power outlet.
2.Press the POWER buon on the remote or on the TV set to turn on the TV
(the indicator will be lit green)
NOTE:Pressing the power buon on the remote or TV set willplace the TV
into standbymode only.If the TV set is expected to be not in use for a long
period of me, please disconnect itfrom the power source.

12

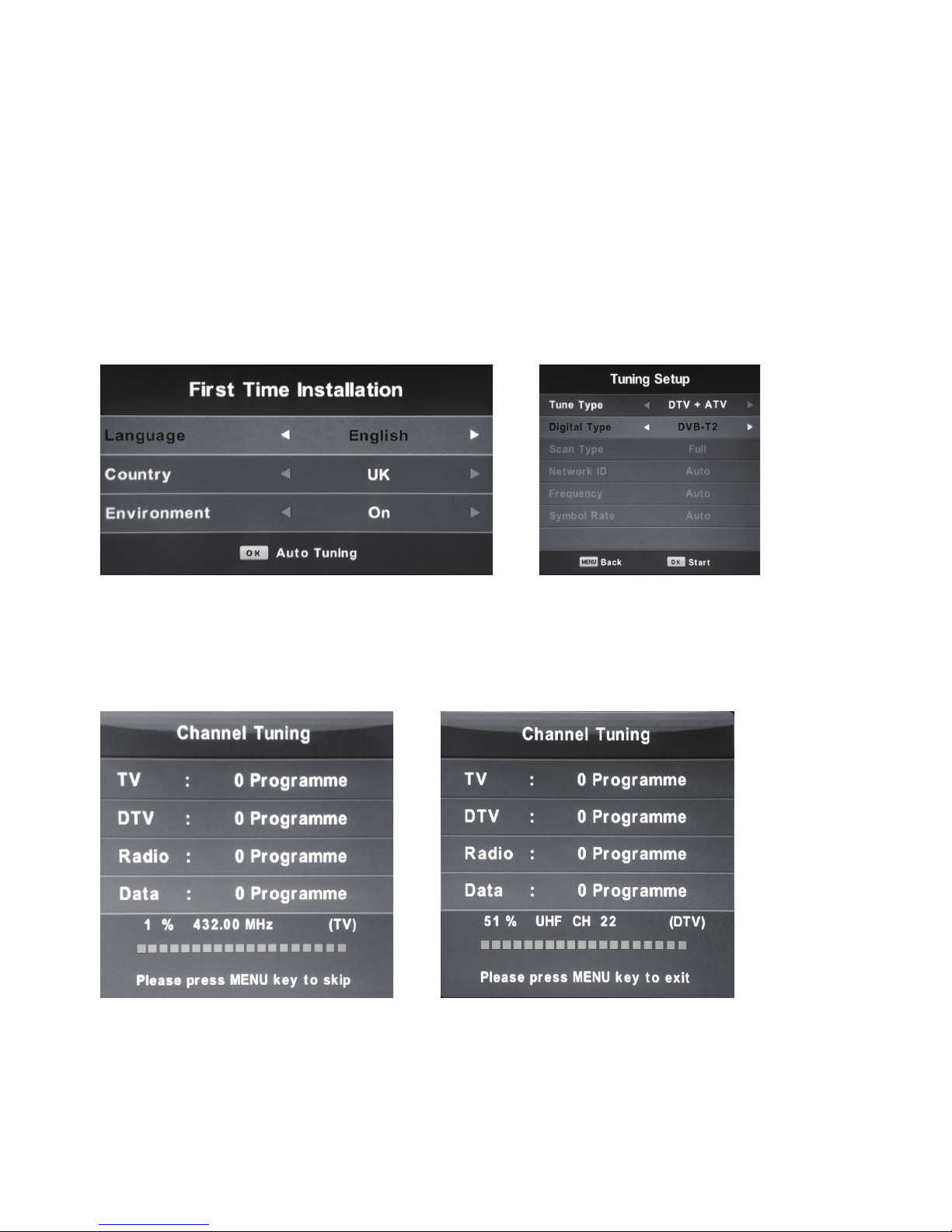

First Time Installaon
Connect an RF cable from the Tv’s input called “RF-In” and to your TV Aerial socket.
Select Language
Press ◄ / ► buon to select the language to be used for menus and message.
Select Country
Press ▼ / ▲ buon to highlight country menu.
Press ◄ / ► buon to select the country you want to.
Auto Tuning
First tuning ATV, press Menu and le arrow buon to skip ATV tuning,
Second tuning DTV, press Menu and le arrow buon to skip DTV tuning.

13

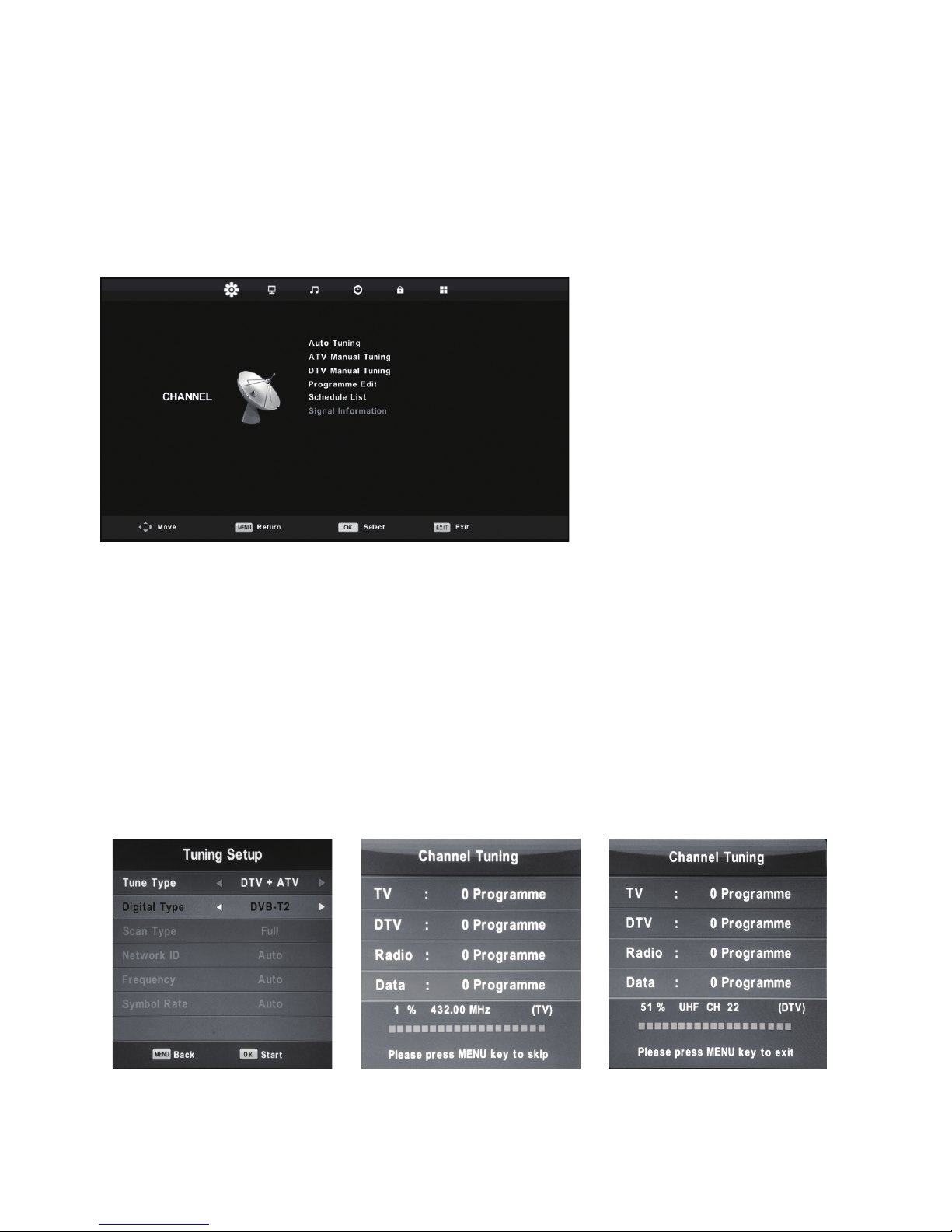

Main Menu Operaon
Channel Menu
Press MENU buon to display the main menu .
Press ◄ / ► buon to select CHANNEL in the main menu.
1. Press ▼ / ▲ buon to select the opon that you want to adjust in the CHANNEL menu.
2. Press Enter buon to adjust.
3. Aer finishing your adjustment, Press Enter buon to save and return to the previous
menu.
Auto Tuning
Press ▼ / ▲ buon to select Auto Tuning, then press Enter/► buon to enter.

14

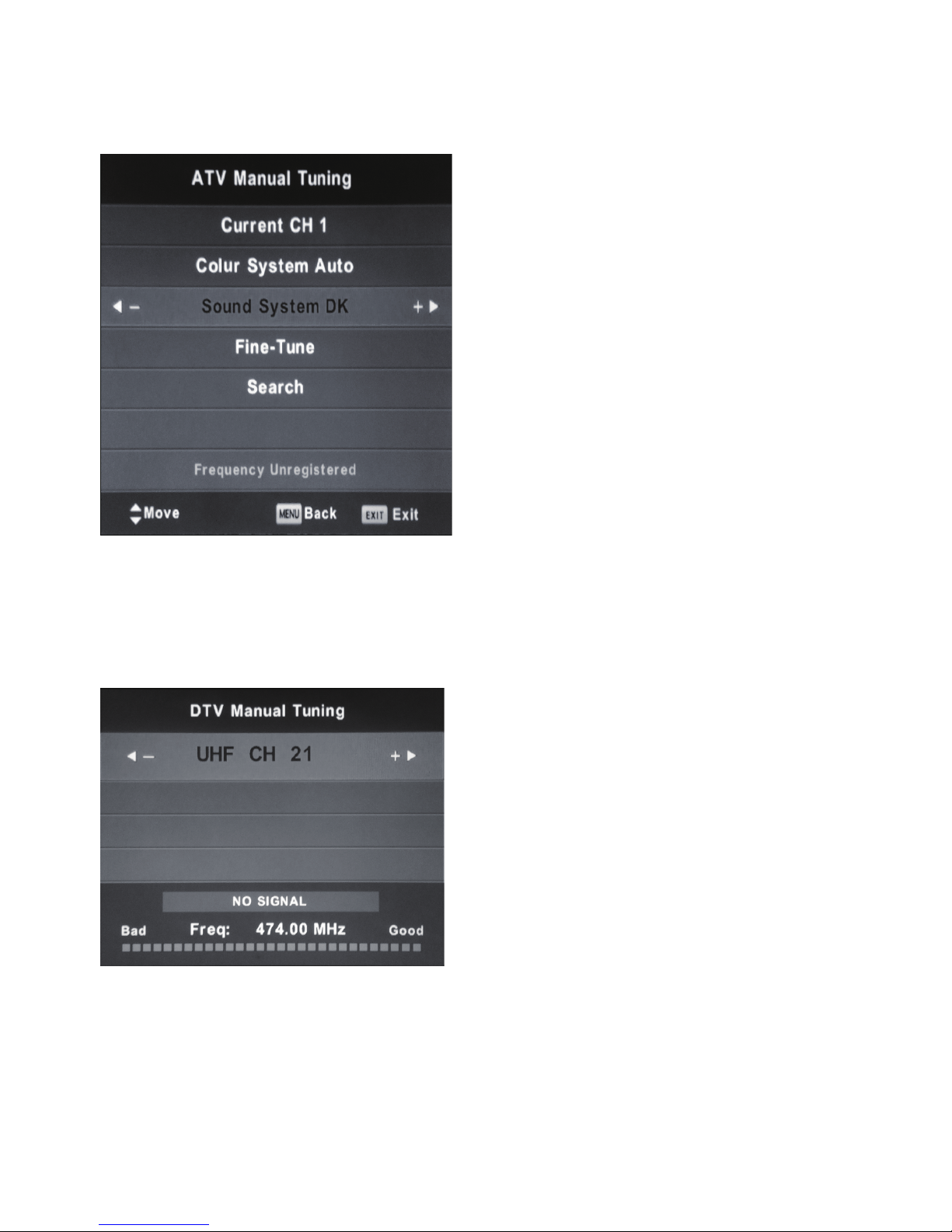

ATV Manual Tuning
Current CH
Set the channel number.
Colour System
Select the colour system
Sound System
Select the Sound system
Fine-Turn
Adjust the frequency of the channel finely.
(Available System: AUTO,PAL , SECAM )
Search
Start searching channel
DTV Manual Tuning
Press ▼ / ▲ buon to select DTV Manual Tuning, then press Enter buon to enter
sub-menu.
Press ◄ / ► buon to select channel, then press Enter buon to search program.
Program Edit
Press ▼ / ▲ buon to select Program Edit, then press Enter buon to enter sub-menu.

15
The three coloured key is the shortcut key for programming
the channel.
First press ▼ / ▲to highlight the channel you want to select, then:
Press the Red buon to delete the program in the list.
Press the Yellow buon to move the channel in favorite list.
Press the Blue buon to skip the selected channel.
Press Fav buon to add or remote the channel to your favorite list.
(Your TV set will skip the channel automacally when using
CH+/- to view the channels.)

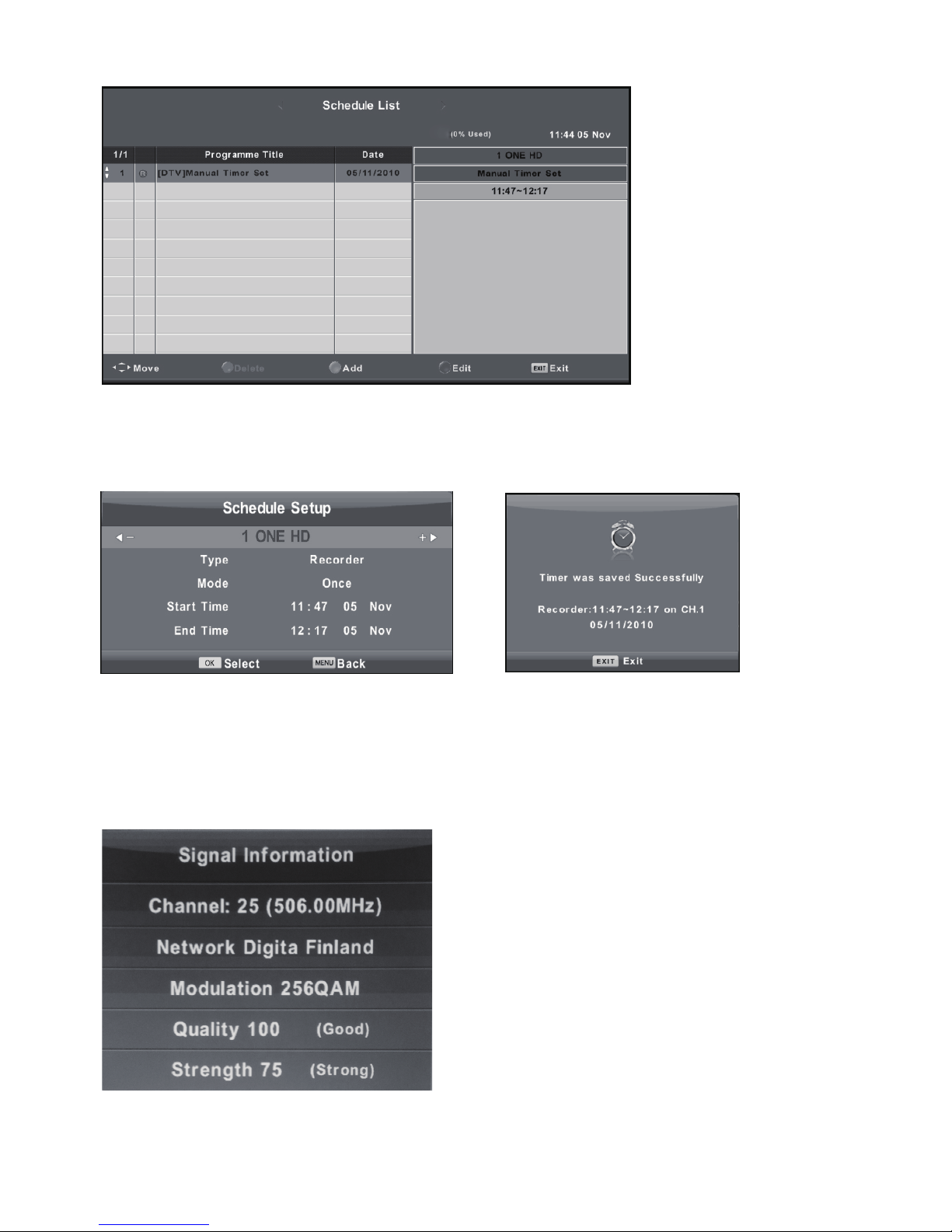

Schedule List
Press ▼ / ▲ buon to select Schedule List, then press Enter buon to enter sub-menu.
It is available in source.

16
Press the YELLOW buon to enter the
interface below.
When the me appointment is conflict ,
it will produce a warning message.
Signal Informaon
Press ▼ / ▲ buon to select Signal Informaon, press the Enter buon to see the
detail informaon about the signal. Only available when there is signal in DTV.

17
Picture Menu
Press MENU buon to display the main menu.
Press ◄ / ► buon to select PICTURE in the main menu.
1. Press ▼ / ▲ buon to select the opon that you want to adjust in the PICTURE menu.
2. Press OK buon to adjust.
3. Aer finishing your adjustment, Press MENU buon to save and return back to the
previous menu.
Picture Mode
Press ▼ / ▲ buon to select Picture Mode, then press OK buon to enter sub-menu.
You can change the value of contrast, brightness, colour, sharpness and nt when the
picture is in Personal mode.
TIPS: You can press PMODE buon to change the Picture Mode directly.

18
Contrast/ Brightness/ Colour/ Tint / Sharpness
Press ▼ / ▲ buon to select opon, then press ◄ / ► buon to adjust.
Contrast Adjust the highlight intensity of the picture, but the shadow of the picture
is invariable.
Brightness Adjust the opcal fiber output of the enre picture, it will effect the dark
region of the picture.
Colour Adjust the saturaon of the colour based on your own like.
Tint Use in compensang colour changed with the transmission in the NTSC code.
Sharpness Aadjust the peaking in the detail of the picture.
Colour Temp
Press ▼ / ▲ buon to select Colour Temperature , then press OK buon to enter sub-menu.
Press ◄ / ►buon to select. (Available Picture mode: Cool, Medium, Warm).
You can change the value of red,green and blue when the colour temperature is in User
mode.
Cold Increase the blue tone for the white.
Normal Set to default colour temperature.
Warm Increase the red colour for the white.
Noise Reducon
To filter out and reduces the image noise and improve picture quality.
Press ▼ / ▲ buon to select Noise Reducon , then press OK buon to enter sub-menu.

19
Off Select to turn off video noise detecon.
Low Detect and reduce low video noise.
Middle Detect and reduce moderate video noise.
High Detect and reduce enhanced video noise.
Default Set as Default.
Sound Menu
1. Press ▼ / ▲ buon to select the opon that you want to adjust in the SOUND menu.
2. Press Enter buon to adjust.
3. Aer finishing your adjustment, Press Enter buon to save and return to the previous
menu.
