ElectrIQ EIQ-32HDT2 User manual

32 inch HD LED TV
EIQ-32HDT2

1
CONTENTS
Safety Information……………………………………………………………… 2
What is included… …………………………………………………………… 4
TV Stand Installation/Removal…………………………………………… 5
Getting Started…………………………………………………………………… 6
Connecting to External Devices…………………………………………… 8
Remote Control………………………………………………………………… 9
Settings………………………………………………………………………………11
Specifications…………………………………………………………………… 23
Support & Disposal…………………………………………………………… 24

2
SAFETY INFORMATION
•Read these instructions – All the safety and operating instructions should be read
before this product is operated
•Keep these instructions – The safety and operating instructions should be
retained for future reference
•Heed all warnings – All warnings on the appliance and in the operating
instructions should be adhered to
•Follow all instructions – All operating and usage instructions should be followed
•Do not use this equipment near water – The appliance should not be used near
water or moisture e g in a wet basement or near a swimming pool
•Clean only with a dry cloth Do not use solvents or petroleum based fluids
•Do not block any ventilation openings
•Do not install near any heat sources such as radiators, stoves or other apparatus
(including amplifiers) that produce heat
•Do not tamper with the supplied plug This plug is a BS1363 standard plug
•Protect the power cord from being walked on or pinched, particularly at the plug
and at the point where they exit from the appliance
•Only use attachments/accessories specified by the manufacturer
•Use only with a cart, stand, tripod, bracket or table specified by the
manufacturer or sold with the apparatus When a cart or stand is used, use
caution when moving it to avoid any injuries or damage from it tipping over
•Unplug the apparatus during lightning storms or when unused for long periods of
time
•Refer all servicing to qualified personnel Servicing is required when the
apparatus has been damaged in any way, such as power supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus or it
has been exposed to rain or moisture, it does not operate normally or has been
dropped
•Please keep the unit in a well-ventilated environment
•The TV set should only be connected to a mains power supply with 220-240V
50Hz
•To prevent overload, do not share the same power supply socket with too many
other electronic components
•Do not place any connecting wires where they may be stepped on or tripped
over
•Do not place heavy items on the cable as this may cause damage
•Hold the main plug, not the wires, when removing from a socket

3
•Pull the plug out immediately and seek professional help if the main plug or cable
is damaged, liquid has spilt onto the set, if accidentally exposed to water or
moisture, if anything accidentally penetrates the ventilation slots or if the set
does not work normally
•Do not remove the safety covers There are no user serviceable parts inside
Trying to service the unit yourself is dangerous and may invalidate the product’s
warranty Only qualified personnel should service this apparatus
•To avoid battery leakage, remove exhausted batteries from the remote control
when not in use for a long period
•Do not block ventilation slots on the back cover The TV can be placed in a
cabinet but ensure at least 5cm (2”) clearance all around
•Do not tap or shake the TV screen, this may damage internal components
•WARNING: To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture The apparatus shall not be exposed to dripping or
splashing and objects filled with liquids, such as vases, shall not be placed on the
apparatus
•WARNING: The wall plug socket is used as a disconnection device and should
remain readily accessible
•WARNING: The batteries shall not be exposed to excessive heat such as direct
sunlight or fire
This warning sign is to
warn of dangerous voltage
inside the product
CAUTION: To reduce the risk of
electric shock, DO NOT remove the
cover (or back) No user serviceable
parts inside Refer servicing to
qualified service personnel
This warning sign is to alert
you of important
instructions accompanying
the product
This equipment is a Class II or double insulated electrical appliance
It does not require a grounded connection
AT FULL VOLUME, PROLONGED LISTENING MAY DAMAGE THE
USER’S HEARING.

4

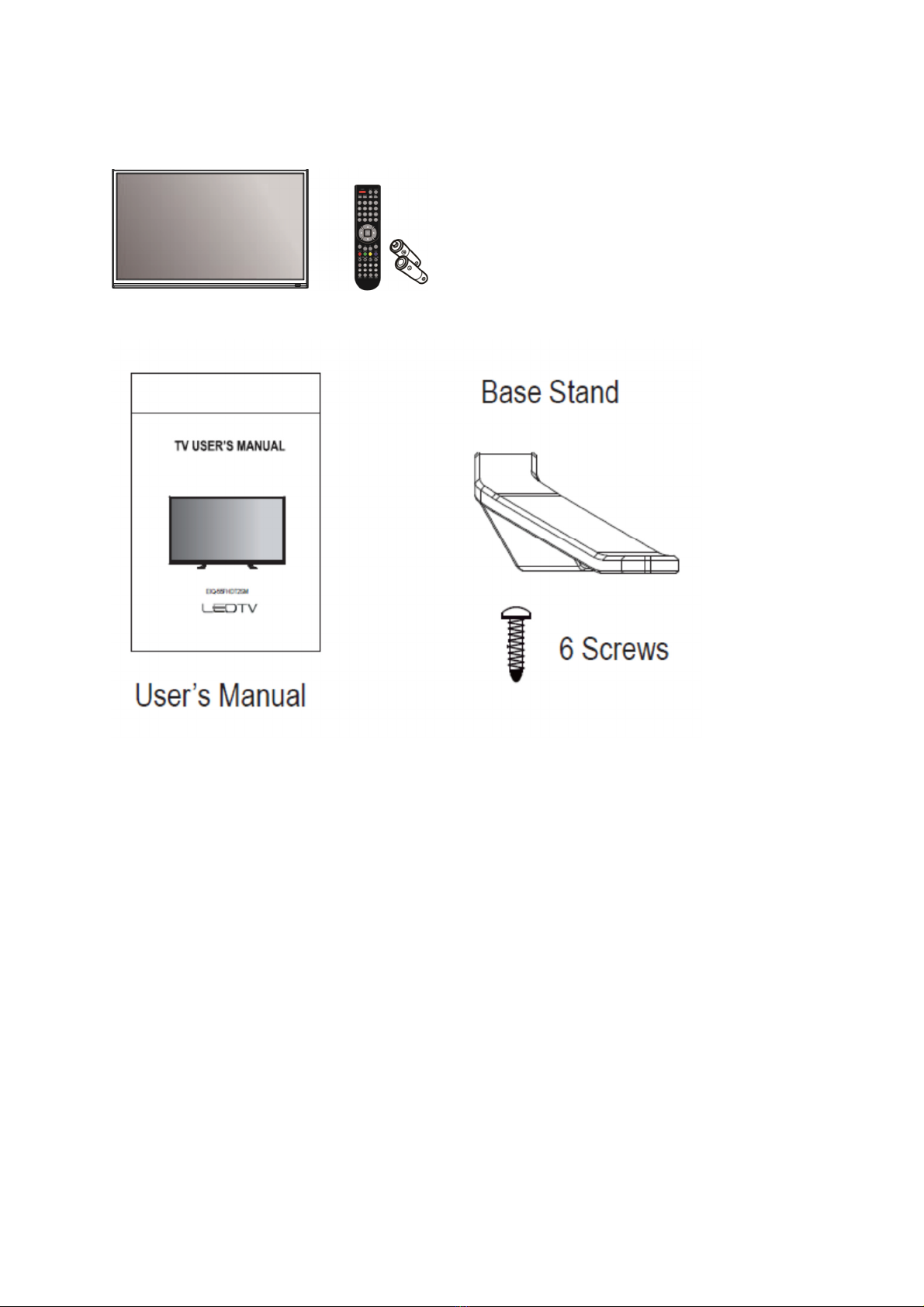

WHAT IS INCLUDED
TV Set Remote Control (2xAAA batteries)

5

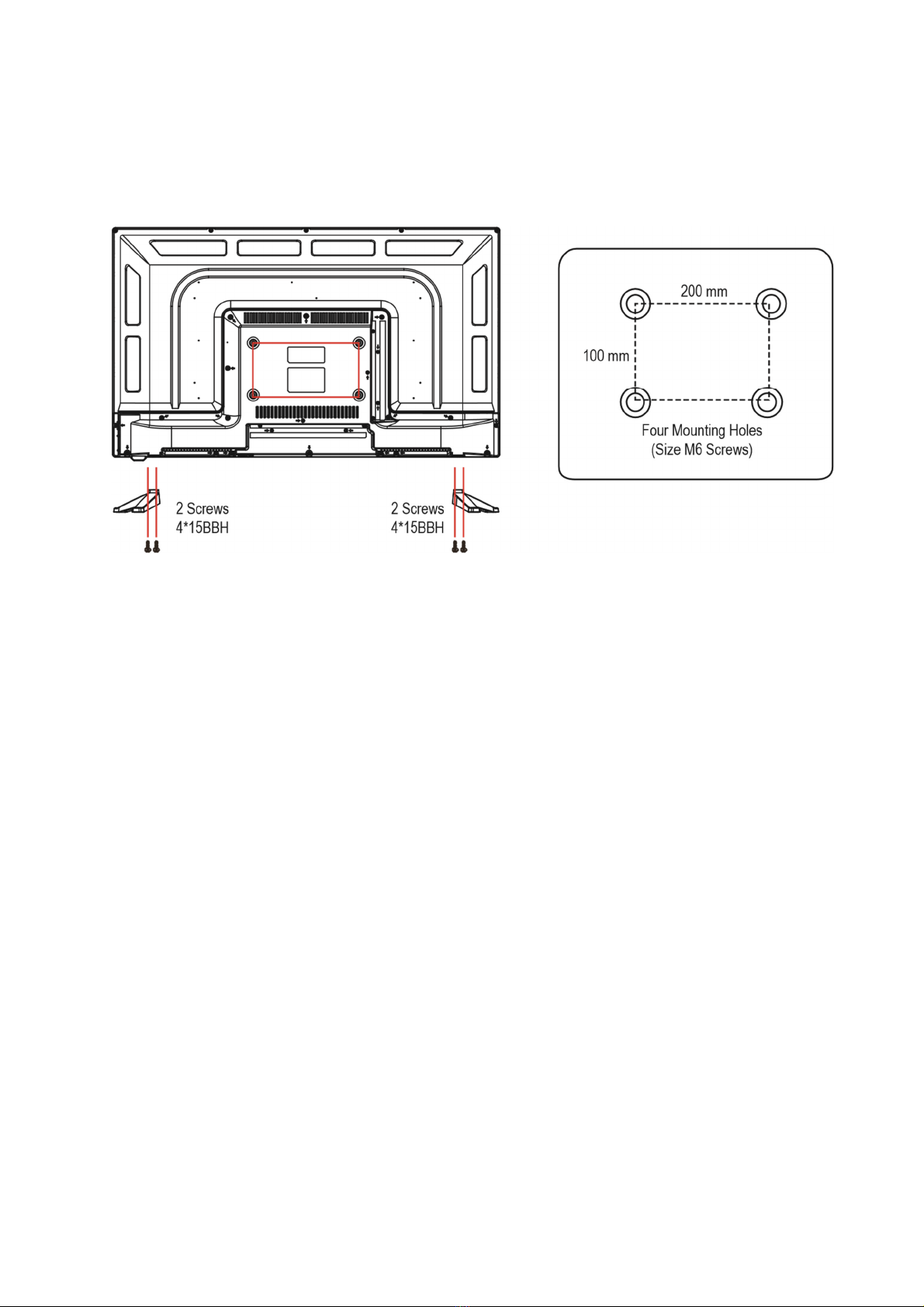

TV STAND INSTALLATION/REMOVAL
WALL MOUNTING
•The TV is provided with mounting holes for a VESA approved wall mounting
bracket (not supplied)
•The VESA mounting pattern is 200x100mm and the size of the screws is 4 x
M6 x 12 (not supplied)
•Do not use screws longer than 12mm or damage will occur to the internal
components
NOTE: As the TV set is considered heavy, please consult with a professional
wall mount installer to perform the installation

GETTING STARTED

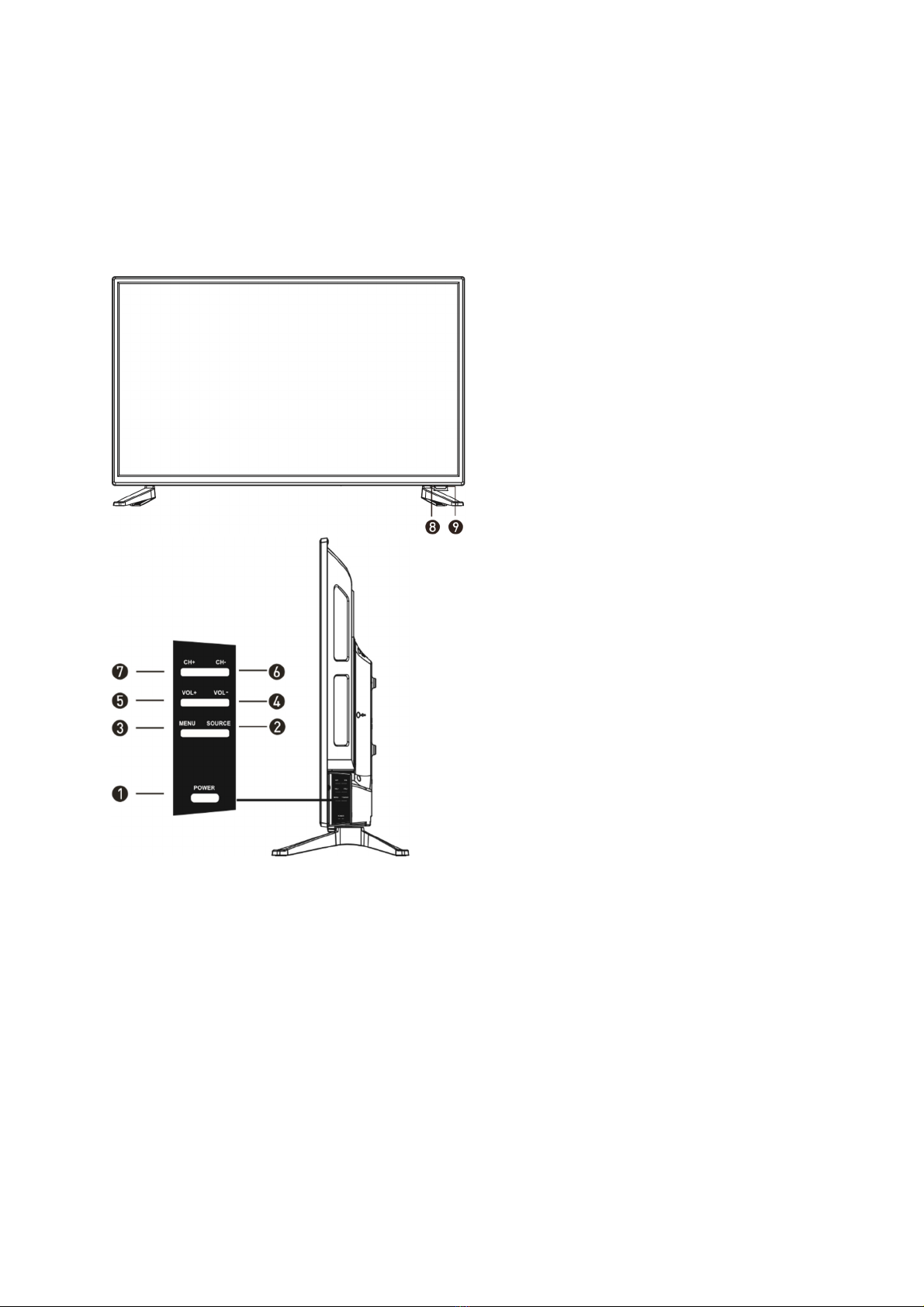

BUTTON FUNCTIONS
1 POWER BUTON: To turn ON/OFF the TV
2 SOURCE Button: To select the input
source
3 MENU Button: To enter menu setting
page
4 VOL-: To decrease the volume level
5 VOL+: To increase the volume level
6 CH-: To select previous channel
7 CH+: To select next channel
8 Remote Control Sensor
9 Power Indicator: In standby mode the
indicator light will display red, when switching on the unit the indicator
light will display green

7

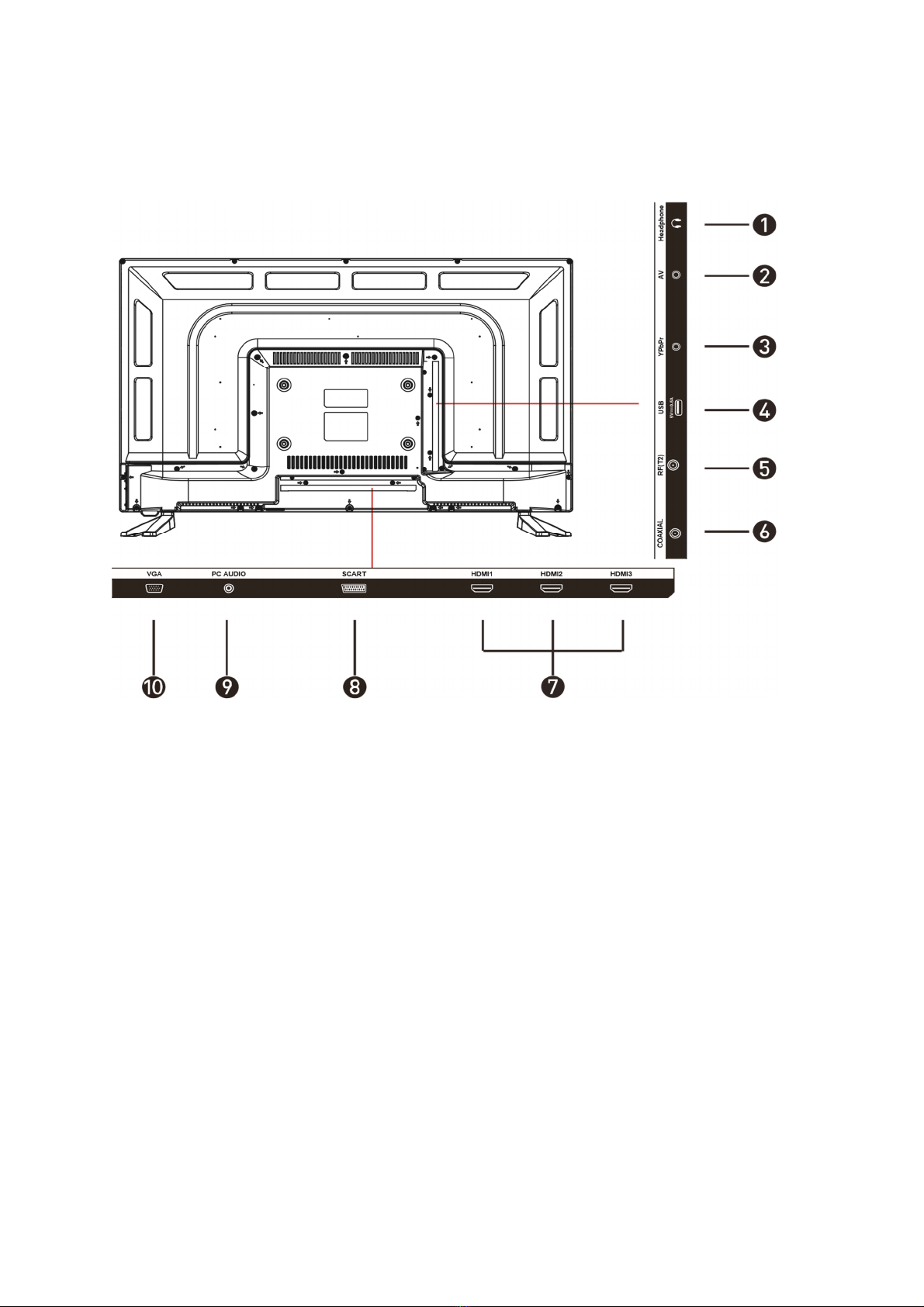

INPUT / OUTPUT TERMINALS
1 Headphones
2 AV input terminal
3 YPbPr: Connect to the YPbPr video output terminal of the DVD player
4 USB
5 RF: Antenna connection
6 Coaxial output terminal
7 HDMI x3
8 Scart input terminal
9 PC Audio: connect it to the audio output terminal of the PC
10 VGA: PC Video input

8

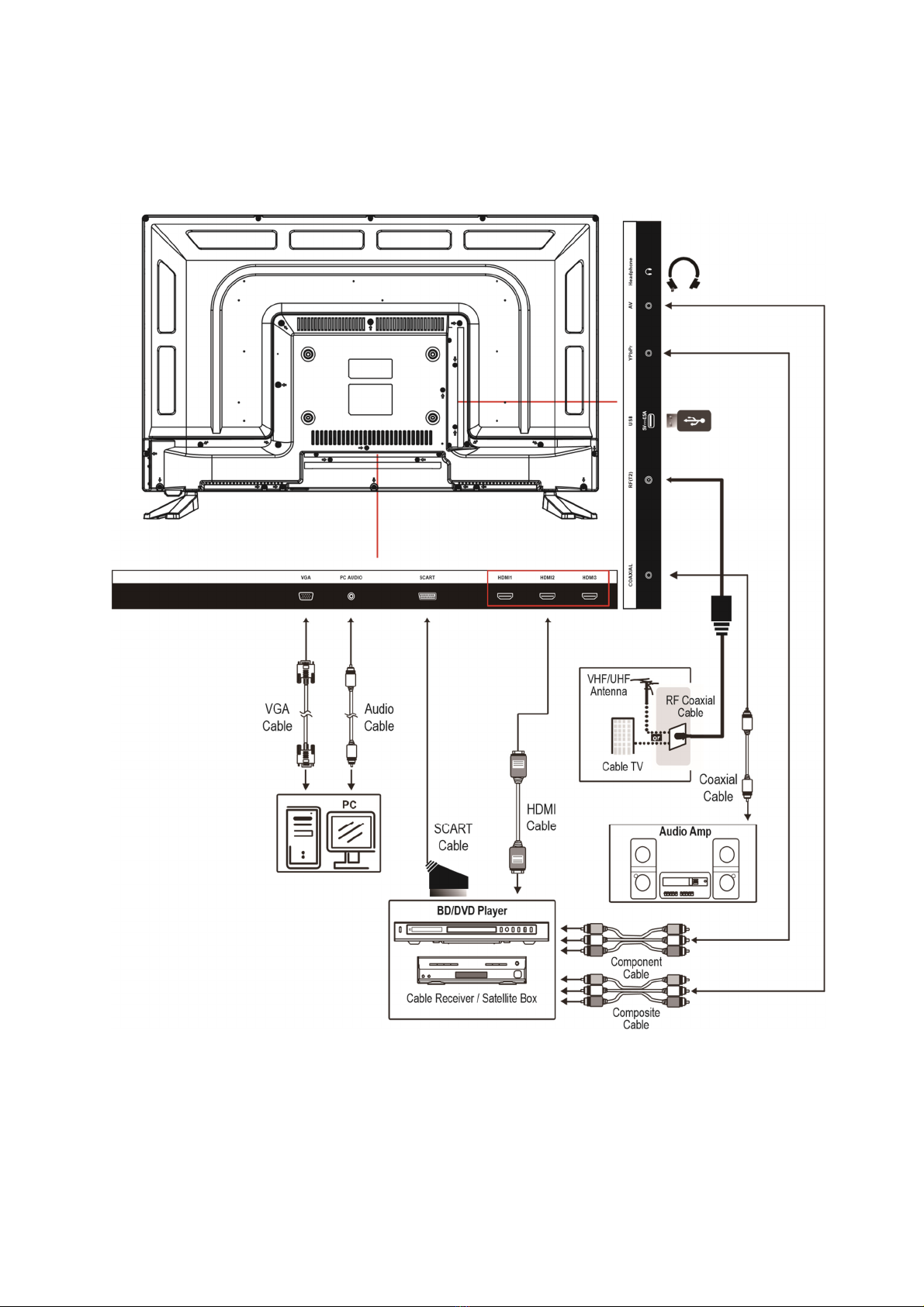

CONNECTING TO EXTERNAL DEVICES

9

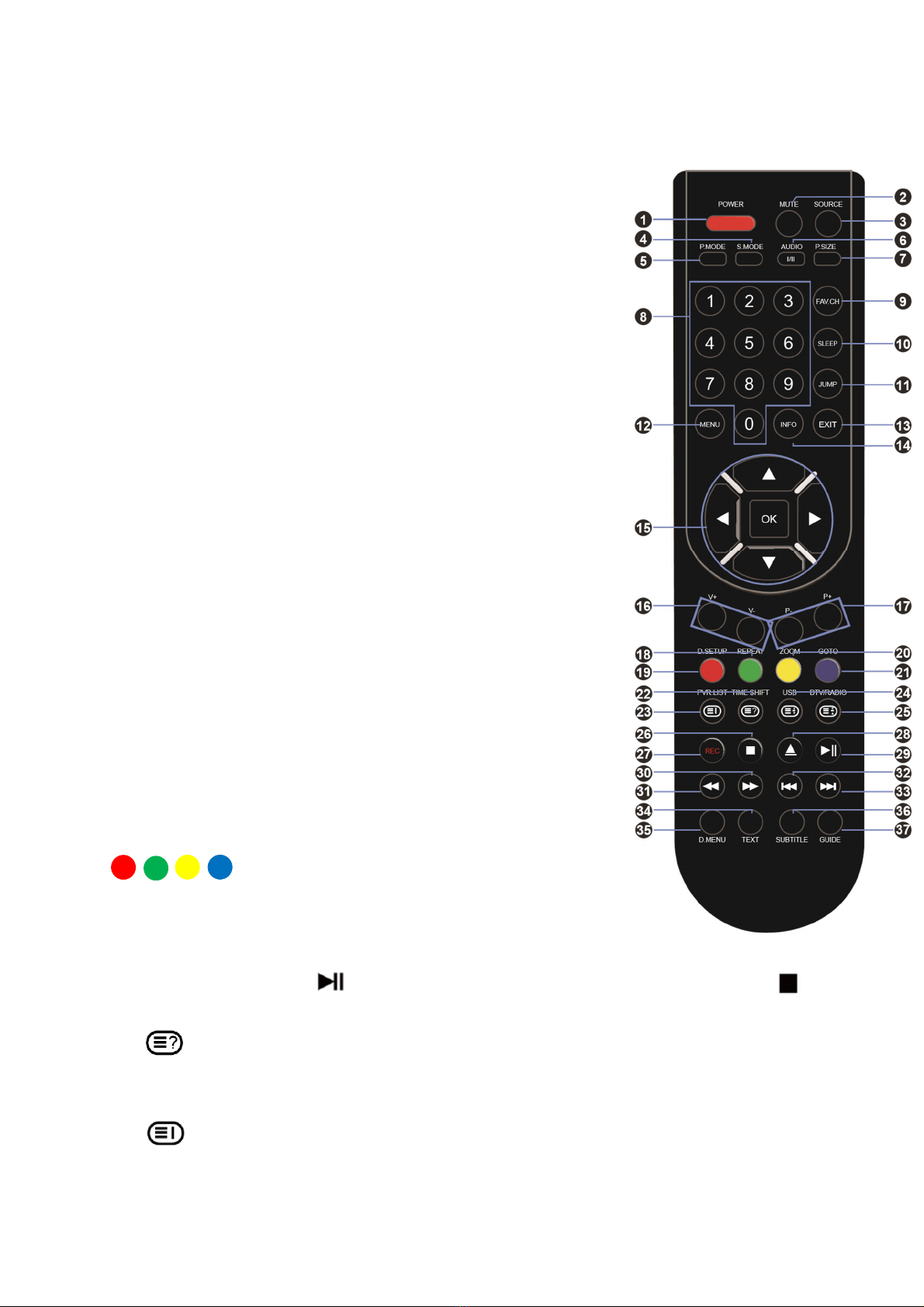

REMOVE CONTROL
1 POWER: Turn on the TV/Standby
2 MUTE: Mute or restore the sound
3 SOURCE: Press to change the signal source
4 S MODE: Setting audio options
5 P MODE: Output image mode selection
6 AUDIO: Switch the audio channel when DVD or
multimedia playing I/II: In the TV mode, press this
button to select the stereo size
7 P SIZE: Press to select the different picture size
8 NUMBER KEYS: Change the channel
9 FAV CH: Show the list of favourite channels
10 SLEEP: Auto Power Off Timer
11 JUMP: Return to the previous channel tuned
12 MENU: Show Menu
13 EXIT: Exit the Menu
14 INFO: Show information about the current program
15 NAVIGATION KEYS (Up, Down, Left, Right and OK): To
move in the menus and confirm settings
16 V+ / V-: Increase / decrease volume
17 P+ / P-: Next / previous channel
18 REPEAT: Repeat mode
19 D SETUP (disabled, used for DVD combo model)
20 ZOOM: Zoom in/out the display frame
21 GOTO: Play from the desired location
Press the appropriate colour to direct
access functions in TELETEXT or EPG OSD
mode
22 TIME SHIFT: In DTV mode, press TIME SHIFT button to start the delay
function, press the button to start playing delay program, press the
button to terminate the delay function
Reveals hidden information such as the answers to a quiz in TELETEXT
Mode
23 PVR LIST: IN DTV mode, displays the executed PVR LIST
Displays the main index in TELETEXT mode
24 USB: Press to switch to USB signal source directly

10
Displays the top, bottom or all of the page
25 DTV/RADIO: In DTV mode, press DTV/RADIO button to enter DTV or RADIO
mode
Freeze a multi-page selection on TELETEXT mode
26 Stop Playback
27 REC: In DTV mode, press REC button to start recording, press button
stop recording
28 Eject disc
29 Play/Pause
30 Fast Forward playback
31 Rewind playback
32 Previous file or chapter
33 Next file or chapter
34 TEXT: Turn on and off the Teletext function
35 D MENU (disabled, used for DVD combo model)
36 SUBTITLE: Select subtitle of media video file (requires the support of disk or
file)
37 GUIDE: Show the Electronic Program Guide (EPG)

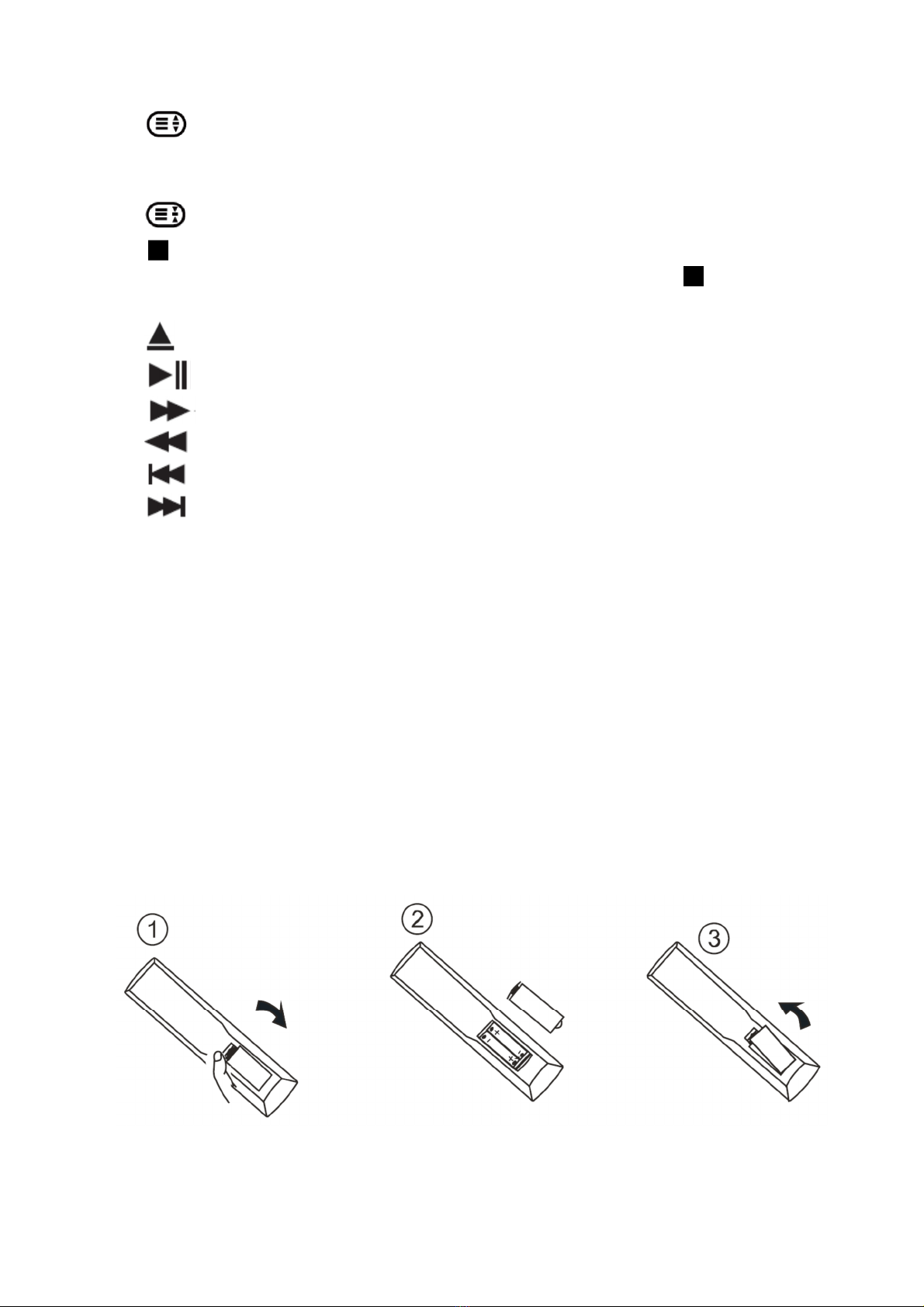

BATTERY INSTALLATION
1 Open the battery cover
2 Insert 2 AAA batteries in the battery compartment, matching the polarities
correctly
3 Replace the battery cover

11
SETTINGS
INITIAL SETUP
1 Connect the TV set to a power outlet
2 Press the POWER button on the remote or on the TV set to turn on the TV
(the indicator will be lit green)
NOTE: Pressing the power button on the remote or TV set will place the TV
into standby mode only If the TV set is expected to be not in use for a long
period of time, please disconnect it from the power source
3 Press the to choose the preferred item and press OK
button to confirm the settings
UK

12
SELECT INPUT SOURCE
Available options: DTV, ATV, AV, SCART, YPbPr, HDMI 1, HDMI 2, HDMI
3, PC, MEDIA
- Press SOURCE button to display the input source list
- Press ▲ ▼ / or SOURCE button to select the preferred input
source
- Press OK button to confirm
- Press EXIT button to exit
BASIC OPERATIONS
1 Press the MENU button on the remote
control or on the TV to enter the menu
page
Use / buttons to select the main menu
options
2 Use ▲ ▼ / buttons to navigate up and
down within the menu
Use the / buttons to alter the required
setting then press the MENU button to confirm and return to the previous
menu page or press EXIT button to exit the menu
PICTURE MENU
Press MENU button to enter the main menu

13
After the preferred settings are done, press MENU button to confirm and
return to the previous menu page or press EXIT button to exit the menu

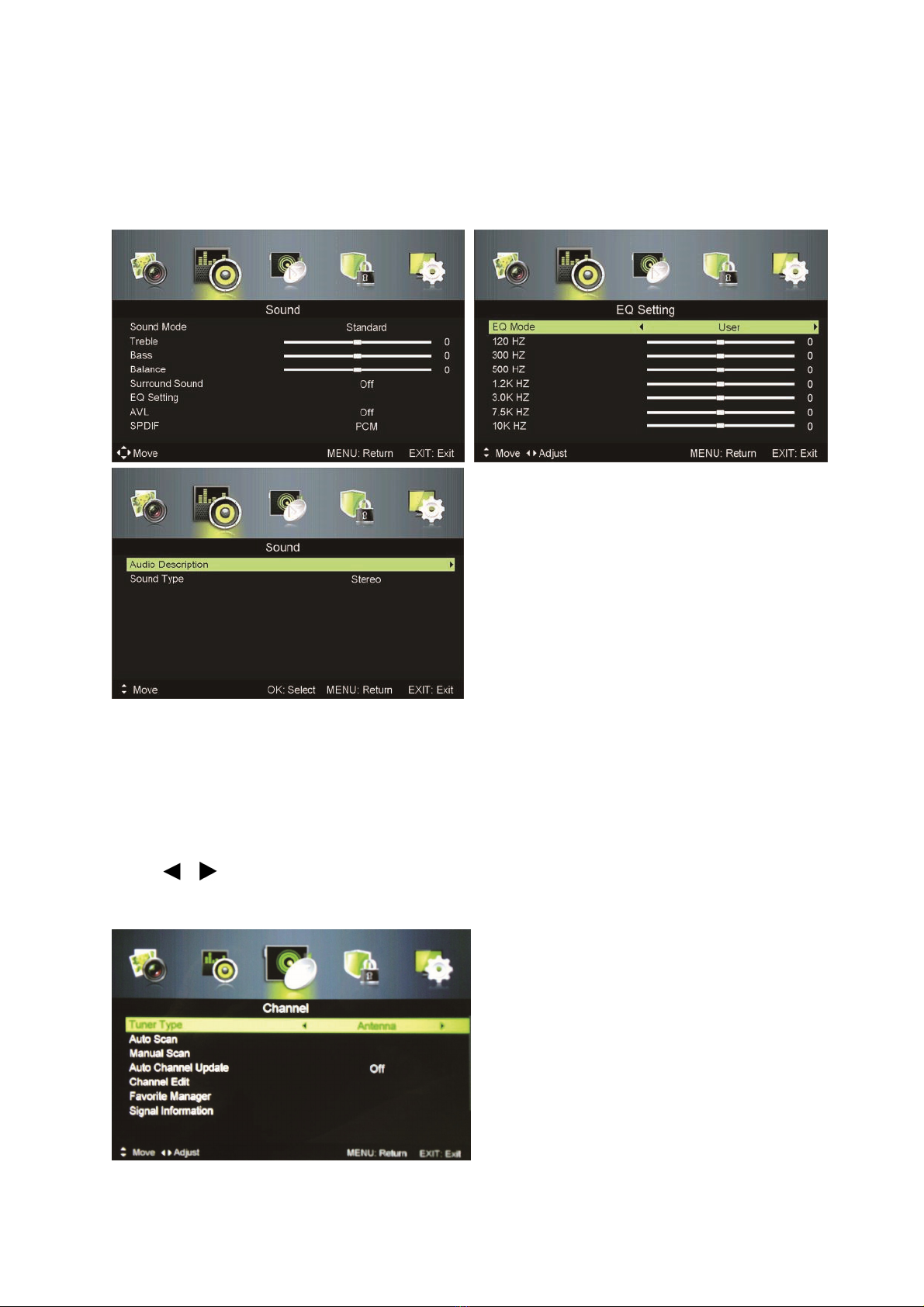

SOUND MENU
Press MENU button to enter the main menu
After the preferred settings are done, press MENU button to confirm and
return to the previous menu page or press EXIT button to exit the menu

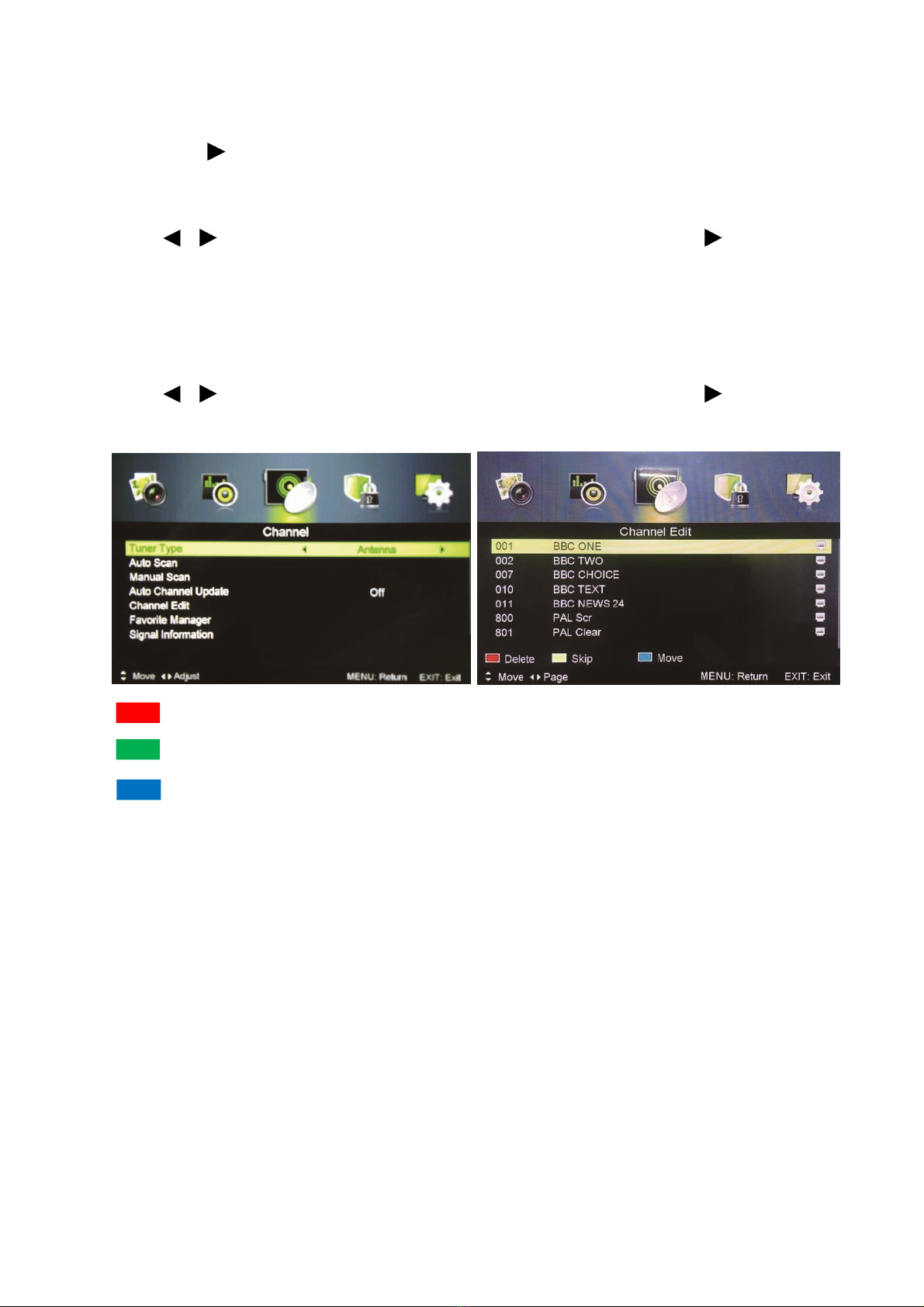

CHANNEL MENU
Press MENU button to enter the main menu
Press / button to select Channel in the main menu and press OK then ▼
to enter

14
1 Press ▲ ▼ / button to select the option that you want to select the
preferred item
2 Press OK button to enter sub-menu
3 Press MENU button to return back to previous menu or press EXIT button
to exit the menu
TUNER TYPE
Press ▲ ▼ / button to select tuner type, then press / button to select the
type of antenna, either Antenna or Cable
Tuner type is Antenna Tuner type is Cable

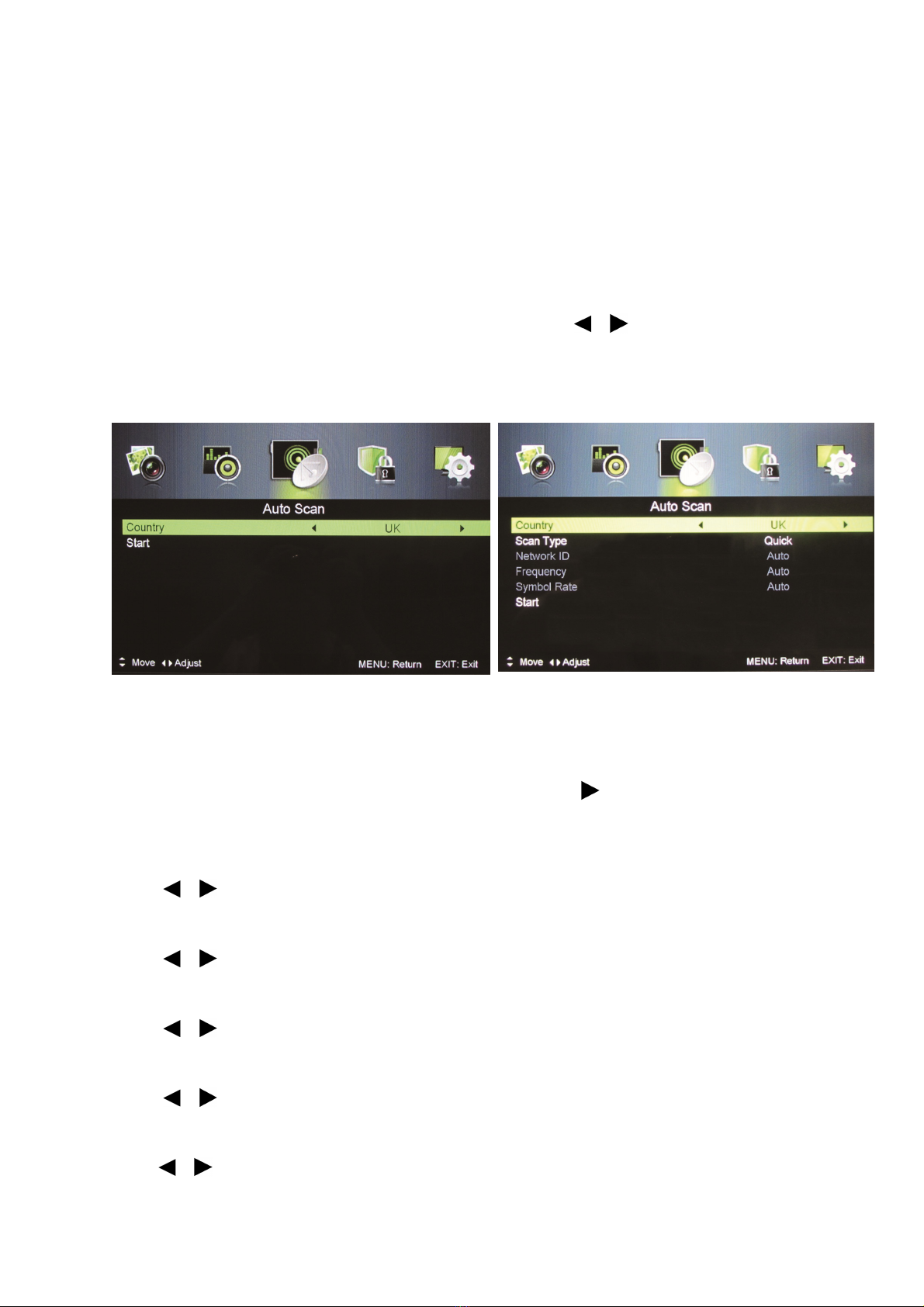

AUTO SCAN
Press ▲ ▼ / to select Auto Scan then press OK, then button to enter sub-
menu
Country
Press / button to select country
Mode
Press / button to select Mode: DTV+ATV, DTV, ATV
Scan Type
Press / button to select Scan Type: Advanced, Quick, Full
Network ID
Press / button to select Network ID: Auto or enter digital numbers
Frequency
Press / button to select Frequency: Auto or enter digital numbers

15
Symbol Rate
Press / button to select Symbol Rate: Auto or digital numbers
Start
Press OK / button to start the auto searching It will search digital channels
first, then analogue channels
Before executing auto channel search please make sure the preferred tuner
type is chosen Wrongly setting the tuner type may cause failure to find
channels

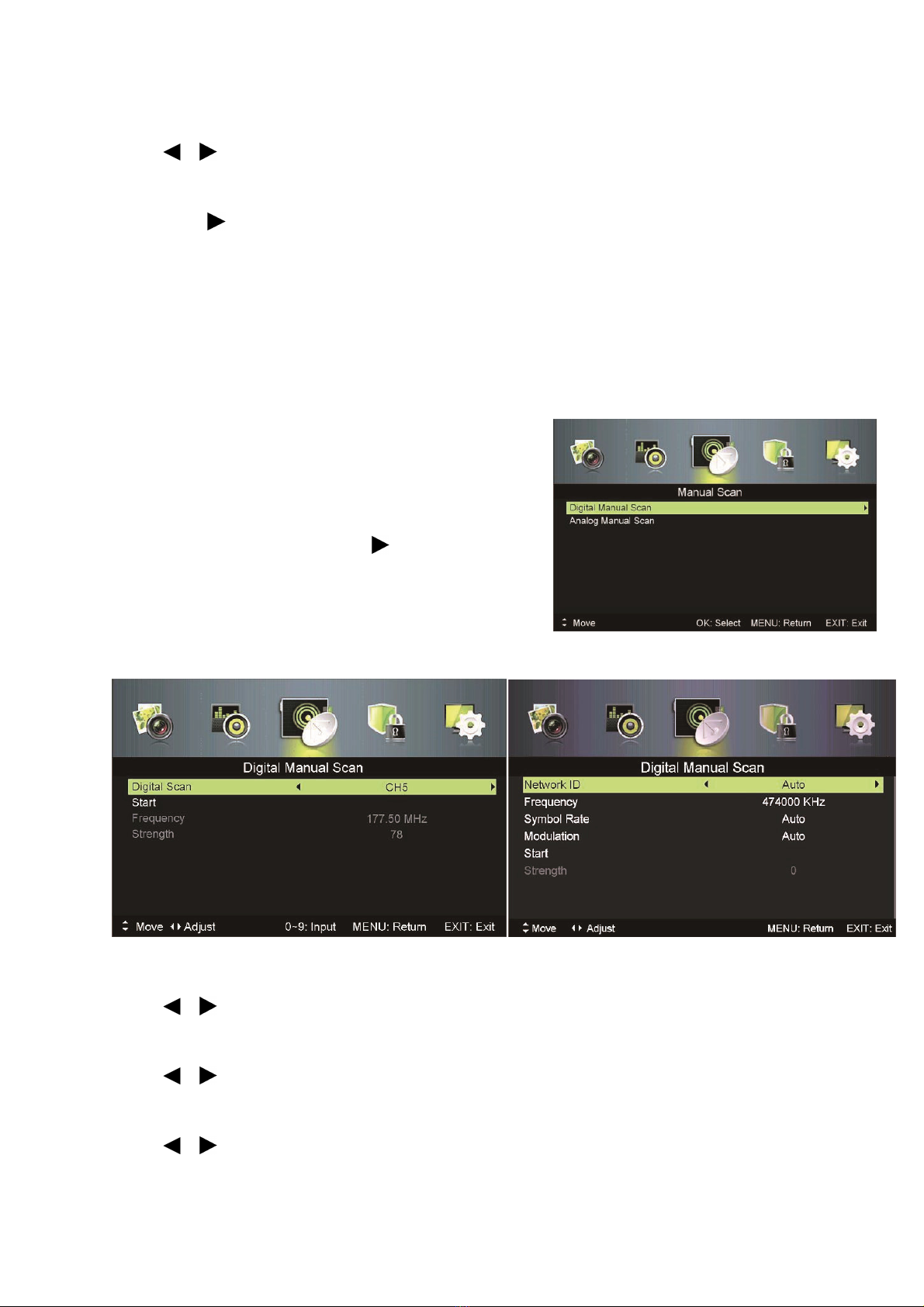

MANUAL SCAN
Search for the channels manually
Press ▲ ▼ / button to select Digital or Analog
Manual Scan then press OK / button to enter
sub-menu
Tuner type is Antenna Tuner type is Cable
Network ID
Press / button to select Network ID: Auto or enter digital numbers
Frequency
Press / button to select Frequency: Auto or enter digital numbers
Symbol Rate
Press / button to select Modulation: Auto, 16QAM, 32QAM, 64QAM,
128QAM, 256QAM

1
Start
Press OK / button to start the channel searching
AUTO CHANNEL UPDATE
Press / button to select Auto Channel Update then press OK / button to
select On or Off
CHANNEL EDIT
Press / button to select Auto Channel Update then press OK / button to
enter sub-menu
RED button: Delete
GREEN button: Skip
Blue button: Press this button to set the selected channel you want to
move Press ▲ ▼ / to move the selected channel to the preferred position
and press this button again to confirm
After the setting is done, press MENU button to return to the previous menu
page or press EXIT button to exit the menu
NOTE: Press the CH+/- to view the channels

17

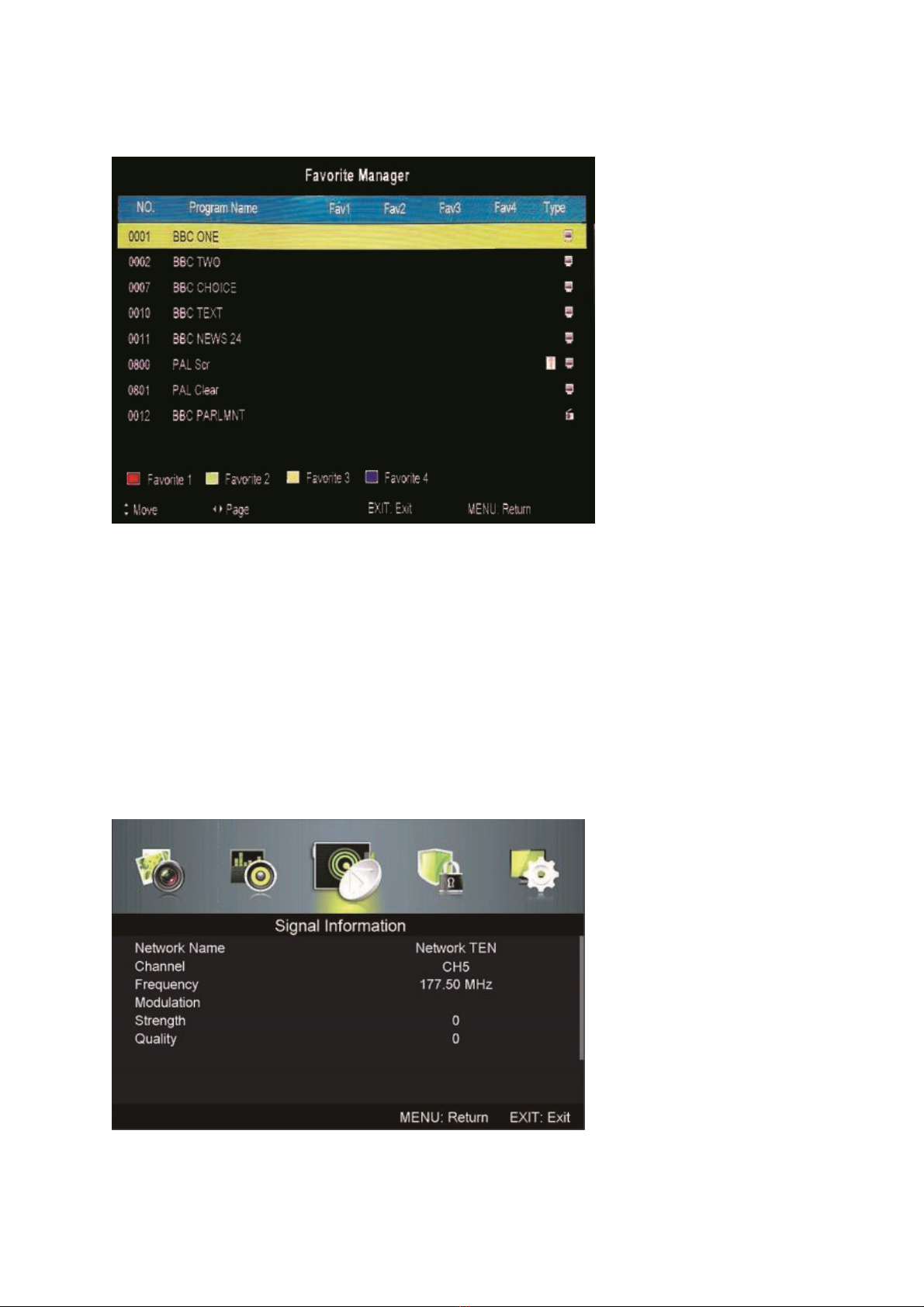

FAVOURITE MANAGER
Press ▲ ▼ / button to highlight the channel you would like to set as favourite
channel Press the RED button to set it in favourite group 1 Press the GREEN
button to set it in favourite group 2 Press the YELLOW button to set it in
favourite group 3 Press the BLUE button to set it in favourite group 4
NOTE: Pressing the FAV button on the remote control will display the Favourite
List
SIGNAL INFORMATION (Only available in DTV mode)
Press MENU button to enter main menu and select “Signal Information”

18

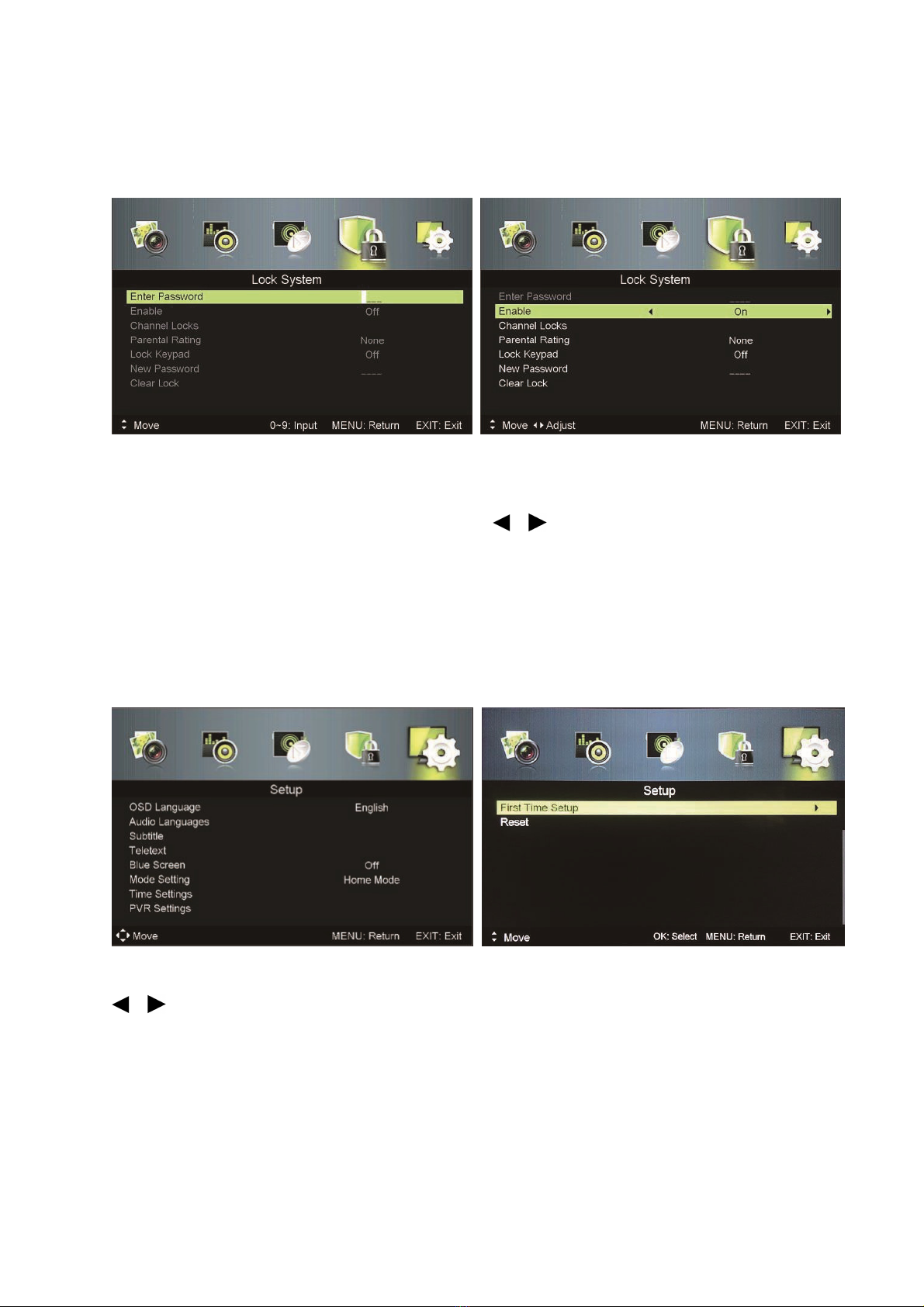

LOCK SYSTEM MENU
Press MENU button to enter the main menu and select “Lock System”
The lock system enables you to put a password on the TV set The default
password is 0000 To make changes, enter the password and use the ▲ ▼ / to
navigate to the required setting Press the / to make the required
changes then press the MENU button to return or EXIT to exit
SETUP MENU
Press MENU button to enter the main menu and select “Setup”
To make changes use the ▲ ▼ / to navigate to the required setting Press the
/ to make the required changes then press the MENU button to return or
EXIT to exit
First Time Setup
Press ▲ ▼ / button to select First Time setup and press OK button to enter
Audio Languages
Set the Primary and Secondary preferred audio languages

19
Subtitle
Select the preferred default subtitle languages
Teletext
Set the preferred default Teletext language
Blue Screen
Turn On or Off the Blue Screen
Mode Setting
Select Home Mode for home use or Store Mode for display purposes
Time Settings
OSD Timer – Set the time the OSD will show
after the last button press Select Off, 10, 20,
30 or 60 seconds
Sleep Timer – Set the time the TV will play for
before automatically going into standby Select
Off, 5, 15, 30, 60, 90, 120 or 240 mins
Auto Sleep – Set the time delay for the TV to turn off when idle Select Off, 3,
4 or 5 hours
Time Zone – Select the time zone you are in to set the clock
Time – Set the time automatically with Auto Sync on or manually with it off
NOTE: In the case of loss of power the clock setting will be lost
GUIDE MENU (EPG)
Press the GUIDE button to
enter the TV guide menu
Press the RED button to display the previous day’s guide
Press the GREEN button to display the next day’s guide
Press the YELLOW button to review the schedule set using BLUE button
Press the BLUE button to set a reminder for the highlighted program
