ElectrIQ eiQ-34SUWD144FSHQ User manual

USER MANUAL
34 INCH CURVED QLED MONITOR
eiQ-34SUWD144FSHQ
Thank you for choosing electriQ
Please read the user manual before using this monitor and keep it safe for
future reference
Visit www.electriQ.co.uk to view our entire range of Intelligent Electricals

2
CONTENTS
SAFTEY
3
WHATS INCLUDED
5
STAND INSTALLATION
6
MOUNTED INSTALLATION
7
CABLE MANAGEMENT
8
CONTROL PANEL
9
INPUT/OUTPUT TERMINALS
9
INITIAL SET UP
10
MENU OPTIONS
11
INPUT
11
BRIGHTNESS
12
COLOUR SETTINGS
13
PICTURE QUALITY
14
DISPLAY
15
AUDIO
15
MULTI WINDOW
16
OSD
17
OTHER
18
TECHNICAL SPECIFICATION
19
TROUBLESHOOTING
20
SUPPORT
20

3
SAFETY INFORMATION
•Read these instructions - All the safety and operating
instructions should be read before this product is operated.
•Keep these instructions - The safety and operating instructions
should be retained for future reference.
•Heed all warnings - All warnings on the appliance and in the
operating instructions should be adhered to.
•Follow all instructions - All operating and usage instructions
should be followed.
•Do not use this equipment near water, or in humid
environments –The appliance should not be used near water
or moisture e.g. in a wet basement or near a swimming pool.
•Clean only with a dry cloth. Do not use solvents or petroleum
based fluids.
•Do not install near any heat sources such as radiators, stoves
or other apparatus (including amplifiers) that produce heat.
•Do not tamper with the supplied plug. This plug is a BS1363
standard plug.
•Protect the power cord from being walked on or trapped,
particularly at the plug and at the point where it exits from the
appliance.
•Only use attachments/accessories specified by the
manufacturer.
•Use only with a cart, stand, tripod, bracket or table specified by
the manufacturer or sold with the apparatus. When a cart or
stand is used, proceed with caution when moving it to avoid
any injuries or damage from it tipping over.
•Unplug the apparatus during lightning storms or when unused
for long periods of time.

4
•Refer all servicing to qualified personnel. Servicing is required
when the apparatus has been damaged in any way, such as if
the power supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus or it has been
exposed to rain or moisture, it does not operate normally or has
been dropped.
•Please keep the unit in a well-ventilated environment.
•The monitor should only be connected to a mains power supply
as rated on the back of the equipment.
•To prevent overload, do not share the same power supply
socket with too many other electronic components.
•Do not place any connecting wires where they may be stepped
on or tripped over.
•Do not place heavy items on the cable as this may cause
damage.
•When removing from a socket hold by the plug and not the
wires.
•Disconnect the power immediately and seek professional help if
the plug or cable is damaged, liquid has spilt onto the set, if
accidentally exposed to water or moisture, if anything
accidentally penetrates the ventilation slots or if the set does
not work normally.
•Do not remove the safety covers. There are no user
serviceable parts inside.
•Although every effort is made to maintain the accuracy of the
manual, due to continuous product development, some
variation from the manual is possible.
•The availability of features and settings may vary depending on
the input source and method of connection.
•The available resolutions and refresh rates may be limited by
the capabilities and/or settings of the source device.

5
•Do not block ventilation openings. The monitor can be placed in
a cabinet but ensure at least 5cm (2") clearance all around. Do
not tap or shake the screen, this may damage internal
components.
WARNING: To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture. The apparatus shall
not be exposed to dripping or splashing and objects filled with
liquids, such as vases, shall not be placed on the apparatus.
WARNING: The wall plug socket is used as a disconnection
device and should remain readily accessible.
PARTS LIST

6

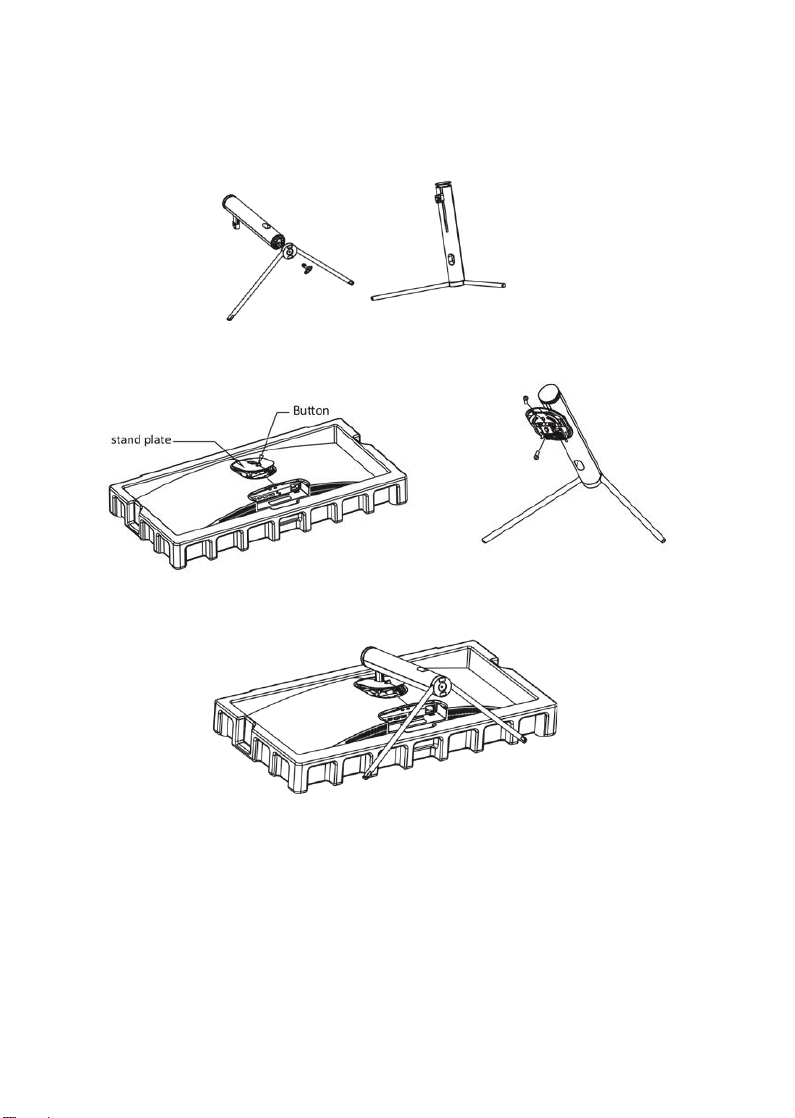

STAND INSTALLATION
1.Open the package and take out the product with the foam still attached.
Gently place it on a desktop or table.
2.Remove the polyfoam and the inner package bag, place on a desktop or
table, keep the lower foam underneath the monitor.
See picture, fasten the stand stem and base with a screw.
4. Press the button to remove the stand plate, Fix the stand plate into the stand stem
with the supplied bolts.
5. Fix the whole assembled stand into the monitor, and check carefully to make sure
it is fastened.
6. Hold onto the stand stem and stand the monitor up on a flat, level desktop or table.
⚫Due to the heavy weight and dimensions of the LCD screens and their fragile nature, we
recommend that they are unpacked and assembled by 2 people.
⚫The stand can be removed from the rear of the monitor by pressing the quick release button
on the rear of the monitor.

7

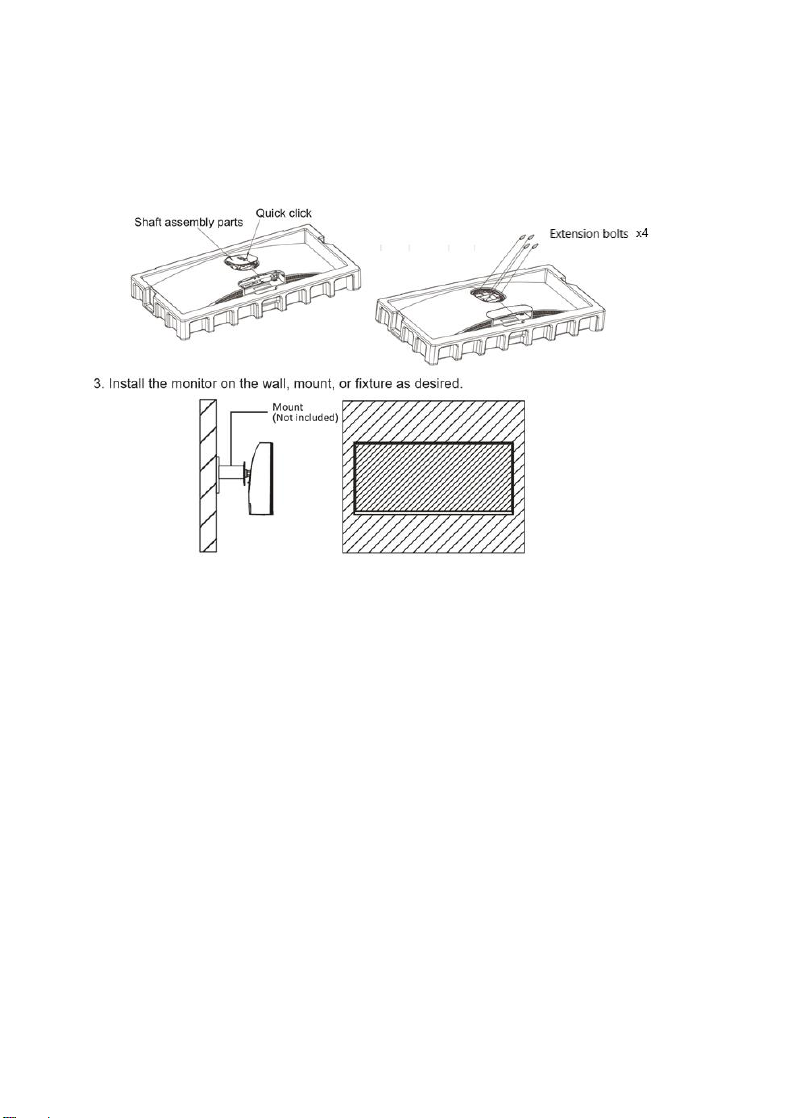

MOUNT INSTALLATION
1.Open the package and take out the product with foam still attached Gently place it
on a desktop or table. Remove the parts and the foam covering the monitor. If the
monitor is already attached to the stand, remove the stand.
2.Press the button to remove the adapter on back of monitor, then tighten the included
four screws onto the mounting holes on back of monitor.
WALL MOUNTING
•The monitor is provided with mounting holes for a VESA approved wall mounting
bracket (not supplied).
•When wall mounting, the supplied extension bolts must be fitted to the rear of the
monitor to allow the bracket to fix firmly to the rear of the monitor.
•M4 x12 bolts (not supplied) should be used to attach the bracket to the extension
bolts.
•Do not use bolts longer than the size specified above for your model or damage
will occur to the internal components.

8

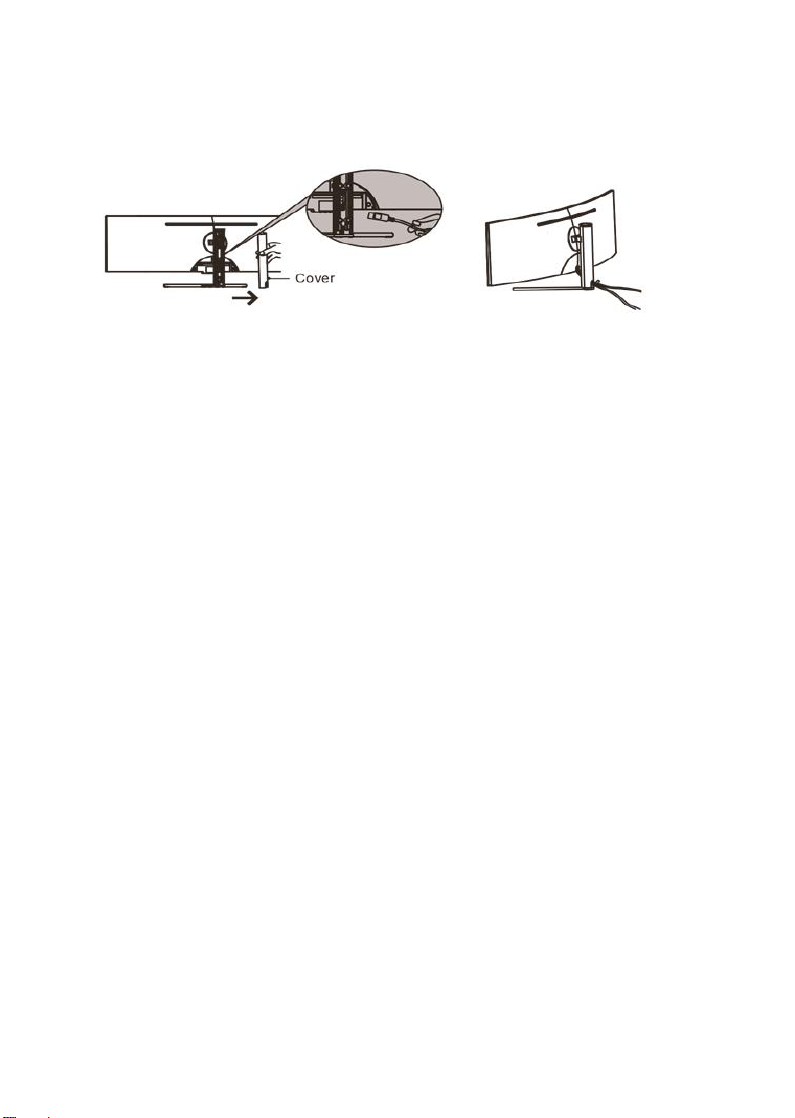

CABLE MANAGEMENT
The cover can be removed from the rear of the stand. Cables can then be threaded
through the stand, up to the terminals. Once the cables are in position, replace the
cover on the rear of the
DO NOT put pressure on the screen when moving or positioning the monitor.
NOTES:
⚫Due to the heavy weight and dimensions of the LCD screens and their fragile
nature, we recommend that they are unpacked and assembled by 2 people and
professional installers are used to wall mount them (Wall mounting is optional). If
you do not understand the instructions, or are unsure how to install this product,
please contact a professional for assembly advice and assistance.
⚫Careful consideration should be made regarding the location the monitor is to be
wall mounted as some walls are not suitable for installation. If the monitor is to be
mounted on drywall, the mount must be anchored into a wooden stud, concrete
block or brick behind the drywall. Installing on drywall alone may not support the
weight of the display.
⚫When drilling holes, it is particularly important to take care of electrical cables,
water or gas pipes in the wall. Please follow the instructions provided by the wall
bracket manufacturer and ensure that all fixing screws supplied are used.
⚫electriQ and its distributors and dealers are not liable or responsible for damage or
injury caused by improper installation, improper use or failure to observe these
safety instructions. In such cases any guarantee will expire.

9
CONTROL PANEL

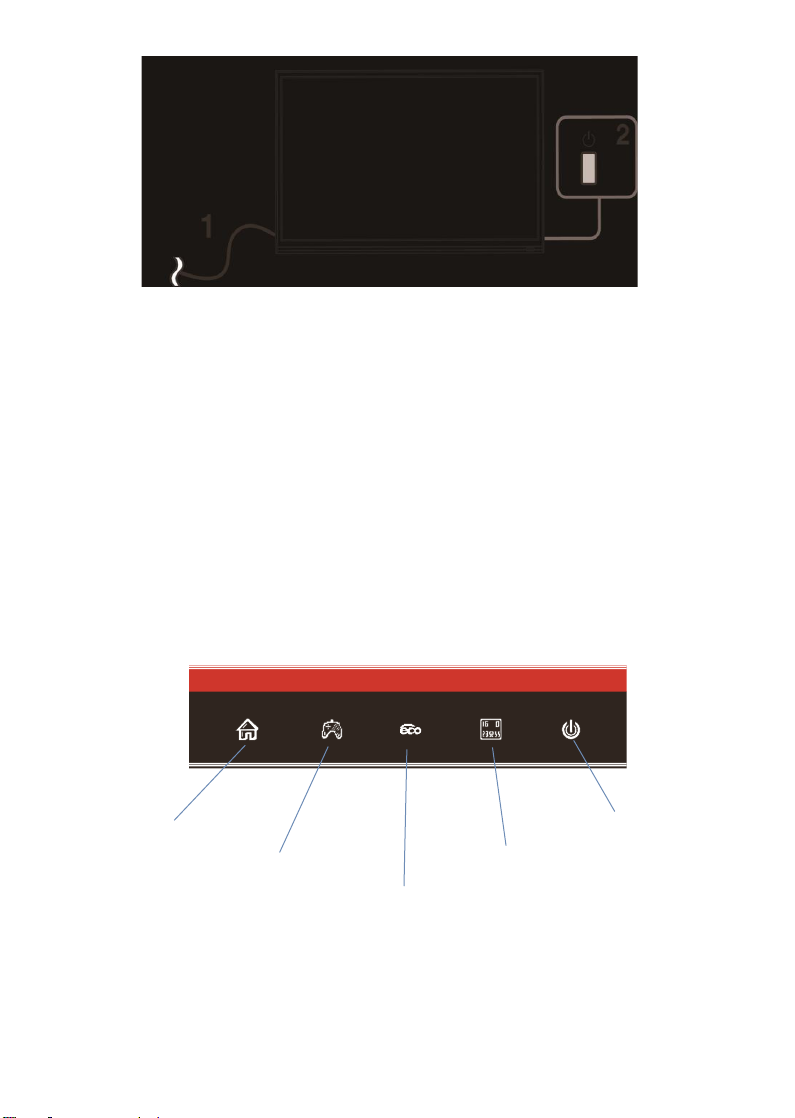

The controls are located centrally at the base of the monitor. Pressing any button when the OSD
(On screen display) is not visible will display the Quick Menu
1
Menu
2
Down
3
Up
4
Exit
5
Power
6
Power indicator
INPUT / OUTPUT TERMINALS
1
Power Connector: Insert the power cable to supply power to the monitor
2
Audio Output: Insert one and of the Audio cable into the computer’s
Audio output to receive the Audio signals from your monitor.
3
DP Connector: Insert one end of the DP cable into the computer’s
DP output and connect the other end to the monitor’s DP port.
4
HDMI Connector: Insert one end of the HDMI cable into a suitable HDMI
source. HDMI output and connect the other end to the monitor’s HDMI
port.

10
INITIAL SETUP
Connect the monitor to a power outlet.
1. Press the POWER button on the monitor or to turn it on (The indicator will be
blue)
2. Connect the relevant cable to the corresponding input on the monitor. The
source will be automatically detected.
QUICK MENU
Press any button when the on-screen display is not visible to display the Quick Menu.
Then Press the button below the item in the quick menu to select.
Main Menu
Display Crosshairs
Scene mode switching
RGB Range
Power Off

11
MENU OPTIONS
The main menu for the monitor can be accessed by selecting it within the Quick
menu (See previous page). This menu is separated into the following sub menus:
Picture Settings, Image Settings, Colour Temperature, OSD, Reset, and
Miscellaneous options, details of each menu can be found in the following sections.
Within the Menu:
UP (3) and
DOWN (2)
Press to go up and down the current menu or to adjust the selected value.
MENU (1)
Press to select the currently highlighted item / enter the submenu. Once
changes have been made to a value, press to save the changes.
EXIT (4)
Press to navigate to the previous menu. When at the highest level of the
Menu, press to close the Menu. After changing a value within the menu,
press to cancel the change.
INPUT SOURCE
Change the input between DisplayPort 1 and 2 (DP), HDMI 1, HDMI 2.

12
BRIGHTNESS/CONTRAST
Brightness
Adjust the brightness of the display between 0 and 100.
Contrast
Adjust the contrast of the display between 0 and 100.
DCR
Turn the Dynamic Contrast Ratio Feature On or Off.

13

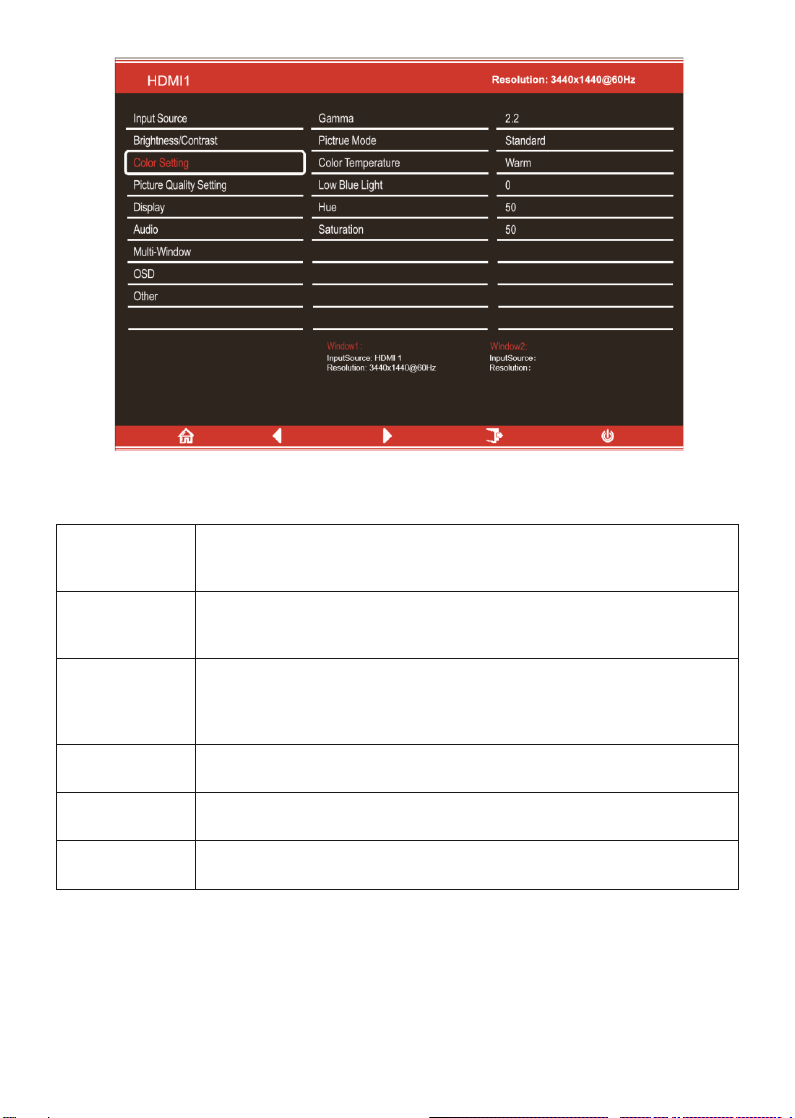

COLOUR SETTINGS
Gamma
Change the Gamma value for the display between 1.8, 2.0, 2.2, 2.4, or
2.6.
Picture Mode
Change the picture mode between Standard, Photo, Movie, Game, FPS
and RTS
Colour
Temperature
Change the Colour Temperature of the display to Warm, Cool or User.
When the User Mode is selected, the Red, Green, and Blue values can
be adjusted independently between 0 and 100.
Low Blue Light
Change the blue light emitted by the display between0 and 100.
Hue
Change the Hue value between 0 and 100.
Saturation
Change the Saturation of the display between 0 and 100.

14
PICTURE QUALITY SETTING
Sharpness
Change the display Sharpness between 0 and 100.
Response Time
Turn the Response Overdrive feature between Off, High, Middle of
low
Noise Reduction
Adjust the level of Noise Reduction between Low, Medium, High, or
Off.
Dynamic Luminance
Control
Turn the Dynamic Luminance Control Feature On or Off.
MPRT
Motion picture response time, turn on motion blur prevention

15

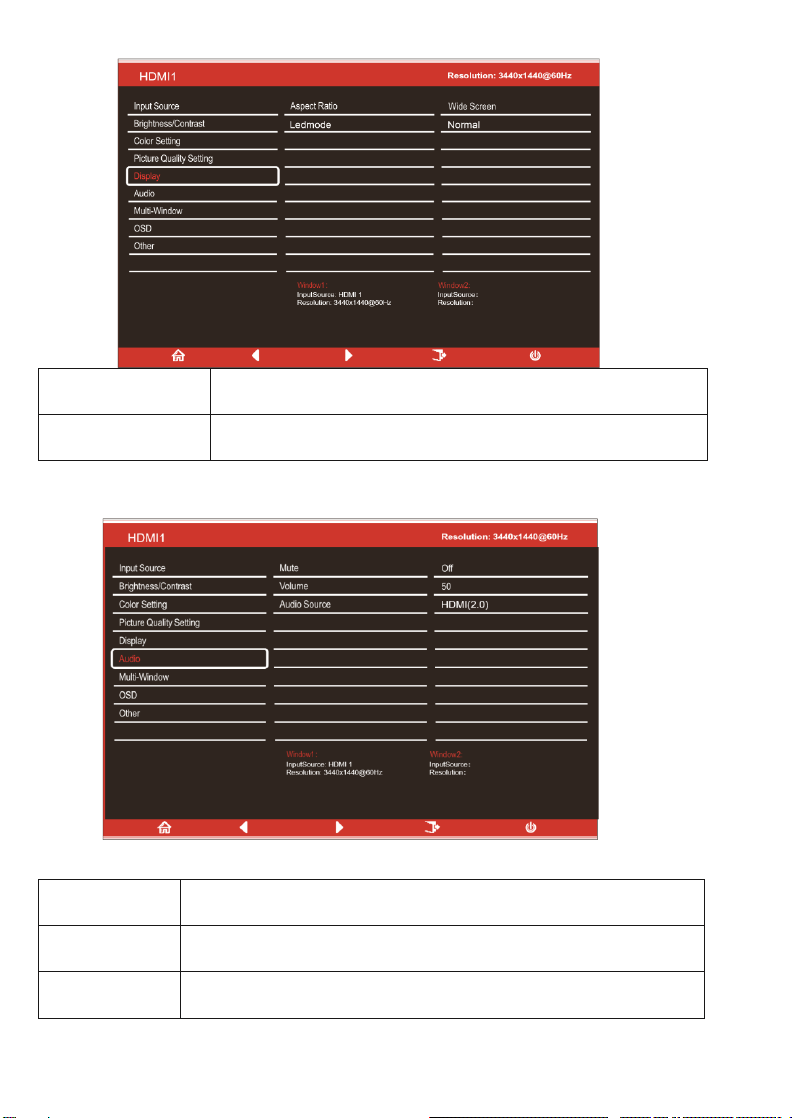

DISPLAY
Aspect Ratio
Change the image aspect ratio to Wide screen, Auto, 4:3, or 1:1.
LED Mode
Turn on the LED back light. There are three settings, ON/OFF/FLASH
AUDIO
Mute
Turn On and off to mute and unmute the audio output.
Volume
Adjust the output volume between 0 and 100.
Audio Source
Chose which source the audio is output from.

16

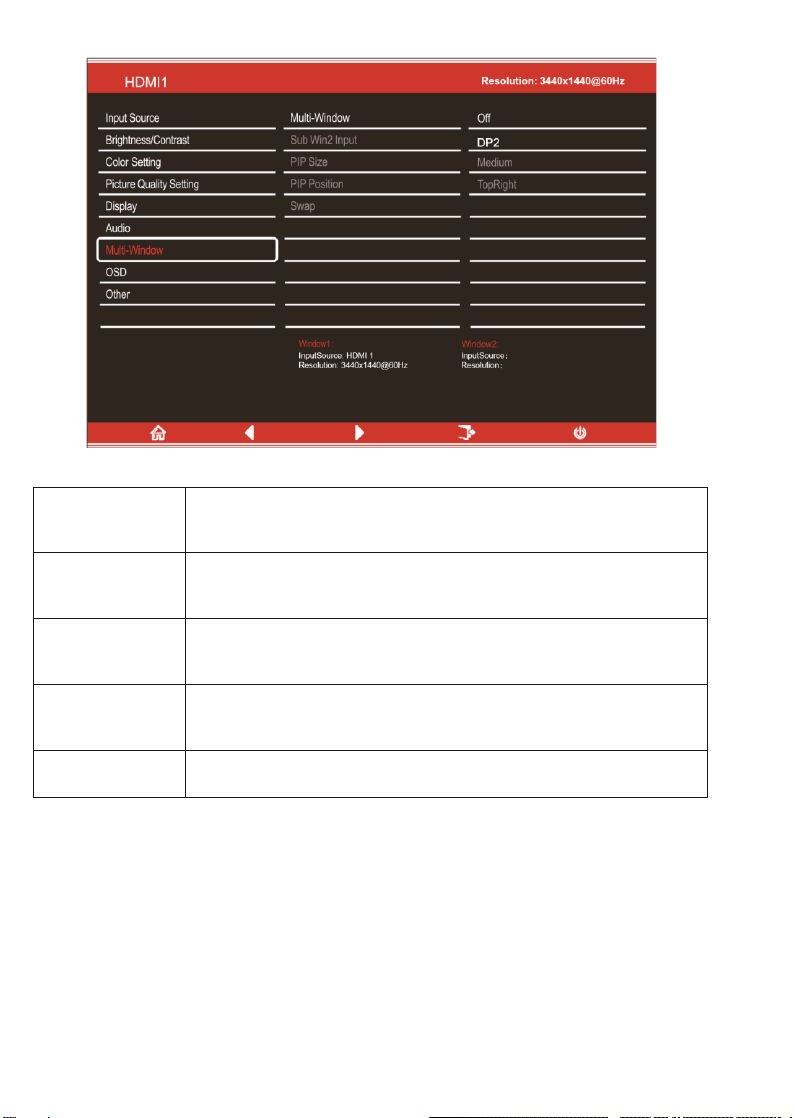

MULTI-WINDOW
Multi-Window
Choose the different formats of multi window display between Off,
Picture in Picture (PIP) and Picture by Picture (PBP 2Win)
Sub Win2 Input
Choose the source of the second window between HDMI 1 and HDMI
2.
PIP Size
Adjust the size of the secondary source in PIP and PBP modes
between Small, Medium and Large
PIP Position
Set the position of the secondary source in PIP and PBP modes
between Top Right, Top Left, Bottom Right and Bottom Left.
SWAP
Swap the Primary and Secondary inputs on screen.

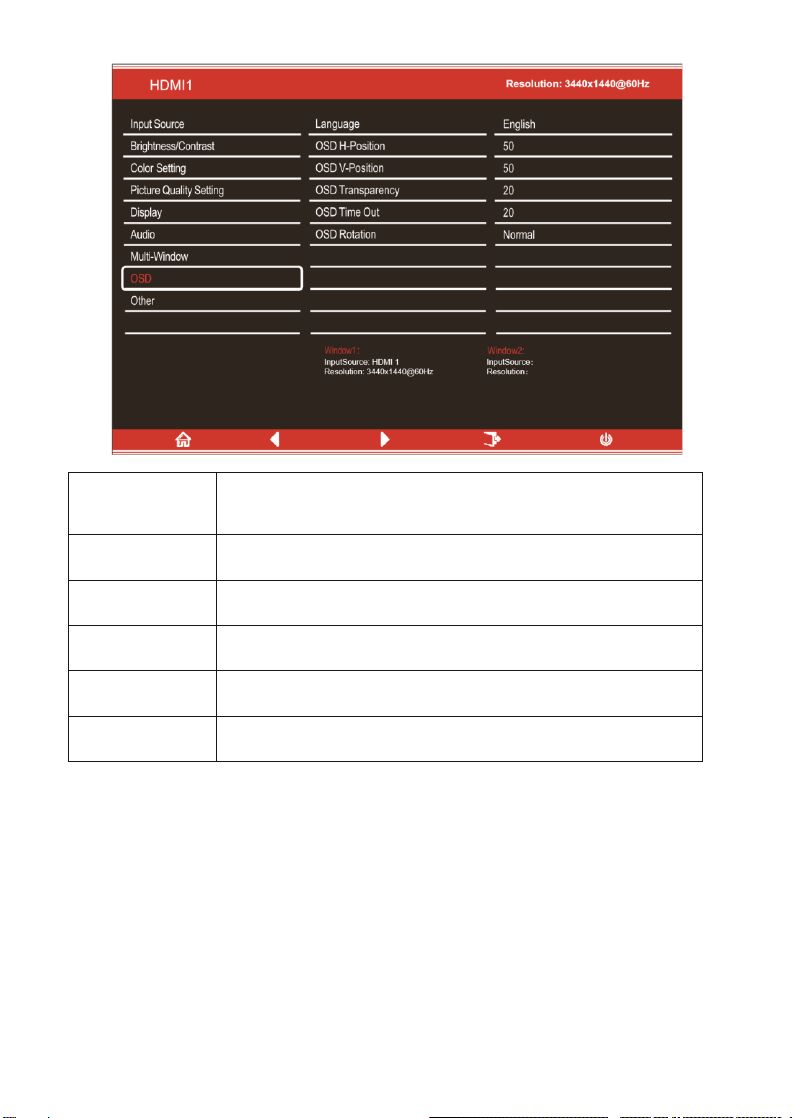

OSD
Language
Change the OSD Menu display language between English, Chinese,
Korean, Russian, Spanish, Japanese and French.
OSD H Position
Change the horizontal position of the OSD Menu.
OSD V Position
Change the vertical position of the OSD Menu.
OSD Transparency
Change the transparency value of the OSD Menu between 0 and 100.
OSD Time Out
Change how long the OSD Menu is on before it automatically exits.
OSD Rotation:
Rotate the OSD Menu for ease of use on rotated screens.
17

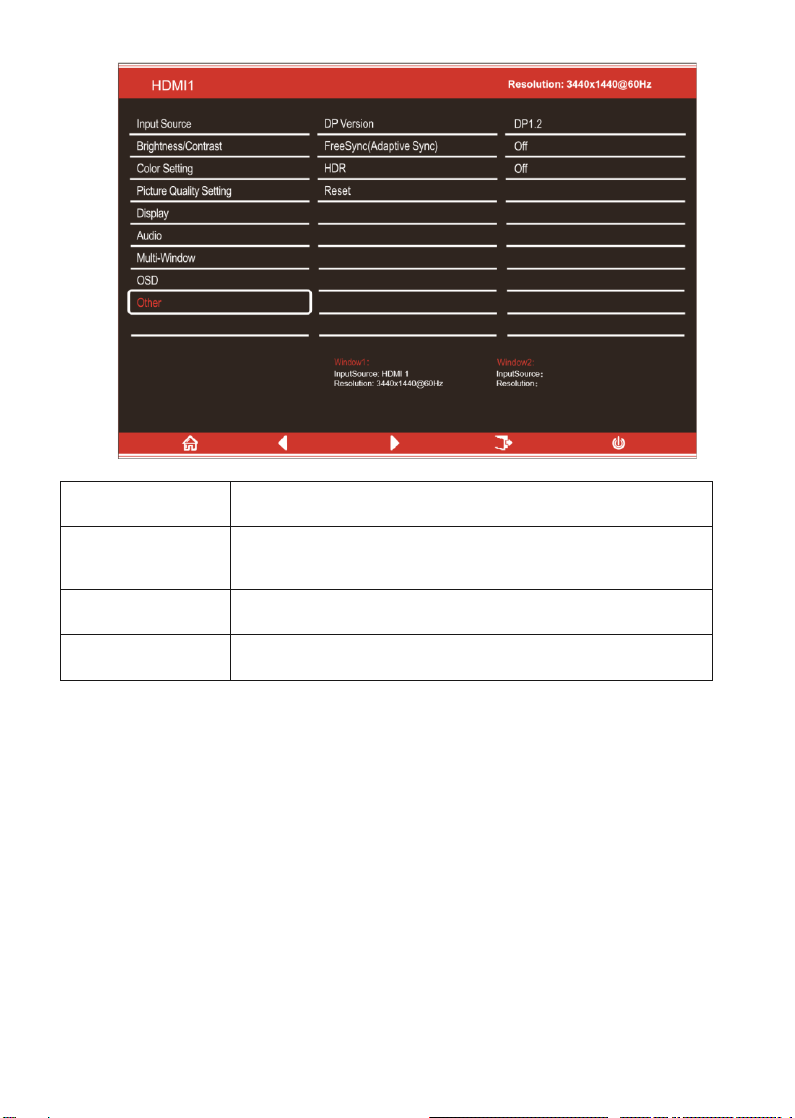

OTHER
DP Version
Set the DP version between 1.1 and 1.2
Free Sync
(Adaptive Sync)
Turn Free Sync On or Off.
HDR
HDR can be set to On, Off or Autodetect.
Reset
Restore factory default setting.
18

TECHNICAL SPECIFICATION
Product Model
eiQ-34SUWD144FSHQ
Screen Size
34” Diagonal
Panel Type
VA Panel
Aspect Ratio
21:9
Power Supply
AC 100 240- V, 50/60Hz, 2.0A
Power Consumption
54W (Typical)
Dimensions
808*454 *225.5 mm
Net/Gross Weight
7.02kg / 8.96 kg
Maximum Resolution
3440*1440DFHD
Brightness
400 cd/m2
Static Contrast
3000:1
Response time
MPRT 1MS
Viewing Angle (H/V)
178°/178°
USB Input
N/A
HDMI Input
HDMI 2.0 x 2
Display Port Input
DP 1.4 x 2
Audio Output
X1
Working Temperature
0°C ~40°C
Working Humidity
10% ~ 85% Non-condensing
19
Terminals

TROUBLESHOOTING
Problem
Solution
No power
Insert the plug securely into the power outlet.
No picture
Ensure that the equipment is connected
properly.
Ensure the correct input is selected.
Buttons on the monitor
don’t do anything
Disconnect the power plug and then
reconnect it. (The unit may not be operating
properly due to lightning, static, or other
factors.)
Noise or other
interference
Electronic equipment near the unit may be
causing interference. Relocate the unit or
move the equipment.
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist. Check
with your Local Authority or retailer for recycling advice.
electriQ UK SUPPORT
www.electriQ.co.uk/support
If the unit fails to operate call: 0871 620 1057 or complete the online form
Office hours: 9AM - 5PM Monday to Friday
www.electriQ.co.uk
Unit J6, Lowfields Business Park
Lowfields Way, Elland
West Yorkshire, HX5 9DA
TRYING TO SERVICE THE UNIT YOURSELF IS DANGEROUS
AND MAY INVALIDATE THE PRODUCTS WARRANTY. ONLY
QUALIFIED PERSONNEL SHOULD SERVICE THIS
APPARATUS.
20
