USER MANUAL
E-SC02PRO
ELECTRIC SCOOTER
Thank you for choosing electriQ
Please read the manual before using this scooter and keep it safe for future reference.
Visit our page www.electriQ.co.uk for our entire product range

2
CONTENTS
SAFETY WARNINGS
3
SCOOTER DIAGRAM
4
ASSEMBLY
5
FIRST USE
5
UNFOLDING THE SCOOTER
6
FOLDING THE SCOOTER
6
TURNING ON AND OFF
7
HOW TO RIDE
7
TIGHTENING THE HANDLEBAR STEM
7
DISPLAY
8
MAINTENANCE
9
STORAGE
9
TECHNICAL SPECIFICATIONS
9
SUPPORT
10

3
SAFETY WARNINGS
Carefully read the user manual before use to avoid the risk of injury. Keep the
user manual safe for future reference.
The scooter can only be used by people aged 12 years old and over. Persons
with reduced physical, sensory or mental capabilities or who lack experience
and knowledge can also use this scooter if they are supervised, or have been
given the correct instructions concerning the use of the scooter and
understand the hazards involved.
Do not leave children unattended with the scooter.
Cleaning and user maintenance must not be performed by a child under the
age of 12 unless supervised by an adult.
The user is responsible for all consequences from improper use of the scooter.
The scooter is for personal use only, and must be operated in accordance with
current local legislation.
Only one person can use the scooter at a time.
Inspect the scooter before use. Do not attempt operation if any damage is
found or suspected.
Keep fingers clear of the folding mechanism when folding or unfolding the
electric scooter.
Do not allow children to fold or unfold the scooter.
This scooter is to be ridden responsibly. If you lose control you could cause
serious injury.
Wear suitable clothing and footwear, including, but not limited to, flat shoes,
helmet, knee protectors and elbow protectors.
Do not ride after consuming alcohol, or under the influence of drugs.
Verify that use of the scooter is allowed in the area you wish to ride.
Do not use the scooter at night, or when visibility is low.
Always check the battery level using the LED display. If the battery is low, the
scooter might stop suddenly and cause injury.
Always ensure that the battery is locked in position and the key removed
before attempting to ride the scooter.
The scooter is designed to be used on smooth flat ground.
Do not use the scooter in wet conditions, including snow, mud and ice.
Maintain a slow speed if travelling downhill. Use both brakes together to stop
from high speeds.
Do not carry children while using the scooter.
This scooter is not a toy.
NOTE: Pictures and information in this manual may vary from the product, due
to continuous product improvement.

4
BATTERY SAFETY
•The scooter comes supplied with a lithium battery. Care must be taken with the
battery and charging to maintain its lifespan.
•Do not expose the scooter or battery to naked flames or extreme heat.
•Do not expose the scooter or battery to extreme cold.
•Do not allow moisture to enter the battery compartment or charging port.
•Only use the provided charger.
•Do not overcharge the battery or leave unattended whilst charging.
•The battery must be removed if disposing of the product.
•The battery is to be disposed of safely.
•Lithium batteries are considered dangerous goods. Check your countries laws on
transportation and use.
SCOOTER DIAGRAM
ACCELERATOR
DISPLAY
BRAKE
LEVER
HEADLIGHT
CHARGING PORT
HOOK
BRAKE LIGHTS
DISC BRAKE
BATTERY
COMPARTMENT
KICKSTAND
WHEEL MOTOR
FOLDING
MECHANISM
HANDLEBAR
STEM
DECK

5
ASSEMBLY
To assemble the handlebar, it must first be fitted into the top of the handlebar stem. Slide the
silver base of the handlebars into the stem and align the 4 holes (2 on either side). Then insert
the 4 bolts provided loosely into the holes. Once all 4 are in posion ghten them to fix the
handlebar into place, taking care not to damage any of the interior wiring.
FIRST USE
IMPORTANT: Before using the scooter for the first me, fully charge the baery. Aer turning
on the scooter, check the baery power on the display and verify that all lights are working.
• Remove the protecve cover from the charging port on the scooter.
• Ensure that the charging port is dry and not damaged before inserng the charger into the
port. (Refer to the scooter diagram for locaon).
• When the indicator on the charger is red, the scooter is charging.
• The indicator light on the charger will turn green when the baery is fully charged. This
usually takes 5-6 hours.
• Do not over charge as long-term baery life may be affected. Do not leave unaended while
charging.
• When charging has completed, remove the charger and ensure that the protecve cover is
placed securely over the charging port.

6
UNFOLDING THE SCOOTER
From the folded position, unclip the handlebar
from the hook on the rear mudguard.
When the handlebar is in the vertical position, lock it into place using the
clamp on the front of the handlebars. Ensure that the clamp is fully secure
before using.
FOLDING THE SCOOTER
Unfasten the handlebar clamp and fold the handlebars from
the clamp towards the back wheel.
Fix the handlebar to the
hook on the mudguard,
ensuring it is securely
locked in position.

7
TURNING ON/OFF
IMPORTANT: Make sure the scooter is upright and placed on a flat surface before starting.
Press and hold the power button below the handlebar, for around
2 seconds to turn on the scooter.
Press and hold the power button again to turn off the scooter.
HOW TO RIDE
1. Place one foot firmly on the deck, keeping your other foot on the ground for balance.
2. Press the accelerator on the right handle and put your other foot on the scooter when it
begins to move. This should all be done at very low speed.
3. Press the accelerator gradually to increase speed. Release the accelerator to gently slow
down, or pull the brake lever for more immediate braking.
4. When the scooter has stopped, remove your feet one by one.
TIGHTENING THE HANDLEBAR STEM
If your scooters steering feels loose and unstable, or the
front wheel is out of alignment, the handlebar stem should
be adjusted following the procedure below:
1. Lock the scooter in its folded position.
2. Use the provided allen key to loosen the bolt on the
clamp as shown.
3. Once the wheel is aligned, use the allen key to tighten
the bolt until it is tight. Do not overtighten.
4. Once tightened the handlebars can be unfolded.

8

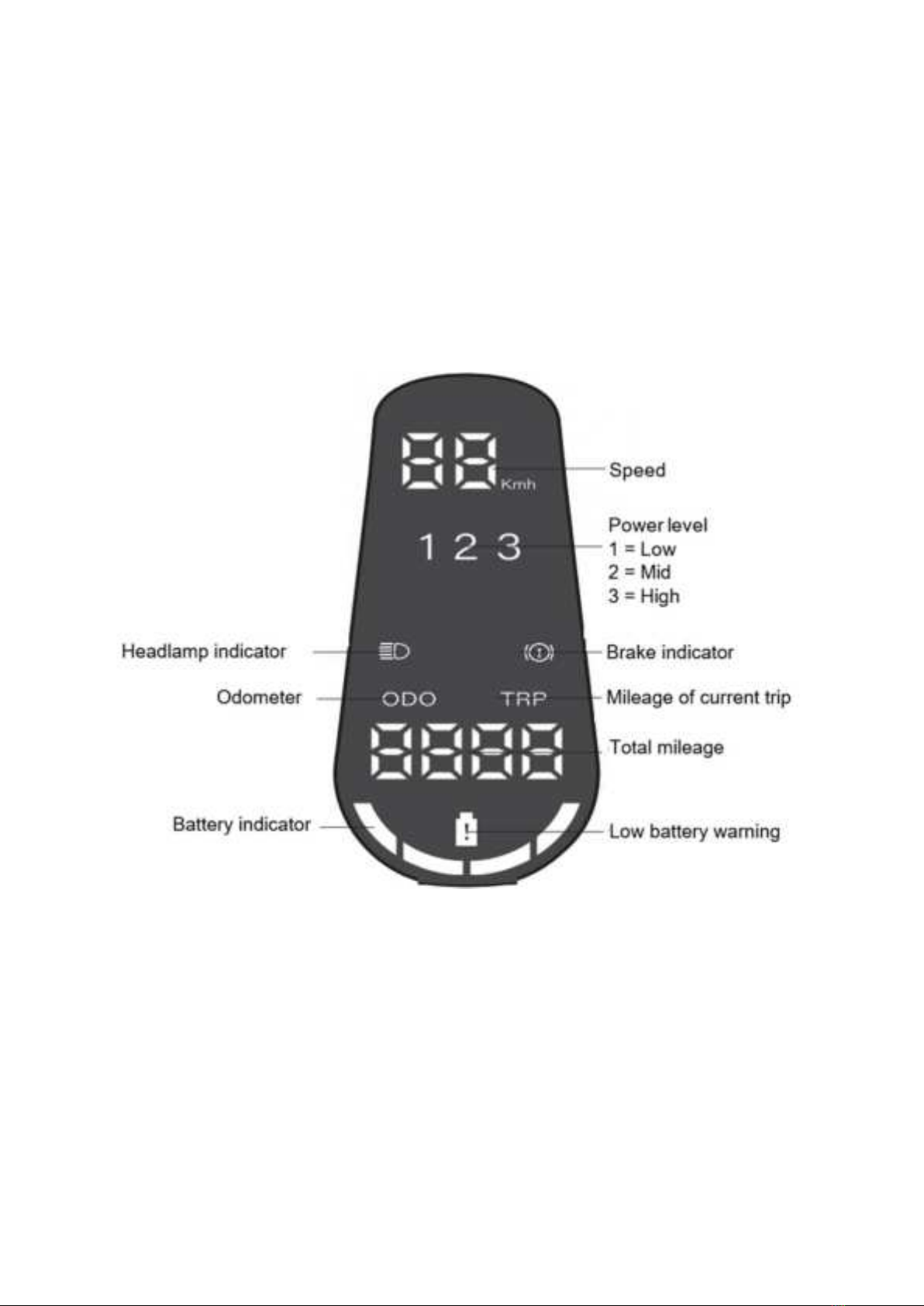

DISPLAY
•The LED display on the handlebar will turn on after powering up the scooter.
•The scooters battery level is displayed at the bottom of the display. During use, the number of
bars on the battery level indicator will decrease.
•When the battery level reduces, the bars will disappear until the battery is empty. The battery
warning indicator will illuminate when the battery is at critical level.
•When the battery warning light is blinking, you must slow down and find a power source
immediately, as continued use may risk damaging the battery.
When the scooter is turned on it will be set at speed level 1, this is the lowest speed and highly
recommended for beginners and inexperienced users.
To change between the three power levels, press the power button. After speed 3 has been
reached, if the power button is pressed again it will cycle back to speed 1.
Quickly press the power button twice to turn the front/rear lights on or off.
.

9
MAINTENANCE
The scooter requires roune cleaning and maintenance.
• Before any work is carried out on the scooter, ensure that the charging cable is not connected
and that the scooter is powered off.
• To clean the scooter, wipe the exterior with a sodamp cloth, then dry immediately.
• The exterior of the scooter is dustproof and splash proof with a water ingress rang of IPX4.
• Do not allow water to get inside of the scooter. There is a high risk of the internal electronics
becoming permanently damaged.
• The tyres on the scooter must be regularly checked for deflaon and damage. If the tyres are
deflated, pump them up to the recommended tyre pressure 2.0 bar.
STORAGE
• Ensure that your scooter is only charged to 40 – 50 percent power before storage. If you plan
on storing the scooter for a long me. Make sure to half charge the scooter every 2 months to
avoid baery issues.
• Do not store the scooter at less than 7⁰C or above 25⁰C
• Keep the scooter inside its own packaging, or cover it to prevent dust build up.
• Keep the scooter indoors at all mes when not in use.
TECHNICAL SPECIFICATIONS
Model name
E-SC02PRO
Maximum loading
120 kg
Maximum speed
25 Km/h
Maximum Range
45 km
Motor power
350W
Climbing gradient
11⁰
Power supply
AC110-240V, 50/60Hz
Baery
15000 mAh Lithium baery
Baery power
540 Wh
Baery voltage
36V
Baery capacity
15 Ah
Charging temperature
0⁰C - 40⁰C
Charging me
7-8 hours
Storage humidity
5% - 95%
Body dimensions
110 x 42 x 115 cm
Folded body dimensions
110 x 42 x 52 cm
Net weight
17.85kgs
Tyre Size
10 inches

10
electriQ UK SUPPORT.
03303903061
Office hours: 9AM - 5PM Monday to Friday
www.electriQ.co.uk
Unit J6, Lowfields Business Park
Lowfields Way, Elland
West Yorkshire, HX5 9DA
PRODUCT DISPOSAL
Do not dispose this product as unsorted municipal waste. Collection of such waste must be handled
separately as special treatment is necessary.
Recycling facilities are now available for all customers at which you can deposit your old electrical
products. Customers will be able to take any old electrical equipment to participating civic amenity sites
run by their local councils. Please remember that this equipment will be further handled during the
recycling process, so please be considerate when depositing your equipment. Please contact the local
council for details of your local household waste recycling centres.
