ElectrIQ eiQCANOPY70TM User manual

USER MANUAL
CANOPY COOKER HOOD
eiQCANOPY70TM
Thank you for choosing your electriQ cooker hood.
This instruction manual is designed to provide you with all required instructions
related to the installation, use and maintenance of the appliance. In order to operate
the unit correctly and safely, please read this instruction manual carefully before
installation and usage.

3
CONTENTS
SAFETY 3
INSTALLATION 7
OPERATION 8
CLEANING AND MAINTENANCE 8
FILTER INFORMATION 10
BULB REPLACEMENT 11
TROUBSLEHSOOTING 12
SUPPORT 12
PRODUCT FICHE 13

4
SAFETY PRECAUTIONS
Whilst this product is compliant with all safety requirements, incorrect or
inappropriate use can lead to both personal injury and potential damage
to property. Please read the contents of this instruction booklet
thoroughly before fitting or using this appliance.
•The cooker hood must be installed in accordance with the installation
instructions and all measurements followed.
•All installation work must be carried out by a competent person or
qualified electrician.
•The unit must be connected to an earthed power supply.
•If venting externally, make sure the ducting has no bends sharper than
90 degrees as this will reduce the efficiency of the cooker hood.
•The cooker hood is for domestic use only and is not designed for
commercial use. It should only be used for the purpose it was intended
–to extract vapours and cooking odours.
•Do not flambé or use an open flame under the cooker hood.
•Do not try to use the cooker hood without the grease filters or if the
filters are excessively greasy! They should be cleaned regularly (see
“Maintenance”) or replaced as necessary.
•The extraction fan must be level to avoid grease collection at one end,
as this could cause a potential fire risk.
•Do not leave frying pans unattended during use because overheated
fat or oils might catch fire.
•If the cooker hood is damaged, do not attempt to use it.
•If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or a similarly qualified person in order to avoid a
hazard.
•This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved.
•Children must not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
•Children should be supervised to ensure that they do not play with the
appliance. It is not a toy.

5
•The plug must be accessible after installation for isolation in case of an
emergency –or an appropriate fused switch if the unit is hard-wired to
the mains via a spur.
•The minimum distance between the surface of the hob and the lowest
part of the hood should be at least 65cm. A distance of between 65cm
and 75cm gives peak efficiency.
•The air must not be discharged into a flue that is used for exhausting
fumes from appliances burning gas or other fuels.
•When the hood is vented externally and used with appliances which
burn fuel (e.g. gas, oil, wood) the area must be sufficiently ventilated to
ensure safe operation. Fresh air must be allowed to freely enter the
room to prevent a partial vacuum.
•A partial vacuum can starve the heating appliance of oxygen, impairing
combustion. It can also prevent toxic fumes from leaving the room, or
can cause fumes to be sucked into the room from outside.
•Safe operation is only possible when the partial vacuum within the
working area does not exceed 4 Pa (0.04 mbar). This can be achieved
by ensuring air is able to enter the room from outside through a suitable
sized opening which cannot be sealed during operation. A number of
alternative solutions are available to ensure this. If in any doubt,
professional advice should be sought.
•Regulations concerning the discharge of air have to be fulfilled.
•There is a potential fire risk if cleaning is not carried out in accordance
with the instructions.
•Clean your appliance periodically by following the method given in the
chapter MAINTENANCE
•If used in recirculation mode, charcoal filters (available separately) can
be used to trap odours and must be replaced at least once a year
depending on how frequently the cooker hood has been used.
•For safety reason, please use only the same size of fixing or mounting
screw, which are recommended in this instruction manual.
•Warning: Failure to install the screws or fixing device in accordance
with these instructions may result in electrical hazards
CAUTION: Accessible parts of the hood can become very hot during
use with cooking appliances, whether in use or not, due to heat rising
from the hob. Sufficient time should be allowed for the unit to cool
before touching either the housing or the grease filters.

6

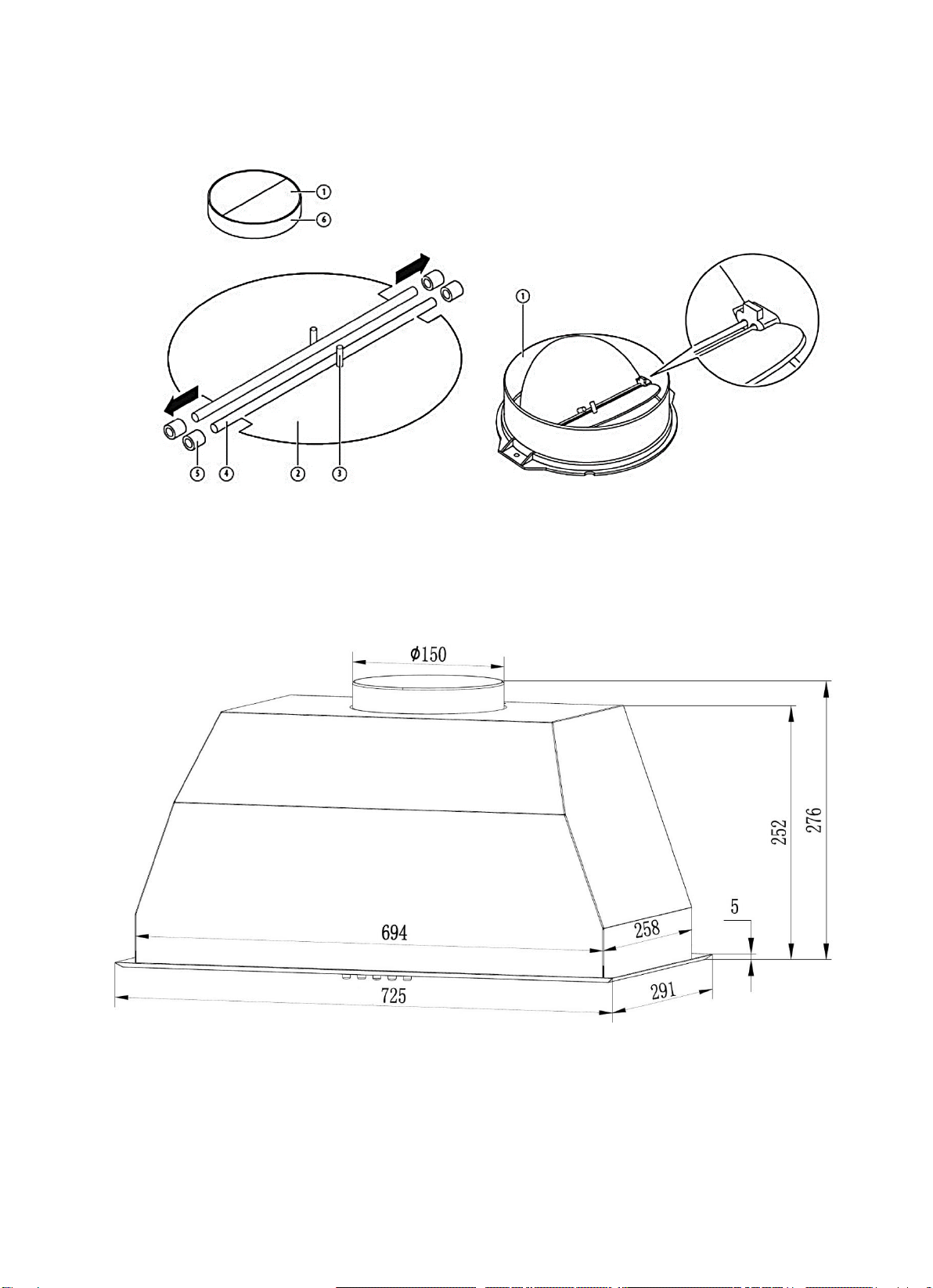

V-FLAP INSTALLATION
DIMENSIONS

7

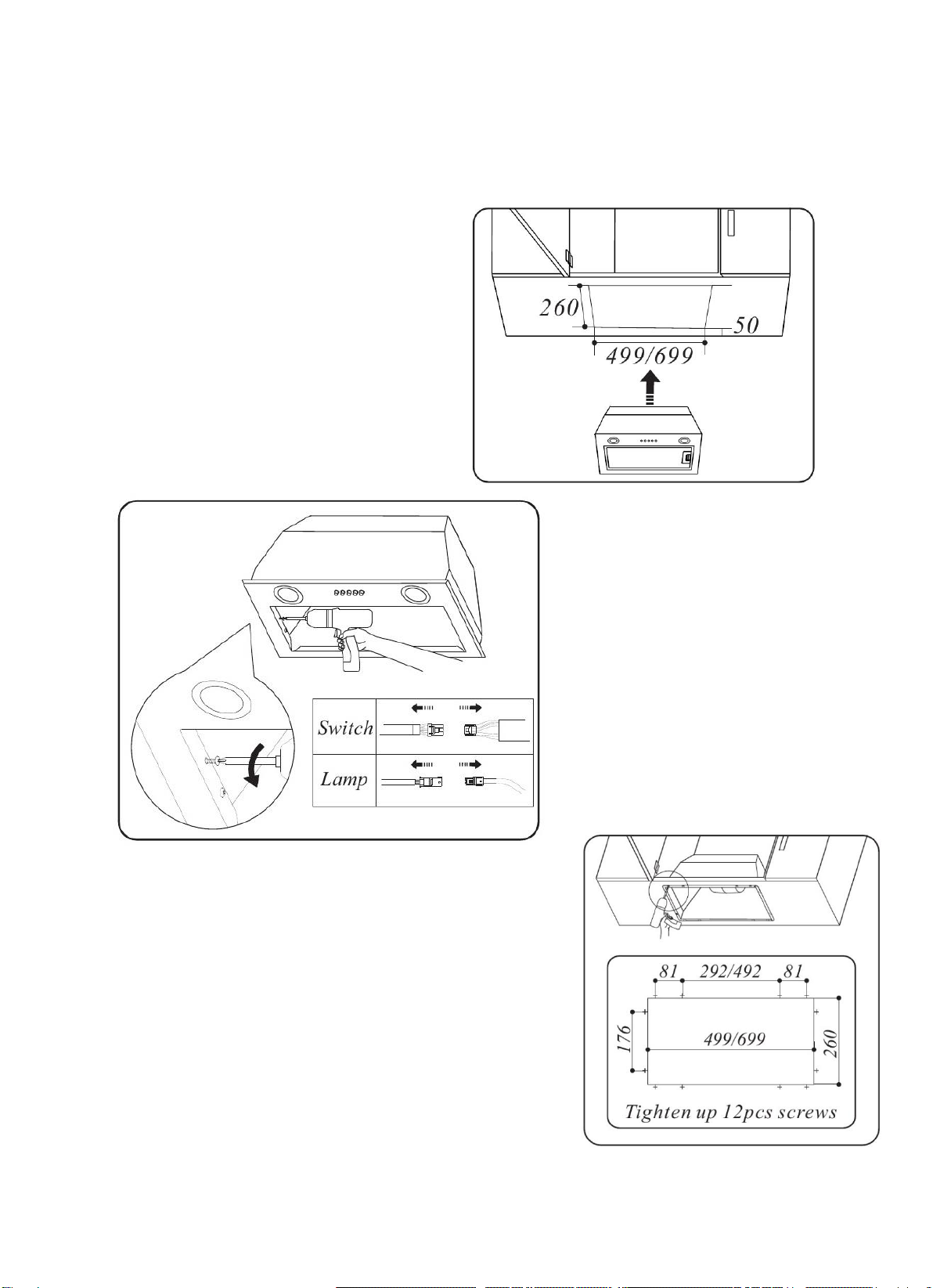

INSTALLATION
Before installation, measure and cut a hole measuring 52cm x 72cm in your kitchen
cabinet of appropriate size to fit the hood.
The depth of the cabinet must be no less
than 260mm and 50mm of space must
be left at the two ends of the opening.
Remove the filter by pulling
the latch and then remove the
2 screws from the left and
right panel. Disconnect the
lamp and switch connectors
and remove the panel. Keep
the screws safe for
reinstallation.
Fix the hood body into the cabinet with the 12 screws
provided. Ensure the hood is secure and stable.
Reconnect the lamp and switch wire and secure the
panel onto the hood using the two screws. Finally,
install the filter.

8
OPERATION
Button
Function
Remarks
Fan Off
Turns off the fan
Low Speed
Starts the fan at low speed. Suitable for
simmering and cooking which do not produce
much steam
Medium
Speed
Starts the fan at medium speed. Provides ideal
ventilation for standard cooking
High Speed
Starts the fan at high speed. Ideal for when
high density smoke or steam has been
produced
Lights
On/Off
Turns the lights on and off
CLEANING AND MAINTENANCE
Before cleaning, switch the unit off and disconnect the power.
Use a soft cloth moistened with mild soapy water or household cleaning detergent.
Never use metal pads, chemicals, abrasive material or stiff brushes to clean the
unit.
NOTE: Do not use a steam cleaner to clean the hood as electrical components
could be damaged or short-circuit as a result.

9
MONTHLY CLEANING FOR METALLIC ANTI-GREASE FILTER
IMPORTANT NOTE: Clean the filter every month; an excessive build-up of grease
can become a fire hazard. The filter collects grease, smoke and dust, so the filter
directly affects the efficiency of the cooker hood. If it’s not cleaned, the grease
residue (potentially flammable) will saturate on the filter.
Clean it with a soft nylon brush in a mild solution of warm water and a small amount
of washing up liquid. Washing up liquid alone should not be used. After cleaning,
allow the filter to drain and then dry thoroughly.
The grease filter may also be cleaned in a dishwasher; using a 60°C program, with
the filter upright (short sides upright) in the lower basket. Please be aware some
dishwasher cleaning agents can permanently discolour the filter, though this will not
affect its performance.
Replacement grease filters are of the universal type available from many household
and DIY stores.
STAINLESS STEEL
The stainless steel must be cleaned regularly (e.g. weekly) to ensure long life
expectancy.
Dry with a clean soft cloth. A specialised stainless-steel cleaning fluid may be used.
Ensure that wiping is done along with the grain of the stainless steel to prevent any
unsightly crisscross scratching patterns from appearing.
CONTROL PANEL SURFACE
The control panel inlay can be cleaned using warm soapy water. Ensure the cloth is
clean and well wrung before cleaning. Use a dry soft cloth to remove any excess
moisture left after cleaning.
Using neutral detergents and avoid using harsh cleaning chemicals, strong
household detergents or products containing abrasives, as this will affect the
appliance appearance and potentially remove any printing of artwork on the control
panel and will void manufactures warranty.
GREASE MESH FILTERS
The mesh filters can be cleaned by hand or in a dishwasher. By hand, soak them
for an hour in water with a mild detergent then brush it gently with a soft brush. Do
not apply too much pressure, or this may damage them. Leave to dry naturally out
of direct sun light.
In a dishwasher, stack them vertically, where possible. Filters should be washed
separately to crockery and kitchen utensils. It is advisable not to use rinse aid.

10

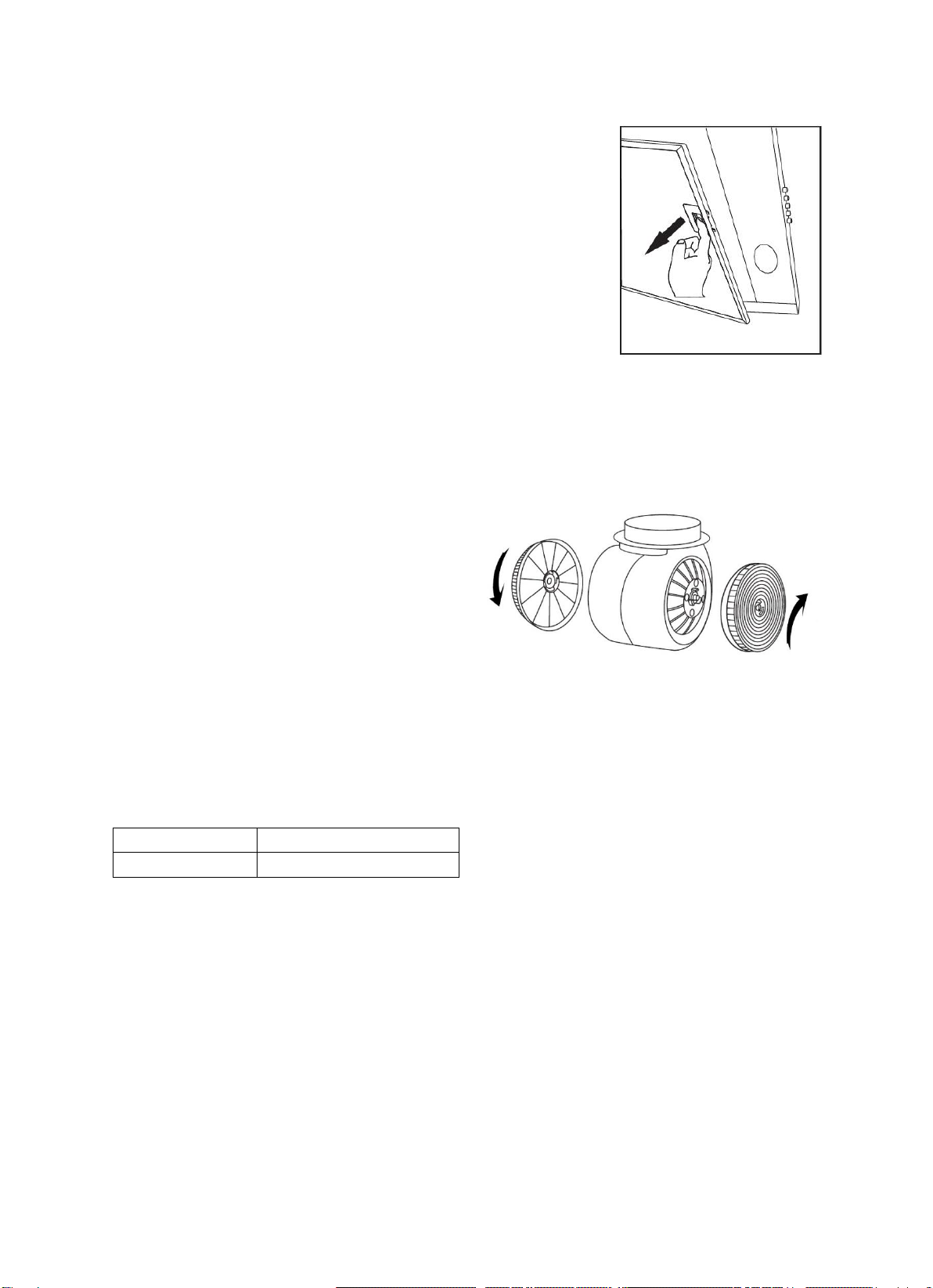

INSTALLING GREASE MESH FILTERS
To install filters:
1. Angle the filter into the slots at the back of the hood.
2. Push the button on handle of the filter.
3. Release the handle once the filter fits into position.
4. Repeat to install both filters.
CARBON FILTER (not supplied)
Activated carbon filters can be used to trap odours. The activated carbon filter
should be changed between three and six months according to use. The installation
procedure of activated carbon filters is as below.
1. Fit the carbon filter into the unit and
turn it clockwise to lock.
2. Repeat on the other side.
NOTE:
•Make sure filters are securely locked
in position, otherwise, they may
become loose and be dangerous.
•With activated carbon filters fitted you may notice suction is slightly
reduced.
Filters for eiQCANOPY70TM
Grease Filter
eiQTMCAN70
Carbon filter
eiQTMCARBONCHIM

11
BULB REPLACEMENT
The bulb must be replaced by either the manufacturer, a service agent or similarly
qualified persons.
Always switch off the electricity supply before carrying out any operations on the
appliance. When handling the bulb, make sure it has completely cooled down before
making contact with the hands.
When handling bulbs hold with a cloth or gloves to ensure perspiration does not
come in contact with the bulb as this can reduce the life of the bulb.
1. Remove the grease filters.
2. Put one hand into one of the the cavities to gently push out the LED light, and
use the other hand to support the light and pull it out, then pull out the light
cable.
3. After changing the lamp, plug in the lamp cable, and return the lamp into the
lamp holder.
Contact the supplier for replacement bulb information.
LED Modules
Round lamp
Max wattage
3W
Bulb product code
L11

12
TROUBLESHOOTING
FAULT
CAUSE
SOLUTION
Light on, but
fan does not
work
The fan blade is
jammed.
Switch off the unit. Repair to be carried
out by qualified service personnel only.
The motor is damaged.
Both light and
fan do not
work
Light bulb blown
Replace the bulb with correct rating.
Power cord loose
Plug in to the power supply again.
Excessive
Vibration
The fan blade is
damaged.
Switch off the unit. Repair to be carried
out by qualified service personnel only.
The fan motor is not
fixed tightly.
Switch off the unit. Repair to be carried
out by qualified service personnel only.
Suction
performance
reduced
Grease filters clogged
Clean or replace grease filters.
Distance between the
unit and the cooking
plane too great.
Readjust the distance to between 65cm
and 75cm.
INFORMATION FOR DISMANTLING
Do not dismantle the appliance other than shown in the user manual. The appliance
cannot be dismantled by user. At the end of life, the appliance should not be
disposed of with household waste. Check with you Local Authority for recycling
advice.
electriQ UK SUPPORT
www.electriQ.co.uk
Call: 0330 390 3061
Office hours: 9AM - 5PM Monday to Friday
Unit J6, Lowfields Business Park Lowfields Way, Elland
West Yorkshire, HX5 9DA
Recycling facilities are now available for all customers at which
you can deposit your old electrical products. Customers will be
able to take any old electrical equipment to participating sites run
by their local councils. Please remember that this equipment will
be further handled during the recycling process, so please be
considerate when depositing your equipment. Please contact the
local council for details of your local household waste recycling
centres.

13
PRODUCT FICHE
Symbol
Value
Unit
Annual Energy
Consumption
AEChood
34
kWh/a
Time increase factor
f
1.6
Fluid Dynamic Efficiency
FDEhood
11.7
Energy Efficiency Index
EEIhood
72.5
Measured airflow rate at
the best efficiency
QBEP
193.4
m3/h
Measured air pressure at
best efficiency point
PBEP
118
Pa
Maximum airflow
Qmax
303.4
m3/h
Measured electric power
input at best efficiency
point
WBEP
54.4
W
Nominal power of the
lighting system
WL
3
W
Average illumination of the
lighting system on the
cooking surface
Emiddle
89
lux
Measured power
consumption on standby
mode
PS
/
W
Measured power
consumption on off mode
PO
0
W
Sound power level
LWA
62
dB
