Electro Scan EST12 User manual

1
Models EST12, EST24 and EST32
Installation and Maintenance Instructions
THE FOLLOWING ARE CAUTIONARY STATEMENTS THAT MUST BE READ AND FOLLOWED
DURING BOTH INSTALLATION AND OPERATION
WARNING: Raritan Engineering Company, Inc. recommends that a qualified person or electrician install this
product. Equipment damage, injury to personnel or death could result from improper installation.
Raritan Engineering Company, Inc. accepts no responsibility or liability for damage to equipment,
or injury or death to personnel that may result from improper installation or operation of this
product.
WARNING: HAZARD OF SHOCK AND FIRE - Always use recommended fuse/circuit breaker and wire size.
WARNING: HAZARD OF FLOODING - Always shut off seacocks before leaving boat unattended.
Double clamp all hose fittings below the waterline, check hose clamps frequently for integrity.
WARNING: The electro scan operates on an Electrochemical principle. Introduction of any substance other than
salt water, human waste, Raritan Concentrate, Raritan C.P. or toilet tissue may cause heat build up
and extensive damage. If any other substance is introduced by accident, the electro scan must not
be turned on until entire system is flushed out with water.
electro scan™ is a U. S. Coast Guard Certified Type I Marine Sanitation Device for use on inspected and
uninspected vessels 65 feet (19.7 Meters) and under. It must be operated within areas that are not declared
a Federal No Discharge Zone (NDZ) by the U.S. Environmental Protection Agency (EPA). This is applicable
for all U.S. territorial waters inside the three mile limit. Other countries - check with local authorities.
electro scan is designed for recreational use and accommodates most marine toilets* it can be used with one
or, in some cases, two toilets. The electro scan is available in 12, 24 or 32 V DC.
The system consists of a Control Unit, LCD Display, System Status Panel and Treatment Tank.
A salt feed system (optional) must be utilized if operating in fresh or brackish water. Please
see Page 7 for complete details on Salt Feed Options.

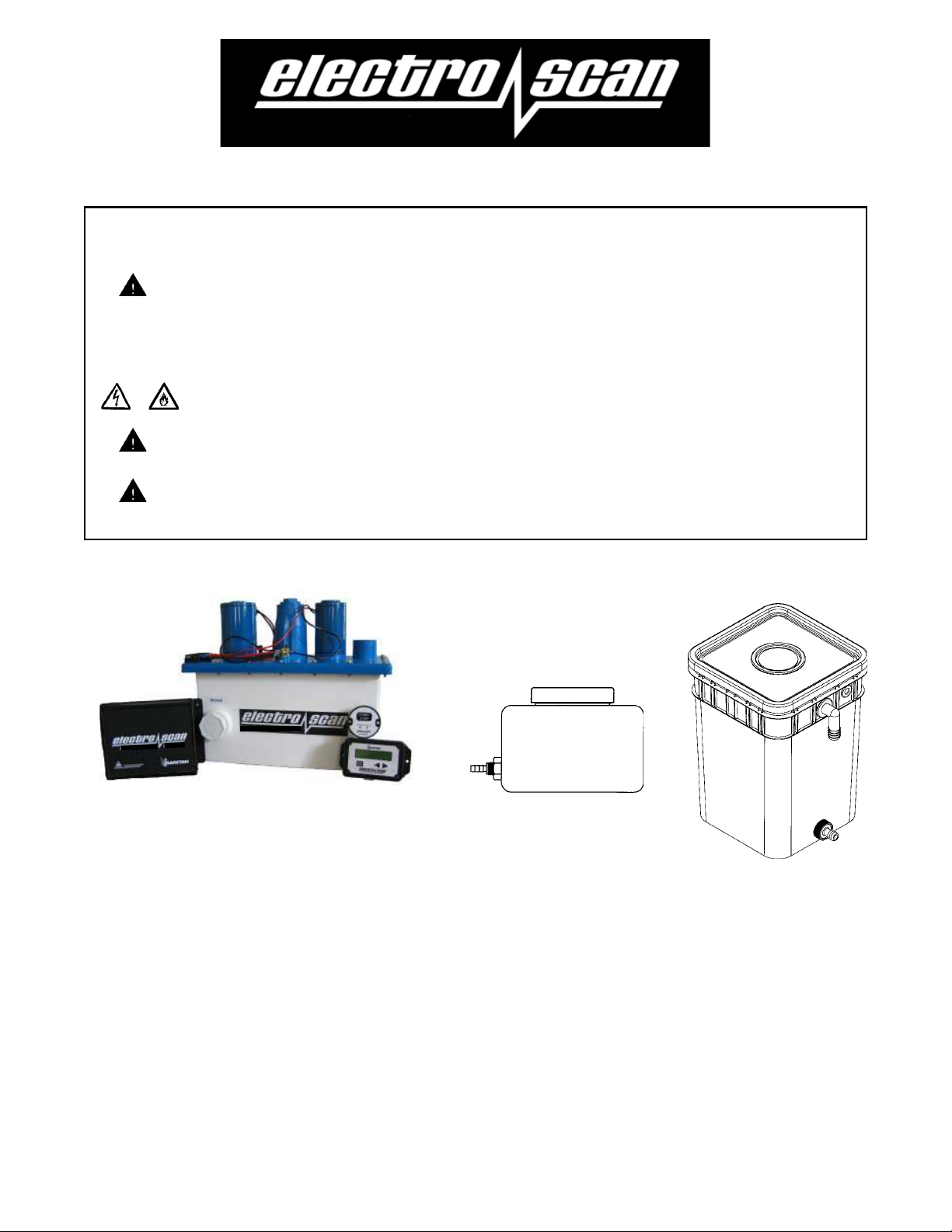

electro scan with control optional salt feed systems
2 gallon tank
4 gallon tank
* for use with the VacuFlush®marine toilet manufactured by Sealand Technology, Inc., (See Application note L286)
VacuFlush®is a registered trademark of Sealand Technology, Inc.
electroscan™ is a trademark of Raritan Engineering Co., Inc., patent pending
TM

2
OPERATION
(depends on installation chosen)
Single Button operation -
Both toilet and electro scan are operated by one of the
following options:
Option #1: System status panel Touch Pad
"Start/Stop" button activates both the toilet and
treatment cycle.
Note: Toilet flush time is factory pre-set for 10
seconds and is adjustable, see "setting toilet flush
time"
Option #2: Toilet Push Button -
Flushing toilet will activate treatment cycle. Flush
toilet as often as necessary until system status
green light begins to blink.
Independent Button operation -
Used with manual flush toilets or if Electric toilet is
being activated seperately from Electroscan. "Start/
Stop" button must be pressed before toilet is flushed.
Flush toilet as often as necessary until system status
green light begins to blink 35 seconds after activa-
tion.
To Stop Treatment Cycle -
Pressing "Start/Stop" again stops the treatment cycle,
If wired per option #1 it will also stop the toilet from
flushing.
Notes:
1) Total flush volume must not exceed 1.5 gallons
(5.7 liters) per cycle.
2) Operating with red light for extended periods
will damage electrode and void warranty
How it works -
Each time the toilet is flushed an equal amount of previ-
ously treated waste is discharged. The electro scan does not
pump waste out. The flushing action of the toilet moves the
waste through the electro scan.
The first chamber macerates to reduce particle size. The
second chamber mixes to ensure uniform treatment of
contents. When the tank is full with salt water the electrode
plates, when electricity is applied, generate bactericide in
both chambers.
When first activated both motors come on and run for the
entire cycle. The user then has 35 seconds to flush toilet.
After 35 seconds the electrode is energized to begin the
treatment process which lasts for approximately 2 minutes.
Note: If the green light is not flashing during treat-
ment, the cycle has been automatically extended to
ensure proper treatment. The unit MUST not be
operated in extended cycle for long periods as damage
to electrodes will occur. Immediately attempt to
determine the cause and fix a red light condition.
Overboard
Electrodepack
Fromtoilet
cross-over
Mixer
Macerator
Solid Green- OK to flush toilet
Blinking Green-Normal operation, do not flush toilet
Blinking red- Check warning on display
Solid red- Check error on display, Push and hold
mode button to clear
MODE DOWN UP
electro scan
LCD DisplaySystem Status Panel
READY TO FLUSH

3

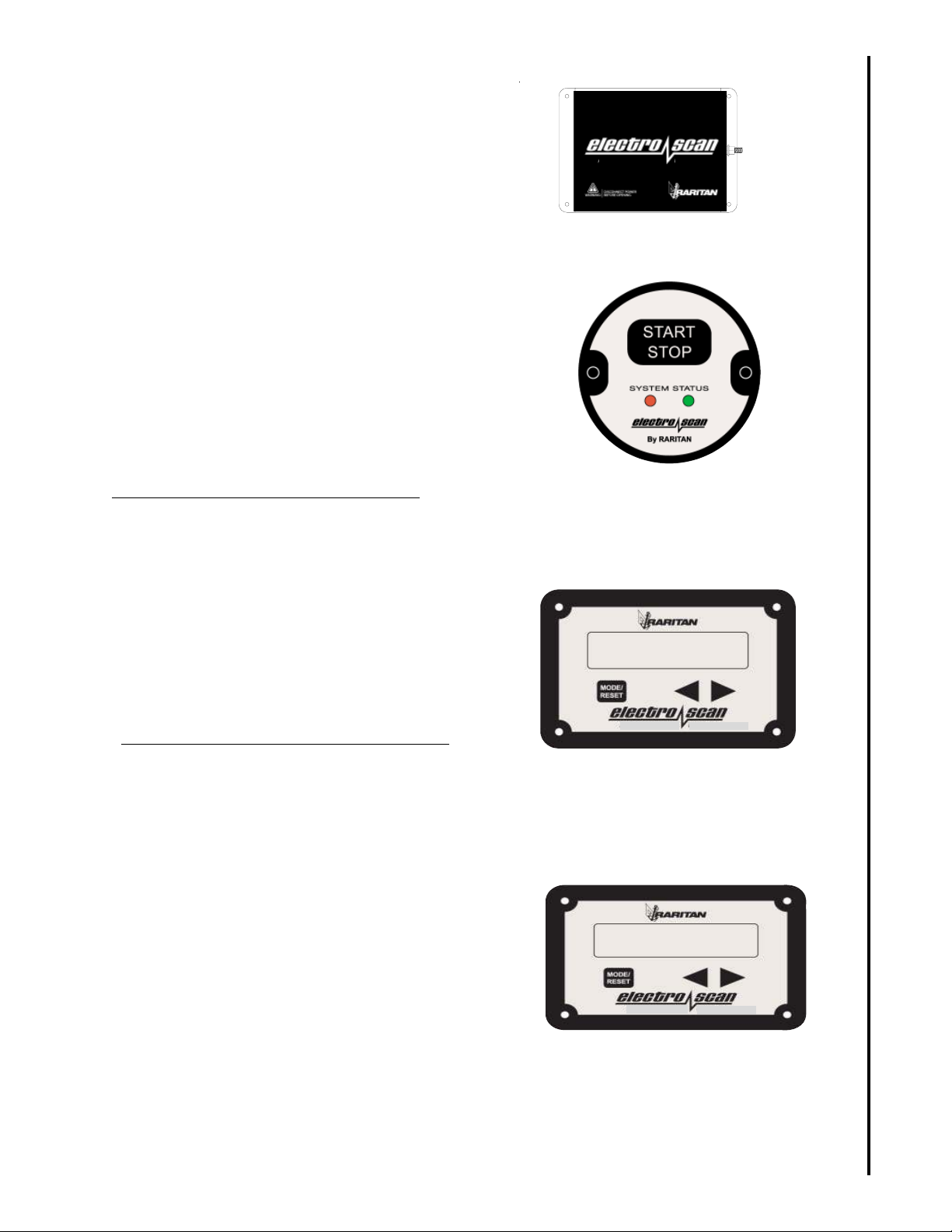

The electro scan has four basic components:
System Status Panel - Begins treatment cycle
and if wired flushes an electric toilet at the same
time.
Control Unit – Serves as the system’s central
control. The unit contains three boards: Main
(contains the power and logic components),
Microprocessor/Memory (contains system
program and stores operational data) and I/O
(where connections are made for accessories).
Treatment Tank - Consists of two chambers and
electrode pack that temporarily converts saltwater
into a powerful bactericide for the duration of the
treatment cycle.
LCD Display – Provides information during
treatment cycle and summary of historical
data. Also contains RESET button if system error
occurs.
Setting time and date on LCD Display:
 Scroll to "time screen" using < and > keys when
unit is not in cycle.
 Hold “mode” button until digits flash
 use < and > button to set hour in military time
 Push “mode" again for next digits (minutes)
 Use < and > to set minutes
 Repeat above until time and date are set
 Use < or > to move to next screen when no
digits are flashing.
Setting toilet Flush time on LCD Display:
Scroll to "flushtime" screen using < and > keys
when unit is not in cycle.
Hold ‘mode” button until digits flash
Use <or > keys to set time in seconds for toilet 1
Repeat above for toilet 2 (flushtime 2).
Toilet only flush:
Use only for servicing, storage or recommission-
ing. It is illegal to discharge untreated sewage in
U.S. waters.
Scroll to Flushtime (1 or 2) screen using < or >
keys when unit is not in cycle.
Hold "mode" button and press < or > key.
Toilet will flush for set time.
/(&75$6$1
RARITAN
LST / MC II
CONTROL UNIT
OPERATION
Control Unit
TIME 00:00:00
DATE: 01/01/01
LCD Display
System Status Panel
LCD Display
FLUSHTIME 1
05

4
Most operation and troubleshooting information is displayed on the LCD display panel.
Following is the description of display screens and what they mean.
RED LED blinks for warning and is solid for errors
OPERATION
Treatment terminates in ERROR condition for reasons listed below. To clear error condition
after corrective action is taken, hold mode/reset button on display for four seconds.
Following screens can be seen by scrolling up (>) and down (<) keys. These screens display historical summaries
of the data and allow setting of clock and flush timers
TIME 00:00:00
DATE: 01/01/00
FLUSHTIME 1
05
FLUSHTIME 2
10
NUMBER OF CYCLES
00100
NUMBER OF RESETS
00
CYCLE W/O LST
000
LOW AMP 14-18
000
LOW AMPS 7-14
000
LOW AMP SHUTDOWN
000
LOW VOLTS < 90%
05
LOW VOLT < 83%
01
MIN TEMPERATURE
20
LOW VOLT SHUTDOWN
05
MAX TEMPERATURE
90
Display Panel LEDS Status
reen
Red
Previous cycle ended normally Ready for next cycle
Previous cycle completed with low voltage, Ready for next cycle,
low voltage should be corrected
Previous cycle completed with low electrode amps, Ready for
next cycle, low amps should be corrected
Unit is in pretreatment cycle after start, voltage displayed,
Unit goes to treatment cycle after pretreatment for 120 seconds,
voltage and amps are displayed alternately.
During the treatment cycle if electrode amps drop below 14,
Warning is displayed, and cycle is extended up to 240 seconds
During the entire cycle if voltage drops below 89% of full battery
voltage, warning is displayed, cycle continues
READY TO FLUSH
****WARNING****
VOLTAGE LOW
**PRETREATMENT**
VOLTAGE= 100%
***TREATMENT***
VOLTAGE= 100%
***TREATMENT***
AMPS = 15
****WARNING****
AMP = 10
****WARNING***
VOLTAGE< 87%
****WARNING****
AMPS< 14
Voltage was less that 83% of full voltage during the cycle; check
battery , connections and wire sizes.
*****ERROR****
LOW VOLTAGE
*****ERROR*****
LOW ELECTROD AMP
*****ERROR*****
MIX MOTOR OVERLD
*****ERROR*****
MaC MOTOR OVERLD
*****ERROR*****
ELECTROD OVERLD
*****ERROR*****
POS FUSE BLOWN
Electrode amps were lower than 7 amps, check salt, clean electrode
with acid treatment, check all connections.
Mixer motor amps were high, Check for foreign material in mixer
chamber, seal leaks, motor shorts
Macerator motor amps were high, Check for foreign material in
macerator chamber, seal leaks, and motor shorts
Electrode amps were higher than 28 amps during fresh water
operation, check for excessive salt, shorted electrode, wiring.
Positive/Negative fuse on I/O connection board is blown due to
some external short, check toilet solenoid type, wiring to solenoid.
Solenoid (relay) to toilet must be isolated coil type or Raritan
solenoid.
*****ERROR*****
NEG FUSE BLOWN

5
MAINTENANCE
Cleaning Instructions
IMPORTANT: Do not use bowl cleaners that
contain ammonia, ethyl acetate, phosphoric acid
or concentrated chlorine bleach. These will cause
damage to treatment system. C.P. is the only toilet
bowl cleaner recommended by Raritan.
Using Raritan's C.P. Cleans Potties, a bio-enzymatic
toilet bowl cleaner, will keep the bowl clean and fresh
smelling and won't damage the treatment system.
Recommended Visual Inspection
3Leaks at hose connections
3Hose clamps
3Condition of hoses
3Seacocks
3Condition of wires and connections
Treatment/Electrode cleaning
Note: Cleaning is recommended every SIX MONTHS
or if red light and warning for low electrode amps are
always on during treatment cycle.
Raritan Recommends using our product: C.H.
Cleans Hoses for cleaning the Electroscan
OPTIONAL MURIATIC ACID TREATMENT:
1. Activate the electro scan and flush toilet several times,
allowing all waste to be treated.
2. Turn off water supply and flush toilet as dry as possible.
NOTE: Check toilet manufacturer's instructions to
ensure no damage is done to any components.
3. Turn Power off
4. Disconnect Red, White and orange wires at Electroscan
control box.
WARNING: electro scan must not be activated without
disconnecting electrode and motor wires while
muriatic acid solution is in the system.
5. In plastic bucket combine 1.5 pints (.852 liters) of
muriatic acid with 3 gallons (13.635 liters) of fresh
water.
6. Carefully pour solution into the toilet and flush until
bowl is as dry as possible.
7. Pour one gallon (3.8 liters) of additional fresh water
into bowl to dilute any acid remaining.
8. Allow to stand for a minimum of 45 minutes.
9. Turn on water supply and flush only the toilet a
minimum of 10 gallons (38.0 liters) of water to dilute
and discharge muriatic acid solution.
(see section OPERATION Toilet only flush if using
one button operation)
9. Reconnect wires and turn power on to electro scan.
C.P.
Storage
Short Term - If system will not be used for a week,
flush toilet and run treatment cycle several times.
Long Term - If system will not be used for several
weeks, flush toilet and run treatment cycle
several times. Then flush freshwater into system.
Prior to use - flush toilet several times to re-fill
treatment tank with ocean salinity salt water.
Refer to Recommissioning & Start-Up to initialze
the system after storage

6
WINTERIZING
IMPORTANT
• Improper winter lay up is a major cause of failure
due to freezing or buildup.
Steps
1. Flush toilet and activate electro scan several times to
clean out hoses and tank.
2. Turn off water supply and flush toilet as dry as possible.
NOTE: Check toilet manufacturer's instructions to
ensure no damage is done to any components.
3. Turn off power and disconnect wires to electro scan.
4. Close seacocks.
5. Slowly open cross-over plug.
Caution: Open plug slowly as unit may be under pressure.
5. Using a pump and 3/8" tube, remove water from each
side of partition in treatment tank through crossover
plug.
6. Disconnect and drain hoses.
Recommissioning & Start-Up
1. Reconnect hoses and open seacocks.
2. Reconnect wires and turn power on.
NOTE: electro scan treatment tank must be full with sea
water salinity water before activating a cycle.
3. Flush toilet using one of the following methods to fill
the treatment tank with salt water.
• Scroll to Flushtime (1 or 2) screen using < or >
keys when unit is not in cycle. Hold "mode" button
and press < or > key. Toilet will flush for set time.
• Separate operation - flush toilet allowing three
gallons of water to pass into electro scan.
• if toilet operates electro scan - you must disconnect
power from electro scan while flushing to allow
three gallons (13.6 liters) of water to pass into
electro scan.
NOTE: In fresh and brackish water operation, salt content
of treatment tank must be ocean water salinity prior
to using unit for treatment. Ocean water salinity is
3% or approximately four ounces of salt to one
gallon of water (32g/liter).
4. Inspect all connections for leaks.
5. System is ready for use.

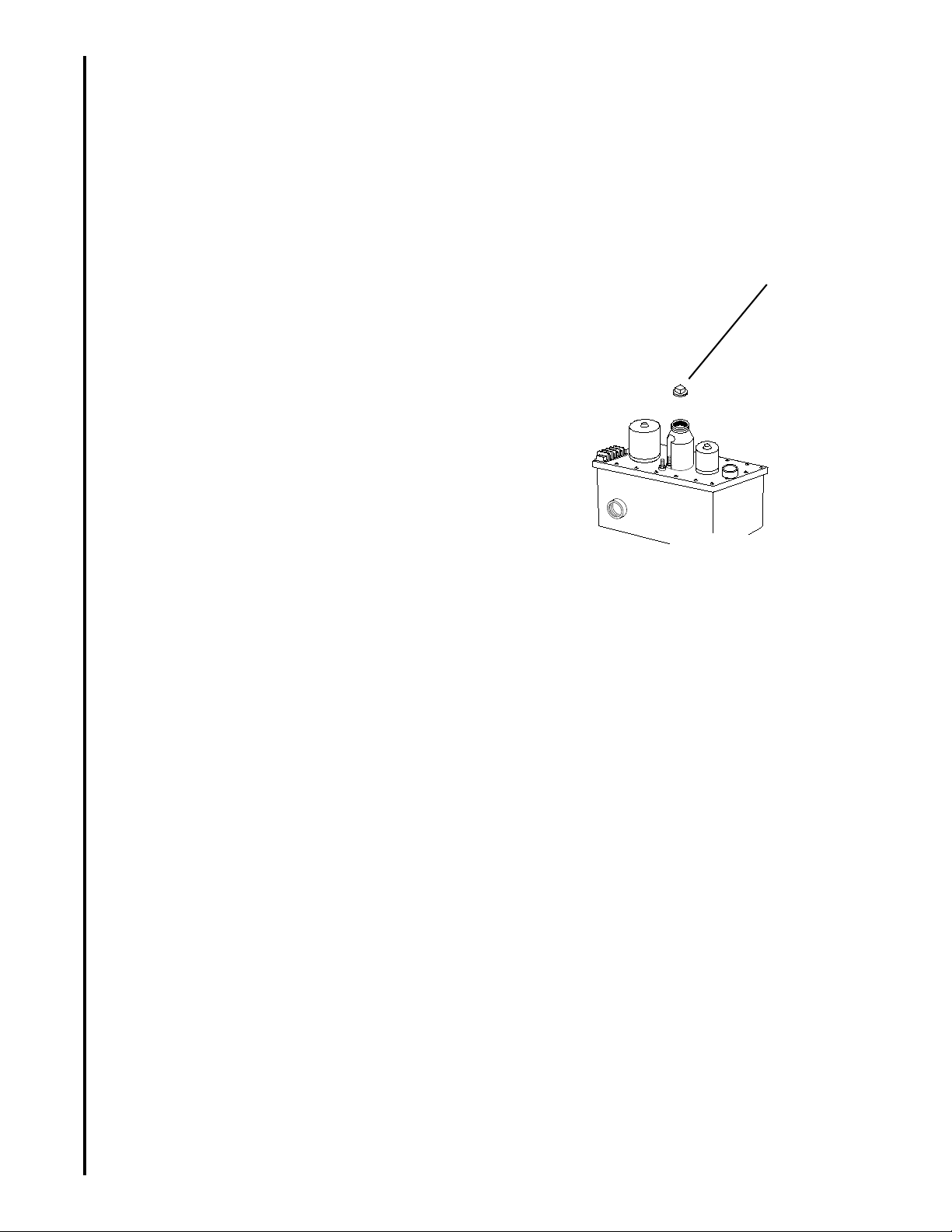

Cross-over Plug

7
SPECIFICATIONS
U.S.C.G. Type I MSD Certification #159.015/0107/1
Maximum Roll/Pitch Angle: 30° Capacity: 575 Gallons Per Day
Maximum Temperature Exposure: 120° F (49° C)
Maximum Total Flush Volume: 1.5 gallons/flush (5.7 liters/flush)
Maximum cable length for LCD Dispaly: 16' (5M)
Maximum cable length system status panel: 25' (7.6M)
CONVERSIONS
Wire - AWG to mm2
Feet to Meters
NOTES FOR WIRING:
Recommended Wire and Fuse/Circuit Breaker Size
Electronic trip Overload settings
IMPORTANT:
A salt feed tank is required when operating system with fresh or brackish water. Operating in low salt conditions
without the addition of salt will shorten life expectancy of the electrode plate and will void warranty.
NOTE: When installed, the salt feed system must be at the same level or lower than the treatment tank.
The following are available to purchase:
NOT FOR USE WITH PRESSURIZED FRESH
WATER TOILETS:
Two Gallon (7.6 liters) Salt Feed Tank
(Part #31-3001) - Tank must be filled with a saturated salt
solution which is dispensed via a T-check valve into incoming
water. One system per toilet. For use in slightly brackish water.
If used in fresh water tank will only last for approximately 15
flushes of the toilet.
Four Gallon (15.2 liters) Salt Feed Tank
(Part #31-3002) - Tank must be connected to pressurized fresh
water and filled with solar salt. The saturated salt solution is
dispensed via a T-check into incoming water. One system per
toilet. Requires manual adjustment as water salinity changes.
Four Gallon (15.2 liters) Salt Feed Tank with Pump
(Part #32-3003 12 Volt and #33-3003 24 Volt) The tank
must be connected to pressurized fresh water and filled
with solar salt. The pump is controlled by the control
box. This system can only be used with the electro scan.
One system per electro scan. This is the most accurate
system to use as the amount of saturated salt solution is
controlled by the actual operating conditions of the
electro scan.
Salt Feed System Options
OK FOR USE WITH PRESSURIZED FRESH-
WATER TOILETS:
.1 .ecruosotkcabdnatinuotecruosmorferasecnatsiD
.3 mm(GWAmuminimeriwrotcudnocdednemmoceR
2
.pordegatlov%3rof)
.4 501nodesaberasezisrotcudnocdednemmoceR
o
.noitalusnidetarC
.sgnitarnoitalusnirehtorofsdradnatSCYBAotrefeR
stinU
egatloV
tiucriC
esuf/rekaerB
)spma(ezis
ward.pmA
lanimon@
egatlov
01 teef 51 teef 02 teef 52 teef 03 teef 04 teef 05 teef
CDV210673GWA6GWA6GWA4GWA4GWA2GWA2GWA1
CDV420572GWA01GWA8GWA6GWA6GWA6GWA4GWA4
CDV230552GWA21GWA01GWA01GWA8GWA8GWA6GWA6
CDV21
esuF/tnioppirT
egarepmamumixaM
CDV42
esuF/tnioppirT
egarepmamumixaM
CDV23
esuF/tnioppirT
egarepmamumixaM
rotoMrexiM
spma53/spma9
wardpma5
spma53/spma9
wardpma4
spma53/spma9
wardpma4
kcaPedortcelE
spma53/spma53
wardpma52
spma53/spma53
wardpma22
spma53/spma53
wardpma22
rotoMrotarecaM
spma53/spma03
wardpma02
spma53/spma03
wardpma61
spma53/spma03
wardpma9
GWA 614121018642
mm
2
5.15.20.40.60.010.610.520.53
To Calculate Necessary Wire Gauge, See Note # 1, Above

8
INSTALLATION
Parts Included with the electro scan
• 1 1/2" hose adapters (2)
• 1 1/2" NPT Intake Plug
•90
°1 1/2" slip PVC fitting
• Treatment tank
• system status panel, control unit, LCD display, cables
Wiring harness between control unit and tank
Optional Parts available for purchase:
• Dual Control
• Salt Feed Systems
• Manual head sensor for automatic activation
MOUNTING
Treatment Tank and Control Unit
WARNING: DO NOT locate in an area where ambient
temperature exceeds 120oF (49oC).
Note: Control Unit should be located in dry location and
accessible after installation
1. Locate top of treatment tank at or below discharge of
toilet and within six feet (1.5 m).
2. Make and secure mounting frame to flat surface.
3. Secure tank to frame using 3/4" (1.9 cm) mounting
straps.
Note: Placing a 3/8" (.9 cm) rubber pad under tank will help
to reduce vibration and noise.
4. Secure Control Unit within 30" of Treatment Tank
Note: Cables supplied are 16 feet (5 m)
System Status Panel
1. Locate in head compartment where system status
lights will be visible.
2. Drill 1 1/2" hole for back of panel
3. Route cable between panel and Control Unit.
4. Plug cable into back of panel and Control unit.
5. Mount panel using 2 screws.
LCD Display
1. Locate in an area where display can be read if
necessary.
2. Secure to wall with 2 screws.
3. Route cable between display and Control Unit.
Treatment tank within 6 feet (1.8 M)
Top of tank lower than
discharge of toilet
3/4" (1.9 cm)
Mounting
Straps
1"(2.54cm) by
1"(2.54cm)
Wooden frame
NOTE:
Discharge of raw, untreated sewage is prohibited in all U.S. waters inside the three mile limit except in the Gulf of
Mexico where the limit is nine miles. "Y" valves, if installed, must direct toilet discharge to a U.S.C.G. approved
treatment system or holding tank and must be secured in that position while inside the three-mile limit.
The EPA standards state that in freshwater lakes, freshwater reservoirs or other freshwater impoundments whose inlets or
outlets are such to prevent the ingress or egress by vessel traffic subject to this regulation, or in rivers not capable of
navigation by interstate vessel traffic subject to this regulation, marine sanitation devices certified by the U.S. Coast Guard
installed on all vessels shall be designed and operated to prevent the overboard discharge of sewage, treated or untreated,
or any waste derived from sewage. The EPA standards further state that this shall not be construed to prohibit the carriage
of Coast Guard-certified flow-through treatment devices which have been secured so as to prevent such discharges. They
also state that waters where a Coast Guard-certified marine sanitation device permitting discharge is allowed including
coastal water estuaries, the Great Lakes and interconnected waterways, freshwater lakes and impoundments accessible
through locks, and other flowing waters that are navigable interstate by vessels subject to this regulation (40 CFR 140.3)
Parts Required (not included)
• PTFE tape or non-permanent thread sealing compound
• PVC Cement
• 1 1/2" (3.8 mm) I.D. sanitation hose (raritan part # SH)
• Hose clamps
• 1" (2.54 cm) x 1" (2.54 cm) wood strips and fasteners to
secure to floor (wooden frame)
• 3/4" (1.9 cm) strapping
• Electrical connections, wire and fuse or circuit breaker

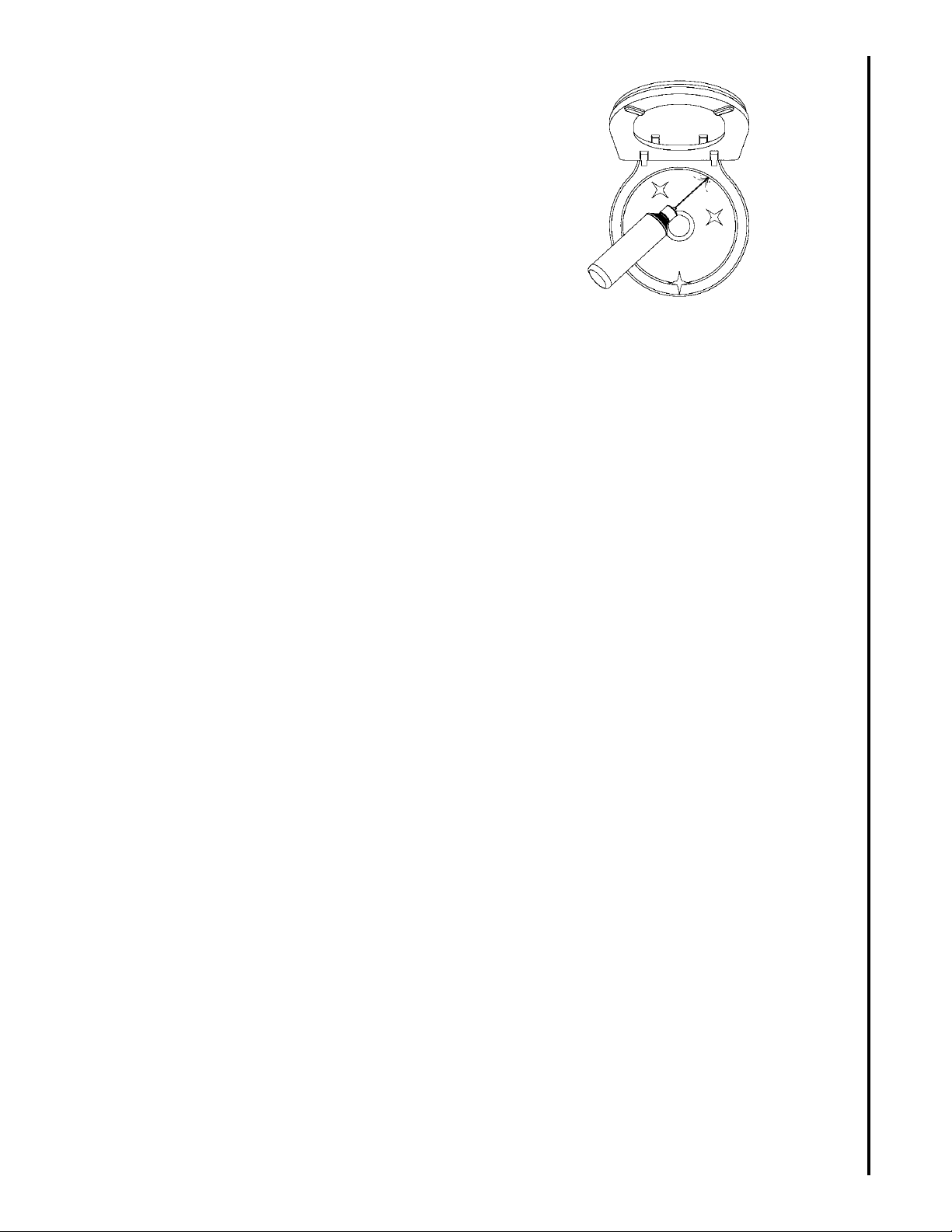

DRILL
3/32"
(2.4 mm)
DRILL
1 1/2"
(38 mm)
HOLESAW
CONTROL
INDICATOR
PANEL
OUTLINE
C
L
C
L
CONTROL INDICATOR PANEL
MOUNTING
System Status Panel
Apply a bead of nonpermanent
sealant around rear edges of
panel if located in shower area.
not to scale

9
INSTALLATION \ WIRING
PLUMBING
WARNING:
• All installations made below the waterline MUST be
protected by installing vented loops in proper location
• Always double-clamp fittings below waterline
• Do Not use metal fittings
NOTE: Use PTFE tape or non-permanent thread sealing
compound on threaded PVC fittings and connections. Avoid
low areas in hose that would allow untreated waste to collect.
1. Connect discharge of toilet to one inlet port.
2. Insert plug or second toilet discharge into other inlet port.
3. Determine position and glue discharge elbow to top of
tank using PVC cement.
4. Connect discharge hose from elbow to thru hull fitting.
WIRING
WARNING: Hazard of Shock and Fire
• Always use proper wire, wire connectors and fuse/
circuit breaker. See Specification Chart.
• Secure wire properly.
• Do not connect other appliances to electro scan circuit.
• Make sure power is off before proceeding.
• Improper wiring can damage the Circuit Board and
void warranty.
• Fuses must be replaced with the same type to maintain
ignition protection

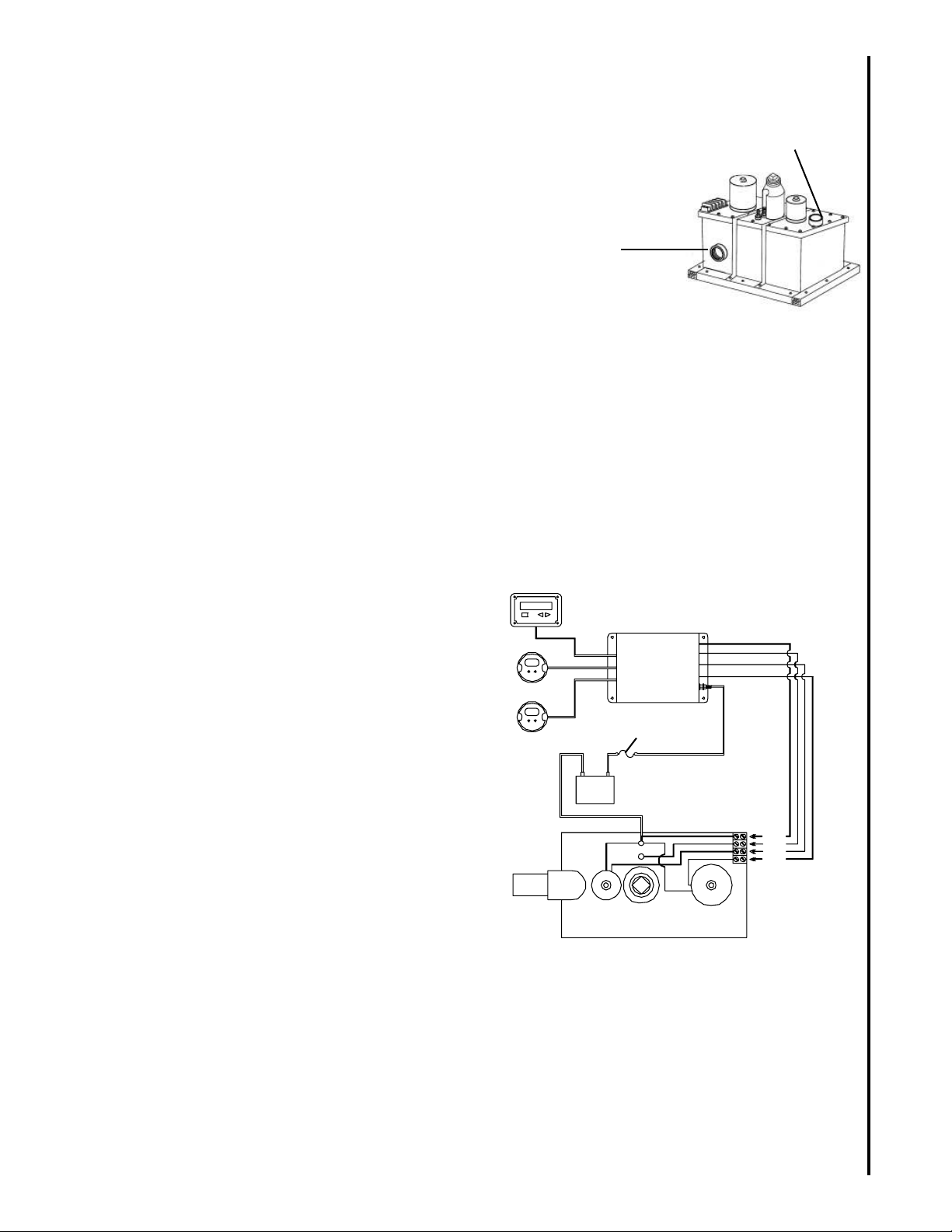

Treatment Unit
1. Determine proper wire size from wire chart on
specifications page.
2. Run supply wire from source Positive (POS) to control unit
and Negative (NEG) terminals on Treatment tank.
3. Install terminal protector on positive connection
4. Fuse or circuit breaker must be installed between source
and electro scan on positive wire.
NOTE: Future access to control box is imperative. If unit is
installed in an area where access will be difficult contact
Raritan for instructions on mounting the control box for
distance more than two feet.
System Status Panel
1. Connect cable from System Status Panel to panel 1 jack on
Control Unit.
2. Secure cable strain relief.
3. Follow same procedure for panel 2 if dual installation.
LCD Display
1. Connect cable from LCD Display to display jack on the
Control Unit.
2. Secure cable strain relief.
Discharge from toilet:
each side if dual installation
one side in single installation
Discharge from electro
scan to thru-hull
Orange
+
-
BATTERY
Black
White
Red
electro scan
Orange
Black
White
Red
Main Fuse/
Circuit Breaker
Control Unit
LCD Display
System Status
Panel

10
INSTALLATION \ WIRING
Single Button operation -
Both toilet and electro scan are operated by one of the
following options:
Option #1:
NOTES:
• Use only a solenoid/relay with an isolated coil Raritan
part number CDS* (*specify voltage)
• Connect only the solenoid/relay (CDS) coil to toilet 1
or 2 quick connect. DO NOT connect toilet negative
and positive directly to outputs.
• Do Not connect switches or any other components to
the Toilet 1 or 2 outputs or the CDS.
System status panel
"Start/Stop" button activates both the toilet and treatment
cycle.
Note: Toilet flush time is factory pre-set at approxi-
mately 10 seconds and is adjustable.
1. Determine proper wire size from toilet manufacturer.
2. Connect wire from lug not marked "BAT" on the CDS
to toilet positive.
3. From top posts of CDS connect positive and negative
to toilet 1 or 2 outputs on control box utilizing .
4. Connect wire from positive source to Raritan CDS
(solenoid/relay) post marked "BAT" utilizing proper
fuse in positive line.
5. When "Start/Stop" button is pressed both toilet and
electro scan will activate. Toilet flush time is controlled
by Control box and can be adjusted - factory preset is
for 10 seconds.
Option #2:
Toilet Push Button -
Flushing toilet will also activate treatment cycle.
Toilet Push Button
1. Determine proper wire size from toilet manufacturer.
2. Connect wire from lug not marked "BAT" on the CDS
to toilet positive.
3. Connect wire from top post of CDS to one of the ext.
trig. (external trigger) outputs.
4. Connect wire from positive source to Raritan CDS
(solenoid/relay) post marked "BAT" utilizing proper
fuse in positive line.
5. When Toilet Push Button is pressed both toilet and
electro scan will activate.
EXT TRIG
Battery
FUSE(toilet)
PBS
Toilet 1
Toilet 1
FUSE
(toilet) Battery Gnd
HEAD 1
To small terminals
on CDS* for second
toilet. Wiring for sec-
ond toilet is identical to
wiring for first toilet.
Wiring Salt feed pump
Salt Pump
Option #1 - Activation via System Status Panel:
Option # - Activation via toilet's Pushbutton
Switch:
To point "A" of
wiring forToilet 2
HEAD 2
Point "A"
+-
+-
Raritan
CDS*
Gnd
* Specify oltage
l
Wiring for second CDS* and toilet is identical to wiring for first CDS* and toilet.
* Specify oltage
SALT FEEDNEG
)
NEG

11
Head1+
EXT TRIG
Yellow
Atlantes Control
Board
To other
Atlantes Toilet
(purple pigtail)
Purple Atlantes
control board
To other
Atlantes Toilet
(yellow pigtail)
INSTALLATION \ WIRING
)/86+7,0(
(;7(1 ')/86+
72
/67
,17 $.(
%/ 8(
72,/(7
&21752/
)520
/67
2 5$ 1*(
326

2))
)/86+&21752/
3$1 (/
',6&+
:+ , 7(
 
21

1(*

%/ $&.
RARI TAN
SALT FD + EXT TRIGNEG
NEG
NEG
NEG EXT TRIG
MAN IN
MAN IN
HEAD 2 +
HEAD 1 +
AUX +
HD POSHD NEG
FUSES
)/86+7,0(
(;7(1')/86+
72
/67
,17$.(
%/8(
72, /(7
&21752/
)520
/67
25$1*(
326

2))
)/86+ &2 1752/
3$1(/
',6&+
 :+,7(
 
21

1(*

%/$&.
RARITAN
AUX +
HEAD 2 +
HEAD 1 +
SALT FD +
NEG
NEG
NEG
NEG
MAN IN
MAN IN
EXT TRIG
EXT TRIG
FUSES
HD NEG HD POS
To "TO LST"
on second
Atlantes toilet
To "FROM LST"
on second Atlantes
toilet

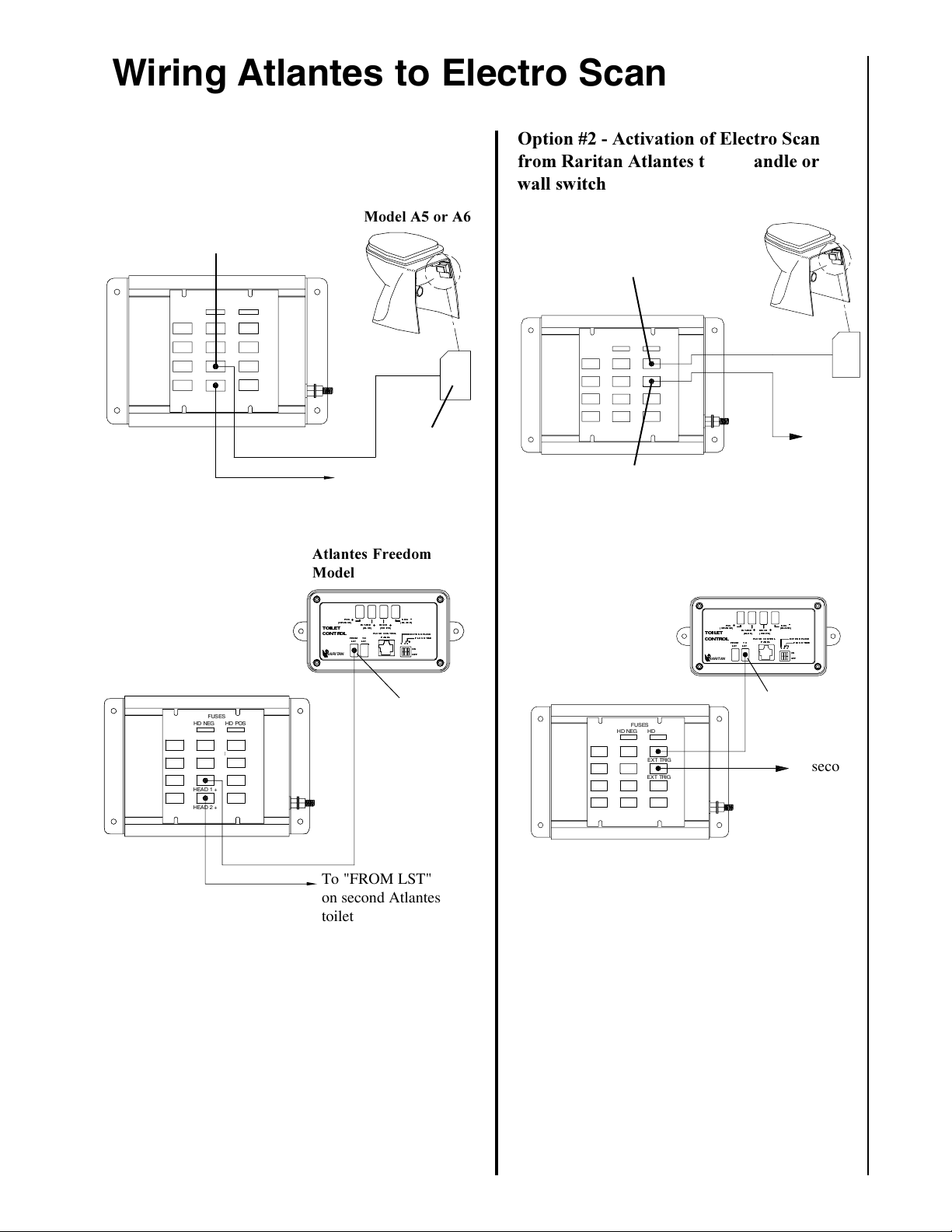

Wiring Atlantes to Electro Scan
Option # - Activation of Electro Scan
from Raritan Atlantes toilet handle or
wall switch
Model A5 or A6
Atlantes Freedom
Model A8 or A9 Atlantes Freedom
Model A8 or A9
Model A5 or A6
NOTE: If installation is done with Raritan
Atlantes toilet the flush time adjustment on the
LCD display must be set to one second.
Option #1 - Activation of Raritan Atlantes toilet
from System Status Panel
EXT TRIG
FROM LST "TO LST"

12
Turn off power
Open control unit cover
Microprocessor board can be pulled out
without disconnecting any wires
Install replacement board
Use anti-static bag to pack board for return
to dealer/factory
NOTE: tatic electricity will damage the
board, use precaution and proper grounding
to avoid static build-up while working with
the microprocessor board.
TROUBLESHOOTING
Prior to contacting Raritan for a problem with the
Electroscan please have the following information
available:
1) Model #, Serial # and voltage of unit.
2) Body of water if using raw water to flush toilet
3) Warnings or errors on the display
NEW INSTALLATIONS
MUST PROVIDE
EXACT MESSAGE
MELBORPESUACELBISSOPNOITULOS
ylsounitnocnurtinU
sirewopsanoossa
nodenrut
,ytiralopesreeR.1emitdednetxerofnursitinufi
egamadlliwrotomnoslaes
,dehctiwselbacpots/tratsdnaelbacylapsiD.2
gnihsalflenapnoDEL,knalbsiylapsiD
,ytiraloptcerroC.1
.stekcostcerrocotselbachctiws,fforewopnruT.2
yalpsidknalBdenrutsawrewopretfadetcennocsawyalpsiD.1
no
sdnoces4nahteromrofteser/edoMdloH.1
WOL:RORRE
PMADORTCELE
7nahtsselspmaedortcelegnisuactlaswoL.1
spma
emosseriuqerretawhserfhtiwnoitallatsniweN.1
metsysdeeftlastratsotknattnemtaertehtnitlas
REXIM;RORRE
DLREVOROTOM
tnemtaertdnalortnocneewtebseriwdehctiwS.1
knat
,reximrofxoblortnoctanoitcennoceriwtcerroC.1
eriwrotarecamroedortcele
CAM:RORRE
DLREVOROTOM
tnemtaertdnalortnocneewtebseriwdehctiwS.1
knat
,reximrofxoblortnoctanoitcennoceriwtcerroC.1
eriwrotarecamroedortcele
DORCELE:RORRE
DLREVO
edortcele(knattnemtaertehtnitlashcumooT.1
)spma82nahtrehgihspma
otnistegtlashcumootfinoitallatsniwengniruD.1
.TSEgninnurtuohtiwteliothsulf,metsyseht
saleelemasrorewolebtsumknatdeeftlaS.2
.knattlasfogninohpisdioaotknattnemtaert
:GNINRAW
41<SPMA
tnemtaertgnirudknattnemtaertehtnitlaswoL.1
elcyc
metsysdeeftlasseriuqerretawhsikcarB.1
otnoitcennockcehc,metsysdeeftlaskcehC.2
.esohpmuptlaskcehc,pmuptlas
microprocessor board
How to remove microprocessor board
I/O Board

13
TROUBLESHOOTING
Sewage Odor
Prior to contacting Raritan for a problem with
the Electroscan please have the following infor-
mation available:
1) Model#, Serial# and voltage of unit.
2) Body of water if using raw water to flush toilet
3) Warnings or errors on the display
EXISTING INSTALLATIONS
MUST PROVIDE
EXACT MESSAGE
MELBORPESUACELBISSOPNOITULOS
"potS/tratS"
etaitcat'nseod
metsys
rewoPoN.1
noitcennocesoolronepO.2
yalpsiD.3
potS/tratSeitareponI.4
elbacotegamaD.5
egatlowolemertxE.6
gniriwdnaesufniamrorekaerbtiucrickcehC.1
snoitcennocgniriwnaelcdnakcehC.2
srorrerofyalpsidkcehC.3
yrassecensaecalper,kcehc.4
yrassecensaecalperkcehC.5
potS/tratSnehwtinulortnoctaegatlokcehC.6
desserpsinottub
rorrEdaolreO
rorrEesuF/
daolreorotoM.1
daolreOedortcelE.2
nwolbesufSOP.3
nwolbesufGEN.4
majrofkcehc,srotomdnuoraegakaelrofkcehC.1
niamnoesufkcehc,loocotwolladnagnitaehreoro
draob
retawhserfemosecudortni,tlaseissecxE.2
,gniriwdnapmupdeeftlasroyalerteliotkcehC.3
esufecalper
,gniriwdnapmupdeeftlasroyalerteliotkcehC.4
esufecalper
rorrEpmAwoL
nogninraWro
yalpsiD
tlaSwoL.1
kcaPedortcelEytriD.2
fo)thgiewyb(.zo2/18htiwretawfosnollag2ddA.1
deeftlaskcehC-elcycanurdnametsysottlas
ottelioturhttlashsulf,tlasonfI,dellatsnifimetsys
.lortnocdeeftlastratser
nisnoitcurtsnigniwollofkcapedortceleehtnaelC.2
ecnanetniam
egatloVwoL
rororrE
gninraW
egatloVwoL.1
egatloenilniporD.2
emasnotnempiuqErehtO.3
tiucric
snoitcennocesoolronepO.4
saecalperroegrahc,noitidnocyrettabkcehC.1
yrassecen
gendnatinulortnoctasopneewtebegatlokcehC.2
knatfopotrotinulortnocta
tiucricnwos'tinonacsortcelEetalosI.3
snoitcennoceriwnaelcdnakcehC.4
rodOegaweS
esohhguorhtgnitaemreprodO.1
snoitcennocro
gnikaeltinutnemtaerT.2
ylreporpgnikrowtonedortcelE.3
htiwdetaitcatonnacsortcelE.4
hsulfhcae
derotsgniebtontinutnemtaerT.5
ylreporp
otsrefsnartrodofiesohnogarpmad,mrawbuR.1
HS#esoHnoitatinaSnatiraResohecalpergar
skaelrofkooldnaknatotteliotmorfesohtcepsni.2
knatfopotno
rororrerofyalpsidDCLnognidaerkcehC.3
gninraw
hsulfhcaehtiwdetaitcaebtsummetsyS.4
ecnanetniamrednuegarotseeS.5

14
EXPLODED PARTS VIEW
M30
M31
31-134
32-101AW, 33-101AW
or 34-101AW
31-104CW
31-121
ETB2
31-113-2
31-115
31-121
31-122
32-5000, 33-5000
or 34-5000
31-112
31-109
31-103
31-106
31-110-2
31-110-1
31-106
31-107
31-101W
31-122
31-114
31-108
31-103
32-700, 33-700,
or 34-700
31-702
31-705
32-102A, 33-102A,
or 34-102A
31-105
31-102
31-120
31-121
31-102-2
31-102-1
M30
M31
31-102-4
31-102-3

15
EXPLODED PARTS LIST
Part No. Description
32-102AW Mixer Motor 2 1/2'' Dia. 12 VDC
33-102AW Mixer Motor 2 1/2'' Dia. 24 VDC
34-102AW Mixer Motor 2 1/2" Dia. 32 VDC
31-121 Hose Fitting (2)
31-120 Discharge Elbow 90°
M30 Electrode Nut 1/4-20 Brass (4)
M31 Electrode #14 Brass flat washer (4)
31-103 Motor Shaft Bushing (2)
31-106 10-32x7/8''RHMS,S/S (4)
31-109 Mixer Impeller
31-110-1 Impeller Bolt, 12-24x5/8'', S/S (2)
31-110-2 Impeller Lock Washer, #12, S/S (2)
31-113-2 Terminal Block Bolt (2)
31-134 Cover Hold Down Screw 10-32 x 1 Hex(16)
31-114 Cover Hold Down Nut, 10-32 (18)
31-115 Treatment Tank
31-122 Intake Plug
32-5000 Electrode Pack 12 VDC
33-5000 Electrode Pack 24 VDC
34-5000 Electrode Pack 32 VDC
31-112 Cover Gasket
31-108 Macerator Set Screw, 8-32x3/16'', S/S
31-107 Macerator Impeller
31-101W Treatment Cover
31-104CW Crossover Plug
31-105 O-Ring
31-102 Motor Shaft Seal (2)
31-102-1 Macerator Seal Washer
31-102-2 Macerator Retaining Ring
31-102-3 Mixer Seal Washer
31-102-4 Mixer Retaining Ring
32-101AW Macerator Motor 3'' Dia. 12 VDC
33-101AW Macerator Motor 3'' Dia. 24 VDC
34-101AW Macerator Motor 3'' Dia. 32 VDC
ETB2 Terminal Block
31-3001 Salt tank unit complete, two gallon (not
shown)
31-3002 Four gallon salt feed tank (not shown)
32-3003 Four gallon salt feed tank w/12 volt
pump (not shown)
33-3003 Four gallon salt feed tankw/24 volt
pump (not shown)
32-7000 12 V DC Treatment Unit - No Control Unit, System
Status Panel or LCD Display
33-7000 24 V DC Treatment Unit - No Control Unit, System
Status Panel or LCD Display
34-7000 32 V DC Treatment Unit - No Control Unit, System
Status Panel or LCD Display
TREATMENT UNIT
( ) Indicates Total pieces required
CONTROL
Part No. Description
31-618 Cable for LCD and System Status Panel
(not shown)
31-702 LCD Display
31-705 System Status Panel
32-700 Control Unit 12V
33-700 Control Unit 24V
34-700 Control Unit 32V
WAES01T Wire Harness (not shown)
PARTS BAG (packed with each new unit)
Part No. Description
31-111 Cable Clamp 1/2 x 1/2
31-717 Insulating Bushing (4)
ETP1 Terminal Protector Red
F110 Screw 6 x 1/2 Phil Pad
HD (4) to mount Display
and Start/Stop button
ESTRK (EST Repair Kit)
Part No. Description
31-102 Motor Shaft Seal (2)
31-102-1 Macerator Seal Washer
31-102-2 Macerator Retaining Ring
31-102-3 Mixer Seal Washer
31-102-4 Mixer Retaining Ring
31-103 Motor Shaft Bushing (2)
31-105 O-Ring
31-106 10-32x7/8''RHMS,S/S (4)
31-112 Cover Gasket
31-113-2 Terminal Block Bolt (4)
31-114 Cover Hold Down Nut, 10-32 (4)

16
OTHER INSTALLATION OPTIONS FOR
THE electro-scan SYSTEM :
LIMITED WARRANTY
Raritan Engineering Company warrants to the original purchaser that this product is free of defects in materials or
workmanship for a period of one year from the products date of purchase. hould this product prove defective by reason
of improper workmanship and/or materials within the warranty period, Raritan shall, at its sole option, repair or replace the
product.
1. TO OBTAIN WARRANTY ERVICE, Consumer must deliver the product prepaid, together with a detailed description of
the problem, to Raritan at 530 Orange t., Millville, N.J. 08332, or 3101 W 2nd Ave. Ft. Lauderdale, FL 33315. When
requesting warranty service, purchaser must present a sales slip or other document which establishes proof of purchase. THE
RETURN OF THE OWNER REGI TRATION CARD I NOT A CONDITION PRECEDENT OF WARRANTY
COVERAGE. However, please complete and return the owner Registration Card so that Raritan can contact you should a
question of safety arise which could affect you.
2. THI WARRANTY DOE NOT COVER defects caused by modifications, alterations, repairs or service of this product by
anyone other than Raritan; defects in materials or workmanship supplied by others in the process of installation of this
product; defects caused by installation of this product other than in accordance with the manufacturers recommended
installation instructions or standard industry procedures; physical abuse to, or misuse of, this product. This warranty also
does not cover damages to equipment caused by fire, flood, external water, excessive corrosion or Act of God.
3. ANY EXPRE WARRANTY NOT PROVIDED HEREIN, AND ANY REMEDY FOR BREACH OF CONTRACT
WHICH BUT FOR THI PROVI ION MIGHT ARI E BY IMPLICATION OR OPERATION OF LAW, I HEREBY
EXCLUDED AND DI CLAIMED. ALL IMPLIED WARRANTIE UCH A THO E OF MERCHANTABILITY AND
OF FITNE FOR A PARTICULAR PURPO E, IF APPLICABLE, A WELL A ANY IMPLIED WARRANTIE
WHICH MIGHT ARI E BY IMPLICATION OF LAW, ARE EXPRE LY LIMITED TO A TERM OF ONE YEAR.
OME TATE DO NOT ALLOW LIMITATION ON HOW LONG A LIMITED WARRANTY LA T , O THE
ABOVE LIMITATION MAY NOT APPLY TO YOU.
4. UNDER NO CIRCUM TANCE HALL RARITAN BE LIABLE TO PURCHA ER OR ANY OTHER PER ON FOR
ANY PECIAL OR CON EQUENTIAL DAMAGE , WHETHER ARI ING OUT OF BREACH OF WARRANTY,
BREACH OF CONTRACT, OR OTHERWI E. OME TATE DO NOT ALLOW THE EXCLU ION OR LIMITA-
TION OF INCIDENTAL OR CON EQUENTIAL DAMAGE , O THE ABOVE LIMITATION OR EXCLU ION MAY
NOT APPLY TO YOU.
5. No other person or entity is authorized to make any express warranty, promise or affirmation of fact or to assume any other
liability on behalf of Raritan in connection with its products except as specifically set forth in this warranty.
6. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
530 Orange Street, Millville, NJ 08332 USA
Telephone: [phone] FAX: [phone]
www.raritaneng.com
Southern Office and Plant:
3101 SW Second Avenue, Fort Lauderdale, FL 33315 USA
Telephone: [phone] FAX: [phone]
L340 0109kgs Specifications Subject to Change Without Notice Printed in U.S.A.
The electro scan has other installation options including:
1) Connection to the Sealand VacuFlush®
The above option is covered by a Technical bulletin
available from Raritan by calling: 856-825-4900 or
faxing in a request at: 856-825-4409 or on our website at:
www.raritaneng.com. Request document # L286 v0107
®Vacuflush is a registered trademark of Sealand Technology, Inc.
