Operating Instructions
Brush V1, Brush V2, Brush V3
1
2
3

!"#$%&'($)*&"+!'+#,
Model:
Unit No.:
Built:
&%*'#-)"(").+*'"/'+#,
Registration No.:
'0)(%*)"(+*(#12+.)$('#3
· observation of EC Directive 89/655 and its
national implementation
· observation of the current national regulations con-
cerning industrial safety
· utilisation of the machine in accordance with the
instructions
All rights reserved.
Printing, in whole or in part, is only allowed
with prior consent of the manufacturer.
Kai GreisinG e. K.
Clean MarKer
www.greising.com
[e-mail]
Industriestraße 29/2
D-73340 Amstetten
Tel. [phone] - 0
Fax [phone]
#"$)"(!"#&)**+,.((
+ 49(0)73 31/30 58 - 45
#"$)"+,.(*'),&+2*
+ 49(0)73 31/30 58 - 44
Operating Instructions Clean Marker Brush V-Series − Page 2
operating instructions

inDeX
1 saFeTY reGUlaTiOns 5
1.1 Correct utilisation 5
1.2 Tips and denitions 5
1.3 Obligations and liability 5
2 inTrODUCTiOn 7
2.1 Technical data 7
2.2 Conformity 7
2.3 Transport, storage 8
2.4 Accessories 8
3 FUnCTiOn, MeTHOD OF OPeraTiOn 8
3.1 Function review 8
3.2 Method of operation 9
3.3 Safety and monitoring equipment 9
3.4 Operating and display elements 9
3.4.1 Front side, front display 9
3.4.2 Back side 10
4 TransPOrT, sTarT-UP 11
4.1 Safety regulations 11
4.1.1 Temporary storage 11
4.1.2 Set-up 11
4.1.3 Start-up 11
5 OPeraTiOn 11
5.1 Start-up 11
5.1.1 Instrument setting 12
5.2 Cleaning with the Clean Marker Cleaner (60° tool) 12
5.2.1 Tips for optimal cleaning 12
5.2.2 Cleaning process 12
5.3 Marking with the Clean Marker Cleaner (at tool) 12
5.3.1 Tips for optimal marking 12
5.3.2 Marking process 13
5.4 The use of short-term stencils 14
5.5 Switching off the device 14
Operating Instructions Clean Marker Brush V-Series − Page 3

6 MainTenanCe 14
6.1 Safety regulations 14
6.2 Maintenance and inspection check list 15
7 MalFUnCTiOns 15
7.1 Safety regulations 15
8 DeCOMMissiOninG, sTOraGe 15
8.1 Preparation for storage 15
8.2 Package, transport 15
8.3 Maintenance during storage 16
9 DisPOsal 16
9.1 Procedure 16
10 YOUr OPiniOn 18
Operating Instructions Clean Marker Brush V-Series − Page 4
operating instructions

1 saFeTY reGUlaTiOns
676( &#"")&'(%'+2+*/'+#,
The units are intended only for the marking of metallic objects.
The function is only guaranteed when original parts are used. Any other
or any use beyond those determined is not considered correct.
The manufacture cannot be held responsible for any damages resulting
from such incorrect use.
The following are also considered to be part of correct utilisation:
• Compliance with operating instructions.
• Compliance with inspection and maintenance requirements.
• Use of protective clothing, especially gloves and goggles.
674( 674( '+!*(/,$($)8+,+'+#,*
9:;<=<>
A possibly dangerous situation which could lead to serious
injury or even death.
9:;<=<>
A possibly dangerous situation, which could lead to light
physical injury. This sign is also used as a warning for heavy
material damage.
+<?@;A:B=@<
Concerning usage and other useful information.
+<?@;A:B=@<
The arrow describes a following process occurring automati-
cally and / or the condition which should now be set.
67C( #12+./'+#,*(/,$(2+/1+2+'D
1.3.1 Necessary qualications of operators
Operation, maintenance and inspection may only be carried out by autho-
rised and qualied specialists. The minimum age of the operator is 18.
Authorised specialists are understood to be specialists trained by the user,
the manufacturer or the service partner.
'0)*)(#!)"/'#"*(-%*'(1)3
• trained in the use of the unit
• conversant with the operating instructions
• conversant with the safety equipment of the unit
• conversant with the relevant regulations (especially with accident
prevention regulations)
• authorised to use the necessary chemicals
Operating Instructions Clean Marker Brush V-Series − Page 5

67C74("=EFE(=<G@HGIJ(KLI<(ME=<>(BLI(M<=B
The unit has been built in accordance with the latest technical standards
and the recognized regulations concerning safety. In spite of this, danger of
injury to the user or a third party and/or damage to the unit or other materi-
als could arise during use. The unit may only be used:
• for the process previously determined
• in a perfectly safe condition
67C7C(.M:;:<BII(:<J(H=:N=H=BO
Our „General Conditions of Sale and Supply“ are applicable. Claims of
warranty and liability made for personal injuries and material damages are
excluded if they result from one or more of the following causes:
• incorrect use of the unit
• non - observance of operating instructions
• unauthorised structural changes on the unit
67C7P(*:?IBO(AI:EM;IE
The instructions for use are to be kept near the unit and are to be passed
on by sale or exchange of the machine.
All safety and danger signs on the unit are to be clearly visible at all times.
67C7Q("=EFE(:;=E=<>(?;@A(IHIRB;=R:H(I<I;>O
• Work on the power supply is only to be carried out by the same
electrician.
• The electrical equipment is to be checked regularly.
• Loose connections and damaged cables must be remedied immediately
1.3.6 Special risks arising from chemicals
Dealing with chemicals should be considered a special risk. Pay attention
to the Safety Data Sheets and the following remarks in these instructions:
Eye protection
Eyes should be protected from chemicals with goggles
Hand protection
Put on rubber gloves before working with chemicals
Clothes protection
Wear protective clothing before using chemicals (acid - proof apron,
working coat)
Breathing protection
Fumes arise when using chemicals. Always wear a face mask!
/RR=JI<B(K=BL(RLIA=R:HE
Should chemicals come into contact with eyes in spite of wearing
goggles, then:
• rinse the eyes with plenty of clear water
• seek medical attention.
operating instructions
Operating Instructions Clean Marker Brush V-Series − Page 6

• further information
- Do not eat or drink at the workplace.
- Always wash your hands before taking a break.
- Keep the equipment and chemicals away from children and unskilled
personal.
67C7S(Maintenance and servicing, repairing faults
The prescribed maintenance work and inspections are to be carried out
on schedule. Before beginning maintenance work, inspection or repairs,
switch the unit off and secure by „pulling the plug“.
67C7T(Constructional changes on unit
Without the prior consent of the manufacturer, no alterations, additions or
removals of any sort may be made on the unit. Only spare or replacement
parts originating from the manufacturer or his authorised dealer may be
used.
67C7U(Emission
Electrolyte may vaporise during etching and cleaning. These vapours
should not be inhaled. Provide fresh air circulation in your place of work.
2 inTrODUCTiOn
476( ')&0,+&/2($/'/
474((&#,8#"-+'D
The unit fulls the following regulations and standards:
• EMV Directive 2004/108/EG
• Low Voltage Directive 2006/95/EG
The CE - label is on the front of the unit.
The type plate with the special unit number is attached to the rear.
general data Brush-V1 Brush-V2 Brush-V3
dimensions
W x H x D [mm]
145 x 250 x 330 145 x 250 x 330 145 x 250 x 330
weight, approx. [kg] 8,0 8,0 8,3
service output 380 VA 380 VA, 380 VA
Operating Instructions Clean Marker Brush V-Series − Page 7

47C( '"/,*!#"'V(*)''+,.(%!(
Please pay attention to the transport instructions on the packaging.
Keep upright. If possible, store vibration - free.
47C76()<G=;@<AI<B:H(R@<J=B=@<E
• Temperature
- 5 °C to + 55 °C
• Humidity(
((dry, indoors, dew-protected
• Installation location(
((dust-free, level, away from explosive gases
• Workable materials(
((all conductive metal surfaces
47P( /&&)**#"+)*(
The contents of the various accessory sets can be read in the current
price-lists.
3 FUnCTiOn, MeTHOD OF OPeraTiOn
C76( 8%,&'+#,

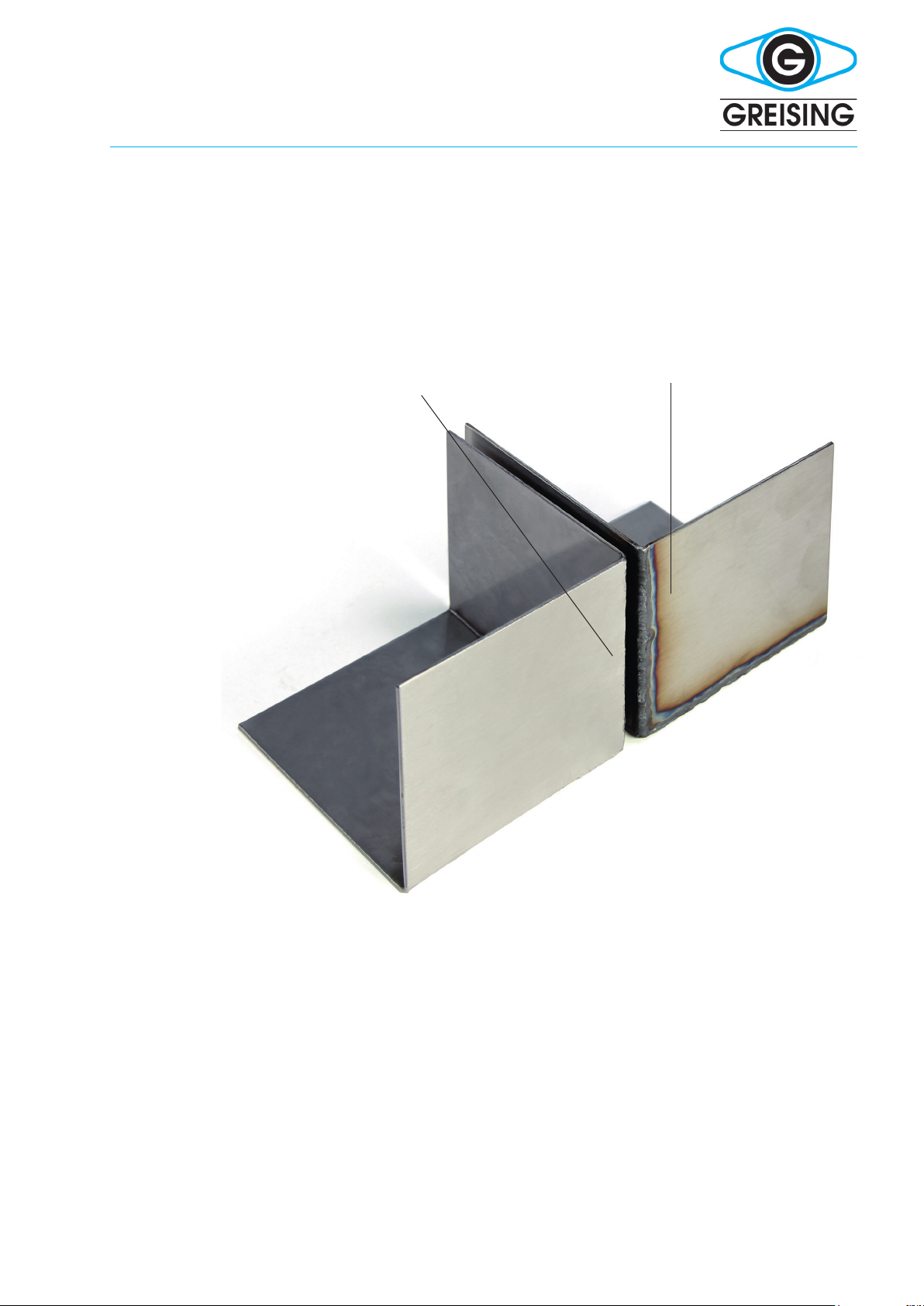

With this unit, you can remove discolourations and oxide layers from stain-
less steel surfaces. Furthermore, you can do markings and etchings.
C74(-)'0#$(#8(#!)"/'+#,
operating instructions
Brush-V1 Brush-V2 Brush-V3
pickling with electrode
pickling with brush
polishing with electrode
dark markings with tool
Operating Instructions Clean Marker Brush V-Series − Page 8

Electrochemical pickling, marking and etching.
C7C(*/8)'D(/,$(-#,+'#"+,.()W%+!-),'
• 35 Amp (4) overload safety switch on the front of the unit
• 4 Amp (7) cut-out on the rear of the unit
C7P( #!)"/'+,.(/,$($+*!2/D()2)-),'*
3.4.1 Front side, front display
(1) Red connecting socket for the working piece (earth cable)
(2) Black connecting socket for the tool and brush attachments
(3) Selector switch
(4) Cutout 35 Amp
(5) Green indicator light, showing state of operation
12345
Operating Instructions Clean Marker Brush V-Series − Page 9

operating instructions
When electro - polishing, material is removed from the surface of the
workpiece by specic electrolytes used in conjunction with an external DC
source.
The material set free by the electrolyte is non - polluting and follows under
attening conditions. In contrast to mechanical removal processes, atte-
ning by electro - polishing begins in the micro range and includes, during
longer polishing periods, larger structures which are rounded and attened
off on their top surface. During electro - polishing, two different mechanisms
work simultaneously, one attens the upper surface in the micro range and
the other achieves ne deburring in the macro range.

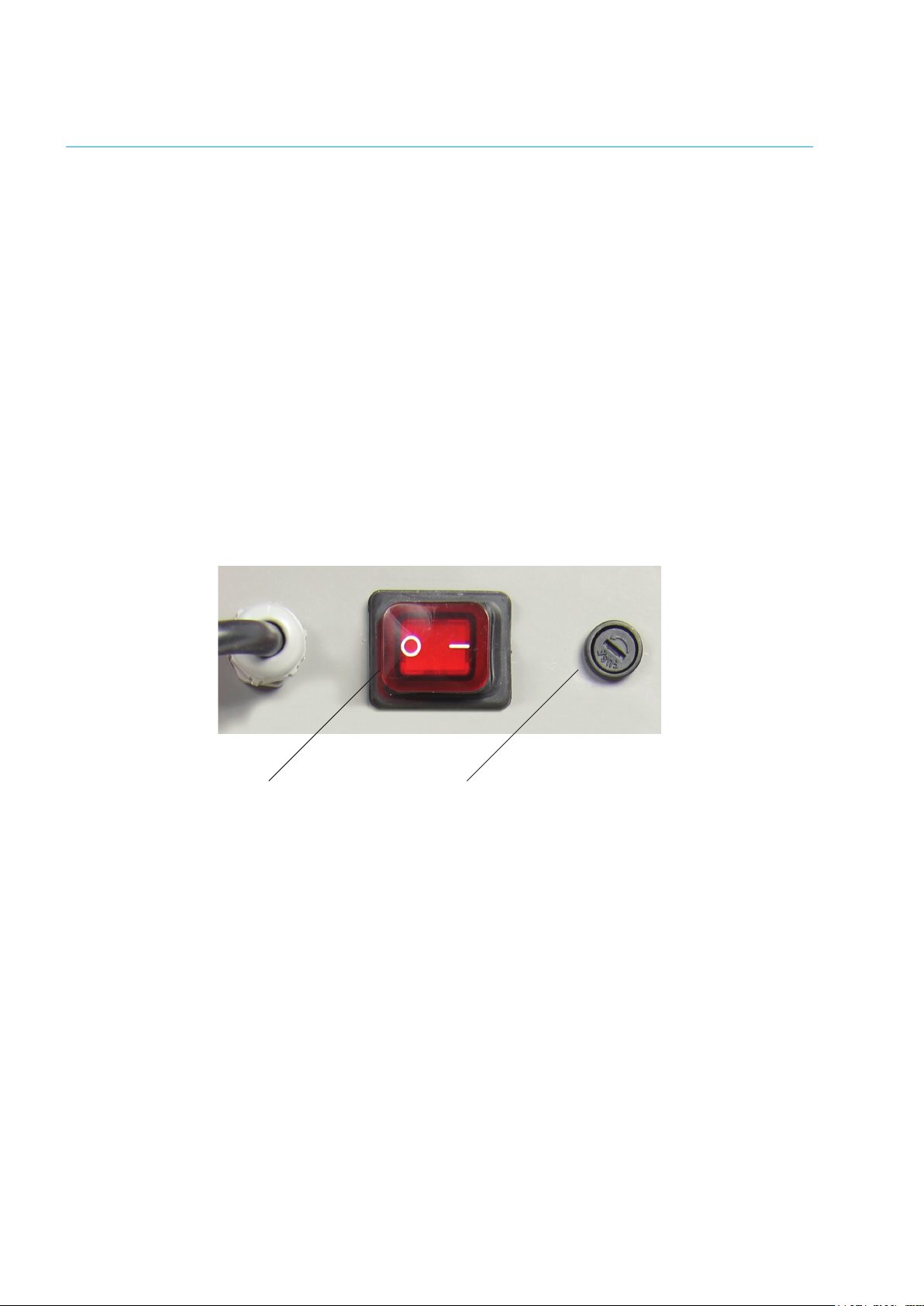

C7Q74("IGI;EI
(6) Main switch
(7) Cut-out 4 Amp
6 7
Operating Instructions Clean Marker Brush V-Series − Page 10

4 TransPOrT, sTarT-UP
P76((*/8)'D(").%2/'+#,*
4.1.1 Temporary storage
Always keep the unit in its outer packaging and in a dry room indoors.
4.1.2 Set-up
Without using sharp tools, remove the outer packaging carefully.
Keep the original packaging. Always use it for storing and transporting the
unit.
4.1.3 Start-up
• check that the mains voltage is the same as that on the type label and is
the same as the setting
• using the mains cable connect the unit to the mains voltage; push the red
cable into the red connecting socket (1)
• x the earth clamp to the red cable and then on the workpiece
• push the black cable into the black connecting socket (2)
• x the other end of the cable into the tool for marking and polishing or the
brush for cleaning
• switch on the unit at the main switch (6), the green light (5) should be lit,
the unit is ready
• set the unit as desired (only on V2 and V3)
5 OPeraTiOn
Q76(*'/"'X%!
Carry out a check and inspection, not only prior to initial operation, but also
prior to every set up. Set up the unit as described above.
Working with chemicals can be dangerous. Always wear a face mask,
acid-proof apron, goggles and gloves. When using Greinox 1000 / 2000 /
Polish, Rapid please read the Safety Data Sheets rst (currently to be
found under www.greising.com / Clean Marker /Service).
Do not inhale the vapours arising. Should there be skin contact, wash with
plenty of water.
Operating Instructions Clean Marker Brush V-Series − Page 11

operating instructions
Operating Instructions Clean Marker Brush V-Series − Page 12

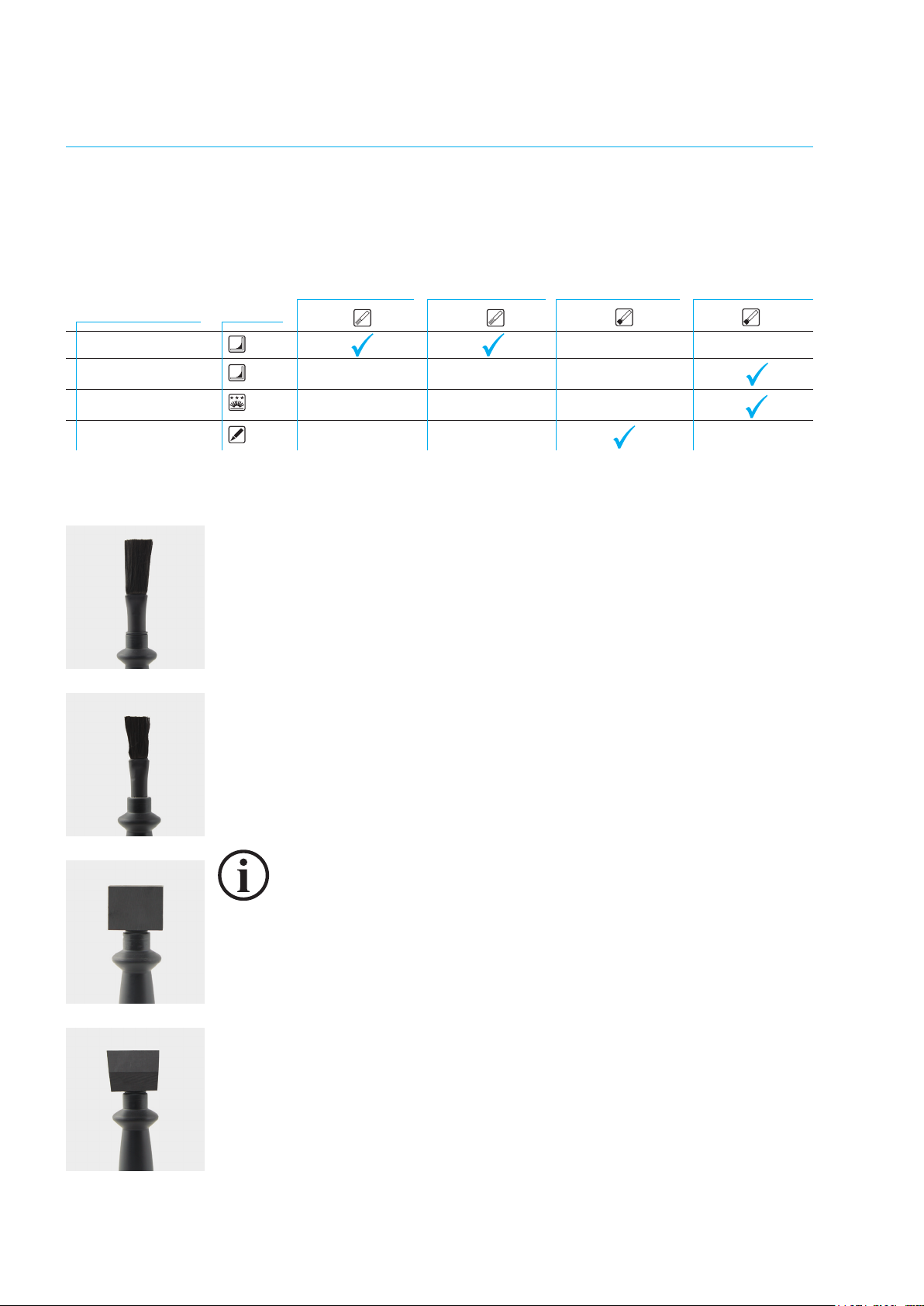

Q7676(%<=B(:JYMEBAI<BE(?@;(RHI:<=<>(?@;(&HI:<(-:;FI;(1;MEL(JIG=RIE
selector switch (see page 9).
Clean Marker Brush V1 units do not have a selector switch and are only
applicable for pickling with brush and dark markings with electrode.
Q74(&2)/,+,.(9+'0(&2)/,(-/"Z)"(1"%*0(/''/&0-),'*
5.2.1 Tips for optimal cleaning
With the Clean Marker brush attachment you can clean even inaccessible
parts. The short brush shows more powerfull performance, the long brush
is especially for big areas. Change the brush in time to avoid short circuits.
Q7474('LI([&HI:<=<>\(!;@RIEE
• screw on the brush attachment
• adjust the unit according to Chapter 5.1.1
• ll about 1 cm Greinox 1000, 2000, Polish or Rapid into the wide-neck
container; more can be lled into the containers for pump units
• moisten the tool
• run the tool over the oxide layer until the surface is clean
To avoid white edges on the work piece: polish the cleaned
work piece with the cleaning cloth supplied, lightly moistened
with water and Neutralyt.
Croping the brush will increase performance. However, this
may lead to short circuit signs.
Q7C(-/"Z+,.(9+'0('0)(&2)/,(-/"Z)"(]82/'('##2^
5.3.1 Tips for maximum marking effect
Every electrolyte contains salts. Depending on the material, these salts
can have a strongly oxidizing effect. Extreme cleanliness must be used
when handling the chemicals. Avoid carry - over of electrolytes and wash
your hands frequently. Make sure of good power contact and moist felt.
Felt which is too dry restricts the ow of power. Stencils become clogged
with salts and metals after a while. They should also be rinsed and cleaned
frequently. Electrolyte can also be used for cleaning stencils. Small
surfaces can best be marked by simply pressing the felt on the stencil.
Larger areas are best marked by stroking the tool head several times over
the entire surface of the stencil. This takes between 1.5 and 2 seconds. If
the marking appears rusty, then either do not use the tool quite so long or
decrease the voltage. The tool should be held at right angles to the
work piece and the whole surface used for contact with the stencil.
/
1
&
$
selector switch
1 pickling with brush
2 pickling with electrode
3 polishing
4 dark marking
brush attachm. 1 (A) brush attachm. 2 (B)
etching tool (C)
+ etching felt 1
cleaning tool
60° (D) + polishing felt
symbol

Operating Instructions Clean Marker Brush V-Series − Page 13
Move slightly back and forth.
the electrolyte ows better through the stencil
Do not allow the stencil to become too warm as this could lead to prema-
ture wear and tear. When electrolyte vaporises it leaves residues in the
stencil tissue. In time this reduces the clarity of the marking. Dark, i. e. dirty,
felts must be changed frequently and the larger the stencil, the quicker the
felt needs changing.
The results of lettering depend on various factors. The results can vary
depending on material or within a material batch. Test the lettering for
quality on a piece of waste material before beginning to work. The lettering
can usually be optimised by using various parameters and electrolytes. By
using switch (4) you can set whether the lettering should be dark or light.
The result differs with different materials.
More material is removed with light lettering. The stencil gets dirty very
quickly and must be cleaned more often. Light letterings are often used with
stainless steel. However, the result is not predictable because each alumi-
nium has a different oxide layer.
Q7C74('LI([)BRL=<>(]A:;F=<>^\(!;@RIEE
• clean the spot to be etched
• cut off 30 mm etching felt (t = 2 mm) from the 60 x 2 x 1000 strip or from
the sheet
• using the „O“- ring, x the felt pad to the tool head
• using the selector switch (4) set the unit to the desired setting for light
or dark etching
• add enough electrolyte to the felt on the underside of the tool so that it
is wet
• position the stencil in the desired position on the work piece
• using light pressure and small swivelling movements stroke over the
stencil or, if the stencil is small enough to be covered by the tool head,
then simply press down and move slightly to and fro, holding the tool
at right handles to the work piece
• 1.5 to 2 seconds should be long enough to produce a good etching
although this depends on the material and the size of the stencil
• remove electrolyte from the metal surface and the lettering
• neutralize the surface with a cloth soaked in Neutralyt GN 2 several times
• then nally conserve the surface and the etching with Konservat GK 2
There is a special tool head for etchings wider than 30 mm.

operating instructions
Operating Instructions Clean Marker Brush V-Series − Page 14
Q7P(('0)(%*)(#8(*0#"'X')"-(*'),&+2*
-:;F=<>(K=BL(EL@;B(X(BI;A(EBI<R=HE
• place the short-term stencil with the blue/green side facing you into the
typewriter/matrix printer (without ribbon)
• type the desired lettering onto the blue/green side
• remove the short-term stencil and cut it to the desired size
• remove the white protective paper
• moisten the upper side of the short-term stencil with electrolyte
• put the stencil into position on the workpiece
• press the tool head onto the stencil so that the whole surface covers the
stencil and move it around gently
• after about 1.5 to 2 seconds (depends on the material) the process should
be nished
• clean the surface so that no electrolyte remains on the workpiece
• neutralize the surface several times using a cloth soaked in Neutralyt GN 2
• conserve the lettering and the metal surface with Konservat GK 2
Q7Q( &2#*+,.($#9,('0)(%,+'
• switch off at the main switch (6) and remove the mains plug
• dismantle all the accessories
• clean all parts
6 MainTenanCe
_76( */8)'D(").%2/'+#,*
Maintenance may only be carried out by an authorised person. Before
beginning maintenance, switch off the unit and secure against inadvertent
switching on, e. g. by „pulling the plug“. Work must be executed along the
lines prescribed in Chapter 1 „safety measures“ .
6.1.1 Maintenance and inspection check list
intervals control position / advice of maintenance utilities
daily, before using Check the device and the stencil/brush.
If necessary replace worn parts.
after using Clean stencils, tool head, cable and stainless steel working surface.
&HI:<(EBI<R=HE3(
carefully between 2 ngers in clear water.
&HI:<(B@@H(LI:J3
unscrew handle from carbon head and clean both in plenty of water.
&HI:<(M<=B(:<J(R:NHI3
wipe with a moist cloth.
a soft cloth,
brush

Operating Instructions Clean Marker Brush V-Series − Page 15
_74(( .),)"/2(")-/"Z*
Do not use cleaning agents, metal objects or compressed air. Dust and
glue residues must be removed with a scraper made of plastic.
Dismantle and clean the tool after use. If not, acid could
concentrate to such a degree that it becomes a health hazard.
The supply of power through the cable could also be affected
and the performance reduced.
7 MalFUnCTiOns
S76( */8)'D(").%2/'+#,*
Repairs may only be carried out by an authorised person. Before beginning
repair, switch off the unit and secure against inadvertent switching on, e. g.
by „pulling the plug“. Work must be executed along the lines prescribed in
Chapter 1 „safety measures“ .
8 DeCOMMissiOninG, sTOraGe
The unit must be stored in the environment described in Chapter 4.1.
T76( !")!/"/'+#,(8#"(*'#"/.)
Clean the unit and accessories and make sure that all the equipment is
carefully packed and the chemical containers are closed rmly.
T74( !/&Z+,.V('"/,*!#"'
Always store the original packaging. Use it for storing and for transport.
A:H?M<RB=@< R:MEI R@;;IRB=GI
short-circuit • Fibre glass is worn and must be
replaced.
• The 4,0 Ampere main fuse possibly
melted.
Replace bre glass and press
overload safety switch again after
a short waiting period.
If current is too high, the 4,0
Ampere main fuse might have
melted.
performance too low or no
performance
• cleaning tool not cleaned
• contact problem
• oxidated plug
Change cable, replace clamp,
dismantle and clean plug

operating instructions
T7C( -/+,'),/,&)($%"+,.(*'#"/.)
There is no maintenance to be carried out during storage.
Electrolyte, Neutralyt and Konservat should be kept in a cool and dark
place, protected from direct sunlight.
9 DisPOsal
Disposal of old Electrical & Electronic Equipment
((applicable throughout the European Union and other
European Countries with separate collection programmes).
This symbol, found on your product or on its packaging, indicates that
this product should not be treated as household waste when you wish to
dispose of it. Instead, it should be handed over to an applicable collection
point for the recycling of electrical and electronic equipment. By ensuring
this product is disposed of correctly, you will help prevent potential negative
consequences to the environment and human health, which could other-
wise be caused by inappropriate disposal of this product. The recycling
of materials will help to conserve natural resources. For more detailed
information about the recycling of this product, please contact your local
city ofce, household waste disposal service or the retail store where you
purchased this product.
U76(!"#&)$%")
• Use Neutralyt GN 2 to neutralize Greinox waste to pH 7.
• Used breglass pads, cloths and uid remains should be neutralised to
pH 7 with Neutralyt GN 2.
• The soiled water can then be disposed off in the normal way.
• Fibreglass and cloths contain metal components and should be disposed
of as if metal waste.
Operating Instructions Clean Marker Brush V-Series − Page 16

)HIRB;@<=R(K:EBI7
Dismantle into component parts (transformers, mother boards, cables, etc.)
and dispose of in accordance with local regulations.
-:BI;=:HE3
Metals, non - metals, composites and accessories should be sorted and
disposed of correctly.
KIHJIJ(EI:A cleaned uncleaned
Operating Instructions Clean Marker Brush V-Series − Page 17

light is
lit
cable in outlet
put cable into outlet
noyes
switch on unit
light
is not
lit
check cut out 4 A,
replace if necessary
ja
Unit is overheated.
Wait approx. 6 min.
and try again.
Overload safety switch
16 A activated.
red and black cable,
tool connected
yesno
unit worksclean tool
connect cable and tool
yesno
OK
yesno
Service
push overcurrent
cutout
no
operating instructions
Operating Instructions Clean Marker Brush V-Series − Page 18

10 We are inTeresTeD in YOUr OPiniOn
We constantly strive for an improvement in quality and would be interested
to have your opinion concerning our products and operating instructions.
Please use this fax form.
&MEB@AI;3
Unit type: Order no. :
!HI:EI(R:HH(ME(N:RF(@<(<MANI;3
"IA:;FEV(EM>>IEB=@<E3
$:BI3(((((((,:AI3
Operating Instructions Clean Marker Brush V-Series − Page 19

12 DeClaraTiOn OF COnFOrMiTY
According to Low Voltage Directive 2006/95/EG
-:<M?:RBM;I;3( Kai Greising e. K.
Clean Marker
Industriestr. 29/2
D-73340 Amstetten
Tel. 07331 / 30 58-0
Fax 07331 / 98 17 22
Description of components:
Electrochemical pickling and etching units
The CE - sign was attached for the rst time 2013
Type:
Clean Marker V Brush
We hereby certify, as manufacturer, the conformity of the mentioned components
with the European standards, especially with the product standards of the
DIN EN 61558 (VDE 0570) standards and the conformity with the Low Voltage
Regulations 2006/95/EG.
The safety directions included in the product documentation are to be observed.
Siegfried Maier
Production Manager Amstetten 02.03.2013
