Electro-Voice DSP-1 User manual

Key Features:
• 300 MIPS computing capacity – doubles the
DSP power of a NetMax System Controller.
• 2 RAM banks (512k x 24 Bit) – allow for
additional delay lines up to 21.8 seconds.
• 48 Bit signal processing – Double Precision
DSP algorithms.
• Automatic Configuration – signals whether
a new module has been inserted or an
installed one has been removed.
DSP-1
Signal Processor
Expansion Module
General Description: Technical Specifications:
The DSP-1 is a DSP Extension Module for the
NetMax System Controller. The module provides
additionalDSPsforextendingthesignalprocessing
capacityandRAMbanksfortherealizationoflonger
delay times or additional delay lines.
tnerruC/egatloVylppuSAm002/V3.0±,CDV3.3+ Am002/V81.0±,CDV8.1+
etaRelpmaSzHk84
tamroFataDgnissecorptiB84
rewoPgnissecorPSPIM003
yromeM
s
8.12/MARStiB42xk215x2 yaled.xam
yaleDlangiSsm521.0
egnaRerutarepmeTgnitarepOC°04…C°0
snoisnemiD)DxHxW(mm5.28xmm02xmm011 "52.3x"97.0x"33.4
thgieW)bl01.0(g54

DSP-1Part Number:
DSP-1 -- D170328
12000 Portland Avenue South, Burnsville, MN 55337
Phone:[phone], Fax:[phone]
www.electrovoice.com
© Telex Communications, Inc. 1/2006
Part NumberLIT-0000XX Rev1
U.S.A. and Canada only. For customer orders, contact Customer Service at:
800/392-3497 Fax: [phone]
Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:
+ 49 9421-706 0 Fax: + 49 9421-706 265
Other International locations. For customer orders, contact Customer Service at:
+ 1 952 884-4051 Fax: + 1 952 736-4212
For warranty repair or service information, contact the Service Repair department at:
800/685-2606
For technical assistance, contact Technical Support at: 866/78AUDIO
Specifications subject to change without notice.

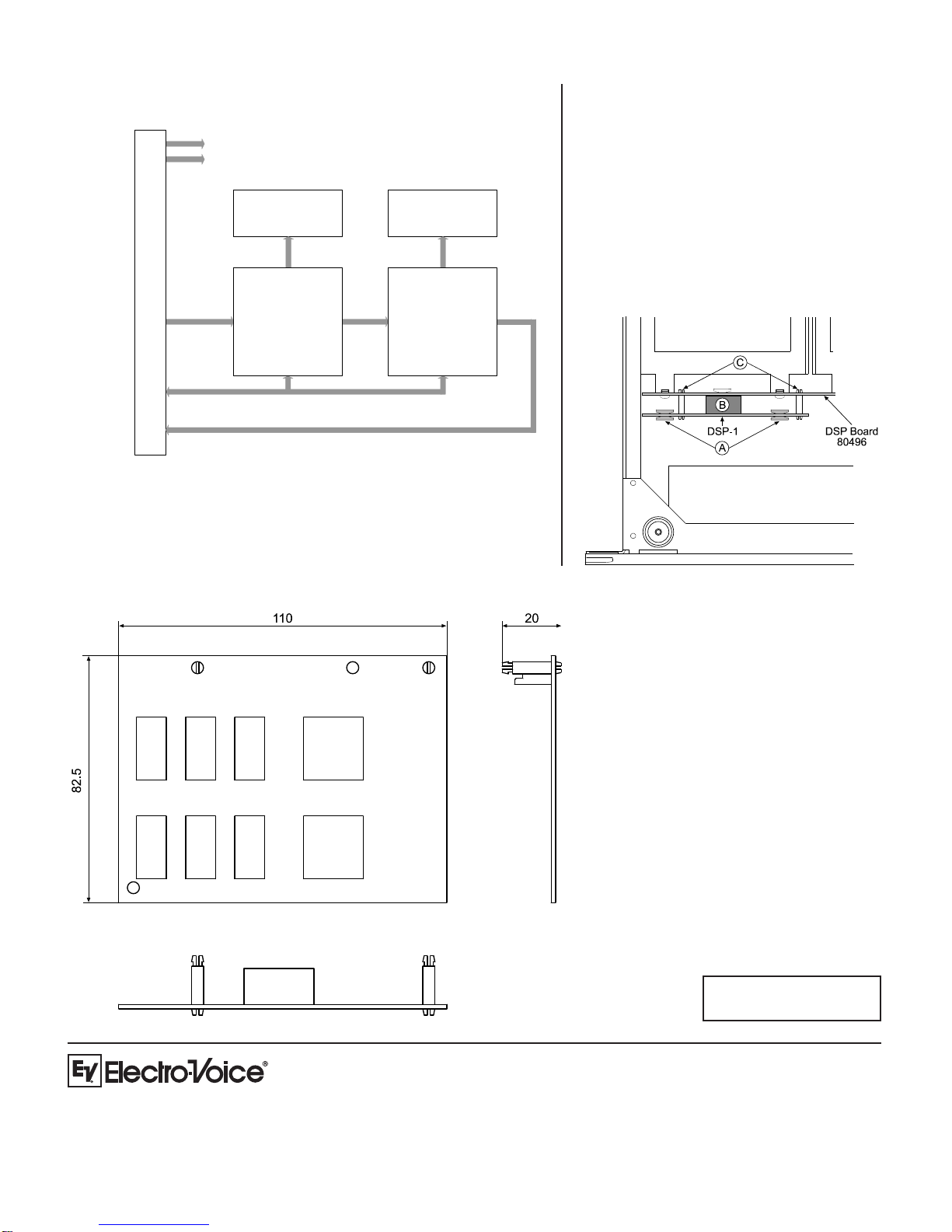

Dimension Drawings:
Block Diagram:
Front View
Side ViewTop View
AUDIO IN
AUDIO OUT
POWER
SUPPLY
HOST/
SERIAL
SRAM SRAM
4 x 8 Channels
4 x 8 Channels
+3.3V
+1.8V
MODULE INTERFACE
DSPDSP
All Dimensions
inMillimeters
Installation:
1. Turn off power of the unit and pull mains plug
2. Remove cover plate (6 screws on the sides, 3 screws
on top, 4 screws on the rear)
3. Install the DSP-1 module (see diagram). Place the
module in the guiding on the bottom plate (A), connect
the plug to the appropriate socket (B) and insert the
plastic spacers into the mounting holes (C)
4. Reinstall the cover plate
5. Plug in the mains cord and turn the unit’s power on.
6. The N8000 automatically recognizes the DSP-1
module. No further configuration required
