Electrolux Professional PD9C User manual

Installation manual
Tumble dryer
PD9C
Type N1190..
Original instructions
438 9055-00/EN
2022.10.06

Contents
Contents
1 Safety Precautions ..............................................................................................................................5
1.1 General safety information..........................................................................................................6
1.2 Commercial use only..................................................................................................................6
1.3 Symbols....................................................................................................................................7
2 Warranty terms and exclusions.............................................................................................................8
3 Technical data.....................................................................................................................................9
3.1 Drawing ....................................................................................................................................9
3.2 Technical data .........................................................................................................................10
3.3 Connections ............................................................................................................................10
4 Setup ...............................................................................................................................................10
4.1 Unpacking...............................................................................................................................10
4.2 Siting ...................................................................................................................................... 11

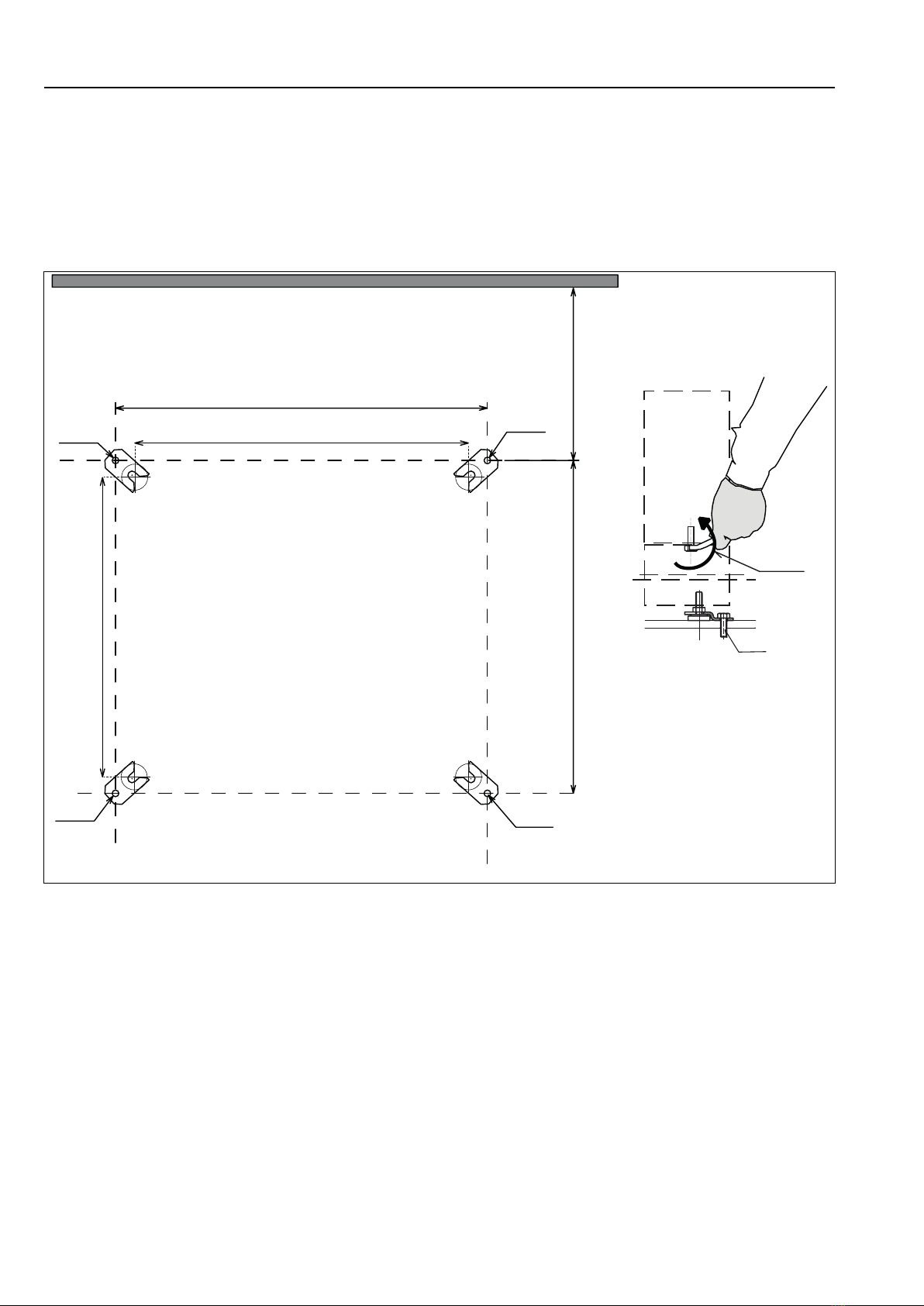

4.3 Mechanical installation ............................................................................................................. 11
5 Marine installation .............................................................................................................................12

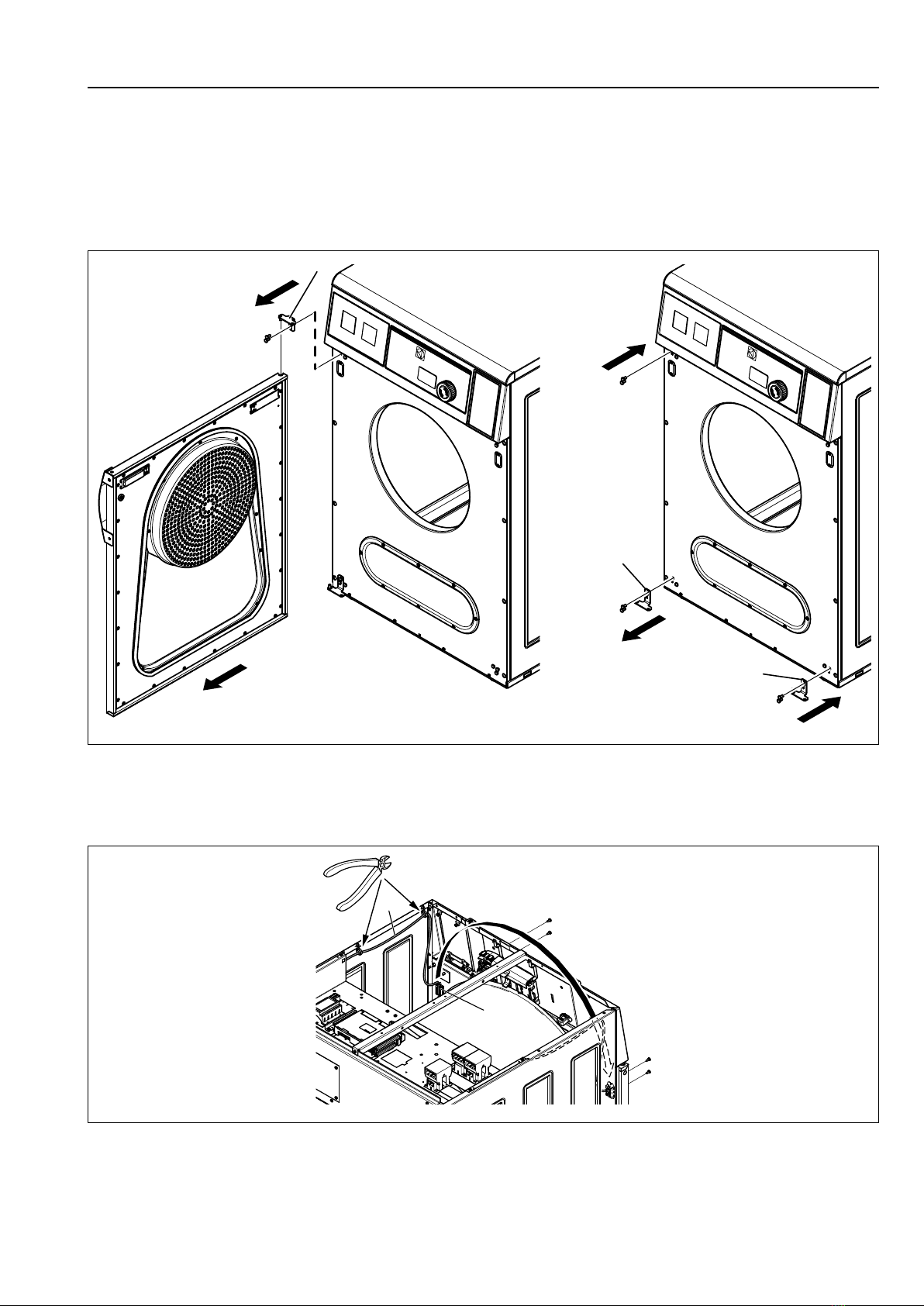

6 Reversing the door ............................................................................................................................13
7 Evacuation system ............................................................................................................................15
7.1 Air principle .............................................................................................................................15
7.2 Fresh air..................................................................................................................................15
7.3 Exhaust duct ...........................................................................................................................15
7.4 Shared exhaust duct ................................................................................................................16

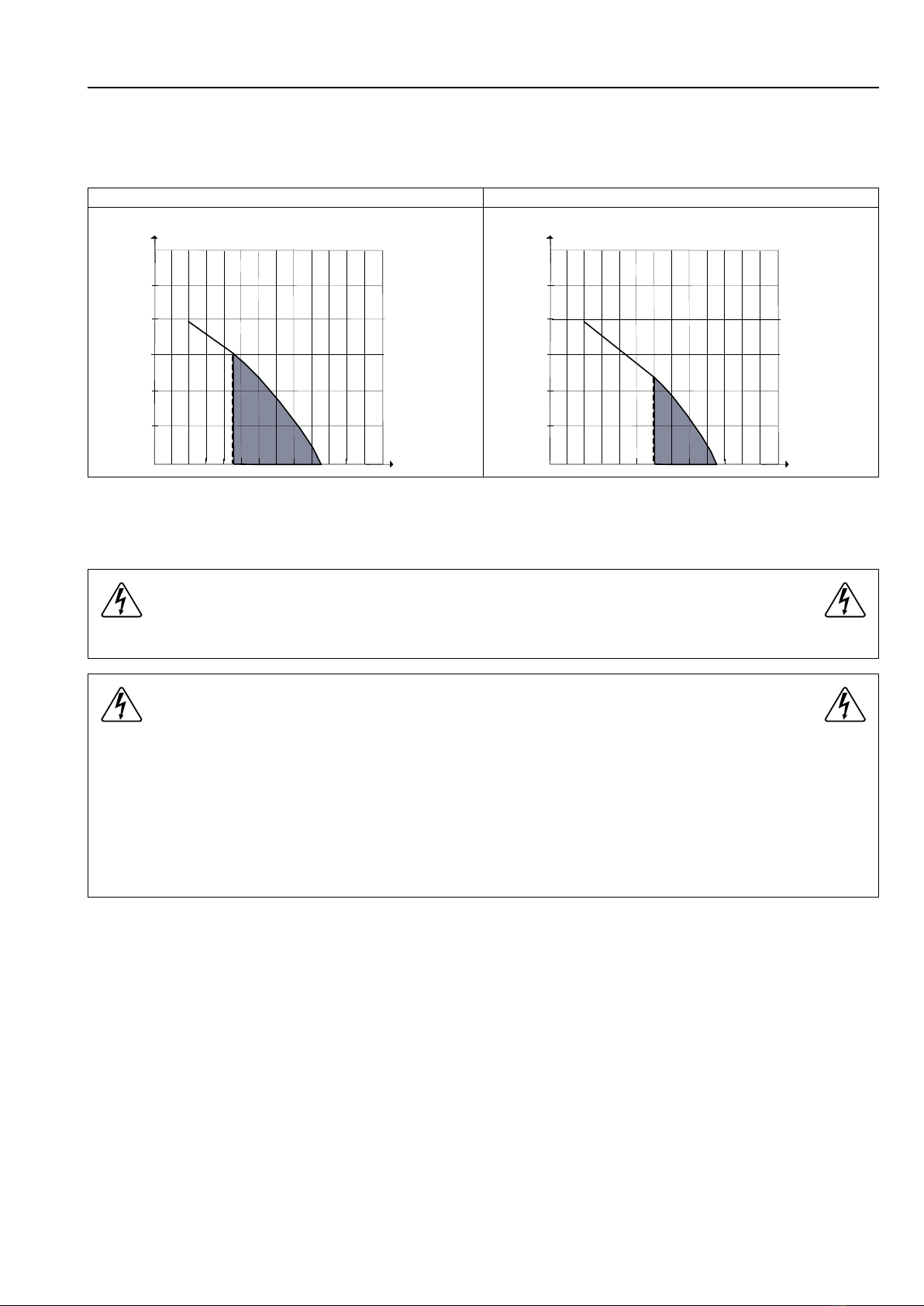

7.5 Exhaust dimensioning ..............................................................................................................16
8 Electrical connection..........................................................................................................................17
8.1 Electrical installation ................................................................................................................17
8.2 Single-phase connection ..........................................................................................................18
8.3 Three-phase connection...........................................................................................................18
8.4 Electrical connections ..............................................................................................................19
8.5 Option.....................................................................................................................................19
9 At first power up ................................................................................................................................20
9.1 Select language.......................................................................................................................20
9.2 Set time and date.....................................................................................................................20
10 Function check..................................................................................................................................21
11 Disposal information..........................................................................................................................22
11.1 Disposal of appliance at end of life ............................................................................................22
11.2 Disposal of packing..................................................................................................................22
The manufacturer reserves the right to make changes to design and component specifications.

Installation manual 5
1 Safety Precautions
• Servicing shall be carried out only by authorized personnel.
• Only authorized spare parts, accessories and consumables shall be used.
• The machine is not to be used if industrial chemicals have been used for cleaning.
• Do not dry unwashed items in the machine.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, pet-
rol, kerosene, spot removers, turpentine, waxes and wax removers should be washed
in hot water with an extra amount of detergent before being dried in the machine.
• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber
backed articles and clothes or pillows fitted with foam rubber pads should not be dried
in the machine.
• Fabric softeners or similar products should be used as specified by the fabric softener
instructions.
• The final part of a drying cycle occurs without heat (cool down cycle) to ensure that the
items are left at a temperature that ensures that the items will not be damaged.
• Remove all objects from pockets such as lighters and matches.
• WARNING. Never stop the machine before the end of the drying cycle unless all items
are quickly removed and spread out so that the heat is dissipated.
• Adequate ventilation has to be provided to avoid the back flow of gases into the room
for appliances burning other fuels, including open fires.
• Exhaust air must not be discharged into a flue which is used for exhausting fumes from
appliances burning gas or other fuels.
• The machine must not be installed behind a lockable door, a sliding door or a door with
a hinge on the opposite side to that of the machine in such a way that a full opening of
the machine is restricted.
• If the machine has a lint trap this has to be cleaned frequently.
• The lint must not be accumulated around the machine.
• DO NOT MODIFY THIS APPLIANCE.
• When performing service or replacing parts, the power must be disconnected.
• When the power is disconnected, the operator must see that the machine is discon-
nected (that the plug is removed and remains removed) from any point to which he has
access. If this is not possible, due to the construction or installation of the machine, a
disconnection with a locking system in the isolated position shall be provided.
• In accordance with the wiring rules: mount a multi-pole switch prior to the machine to
facilitate installation and service operations.
• WARNING: The appliance must not be supplied through an external switching device,
such as a timer, or connected to a circuit that is regularly switched on and off by a utility.
• If different rated voltages or different rated frequencies (separated by a /) are stated at
the machine data plate, instructions for adjusting the appliance for operation at the re-
quired rated voltage or rated frequency are stated in the installation manual.
• Stationary appliances not fitted with means for disconnection from the supply mains
having a contact separation in all poles that provide full disconnection under overvolt-
age category III, the instructions state that means for disconnection must be incorpo-
rated in the fixed wiring in accordance with the wiring rules.
• The openings in the base, shall not be obstructed by a carpet.

6Installation manual
• Oil-affected items can ignite spontaneously, especially when exposed to heat sources
such as in a tumble dryer. The items become warm, causing an oxidation reaction in
the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot
enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat from
escaping and so create a fire hazard.
• If it is unavoidable that fabrics that contain vegetable or cooking oil or have been conta-
minated by hair care products be placed in a tumble dryer they should first be washed
in hot water with extra detergent – this will reduce, but not eliminate, the hazard.
• Maximum mass of dry cloth: 10.6 kg.
• A-weighted emission sound pressure level at working stations: <70 dB(A).
Gas heated tumble dryer:
• Before installation, check that the local distribution conditions, nature of gas and pres-
sure and the adjustment of the appliance are compatible.
• The machine is not to be installed in rooms containing cleaning machines with per-
chloroethylene, TRICHLOROETHYLENE or CHLOROFLUOROCONTAINING HY-
DROCARBONS as cleaning agents.
• If you can smell gas:
– Do not switch on any equipment
– Do not use electrical switches
– Do not use telephones in the building
– Evacuate the room, building or area
– Contact the person responsible for the machine
• Additional requirements for the following countries; AT, BE, BG, HR, CY, CZ, DK, EE,
FI, FR, DE, GR, HU, IS, IE, IT, LV, LT, LU, MT, NL, NO, PL, PT, RO, SK, SI, ES, SE, CH,
TR, UK:
– The appliance can be used in public areas.
– This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and knowl-
edge if they have been given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved. Children shall not play with the ap-
pliance. Cleaning and user maintenance shall not be made by children without
supervision.
• Additional requirements for other countries:
– This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised to ensure that they
do not play with the appliance.
1.1 General safety information
In order to prevent damage to the electronics (and other parts) that may occur as the result of condensation, the ma-
chine should be placed in room temperature for 24 hours before being used for the first time.
1.2 Commercial use only
The machine/machines covered by this manual is/are made for commercial and industrial use only.

Installation manual 7

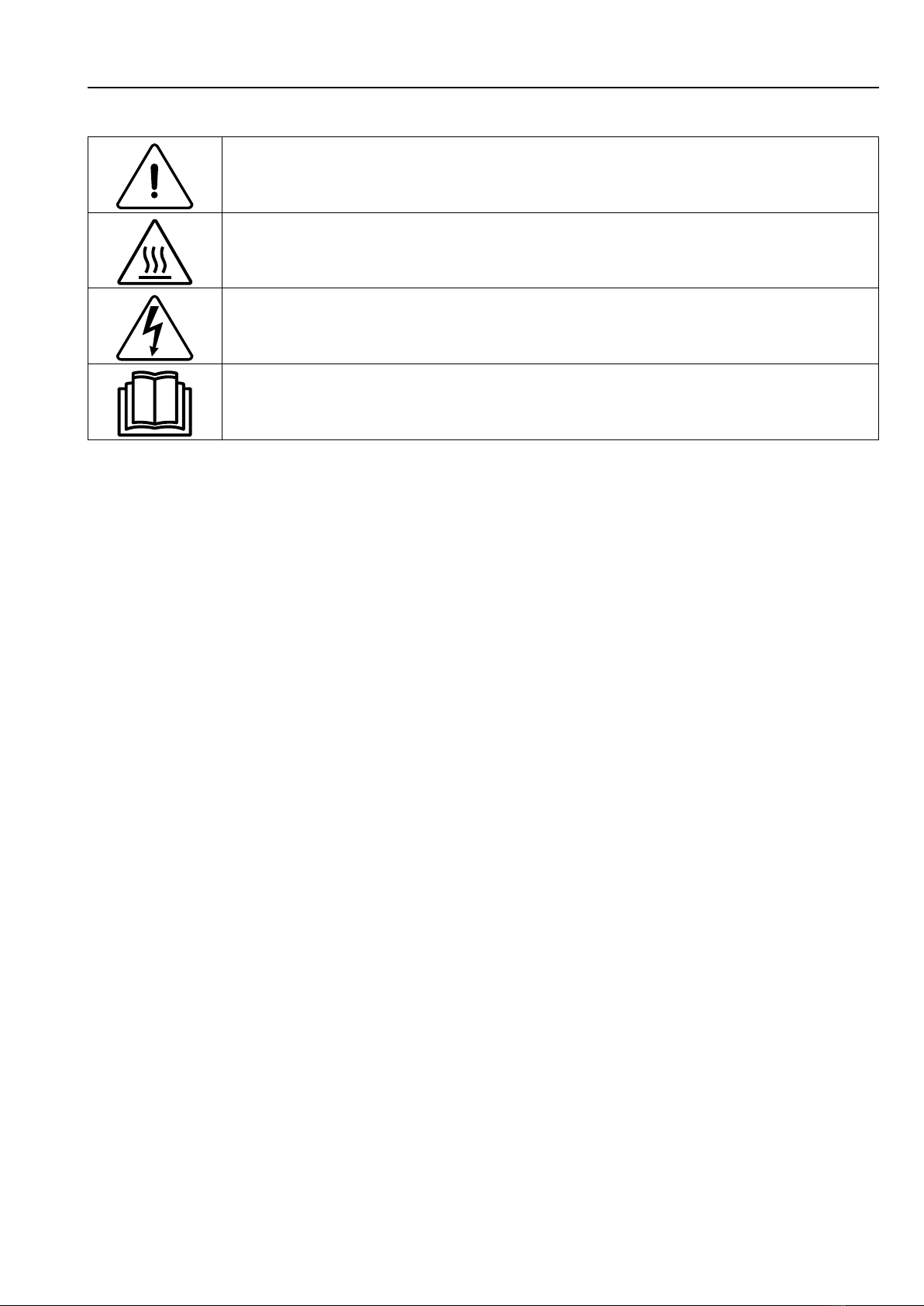

1.3 Symbols
Caution
Caution, hot surface
Caution, high voltage
Read the instructions before using the machine

8Installation manual
2 Warranty terms and exclusions
If the purchase of this product includes warranty coverage, warranty is provided in line with local regulations and sub-
ject to the product being installed and used for the purposes as designed, and as described within the appropriate
equipment documentation.
Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance
in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec-
tronic format.
Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling
agents to obtain optimal results and maintain product efficiency over time.
The Electrolux Professional warranty does not cover:
• service trips cost to deliver and pick up the product;
• installation;
• training on how to use/operate;
• replacement (and/or supply) of wear and tear parts unless resulting from defects in materials or workmanship re-
ported within one (1) week from the failure;
• correction of external wiring;
• correction of unauthorized repairs as well as any damages, failures and inefficiencies caused by and/or resulting
from;
– insufficient and/or abnormal capacity of the electrical systems (current/voltage/frequency, including spikes and/
or outages);
– inadequate or interrupted water supply, steam, air, gas (including impurities and/or other that does not comply
with the technical requirements for each appliance);
– plumbing parts, components or consumable cleaning products that are not approved by the manufacturer;
– customer’s negligence, misuse, abuse and/or non-compliance with the use and care instructions detailed within
the appropriate equipment documentation;
– improper or poor: installation, repair, maintenance (including tampering, modifications and repairs carried out
by third parties not authorized third parties) and modification of safety systems;
– Use of non-original components (e.g.: consumables, wear and tear, or spare parts);
– environment conditions provoking thermal (e.g. overheating/freezing) or chemical (e.g. corrosion/oxidation)
stress;
– foreign objects placed in- or connected to- the product;
– accidents or force majeure;
– transportation and handling, including scratches, dents, chips, and/or other damage to the finish of the product,
unless such damage results from defects in materials or workmanship and is reported within one (1) week of deliv-
ery unless otherwise agreed;
• product with original serial numbers that have been removed, altered or cannot be readily determined;
• replacement of light bulbs, filters or any consumable parts;
• any accessories and software not approved or specified by Electrolux Professional.
Warranty does not include scheduled maintenance activities (including the parts required for it) or the supply of
cleaning agents unless specifically covered within any local agreement, subject to local terms and conditions.
Check on Electrolux Professional website the list of authorized customer care.

Installation manual 9
3 Technical data
3.1 Drawing
C
A
1
2
D
B(a) B(b)
3
E
F
G
H
4
1 Operating panel
2 Door opening, ⌀400 mm
3 Electrical connection
4 Exhaust connection
A B(a) B(b) C D E
mm 721 759 684 1114 404 45
F G H
mm 180 88 113

10 Installation manual
3.2 Technical data
Weight, net kg 99
Drum volume litres 190
Drum diameter mm 680
Drum depth mm 555
Drum speed rpm 47
Rated capacity, filling factor 1:18 (Max. load) kg 10.6
Rated capacity, filling factor 1:22 (Recommended. load) kg 8.6
Heating: Electricity kW 6
kW 8
Air consumption, Electric heating, 6 kW m3/h 270
Air consumption, Electric heating, 8 kW m3/h 290
Pressure drop, Electric heating, 6 kW Max. Pa 120
Pressure drop, Electric heating, 8 kW Max. Pa 70
A-weighted emission sound pressure level at working stations dB(A) <70
3.3 Connections
Air outlet ⌀mm 125
Gas connection 1/2” ISO 7/1–R1/2
4 Setup
4.1 Unpacking

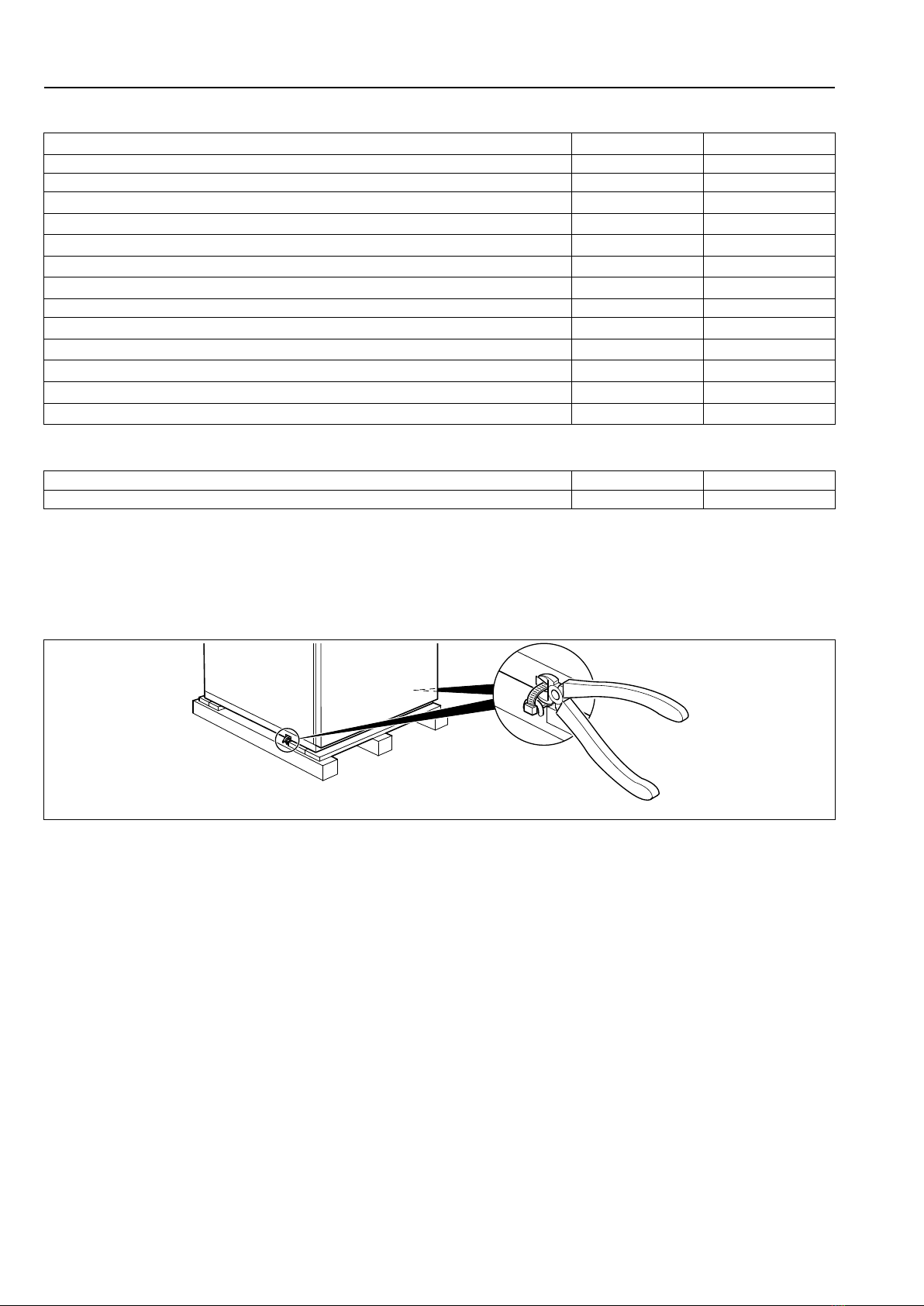

Cut and remove the two plastic straps between the machine and pallet. There is one strap on each side of the
machine.
fig.7676
Remove the machine from the pallet.
Note!
When moving the machine, handle it with care. The drum has no transport clamps.
Place the machine on its final position.

Installation manual 11
4.2 Siting
The machine should be positioned so that there is plenty of room for working, both for the user and service personnel.
The figure shows minimum distance to a wall and/or other machines.
400 mm /
15 3/4 inch
10 mm /
3/8 inch
10 mm /
3/8 inch
fig.6320A
4.3 Mechanical installation
Level the machine with the feet of the machine. The maximum height adjustment of the feet is 50 mm.
If the machine is mounted on a base it needs to be fastened to the base.
fig.6321

12 Installation manual
5 Marine installation
To ensure steadiness of the machine it is important to fasten the machine to the foundation.
Fasten the four fittings (supplied with the marine machine model) to the foundation using four x M10 set screws. If
the four fittings are not supplied, order kit No. 487193544.
Fasten the machine to the fittings.
Note!
Marine installation is not applicable for gas heated machines.
675 mm / 26 9/16 inch
M10 M10
M10
M10
600 mm / 23 5/8 inch 400 mm / 15 3/4 inch
M10
20Nm
512 mm / 20 5/32 inch
585 mm / 23 1/32 inch
fig.6322

Installation manual 13
6 Reversing the door
Disconnect the power to the machine.
Demount the hinge (A) and refit the screws into the same holes in order to secure the panel on the back. Mount the
hinge (A) at the bottom of the opposite side.
Demount the door by carefully lifting it of the front.
Demount hinge (B).
A
A
B
fig.7993
Demount the top panel.
Cut the cable tie and remove cable (C) to the opposite side.
Demount the plastic cover with door switch (D) and mount on the opposite side.
C
D
fig.7657

14 Installation manual
Demount the door handle and remount the screws. Mount the door handle on the opposite side using the existing
scews.
Mount the door by lifting it back on the fitting on the opposite side.
Mount the hinge (B) at the top.
B
fig.7658
Demount the magnetic door lock (E) and magnet for switch (F) and mount on the opposite side.
F
E
fig.7659
Connect the power to the machine.
Test run the machine.

Installation manual 15
7 Evacuation system
7.1 Air principle
The fan creates low pressure in the machine, drawing air into the drum via the heating unit.
The heated air passes through the garments and the drum vents.
The air then flows out through a lint filter positioned in the door. After this, the air is evacuated through the fan and ex-
haust system.
Note!
It is very important that the machine gets enough fresh air in order to get the best drying result.
7.2 Fresh air
For maximum efficiency and the shortest possible drying time, it is important to ensure that fresh air is able to enter
the room from the outside in the same volume as that is blown out of the room.
To avoid draught in the room it is important to place the air inlet behind the machine.
The area of the air inlet opening is recommended to be five times the size of the exhaust pipe area. The area of the
inlet opening is the area through which the air can flow without resistance from the grating/slatted cover.
5 x A
A
fig.6312
Note!
Gratings/slatted covers often block half of the total fresh air vent area. Remember to take this into account.
7.3 Exhaust duct
• Only rigid or flexible metal duct should be used for exhausting.
• Plastic ducting is not to be used.
• Recommended material for exhaust is galvanized steel.
• The duct is not to be assembled with screws or other fastening means that extend into the duct and catch lint.
• The exhaust air should not be vented into a wall, a ceiling, or a concealed space of building.
• The exhaust duct must lead clear of the building as condensation may cause frost damage to the building.
• The exhaust duct must lead to the outdoors.
• The exhaust duct must be placed in such a way that it is protected on the outside.
• The exhaust duct must be smooth on the inside (low air resistance).
• The exhaust duct must have gentle bends.

16 Installation manual
7.4 Shared exhaust duct
It is recommended that each machine is connected to a separate exhaust duct.
When several machines shall use the same exhaust duct the exhaust duct must increase after each machine. The
recommended diameter increase progression is the one in the table.
If several machines are installed on the same exhaust pipe, it is recommended to adjust the airflow on the machines
when all machines are started and running a program with no heat.
Please consider that unnecessarily large ducts create issues with the draught.
fig.6329
Number of machines 1 2 3 4 5 6 7 8 9 10
Exhaust duct ⌀mm 125 200 250 250 315 315 400 400 400 400
Recommended area
of fresh air intake
m20.06 0.16 0.25 0.25 0.39 0.39 0.63 0.63 0.63 0.63
Minimum area of
fresh air intake
m20.03 0.06 0.09 0.12 0.15 0.18 0.21 0.24 0.27 0.3
The exhaust duct diameter must not be reduced.
7.5 Exhaust dimensioning
It is important that the machine has correct air volume compared to each machines power.
If the air flow is smaller or larger this will result in a longer drying period.
If the outlet pipe is long or the ventilation is not properly designed we recommend to clean the outlet pipes periodi-
cally. Usually, longer ducts need more frequent cleaning.
The exhaust pipes shall be short in order for the machine to work in the best way.
All cover panels must be mounted in order for the machine to work in the best way.

Installation manual 17
Diagram with pressure drop curve
The grey area marks the recommended working area.
Check that the pressure drop is within the recommended working area.
6 kW 8 kW
x = m3/h
Y = Pa
100 200 300 400
0
0
100
200
300
400
500
x = m3/h
Y = Pa
100 200 300 400
0
0
100
200
300
400
500
8 Electrical connection
8.1 Electrical installation
The electrical installation may only be carried out by qualified personnel.
Machines with frequency-controlled motors can be incompatible with certain types of earth leakage circuit break-
er. It is important to know that the machines are designed to provide a high level of personal safety, which is why
items of external equipment such as earth leakage circuit breakers are not necessary but is recommended. If you
still want to connect your machine across an earth leakage circuit breaker, please remember the following:
• contact a skilled, authorised installation company to ensure that the appropriate type of breaker is chosen and
that the dimensioning is correct
• for maximum reliability, connect only one machine per earth leakage circuit breaker
• it is important that the earth wire is properly connected.
In instances where the machine is not equipped with an omni-polar switch, one must be installed beforehand.
In accordance with the wiring rules: mount a multi-pole switch prior to the machine to facilitate installation and service
operations.
The connecting cable shall hang in a gentle curve.

18 Installation manual
8.2 Single-phase connection
Demount the cover panel from the supply unit. Connect the earth and other wires as shown.
1NAC
L3
L2
L1
N
1NAC
N
L3
When the installation is completed remount the cover panel and check:
• That the drum is empty.
• That the machine operates by connecting the power to the machine and start a program with heat.
8.3 Three-phase connection
Demount the cover panel from the supply unit. Connect the earth and other wires as shown.
3AC
L3
L2
L1
N
3AC
L1
L2
L3
3NAC
L3
L2
L1
N
3NAC
N
L1
L2
L3
When the installation is completed remount the cover panel and check:
• That the drum is empty.
• That the machine operates by connecting the power to the machine and start a program with heat.

Installation manual 19
8.4 Electrical connections
Heating alternative Main voltage Hz Heating power
kW
Total power
kW
Recommended fuse
A
Electric heated 220–240V 1 ~ 50/60 6.0/8.0 6.3/8.3 35/50
220–230V 3 ~ 50/60 6.0/8.0 6.3/8.3 20/25
240V 3 ~ 50/60 6.0/8.0 6.3/8.3 16/25
380–415V 3 ~ 50/60 6.0/8.0 6.3/8.3 10/16
440/480V 3 ~ 60 6.0/8.0 6.3/8.3 10/16
230V 1N ~ 50 6.0/8.0 6.3/8.3 35/50
400V 3N ~ 50 6.0/8.0 6.3/8.3 10/16
8.5 Option
External connection
A special connection terminal is located on the motor bracket.
This connection can be used as external control of a fan.
The terminal for external control is equipped with 110V max.100 mA and is intended solely for the operation of a
contactor.
Max. connection 100 mA.
Gnd. must not be used for earthing of external board.
X1 X2 Gnd.
fig.7154

20 Installation manual
9 At first power up
When the installation is complete and the power is connected for the first time you will be forced to make the following
settings. When one setting is ready you will automatically enter the next one.
• Select language
• Set time and date
• Activate/deactivate the service alarm
For more information about the following settings please refer to the Programming and configuration manual.
9.1 Select language
Select language from the list on the display.
This will be the language that all display messages, program names etc will be presented in.
9.2 Set time and date
Select YES and press the control knob to get to the menu TIME/DATE.
Activate the SET TIME menu and set the correct time.
Save the settings.
Activate the SET DATE menu and set the correct date. Start by setting the year.
• Set the year. Exit to continue with a long press on the control knob.
• Set the month. Exit to continue with a long press on the control knob.
• Set the day. Exit with a long press on the control knob and then save with a long press on the control knob.
Exit the menu when ready.
