Electrolux Professional TE1120 User manual

136952422-A-432020
User Manual
Tumble Dryer
Инструкция по эксплуатации
Сушильный барабан
TE1120
Original Instructions.
Перевод оригинальных инструкций.

CONTENTS
1. SAFETY INFORMATION.......................................................................................2
2. PRODUCT DESCRIPTION................................................................................... 9
3. ACCESSORIES..................................................................................................10
4. CONTROL PANEL............................................................................................. 11
5. PROGRAMME TABLE........................................................................................12
6. COIN OPERATED MACHINES........................................................................... 13
7. BEFORE FIRST USE..........................................................................................13
8. DAILY USE.........................................................................................................14
9. HINTS AND TIPS............................................................................................... 16
10. CARE AND CLEANING....................................................................................16
11. TROUBLESHOOTING......................................................................................19
12. TECHNICAL DATA........................................................................................... 20
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can be
safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website to:
Get usage advice, brochures, trouble shooter, service and repair information:
www.electrolux.com/support
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following
data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
1. SAFETY INFORMATION
Before beginning the installation and use of this appliance,
carefully read the supplied instructions. The manufacturer
2

is not responsible for any injuries or damage that are the
result of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent disability.
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning the use of the appliance in a safe
way and understand the hazards involved.
•Children between 3 and 8 years of age and persons
with very extensive and complex disabilities shall be
kept away from the appliance unless continuously
supervised.
•Children of less than 3 years of age should be kept
away from the appliance unless continuously
supervised.
•Do not let children play with the appliance.
•Keep all packaging away from children and dispose of it
appropriately.
•Keep detergents away from children.
•Keep children and pets away from the appliance when
the door is open.
•If the appliance has a child safety device, it should be
activated.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 Installation
•This appliance is designed for drying clothes, linen,
household goods made of woven and nonwoven
materials and other products for which the manufacturer
permits drying in automatic tumble dryer, both for
ENGLISH 3

domestic purposes and for professional purposes in
institutions and organizations (including mini-hotels,
hotels, kindergartens, schools, medical facilities,
factories and industrial enterprises, laundries, beauty
salons, catering establishments, sports clubs, tness
centers and others similar institutions and
organizations).
•Remove all the packaging.
•Do not install or use a damaged appliance.
•Follow the installation instructions supplied with the
appliance.
•Always take care when moving the appliance as it is
heavy. Always use safety gloves and enclosed footwear.
•Do not install or use the appliance where the
temperature is less than 5°C or higher than 35°C.
•The oor area on which the appliance is to be installed
must be at, stable, heat resistant and clean.
•Make sure that there is air circulation between the
appliance and the oor.
•Always keep the appliance vertical when it is being
moved.
•Make sure that the appliance is stable during
transportation.
•The appliance can be installed as freestanding or below
the kitchen counter with correct space (Refer to the
Installation leaet).
•If the tumble dryer is put on top of a washing machine,
use the stacking kit. The stacking kit, available from
your authorized vendor, can be used only with the
appliance specied in the instructions, supplied with the
accessory. Read it carefully before installation (Refer to
the Installation leaet).
•Do not install the appliance behind a lockable door, a
sliding door or a door with a hinge on the opposite side,
that would prevent the appliance door from being fully
open.
4

•Do not install the appliance in a moving platform (e.g. on
a ship).
•The rear surface of the appliance must be put against
the wall.
•When the appliance is in its permanent position, check if
it is levelled correctly with the aid of a spirit level. If it is
not, adjust the feet accordingly.
•Make sure that the appliance is disconnected from the
electricity supply during installation, maintenance and
repairs and cannot be reconnected until all work has
been carried out.
•Connect the mains plug to the mains socket only at the
end of the installation process. Make sure that the
mains plug is accessible after installation.
•Ensure good air ventilation in the room where the
appliance is installed to avoid the backow of unwanted
gases into the room from appliances burning gas or
other fuels, including open res.
•Exhaust air must not be discharged into a ue which is
used for exhausting fumes from any appliances burning
gas or other fuels.
•WARNING: Keep ventilation openings clear of
obstruction in the appliance enclosure or in the built-in
structure.
•The ventilation opening in the base must not be covered
by a carpet, mat, or any oor covering.
1.3 Electrical connection
WARNING!
Risk of re and electric shock.
•The appliance must be correctly earthed. The
manufacturer is not responsible for the consequences
of an inadequate earthing system.
•Make sure that the parameters on the rating plate are
compatible with the electrical ratings of the mains power
supply.
ENGLISH 5

•WARNING: The appliance must not be supplied through
an external switching device, such as a timer, or
connected to a circuit that is regularly switched on and
off by a utility.
•Always use a correctly installed shockproof socket.
•Do not use multi-plug adapters and extension cables.
•Do not pull the mains cable to disconnect the appliance.
Always pull the mains plug.
•Do not touch the mains cable or the mains plug with
wet hands.
•If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service
Centre or similarly qualied persons to avoid an
electrical hazard.
•This appliance is tted with a 13 A mains plug. If it is
necessary to change the mains plug fuse, use only a 13
A ASTA (BS 1362) fuse (UK and Ireland only).
1.4 Use
WARNING!
Risk of injury, electric shock, re, burns or
damage to the appliance.
•Obey the maximum load volume of 8,0kg (refer to the
“Programme chart” chapter).
•Do not change the specication of the appliance.
•Do not use the appliance if items have been soiled with
industrial chemicals.
•Wipe away lint or packaging debris that has
accumulated around the appliance.
•Do not run the appliance without a lter. Clean the lint
lter before or after each use.
•Do not dry unwashed items in the tumble dryer.
•WARNING: Do not damage the refrigerant circuit.
•Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers should
6

be washed in hot water with an extra amount of
detergent before being dried in the tumble dryer.
•Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes
or pillows tted with foam rubber pads should not be
dried in the tumble dryer.
•Fabric softeners, or similar products, should only be
used as specied by the product manufacturer’s
instructions.
•Remove all objects from items that could be a source of
re ignition such as lighters or matches.
•WARNING: Never stop a tumble dryer before the end of
the drying cycle unless all items are quickly removed
and spread out so that the heat is dissipated.
•The nal part of a tumble dryer cycle occurs without
heat (cool down cycle) to ensure that the items are left
at a temperature that ensures that the items will not be
damaged.
•Do not dry damaged (torn, frayed) items that contain
padding or llings.
•Dry only fabrics that are suitable to dry in the appliance.
Follow the cleaning instruction on the item label.
•If laundry has been washed with a stain remover, carry
out an additional rinse cycle before starting a drying
cycle.
•Do not drink or prepare food with the condensed water/
distilled water. It can cause health problems to people
and pets.
•Do not sit or stand on the open door of the appliance.
•Do not dry dripping wet clothes in the appliance.
1.5 Internal lighting
WARNING!
Risk of injury.
•Concerning the lamp(s) inside this product and spare
part lamps sold separately: These lamps are intended to
withstand extreme physical conditions in household
ENGLISH 7

appliances, such as temperature, vibration, humidity, or
are intended to signal information about the operational
status of the appliance. They are not intended to be
used in other applications and are not suitable for
household room illumination.
•Visible LED radiation, do not look directly into the beam.
•To replace the internal lighting, contact the Authorised
Service Centre.
1.6 Care and cleaning
WARNING!
Risk of injury or damage to the appliance.
•Do not use water spray and steam to clean the
appliance.
•Clean the appliance with a moist soft cloth. Use only
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
1.7 Service
•Only original spare parts can ensure the safety
standards of the appliance.
•Only repairs undertaken by an Electrolux approved
service technician are covered by the guarantee.
1.8 Disposal
WARNING!
Risk of injury or suffocation.
•Disconnect the appliance from the mains electrical and
water supplies.
•Cut off the mains electrical cable close to the appliance
and dispose of it.
•Remove the door catch to prevent children or pets from
becoming trapped in the drum.
8

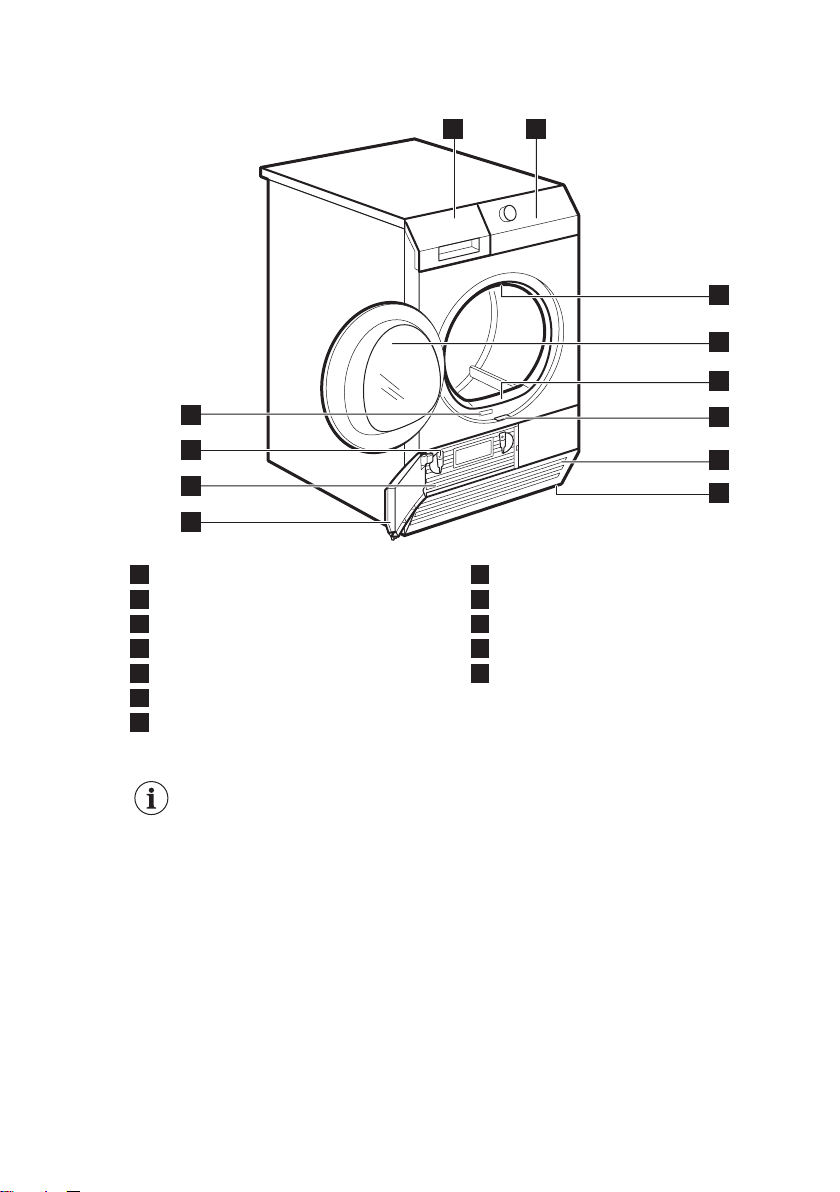

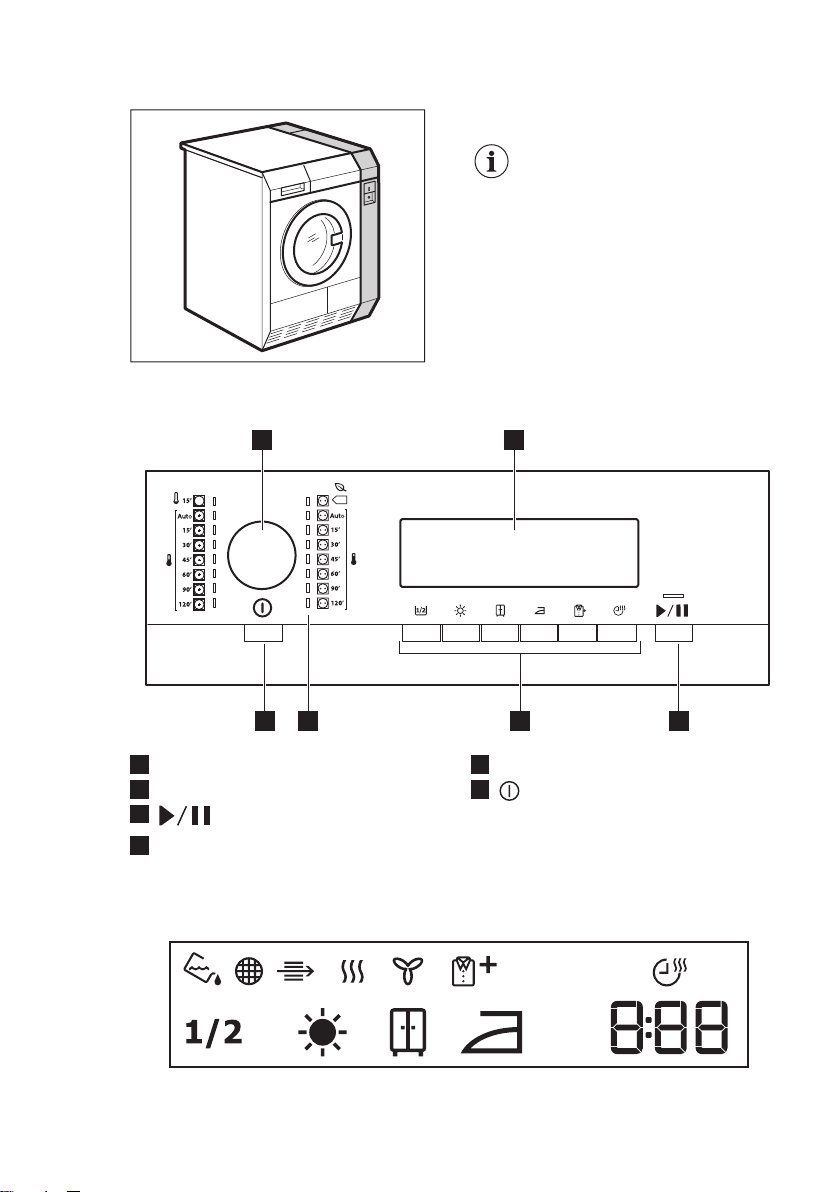

2. PRODUCT DESCRIPTION
1 2
7
3
4
5
6
9
10
11
12
8
1Water container
2Control panel
3Internal light
4Appliance door
5Filter
6Button for condenser door
7Airow slots
8Adjustable feet
9Condenser door
10 Condenser cover
11 Locks for condenser cover
12 Rating plate
For ease of loading laundry or
ease of installation the door is
reversible. (see separate
leaet).
ENGLISH 9

3. ACCESSORIES
3.1 Stacking kit
Available from your author-
ized vendor.
Stacking kit can be used
only with the washing ma-
chines specied in the leaf-
let. See the leaet attached.
Read carefully the instruc-
tions supplied with the ac-
cessory.
3.2 Draining kit
It is available from your authorized vendor
(can be attached to some types of the
tumble dryers)
The accessory for through draining of the
condensed water into a basin, siphon,
gully, etc. After the installation, the water
container is drained automatically. The
water container must stay in the
appliance.
The installed hose must be on the height
from minimum of 50 cm to maximum of 1
m from oor level. The hose cannot be in
loop. Decrease the length of the hose if
necessary.
Read carefully the instructions supplied
with the accessory.
3.3 Pedestal with the drawer
It is available from your authorized vendor.
To put the appliance higher at the level
what helps to easy load and remove the
laundry.
The drawer can be used for laundry
storage e.g. : towels, cleaning products
and more.
Read carefully the instructions supplied
with the accessory.
10

3.4 Coin operated machine If the appliance is set in a public place, it
can be connected to a coin operated
machine.
Coin meter is distributed and
installed only by the
authorized Electrolux service.
4. CONTROL PANEL
1 2
356 4
1Programme dial
2Display
3
Start/Pause button
4Options buttons
5Programme indicators
6
ON/OFF button with the Auto Off
function
4.1 Display
ENGLISH 11

Symbol on the display Symbol description
half load
dryness - extra dry
dryness - cupboard dry
dryness - iron dry
indicator: drain the water container
indicator: clean lter
indicator: do the check of the heat exchanger
indicator: drying phase
indicator: cooling phase
indicator: crease guard phase
time dry option on
cycle time indication
time selection (5 min. steps)
5. PROGRAMME TABLE
There are two types of programmes,
automatic programmes and time
programmes.
Automatic programmes has moisture
detection and will stop when selected
dryness is achieved.
Time programmes has no moisture
detection and will stop when the preset or
selected time has ended.
The following table shows the available
programmes and a short description of
those:
Automatic pro‐
grammes Load1) Description
Eco
2)
8,0 kg
Cotton and terry - most efcient in terms of
energy consumption.
Normal/medium temperature.
The programme will stop when preset dry-
ness/selected option is achieved (Extra
dry, Cupboard dry, Iron dry).
12

Automatic pro‐
grammes Load1) Description
Normal 8,0 kg
Cotton and terry.
Normal/medium temperature.
The programme will stop when preset dry-
ness/selected option is achieved (Extra
dry, Cupboard dry, Iron dry).
Low 3,5 kg
Synthetic (example of synthetic fabrics:
polyester, polyamide, polyacrylic and ela-
stan),viscose, polycotton and delicate fab-
rics.
Low temperature.
The programme will stop when preset dry-
ness/selected option is achieved (Extra
dry, Cupboard dry, Iron dry).
1) The maximum weight refers to dry items.
2) The Cotton Eco ECO programme is the “Standard cotton programme” according to
Commission Regulation EU No. 392/2012. It is suitable for drying normal wet cotton laundry
and it is the most efcient programme in terms of energy consumption for drying wet cotton
laundry.
Time programmes Description
Normal
Cotton and terry.
Different drying times can be selected.
The programme will stop when the time is up.
Low
Synthetic (example of synthetic fabrics: polyester, polyamide, pol-
yacrylic and elastan),viscose, polycotton and delicate fabrics.
Different drying times can be selected.
The programme will stop when the time is up.
Airing
Airing bedspreads, duvets and bedclothes.
The programme will stop when the time is up.
6. COIN OPERATED MACHINES
1. Insert correct amount of coins. When
inserting coins, the display on the coin
meter will count down to: and
the machine will be ready to start.
2. Push Start/Pause button to
start the machine
7. BEFORE FIRST USE
Before you use the appliance to dry
items:
• Clean the tumble dryer drum with a
moist cloth.
• Start a 1 hour programme with moist
laundry.
ENGLISH 13

8. DAILY USE
8.1 Preparing the laundry
Very often the clothes after
washing cycle are kneaded
and tangled altogether.
Drying kneaded and tangled
clothes is inefcient.
To assure proper air ow and
even drying it is
recommended to shake and
load one by one the clothes
to the tumble dryer.
To assure proper drying process:
• Close the zips.
• Close the fasteners of duvet covers.
• Do not dry ties or ribbons loose (e.g.
apron ribbons). Tie them before you
start a programme.
• Remove all items from pockets.
• Turn items with the internal layer made
of cotton inside out. Cotton layer must
be faced outwards.
• Always set the programme suitable for
the type of laundry.
• Do not put light and dark colours
together.
• Use suitable programme for cottons,
jersey and knitwear to reduce
shrinkage.
• Do not exceed the maximum load
stated in the programmes chapter or
shown on the display.
• Dry only the laundry that is suitable for
tumble drying. Refer to the fabric label
on the items.
• Do not dry large and small items
together. Small items can be trapped
inside the large items and remain wet.
• Shake the large clothes, fabrics before
placing in the tumble dryer. It is to
avoid moist places inside the fabric
after the drying cycle.

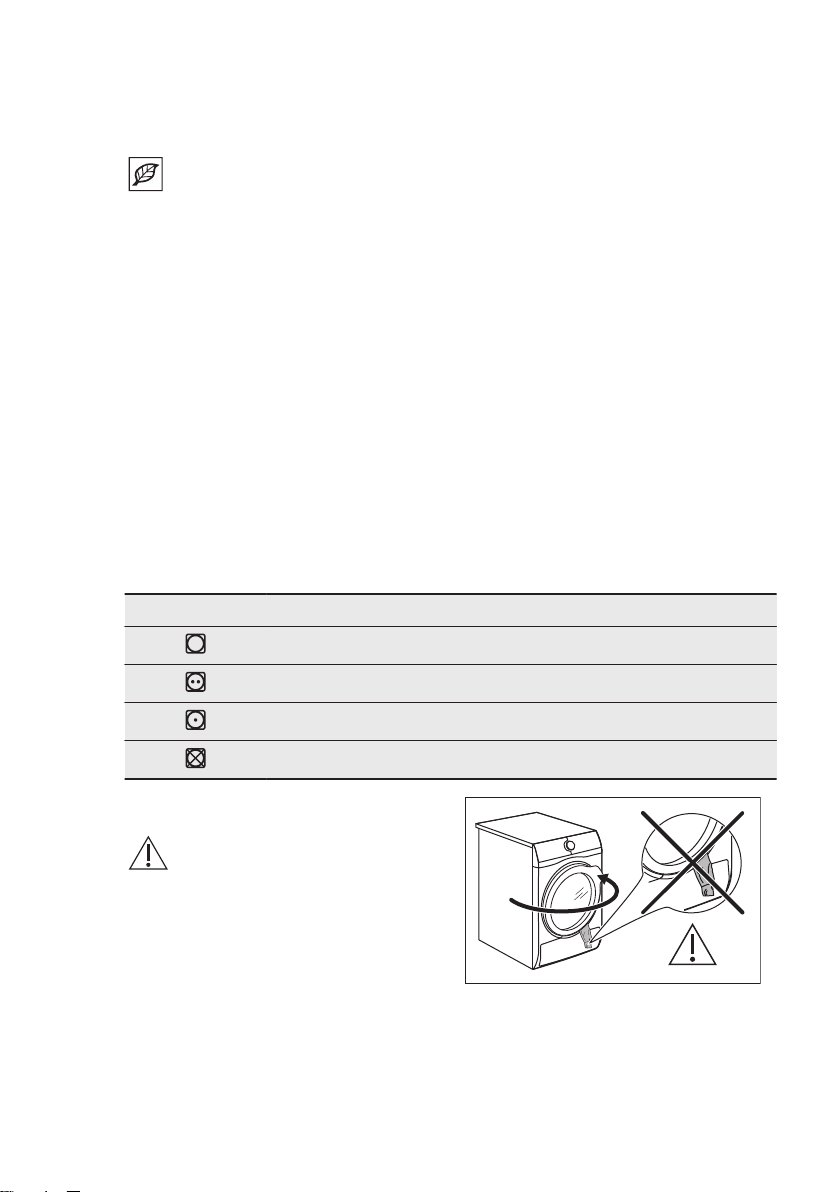

Fabric label Description
Laundry is suitable for tumble drying.
Laundry is suitable for tumble drying at higher temperatures.
Laundry is suitable for tumble drying at low temperatures only.
Laundry is not suitable for tumble drying.
8.2 Loading the laundry
CAUTION!
Ensure the laundry is not
trapped between the
appliance door and the
rubber seal.
1. Pull open the appliance door.
2. Load the laundry one item at a time.
3. Close the appliance door.
14

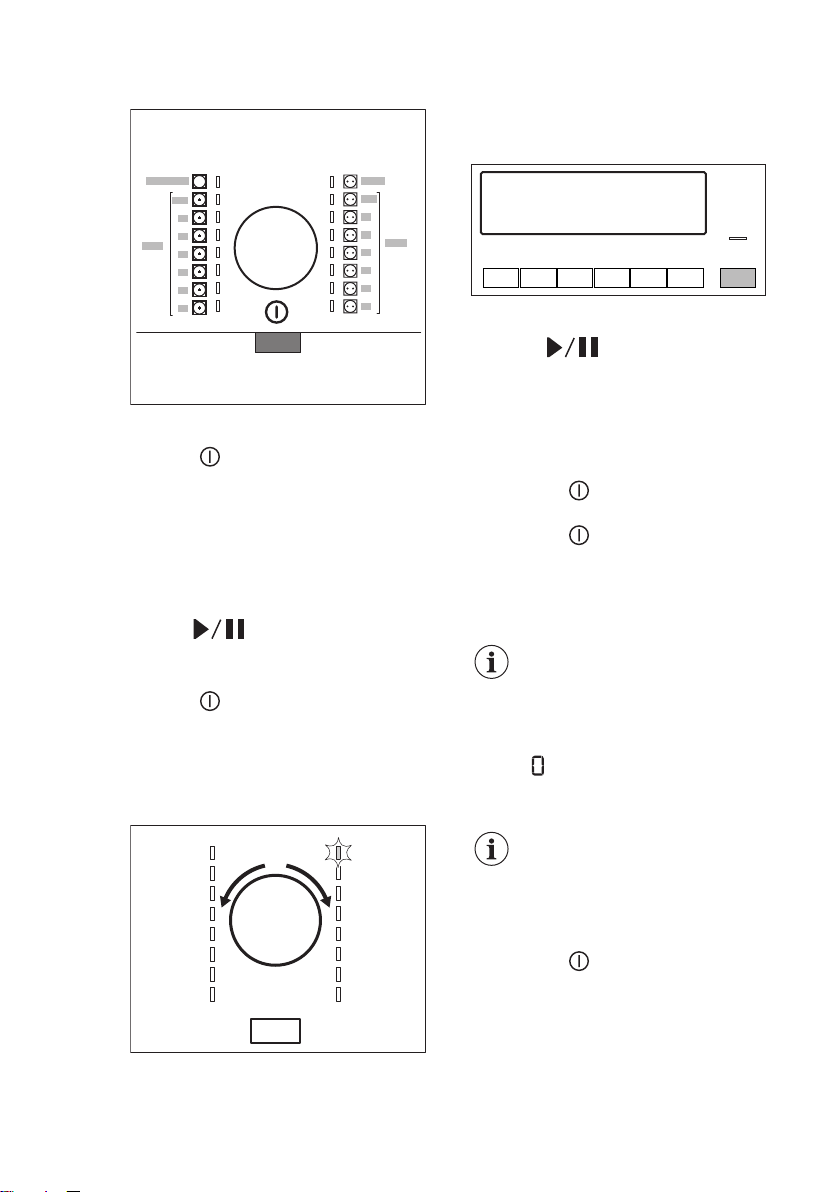

8.3 Turning on the appliance
To turn on the appliance:
Push the ON/OFF button.
If the appliance is on, some indicators
appear on the display.
8.4 Auto Off function
To decrease the energy consumption, the
Auto Off function turns the appliance off
automatically:
• if the Start/Pause touch button
is not touched within 5 minutes.
• 5 minutes after a cycle ends.
Push the ON/OFF button to turn on the
appliance.
If the appliance is on, some indications
appear on the display.
8.5 Setting a programme
Use the programme dial to set the
programme.
The time to the programme end comes
into the view on the display.
8.6 Starting a program
To start the program:
Touch the Start/Pause button.
The appliance starts and the LED above
the button stops ashing and stays on.
8.7 Program change
To change a program:
1. Push the ON/OFF button to turn
the appliance off.
2. Push the ON/OFF button again to
turn on the appliance.
3. Set a new program.
8.8 Programme end
Clean the lter and drain the
water container after each
drying cycle. (See chapter
CARE AND CLEANING.)
If the drying cycle is completed, the
symbol ashes on the display and the
acoustic signal sounds intermittently for 1
minute.
If you do not turn off the
appliance, the crease guard
phase starts. Laundry can be
removed during this phase.
To remove the laundry:
1. Push the ON/OFF button for 2
seconds to turn off the appliance.
2. Open the appliance door.
3. Remove the laundry.
4. Close the appliance door.
ENGLISH 15

9. HINTS AND TIPS
9.1 Ecological hints
• Spin the laundry well before drying.
• Do not exceed the load sizes which are
specied in the programmes chapter.
• Clean the lter after each drying cycle.
• Do not use fabric softener to wash and
then dry. In the tumble dryer laundry
becomes soft automatically.
• The water from the water container can
be used to iron the clothes. You must
rst lter the water to eliminate
remaining textile bres (simple coffee
lter is suitable).
• Always keep the airow slots at the
bottom of the appliance clear.
• Make sure there is good airow where
the appliance is to be installed.
10. CARE AND CLEANING
10.1 Cleaning the lter
At the end of each cycle the symbol
Filter is on the display and you must clean
the lter.
The symbol ashes on the
display - the lter is missing.
The tumble dryer cannot
start.
The lter collects the lint. The
lint occurs while the clothes
are dried in the tumble dryer.
To achieve the best drying
performances clean the lter
regularly , clogged lter lead
to longer cycles and energy
consumption increase.
Use your hand to clean the
lter , and if necessary , a
vacuum cleaner .
CAUTION!
Avoid the use of water to
clean the lter. Instead throw
away lint in the dustbin
( avoid dispersion of plastic
ber in water ambient).

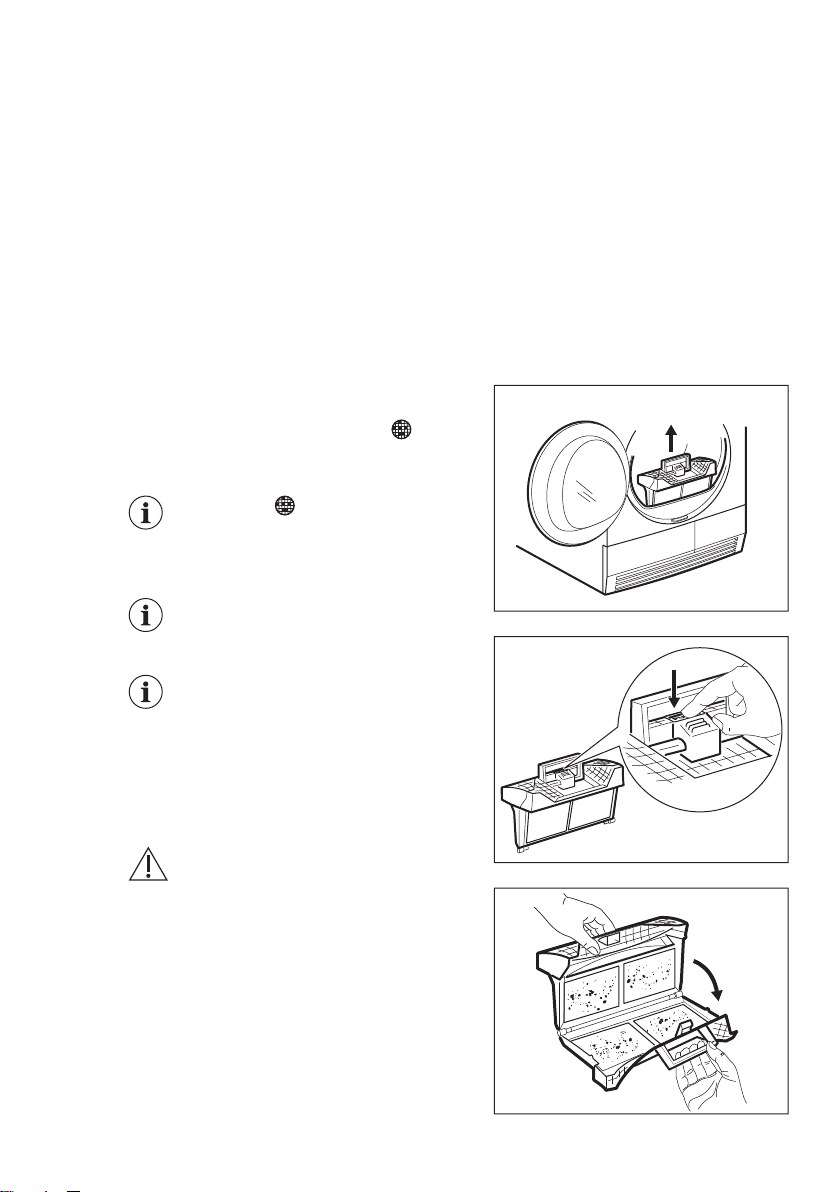

To clean the lter:
1. Open the door. Pull the lter.
2. Push the button.
3. Open the lter.
16

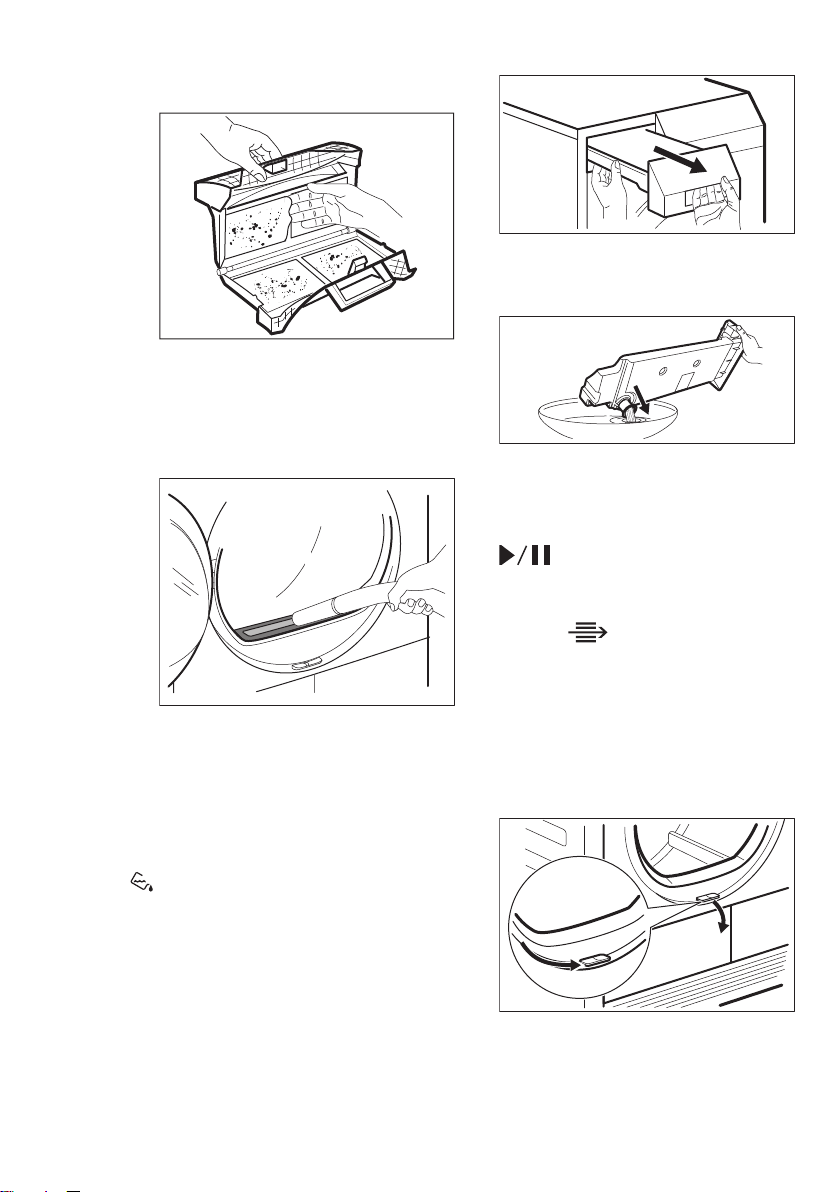

4. Gather lint with hand from internal
parts of the lter.
Throw the lint in the dustbin.
5. If necessary, clean the lter with a
vacuum cleaner. Close the lter.
6. If necessary remove the lint from the
lter socket and gasket. You can use a
vacuum cleaner. Put the lter inside
the lter socket.
10.2 Emptying the water
container
Empty the condensed water container
after each drying cycle.
If the condensed water container is full,
the programme stops automatically. The
Reservoir symbol comes on the
display and you must empty the water
container.
To empty the water container:
1. Pull the water container out keeping it
in a horizontal position.
2. Pull the plastic connection out and
drain the water into a basin or
equivalent receptacle.
3. Push the plastic connection back in
and place the water container back
into position.
4. To continue the programme press the
Start/Pause button.
10.3 Cleaning the condenser
If the symbol Condenser ashes on
the display, the condenser and its
compartment must be cleaned.
To clean the condenser and its
compartment:
1. Open the door.
2. Move the release button on the
bottom of the door to open the
condenser door.
3. Turn 2 blockages to unlock the
condenser cover.
ENGLISH 17

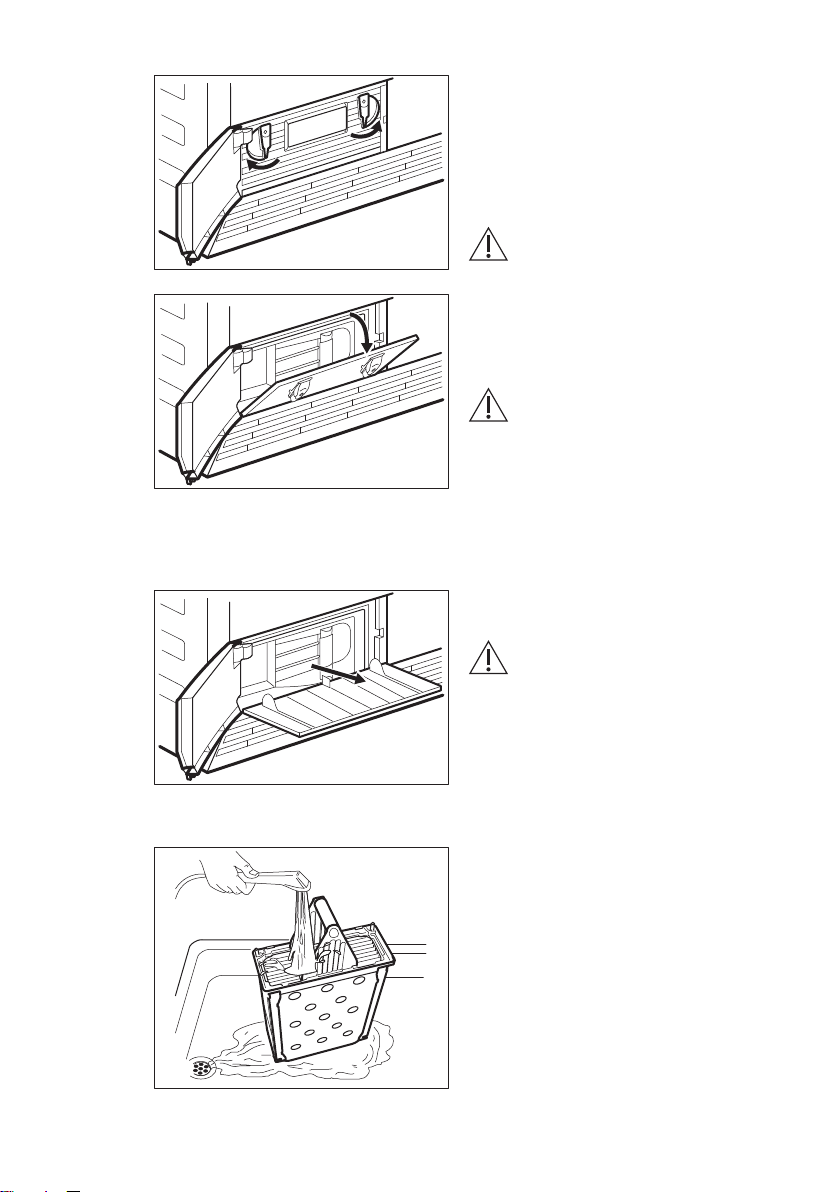

4. Lower the condenser cover.
5. Catch the handle and pull the
condenser out from the bottom
compartment. Move condenser
horizontally to do not spill remaining
water.
6. Clean the condenser in vertical
position over a basin or paddling.
Rinse through with a hand shower.
7. Put the condenser back inside the
bottom compartment.
8. Close the condenser cover.
9. Lock 2 blockages until they snap.
10. Close the condenser door.
10.4 Cleaning the drum
WARNING!
Disconnect the appliance
before you clean it.
Use a standard neutral soap detergent to
clean the inner surface of the drum and
drum lifters. Dry the cleaned surfaces with
a soft cloth.
CAUTION!
Do not use abrasive materials
or steel wool to clean the
drum.
10.5 Cleaning the control panel
and housing
Use a standard neutral soap detergent to
clean the control panel and housing.
Use a moist cloth to clean. Dry the
cleaned surfaces with a soft cloth.
CAUTION!
Do not use furniture cleaning
agents or cleaning agents
which can cause corrosion.
10.6 Cleaning the airow slots
Use a vacuum cleaner to remove uff from
the airow slots.
18

11. TROUBLESHOOTING
Problem 1) Possible cause Remedy
The tumble dry-
er does not op-
erate.
The tumble dryer is not connec-
ted to mains supply.
Connect in at mains socket.
Check fuse in fuse box (domestic
installation).
The loading door is opened. Close the loading door.
The ON/OFF button was not
pushed.
Push the ON/OFF button.
The Start/Pause button
was not pushed.
Push the Start/Pause but-
ton.
The appliance is in the standby
mode. Push the
ON/OFF button.
The lter is missed or in wrong
position.
Insert the lter in the right posi-
tion.
The E10 error code on the display
- clogged lter. Clean the lter. 2)
The E59 error code on the display
- dryer overloaded.
Unload part of the laundry. Obey
the maximum load.
Unsatisfactory
drying result.
Incorrect programme selection. Do the selection of the applicable
programme. 3)
The EF0 error code on the dis-
play - lter abnormally dirty. Clean the lter. 2)
The lter is clogged. Clean the lter. 2)
Too high volume of the load. Obey the maximum load volume.
The airow grill is clogged. Clean the airow grill in the bot-
tom of the appliance.
Dirt on the humidity sensor in the
drum.
Clean the front surface of the
drum.
Incorrect remaining laundry mois-
ture degree.
Adjust remaining laundry moisture
degree. 4)
The condenser is clogged. Clean the condenser. 2)
The loading
door does not
closed
The lter not locked in the posi-
tion.
Put the lter in the correct posi-
tion.
The laundry is locked between
the door and the seal.
Put the load correctly in the drum.
ENGLISH 19

Problem 1) Possible cause Remedy
Err (Error) on
the display.
You try to change the programme
or the option after the start of the
cycle.
Turn the tumble dryer off and on.
Make the new selection.
The option you try to activate is
not applicable with the selected
programme.
Turn the tumble dryer off and on.
Make the new selection.
No drum light Defective drum lamp. Contact the service centre to re-
place the drum lamp.
Abnormally
elapsing time
on the display.
The time to end is calculated on
the basis of the volume and
dampness of the laundry.
The automatic procedure — this
is not the appliance malfunction.
Programme in-
active.
The water container is full. Drain the water container, push
the Start/Pause button. 2)
Drying cycle too
short.
Too small laundry volume. Do the selection of time pro-
gramme. The time value must be
related to the load. To dry 1 item
or small quantities of the laundry
we recommend to use short
times.
The laundry is too dry. Do the selection of the time pro-
gramme with longer time.
Drying cycle too
long 5)
The EF0 error code on the dis-
play - lter abnormally dirty. Clean the lter. 2)
The lter is clogged. Clean the lter.
Too high the laundry load. Obey the maximum load.
The laundry not spun sufciently. Spin correctly the laundry.
Very high room temperature - this
is not the appliance malfunction.
If possible, lower the room tem-
perature.
1) If there is an error message on the display (e.g. E51): Turn the tumble dryer off and on.
Make a selection of the new programme. Push the Start/Pause button. Does not oper-
ate? - contact the service centre and give the error code.
2) See chapter CARE AND CLEANING
3) Follow the programme description — see PROGRAMME TABLE
4) See HINTS AND TIPS chapter
5) Note: After maximum 5 hours the drying cycle ends automatically.
12. TECHNICAL DATA
Height x Width x Depth 850 x 600 x 605 mm (maximal 648 mm)
20
