Electrolux EKG5048 User manual

user manual
Cooker
EKC6046
EKC6047
EEKG5048
Oven
Cooker
EKG5049
Get other manuals https://www.bkmanuals.com

We were thinking of you
when we made this product
Get other manuals https://www.bkmanuals.com

electrolux welcome 3

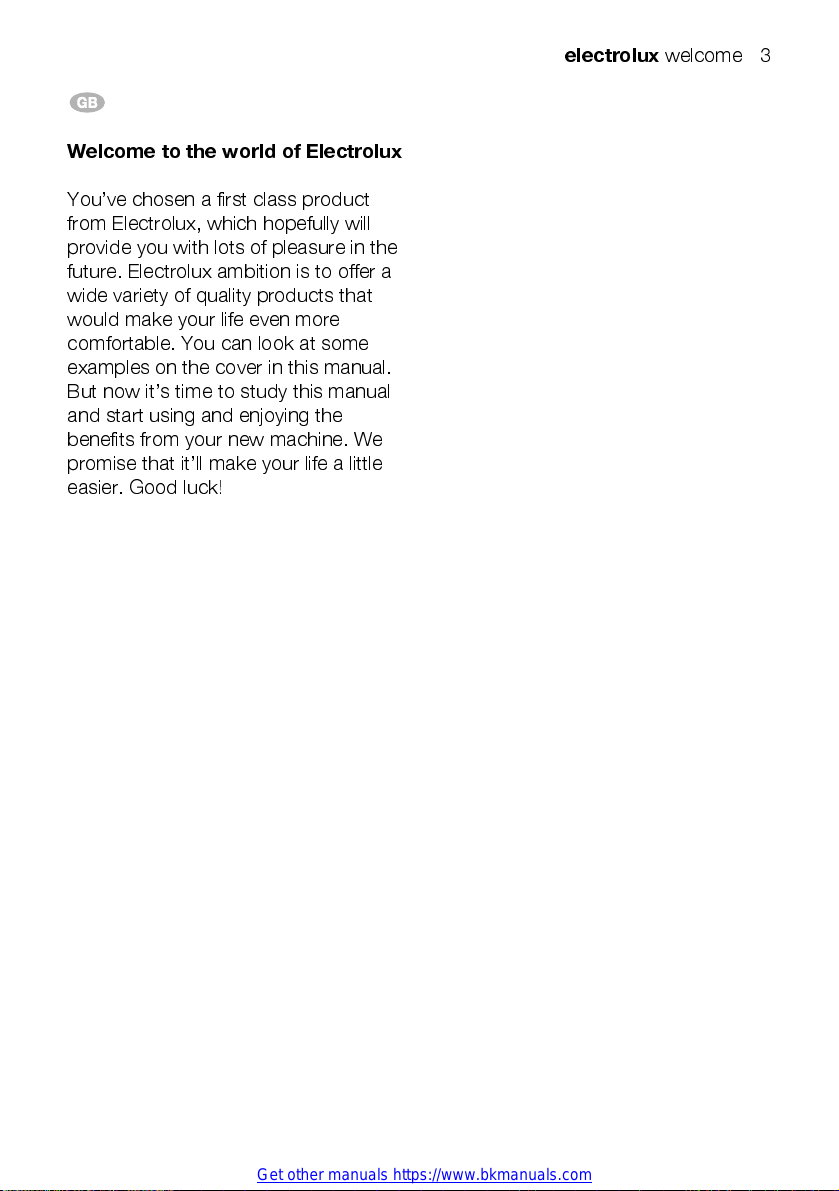

Welcome to the world of Electrolux
You’ve chosen a first class product
from Electrolux, which hopefully will
provide you with lots of pleasure in the
future. Electrolux ambition is to offer a
wide variety of quality products that
would make your life even more
comfortable. You can look at some
examples on the cover in this manual.
But now it’s time to study this manual
and start using and enjoying the
benefits from your new machine. We
promise that it’ll make your life a little
easier. Good luck!
Get other manuals https://www.bkmanuals.com

4 electrolux contents

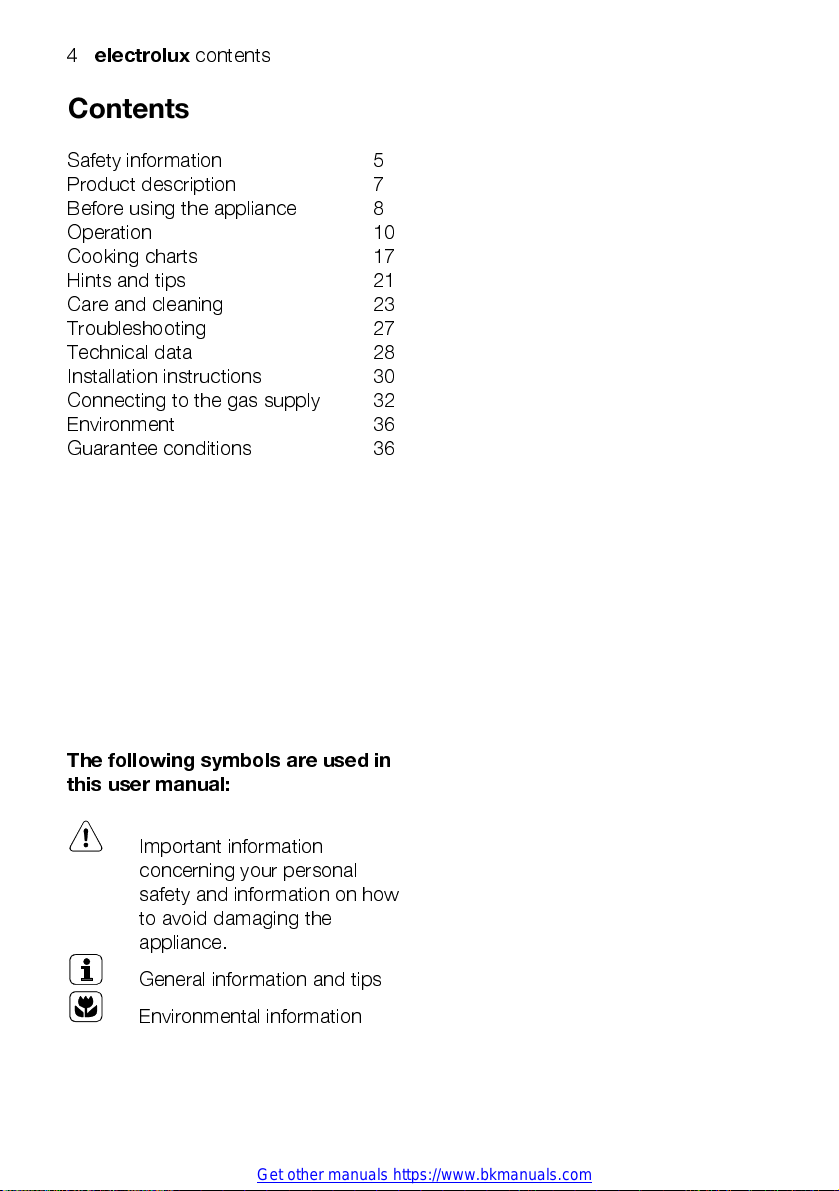

Contents
Safety information 5
Product description 7
Before using the appliance 8
Operation 10
Cooking charts 17
Hints and tips 21
Care and cleaning 23
Troubleshooting 27
Technical data 28
Installation instructions 30
Connecting to the gas supply 32
Environment 36
Guarantee conditions 36
The following symbols are used in
this user manual:
Important information
concerning your personal
safety and information on how
to avoid damaging the
appliance.
General information and tips
Environmental information
Get other manuals https://www.bkmanuals.com

electrolux important safety information 5
Important safety information
These warnings are provided in the
interests of your safety. Ensure that you
understand them all before installing or
using the appliance.
Your safety is of paramount importance.
If you are unsure about any of the
meanings of these warnings please
contact customer care.
Installation
The appliance must be installed
according to the instructions supplied.
The installation work must be undertaken
by a competent person as stated in the
Gas Safety (Installation & Use)
Regulations current editions and the IEE
Wiring Regulations.
The appliance should be serviced by an
authorised Service Engineer and only
genuine approved spare parts should be
used.
It is important that the appliance is
suitable for your gas supply. Your installer
should check the rating plate.
Make sure that a stability bracket is
fitted.
The appliance must be installed in an
adequately ventilated room.
If the appliance is to be placed on a
base, measures must be taken to
prevent the appliance from slipping.
This appliance is heavy and care must
be taken when moving it.
Do not attempt to lift or move this
appliance by the handles.
All packaging, both inside and outside
the appliance must be removed before
the appliance is used.
It is dangerous to alter the
specifications or modify the appliance in
any way.
Child safety
Do not allow children to play with any
part of the packaging.
Do not allow children to sit or climb on
the drop down doors.
This appliance is not intended for use
by children and other persons whose
physical, sensory or mental capabilities or
lack of experience and knowledge
prevents them from using the appliance
safely without supervision or instruction
by a responsible person to ensure that
they can use the appliance safely.
Children should be supervised to
ensure that they do not play with the
appliance.
Accessible parts may be hot during
use. Young children should be kept
away.
During use
This appliance is not intended to be
operated by means of an external timer
or separate remote control system.
This appliance has been designed for
domestic use to cook edible foodstuffs
only and must not be used for any other
purposes.
Take great care when heating fats and
oils, as they will ignite if they become too
hot.
Get other manuals https://www.bkmanuals.com

6 electrolux important safety information
When you are lighting any burner check
that it is lit before you leave the
appliance. When turning off a burner, do
not leave the appliance until the flame
has gone out.
Never place plastic or any other
material, which may melt in or on the
oven.
(Natural gas models only) Do not leave
the grill pan handle in position when
grilling, as it will become hot.
(Natural gas models only) Always use
oven gloves to remove and replace the
grill pan handle when grilling.
Always support the grill pan when it is in
the withdrawn or partially withdrawn
position.
Always use oven gloves to remove and
place food in the oven.
Ensure cooking utensils are large
enough to contain foods to prevent
spillage and boil over.
The handles of saucepans, which are
smaller than the heated area on the hob,
will become hot.
Ensure your hand is protected before
handling the pan.
During use the appliance becomes hot.
Care should be taken to avoid touching
heating elements inside the oven.
Ensure that all vents are not obstructed
to ensure ventilation of the oven cavity.
Never line any part of the appliance with
foil.
Always stand back from the appliance
when opening the doors to allow any
build up of steam or heat to release.
Never leave the appliance
unattended when the oven door is
open.
Do not place sealed cans or aerosols
inside the oven. They may explode if
they are heated.
Ensure that all control knobs are in the
off position when not in use.
Do not stand on the appliance or on the
open oven doors.
Do not hang towels, dishcloths or
clothes from the appliance or its handles.
Do not use this appliance if it is in
contact with water.
Never operate it with wet hands.
Cleaning and maintenance
For hygiene and safety reasons this
appliance should be kept clean at
all times. A build-up of fat or other
foodstuff could result in a fire
especially in the grill pan.
Do not leave the cookware-containing
foodstuff, e.g. fat or oil in the appliance in
case it is inadvertently switched on.
Do not disconnect the appliance from
the gas supply if the supply pipe does
not have a bayonet connection as
described in the installation section. If this
is the case contact the person who
installed the appliance.
Always allow the appliance to cool
before switching off at the wall before
carrying out any cleaning/maintenance
work.
Only clean this appliance in accordance
with the instructions given in this book.
Never use steam or high-pressure
steam cleaners to clean the appliance.
Get other manuals https://www.bkmanuals.com

electrolux product description 7
Product description
T
Control panel
op oven / Grill
Main oven
Controls and their functions
Hob controls
Top oven/Grill control
Main oven
temperature control
Ignition switch
Hob controls
Get other manuals https://www.bkmanuals.com

8 electrolux before using the appliance

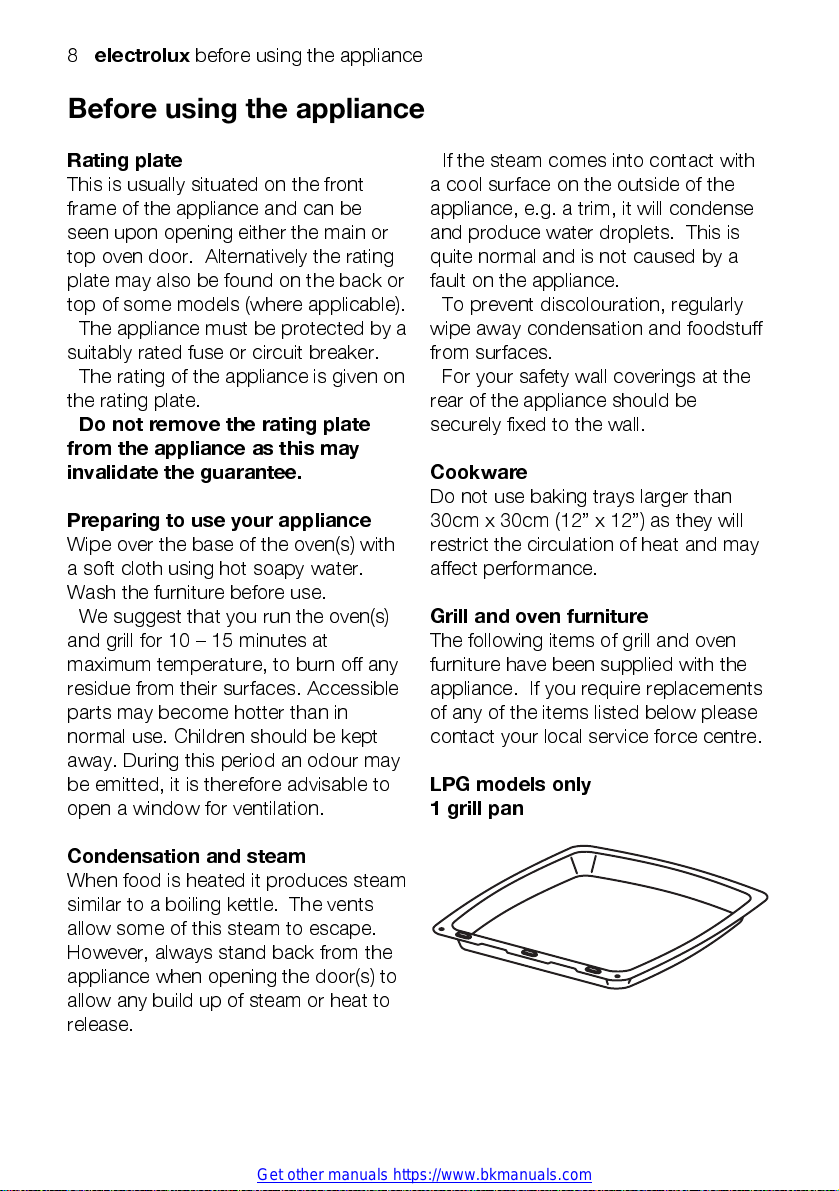

Before using the appliance
Rating plate
This is usually situated on the front
frame of the appliance and can be
seen upon opening either the main or
top oven door. Alternatively the rating
plate may also be found on the back or
top of some models (where applicable).
The appliance must be protected by a
suitably rated fuse or circuit breaker.
The rating of the appliance is given on
the rating plate.
Do not remove the rating plate
from the appliance as this may
invalidate the guarantee.
Preparing to use your appliance
Wipe over the base of the oven(s) with
a soft cloth using hot soapy water.
Wash the furniture before use.
We suggest that you run the oven(s)
and grill for 10 – 15 minutes at
maximum temperature, to burn off any
residue from their surfaces. Accessible
parts may become hotter than in
normal use. Children should be kept
away. During this period an odour may
be emitted, it is therefore advisable to
open a window for ventilation.
Condensation and steam
When food is heated it produces steam
similar to a boiling kettle. The vents
allow some of this steam to escape.
However, always stand back from the
appliance when opening the door(s) to
allow any build up of steam or heat to
release.
If the steam comes into contact with
a cool surface on the outside of the
appliance, e.g. a trim, it will condense
and produce water droplets. This is
quite normal and is not caused by a
fault on the appliance.
To prevent discolouration, regularly
wipe away condensation and foodstuff
from surfaces.
For your safety wall coverings at the
rear of the appliance should be
securely fixed to the wall.
Cookware
Do not use baking trays larger than
30cm x 30cm (12” x 12”) as they will
restrict the circulation of heat and may
affect performance.
Grill and oven furniture
The following items of grill and oven
furniture have been supplied with the
appliance. If you require replacements
of any of the items listed below please
contact your local service force centre.
LPG models only
1 grill pan
Get other manuals https://www.bkmanuals.com

electrolux before using the appliance 9
1 grill pan handle
Natural gas models only
1 grill pan
1 grill pan handle
All models
1 grill pan grid
1 straight shelf
(For grilling and top oven cooking)
2 straight shelves
(For main oven cooking)
Get other manuals https://www.bkmanuals.com

10 electrolux operation
Operation
The hob
The gas hob has different burner sizes
to suit different types of cooking.
To ensure maximum burner efficiency
only use pots and pans with flat bases
appropriate to the burner size used.
The largest pan, which you should use
on any burner, is 230mm (9") and the
smallest pan should not measure less
than 100mm (4").
Ensure the pan supports are
correctly fitted before using the
hob.
To light the hob burners
The hob ignition works by means of a
battery.
• Lift up the lid. You can not use the
hob when the lid is down.
• Push in and turn the control knob to
the highest setting.
• Press the ignition button
immediately.
• When the burner has lit release the
control and ignition button, adjust
the setting as required.
If the ignition button is not pressed
immediately a build up of gas may
cause the flame to spread.
Things to note
If you are having any difficulty lighting a
hob burner turn all the hob controls off
and make sure the burner parts have
been replaced correctly.
To turn off any burner
• Turn the control knob to the off
position. This is shown by a dot.
If you close the lid of the appliance
while any of the hotplate burners are lit,
the gas will go out. This is because it
would be dangerous if the burners
stayed on when the lid was closed.
Always use the control knob to turn off
a burner. Do not use the lid as a cut-
off device. This will only cut off the gas
when the lid is closed. The gas will
flow again when the lid is opened.
When lighting any burner, ensure that it
is lit before you leave the appliance.
When turning off any burner, ensure
the flame has gone out before leaving
the appliance.
In the event of the burner flames being
accidentally extinguished, turn off the
burner control and do not attempt to
re-ignite the burner for at least 1 min.
Get other manuals https://www.bkmanuals.com

electrolux operation 11
Place pans on the centre of the
burners. Position pans so the
handles cannot be accidentally
knocked or overhang the
appliance. Lift pans on and off the
pan supports. Do not slide them
across the hob.
Take care to avoid burns and
scalds when reaching across the
hotplate.
Take extra care when deep fat
frying, do not cover the pan with a
lid. Do not leave a pan unattended.
If the pan catches fire, leave it
where it is and turn off all controls.
Place a damp cloth or a fitting lid
over the pan to smother the flames.
Never put water on the fire. Leave
to cool for 30 minutes.
Do not use the lid as a work
surface or chopping board. This
could damage the glass and
reduce it’s strength.
To fit the top oven shelf
Only use the shelf with the large solid
metal plate at the rear of the shelf in the
top oven.
The shelf should be fitted with the
straight rods uppermost on the frame
and the forms towards the back of the
oven. If not fitted correctly the anti-tilt
and safety stop mechanism will be
affected.
The grill
Accessible parts may be hot when
the grill is in use. Young children
should be kept away.
When you first operate the grill you may
hear some sounds as the burner heats
up, this is quite normal and is not a
fault on the appliance.
Using the grill
• Fully open the door.
• Push in and turn the control knob to
the highest setting.
• Press the ignition button
immediately.
• When the burner has lit release the
control and ignition button, adjust
the setting as required
Get other manuals https://www.bkmanuals.com

12 electrolux operation
The grill door must be left open
when grilling.
Things to note
• Some smoke from fat splashes may
be evident as the grill cleans itself.
• The shelf in the grill/top oven is
different from the shelves in the main
oven. Only use the shelf with the
large solid metal plate in the grill/top
oven.
Never cover the grill pan or grid
with foil as this can lead to grill
fires.
To turn off the grill
• Turn the control knob to the off
position. This is shown by a dot.
Ensure that the grill is turned off
before closing the door.
To fit the grill pan and handle
(Natural gas models)
The grill pan has a removable handle.
Attach and remove as described.
• To attach. Press the button on the
handle with the thumb and pivot
slightly upwards inserting the lip into
the widest part of the bracket.
• Move the handle towards the left,
lower into position and release the
button.
• To Remove. Press the button on
the handle with the thumb and pivot
the handle slightly upwards and
towards the right to remove from the
bracket.
• Release the button
Ensure the handle is properly
located.
Protect your hands when removing
the grill pan handle. Always remove
the grill pan handle during grilling.
To check the progress of the food
being grilled, the grill pan should
be withdrawn on the shelf to attend
to food during cooking.
Get other manuals https://www.bkmanuals.com

electrolux operation 13

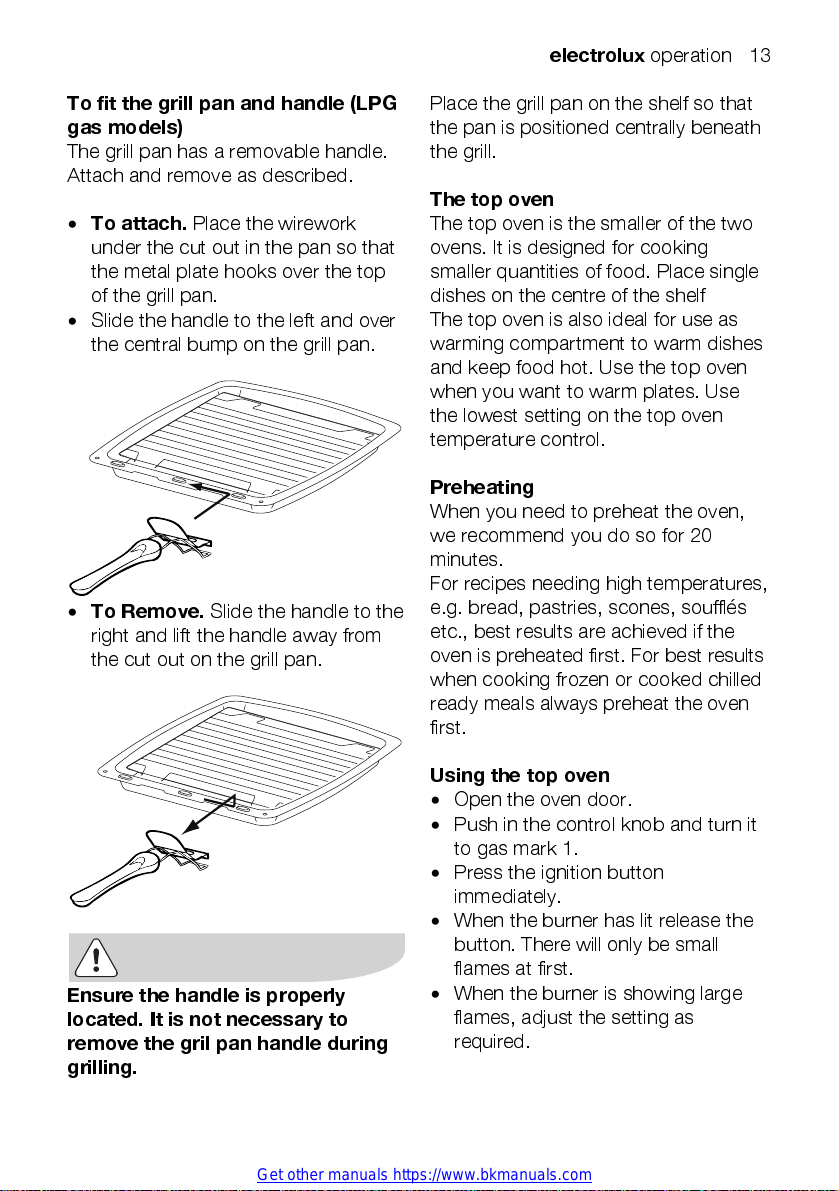

To fit the grill pan and handle (LPG
gas models)
The grill pan has a removable handle.
Attach and remove as described.
• To attach. Place the wirework
under the cut out in the pan so that
the metal plate hooks over the top
of the grill pan.
• Slide the handle to the left and over
the central bump on the grill pan.
• To Remove. Slide the handle to the
right and lift the handle away from
the cut out on the grill pan.
Ensure the handle is properly
located. It is not necessary to
remove the gril pan handle during
grilling.
Place the grill pan on the shelf so that
the pan is positioned centrally beneath
the grill.
The top oven
The top oven is the smaller of the two
ovens. It is designed for cooking
smaller quantities of food. Place single
dishes on the centre of the shelf
The top oven is also ideal for use as
warming compartment to warm dishes
and keep food hot. Use the top oven
when you want to warm plates. Use
the lowest setting on the top oven
temperature control.
Preheating
When you need to preheat the oven,
we recommend you do so for 20
minutes.
For recipes needing high temperatures,
e.g. bread, pastries, scones, soufflés
etc., best results are achieved if the
oven is preheated first. For best results
when cooking frozen or cooked chilled
ready meals always preheat the oven
first.
Using the top oven
• Open the oven door.
• Push in the control knob and turn it
to gas mark 1.
• Press the ignition button
immediately.
• When the burner has lit release the
button. There will only be small
flames at first.
• When the burner is showing large
flames, adjust the setting as
required.
Get other manuals https://www.bkmanuals.com

14 electrolux operation
Do not close the door until the
burner is showing large flames.
To turn the top oven off
• Turn the control knob to the off
position. This is shown by a dot.
Do not place dishes, tins and trays
directly on the oven base as it
becomes very hot and damage will
occur.
Do not place cookware and
cooking pots with rough bases e.g.
cast iron on the oven door as
damage to the glass may occur.
To fit the main oven shelves
The shelf should be fitted with the
straight rods uppermost on the frame
and the forms towards the back of the
oven. If not fitted correctly the anti-tilt
and safety stop mechanism will be
affected.
To remove a shelf slide the shelf
towards you until the shelf stop is
reached. Tilt shelf up at the front so
that the stops clear the side supports.
Lift shelf clear.
To install a shelf, reverse the above
steps.
The main oven
Heat zones
There are zones of heat within the
oven. The temperature in the middle is
the gas mark you have chosen. The
top of the oven is slightly hotter and the
lower shelf slightly cooler. The base of
the oven is quite a lot cooler. You can
make use of these heat zones when
you are cooking foods requiring
different temperatures all at the same
time.
If you are cooking more than one tray
of similar items, for example cakes or
biscuits, swap the trays during cooking
or you can remove the top tray when
the food is cooked and move the lower
tray to the higher shelf to finish
cooking.
Preheating
When you need to preheat the oven,
we recommend you do so for 20
minutes.
For recipes needing high
temperatures, e.g. bread, pastries,
scones, soufflés etc., best results are
achieved if the oven is preheated first.
For best results when cooking frozen
or cooked chilled ready meals always
preheat the oven first.
Get other manuals https://www.bkmanuals.com

electrolux operation 15
Using the main oven
• Open the oven door.
• Push in the control knob and turn it
to gas mark 9.
• When the burner has lit release the
control knob.
• There will only be small flames at
first.
• When the burner is showing large
flames, adjust the setting as
required.
Do not close the door until the
burner is showing large flames.
To turn the main oven off
• Push in and turn the control knob to
the off position. This is shown by a
dot.
Do not place cookware and
cooking pots with rough bases e.g.
cast iron on the oven door as
damage to the glass may occur.
Slow cook
The slow cook setting gives a very low
heat in the oven. It is particularly useful
when you are cooking soups, stews
and casseroles because the long slow
cooking will make cheaper, tougher
cuts of meat more tender.
Some foods such as pastry and
biscuits are not suitable for slow
cooking because the temperature is
too low. Cover all food during cooking
to prevent it from drying out. You can
uncover food for the last half hour if it is
normally served golden brown.
Using slow cook
You need to cook food at gas mark 6
for 30 minutes before you turn the oven
down to the slow cook setting. This
makes sure that the temperature of the
food gets hot enough to start the food
cooking.
• Fully open the door before lighting
the main oven.
• Push in the control knob and turn it
to gas mark 9
• When the burner has lit release the
control knob.
• There will only be small flames at
first
• Turn the main oven control knob to
gas mark 6.
• When the burner is showing large
flames place your food in the oven
and close the door.
Do not close the door until the
burner is showing large flames.
• After 30 minutes push in and turn
the main oven control to the slow
cook setting
To turn the slow cook off
• Turn the control knob to the off
position. This is shown by a dot.
Get other manuals https://www.bkmanuals.com

16 electrolux operation

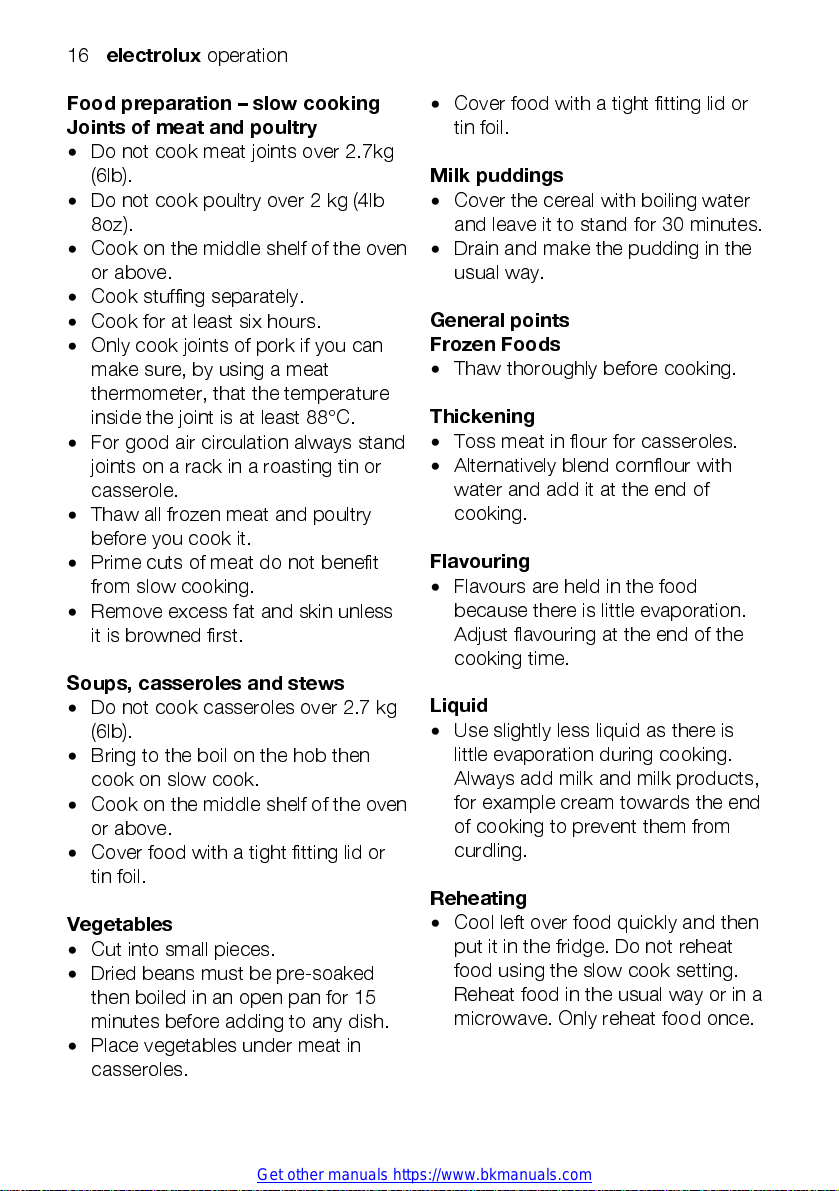

Food preparation – slow cooking
Joints of meat and poultry
• Do not cook meat joints over 2.7kg
(6lb).
• Do not cook poultry over 2 kg (4lb
8oz).
• Cook on the middle shelf of the oven
or above.
• Cook stuffing separately.
• Cook for at least six hours.
• Only cook joints of pork if you can
make sure, by using a meat
thermometer, that the temperature
inside the joint is at least 88°C.
• For good air circulation always stand
joints on a rack in a roasting tin or
casserole.
• Thaw all frozen meat and poultry
before you cook it.
• Prime cuts of meat do not benefit
from slow cooking.
• Remove excess fat and skin unless
it is browned first.
Soups, casseroles and stews
• Do not cook casseroles over 2.7 kg
(6lb).
• Bring to the boil on the hob then
cook on slow cook.
• Cook on the middle shelf of the oven
or above.
• Cover food with a tight fitting lid or
tin foil.
Vegetables
• Cut into small pieces.
• Dried beans must be pre-soaked
then boiled in an open pan for 15
minutes before adding to any dish.
• Place vegetables under meat in
casseroles.
• Cover food with a tight fitting lid or
tin foil.
Milk puddings
• Cover the cereal with boiling water
and leave it to stand for 30 minutes.
• Drain and make the pudding in the
usual way.
General points
Frozen Foods
• Thaw thoroughly before cooking.
Thickening
• Toss meat in flour for casseroles.
• Alternatively blend cornflour with
water and add it at the end of
cooking.
Flavouring
• Flavours are held in the food
because there is little evaporation.
Adjust flavouring at the end of the
cooking time.
Liquid
• Use slightly less liquid as there is
little evaporation during cooking.
Always add milk and milk products,
for example cream towards the end
of cooking to prevent them from
curdling.
Reheating
• Cool left over food quickly and then
put it in the fridge. Do not reheat
food using the slow cook setting.
Reheat food in the usual way or in a
microwave. Only reheat food once.
Get other manuals https://www.bkmanuals.com

electrolux cooking charts 17
Grilling chart
FOOD GRILL TIME (mins in total)
Bacon Rashers 5 - 6
Beef Burgers 10 - 15
Chicken Joints 30 - 40
Lamb Chops 15 - 20
Pork Chops 20 - 30
Whole Trout/Mackerel 15 - 25
Plaice/Cod Fillets 10 - 15
Kebabs 20 - 30
Kidneys – Lamb/Pig 8 - 12
Liver – Lamb/Pig 10 - 20
Sausages 20 - 30
Steak – Rare 6 - 12
Steak – Medium 12 - 16
Steak – Well Done 14 - 20
Toasted Sandwiches 3 - 4
The times quoted above are given as a guide and should be adjusted to suit
personal taste.
Adjust the grill setting and the grill pan grid to suite diferent thicknesses of food.
Get other manuals https://www.bkmanuals.com

18 electrolux cooking charts
Oven cooking chart
The oven temperatures are intended as a guide only. It may be necessary to
increase or decrease the temperatures by to suit individual preferences and
requirements.
Main oven Top oven
Food Gas
mark Pos Gas mark Pos Approximate cook time (m)
Biscuits 5 2 + 4 5 2 10 - 20
Bread 8* 3 - - 30 - 40
Bread rolls/buns 8* 3 - - 10 - 20
Small / Queen
Cakes 5 2 + 4 5 2 15 - 20
Sponges 4 2 + 4 4 2 18 - 20
Victoria Sandwich 4 2 + 4 4 2 20 - 30
Madeira Cake 4 4 4 **base 1 - 1¼h
Rich Fruit Cake 2 3 2 **base 2½ - 2¾h
Christmas Cake 2 3 2 **base 4 - 5h
Gingerbread 2 3 2 2 1¼ - 1½h
Meringues 1 3 1 2 2½ - 3h
Flapjack 5 3 5 2 25 - 30
Shortbread 3 3 3 2 45 - 65
Fruit Pies, Crumbles 6 3 6 2 40 - 50
Milk Puddings 2 3 2 2 1½ - 2h
Scones 7 2 + 4 7 2 8 - 12
*When baking bread cook for 10 minutes at gas mark 8 then reduce to mark 6 for
the remaining cook time.
**base = shelf on base.
Get other manuals https://www.bkmanuals.com

electrolux cooking charts 19
Oven cooking chart continued
Main oven Top oven
Food Gas
mark Pos Gas mark Pos Approximate cook time (m)
Choux Pastry 6 2 6 2 30 - 35
Éclairs / Profiteroles 5 2 5 2 20 - 30
Flaky Pastry 6 2 6 2 25 - 40
Mince Pies 5 2 + 4 5 2 15 - 20
Pasta Lasagne etc. 5 3 5 2 30 - 40
Meat Pies 7 2 7 2 25 - 35
Quiche, Tarts, Flans 5 2 5 2 25 - 45
Shepherd’s Pie 7 3 7 2 30 - 40
Soufflés 5 3 5 2 20 - 30
Fish 4 2 4 2 20 - 30
Fish Pie 6 3 6 2 20 - 25
Beef Casserole 3 4 3 2 2½ - 3h
Lamb Casserole 3 4 3 2 2½ - 3h
Convenience Foods Follow manufacturer’s instructions
Baked Potatoes 5 2 5 2 1½ - 2h
Roast Potatoes 6 2 6 2 1 - 1½h
Large Yorkshire
Puddings: 7 1 7 2 25 - 40
Individual Yorkshire
Puddings 7 1 7 2 15 - 25
Note : Shelf positions are counted from the top of the oven downwards.
To help pastry dishes brown on the underside cook on a metal plate or place on
a baking tray.
Get other manuals https://www.bkmanuals.com

20 electrolux cooking charts
Roasting chart
Meat Gas mark Cooking time
Beef/ Beef boned 5 20-35 minutes per ½kg (1lb)
and 20-35 minutes over
Mutton/Lamb 5 25-35 minutes per ½kg (1lb)
and 25-35 minutes over
Pork/Veal/Ham 5 30-40 minutes per ½kg (1lb)
and 30-40 minutes over
Chicken 5 20-25 minutes per ½kg (1lb)
and 20 minutes over
Turkey/Goose 5 20-25 minutes per ½kg (1lb) up to 3½kg (7lb) then 10 minutes per ½kg
(1lb) over 3½kg (7lb)
Duck 5 25-35 minutes per ½kg (1lb)
and 25-30 minutes over
Pheasant 5 35-40 minutes per ½kg (1lb)
and 35-40 minutes over
Rabbit 5 20 minutes per ½kg (1lb)
and 20 minutes over
INTERNAL TEMPERATURES –
Rare: 50-60°C; Medium: 60-70°C; Well done: 70-80°C
The roasting temperatures and times given in the chart should be adequate for
most joints, but slight adjustments may be required to allow for personal
requirements and the shape and texture of the meat. However, lower
temperatures and longer cooking times are recommended for less tender cuts or
larger joints.
Wrap joints in foil if preferred, for extra browning uncover for the last 20 – 30 min.
cooking time.
Get other manuals https://www.bkmanuals.com
