Electrolux 41016VH User manual

41016VH
User manual Free standing electric
cooker

2
Dear Customer
Thank you for choosing one of our highquality products.
With this appliance you will experience the perfect combination of functional
design and cutting edge technology.
Convince yourself that our appliances are engineered to deliver the best per
formance and control  indeed we are setting the highest standards of excel
lence.
In addition to this you find environmental and energy saving aspects as an inte
gral part of our products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfect
ly and most efficiently.
To refer to this manual any time you need to, we recommend you to keep it in a
safe place. And please pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
The following symbols are used in this user manual:
1
Important information concerning your personal safety and information on
how to avoid damaging the appliance.
3General information and tips
2Environmental information

3Contents
Contents
Operating Instructions 5
Safety instructions 5
Description of the Appliance 7
General Overview 7
Control Panel 8
Cooking surface 8
Oven Features 9
Oven accessories 9
Before Using for the first time 10
Setting and changing the time 10
Initial Cleaning 11
Using the Rings 11
Setting the heat setting 12
Switching on the dual fry/cook area 13
Residual heat indicator 13
Using the Oven 14
Switching the Oven On and Off 14
Oven Functions 15
Inserting the Oven Shelf, Baking Tray and Roasting Pan 16
Inserting/Removing the Grease Filter 17
Clock Functions 18
Switching Off the Time Display 19
Uses, Tables and Tips 24
Pans 24
Cooking table 25
Baking 26
Baking table 28
Table for Bakes and Gratins 32
Frozen Ready Meals Table 33
Roasting 34
Roasting table 34
Grill Sizes 36
Grilling table 36
Defrosting 37
Defrosting table 37
Drying 38
Making Preserves 39

Contents4
Cleaning and Care 40
Outside of the appliance 40
Cooking surface 40
Hob Frame 41
Oven interior 41
Accessories 41
Fat Filter 41
Shelf Support Rails 42
Oven Lighting 43
Oven Ceiling 43
Oven door 45
Oven door glass 47
Pan drawer 50
What to do if … 51
Disposal 52
Instruction on setting up 53
Setting up 53
Making the appliance level 53
Safety information for the installer 54
Guarantee/Customer Service 55
Service 58

5Operating Instructions
Operating Instructions
1Safety instructions
5This appliance conforms with the following EU Directives:
–73/23/EEC dated 19.02.1973 Low Voltage Directive
–89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending Directive
92/31/EEC
–93/68/EEC dated 22.07.1993 CE Marking Directive
Electrical safety
•This appliance must be only connected by a registered electrician.
•In the event of a fault or damage to the appliance: Take the fuses out or
switch off.
•Repairs to the appliance must only be carried out by qualified service engi
neers. Considerable danger may result from improper repairs. If repairs be
come necessary, please contact our Customer Services or your dealer.
Child Safety
•Never leave children unsupervised when the appliance is in use.
Safety whilst Using
•This appliance is intended to be used for cooking, roasting and baking food in
the home.
•Take care when connecting electric appliances to sockets nearby. Do not allow
connecting leads to come into contact with or to catch beneath the hot oven
door.
•Warning: Risk of burns! The interior of the oven becomes hot during use.
•Using ingredients containing alcohol in the oven may create an alcoholair
mixture that is easily ignited. In this case, open the door carefully. Do not have
embers, sparks or naked flames in the vicinity when opening the door.
3Information on acrylamides
According to the latest scientific knowledge, intensive browning of food, espe
cially in products containing starch, can constitute a health risk due to acryla
mides. Therefore we recommend cooking at the lowest possible temperatures
and not browning foods too much.

Safety instructions6
How to avoid damage to the appliance
•Do not line the oven with aluminium foil and do not place baking trays, pots,
etc. on the oven floor, as the heat that builds up will damage the oven enamel.
•Fruit juices dripping from the baking tray will leave stains, which you will not
be able to remove. For very moist cakes, use a deep tray.
•Do not put any strain on the oven door when open.
•Never pour water directly into the oven when it is hot. This could cause dam
age to or discoloration of the enamel.
•Rough handling, especially around the edges of the front panel, can cause the
glass to break.
•Do not store any flammable materials inside the oven. These could ignite
when the oven is switched on.
•Do not store any moist foods inside the oven. This could damage the oven
enamel.
•After switching off the cooling fan, do not keep uncovered dishes in the oven.
Moisture may condense in the oven interior or on the glass doors and may get
into the units.
3Note on enamel coating
Changes in the colour of the oven’s enamel coating as a result of use do not af
fect the appliance’s suitability for normal and correct use. They therefore do not
constitute a defect in the sense of the warranty law.

7Description of the Appliance
Description of the Appliance
General Overview
Full glass door
Door
handle
Control panel
Pan drawer

Description of the Appliance8

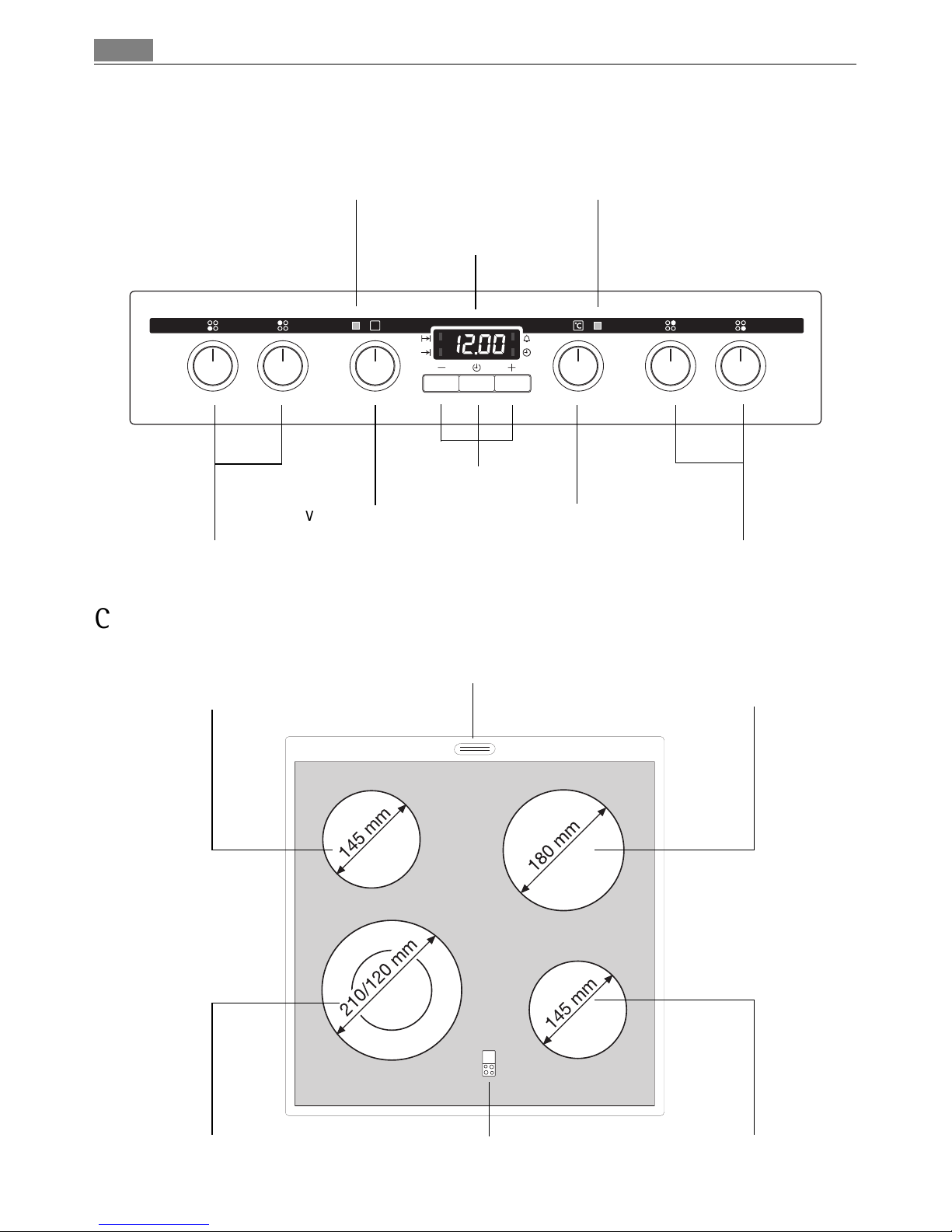

Control Panel
Cooking surface
Oven Functions Temperature selector
Hob Cooking Zone Control Knobs
Clock function buttons
Hob Cooking Zone Control Knobs
Oven Power Indicator Temperature Pilot Light
Time display
Double ring cooking zone
2200W
Single cooking zone
1200W
S
ingle cooking zone
1800W
Residual heat indicator
S
ingle cooking zone
1200W Oven steam outlet

9Description of the Appliance

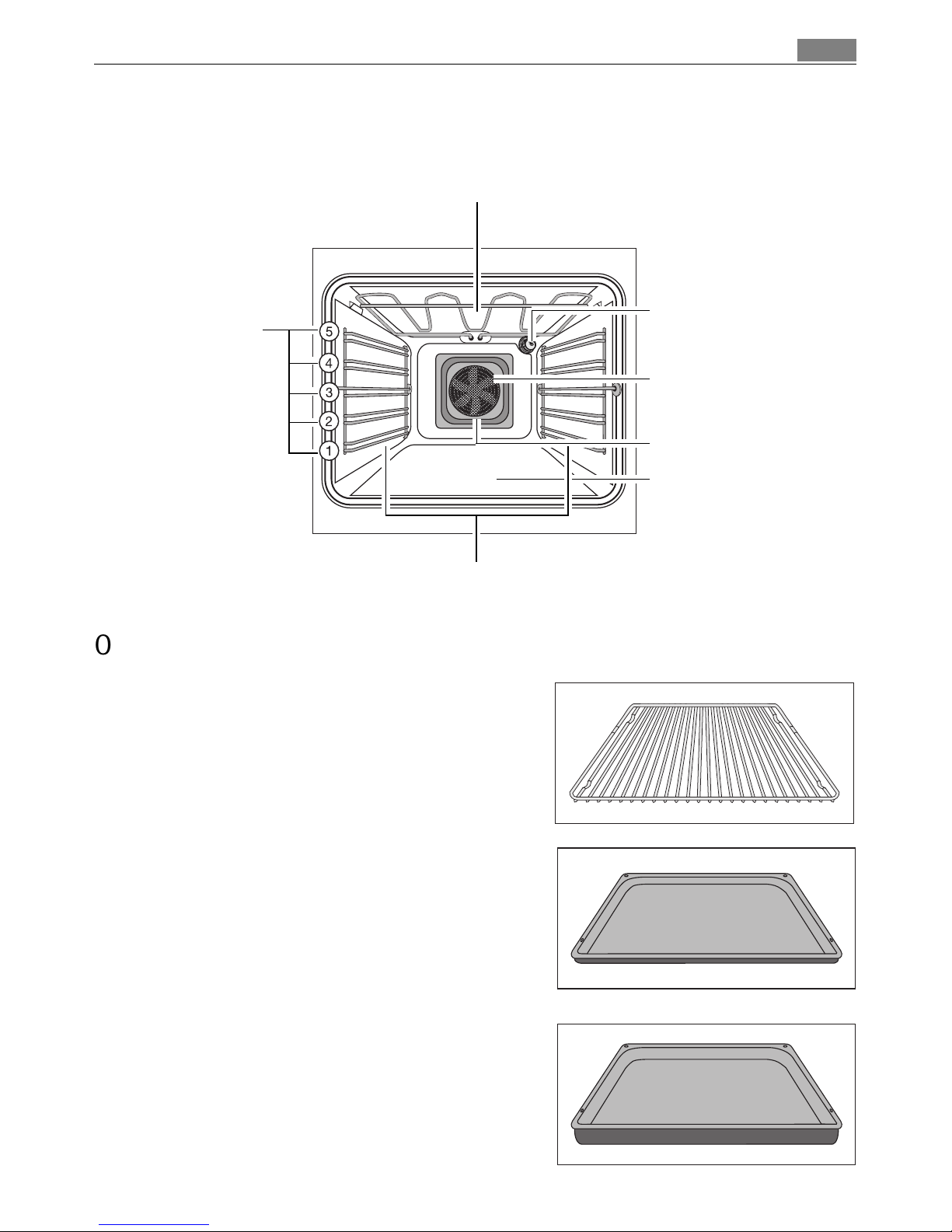

Oven Features
Oven accessories
Oven shelf
For cookware, cake tins, roasts and grilled
foods.
Baking tray
For cakes and biscuits.
Roasting Pan
For baking and roasting or as a pan for col
lecting fat.
Top heat and heating elements
Oven lighting
Fat Filter
Fan heating element
Fan
Bottom Heat
Shelf positions
Oven shelf runners,
removable

Before Using for the first time10
Before Using for the first time

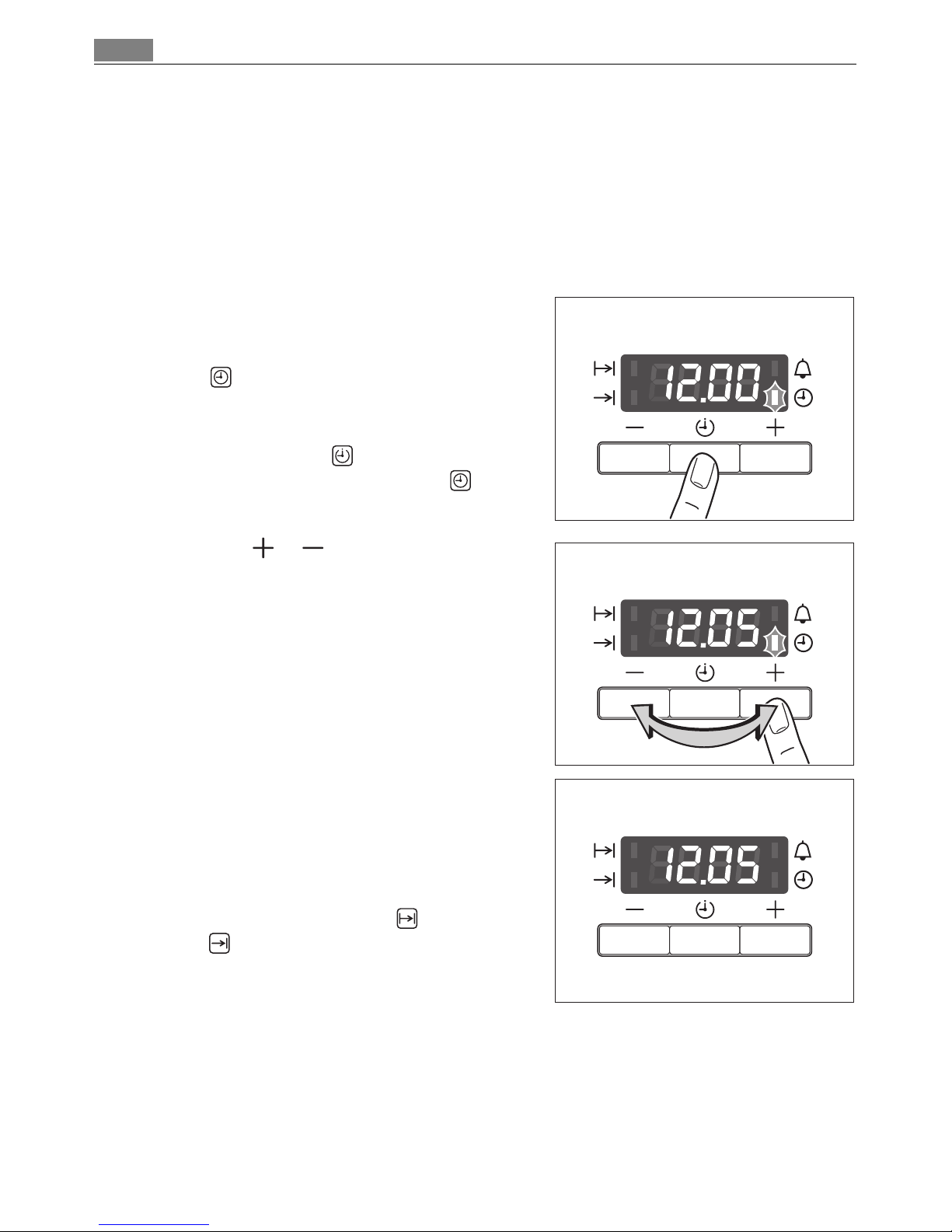

Setting and changing the time
3The oven only operates when the time has been set.
When the appliance has been connected to
the electrical supply or when there has
been a power cut, the function indicator
Time flashes automatically.
1. To change a time that has already been set,
press the Selection button repeatedly
until the function indicator Time flashes.
2. Using the or button, set the current
time.
After approx. 5 seconds, the flashing stops
and the clock displays the time set.
The appliance is now ready to use.
3The time can only be changed if no auto
matic function (Cook time or End
time ) has been set.

11Using the Rings
Initial Cleaning
You should clean the appliance thoroughly before using for the first time.
Wipe the glass ceramic cooking surface with a damp cloth.
1Attention: Do not use sharp or abrasive cleaning materials. These could damage
the surface.
3For appliances with metal fronts, use normal commercially available cleaning
agents.
1. Turn the oven functions dial to Light .
2. Remove all accessories and the side rails and clean with warm water and wash
ingup liquid.
3. Wash the oven in the same way, with warm water and washingup liquid, and
dry it.
4. Wipe the front of the appliance with a damp cloth.
Using the Rings
3When a cooking zone is switched on, it may hum briefly. This is a characteristic
of all ceramic glass cooking zones and does not impair either the function or the
life of the appliance.
Heat settings
•Heat settings can be set from 19.
•Intermediate positions are possible for settings 27.
1 = lowest output
9 = highest output
= double ring switching
2Switch the cooking zone off approx. 510 minutes before cooking is finished to
make use of the residual heat. This saves electricity.

Using the Rings12
3The cooker has popup ring switches.
Press the ring switch to use it. The switch will then pop up.

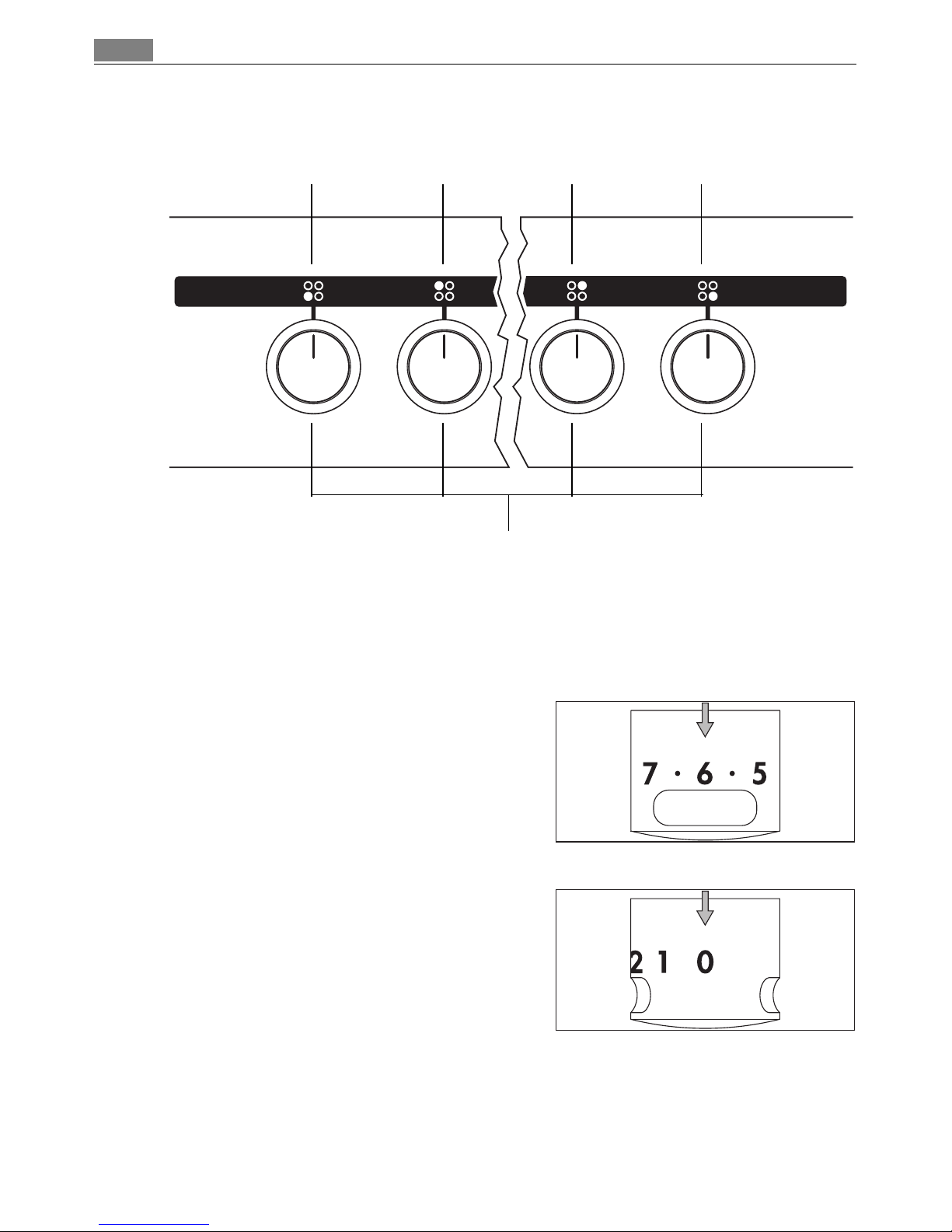

Setting the heat setting
1. Select the heat setting.
2. To end the cooking process, turn back to the
Off position.
Hob Cooking Zone Control Knobs
front left rear left rear right front right

13Using the Rings

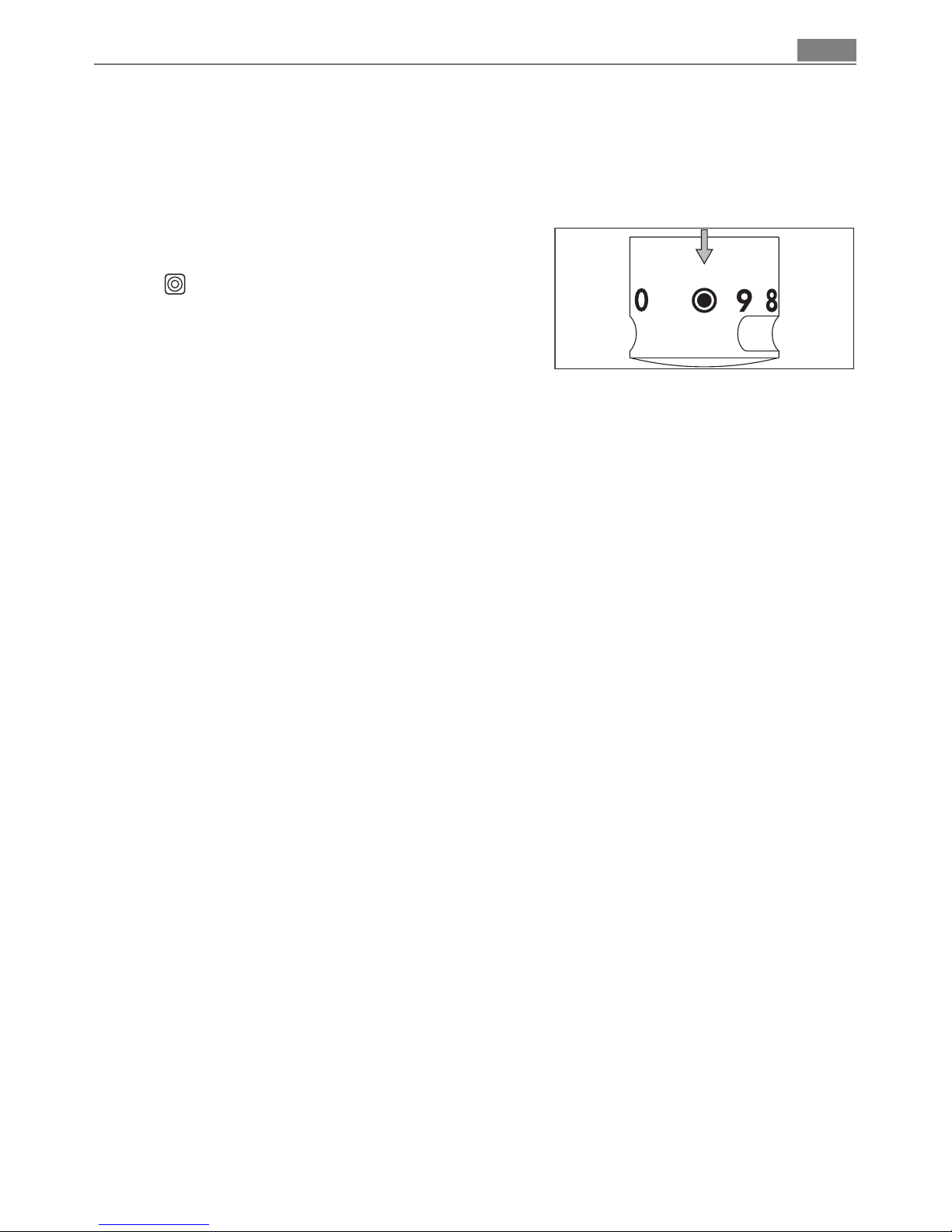

Switching on the dual fry/cook area
1The control for the dual fry/cook area is switched on by turning to the right, and
cannot be turned past the stop!
1. Turn the dual fry/cook control to the right.
Continue turning to Position 9, and onto the
symbol (you will feel a slight resistance).
The stop position will then be clearly detect
able.
2. Finally, turn back to the desired setting.
3. After cooking, turn back to the OFF position.
3To use the dual fry/cook area again afterwards, the larger ring must be switched
back on.
Residual heat indicator
The residual heat indicator lights up, as soon as the corresponding cooking zone
is hot.
1Danger! Risk of burns from residual heat. After being switched off, the cooking
zones need some time to cool down. Look at the residual heat indicator.
2Residual heat can be used for melting and keeping food warm.

Using the Oven14
Using the Oven
3The oven is equipped with retractable buttons for “Oven functions” and “Tem
perature selection”. To use, press the relevant button. The button then sticks out.
Switching the Oven On and Off
1. Turn the oven functions dial to the desired function.
2. Turn the temperature selector to the desired temperature.
The power indicator is lit as long as the oven is in operation.
The temperature pilot light is lit as long as the oven is heating up.
3. To turn the oven off, turn the oven functions dial and the temperature selector
to the Off position.
3Cooling fan
The fan switches on automatically in order to keep the appliance’s surfaces cool.
When the oven is switched off, the fan continues to run to cool the appliance
down, then switches itself off automatically.

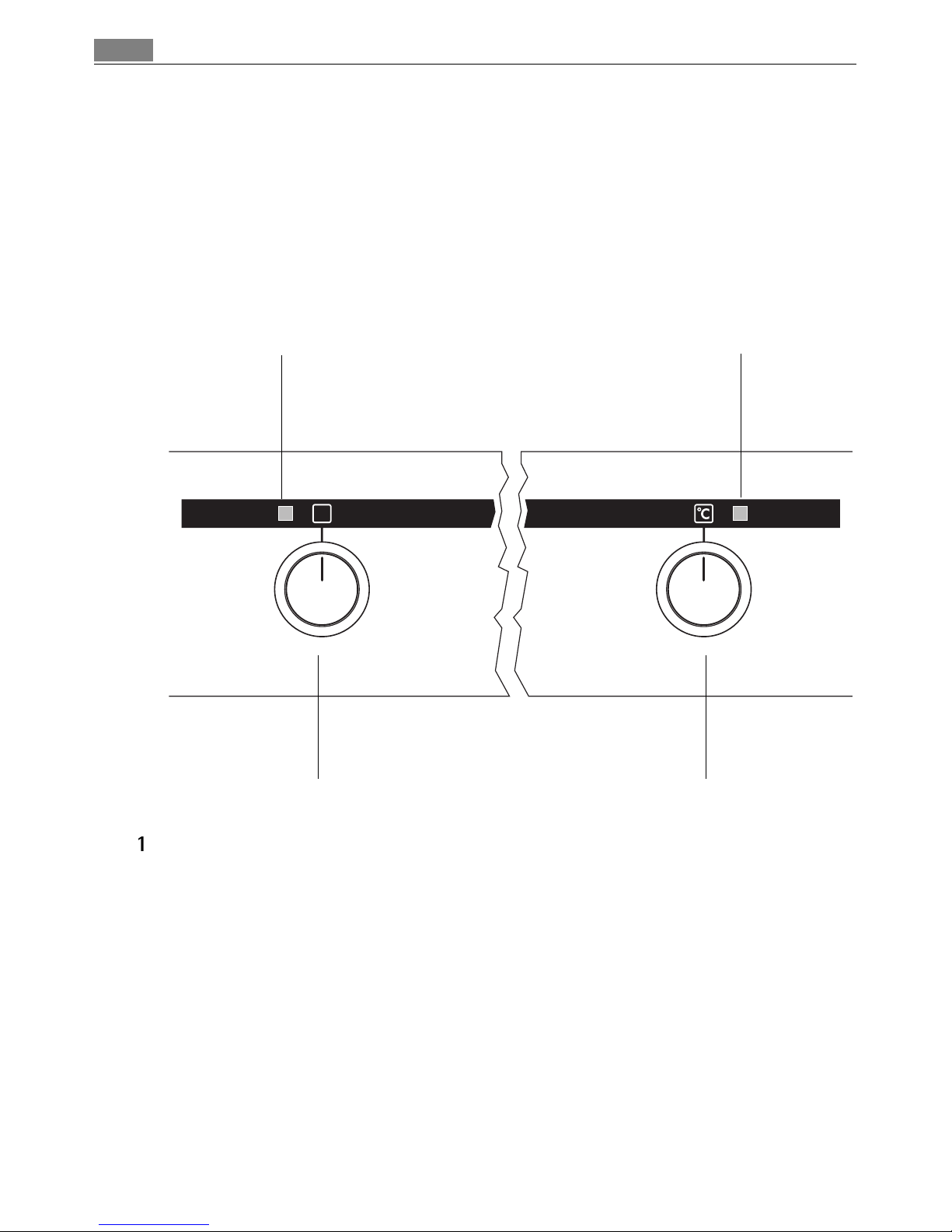

Temperature Pilot Light
OvenFunctions Temperature selector
Oven Power Indicator

15Using the Oven
Oven Functions
The oven has the following functions:
Oven function Application Heating element/fan
Light Using this function you can light up
the oven interior, e.g. for cleaning.

Fan cooking For baking on up to three oven lev
els at the same time.
Set the oven temperatures 2040 °C
lower than when using Conventional.
Rear heating element,
fan
Al Gusto Hot air For baking on one oven level dishes
that require more intensive brown
ing and a crispy base.
Set the oven temperatures 2040 °C
lower than when using Conventional.
Bottom heat, rear wall
heating element, fan
Conventional For baking and roasting on one oven
level.
Top heat, bottomheat
Bottom heat For baking cakes with crispy or
crusty bases.
Bottom heat
Defrost For defrosting e. g. flans and gateaux,
butter, bread, fruit or other frozen
foods.
Fan
Grill For grilling flat foodstuffs placed in
the middle of the grill and for toast
ing.
Grill
Dual gril For grilling flat foodstuffs in large
quantities and for toasting.
Grill, top heat
Rotitherm For roasting larger joints of meat or
poultry on one level.
The function is also suitable for grati
nating and browning.
Grill, top heat, fan

Using the Oven16
Inserting the Oven Shelf, Baking Tray and Roasting Pan
3Shelf runner safety and antitip device
As a shelf runner safety device, all insertable components have a small curved
indentation at the bottom on the right and lefthand edge.
Always insert insertable components so that this indentation is at the back of
the oven interior. This indentation is also important for preventing the insertable
components from tipping.
Inserting the baking tray or roasting
pan
Push the baking tray or roasting pan be
tween the guide bars of the selected oven
level.
Inserting the oven shelf:
Insert the oven shelf so that the feet point
downwards.
Push the oven shelf between the guide bars
of the selected oven level.
3The high rim around the oven shelf is an
additional device to prevent cookware from
slipping.
Inserting the oven shelf and roasting
pan together
Lay the oven shelf on the roasting pan.
Push the roasting pan between the guide
bars of the selected oven level.

17Using the Oven
Inserting/Removing the Grease Filter
Only use the grease filter when roasting
to protect the rear heating elements from
fat splashes.
Inserting the grease filter
Hold the grease filter by the grip
and insert the two mounts down
wards into the opening on the rear
wall of the oven (fan opening).
Taking out the grease filter
Hold the grease filter by the grip
and unhook it.

Using the Oven18
Clock Functions
Countdown
To set a countdown. A signal sounds after the time has elapsed.
This function does not affect the functioning of the oven.
Cook time
To set how long the oven is to be in use.
End time
To set when the oven is to switch off again.
Time
To set, change or check the time
(See also section “Before Using for the First Time”).
Selector Button Button
Button
Time display Function IndicatorsFunction Indicators

19Using the Oven
3How to use the clock functions
•After a function has been selected, the corresponding function indicator
flashes for about 5 seconds. During this period, the desired times can be set
using the or button.
•When the desired time has been set, the function indicator continues to flash
for approx. 5 seconds. After that the function indicator is then lit. The set time
begins to run.
•Press any of the buttons to stop the audible signal.
•The desired oven function and temperature can be selected before or after the
clock functions Cook time and End time are set.
•When the cooking process is completed, turn the oven function dial and the
temperature selector back to the OFF position.
2Switching Off the Time Display
By switching off the time display you can save energy.
Switching off the time display
Press and hold down any two buttons until the display becomes dark.
Switching on the time display
Hold down any button until the time reappears in the display.
3The display can only be switched off if none of the clock functions Cook time ,
End time or Countdown is in use.

Using the Oven20
Countdown
1. Press the Selection button repeatedly
until the function indicator Countdown
flashes.
2. Using the or button set the desired
Countdown (max. 2 hours 30 minutes).
After approx. 5 seconds the display shows
the time remaining.
The function indicator Countdown
lights up.
When the time has elapsed, the function
indicator flashes and an audible signal
sounds for 2 minutes.
The signal can be stopped by pressing any
button.
