Electrolux ETG7296GKR User manual

ETG7296GKR
ETG7286GKR
ETG7276GKR
ETG7266GKR
ETG7256GKR
Table Top Gas Cooker
READ THIS MANUAL CAREFULLY BEFORE PUTTING THIS APPLIANCE INTO
OPERATION.
User Manual

Dear customer,
Thanks for choosing and using Electrolux home appliances
Electrolux Group of Sweden is one of the world largest home appliances companies , with more than 65
million Electrolux products being used by milions of households worldwide each year , it is also the world
largest manufacturer of kitchen electrical appliances . The group has sold more than 56 milion kitchen
products , which is equivalent to the combined height of 5 Mount Everest , besides that , more than 2/3 of
the word star hotel use Electrolux Drotessional kitchen eauipment .
Clearly , the excellent achievement of Electrolux over the last 80 years has been recognized by 450
million families al over the world . Now we are please to make some of the best products from this
renowned brand available to consumer in Southeast Asia . To us not only is Electrolux one of the most
reliable brands in dealing with home appliances , it is also brand that promises to bring innovative
lifestyles to all families through its cutting edge technologies and excellent designs . For not only to add &
tough of elegance to your kitchen , but Electrolux products also makes cooking easier , more enjoyable
and something to share with .
Enioy happy cookingnow with Electrolux kitchen appliances .
IMPORTANT INSTRUCTIONS
Before installing or using this appliance , please read this instruction book carefully and pay particular
attention to the warming in the following page.
To avoid the risks that are always present when you use an appliance, it is important that the appliance
is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards.
We recommend that you keep this instruction booklet for future reference and pass it on to any future
owners.
CONGRATULATIONS

SAFE INSTRUCTIONS
Do not use gas other than that which is specified on the label
attached.
Do not place anything (e.g. flame tamer or asbestos mat) between the
pan and pan support, as serious damage to the appliance may result.
Do not remove the pan support and enclose the burner with a wok
stand, as this will concentrate and deflect the heat onto the hotplate.
Do not use large pots or heavy weights that can bend the pan support
or deflect flame onto the hotplate
Locate pan centrally over the burner so that it is stable and does not
overhang the appliance
Use only a wok support supplied or recommended by the
manufacturer of the appliance
The unit to be used for cooking only. Do not dry towels, clothes, etc.,
over it. If this is done, there is danger of fire
If a gas leak is found, close stopcock, open up all windows and call
your dealer. Do refrain from turning an electric switch on or off,
lighting a match, smoking or using a lighter.
Use the appliance in a well-ventilated room.
Do not use vinyl gas hose. It is liable to be softened by heat.
Use only a rubber hose.
Be sure to turn off the ignition knob and regulator of the cylinder after
use.
Avoid touching the burner, pan stand etc., immediately after use.
Otherwise you will get burnt.
Ensure that the rubber hose does not touch any part of the unit or lies
underneath it.
Connect the rubber hose to the gas inlet and fasten it with a hose
clamp.
prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure)
and the adjustment of the appliance are compatible.
the adjustment conditions for this appliance are stated on the label
this appliance is not connected to a combustion products evacuation device. It shall be installed and
connected in accordance with current installation regulations. Particular attention shall be given to the
relevant requirements regarding ventilation
CAUTION
In the event of the burner flames being accidentally extinguished, turn off the burner control knob and do
not attempt to re-ignite the burner for at least 1 minute.
In case of hotplate glass breakage:
-shut immediately off all burners and any electrical heating element and isolate the appliance from the
power supply.
-do not touch the appliance surface,
-do not use the appliance.

PART IDENTIFICATION
Inner Cap
Inner Cap
Thermocouple
Control Knob
Hob foot
Cast Trivet
Tempered Glass
Top Plate
Outer Cap
Cast Trivet
Thermocouple
Cast Trivet
Outer Cap
ETG7286GKR
ETG7296GKR
Tempered Glass
Top Plate
Cast Trivet left
Hob foot
Control Knob
Outer Cap
Cast Trivet Mid
Inner Cap
Outer Cap Thermocouple
Inner Cap
Thermocouple
Cast Trivet

PART IDENTIFICATION
ETG7266GKR
ETG7276GKR
Hob Foot
4.2kW Outer Cap
Tempered Glass
Top Plate
Wire Trivet
Control Knob
4.2kW Inner Cap
3.4kW Outer Cap
3.4 kW Inner Cap
Wire Trivet
Control Knob
Hob Foot
3.0 kW Burner Cap
Outer Cap
Inner Cap
Tempered Glass
Top Plate
Wire Trivet
3.0kW Wire Trivet
*Please notice left trivet and right trivet are different
Please notice left trivet and right trivet are different

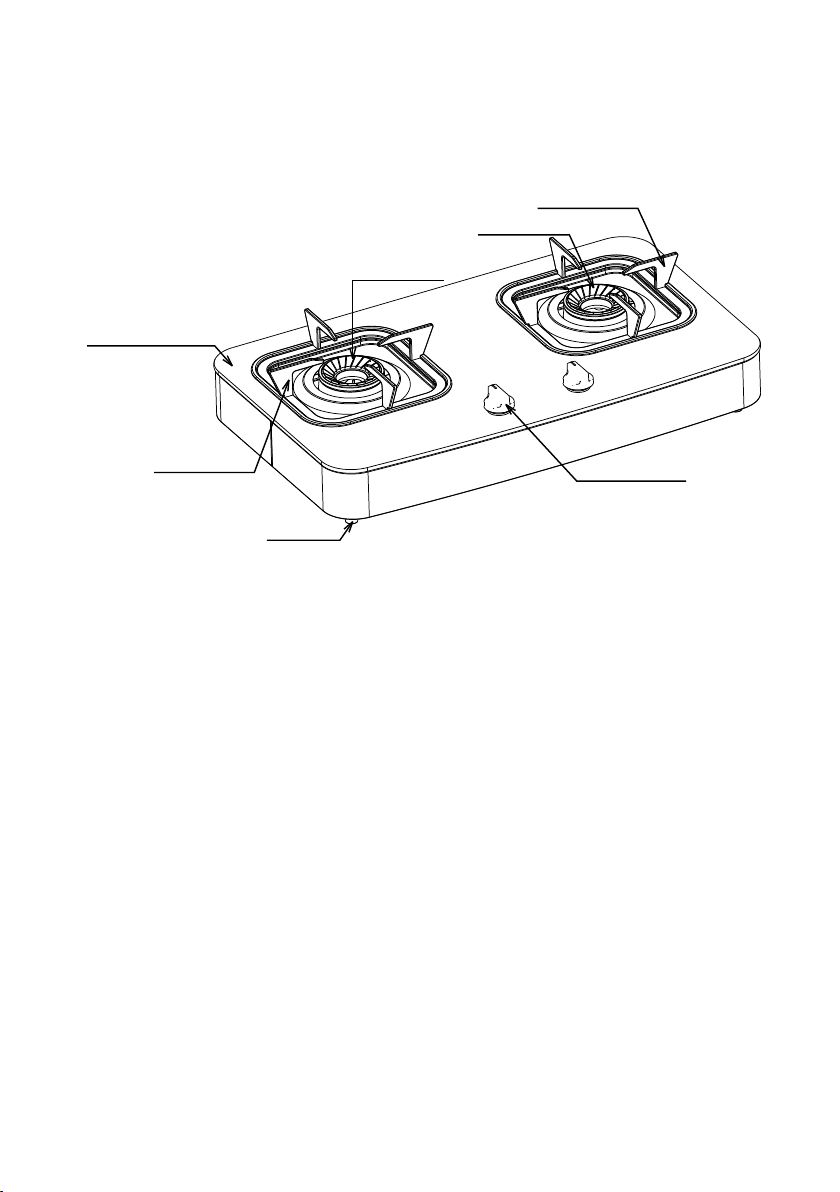

PART IDENTIFICATION
ETG7256GKR
Hob Foot
Wire Trivet
Tempered Glass
Top Plate
Control Knob
Burner Cap
Wire Trivet
Burner Cap

Installation instructions
Follow below steps to install the appliance.
1. Open the package, take out the ployfoam and place them on the even ground.
2. Install 4 hob support legs(supplied in accessory bag) on the 4 square yard by nut as below picture
shows.Make sure the glass panel is well protected when you assemble the hob feet, NOT contact
any sharp edge.
3.Assemble the burner caps on right position, assemble the trivets on right position
Please notice on ETG7276GKR and ETG7266GKR left trivet and right trivet are not the same,please
notice the location when you assemble the trivets.
Inner cap
right burner
Please notice on ETG7276GKR left burner inner cap and right burner inner cap are not the same,DO
NOT MISUSE
Inner cap
left burner
Location on trivet
Location on spill bowl
ETG7296GKR ETG7286GKR ETG7276GKR
ETG7266GKR ETG7256GKR

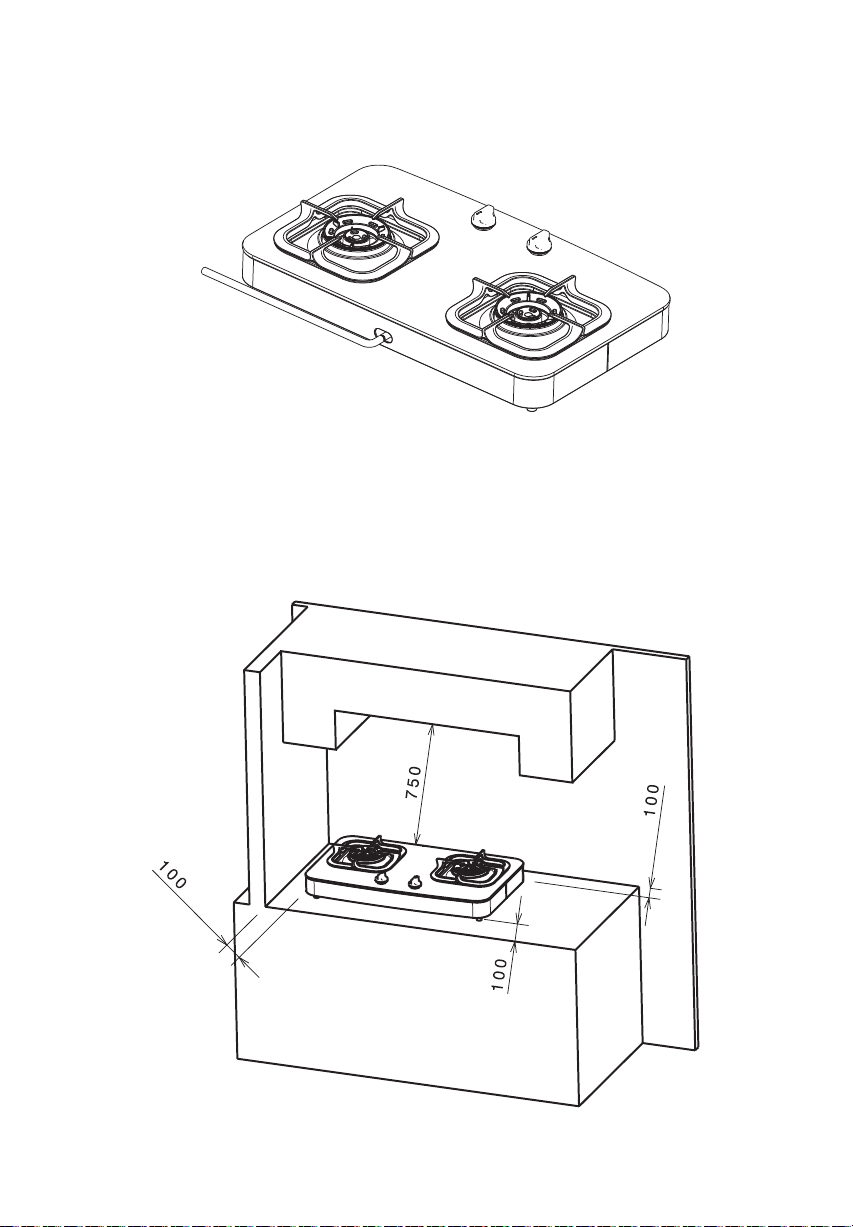

5.If clearance between side/back walls and hob is less than 100mm, the walls must be protected with
a non-combustible material. Horizontal surfaces less than 750mm vertically above the cooktop must
also be protected.
back wall
side wall
6.Check the leakage, Turn the gas on and check for leaks using soap solution and brush around all
the joints and connection.
4.Connect gas pipe to the inlet and fasten the connection by turning the clamp clockwise.

1.Test the appliance
press the control knob and turn to full flame setting to activate the electric igniter. The burner will
ignite. Adjust control knob to the desired setting. On initial usage you may have to repeat this
ignition function several times (to allow air to be purged from the gas supply system). No
adjustment should be necessary. If any problem occur, refer to the servicing instructions or the fault
finding chart.
Max Flame
Power off
Min Flame
Please notice ETG7296GKR and ETG7286GKR have flame failure devices, pushed down as far as
possible for approximately 5 seconds. If the flame goes out when the knob is released simply depress
the knob again, this time holding it down with slightly more force for the same length of time.
Test and operate
2.Adjust air door
Normal and good performance flame should be blue and very small yellow flame at the flame
tip. if you find the flame is too much yellow, you can adjust the valve air door to get the desired
flame.
WARNING
Air door has been set at the factory, it is not recommended the user to adjust by themselves.
Ask qualified technician or installer to adjust if necessary. When adjust the air door, make
sure the gas pipe is well connected.
Using the hob correctly
To ensure maximum burner efficiency, it is strongly recommended that you use only pots and
pans with a bottom fitting the size of the burner used, so that the flame will not spread beyond
the bottom of the vessel . Recommed pot size is from 120mm to 280mm.
Normal flame flame too short
airdoor open too much flame too long
airdoor open not enough
Air door Air door Air door
Air door

Glass top
•Persistent stains may require vigorous rubbing with nylon scourer or creamed powder
cleansers. Household enamel cleaners are available, follow the manufacturer instructions in
their use. Harsh abrasive cleaners, powder cleaners, steel wool or wax polishes should not be
used.
•Do not use the glass top as a work table.
Burner Cap
These can all be lifted off and removed for separate cleaning.
•Ensure burner caps are thoroughly dried after cleaning or spillage.
•When cleaning the burner, ensure that all the flame ports are free of any blockage.
WARNING
When refitting the burner caps,ensure that they are correctly seated.
When refitting the trivets, ensure the trivets are correctly seated on the hob.
Technical specifications
Model Gas
Type
Gas
Pressure
Product Dimension
(LxWxH) mm
Nominal Heat
Input(kW)
Injector Size
ETG7296GKR LPG 30mbar 700X410X120 Left:4.2
Right:4.2
Left:0.85+0.51
Right: 0.85+0.51
ETG7286GKR LPG 30mbar 700X410X120 Left:4.2
Right: 4.2
Left:0.85+0.51
Right: 0.85+0.51
ETG7276GKR LPG 30mbar 700X410X150 Left:4.2
Right:3.4
Left:0.85+0.51
Right: 0.79+0.42
ETG7266GKR LPG 30mbar 700X410X150 Left:4.2
Right:3.0
Left:0.85+0.51
Right: 0.83
ETG7256GKR LPG 30mbar 700X410X150 Left: 3.0
Right: 3.0
Left:0.85+0.51
Right: 0.83
mm

Phenomenon Reason Solution
Burner will not light... Burner not fitted correctly Fit burner in correct position
Air in gas line Purge gas line
Gas input pipe is bent Re-straight the pipe
Injector block Clean the injector
Flames uneven or
tending to lift
Burner cap incorrectly fitted. Ensure this component is fitted
correctly
Burner cap blocked or wet. Clean or dry burner cap.
Yellow flame Burner cap dirt Clean burner cap
Flames not staying on
when knob is released
Knob not held down long enough in
‘Max’ position for flame safeguard to
engage.
Repeat lighting procedure and hold
knob down for 5 seconds in ‘Max
position.
Dirt or spillage on flame safeguard
sensor.
Clean flame safeguard sensor tip.
TROUBLESHOOTING
Indonesia
Hotline service: 08041119999
PT. Electrolux Indonesia
Electrolux Building
Jl.Abdul Muis No.34, Petojo Selatan,
Gambir Jakarta Pusat 10160
Email:[email protected]
SMS & WA : 0812.8088.8863
Malaysia
Consumer Care Center Tel: 1300-88-11-22
Electrolux Home Appliances Sdn. Bhd.
Corporate Office Address: Unit T2-7, 7th Floor,
Tower 2 , Jaya33 Hyperoffice, No. 3, Jalan
Semangat, Seksyen 13, 46100 Petaling Jaya,
Selangor
Office Tel : [phone]
Office Fax : [phone]
Consumer Care Center Address: Lot C6, No.
28,
Jalan 15/22, Taman Perindustrain Tiong Nam,
40200 Shah Alam, Selangor
Consumer Care Center Fax : [phone]
2521
Email : [e-mail]
Philippines
Consumer Care Center Toll Free :
1-800-10-845-CARE 2273
Consumer Care Hotline : (+63 2) 845
CARE 2273 Electrolux Philippines, Inc.
10th Floor. W5th Avenue Building
5th Avenue Corner 32nd Street
Bonifacio Global City,
Taguig Philippines 1634
Trunkline: [phone]
Website : www.electrolux.com.ph
Email : [email protected]
Singapore
Consumer Care Center Tel: (+65) 6727
3699 Electrolux S.E.A. Pte Ltd.
1 Fusionopolis Place,
#07-10 Galaxis, West Lobby
Singapore 138522.
Office Fax : [phone]
Email : customer-
[email protected]
Thailand
Consumer Care Tel : (+66 2) 725
9000 Electrolux Thailand Co., Ltd.
Electrolux Building 14th Floor
1910 New Phetchaburi Road,
Bangkapi, Huai Khwang, Bangkok
10310 Office Tel : [phone]
Office Fax : [phone]
Email :
[email protected]
Vietnam
Consumer Care Center Toll Free :
1800-58-88-99
Tel : [phone]
Electrolux Vietnam Ltd.
Floor 9th, A&B Tower
76 Le Lai street - Ben Thanh Ward -
District 1 Ho Chi Minh City ，Vietnam
Office Tel : [phone]
Office Fax : [phone]
Email : [email protected]
If you need any technical help or would like more information about our products, please do
not hesitate to contact our Customer Care Center, listed below:

www.electrolux.com

ETG7296GKR


ETG7286GKR
ETG7276GKR
ETG7266GKR
ETG7256GKR
้

ขอแสดงความยินดี
 

  
 65   
  56  
 5   2  3 
 80   450 
 
  
 
   


คําแนะนําที่สําคัญ
 
    

 

คําแนะนําเพื1อความปลอดภัย

 ( )  

  

 



     
 
   
 /   

  
 
    


 
  () 


  

ขอควรระวัง
   1  

:
-  
- 
- 

สวนประกอบของเตา
ETG7296GKR
























ETG7286GKR

สวนประกอบของเตา
ETG7276GKR




 4.2 kW
 
 4.2 kW
 3.0 kW
 3.4 kW
 3.0 kW
 3.4 kW




*


ETG7266GKR

สวนประกอบของเตา
ETG7256GKR








คําแนะนําในการติดตั้ง

1.  
2.  4  ( )  4 
   
3.  
ETG7266GKR ETG7256GKR

ETG7296GKR ETG7286GKR ETG7276GKR
 

 ETG7276GKR  
 




5. / 100 .  
 750 . 


6.   
4.  
