Electrolux IQ-Touch EIMGD60LT User manual

electroluxappliances.ca
Titanium
EIMGD60L T
Optional Luxury-Glide®
Touch-2-Open™
Pedestals Shown in
Available Colours.
Island White
Titanium
1Based on cloth temperature. January 2012.
2Fastest time based on smallest load / Fast Dry cycle selected for various load compositions.
3Based on manufacturer specifications.
4Rigid metal duct preferred, semi-rigid optional and allow deductions for elbows and vents.
Refer to Installation Guide on web for additional information.
27" GAS FRONT LOAD DRYERS
Capacity I.E.C.
Features
Door Design
Electronic Controls
Perfect Steam™Dry System
Dry System
Sound System
Lighting
System
Touch-2-Open™/ (Close) Door
Moisture Sensor
Dryer Drum
Tumble Speed (RPM)
Reversible Door
Adjustable Leveling Legs
NSF®Certified
Cycles
Fast Dry, My Favourite (1), Heavy Duty,
Mixed Load*, Towels, Normal*, Casual*, Delicate*,
Allergen, Timed Dry, Perfect Steam*
(*Can be used with Add Steam option)
Specialty Cycles –
Jeans, Warm Up, Stuffed Animals, Pet Beds,
Active Wear, Bedding, Air Clean
Options
Temperature Selections
Add Steam
Electronic Auto Dry System
Manual Timed Dry Selections
Delay Start (Hours)
End-of-Cycle Chime
Extended Tumble
Anti-Static
Line Dry
Shrink Guard
Dryness Levels
Installation Options
Freestanding, Under Counter*,
Stacked (Above Washer), Pedestal, Hidden (In Closet),
Second Floor, 4-Way Dryer Venting
Accessories
Luxury-Glide®Touch-2-Open™/ (Close) Pedestal –
Titanium – PN # EPWD15T
Island White – PN # EPWD15IW
Dryer Stacking Kit – PN # STACKIT4X
LP Gas Conversion Kit – PN # PCK4200
Mobile Home Installation Kit – PN # 137067200
Drying Rack – PN # 137453000
Specifications
Colour –
Titanium
Island White
Product Dimensions –
Height Without 15" Pedestal)
(With 15" Pedestal)
Width
Depth (to Centre of Arc Not Including Hose)
(with 90° Door Open)
Maximum Exhaust Duct Length4(Ft.)
Gas / Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @ 120 Volts‡
Amps @ 120 Volts
Heating Element (BTU / HR)
Shipping Weight (Approx.)
* Side-by-Side units in under-counter installation require custom-built countertop and/or cabinetry.
‡For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate ground wire.
Appliance must be grounded for safe operation.
NOTE: Always consult local and national electric, gas & plumbing codes. Refer to Product Installation
Guide for detailed installation instructions on the web at electroluxappliances.ca.
Specifications subject to change.
8.0 Cu. Ft.
Signature Soft-Arc
IQ-Touch™with LCD Display
Yes
Gentle Tumble™
Luxury-Quiet™
Luxury-Design®
Luxury-Dry™
Yes
Exact Dry™
Stainless Steel
50
Yes
Yes
Sanitize
11
7
5
5
Yes
4
22
Adjustable
Yes
Yes
Yes
Yes
4
Yes
Optional
Optional
Optional
Optional
Optional
T
IW
38"
53"
27"
31-1/2"
50-5/8"
125
Bottom Centre Rear /
Bottom Right Rear
120V / 60 Hz / 15A
.835
9
20,000
140 Lbs.
Largest Capacity Dryer3
Dry the most in one load with 8.0 cu. ft. capacity.
Perfect Steam™Dryer
The latest technology removes wrinkles and
freshens clothes. “Add Steam” option can be
used with select cycles.
Gentlest Dry1
Our gentlest dryer offers exclusive technology
that gently tumbles clothes with exceptional
temperature control to help protect fabric.
Fastest Dry Time2
Fastest dryer with just 14 minutes to dry.
Gas Front Load Dryers
EIMGD60L T, EIMGD60J IW
IQ-Touch™Electronic Controls Featuring Perfect Steam™

High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
CANADA •5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •electroluxappliances.ca
EIMGD60L 11/14 © 2014 Electrolux Major Appliances, NA Printed in Canada

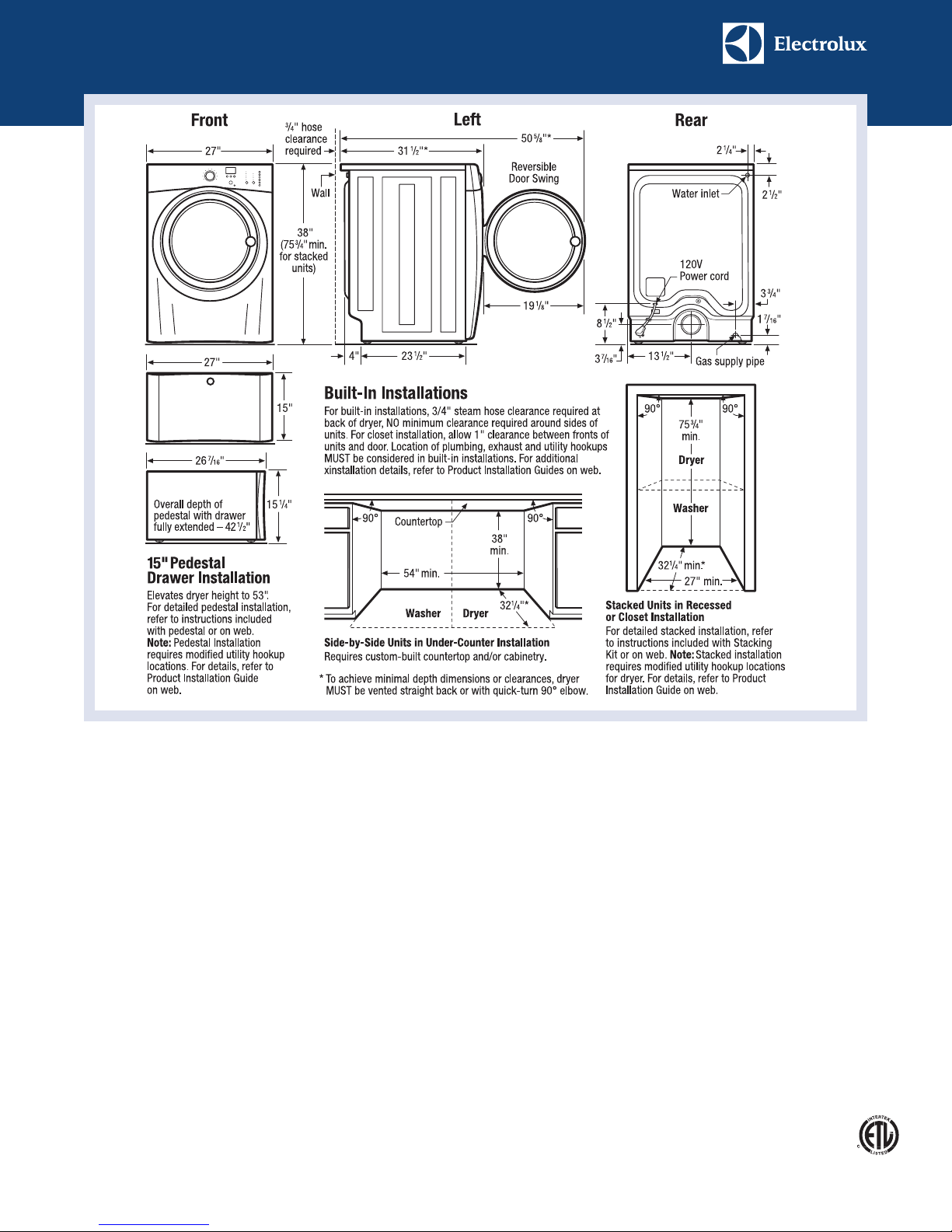

Gas Dryer Specifications
•
Product Weight – 130 Lbs.
•
An electrical supply with grounded three-prong receptacle is required.
The power supply circuit must be installed in accordance with national
and local codes & ordinances. (Do not use same circuit as washer.)
•
Voltage Rating – 120V / 60 Hz / 15 Amps
•
Amps @ 120 Volts = 9 Amps
•
Connected Load (kW Rating) @ 120 Volts = .835 kW
•
Equipped with 120V 3-wire power supply cord, approx. 60" long.
•
Always consult local and national electric, gas & plumbing codes.
•
Can be installed alone, with or without optional 15" pedestal drawer, or
stacked above matching Electrolux Washer, which requires installation
of optional dryer stacking kit. (For installation details, refer to instructions
included with optional pedestal or stacking kit or on web.)
•
Can be built in with matching Electrolux Washer in under-counter,
recessed or closet installation. Installations requiring countertop and / or
cabinetry will require custom building. (Refer to Built-In Installations on
this page for cutout dimensions. For additional installation details, refer to
Product Installation Guide on web.)
•
Closet installation requires vented door with 2 unobstructed louvered
openings, minimum 60 sq. in. each, located 3" from top and bottom of
door. Full-length 120 sq. in. opening also acceptable. Allow 1" clearance
between door and fronts of units.
•
Do NOT install in area exposed to dripping water or outdoor weather
conditions, or where gasoline or other flammables, including automobiles,
are kept or stored.
•
Floor MUST be solid with 1" maximum slope. To ensure vibration or
movement does not occur, reinforcement of floor may be necessary.
Do NOT install on carpeted surface.
•
Dryer MUST exhaust to outside of building, NOT into any concealed space.
•
Dryer equipped for 4-way venting and approved for up to 125-foot-
equivalent of duct length, determined by length of run and number of
elbows needed.
•
Exhaust installation requires minimum 4"-diameter rigid or semi-rigid metal
duct with approved, unobstructed vent hood having swing-out damper(s).
If installing rigid metal duct (preferred), do not exceed MAXIMUM venting
run length of 125 ft., allow deductions for elbows and vents. If installing
semi-rigid metal duct, do not exceed MAXIMUM venting run length of 8 ft.,
always allow deductions for elbows and vents (Refer to Product Installation
Guide on web for additional information). Do NOT use flexible plastic or
metal foil duct and use shortest run possible.
•
Gas supply line should be 1/2" pipe and MUST have individual shutoff valve.
•
Leveling legs supplied to level dryer properly and reduce excessive noise
and vibration.
•
Water inlet hose for steam setting connects to cold water supply with “Y”
connector and requires 3/4" clearance between back of unit and wall.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.ca for detailed instructions.
Optional Accessories
•
Pedestal Drawers – Titanium (PN # EPWD15T),
Island White (PN # EPWD15IW).
•
Dryer Stacking Kit – (PN # STACKIT4X).
•
Mobile Home Installation Kit – (PN # 137067200).
•
LP Gas Conversion Kit – (PN # PCK4200).
•
Drying Rack – (PN# 137453000).
IQ-Touch Gas Dryer
EIMGD55I (steam) / EIMGD60J (steam)
Gas Front Load Dryers
EIMGD60L T, EIMGD60J IW
