Electrolux EL9010A User manual

OWNER’S GUIDE
Electrolux
Precision
®
Steam

Register your purchase
Please register your purchase at www.electroluxusa.com (USA)
or www.electroluxca.com (Canada) or by mailing the
enclosed product registration card.
Keep this information
rite the model, type and serial number here:
Date of purchase (keep your receipt) _____________
odel number and type ________________________
Serial number _________________________________
Find these numbers on a label on the lower back side of the steam mop. Refer to
these numbers when ordering parts and accessories or if service is needed.
For Electrolux service
Authorized Electrolux Service Centers provide maintenance, parts and repair. To find
the Service Center nearest you, go to www.electroluxusa.com or call 800-896-9756.
Contents
Importantsafeguardsandsafetyfeatures.........................................1
Groundinginstructions...................................................... 2
Steammopparts ..........................................................3
Howtoassembleyoursteammop..............................................3
Usingyoursteammop.......................................................4
Steammopspecialfeatures...................................................5
Caringforyoursteammop....................................................5
Troubleshooting............................................................6
Electroluxlimitedwarranty ....................................................7
Owner’sGuide,French....................................................8-15
Owner’sGuide,Spanish..................................................16-23
Partslistandorderform.....................................................25
Introduction
Congratulations on your purchase of an Electrolux steam mop – designed to help you
care for your home environment. This Owner’s Guide will help you make the best possible
use of your new steam mop. Please begin by reading it, and keep it for future reference.
IMPORTANT: If you have questions about using your steam mop, call Electrolux’s
Customer Service Helpline. Your steam mop was thoroughly inspected and tested
before it left the factory. If you note any shipping damage, call the Helpline immediately.
Electrolux Helpline 1-800-896-9756
onday – Friday 8 a.m.- 7:30 p.m. (CST)
Saturday – Sunday 10 a.m.- 6:30 p.m. (CST)

ENGLISH
31
I PORTANT SAFEGUARDS
When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS STEAM MOP.
WARNING
To reduce t e risk of fire, electric s ock, or injury:
• Do not use outdoors.
• Do not leave steam mop when plugged in. Turn off the switch and unplug the electrical cord when not in use and before servicing.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended accessories.
• Do not use with damaged cord or plug. If steam mop is not working as it should, has been dropped, damaged, left outdoors, or dropped
into water, return it to a service center before using.
• Do not pull or carry by cord. Do not use cord as a handle. Do not close a door on cord or pull cord around sharp edges or corners.
Do not run steam mop over cord. Keep cord away from heated surfaces.
• Do not use extension cords or outlets with inadequate current carrying capacity.
• Turn off before unplugging.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or steam mop with wet hands.
• Do not put any object into openings. Do not use with any opening blocked.
• Store your steam mop indoors in a cool, dry area.
• Keep your work area well lighted.
• Do not use without cleaning pad in place.
• Use extra care when cleaning stairs.
• Never direct steam towards people, animals or plants.
• Do not immerse the steam mop into water or other liquids. Always unplug the power cord from the electrical socket when filling the
steam mop.
• Never put the descaling, aromatic, alcoholic or detergent products into the steam mop, as this may damage it or make it unsafe or use.
• Before filling with water, proceed as follows; (1) turn off the steam mop, (2) unplug the power supply.
• Do not leave steam mop unattended.
• Do not put hands or feet under steam mop.
• Not for space heating purposes.
SAVE THESE INSTRUCTIONS
FOR HOUSEHOLD USE ONLY
T e steam mop is designed as a complete c ange from old met ods of manual floor cleaning. This appliance is designed to
obtain excellent floor cleaning and effective sanitation of these areas.
Follow caution information whenever you see this symbol
Electrolux Customer Service Helpline 1-800-896-9756
!

2

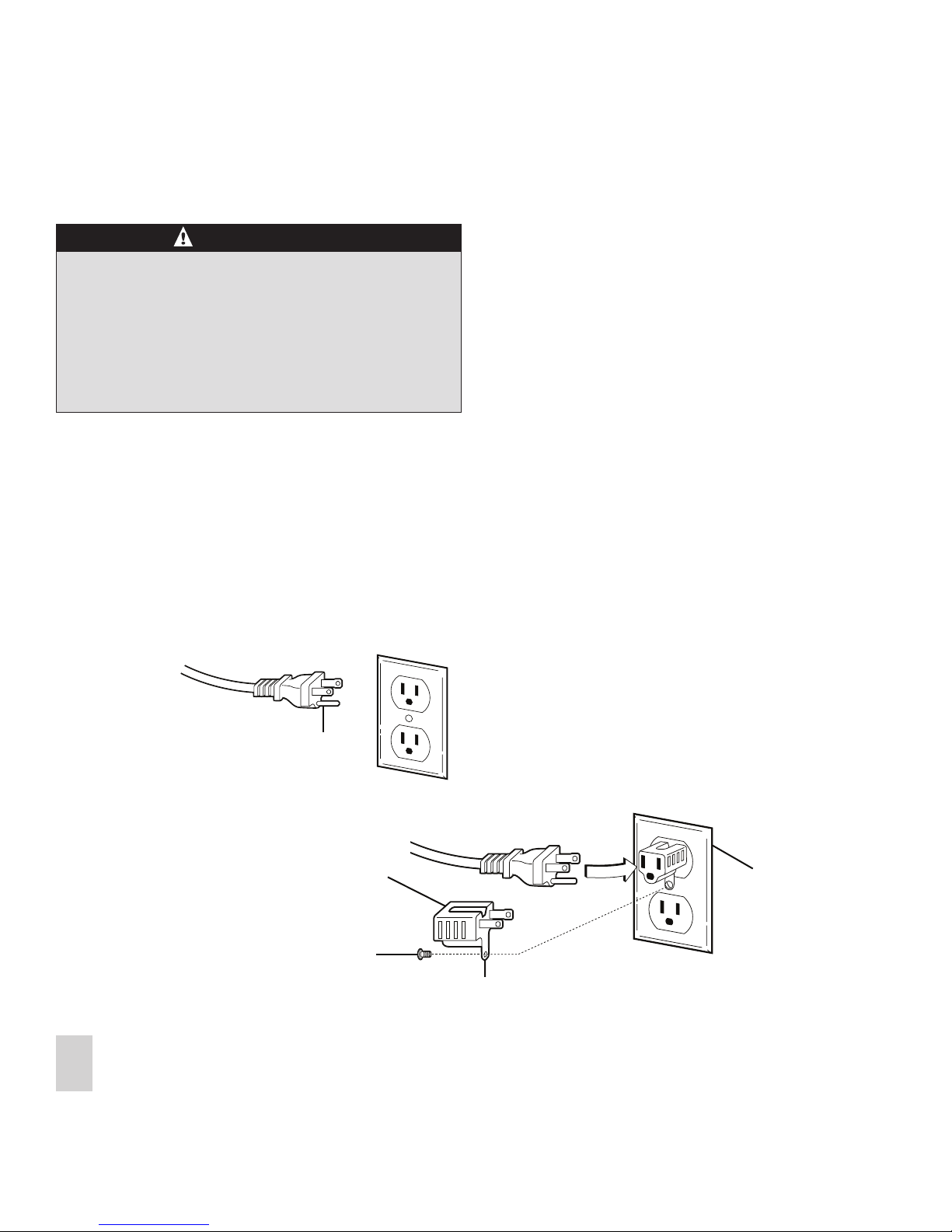

Grounding instructions
Metal screw
Grounding tab
Grounded
outlet box
Adapter
Fig. A
Fig. B
Grounding blade
Fig. B
D A N G E R
Improper connection of the equipment-grounding conductor
can resu t in a risk of e ectric shock. Check with a qua ified
e ectrician or service person if you are in doubt as to
whether the out et is proper y grounded. Do not modify the
p ug provided with the app iance –if it wi not fit the out et,
have a proper out et insta ed by a qua ified e ectrician.
This appliance must be grounded. If it should malfunction or
breakdown, grounding provides a path of least resistance for
electric current to reduce the risk of electric shock.
This appliance is equipped with a cord having an equipment
grounding conductor and grounding plug. The plug must be
inserted into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
This appliance is for use on a nominal 120 volt circuit and has a
grounding plug that looks like the plug illustrated in Figure A. A
temporary adapter which looks like the adapter illustrated in Figure
B may be used to connect this plug to a two-pole receptacle, as
shown, if a properly grounded outlet is not available.
The temporary adapter should be used only until a properly
grounded outlet, Figure A, can be installed by a qualified
electrician. The green colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent ground such
as a properly grounded outlet box cover. Whenever the adapter is
used, it must be held in place by a metal screw.
NOTE: In Canada, the use of a temporary adapter
is not permitted by the Canadian Electrical Code.

3
Electrolux Customer Service Helpline 1-800-896-9756
ENGLISH

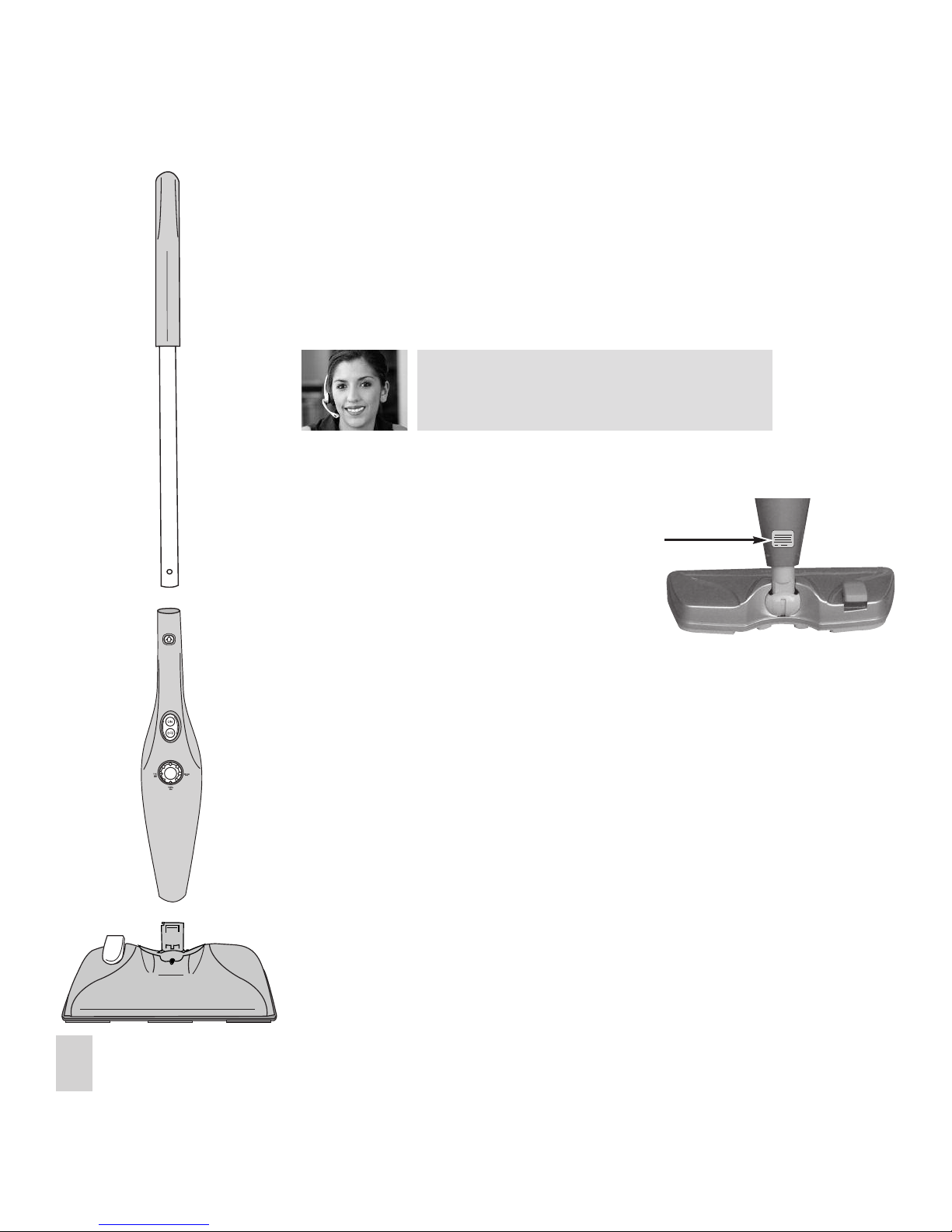

Steam mop parts
How to assemble your steam mop
O NER’S
GUIDE
Floor nozzle
Clean burst pedal
Important safeguards
Cleaning pads
Handle
On/off switch
Steam adjuster knob
Handle
release button
Upper
cord retainer
Lower
cord retainer
Cord clip
Water tank
Power cord
Water tank
release button


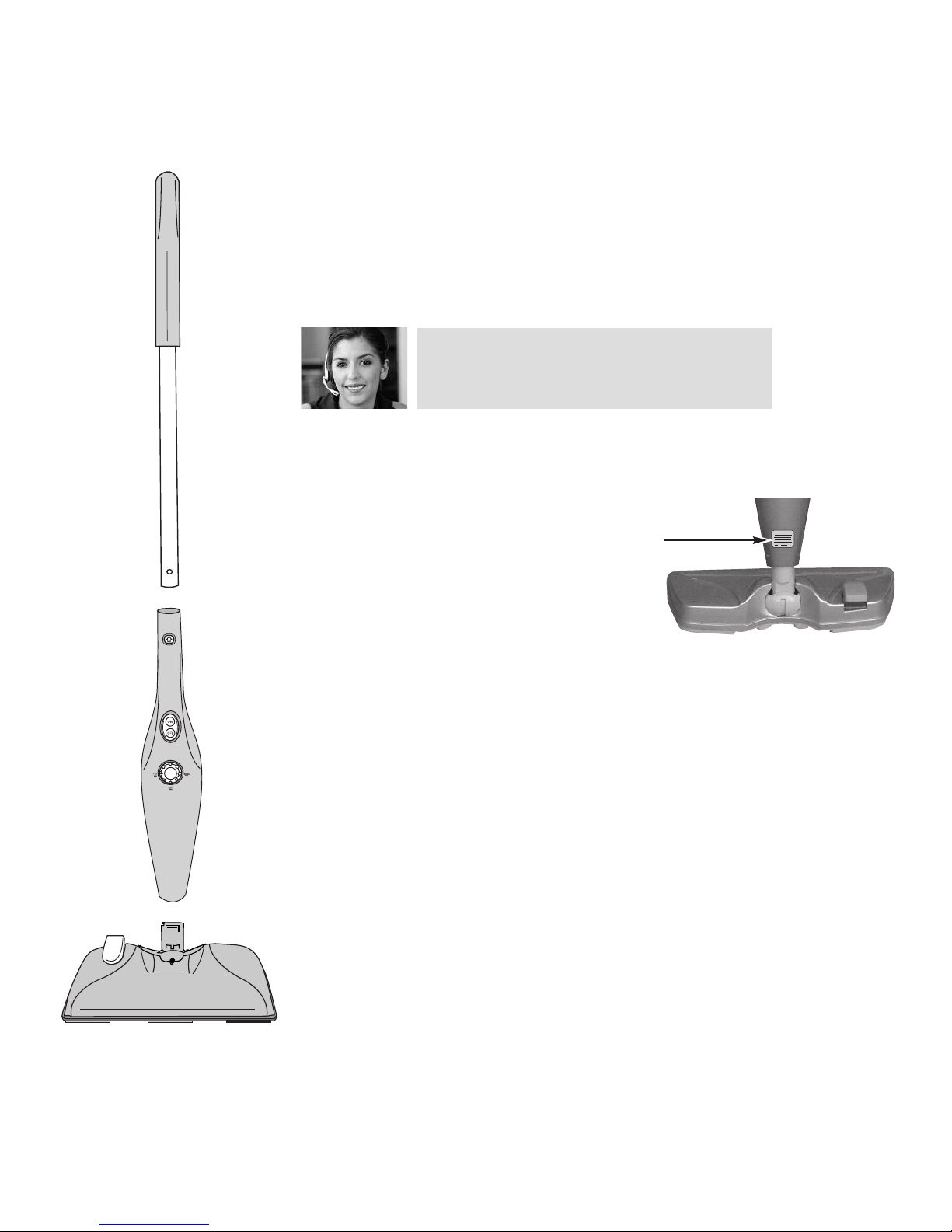

Align ridge on floor nozzle with notch
at bottom of steam mop. Push to
attach (Fig. 1).

Push handle onto steam mop until
release button snaps into opening
(Fig. 2).

Wrap power cord around upper and
lower cord retainers (Fig. 3).
Fig 1 Fig 2 Fig 3
SStteeaamm mmoopp
((ffrroonntt vviieeww))
SStteeaamm mmoopp
((bbaacckk vviieeww))

WOOD
VINYL
TILE
24

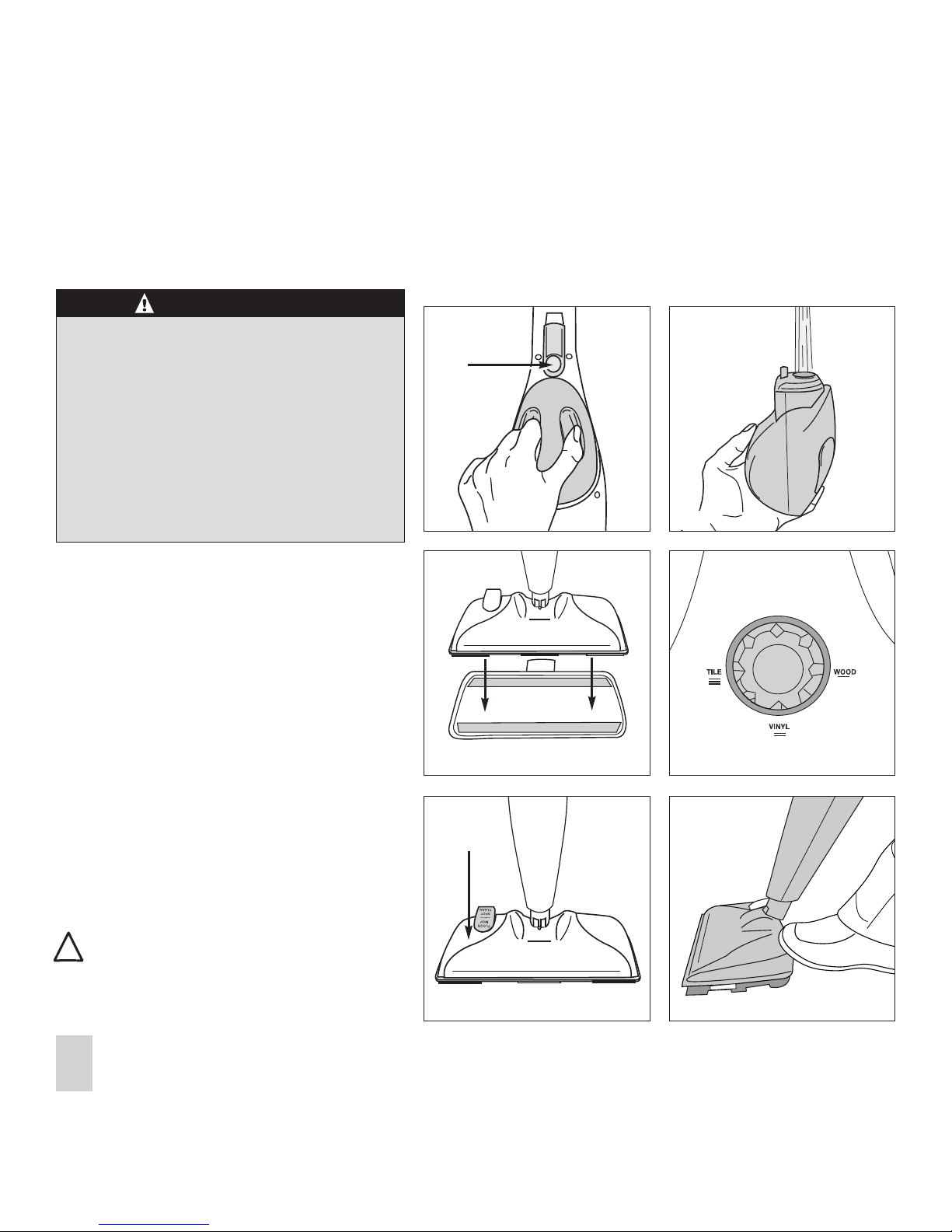

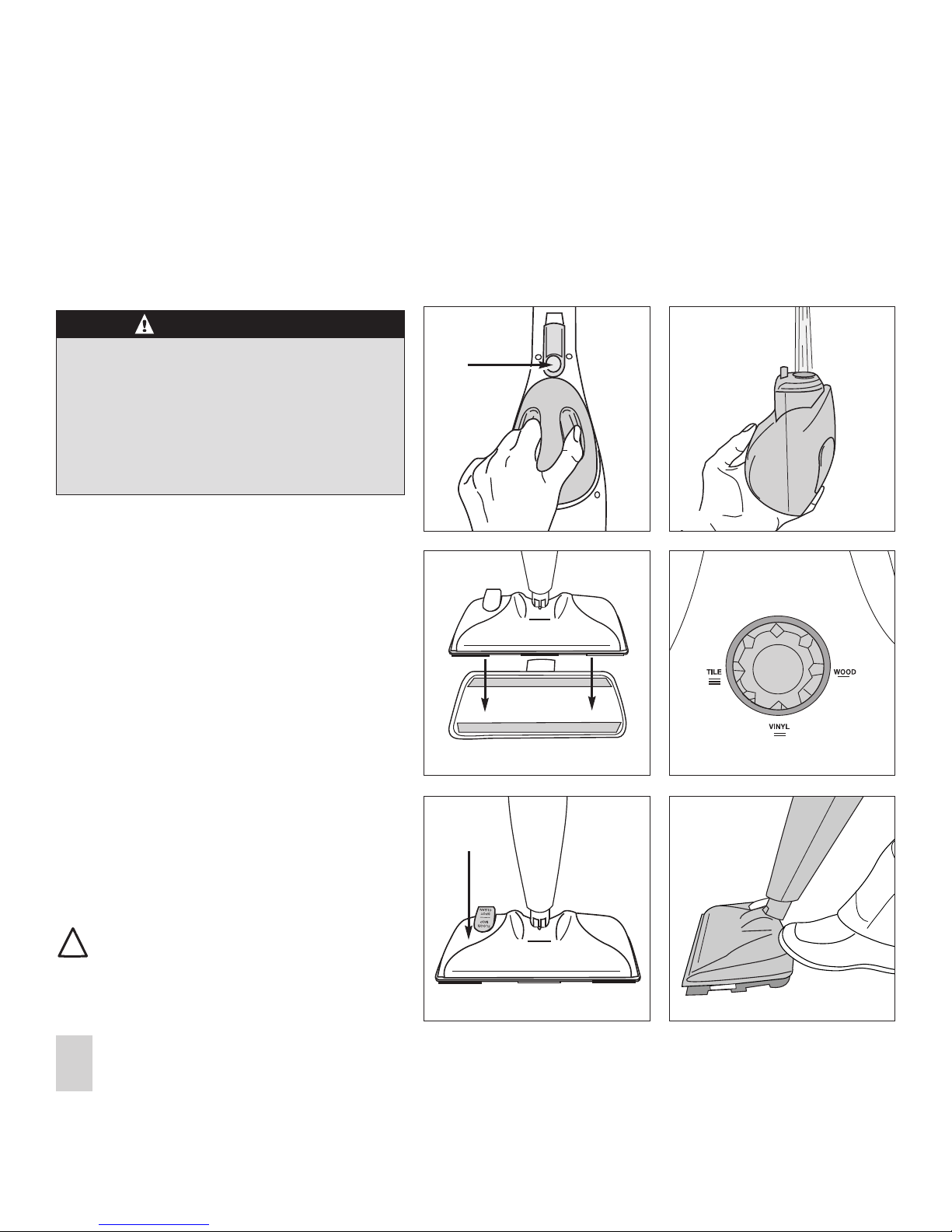

Using your steam mop
Fig 5 Fig 6
Fig 3 Fig 4
Fig 1 Fig 2
The Electrolux steam mop is designed for use on hard-surface floors such as ceramic, stone, marble, vinyl, linoleum,
and sealed hardwood. Do not use on unsealed wood floors. If uncertain, test in an isolated area such as a closet.
NOTE: Heat and steam may remove the sheen on waxed floors or on some no-wax floors. Check use and care
instructions from flooring manufacturer.
C A U T I O N

Be sure steam mop is turned off and unp ugged
before removing water tank.

Fi tank with c ear water on y. Do not use
chemica s, soap or detergent.

Never use steam mop without c eaning pad.

A ways direct steam away from yourse f. Never
direct steam toward peop e, anima s, or p ants.

Sweep or vacuum floor before using steam mop.


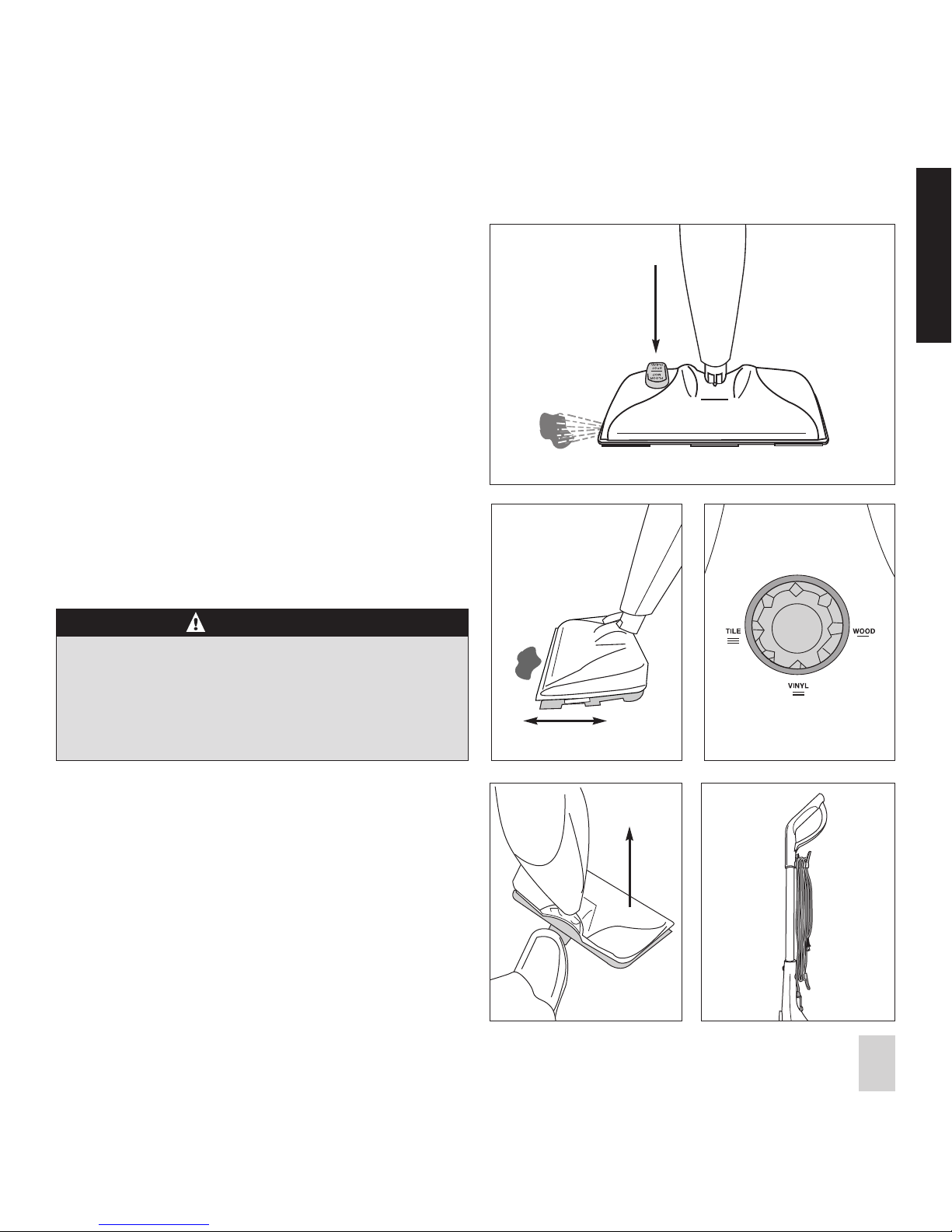

Press release button and lift off water tank (Fig.1).

Remove cap and fill tank with clean tap water. Do
not exceed maximum fill line (Fig. 2). In areas with
hard water, use distilled water for better
performance.

Put water tank back in place.

Place cleaning pad on floor with Velcro loop strips
facing up. Set floor nozzle onto pad (Fig. 3).

Turn knob to adjust steam output for type of floor
(Fig. 4). See page 5.

Press down front of clean burst pedal to ‘floor
mop’ position (Fig. 5).

Plug in and turn power switch to ‘on.’

Hold down floor nozzle and pull handle back to
comfortable angle for mopping (Fig. 6).
Do not leave steam mop standing on the
floor for any length of time while damp
cleaning pad is still on it. If you notice a whitish
halo’ on the floor surface, it can be removed
with a few drops of vinegar.
!

5
Electrolux Customer Service Helpline 1-800-896-9756
ENGLISH
Steam mop special features
Caring for your steam mop

Unplug and allow steam mop to cool before storing.

Always empty water tank after use.

Remove cleaning pad after use. Allow steam mop to cool
completely, then step on pad lip and lift off mop (Fig. 4).

Wrap power cord and store steam mop in upright position
(Fig. 5).

Wash cleaning pads in warm water, by hand or machine.
Do not use fabric softener. Lay flat to dry.
Fig.4 Fig. 5
Fig. 2 Fig. 3
Fig. 1
Clean burst pedal

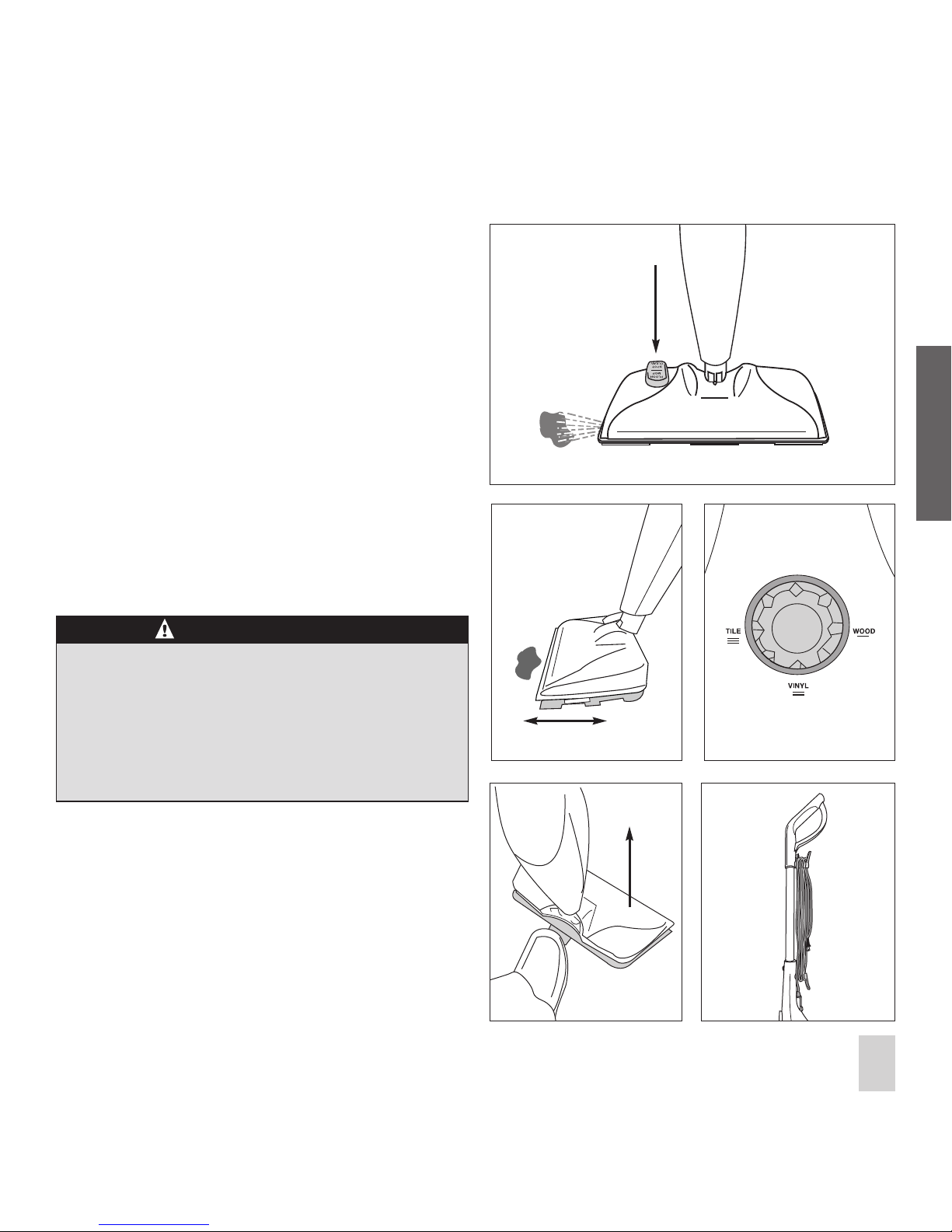

A special ‘clean burst’ feature provides a focused burst of
steam for spot cleaning difficult-to-remove soil.
To use the c ean burst feature:

Press clean burst pedal to ‘spot clean’ position for five to
10 seconds. Allow steam burst to spray onto dried spills or
spots (Fig. 1).

Return pedal to ‘floor mop’ position.

ove floor nozzle back and forth to clean soiled area (Fig. 2).
Variable steam settings
The steam mop has three settings, so you can select the
steam output appropriate for different floor surfaces (Fig. 3).

Ti e: This high setting is best on tile and marble floors.

Viny : edium setting for vinyl and linoleum.

Wood: Low setting for wood and laminate surfaces.
N O T I C E
The steam mop can ki dust mites and some types of
bacteria when used proper y. To disinfect a specific area,
position steam mop over the area for a minimum of eight
seconds. This a ows the f oor under the steam mop to reach
approximate y 170oF. Use this procedure to disinfect f oors
in bathrooms, pet s eeping quarters, etc.

6
Troubleshooting
For your safety, turn steam mop off and unplug power cord before attempting to resolve problems.
Problem
Steam mop will not start.
Steam mop will not
make steam.
Steam mop leaves
water on floor.
Steam mop leaves whitish
halo on vinyl floor.
Possible cause Solution
Power plug. Push plug securely into outlet, try another outlet,
or check circuit breaker.
No water in tank. Fill water tank. See page 4, Using your
steam mop.
Needs servicing. For service information in United States or
Canada. toll free: 1-800-896-9756.
No water in tank. Fill water tank. See page 4, Using your
steam mop.
Floor cleaning pad
too wet.
Change cleaning pad. If wood floor, dry the floor
before proceeding.
Steam mop left standing
in one spot too long.
Remove halo with a few drops of vinegar.
You are using
‘hard water.’
Use distilled water instead of tap water.
!
For service information in the United States
or Canada, p ease te ephone to free:
1-800-896-9756
You may a so visit us on ine at:
www.electroluxusa.com (USA) or
www.electrolux.ca (Canada)

7
Electrolux limited warranty
Your Electrolux cleaner is warranted to be free from all defects in material and workmanship
in normal household use for a period of two years. The warranty is granted only to the
original purchaser and members of his or her immediate household. The warranty is
subject to the following provisions.
This warranty does not cover parts of the cleaner that require replacement
under normal use.
Any damages or malfunctions caused by negligence, abuse, or use not in
accordance with the Owner’s Guide are not covered by this warranty. Likewise,
any defects or damages caused by unauthorized service or the use of other
than Genuine Electrolux parts are not covered.
Electrolux will, at its option, repair or replace a defective cleaner or cleaner part
that is covered by this warranty. As a matter of warranty policy, Electrolux will
not refund the consumer’s purchase price.
To register your warranty, please visit www.electroluxusa.com (USA),
www.electroluxca.com (Canada).
To obtain warranty service you must return the defective cleaner or parts along
with proof of purchase to any Electrolux Authorized Warranty Station.
For the location of the nearest Electrolux Authorized Warranty Station or for
service information in the United States or Canada, please telephone toll free:
1-800-896-9756
You may also visit us online at www.electroluxusa.com (USA)
or www.electroluxca.com (Canada)
Further limitations and exclusions are as follows
Any warranty that may be implied in connection with your purchase or use of the cleaner,
including any warranty of erchantability or any warranty for Fitness For A Particular
Purpose is limited to the duration of this warranty. Some states do not allow limitations
on how long an implied warranty lasts, so the above limitations may not apply to you.
Your relief for the breach of this warranty is limited to the relief expressly provided above.
In no event shall Electrolux be liable for any consequential or incidental damages you may
incur in connection with your purchase or use of the cleaner. Some states do not allow
the exclusion or limitation of incidental or consequential damages, so the above limitation
or exclusion may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which
vary by state.
Electrolux Customer Service Helpline 1-800-896-9756
ENGLISH

Enregistrez votre a hat
Veuillez enregistrer votre achat à www.electroluxusa.com (É.-U.)
www.electroluxca.com (Canada) ou en postant la carte
d'enregistrement du produit ci-jointe.
Conservez ette information
Écrivez le modèle, le type et le numéro de série ici :
Date d'achat (conservez votre reçu) ______________
Numéro de modèle et type_______________________
Numéro de série _______________________________
Vous trouverez ces numéros sur une étiquette à
l'arrière de l'aspirateur dans la partie inférieure. Reportez-vous à ces numéros
en commandant des pièces, des accessoires ou s'il faut du service.
Pour le servi e Ele trolux
Les centres de service autorisés Electrolux offrent la maintenance, les pièces et la
réparation. Pour trouver le Centre de service le plus proche, rendez-vous à
www.electroluxusa.com ou appelez le [phone].
Table des matières
Précautions importantes et caractéristiques de sécurité . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Instructionsdemiseàlaterre................................................ 10
Piècesdelavadrouilleàvapeur...............................................11
Comment effectuer l’assemblage de votre vadrouille à vapeur . . . . . . . . . . . . . . . . . . . . . . . . 11
Utilisationdevotrevadrouilleàvapeur ..........................................12
Fonctionnalités particulières de la vadrouille à vapeur . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Entretiendevotrevadrouilleàvapeur...........................................13
Dépannage ..............................................................14
Garantie limitée Electrolux..................................................15
Guidedupropriétaire,français ..............................................8-15
Guidedupropriétaire,espagnol ............................................16-23
Liste de pièces et bon de commande ........................................25
Introdu tion
Félicitations pour votre achat d’une vadrouille à vapeur Electrolux – conçue pour vous
aider à entretenir votre foyer. Ce guide du propriétaire vous aidera à utiliser le mieux possi-
ble votre nouvelle vadrouille à vapeur. Veuillez commencer par lire le guide et conservez-le
à titre de référence future.
IMPORTANT : Si vous avez des questions sur l’utilisation de votre vadrouille à vapeur, ap-
pelez la Ligne d’aide du Service à la clientèle Electrolux. Votre vadrouille à vapeur a été in-
spectée et testée exhaustivement avant de quitter l’usine. Si vous notez des dommages
d’expédition, appelez immédiatement la Ligne d’aide.
Ligne d'aide Electrolux 1-800-896-9756
Lundi au vendredi 8 h à 19 h 30 (HNC)
Samedi et dimanche 10 h à 18 h 30 (HNC)
8
