Electrolux EGL4401X User manual

instruzioni per l'uso
manual de instrucciones
ïäçãßåò ÷ñÞóçò
EGL4401X
EGL4400X

XXX XXX XXX - 00 - 20102005

Use & Care Manual
Assembly Instrucions Included
Outdoor Grill
with Electronic Ignition
READ AND SAVE THESE INSTRUCTIONS
Welcome & Congratulations . . . 2
General Safety Instructions . . . 3
Grill Features . . . . . . . . . . . . . . . 5
Grill Assembly
Side shelf
Built-In Instructions . . . . . . . 6-11
Gas Requirements
Leak Testing . . . . . . . . . . . . 12-14
Using the Gril . . . . . . . . . . . . . . 15
Lighting the Grill
Using the Rotisserie
& Side Burning . . . . . . . . . . 16-21
Care and Maintenance . . . . . . 22
Troubleshooting . . . . . . . . . 23-25
Warranty . . . . . . . . . . . . . . . . . . 26

WELCOME TO THE WORLD OF ELECTROLUX
Thank you for choosing a first class product from Electrolux, which hopefully
will provide you with lots of pleasure in the future. The Electrolux ambition is to
offer a wide variety of quality products that make your life more comfortable.
You find some examples on the cover in this manual.
Please take a few minutes to study this manual so that you can take
advantage of the benefits of your new machine.
We promise that it’ll make your life a little easier. Good luck!
2
Welcome & Congratulations

3
General Safety Instructions
GENERAL INFORMATION FOR COOKING APPLIANCES
You MUST read these warnings carefully before installing or using the
appliance. If you need assistance, contact our Customer Care Centre.
Keep this instruction book for future reference and ensure it is passed on to any
new owner.
INSTALLATION
It is mandatory that all operations required for the installation are carried out
by a qualified or competent person, in accordance with existing rules and
regulations.
Remove all packaging before using the appliance
Once you removed all packaging from the appliance, ensure that it is not
damaged and in perfect condition. Otherwise, contact your dealer before
proceeding with the installation.
Do not attempt to modify the appliance in any way.
It is dangerous to alter the specification in any way.
Any gas installation must be carried out by a registered competent person,
and in accordance with existing rules and regulations.
The manufacturer will not accept liability, should the above instructions or any
of the other safety instructions incorporated in this book be ignored.
CHILD SAFETY
This appliance is designed to be operated by adults. The appliance gets hot
when it is in use. Do not allow children to play near or with the appliance.
Children should be kept away until it has cooled. Children can also injure
themselves by pulling pans or pots off the appliance.
DURING USE
Ensure a good ventilation around the appliance. A poor air supply could cause
lack of oxygen.
Do not use this appliance if it is in contact with water. Do not operate the
appliance with wet hands.
Ensure the control knobs are in the ‘OFF’ position when not in use.
When using other electrical appliances, ensure the cable does not come into
contact with the hot surfaces of the appliance.
Never leave the appliance unattended when cooking with oil and fats.
Never use plastic or aluminium foil dishes on the appliance.
Perishable food, plastic items and aerosols may be affected by heat and
should not be stored above or below the hob unit. Never use the appliance as a
working space. Do not store things on the appliance.

4
General Safety Instructions
For hygiene and safety reasons, this appliance should be kept clean at all
times. A build-up of fats or other foodstuff could result in a fire.
Take care when frying food in hot oil or fat, as the overheated splashes could
easily ignite.
Carefully supervise cookings with fats or oil, since these types of foodstuff can
result in a fire, if over-heated.
If the appliance is out of order, disconnect it from the gas supply.
Never use steam or high pressure steam cleaners to clean the appliance.
SERVICE
This appliance should only be repaired or serviced by an authorised Service
Engineer and only genuine approved spare parts should be used. Repairs carried
out by unexperienced persons may cause injury or serious malfunctioning.
ENVIRONMENTAL INFORMATION
After installation, please dispose of the packaging with due regard to safety
and the environment.
When disposing of an old appliance, make it unusable, by cutting off the
cable. The symbol on the product or on its packaging indicates that this product
may not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. For more
detailed information about recycling of this product, please contact your local city
office, your household waste disposal service or the shop where you purchased
the product.

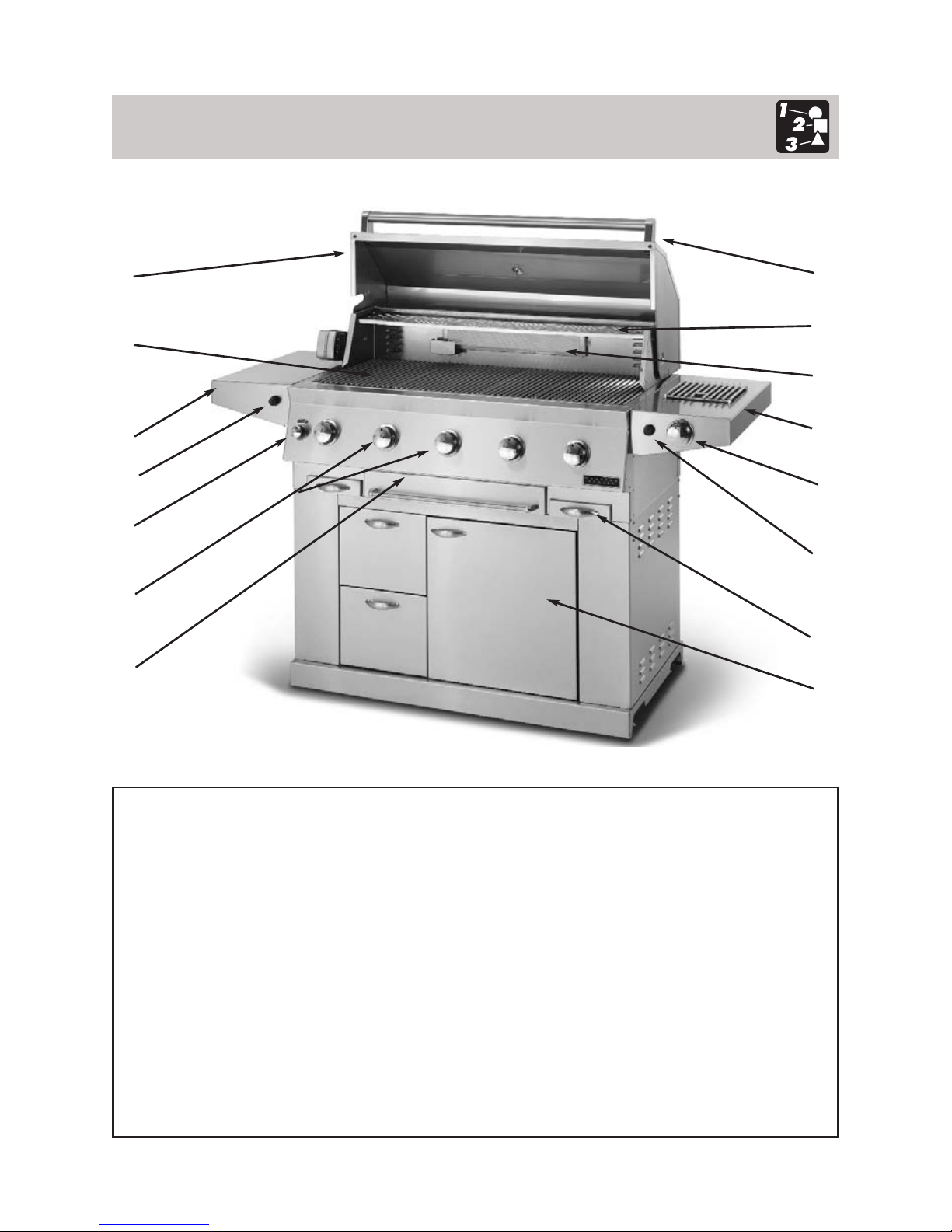

5
Grill Features
2
17
8
9
13
14
10
10
12
11
5
6
4
3
1. Roll top grill hood
2. Grilling/Cooking surface
3. Side Shelf
4. Control knob: back
infrared burner
5. Control knobs: main burners
6. Warming drawer
7. Handle
8. Warming shelf
9. Infrared back burner
10.Electronic ignitors: main,
rear infrared & side burner
11. Cart with door
12. Drip Pans
13. Side Burner
14. Control knob: Side Burner

6

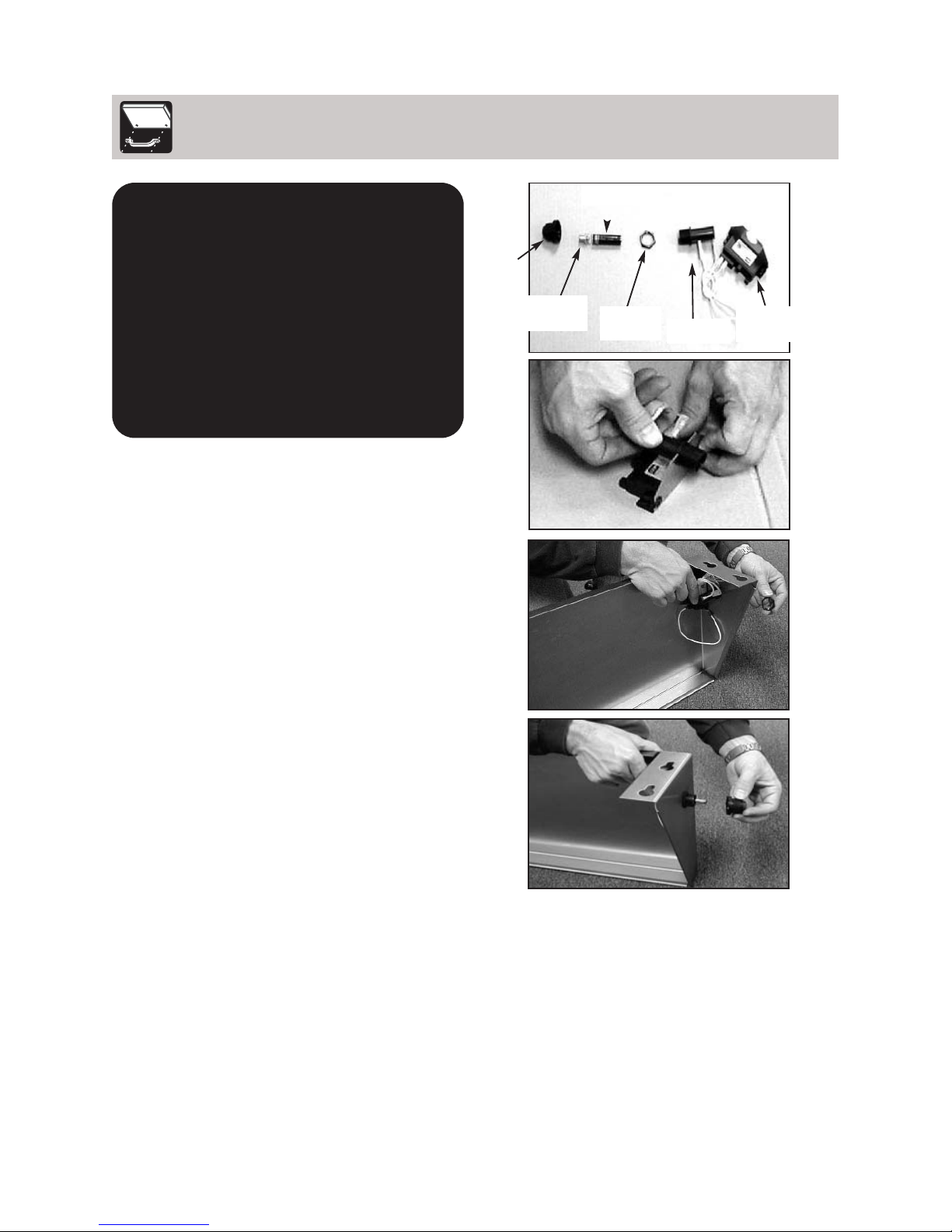

IGNITOR ATTACHMENT
1. Remove the ignitor cap, spring
assembly, battery and lock nut from
ignitor. (See Fig. 1)
2. Insert the threaded section of the
ignitor into the U-shaped cut out of
the ignitor mounting bracket.
(See Fig. 2)
3. Insert the threaded section of the
ignitor through the hole in the shelf
and secure to shelf using the lock
nut. (Use the ignitor assembly
diagrams to determine which
ignitor goes with which shelf
depending on grill model.) Tighten
Securely. (See Fig. 3)
4. Re-insert the battery, positive side
first, and spring assembly and
attach the ignitor cap. (See Fig. 4)
5. Repeat above steps for second
ignitor on the Side Burner.
IMPORTANT: Remove all
protective plastic film from
stailess steel parts prior to
assebly/use. This film is
installed at the factory to
prevent damage that could
occur during shipment and
handling.
Grill Assembly
Battery
Mounting
Bracket
Cylinder
Cap
Locking
Nut
Spring
Fig. 1
Fig. 2
Fig. 3
Fig. 4

7
SIDE SHELF AND SIDE BURNER
ATTACHMENT
1. Loosen the bolts on the side of
the grill attach the shelf by
allowing the bolt fall through the
large opening in the the keyhole
slots. Then slide the shelves
downward until the bolts are
resting the top of the key hole
slots. Tighten the shelf bolts.
(See Fig. 5)
2. Attach the wires coming out from
the the grill to the ignitor
terminals. (See Fig. 6)
NOTE: It does not matter which wire
goes terminal on the four wire
ignitor
3. Attach the side burner by
allowing the heads to fall
through the large opening
bottom of the keyhole slots.
Then slide side burner downward
until the bolts resting against the
top of the key hole Tighten all of
the side burner bolts.
4. Attach the Flex Line coming from
the the grill to the fitting on the
bottom of Side Burner.
(See Fig. 7)
5. Attach the ignitor wires coming
out side of the grill to ignitor
terminals. (See Fig. 8)
NOTE: It does not matter which wire
goes terminal on the four wire
ignitor
Side shelf
Attach to fitting
Ignitor
wires
hookup
Fig. 5
Fig. 6
Fig. 7
Fig. 8

8
Grill Assembly
INTERIOR PARTS INSTALLATION
1. Check to make sure the bottom
Flavor Grids are correctly installed
in the cutouts and around the
ignitors, as they may have shifted
during shipment.
(See Fig. 9)
2. Insert the second row of Flavor
Grids into cutouts with triangle
ridges facing up.
(See Fig. 10)
3. Install cooking grates on the ledges
provided on the grill to create your
cooking surface. (placing the one
with a thumb hole in the middle)
(See. Fig. 11)
4. Place warming shelf on support
brackets by setting it flat across
brackets allowing the two holes to
line up with the stops on each
bracket. (See Fig. 12)
Bottom Flavor Grids
in between burners
Fig. 9
Fig. 10
Fig. 11
Fig. 12

9
PLANNING AND DESIGN
Start by identifying the number and size of components you want to include:
Grill, side burner, access doors for storage or other items you may wish to furnish
such as: refrigerator, sink, warming drawer. Countertops must be constructed
with non-combustible, outdoor-safe materials. Consider outdoor lighting to
illuminate after-dark Grilling. Review the drawings on the following pages to
determine the exact dimensions and items needed for a built-in Grill. Keep in
mind that the gas line hook-up is on the right hand side for the main Grill head.
The structure, Grill and support items must be kept level throughout the
installation to ensure proper operation.
LOCATION
Take into account convenience and visual impact as well as traffic flow, wind
exposure, and the site’s structural suitability. The Grill should never be placed in
an enclosed area without an approved ventilation system, or beneath a
combustible overhang. Because the Grill exhausts to the rear, it should never be
located in front of a window or less than 30 cm from hard-to-clean surfaces.
We recommend keeping your gas supply lines as short as possible for best
performance. To ensure a perfect fit, we strongly recommend that you have all
components on hand prior to final construction.
CLEARANCE TO NON-COMBUSTIBLE CONSTRUCTION
For your safety a minimum of 8 cm clearance from the back of the Grill to
non-combustible construction is required.
You should allow at least 15 cm side clearance to non-combustible
construction. The Electrolux Grill can be placed directly adjacent to non-
combustible construction below the cooking surface.
The Electrolux Grill: model EGL4401X can be installed as a
built-in Grill. If installed as a built-in Grill, the Grill surround
must be constructed of Non-combustible material.
Built-In Instructions
for model EGL4401X
WARNING
!

10
OUTBOARD IGNITOR PLATE INSTALLATION
The electronic ignitor requires a standard size electrical box, (available at a
local hardware store), with a minimum depth of 6 cm to be mounted in the
structure. It should be placed on the left front or left side of the built-in island,
with the center of the ignitor button no more than ca 10 cm from the Grill. The
ignitor plate (included with the model EGL4401X), fits over the standard electrical
box once mounted in the structure. (See drawing on following page). The ground
wire for the ignitor needs to be grounded to a metal structure in order for the
ignitor to work.
UTILITIES
The optional rotisserie kit requires a 230 volt electric supply and GFI
receptacle, that should be installed by a qualified electrical technician. If your plan
includes a sink, arrange for your plumber to run a water line to the site.
Built-In Instructions
for model EGL4401X

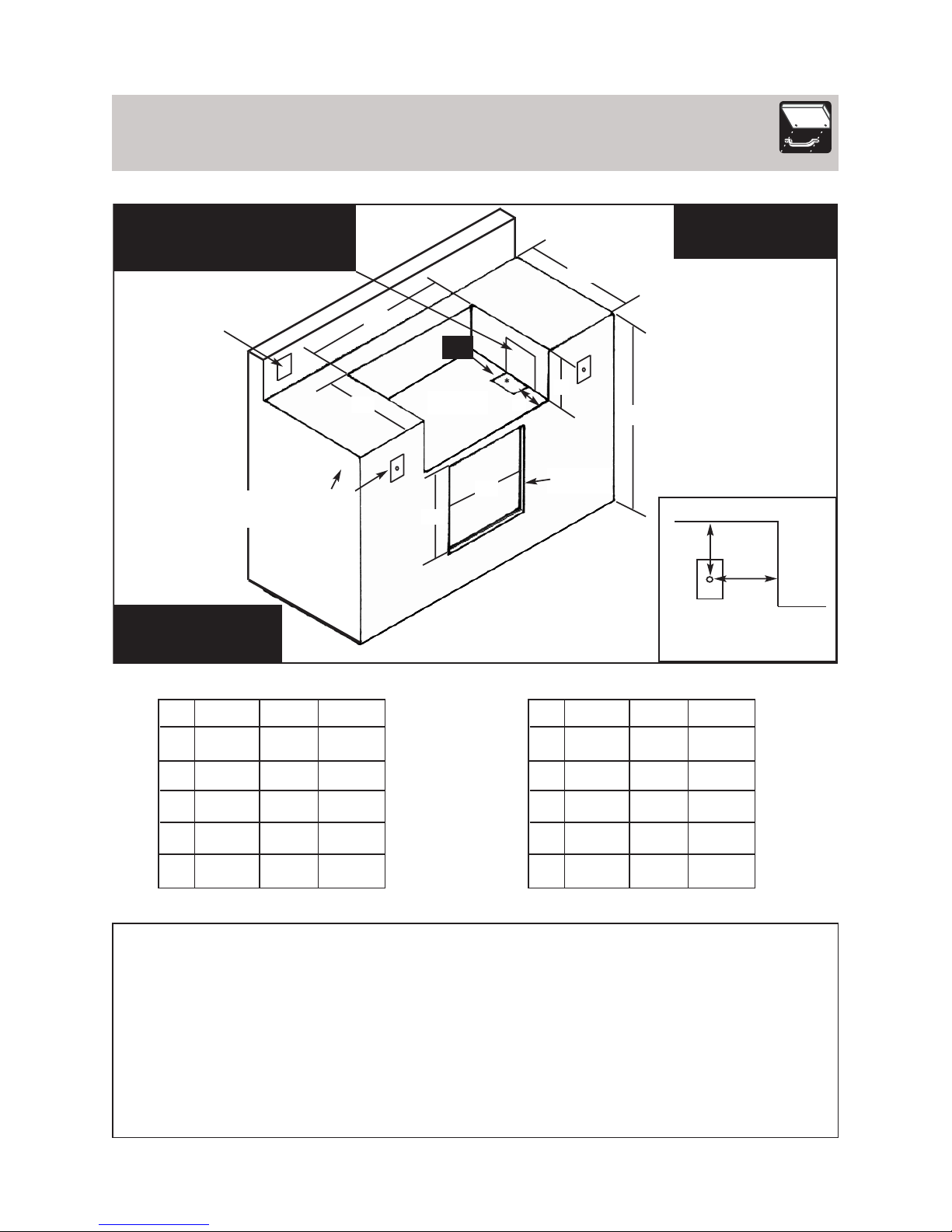

11
90 cm Max.
70 cm Min.
B
D
E
C
*Gas
Cutout
5 cm
Opening
for access
door(s)
A
B
C
D
E
112 cm
112 cm
54 cm
22 cm
N/A
N/A 47 cm
46 cm
47 cm
N/A
N/A
N/A
N/A
N/A
N/A
92 cm
ca 10 cm
ca 10 cm
Grill
Distance to center of ignitor
button from side of gril
IGNIT OR PLATE
INSTALLATION
Side cutouts are needed on each side to feed
ignitor wires to the ignitor plates and allow
access to side gas connections .
(Size: 25 cm high x 12.5 cm long, set 1
back from front edge)
A
GFI Electrical outlet
for rotisserie motor
Built-in dimensions without using a Trim Kit Built-in dimensions using a Trim Kit
Floor Support
area for grill
Note: Make sure to use a
non-combustible base and
sides for the structure
*A minimum 8 cm clearance is
required between the back of the
grill hood and a non-combustible
surface.
counter top
*Required Ignitor cutout
for front or side mount
44
Grill
Single
Access
Door
Dual
Access Door
A
B
C
D
E
112 cm
112 cm
53 cm
33 cm
N/A
N/A 47 cm
46 cm
47 cm
N/A
N/A
N/A
N/A
N/A
N/A
92 cm
44
Grill
Single
Access
Door
Dual
Access Door
Additional Requirements:
* Gas connection cut out in floor support needs to be 10 cm wide x 23 cm long, set 5 cm back
from front edge.
* Ignitor cutout is equal to a standard electrical outlet with a minimum depth of 6 cm.
* If using a backsplash apron or rear wall, locate electrical service on the left hand side for
rotisserie motor connection.
* A minimum clearance of 30 cm from the back must be maintained between the grill
and any combustible construction such as wood siding of a residence, 8 cm minimum
for non-combustible construction.
Built-In Instructions
for model EGL4401X

12

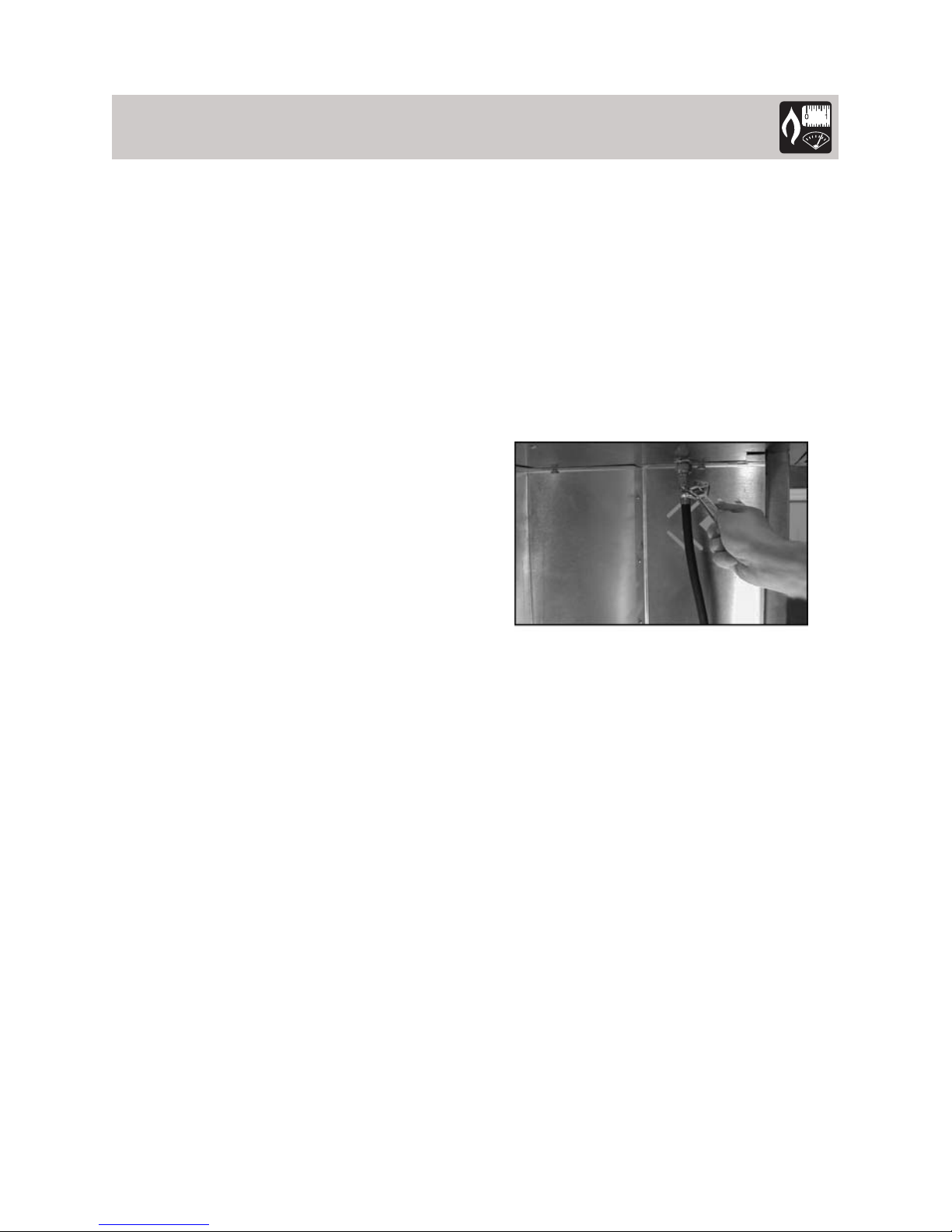

For the correct installation of the
connection kit to the grill it is necessary
to screw the exit junction of the kit
placed at the end of the flexible hose
to the gas inlet of the grill. In order to
obtain a proper sealing of the junction
it is necessary to complete the
screwing using a adjustable wrench
(see Fig.13)
The connection kit is designed
in a way that do not require additional
gaskets to guarantee a proper sealing.
After having installed the connection kit
verify the correct sealing of the gas
connections following the Pre
Operation Leak Testing instructions
contained in this manual.
Gas Requirements
GENERAL INFORMATION
Never attach an unregulated gas line
to the appliance. Connection to an
unregulated gas line can cause
excessive heat or fire.
Verify the type of gas supply to be used,
Liquid Propane or Butane (L.P.).
NOTE: Always have a qualified service
technician perform difficult
conversions or modifications.
All pipe sealants must be an
approved type and resistant to the
actions of L.P. gases. Never use pipe
sealant on flare fittings. All gas
connections should be made by a
competent qualified service technician
and in accordance with local codes and
ordinances. The installation of this grill
must conform with local codes.
L.P. GAS INSTALLATION
Electrolux Gas Grills that are set to
operate with L.P. gas come with a gas
bottle connection kit in a separate box.
(Note:Only use gas bottle connection kit
supplied with the grill or replacement kit
specified by Electrolux).
This assembly is designed to
connect directlythe grill to a standard
L.P. tank. L.P. tanks are not included
with the grill and can be purchased
separately at an indipendednt dealer.
For the correct installation of the
connection kit to the L.P. tank please
refer to the specific instructions coming
with the connection kit.
Fig. 13

13
Gas Requirements
L.P. TANK INFORMATION
Never use a dented or rusted L.P. tank or cylinder with a damaged valve.
Cylinders must not be stored in a building, garage, or any other enclosed area.
L.P. TANK USE
• When turning the L.P. tank on, make sure to open the valve SLOWLY two (2)
complete turns to insure proper gas flow.
• When not in use, gas supply cylinder valve is to be in the “OFF” position.
• The tank supply system must be stored upright to allow for vapor withdrawal.
• The regulator and hose assembly must be inspected before each use of the
grill. If there is excessive abrasion or wear or if the hose is cut, it must be
replaced prior to the grill being used again.
• Cylinders must be stored in accordance with local codes.
• Do not store a spare L.P. gas cylinder under or near the grill.

14
Pre Operation
GENERAL INFORMATION
Although all gas connections on the grill are leaked tested at the factory prior
to shipment, a complete gas tightness check must be performed at the
installation site due to possible mishandling in shipment, or excessive pressure
unknowingly being applied to the unit. Periodically check the whole system for
leaks, or immediately check if the smell of gas is detected.
BEFORE TESTING
Do not smoke while leak testing. Extinguish all open flames. Never leak test
with an open flame.
Mix a solution of equal parts mild detergent or liquid soap and water.
TESTING
1. Turn off the burner control knobs.
2. Turn the top knob of the fuel supply cylinder counterclockwise (right to left)
one rotation to open.
3. Apply the soap solution to connections of the fuel supply assembly. If no soap
bubbles appear, there is no gas leak. If bubbles form at the connections, a
leak is detected. (If a leak is detected, immediately turn off the gas supply,
tighten any leaking fittings, turn gas on, and receck).
4. Turn off the knob on the fuel supply cylinder.
5. Turn on the burner control knobs for a moment to release the pressure in the
hose, then turn the control knobs back off.
6. Wash off soapy solution with cold water and towel dry.
NOTE: If you cannot stop a gas leak turn off the gas supply call the dealer you
purchased the appliance from.
If necessary, replace the faulty part with a manufacture recommended
replacement part. When leak testing this appliance, make sure to test and
tighten all loose connections. A slight leak in the system can result in a
low flame, or a hazardous condition.
Check all gas supply fittings before each use and each time the gas supply
cylinder is connected to the regulator.
Leak test any time a part of the gas system is replaced. Perform a leak test at
least once a year whether or not the L.P. gas supply cylinder has been
disconnected.

15
Using the Grill
GRILL LOCATION
Do not use the grill in garages, breezeways, sheds or any enclosed area.
Never operate the grill in enclosed areas as this could lead to a carbon monoxide
buildup, which could result in injury or death. Place the grill on a level surface.
Avoid moving the grill while it is operation.
NOTE: The grill will operate best if it is not facing directly into the wind.
Clearance to combustible construction - A minimum of 30 cm from the sides
and back must be maintained from the gas grill above and below the cooking
surface to adjacent vertical combustible construction.
Clearance to non-combustible construction - A minimum of 8 cm clearance
from the back of the grill to non-combustible construction is required for the lid to
fully open.
GENERAL RULES
Do not leave the grill unattended while cooking!
1. Make sure the grill has been leak tested and is properly located.
2. Light the grill burners using the instructions on this page.
3. Turn the control knobs to “High” and preheat the grill for 10 minutes.
4. Place the food on the grill and cook to the desired doneness.
Adjust heat setting between “High” and “Low” if necessary.
5. Allow grill to cool down and clean the drip tray after each use.
* Keep any electrical supply cords and the fuel supply hose away from any
heated surfaces.
* The location of the burner tube with respect to the the orifice is vital
for safe operation. Check to ensure the orifice is inside of the burner
tube before using your grill. This is Very Important.

16
BEFORE LIGHTING
Important!
Before Lighting...
Check the gas supply line for cuts,
wear or abrasion.
Always keep your face and body as
far away from the grill as possible when
lighting.

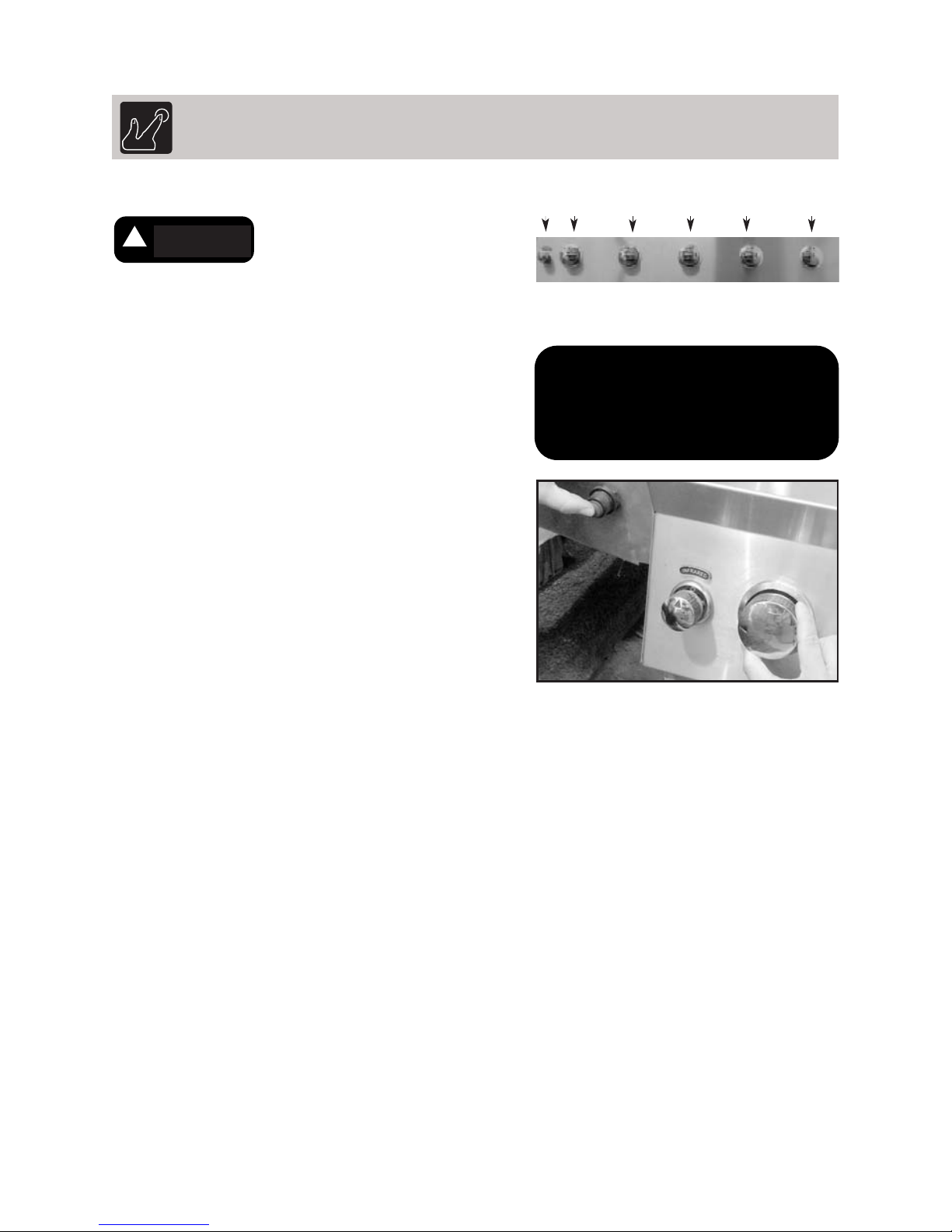

GRILL BURNER LIGHTING
This unit comes equipped with (2)
electronic starters and (4) electrodes.
The electronic starter located on the
right shelf lights the Side Burner.
The electronic starter on the left shelf
lights the Main Burners, which are
controlled by Knobs 1, 2, 3, 4 & 5.
The left electronic starter also lights
the Back Infrared Burner.
LIGHTING THE GRILL WITH
ELECTRONIC IGNITORS
Always open the lid before
attempting lighting.
Push and turn one of the control
knobs counter clockwise to the “HIGH”
position and immediately press the
electronic ignitor button. You’ll hear a
snapping sound. It may be necessary to
hold the electronic starter button for
about 4 seconds. If the burner does not
light in 4 seconds, turn the knob to OFF
and wait 5 minutes before trying again.
Repeat above steps to light
remaining burners. (See Fig. 14)
Lighting the Grill
Fig. 14
Do not attempt to “Light”
the grill if the odor of gas
is present!!
Back
Infrared
Knob
nr. 5
Knob
nr. 4
Knob
nr. 3
Knob
nr. 2
Knob
nr. 1
WARNING
!

17
Lighting the Grill
MATCH LIGHTING
If by chance the electronic ignitor
does not light the burner, the burner
may be lit with a match. Keep your
face as far away from the Grill surface
as possible and pass a lit, long stem
match through the spaces in the Grill
rack to the ports of the back crossover
burner between the flavor grids.
Position the match near the burner
ports and push and turn the control
knob counter clockwise to the “HIGH”
position. (See Fig. 15)
NOTE: If the grill will not light after
several attempts see the
Troubleshooting section of this
manual. Turn the control knobs
to the OFF position when not
in use.
CONTROL KNOB
LAYOUT:
The control knob
bezel has stamped
markings for the
HIGH and LOW
settings. Turning
the knob so the
arrow faces the left
is the HIGH
setting. Turning
the knob so the
arrow faces down
is the LOW setting.
Fig. 15

18
Using the Rotisserie & Side Burners
Note: ROTISSERIE KIT is an accessory and must be
purchased separately and is only available on some markets.
The grill rotisserie system is designed to cook items from the back using
infrared heat. The rotisserie burner is an infrared type which provides intense
searing radiant heat. Preferred by chefs over other cooking methods, this intense
heat is magnificent for searing in the natural juices and nutrients found in quality
cuts of meats.
Once lit, the rotisserie burner will reach cooking temperatures in 1 minute.
The orange/red glow will even out in about 5 minutes. The rotisserie motor is
equipped with metal gears and is capable of turning up to 9 kg of food. The
motor is mounted on a bracket on the left side of the grill by sliding the motor
over the bracket with the cord facing the back of the grill. Make sure the motor is
straight prior to operating.
ELECTRICAL GROUNDING INSTRUCTIONS
This appliance (rotisserie motor) is equipped with a
grounding plug for your protection against shock
hazard and should be plugged directly into a properly
grounded receptacle. Do not cut or remove the
grounding prong from this plug.
WARNING
!
