Electrolux EHD60100P User manual

user manual
Induction hob
EHD60100P

We were thinking of you
when we made this product

electrolux 3
Welcome to the world of Electrolux
Thank you for choosing a first class
product from Electrolux, which hopefully
will provide you with lots of pleasure in
the future. The Electrolux ambition is to
offer a wide variety of quality products
that make your life more comfortable.
You will find some examples on the cov-
er in this manual. Please take a few min-
utes to study this manual so that you
can take advantage of the benefits of
your new machine. We promise that it
will provide a superior User Experience
delivering Ease-of-Mind. Good luck!

4electrolux contents
Contents
Safety instructions 5
Description of the Appliance 7
Operating the appliance 11
Tips on Cooking and Frying 23
Cleaning and Care 28
What to do if … 30
Disposal 32
Installation Instructions 33
Assembly 35
Guarantee/Customer
Service 40
Service 42
T
he following symbols are used in this user manual:
1
Important information concerning your personal safety and information on
how to avoid damaging the appliance.
3General information and tips
2Environmental information

safety instructions electrolux 5
Safety instructions
Please comply with these instructions. If
you do not, any damage resulting is not
covered by the warranty.
5
This appliance conforms with the
following EU Directives:
–73/23/EEC dated 19.02.1973 Low
Voltage Directive
–89/336/EEC dated 03.05.1989 EMC
Directive inclusive of Amending Di-
rective 92/31/EEC
–93/68/EEC dated 22.07.1993 CE
Marking Directive
Correct use
•People (including children) who, be-
cause of their physical, sensory or
mental capabilities or their inexperi-
ence or ignorance are not able to use
the device safely, should not use this
device without supervision or in-
struction by a responsible person.
•This appliance should be used only
for normal domestic cooking and fry-
ing of food.
•The appliance must not be used as a
work surface or as a storage surface.
•Additions or modifications to the ap-
pliance are not permitted.
•Do not place or store flammable liq-
uids, highly inflammable materials or
fusible objects (e.g. plastic film, plas-
tic, aluminium) on or near the appli-
ance.
Children’s safety
•The cooking zones will become hot
when you cook. Therefore, always
keep small children away from the
appliance.
For Australia:
•The appliance is not intended for use
by young children or infirm persons
without supervision.
•Young children should be supervised
to ensure that they do not play with
the appliance.
•To avoid small children and pets un-
intentionally switching the appliance
on, we recommend activation of the
child safety device.
General safety
•The appliance may only be installed
and connected by trained, registered
service engineers.
•Built-in appliances may only be used
after they have built in to suitable
built-in units and work surfaces that
meet standards.
•In the event of faults with the appli-
ance or damage to the glass ceramic
(cracks, scratches or splits), the ap-
pliance must be switched off and
disconnected from the electrical
supply, to prevent the possibility of
an electric shock.
•Repairs to the appliance must only
be carried out by trained registered
service engineers.

6electrolux safety instructions
Safety during use
•Remove stickers and film from the
glass ceramic.
•There is the risk of burns from the
appliance if used carelessly.
•Cables from electrical appliances
must not touch the hot surface of the
appliance or hot cookware.
•Overheated fats and oils can ignite
very quickly. Warning! Fire hazard!
•Switch the cooking zones off after
each use.
•Users with implanted pacemakers
should keep their upper body at least
30 cm from induction cooking zones
that are switched on.
•Risk of burns! Do not place objects
made of metal, such as knives, forks,
spoons and saucepan lids on the
cooking surface, as they can get hot.
Safety when cleaning
•For cleaning, the appliance must be
switched off and cooled down.
•For safety reasons, the cleaning of
the appliance with steam jet or high-
pressure cleaning equipment is not
permitted.
How to avoid damage to the appli-
ance
•The glass ceramic can be damaged
by objects falling onto it.
•The edge of the glass ceramic can
be damaged by being knocked by
the cookware.
•Cookware made of cast iron, cast
aluminium or with damaged bottoms
can scratch the glass ceramic if
pushed across the surface.
•Objects that melt and things that boil
over can burn onto the glass ceramic
and should be removed straighta-
way.
•Do not use the cooking zones with
empty cookware or without cook-
ware.
•To avoid damaging cookware and
glass ceramics, do not allow sauce-
pans or frying pans to boil dry.
•The ventilation gap of 5mm between
the worktop and front of the unit un-
derneath it must not be covered.

description of the appliance electrolux 7
Description of the Appliance

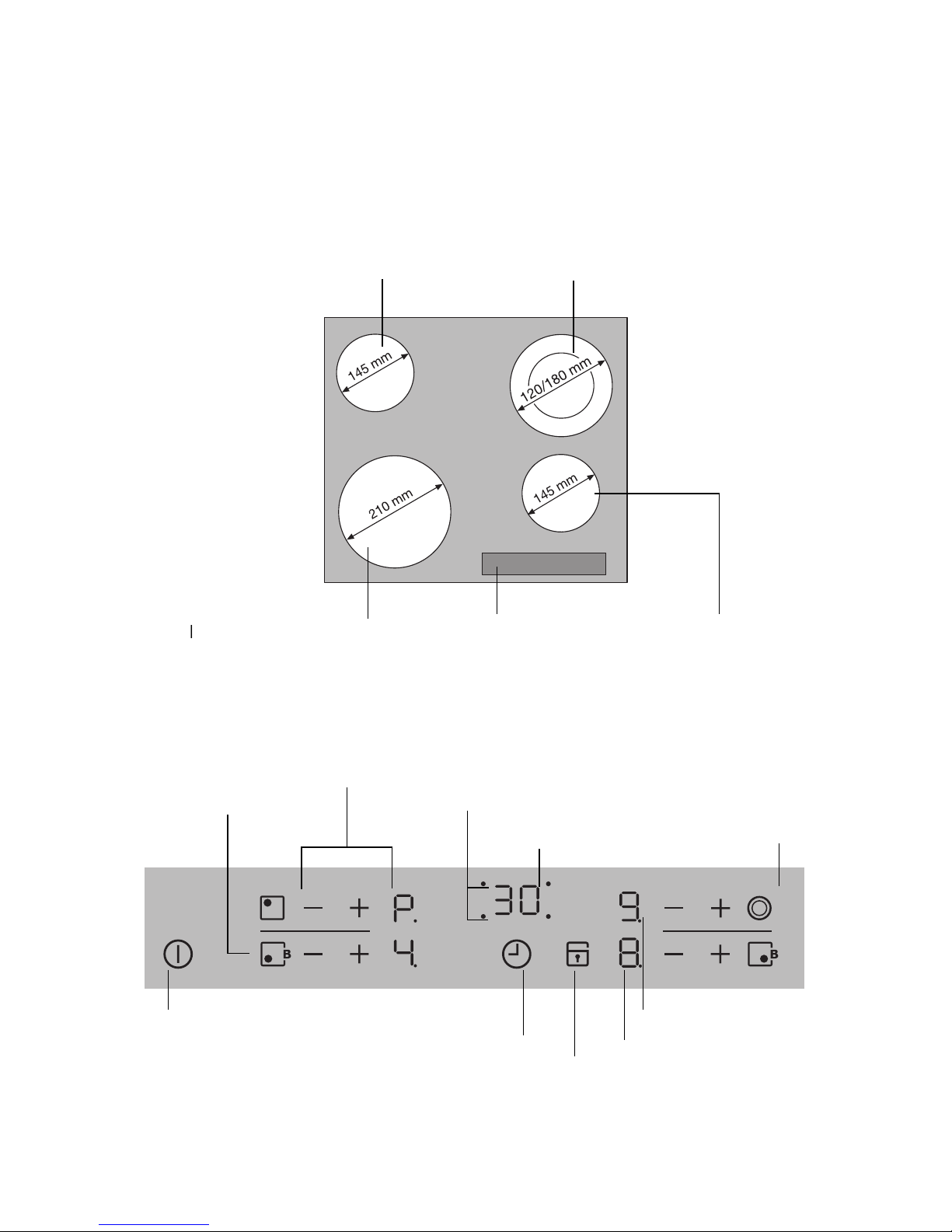

Cooking surface layout
Control panel layout
Induction cooking zone 2300 W
with power function 3700 W
Double ring cooking zone 700/1700 WSingle cooking zone 1200 W
Control panel Induction cooking zone 1400 W
with power function 1800 W
On/Off
with power indicator
Heat setting selection
Lock
Timer display
Display
Cooking zone indicators
Timer function
Power function
Timer
Outside ring
On/Off
Double ring pilot light

8electrolux description of the appliance
Touch Control sensor fields
The appliance is operated using Touch
Control sensor fields. Functions are
controlled by touching sensor fields and
confirmed by displays and acoustic sig-
nals.
Touch the sensor fields from above,
without covering other sensor fields.
Warning! Risk of burns from heat
emitted. Lengthy cooking on higher
settings with larger cookware on
the front cooking zones can heat
the sensor fields. Take care when
touching sensor fields.
Sensor field Function
On / Off To switch the appliance on and off
Increase settings Increasing heat setting/time
Decrease settings Decreasing heat setting/time
Timer Timer selection
Lock Locking/unlocking the control panel
Power Switching the power function on and off
Double ring switch Switches outside ring
on and off

description of the appliance electrolux 9
Displays
Display Description
Cooking zone is switched off
Keep warm setting Keep warm setting is set
- Heat settings Heat setting is set
Automatic warm up function Automatic warm-up function is
activated
Fault Malfunction has occurred
Pan detection Cookware is unsuitable or too small or
no cookware has been placed on the
cooking zone
Residual heat Cooking zone is still hot
Child safety device Lock/child safety device is engaged
Power Power function is switched on
Safety cut-out Safety cut-out has been activated

10 electrolux description of the appliance
Residual heat indicator
Warning! Risk of burns from residu-
al heat. After being switched off, the
cooking zones need some time to
cool down. Look at the residual heat
indicator .
Residual heat can be used for melt-
ing and keeping food warm.
The induction cooking zones create
the heat required for cooking directly in
the base of the cookware. The glass ce-
ramic is merely heated by the residual
heat of the cookware.
The cooling fan switches itself on and
off depending upon the temperature of
the electronics.

operating the appliance electrolux 11
Operating the appliance
Use the induction cooking zones
with suitable cookware.
Switching the appliance on and off
After switching on, within approx.
10 seconds a heat setting or a func-
tion must be set, otherwise the ap-
pliance automatically switches
itself off.
Setting the heat setting
The keep warm setting lies be-
tween and . It is used to keep
food warm.
Control panel Display Pilot light
Switch on Touch for 2 seconds / lights up
Switch off Touch for 1 second / none goes out
Control panel Display
Increase Touch to /
Decrease Touch to
Switch off Touch and at the same time

12 electrolux operating the appliance
Switching the double ring cook-
ing zone on and off
With the double ring cooking zone the
heating surface can be matched to the
size of the cookware.
Control panel Pilot light
Switch on Touch for 1-2 seconds lights up
Switch off Touch for 1-2 seconds goes out

operating the appliance electrolux 13
Using the automatic warm-up function
All cooking zones are equipped with an
automatic warm-up function. The auto-
matic warm-up function sets the cook-
ing zone to the highest setting for a
certain period of time and then automat-
ically switches back to the cooking set-
ting that was originally set.
If during the automatic warm up
a higher heat setting is selected,
e.g. from to , the automatic
warm up is adjusted.
The length of time that the automatic
warm up function operates depends on
the heat setting selected.
Step Control panel Display
1. Setting the maximum setting /
2. Place to one side for a moment /
3. touch
4. touch in order to set the desired
cooking setting
until /
after 3 seconds
Heat
setting
Length of the automatic
warm up
Radiation element
[min:sec]
Length of the automatic
warm up
Induction
[min:sec]
v 0:30 0:10
1 1:00 0:10
2 1:40 0:10
3 4:50 3:10
4 6:30 5:50
5 10:10 10:10
6 2:30 2:00
7 3:30 2:30
8 4:30 2:50
9 --- ---

14 electrolux operating the appliance
Locking/unlocking the control panel
The control panel, with the exception of
the “On/Off” sensor field, can be locked
at any time in order to prevent the set-
tings being changed e.g. by wiping over
the panel with a cloth.
When you switch the appliance off,
the locking function is automatically
switched off.
Control panel Display
Switch on Touch (for 3 seconds)
Switch off Touch previously set heat setting

operating the appliance electrolux 15
Using the child safety device
The child safety device prevents unin-
tentional use of the appliance.
Setting the child safety device
Releasing the child safety device
Overriding the child safety device
The child safety device can be released
in this way for a single cooking session;
it remains activated afterwards.
Step Control panel Display/Signal
1. Switch on the appliance
(Do not set a heat setting)
2. Touch until the signal sounds Acoustic signal
3. Touch
Appliance switches off. The child safety device is engaged.
Step Control panel Display/Signal
1. Switch on the appliance
2. Touch until the signal sounds Acoustic signal
3. Touch
Appliance switches off. The child safety device is released.
Step Control panel Display/Signal
1. Switch on the appliance
2. Touch and at the same time / acoustic signal
Until the appliance is next switched off, it can used as normal.

16 electrolux operating the appliance
Switching the power function on and off
The power function makes more
power available to the induction cooking
zones, e.g. to bring a large quantity of
water to the boil quickly.
The power function is activated for
10 minutes. After that the induction
cooking zone automatically switches
back to heat setting 9.
If the power function has ended, the
cooking zones automatically switch
back to the heat setting set previ-
ously.
Control panel Display
Switch on Touch
Switch off Touch
Touch

operating the appliance electrolux 17
Power Management
The cooking zones of the cooking sur-
face have a maximum power available
to them.
Two cooking zones make up a pair (see
figure).
So that the Power function can always
be carried out, Power Management may
reduce the power of the other cooking
zone in the pair
Example: heat setting 9 is selected on a
cooking zone. The Power function is
switched on for the cooking zone paired
up with it. The Power function is per-
formed, but heat setting 9 on one cook-
ing zone and Power function on the
other cooking zone of a pair exceeds
the maximum output for both. Therefore
Power Management reduces the first
cooking zone that was switched on from
9 to 7, for example, and the display for
this cooking zone alternates between 9
and 7 and then remains on the current
maximum of 7. (Whether the display al-
ternates between 9 and 7 or 9 and 6 or
other values, depends on the appliance
type and the size of the cooking zone.)

18 electrolux operating the appliance
Using the timer
All cooking zones can use each use one
of the two timer functions at the same
time.
If a cooking zone is switched off, the
timer function set is also switched
off.
If a heat setting is set on this cook-
ing zone in addition to a countdown
timer, the cooking zone is switched
off after the time set has elapsed.
Function Condition Outcome after the
time has elapsed
Automatic cut-out a heat setting is set acoustic signal
00 flashes
Cooking zone switches
off
Countdown timer cooking zones not in use acoustic signal
00 flashes

operating the appliance electrolux 19
Selecting a cooking zone
The heat setting indicator of the se-
lected cooking zone goes out, as
long as the timer time can be set.
If the pilot light is flashing more
slowly, the heat setting indicator ap-
pears again and the heat setting can
be re-set or modified.
If other timer functions are set, after
a few seconds the shortest remain-
ing time of all the timer functions is
displayed and the corresponding pi-
lot light flashes.
Step Control panel Display
1. Touch once Pilot light of the first cooking
zone flashes
2. Touch once Pilot light of the second cook-
ing zone flashes
3. Touch once Pilot light of the third cooking
zone flashes
4. Touch once Pilot light of the fourth cooking
zone flashes

20 electrolux operating the appliance
Setting the time
Switching off the Timer function
Changing the time
Step Control panel field Display
1. Select cooking zone Pilot light of the cooking zone selected
flashes
2. Touch or for the
cooking zone selected
00 to 99 minutes
After a few seconds the pilot light flashes more slowly.
The time is set.
The time counts down.
Step Control panel Display
1. Select a cooking
zone
Pilot light of the selected cooking zone
flashes more quickly.
Remaining time is displayed
2. Touch for the cooking
zone selected
The remaining time counts down to 00.
Simultaneoulsy touch
and for the cooking
zone selected
00 is displayed.
The pilot light goes out.
The Timer function for the selected cooking zone is switched off.
Step Control panel field Display
1. Select cooking zone Pilot light of the cooking zone selected
flashes faster
The time remaining is displayed
2. Touch or for the
cooking zone selected
01 to 99 minutes
After a few seconds the pilot light flashes more slowly.
The time is set.
The time counts down.
