UNDER-COUNTER ICE MAKER E15IM60EPS

E15IM60EPS professional series
E15IM60EPS 04/05 © 2005 Electrolux Home Products, NA Printed in the U.S.A.
Under-Counter Ice Maker Specifications
•Product Weight –100 Lbs.
•Voltage Rating – 115V /60 Hz /15 Amps
•Electrical cable supplied.
•Single phase 3-wire, 115 Volt, 60 Hertz AC only
electrical supply with ground required.
•Water supply and electrical power source required.
•Always consult local and /or national electric codes
and local and /or state plumbing codes.
•Can be used freestanding, or built-in under counter.
•Does not require additional airspace for top, sides
or rear when used in built-in application. Increase
unit dimensions by at least 1/4" for recommended
rough opening, allowing clearance in rear for water,
drain and electrical connections.
•Front grill MUST remain unobstructed for proper
ventilation.
•Can be installed using gravity drain, or factory-
installed /equivalent drain pump.
•Drain lines must have 5/8" inside diameter, 1" drop
per 48" (1/4" per foot) of run and must not create
traps.
•Floor drain must be large enough to accommodate
drainage from all drains.
•Recommended water pressure between 15 and
150 pounds per square inch (psi).
•Unit MUST be level for proper operation, and
positioned on flat surface, capable of supporting
entire weight when fully loaded.
•Leveling legs supplied to adjust height and
level unit.
•Do not position unit near any heat source to ensure
optimum performance.
•Must be positioned to allow for 90°door swing.
(Door is field reversible for right- or left-hand
opening.)
•When installing next to wall where handle may
make contact, allow 2" clearance between opened
door and wall.
•Can be installed outdoors, out of direct sunlight.
Do NOT install behind closed doors.
Note: Refer to Product Installation Guide for detailed
instructions on the web at www.electroluxusa.com.
Crystal Clear Ice
Clear ice is formed as cold water
continuously flows over a grid where ice is
formed in layers, releasing air from the ice,
preventing “cloudy ice.” The “Fractional
Freezing” process separates impurities
from the water so ice is free of odors,
minerals and contaminants. Thirty-two,
7/8" cubes of crystal clear ice are
produced per freeze cycle. That’s up
to sixty pounds per day.
Thirty-Pound Storage Capacity
The large capacity storage bin holds
up to thirty pounds of restaurant-quality
ice cubes.
Frost-Free Performance
The Under-Counter Ice Maker is
completely frost free. So you’ll never have
to defrost.
3-Step Self Cleaning
Three-step self-cleaning process takes
less than 45 minutes and removes the
minerals and contaminants left from the
“Fractional Freezing” process.
Electronic Control Module
Electronic controls monitor ice production
to ensure maximum output so that you’ll
never run out of ice again.
Self-Closing Door
Hinge system activates 8 to 10 inches
from the closed position, assuring
door closure.

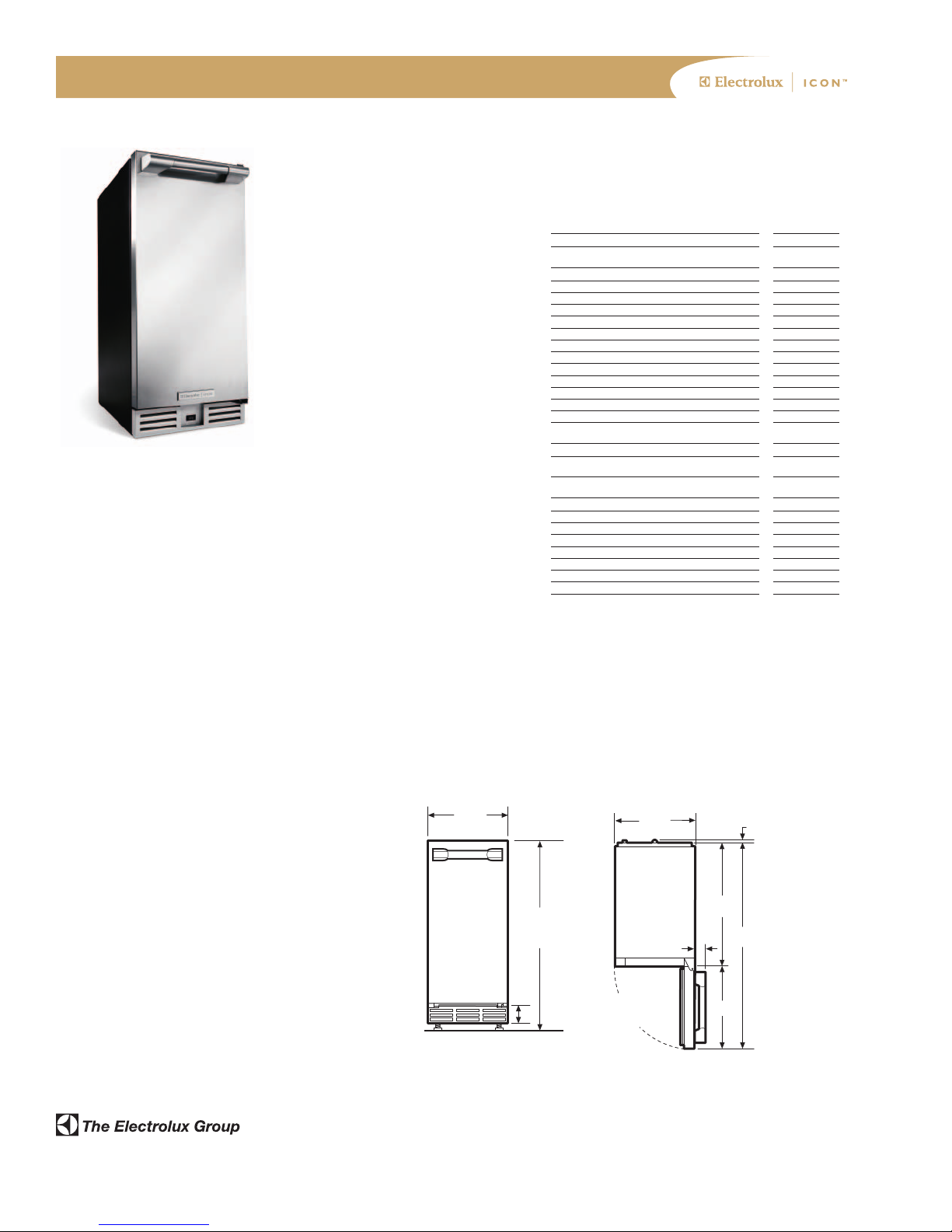

UNDER-COUNTER ICE MAKER
Capacity Up to 30 Lbs.
FEATURES
Daily Ice Production Up to 60 Lbs.
Ice Cube Type Clear
Ice Cube Size 7/8"
Ice Cubes Produced per Cycle 32
Frost-Free Performance Yes
3-Step Cleaning Process Yes
Self-Cleaning of Mineral Deposits Yes
Commercial Grade Heavy-Duty Circulation Pump Yes
Quiet Operation Yes
Field Reversible Door Yes
Self-Closing Door Mechanism Yes
Adjustable Leveling Legs Yes
Approved for Under-Counter Application Yes
ACCESSORIES
Ice Scoop Included
Drain Pump Kit
(to be used if gravity-assisted drain is not available) Available
SPECIFICATIONS
Cutout Dimensions –
Height 34-1/4" min.
Width 15-3/8"
Depth 24" min.
Gravity Assisted Drain Required
Product Weight 100 Lbs.
Shipping Weight 109 Lbs.
UPC (0-12505-) 74403-7
NOTE: Always consult local and /or national electric codes. Refer to Product
Installation Guide for detailed installation instructions on the web at
www.electroluxusa.com.
High standards of quality at Electrolux Home Products mean we are constantly working to improve
our products. We reserve the right to change specifications or discontinue models without notice.
USA •250 Bobby Jones Expressway •Augusta, GA 30907
1-877-4electrolux (1-877-435-3287) •
www.electroluxusa.com
CANADA •5855 Terry Fox Way •Mississauga, ON L5V 3E4
1-800-668-4606 •
www.electroluxca.com
34"
Adjustable
to 351/4"
147/8"
33/8"
233/8"
Door in 90°
open position
147/8"3/4"
371/2"
147/8"
21/2"
