Dear Customer
Thank you for choosing one of our high-quality products.
With this appliance you will experience the perfect combination of functional
design and cutting edge technology.
Convince yourself that our appliances are engineered to deliver the best per-
formance and control - indeed we are setting the highest standards of excel-
lence.
In addition to this you find environmental and energy saving aspects as an inte-
gral part of our products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfect-
ly and most efficiently.
To refer to this manual any time you need to, we recommend you to keep it in a
safe place. And please pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
The following symbols are used in this user manual:
1
Important information concerning your personal safety and information on
how to avoid damaging the appliance.
3General information and tips
2Environmental information

3Contents
Contents
Operating Instructions 5
Safety instructions 5
Description of the Appliance 7
General Overview 7
Control Panel 8
Oven Features 9
Oven accessories 10
Before Using for the first time 11
Setting and changing the time 11
Initial cleaning 12
Using the Rings 13
Setting the heat setting 14
Cooking with the automatic warm up function 15
Automatic cut-out function for the rings 16
Using the Oven 17
The Electronic Oven Control 17
Speedcook (SCHNELLHEIZEN) 21
Oven Functions 22
Inserting the Oven Shelf, Baking Tray and Roasting Pan 23
Inserting/Removing the Grease Filter 24
Meat probe (FLEISCHSPIESS) 25
Additional functions 27
Heat+Hold 33
Other functions 35
Switching off the display 35
Child safety device 36
Button lock 36
Oven automatic cut-out 37
Uses, Tables and Tips 38
Cooking table 38
Baking 39
Baking table 41
Table for Bakes and Gratins 47
Frozen Ready Meals Table 48
Roasting 49
Roasting table 50
Low temperature cooking 52

Contents4
Table Low temperature cooking 52
Meat probe (FLEISCHSPIESS) Table 53
Grill Sizes 54
Grilling table 54
Defrosting 55
Defrosting table 55
Drying 56
Making Preserves 57
Cleaning and Care 58
Outside of the appliance 58
Oven interior 58
Accessories 58
Fat Filter 58
Pyrolytic cleaning 59
Cleaning Reminder (ERINNERUNGSFUNKTION) 60
Shelf Support Rails 61
Oven Lighting 62
Oven door 63
Oven door glass 65
What to do if … 69
Disposal 71
Installation Instructions 72
Safety information for the installer 72
Guarantee/Customer Service 77
Service 79

5Operating Instructions
Operating Instructions
1Safety instructions
Electrical safety
•This appliance must be only connected by a registered electrician.
•In the event of a fault or damage to the appliance: Take the fuses out or
switch off.
•Repairs to the appliance must only be carried out by qualified service engi-
neers. Considerable danger may result from improper repairs. If repairs be-
come necessary, please contact our Customer Services or your dealer.
Child Safety
•Never leave children unsupervised when the appliance is in use.
Safety whilst Using
•People (including children) who, because of their physical, sensory or mental
capabilities or their inexperience or ignorance are not able to use the device
safely, should not use this device without supervision or instruction by a re-
sponsible person.
•This appliance is intended to be used for cooking, roasting and baking food in
the home.
•Take care when connecting electric appliances to sockets nearby. Do not allow
connecting leads to come into contact with or to catch beneath the hot oven
door.
•Warning: Risk of burns! The interior of the oven becomes hot during use.
•Using ingredients containing alcohol in the oven may create an alcohol-air
mixture that is easily ignited. In this case, open the door carefully. Do not have
embers, sparks or naked flames in the vicinity when opening the door.
3Information on acrylamides
According to the latest scientific knowledge, intensive browning of food, espe-
cially in products containing starch, can constitute a health risk due to acryla-
mides. Therefore we recommend cooking at the lowest possible temperatures
and not browning foods too much.

Safety instructions6
How to avoid damage to the appliance
•Do not line the oven with aluminium foil and do not place baking trays, pots,
etc. on the oven floor, as the heat that builds up will damage the oven enamel.
•Fruit juices dripping from the baking tray will leave stains, which you will not
be able to remove. For very moist cakes, use a deep tray.
•Do not put any strain on the oven door when open.
•Never pour water directly into the oven when it is hot. This could cause dam-
age to or discoloration of the enamel.
•Rough handling, especially around the edges of the front panel, can cause the
glass to break.
•Do not store any flammable materials inside the oven. These could ignite
when the oven is switched on.
•Do not store any moist foods inside the oven. This could damage the oven
enamel.
•After switching off the cooling fan, do not keep uncovered dishes in the oven.
Moisture may condense in the oven interior or on the glass doors and may get
into the units.
3Note on enamel coating
Changes in the colour of the oven’s enamel coating as a result of use do not af-
fect the appliance’s suitability for normal and correct use. They therefore do not
constitute a defect in the sense of the warranty law.

7Description of the Appliance
Description of the Appliance
General Overview
Full glass door
Control panel
Door
handle

Description of the Appliance8

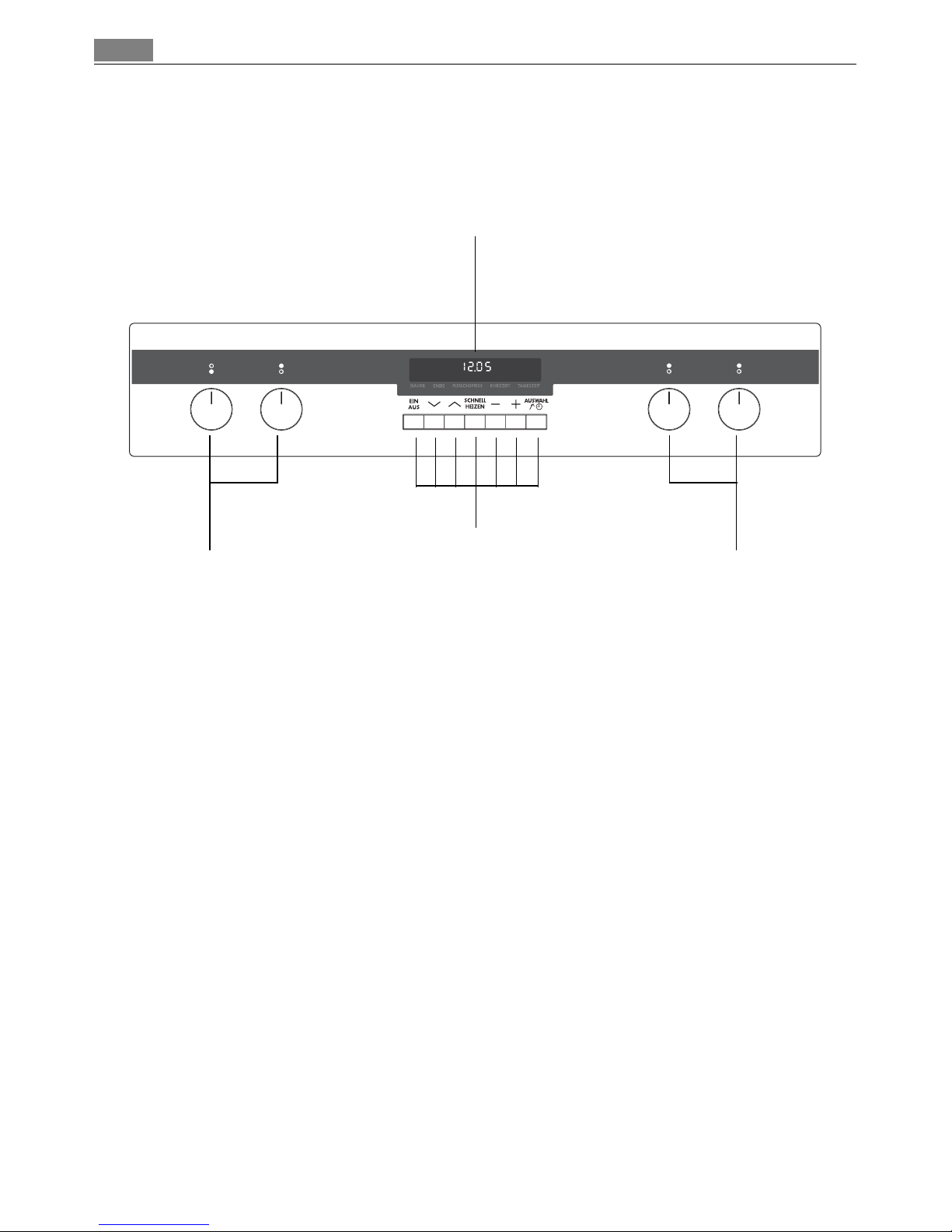

Control Panel
Oven display
Function buttons
Oven Hob Cooking Zone Control
Knobs
Hob Cooking Zone Control
Knobs

9Description of the Appliance
Oven Features
Inside of door
On the inside of the oven door you will find
the numbers of the different oven shelves.
You will also find some brief information
about the oven's functions, recommended
shelves and temperatures for cooking the
most popular dishes.
Oven steam vent
The steam from the oven is fed directly up-
wards via the duct in the rear of the cook-
ing surface.
Top heat and heating elements
Oven lighting
Meat probe socket
Fat Filter
Oven lighting
Fan heating element
Fan
Bottom Heat
Shelf positions
Oven shelf runners,
removable

Description of the Appliance10
Oven accessories
Oven shelf
For cookware, cake tins, roasts and grilled
foods.
Baking tray
For cakes and biscuits.
Roasting Pan
For baking and roasting or as a pan for col-
lecting fat.
Meat probe
For determining exactly how far joints of
meat are cooked.

11Before Using for the first time
Before Using for the first time
Setting and changing the time
3The oven only operates when the time has been set.

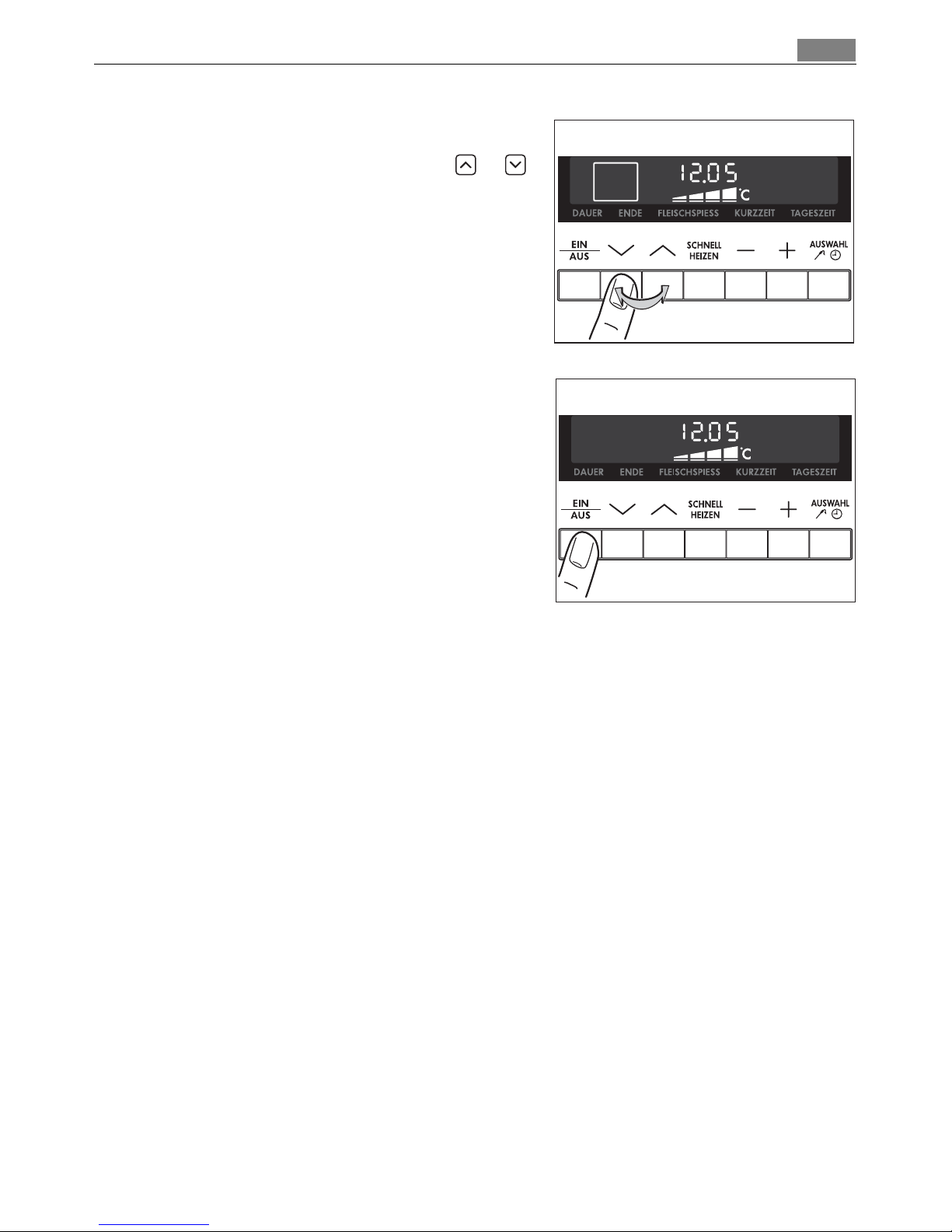

When the appliance is connected to the
electrical supply or when there has been a
power cut, Time (TAGESZEIT) flashes auto-
matically.
1. To change a time that has already been set,
first press the On/Off (EIN/AUS) button.
Then press the Selection (AUSWAHL) but-
ton repeatedly until Time (TAGESZEIT)
flashes.
2. Using the or button, set the current
time.
After approx. 5 seconds, the clock stops
flashing and the clock displays the time of
day set.
The appliance is now ready to use.
3The time can only be modified, if the child
safety device is deactivated, neither of the
clock functions Cook time (DAUER) or End
time (ENDE) nor any oven functions are set.

Before Using for the first time12
Initial cleaning
Clean the oven before using it for the first time.
1Important: Do not use caustic or abrasive cleaning agents! These can damage
the oven surfaces.
3For the metal surfaces, use commercially available cleaning agents.
1. Open the oven door.
The oven light is lit.
2. Remove all oven accessories, and clean them with warm water and a scouring
agent.
3. Wash the oven in the same way, and wipe dry.
4. Wipe the front of the appliance with a damp cloth.

13Using the Rings
Using the Rings
3Also refer to the operating instructions for your built-in hob. It contains impor-
tant information on ovenware, operation, cleaning and care.
The following description does not apply to induction cooking zones.

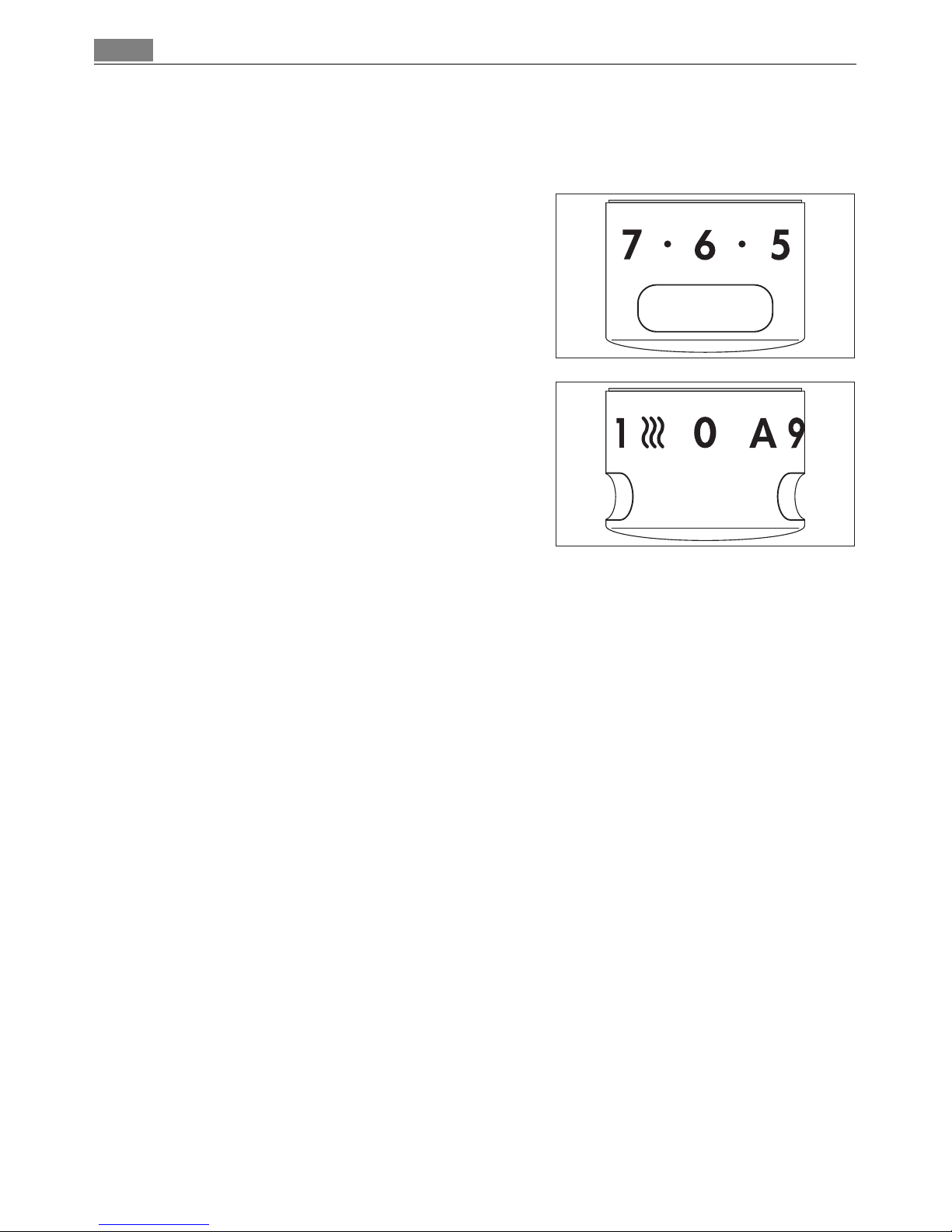

Heat settings
•You can set the heat settings from 1 -9.
•You can set intermediate settings between 2 and 7.
•In addition each of the ring switches is fitted with an automatic warm up
function.
=Keep warm setting
1 = lowest power
9 = highest power
A = Automatic warm up function
2Switch the cooking zone off approx. 5-10 minutes before cooking is finished to
make use of the residual heat. This saves electricity.
3The cooker has pop-up ring switches.
Press the ring switch to use it. The switch will then pop up.

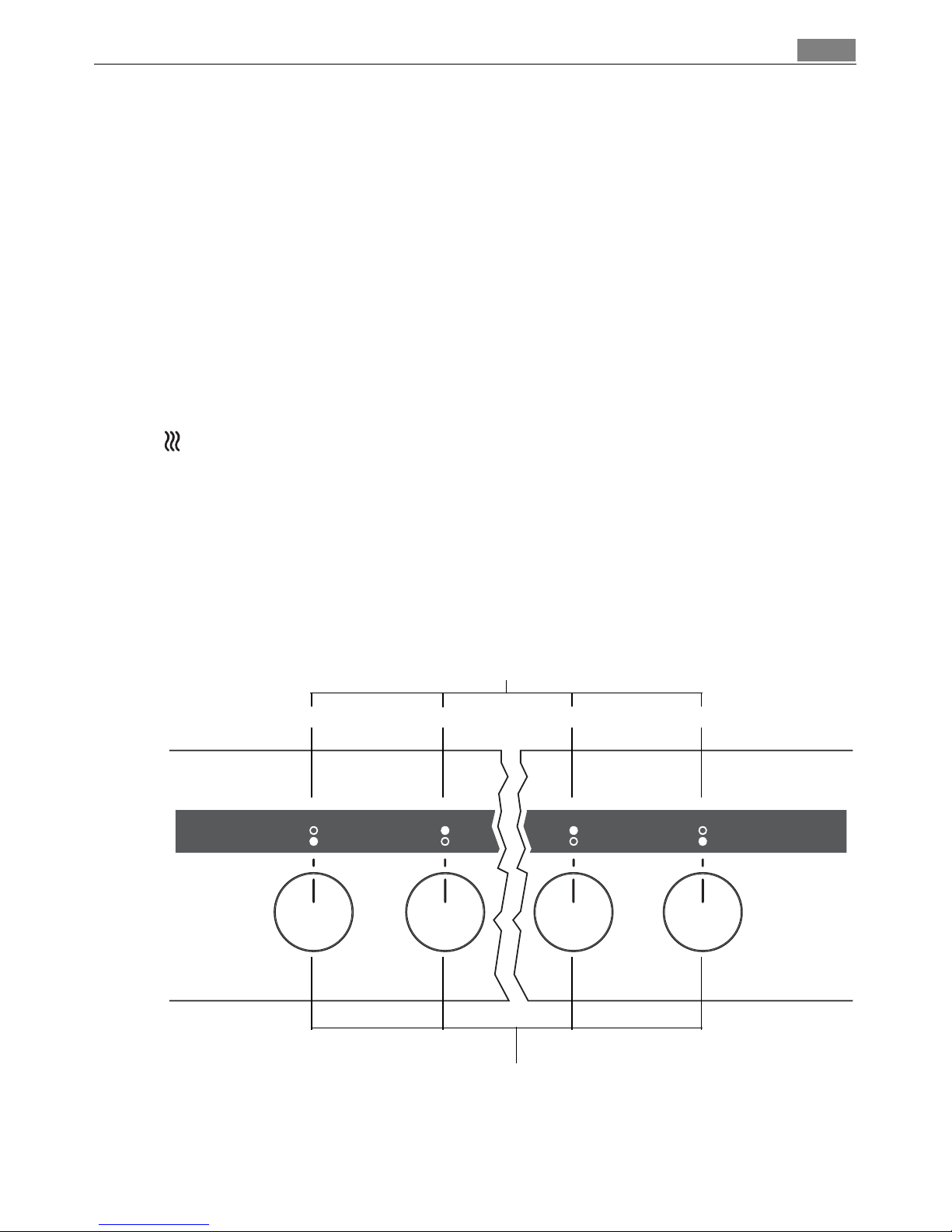

Hob Cooking Zone Control Knobs
front left rear left rear right
Ring pilot lights
front right

Using the Rings14
Setting the heat setting
1. Switch on the appliance with the On/Off (EIN/AUS) button.
2. When getting up to heat/searing food, se-
lect a high heat setting.
3. To end the cooking process, turn back to
the Off position.
3The respective ring switch and the corre-
sponding pilot light are lit while the ring is
operating.

15Using the Rings
Cooking with the automatic warm up function
When cooking with the automatic warm up function, the cooking zone works
with full power for a certain amount of time and then switches back to the heat
setting set to continue cooking.
1. To switch on the automatic warm up period, turn the ring switch clockwise as
far as it will go.
2. Then turn the ring switch back to the desired heat setting for the continuing
cooking period.
3. To end the cooking process, turn back to the “O” position.
3If you select a higher heat setting during the warming up time, e. g. turning
from “3” up to “6”, the time that has already elapsed for the warming up period
is taken into consideration. If you select a lower heat setting, the warm up peri-
od will end immediately.
3You can end the automatic warm up function early by turning the ring switch
back to the Off position and then setting the required heat setting for the con-
tinuing cooking period again.
Warming up times when cooking with the automatic warm
up function
3When cooking with the appliance for the first few times, take careful note of
how it performs. This will help you decide which heat settings are best for “your
cookware” and “your recipes and quantities”.
Switch setting: Warming up time with the automatic
warm up function
A and 9 no automatic warm up function
Aand8 4.5minutes
Aand7 3.5minutes
A and 6.3minutes
Aand6 2minutes
A and 5.12.5 minutes
A and 5 10 minutes
A and 4.8minutes
Aand4 6.5minutes
A and 3.5.5 minutes
Aand3 5minutes
A and 2.3minutes
Aand2 2minutes
Aand1 1minutes
A and 0.5 minutes

Using the Rings16
Automatic cut-out function for the rings
If one of the rings is not switched off after a certain period of time or the cook-
ing setting is not altered, the ring will automatically switch itself off.
The ring switch light is switched off.
The rings switch themselves off for:
•Heat settings .1 - .2 after 6 hours
•Heat settings .3 - .4 after 5 hours
•Heat settings .4 - .5 after 4 hours
•Heat settings .6 - .9 after 1.5 hours
Starting up after an automatic cut-out
To start up again after an automatic cut-out, turn the ring switch that is turned
on to the Off position.
After that the ring is ready to use again.

17Using the Oven
Using the Oven
The Electronic Oven Control
3General instructions
•Always switch the appliance on first by pressing the On/Off (EIN/AUS) button.
•When the selected function is lit, the oven begins to heat up or the time set
begins to count down.
•The Operating time display shows how long the oven has been operating. This
display can only be seen if none of the clock functions Countdown
(KURZZEIT), Cook time (DAUER) or End time (ENDE) are set.
•The oven light is switched on as soon as an oven function is selected.
•When the selected temperature is reached, an audible signal sounds.
•Switch off the oven using the On/Off (EIN/AUS) button.
Selection buttons
Temperature/Clock
Oven function selection
Clock functions/Operating timeOven Functions
Clock Functions
Meat Probe
Heat indicator Speedcook

Using the Oven18
Selecting an oven function

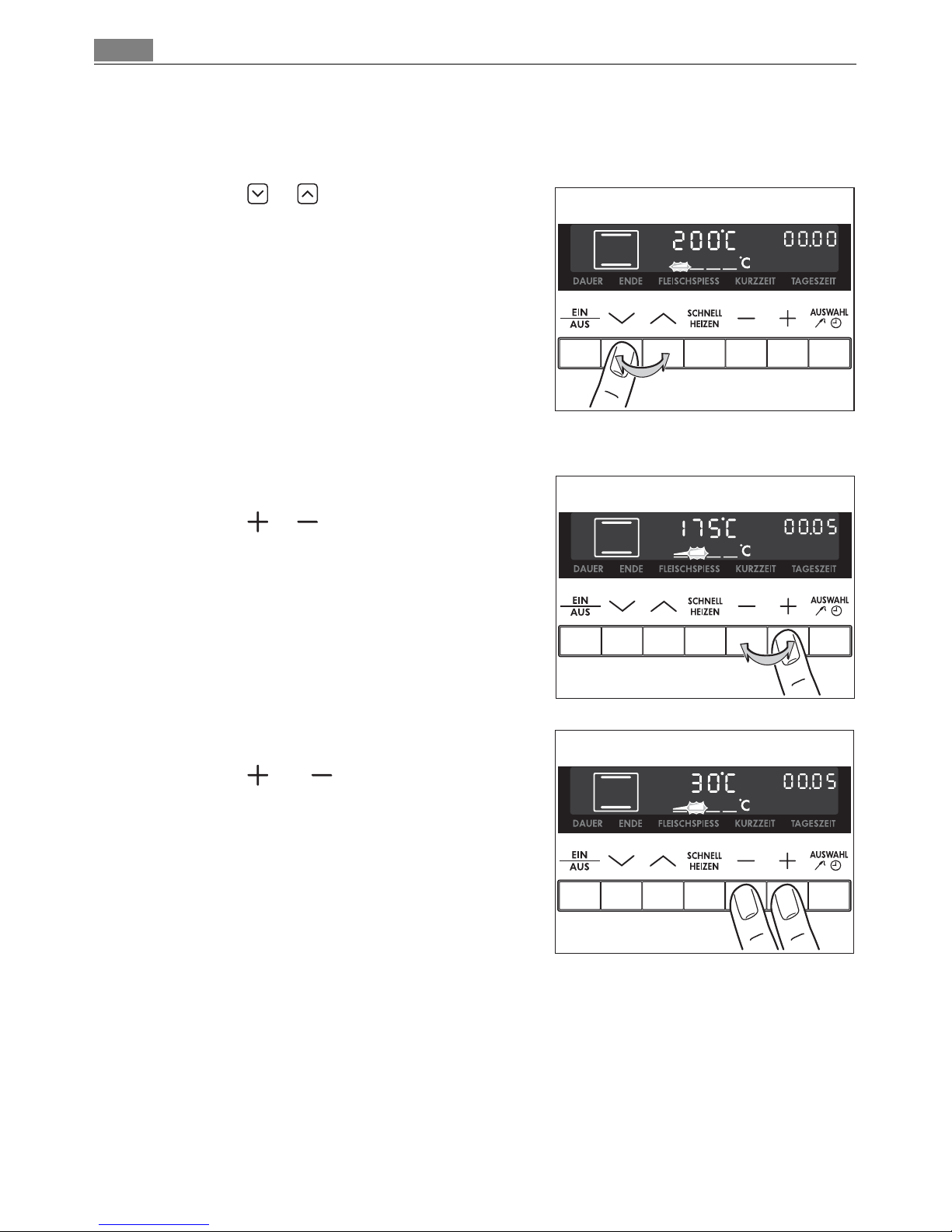

1. Switch on the appliance using the On/Off (EIN/AUS) button.
2. Press the or button repeatedly until
the desired oven function appears.
•A suggested temperature appears in the
temperature display.
•If the suggested temperature is not
changed within approx. 5 seconds, the
oven starts to heat up.
3The oven function can be changed while
the oven is working.
Changing the oven temperature
Press the or button to raise or lower
the temperature.
The setting changes in steps of 5°C.
Checking the temperature
Press the and buttons at the same
time. The current oven temperature ap-
pears in the temperature display.
3The temperature check does not work with
oven functions with suggested tempera-
tures that cannot be adjusted, such as e. g.,
Low temperature cooking.

19Using the Oven
Switching off the oven function
To switch off the oven, press the or
button repeatedly until no oven function is
displayed.
Switching the oven off
Switch off the appliance using the On/Off
(EIN/AUS) button.

Using the Oven20
3Cooling fan
The fan switches on automatically in order to keep the appliance’s surfaces cool.
When the oven is switched off, the fan continues to run to cool the appliance
down, then switches itself off automatically.
3Heat indicator
Indicates warming up
When the oven function has been
switched on the bars that slowly light up
one after the other indicate how far the
oven has heated up.
Speedcook indicator
When the Speedcook
(SCHNELLHEIZEN) function has been
switched on, the bars that flash one after
the other indicate that fast heating is
working.
Residual heat indicator
When the oven function has been
switched off, the bars that are still lit indi-
cate the remaining residual heat in the ov-
en.
