Electrolux DD8820 User manual

DD 8890 - DD 8820
HD 8890 - HD 8820
Dunstabzugshaube
Afzuigkap
Hotte
Cooker Hood
Montage- und Gebrauchsanweisung
Installatie- en gebruiksaanwijzing
Notice d utilisation et d installation
Operating and Installation Instructions
All manuals and user guides at all-guides.com
all-guides.com

52
Contents
Safety warnings .............................................................................. 53
For the user ...................................................................................... 53
For the installer ................................................................................. 54
Description of the Appliance ......................................................... 56
Extractor version ............................................................................... 56
Filter Version ..................................................................................... 56
Control Panel ............................................................................. 57-5

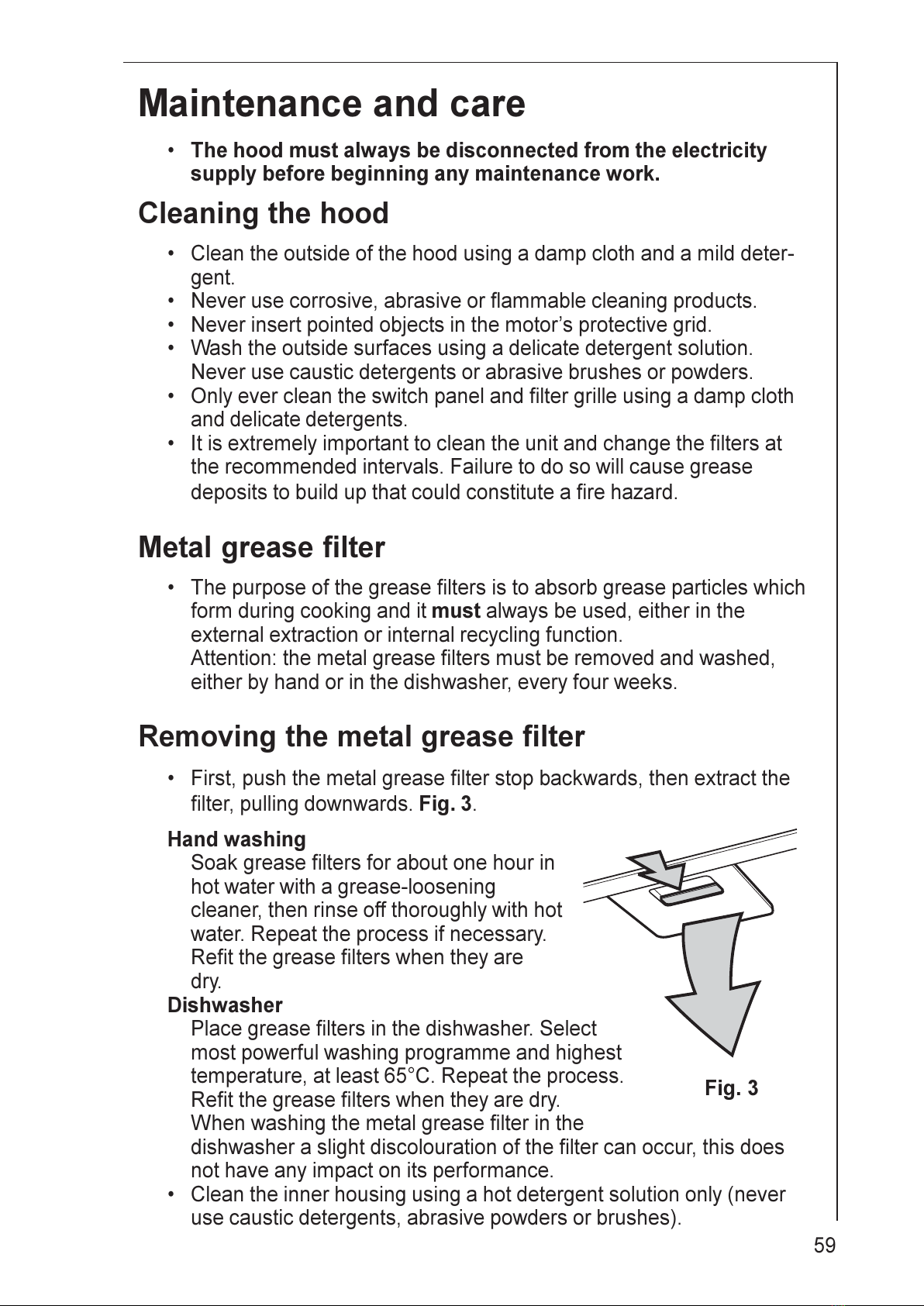

Maintenance and care ................................................................... 59
Cleaning the hood ............................................................................. 59
Metal grease filter ............................................................................. 59
Charcoal filter .................................................................................... 60

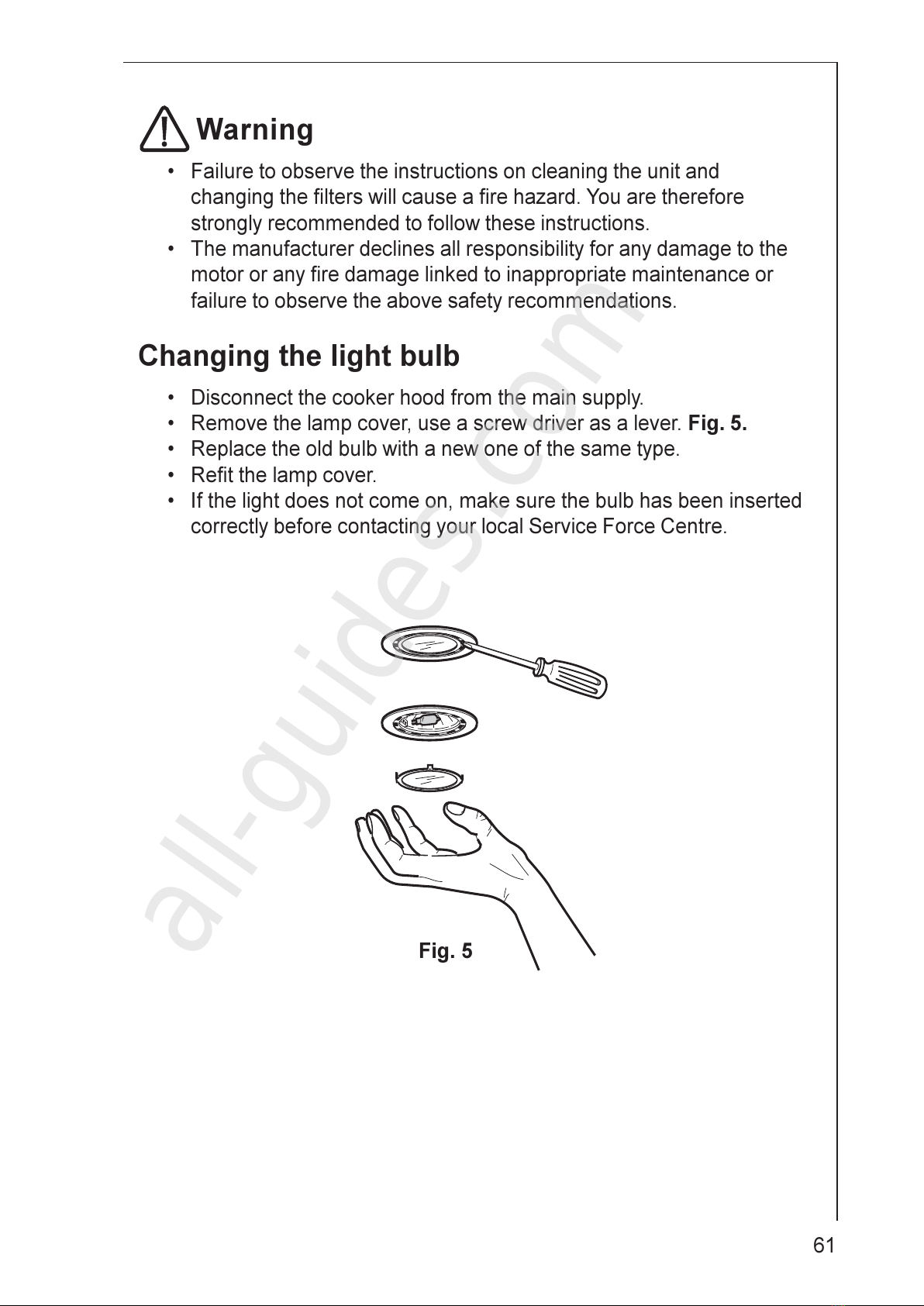

Changing the light bulb ...................................................................... 61

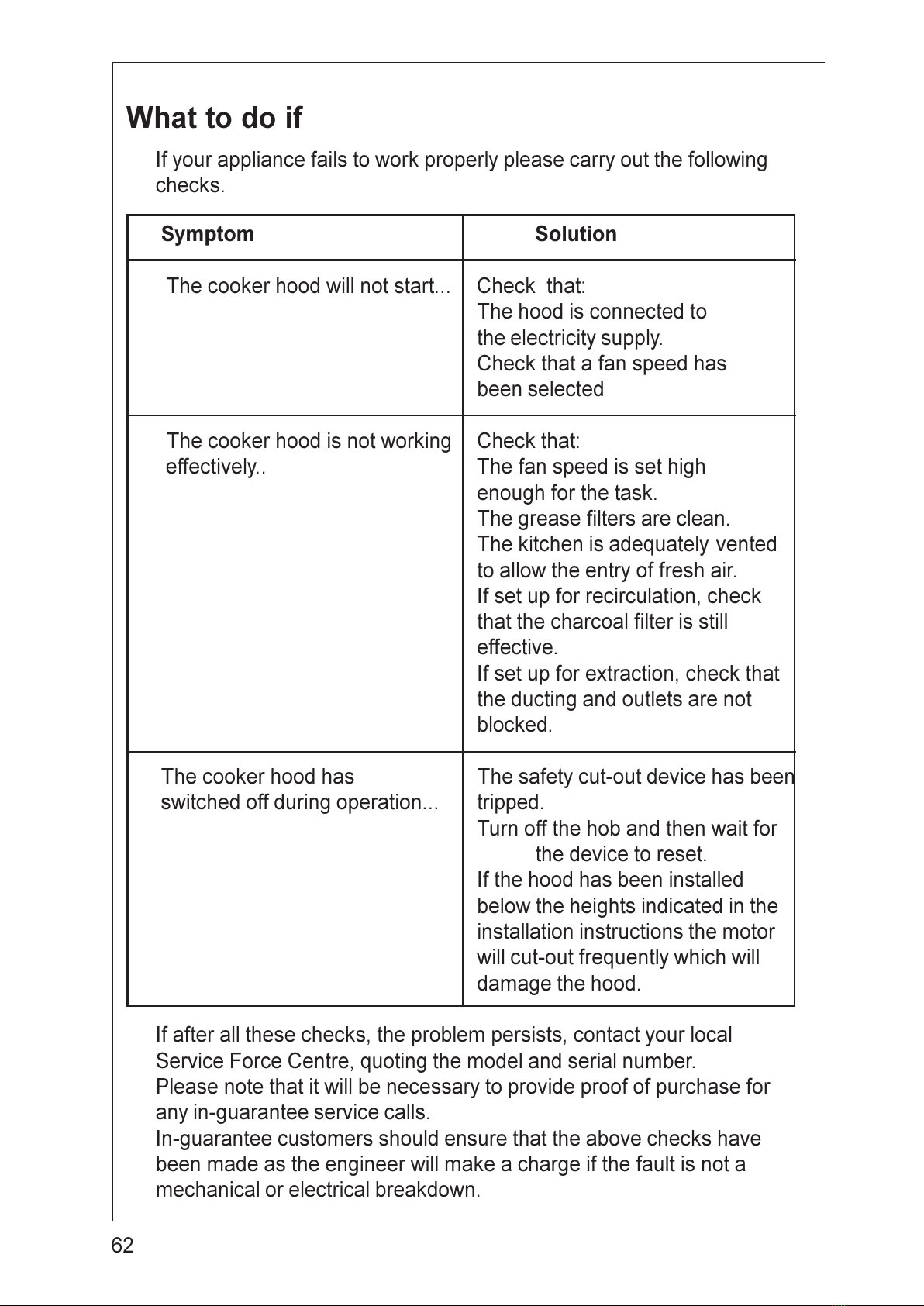

What to do if ................................................................................... 62

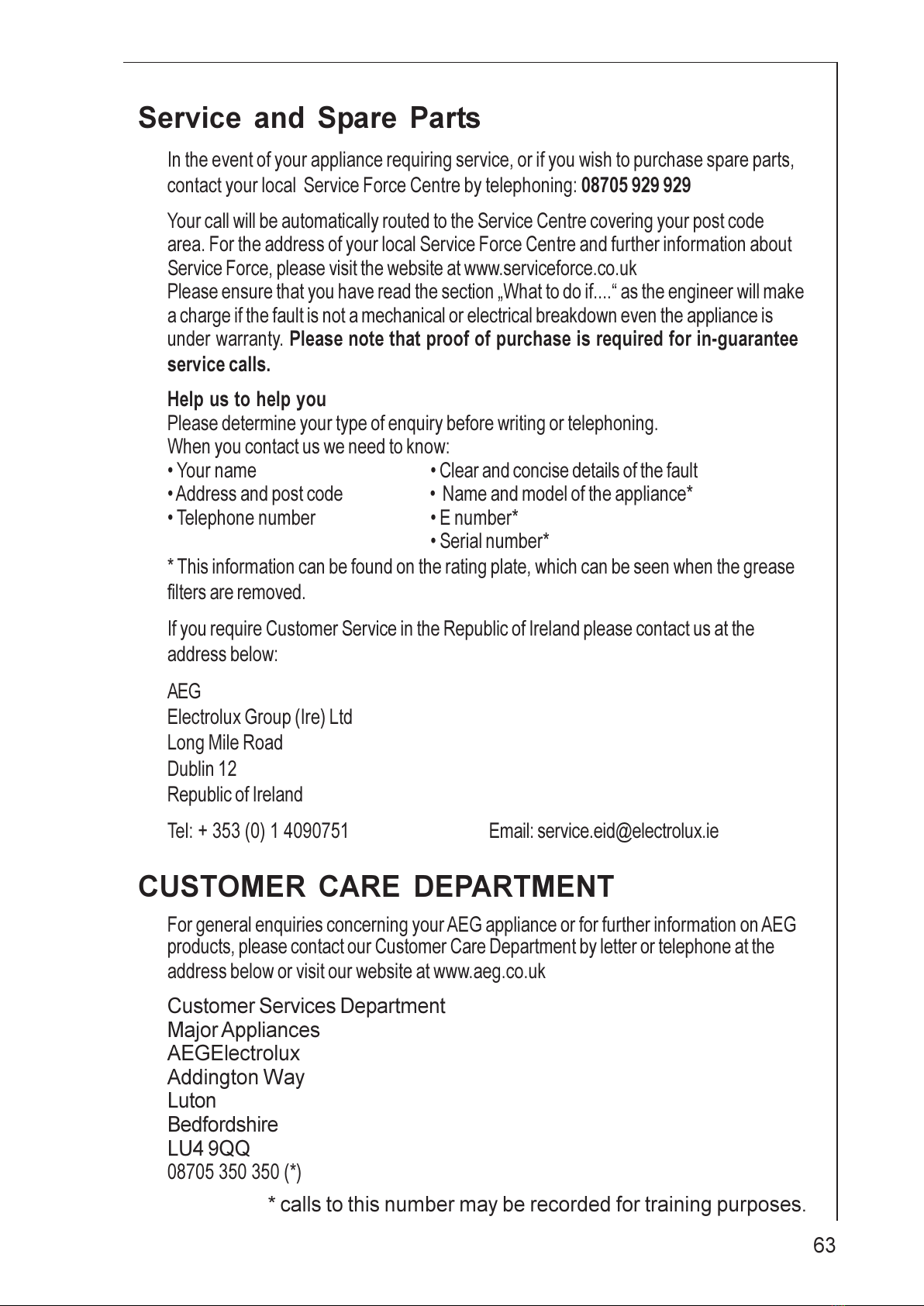

Technical assistance service ......................................................... 63
Special accessories ........................................................................ 64
Technical Specifications ................................................................ 64
Mounting accessories included ......................................................... 64

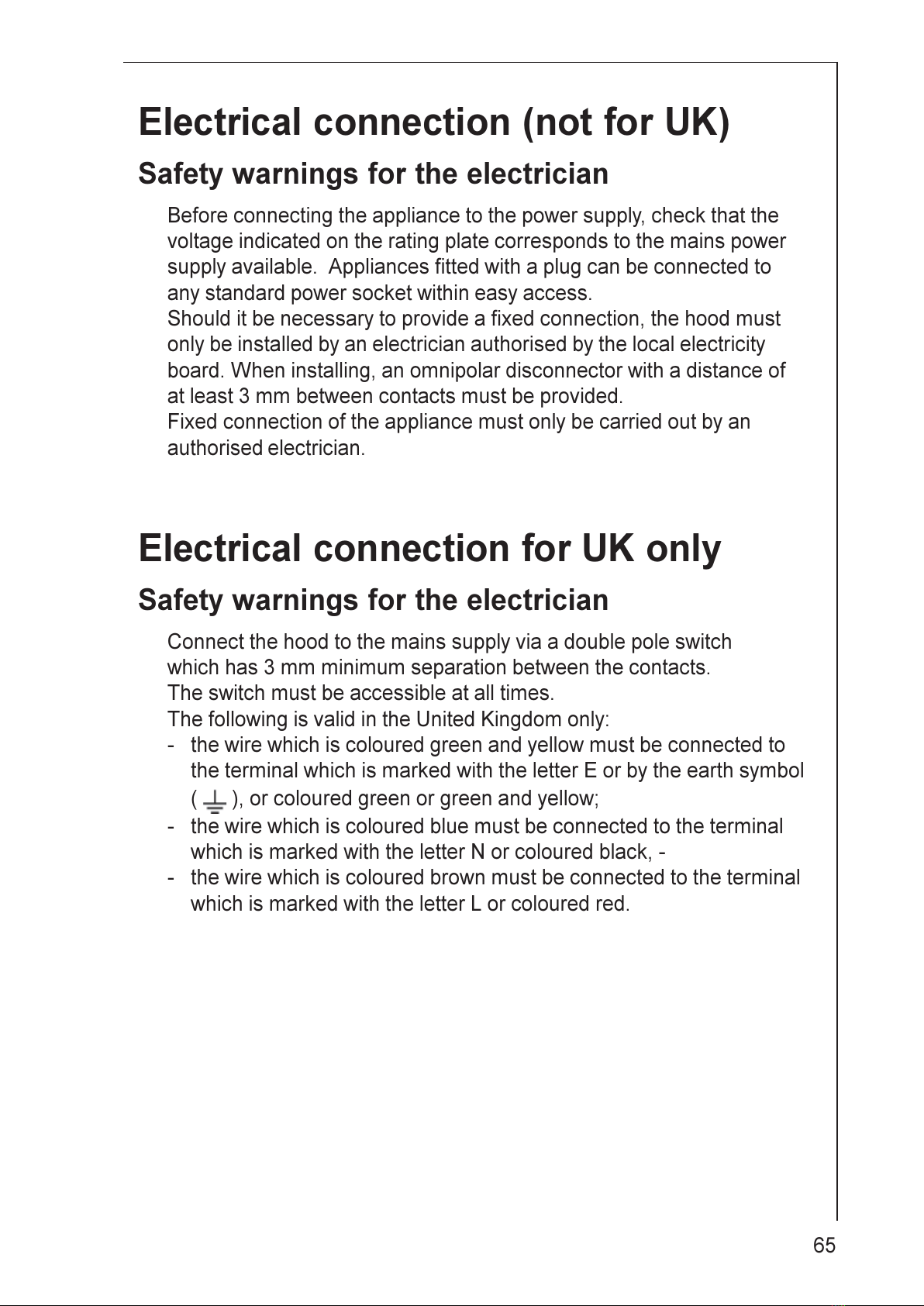

Electrical connection ..................................................................... 65
Wall unit mounting ............................................................................ 66
All manuals and user guides at all-guides.com

53
Sa ety warnings
For the user
 The cooker hood is designed to extract unpleasant odours from the
kitchen, it will not extract steam.
 Always cover lighted elements, to prevent excess heat from
damaging the appliance. In the case of oil, gas and coal fired
cookers it is essential to avoid open flames.
 Also, when frying, keep the deep frying pan on the cooker top/cooker
under careful control.
 The hot oil in the frying pan might ignite due to overheating.
 The risk of self-ignition increases when the oil being used is dirty.
 It is extremely important to note that overheating can cause a fire.
Never carry out any flambé cooking under the hood.
Always disconnect the unit from the power supply before
carrying out any work on the hood, including replacing the
light bulb (take the cartridge fuse out of the fuse holder or switch off
the automatic circuit breaker).
It is very important to clean the hood and replace the filter at
the recommended intervals. Failure to do so could cause
grease deposits to build up, resulting in a fire hazard.
 The appliance is not intended for use by young children or infirm
persons without supervision.
 Older children must be supervised if using the appliance.
 Young children should be supervised to ensure that they do not play
with the appliance.
 WARNING - Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric shock.
This appliance is marked according to the European directive 2002/96/
EC on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human health,
which could otherwise be caused by inappropriate waste handling of
this product.
The symbol on the product, or on the documents accompanying
the product, indicates that this appliance may not be treated as
household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment.
Disposal must be carried out in accordance with local environmental
regulations for waste disposal.
For more detailed information about treatment, recovery and recycling
of this product, please contact your local city office, your household
waste disposal service or the shop where you purchased the product.
All manuals and user guides at all-guides.com

54

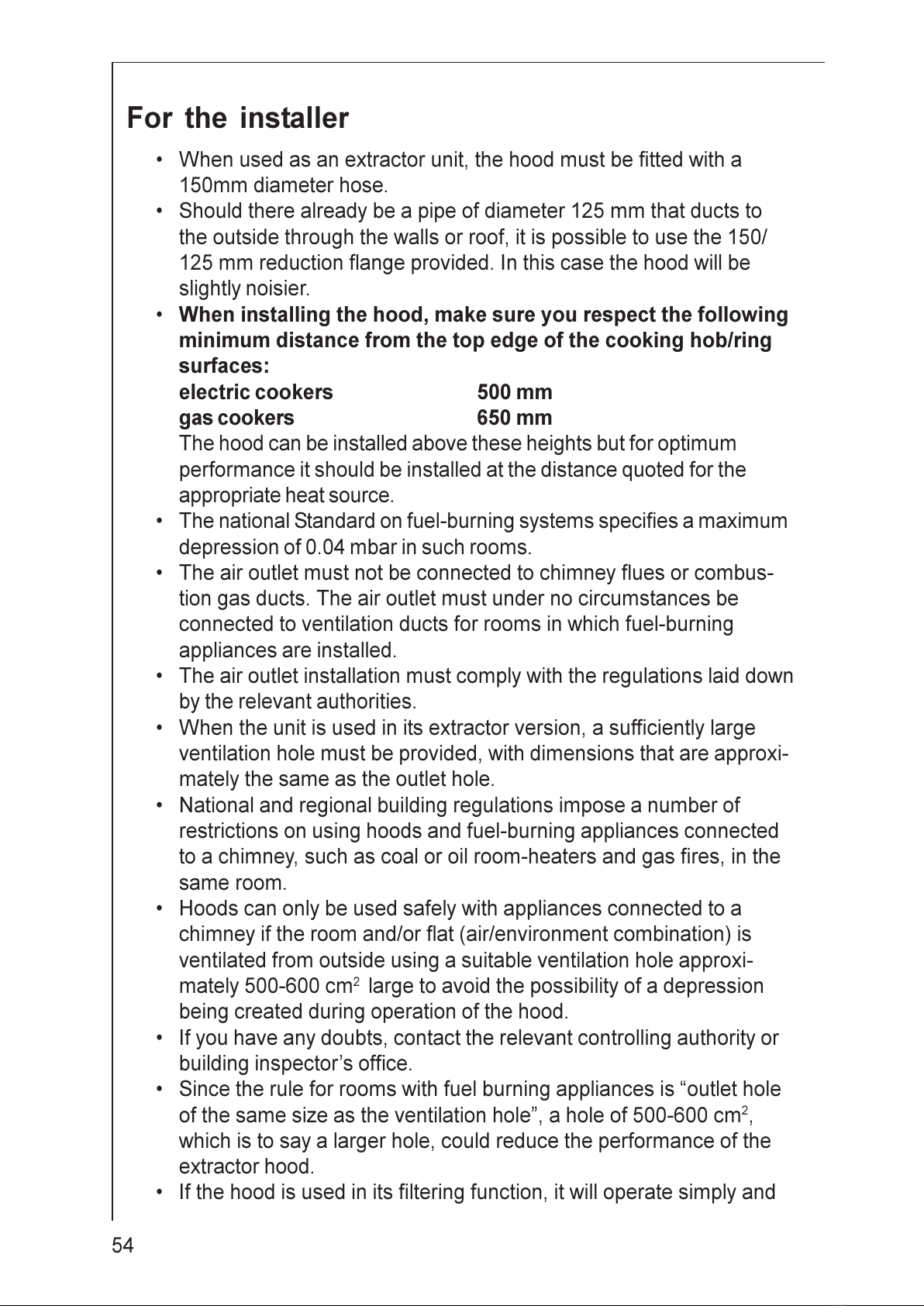

For the insta er
 When used as an extractor unit, the hood must be fitted with a
150mm diameter hose.
 Should there already be a pipe of diameter 125 mm that ducts to
the outside through the walls or roof, it is possible to use the 150/
125 mm reduction flange provided. In this case the hood will be
slightly noisier.
When installing the hood, make sure you respect the following
minimum distance from the top edge of the cooking hob/ring
surfaces:
electric cookers 500 mm
gas cookers 650 mm
The hood can be installed above these heights but for optimum
performance it should be installed at the distance quoted for the
appropriate heat source.
 The national Standard on fuel-burning systems specifies a maximum
depression of 0.04 mbar in such rooms.
 The air outlet must not be connected to chimney flues or combus-
tion gas ducts. The air outlet must under no circumstances be
connected to ventilation ducts for rooms in which fuel-burning
appliances are installed.
 The air outlet installation must comply with the regulations laid down
by the relevant authorities.
 When the unit is used in its extractor version, a sufficiently large
ventilation hole must be provided, with dimensions that are approxi-
mately the same as the outlet hole.
 National and regional building regulations impose a number of
restrictions on using hoods and fuel-burning appliances connected
to a chimney, such as coal or oil room-heaters and gas fires, in the
same room.
 Hoods can only be used safely with appliances connected to a
chimney if the room and/or flat (air/environment combination) is
ventilated from outside using a suitable ventilation hole approxi-
mately 500-600 cm2 large to avoid the possibility of a depression
being created during operation of the hood.
 If you have any doubts, contact the relevant controlling authority or
building inspectors office.
 Since the rule for rooms with fuel burning appliances is outlet hole
of the same size as the ventilation hole, a hole of 500-600 cm2,
which is to say a larger hole, could reduce the performance of the
extractor hood.
 If the hood is used in its filtering function, it will operate simply and
All manuals and user guides at all-guides.com

55
safely in the above conditions without the need for any of the
aforementioned measures.
 When the hood is used in its extractor function, the following rules
must be followed to obtain optimal operation:
 short and straight outlet hose
 keep bends in outlet hose to a minimum
 never install the hoses with an acute angle, they must always follow
a gentle curve.
 keep the hose as large as possible (preferably the same diameter
as the outlet hole).
 Failure to observe these basic instructions will drastically reduce the
performance and increase the noise levels of the extractor hood.
All manuals and user guides at all-guides.com

56
Description o the Appliance
 The hood is supplied as an extractor unit and can also be used with
a filtering function by fitting one charcoal filter.
 You will need an original harcoal filter for this function (Available from
your local Service Force Centre).
Only for HD 90- 20: The cooker hood is supplied ready for use
as a recirculation hood and may be used for extraction by removing
the charcoal filter which has been fitted inside the cooker hood.
Extractor version
 In this version fumes are extracted to the
outside via a hose connected to the
coupling ring. Fig. 1.
 In order to obtain the best performance the
hose should have a diameter equal to the
outlet hole.
Should there already be a pipe of diameter
125 mm that ducts to the outside through
the walls or roof, it is possible to use the
150/125 mm reduction flange provided. In
this case the hood will be slightly noisier.
Fi ter Version
 The air is filtered through a charcoal filter and returned to the
kitchen.
 You will need an original charcoal filter for the filtering function. (See
Special Accessories).
 Optionally, the position of the chimney elements can be changed.
When using the hood in the filter version the chimney must be fixed
at the top, with the air outlet grill at the side.
Fig. 1
D
All manuals and user guides at all-guides.com
all-guides.com

57
Control Panel
 Best results are obtained by using a low speed for normal
conditions and a high speed when odours are more concentrated.
Turn the hood on a few minutes before you start cooking, you will
then get an under pressure in the kitchen. The hood should be left
on after cooking for about 15 minutes or until all the odours have
disappeared. The control switches are located on the units front
panel.
1- Mains switch, ON/OFF
Press for less than 1 1/2 seconds and the cooker hood goes into
the "stand by" position (point "b" is illuminated).
Press for more than 1 1/2 seconds and the cooker hood turns off,
ALL the controls (except the light push button) are disabled (the
display is off).
Press again for more than 1 1/2 seconds to reset the cooker hood
to "stand by".
2- Light ON/OFF
3- Display
4- Start and choice of motor speed 1-2-3-1-2.........
5- Intensive speed on/off. The Intensive speed runs for 5 minutes:
If the hood is on when the Intensive speed is activated, the hood
will revert to previous speed after 5 minutes.
If the hood is off when the Intensive speed is activated, the hood
will automatically turn off after 5 minutes.
To interrupt the Intensive speed, press button 1 or 5.
The letter P appears on the display and the remaining time (the
point a is flashing), if interrupted an acoustic signal is heard.
6- Self-Timer: times all the speed levels (the point b is flashing),
and then the cooker hood switches off:
The self-timer is set as follows: 1st speed level 20 minutes
2nd speed level 15 minutes
3rd speed level 10 minutes
The display shows the remaining operation time, at the end of the
time an acoustic signal is heard. Depressing the push-button
again exits the function.
Should the hood or the controls fail to operate: disconnect the power
supply for at least 5 seconds. After reconnecting the power supply wait
15 seconds and then check that the cooker hood is now operating
correctly.
123 456
ab
Fig. 2
All manuals and user guides at all-guides.com

58
Contro device for grease and charcoa fi ters
This hood is fitted with a device that signals when it is necessary to
clean the grease filter or the charcoal filter (if the hood is used in the
recirculation version with a charcoal filter).
On delivery, the hood is not supplied with a charcoal filter, so the
saturation indicator will be disabled.
If the hood is to be used with a charcoal filter, the saturation
indicator light must be enabled as follows:
Press buttons 4 and 5 simultaneously and hold them for 3 seconds.
At first only the grease filter LED F will illuminate, but when the
charcoal filter LED C illuminates the saturation indicator will be
enabled.
To disable it: Press buttons 4 and 5 again simultaneously and hold
them for 3 seconds, until the charcoal filter LED C goes out.
Grease fi ter LED (F)
LED F will start to flash when it is time to clean the grease filter.
Cleaning will be necessary after 40 working hours. Always comply
with the maintenance instructions for the grease filter.
Charcoa fi ter LED (C)
The charcoal filter LED C will start to flash when the charcoal filter
needs to be replaced.
This operation is necessary after approximately 160 working hours.
Resetting the saturation indicator
After cleaning or replacing the filters, press button 1 for 3 seconds until
the grease filter LED F or the charcoal filter LED C stops flashing.
All manuals and user guides at all-guides.com

59
Maintenance and care
The hood must always be disconnected from the electricity
supply before beginning any maintenance work.
C eaning the hood
 Clean the outside of the hood using a damp cloth and a mild deter-
gent.
 Never use corrosive, abrasive or flammable cleaning products.
 Never insert pointed objects in the motors protective grid.
 Wash the outside surfaces using a delicate detergent solution.
Never use caustic detergents or abrasive brushes or powders.
 Only ever clean the switch panel and filter grille using a damp cloth
and delicate detergents.
 It is extremely important to clean the unit and change the filters at
the recommended intervals. Failure to do so will cause grease
deposits to build up that could constitute a fire hazard.
Meta grease fi ter
 The purpose of the grease filters is to absorb grease particles which
form during cooking and it must always be used, either in the
external extraction or internal recycling function.
Attention: the metal grease filters must be removed and washed,
either by hand or in the dishwasher, every four weeks.
Removing the meta grease fi ter
 First, push the metal grease filter stop backwards, then extract the
filter, pulling downwards. Fig. 3.
Hand washing
Soak grease filters for about one hour in
hot water with a grease-loosening
cleaner, then rinse off thoroughly with hot
water. Repeat the process if necessary.
Refit the grease filters when they are
dry.
Dishwasher
Place grease filters in the dishwasher. Select
most powerful washing programme and highest
temperature, at least 65°C. Repeat the process.
Refit the grease filters when they are dry.
When washing the metal grease filter in the
dishwasher a slight discolouration of the filter can occur, this does
not have any impact on its performance.
 Clean the inner housing using a hot detergent solution only (never
use caustic detergents, abrasive powders or brushes).
Fig. 3
All manuals and user guides at all-guides.com

60
d
i
h
g
g
g
g
Charcoa fi ter
 The charcoal filter should only be used if you want to use the hood
in the recirculation function.
 To do this you will need an original AE charcoal filter (available
from your local Service Force Centre).
Cleaning/replacing the carbon filter
Unlike other carbon filters, the LON LIFE carbon filter can be
cleaned and reactivated. At normal use the filter should be cleaned
every second month (when using the hood 2,5 hours per day, in
avarage). The best way to clean the filter is in the dishwasher. Use
normal detergent and choose the highest temperature (65º C).
Wash the filter separately so that no food parts gets stuck on the
filter and later causes bad odours. To reactivate the carbon, the
filter should be dried in an oven for 10 minutes with a temperature
of maximum 100º C.
After approximately three years of use, the carbon filter should be
replaced with a new, as the odour reduction capacity will be
reduced.
Fitting
Remove the frame i which supports the filter h by turning 90° the
two knobs g.
Insert the charcoal filter inside the frame and put all parts back in
their place. Fig. 4.
To remove proceed in the reverse order.
 Always specify the hood model code number and serial number
when ordering replacement filters. This information is shown on the
registration plate located on the inside of the unit.
 The charcoal filter can be ordered from your local AE Service
Force Centre.
Fig. 4
All manuals and user guides at all-guides.com

61
Warning
 Failure to observe the instructions on cleaning the unit and
changing the filters will cause a fire hazard. You are therefore
strongly recommended to follow these instructions.
 The manufacturer declines all responsibility for any damage to the
motor or any fire damage linked to inappropriate maintenance or
failure to observe the above safety recommendations.
Changing the ight bu b
 Disconnect the cooker hood from the main supply.
 Remove the lamp cover, use a screw driver as a lever. Fig. 5.
 Replace the old bulb with a new one of the same type.
 Refit the lamp cover.
 If the light does not come on, make sure the bulb has been inserted
correctly before contacting your local Service Force Centre.
Fig. 5
All manuals and user guides at all-guides.com
all-guides.com

62
What to do if
If your appliance fails to work properly please carry out the following
checks.
Symptom Solution
The cooker hood will not start... Check that:
The hood is connected to
the electricity supply.
Check that a fan speed has
been selected
The cooker hood is not working Check that:
effectively.. The fan speed is set high
enough for the task.
The grease filters are clean.
The kitchen is adequately vented
to allow the entry of fresh air.
If set up for recirculation, check
that the charcoal filter is still
effective.
If set up for extraction, check that
the ducting and outlets are not
blocked.
The cooker hood has The safety cut-out device has been
switched off during operation... tripped.
Turn off the hob and then wait for
the device to reset.
If the hood has been installed
below the heights indicated in the
installation instructions the motor
will cut-out frequently which will
damage the hood.
If after all these checks, the problem persists, contact your local
Service Force Centre, quoting the model and serial number.
Please note that it will be necessary to provide proof of purchase for
any in-guarantee service calls.
In-guarantee customers should ensure that the above checks have
been made as the engineer will make a charge if the fault is not a
mechanical or electrical breakdown.
All manuals and user guides at all-guides.com

63
Service and Spare Parts
In the event of your appliance requiring service or if you wish to purchase spare parts
contact your local Service Force Centre by telephoning: 08705 929 929
Your call will be automatically routed to the Service Centre covering your post code
area. For the address of your local Service Force Centre and further information about
Service Force please visit the website at www.serviceforce.co.uk
Please ensure that you have read the section What to do if.... as the engineer will make
a charge if the fault is not a mechanical or electrical breakdown even the appliance is
under warranty. Please note that proof of purchase is required for in-guarantee
service calls.
Help us to help you
Please determine your type of enquiry before writing or telephoning.
When you contact us we need to know:
 Your name  Clear and concise details of the fault
 Address and post code  Name and model of the appliance*
 Telephone number  E number*
 Serial number*
* This information can be found on the rating plate which can be seen when the grease
filters are removed.
If you require Customer Service in the Republic of Ireland please contact us at the
address below:
AEG
Electrolux Group (Ire) Ltd
Long Mile Road
Dublin 12
Republic of Ireland
Tel: + 353 (0) 1 4090751 Email: [email protected]
CUSTOMER CARE DEPARTMENT
For general enquiries concerning your AEG appliance or for further information on AEG
products please contact our Customer Care Department by letter or telephone at the
address below or visit our website at www.aeg.co.uk
Customer Services Department
Major Appliances
AE Electrolux
Addington Way
Luton
Bedfordshire
LU4 9QQ
08705 350 350 (*)
* calls to this number may be recorded for training purposes.
All manuals and user guides at all-guides.com

64
Special accessories
Charcoal filter TYPE 20
Technical Speci ications
Model DD 90 DD 20
HD 90 HD 20
Dimensions - extractor version (in cm):
Height 68,5-113,4 68,5-113,4
Width 89,8 119,8
Depth 46 46
Dimensions - filter version (in cm):
Height 77,2-123 77,2-123
Width 89,8 119,8
Depth 46 46
Maximum absorbed power: 215 W 255 W
Motor absorption: 1 x 175 W 1 x 175 W
Lighting: 2 x 20 W 4 x 20 W
Lengthof the cable:150 cm 150 cm
Electrical connection: 220 - 240 V 220 - 240 V
Mounting accessories inc uded
1 chimney support
1 reduction flange Ø 125-120 mm
1 deflector
1 allen spanner (for TORX screws)
1 support bracket
6 wood-screws 5 x 45 mm (for wall mounting)
6 wall plugs Ø 8 mm (for wall mounting)
2 metal screws 2,9 x 6,5 (for chimney flue mounting)
DD 90 - HD 90 only
4 metal screws 3,5 x 9,5 (to affix the deflector to the support)
DD 20 - HD 20 only
4 metal screws 2,9 x 6,5 (2 for chimney flue mounting + to affix the
deflector to the support)
All manuals and user guides at all-guides.com

65
Electrical connection (not or UK)
Safety warnings for the e ectrician
Before connecting the appliance to the power supply, check that the
voltage indicated on the rating plate corresponds to the mains power
supply available. Appliances fitted with a plug can be connected to
any standard power socket within easy access.
Should it be necessary to provide a fixed connection, the hood must
only be installed by an electrician authorised by the local electricity
board. When installing, an omnipolar disconnector with a distance of
at least 3 mm between contacts must be provided.
Fixed connection of the appliance must only be carried out by an
authorised electrician.
Electrical connection or UK only
Safety warnings for the e ectrician
Connect the hood to the mains supply via a double pole switch
which has 3 mm minimum separation between the contacts.
The switch must be accessible at all times.
The following is valid in the United Kingdom only:
- the wire which is coloured green and yellow must be connected to
the terminal which is marked with the letter E or by the earth symbol
( ), or coloured green or green and yellow;
- the wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black, -
- the wire which is coloured brown must be connected to the terminal
which is marked with the letter L or coloured red.
All manuals and user guides at all-guides.com

66
Wa unit mounting - Fig. 6
First decide how the hood is to operate
(extractor or filter).
If you decide to use the hood in the
extractor version we suggest to position the
upper section of the chimney so that the
oulet slots are not visible once installed, if
the hood is used in the filtering version
ENSURE that the side with the slots
pointing upwards (see also A-B-C sequence
on on Fig. 6).
Wa unit mounting - Fig. 7
 Mark the wall with a centre line, this will aid mounting procedure (1),
position the template so that the mid line printed on the template
matches with the centre line previously drawn, the lower side of the
template corresponds to the lower side of the hood once mounted
(2).
 Drill two holes Ø 8mm and fix the support bracket with two wall
plugs and screws (3). Hang the hood (4) and adjust its position (5-
6).
 From the inside of the hood mark two points for fixing (7).
 Remove the hood ( ) and drill two holes Ø 8mm (9), fit two wall
plugs (10).
 Drill two holes Ø 8mm on the upper side close to the ceilling, fit two
wall plugs (11) (In case the hood is to be used in filter version,
mount the deflector F on the chimney support with four screws
2,9x6,5 (Two screws for model DD 8820 - HD 8820) and fix the
chimney support G with two screws (12).
 Hang the hood again (13) and secure it with two screws (14).
 Fit an exhaust pipe (15) to connect the outlet hole A of the hood to
the outside (Extractor hood) or to the deflector F (Filter version).
 Make electrical connection (16).
 Fix the chimney first up (17a) to the chimney support (17b), then
slide the lower section of the chimney down into the housing on top
of the hood (1 ).
Only for model DD 20 - HD 20: Fix the lower section to the
hood with two screws 3 x 9 mm (19).
A
B
180°
C - OK!
Fig. 6
All manuals and user guides at all-guides.com
all-guides.com

67
Fig. 7
17b
17b
4-13
4-13
1
2
3
11
11
12
15
17a
17a
6
5
16
B
G
H
8
8
18
F
9
10
14
7
9
10
14
7
5
6
F
G
19
19
DD 20
HD 20
All manuals and user guides at all-guides.com

AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nür berg
http://www.aeg.hausgeraete.de
© Copyright by AEG LI10LL Ed. 07/05
From the Electrolux Group. The world´s No.1 choice.
The Electrolux Group is the world´s largest producer of powered appliances for kitchen,
cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators,
cookers, washing machines,vacuum cleaners, chain saws and lawn mowers are sold each
year to a value of approx. USD 14 billion in more than 150 countries around the world.
AEGElectrolux
Addington Way
Luton
Bedfordshire
LU4 9QQ
http://www.aeg.co.uk
All manuals and user guides at all-guides.com
