EN 1
17

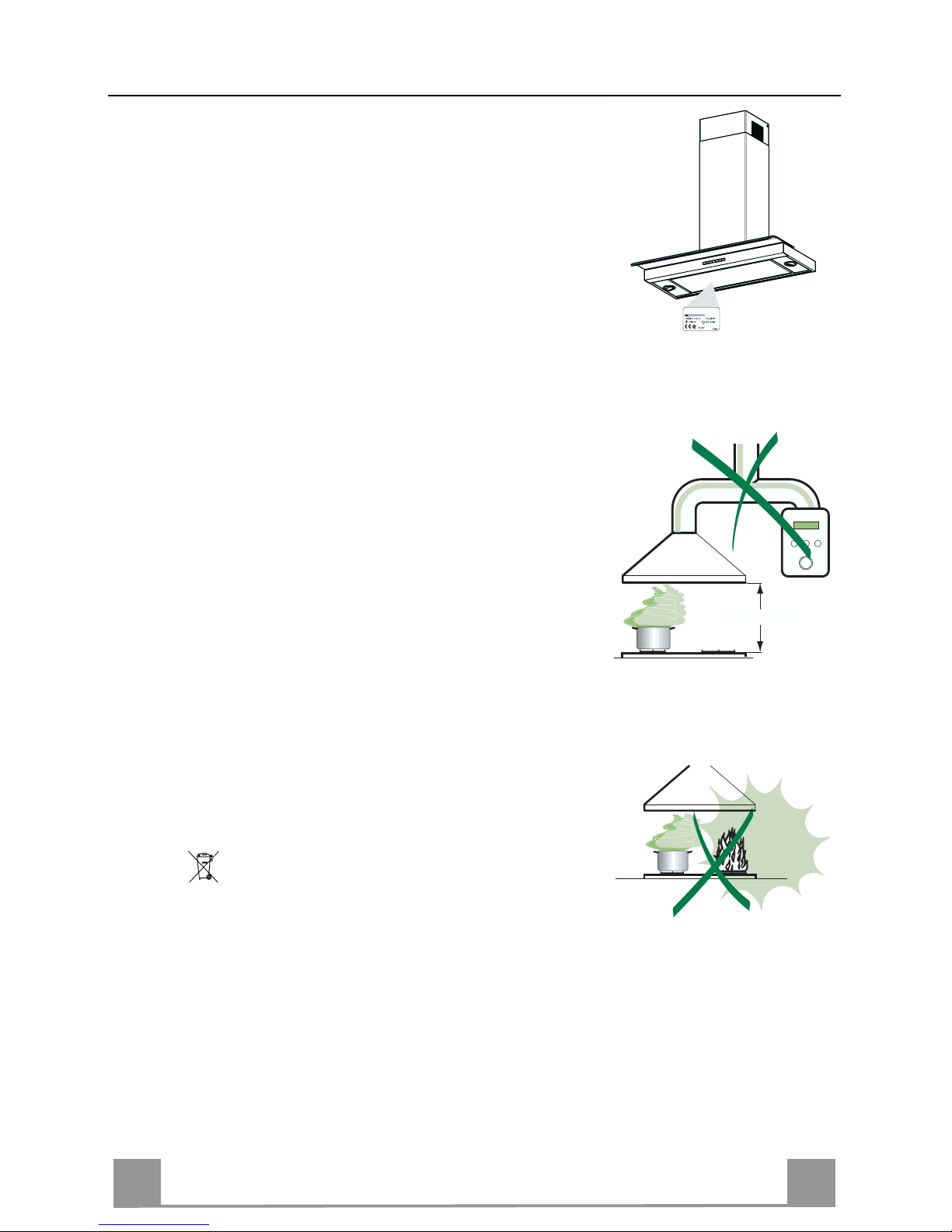

RECOMMENDATIONS AND SUGGESTIONS
INSTALLATION
• The manufacturer will not be held liable for any damages resulting from
incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor
hood is 650 mm.
• Check that the mains voltage corresponds to that indicated on the rating
plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees
adequate earthing.
Connect the extractor to the exhaust flue through a pipe of minimum di-
ameter 120 mm. The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion
fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g.
gas burning appliances), a sufficient degree of aeration must be guaran-
teed in the room in order to prevent the backflow of exhaust gas. The
kitchen must have an opening communicating directly with the open air in
order to guarantee the entry of clean air.
USE
• The extractor hood has been designed exclusively for domestic use to
eliminate kitchen smells.
• Never use the hood for purposes other than for which it has ben designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, mak-
ing sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil
can burst into flames.
• The hood should not be used by children or persons not instructed in its
correct use.
MAINTENANCE
• Switch off or unplug the appliance from the mains supply before carrying
out any maintenance work.
• Clean and/or replace the Filters after the specified time period.
• Clean the hood using a damp cloth and a neutral liquid detergent.
The symbol on the product or on its packaging indicates that this product
may not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health, which could oth-
erwise be caused by inappropriate waste handling of this product. For more de-
tailed information about recycling of this product, please contact your local city
office, your household waste disposal service or the shop where you purchased
the product.
650 mm min.

EN 1
18

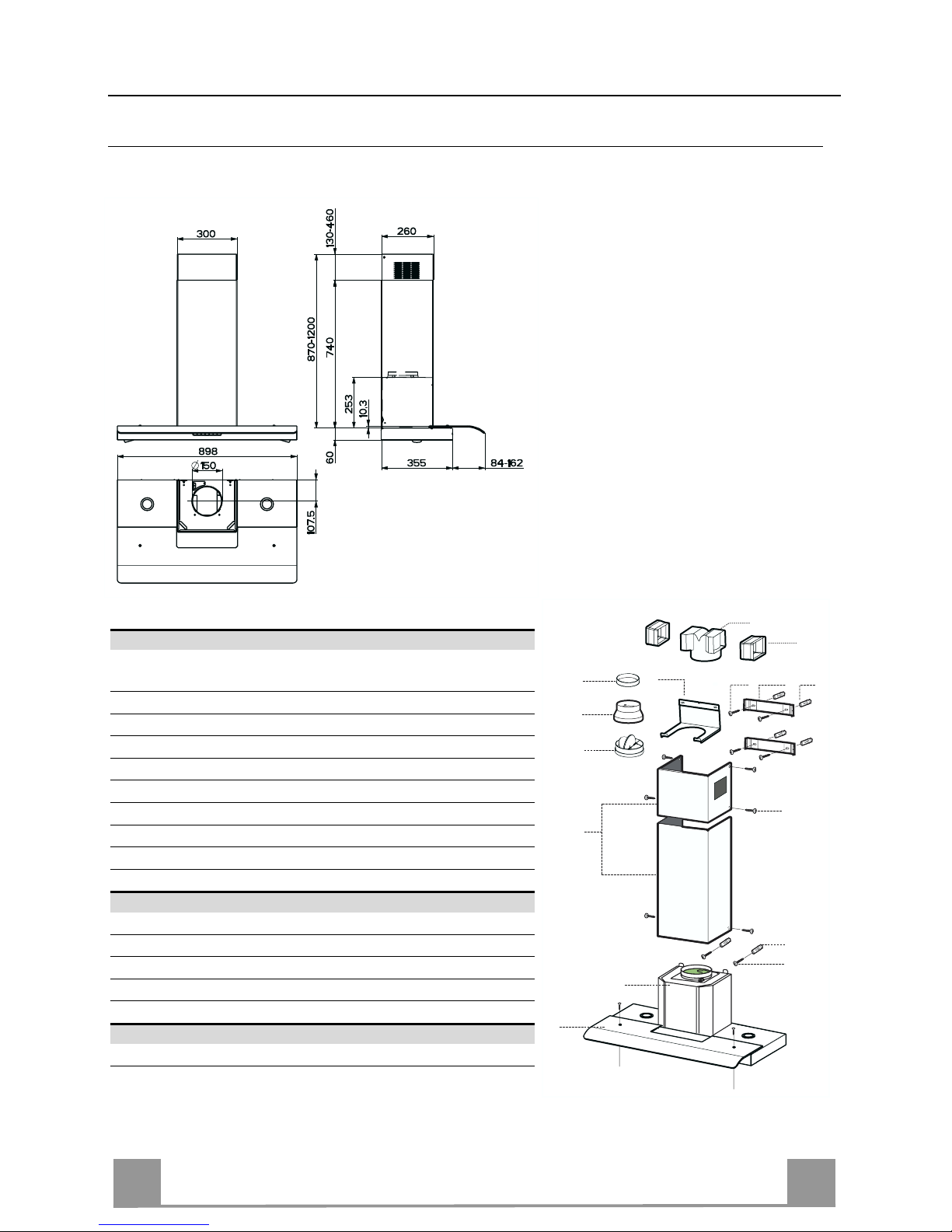

CHARACTERISTICS
Dimensions
Components
Ref. Q.ty Product Components
11 Hood Body, complete with: Controls, Light, Blower,
Filters
21 Telescopic Chimney comprising:
2.1 1 Upper Section
2.2 1 Lower Section
91 Reducer Flange ø150-120 mm
10 a 1 Damper
10 b 1 Adapting ring ø 120-125 mm
14.1 2 Air Outlet ConnectionExtension
15 1 Air Outlet Connection
26 1 Glass
Ref. Q.ty Installation Components
7.2.1 2 Upper Chimney Section Fixing Brackets
7.3 1 Air Outlet Connection Support
11 6 Wall Plugs
12a 6 Screws 4,2 x 44,4
12c 6 Screws 2,9 x 9,5
Q.ty Documentation
1 Instruction Manual
2.1
2.2
2
12c
12a 7.2.1 11
11
12a
9
7.3
10a
10b
14.1
15
1
26

EN 1
19
INSTALLATION

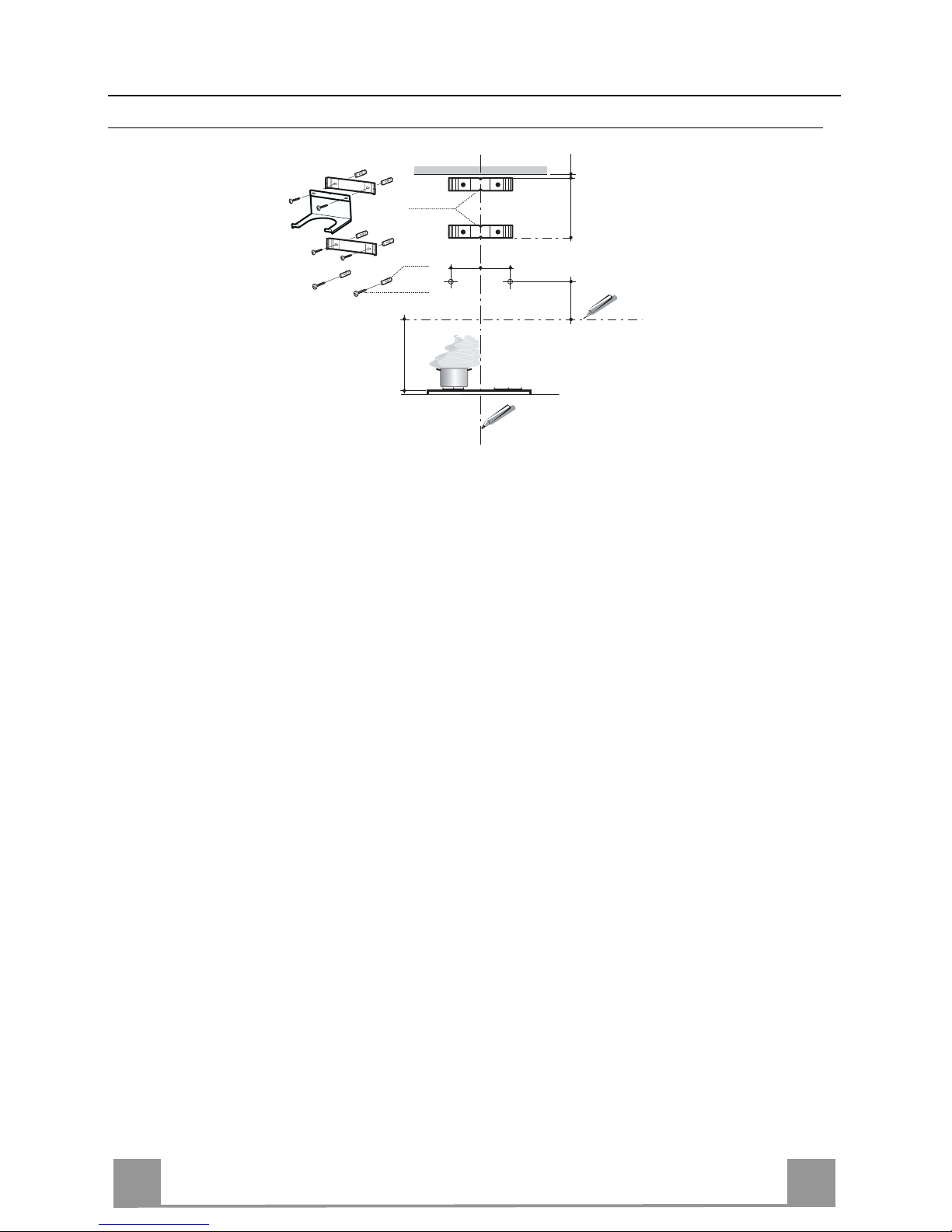

Wall drilling and bracket fixing
11
12a
320 X
116
1÷2
116
650 min.
7.2.1
Wall marking:
• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the
centre of the area in which the hood will be installed.
• Draw a horizontal line at 650 mm above the hob.
• Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit align-
ing the centre (notch) with the vertical reference line.
• Mark the wall at the centres of the holes in the bracket.
• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket (X = height of the
upper chimney section supplied), aligning the centre (notch) with the vertical line.
• Mark the wall at the centres of the holes in the bracket.
• Mark a reference point as indicated at 116 mm from the vertical reference line and 320 mm
above the horizontal reference line.
• Repeat this operation on the other side.
• Drill ø 8 mm holes at all the centre points marked.
• Insert the wall plugs 11 in the holes.
• Fix the lower bracket 7.2.1 using the 12a screws (4,2 x 44,4) supplied.
• Fix the upper bracket 7.2.1 and the air outlet connection support 7.3 together using the 2
screws 12a (4,2 x 44,4) supplied.
• Insert the two screws 12a (4,2 x 44,4) supplied in the hood body fixing holes, leaving a gap
of 5-6 mm between the wall and the head of the screw.

EN 2
20
Mounting the hood body
• Before attaching the hood body, tighten the two screws Vr lo-
cated on the hood body mounting points.
• Hook the hood body onto the screws 12a.
• Fully tighten support screws 12a.
• Adjust screws Vr to level the hood body.
12a
Vr
Connections
DUCTED VERSION AIR EXHAUST SYSTEM
When installing the ducted version, connect the hood to the
chimney using either a flexible or rigid pipe ø 150 or 125mm, the
choice of which is left to the installer.
To install a ø 150
• To install the dumper 10a.
• Fix the pipe in position using sufficient pipe clamps (not
supplied).
To install a ø 125
• To install a ø 125 mm air exhaust connection, insert the redu-
cer flange 9 on the dumper 10a.
• To install the Adapting ring 10b.
• Fix the pipe in position using sufficient pipe clamps (not
supplied).
• Remove any activated charcoal filters.
9
ø 150 ø 125
10b
10a
10a

EN 2
21
RECIRCULATION VERSION AIR OUTLET
• Assemble the two halves of the hood body extension piece 14.
• Push fit the assembled hood body extension piece 14 onto the
air outlet.
• Push fit connection 15 onto the hood body extension piece 14.
• Insert the connection extension pieces laterally 14.1 in connec-
tion 15.
• Make sure that the outlet of the extension pieces 14.1 is hori-
zontally and vertically aligned with the chimney outlets. If this
is not the case, adjust the position by either reversing the con-
nection extension pieces 14.1 or by cutting the hood body ex-
tension 14 along one of the thinner section channels denoting
the pre-fixed lengths, then reassemble as described previously.
• The air outlet directional grills 8a - 8b must be fitted after the
lower outlet duct has been installed.
• Ensure that the activated charcoal filters have been inserted.
ø 150
14.1
15
ELECTRICAL CONNECTION
• Connect the hood to the mains through a two-pole switch hav-
ing a contact gap of at least 3 mm.
• Remove the grease filters (see paragraph Maintenance) being
sure that the connector of the feeding cable is correctly inserted
in the socket placed on the side of the fan.
Flue assembly
Upper exhaust flue
• Slightly widen the two sides of the upper flue and hook them
behind the brackets 7.2.1, making sure that they are well
seated.
• Secure the sides to the brackets using the 4 screws 12c (2,9 x
9,5) supplied.
• Make sure that the outlet of the extensions pieces is aligned
with the chimney outlets.
Lower exhaust flue
• Slightly widen the two sides of the flue and hook them be-
tween the upper flue and the wall,
making sure that they are well seated.
• Fix the lower part laterally to the hood body using the 2 screws
12c (2,9 x 9,5) supplied.
12c
12c
12c
2.1
2.2
2
7.2.1

EN 2
22

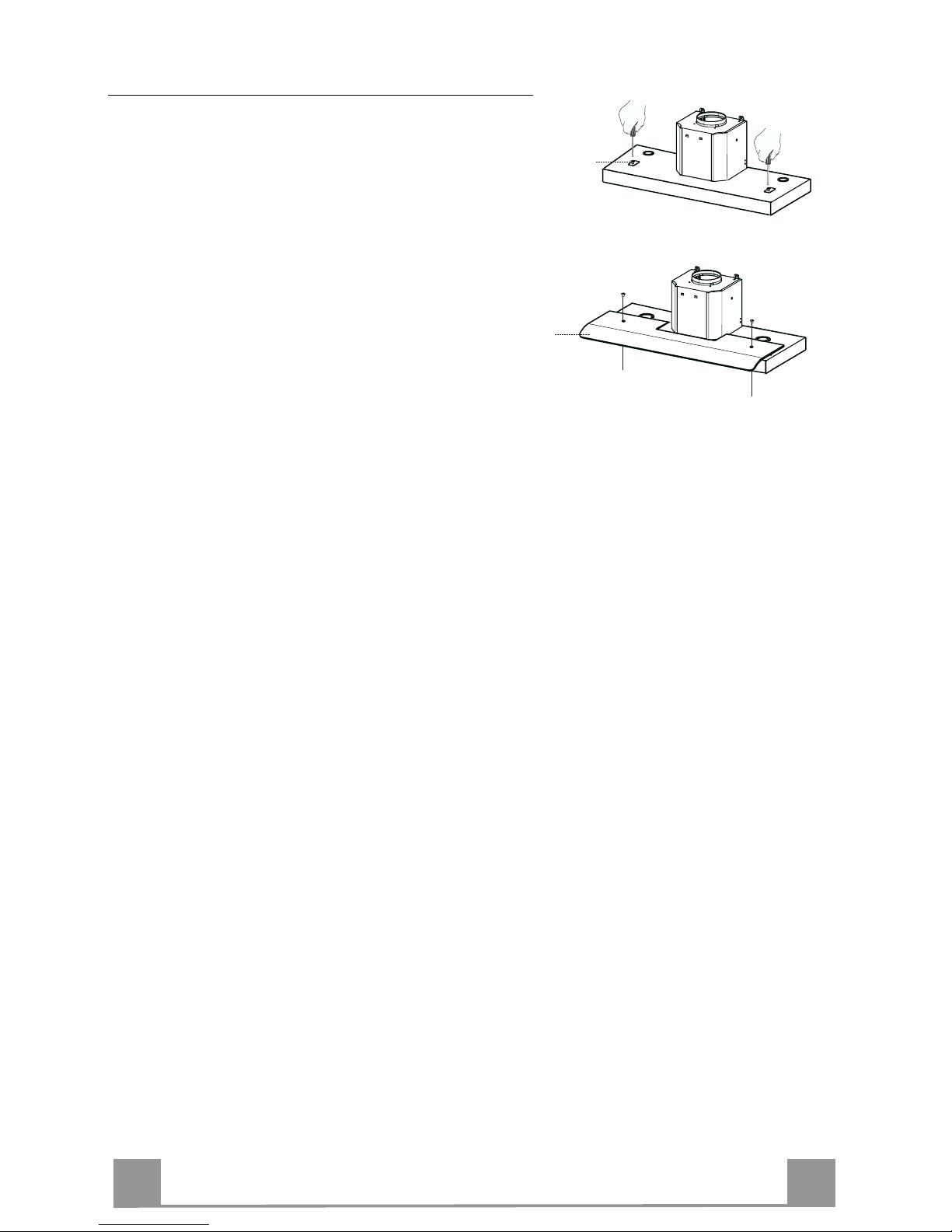

Glass Assembly
• Unscrew Vx to fix the glass.
• Please set the glass 26 on the Body Hood being care-
ful that both supports are correctly positioned.
• Fix the glass with the two screws Vx previously re-
moved.
Vx
26

EN 2
23
USE
KEY DISPLAY FUNCTION
A
Switches the lights over the cooker on and off.
B
Switches the lights placed on top of the hood body on and off .
C
Shows set speed
Switches the extractor motor on and off at the latest selected
speed. It also opens and closes the glass panel. By pressing this
key for about two seconds the glass opens and closes.
D Shows selected
speed.
By pressing this key in sequence, it is possible to select the
speed.
E
Shows P.5 by count-
ing down to five
minutes.
Activates the highest extraction speed. After about 5 minutes it
goes back to any previously selected speed. It can be deacti-
vated by pressing this key again. (the central decimal display
dot flashes).
F
Shows the remain-
ing time before the
hood shuts down
(countdown). The
right down dot
flashes.
Sets the automatic delayed shut down of the appliance (De-
lay)according to the selected speed:
Speed 1 →delay 20 minutes
Speed 2 →delay 15 minutes
Speed 3 →delay 10 minutes
The recommended delay time can be changed by pressing this
key in sequence (5,10, 15, 20, 25 e 30 minutes). When the se-
lected time is over, the appliance will shut down automatically.
By pressing this key and selecting option 0, this function will
deactivate.
Shows F
Indicates that the metal grease filters saturation alarm has been
triggered, and the filters need to be washed. The alarm is trig-
gered after 100 working hours. This indication shows only
when the motor is switched off.
Reset alarm:
Please switch the motor off and press key D for about 3 seconds
until the display turns off.
Shows C
Indicates that the charcoal filters saturation alarm has been trig-
gered, and the filter has to be replaced; the metal grease filters
must also be washed. The charcoal filter is triggered after 200
working hours. This indication shows only when the motor is
switched off. This kind of indication should be activated by
following the procedures explained in the maintenance section
of the active charcoal filter.
Reset alarm:
Please switch the motor off and press key D for about 3 seconds
until the display turns off.

EN 2
24
MAINTENANCE
Cleaning the Comfort Panels
• Pull the Comfort Panel to open it.
• Disconnect the panel from the hood canopy by slid-
ing the fixing pin lever.
• The comfort panel must never be washed in a dish-
washer.
• Clean the outside using a damp cloth and neutral liq-
uid detergent.
• Clean the inside as well using a damp cloth and neu-
tral detergent; do not use wet cloths or sponges, or
jets of water; do not use abrasive substances.
• When the above operation has been completed, hook
the panel back to the hood canopy and close it by
turning the knob in the opposite direction.
Metal grease filters
Filters can be washed in the dish machine. They need to
be washed when F-sign appears on the display or in any
case every 2 months, or even more frequently in case of
particularly intensive use of the hood.
Alarm reset
• Switch off the hood and the lights.
• Press the D-key till the display is unlit.
Cleaning the filters
• Pull the comfort panels to open them.
• Remove the filters one by one pushing them towards
the back side of the hood unit and simultaneously
pulling downwards.
• Any kind of bending of the filters has to be avoided
when washing them. Before fitting them again into
the hood make sure that they are completely dry.
(The colour of the filter surface may change through-
out the time but this has no influence to the filter ef-
ficiency).
• When fitting the filters into the hood pay attention
that they are mounted in correct position the handle
facing outwards.
• Close the comfort panel.

EN 2
25
Charcoal filter (recycling version)
• This filter cannot be washed or regenerated. It must be replaced when the C appears on the
display or at least once every 4 months.
Activation of the alarm signal
• In the recycling version hoods the filter saturation alarm must be activated during the instal-
lation or later.
• Switch off the hood and the lights.
• Disconnect the hood from the mains supply.
• When restoring the connection press and hold C-key.
• When releasing the key two rotating rectangles appear on the display.
• Within 3 seconds press the B-key until a flashing confirmation appears on the dispaly:
• 2 flashes with C- charcoal filter saturation alarm ACTIVATED
• 1 flash with C- charcoal filter saturation alarm DEACTIVATED.
REPLACING THE CHARCOAL FILTER
Reset of the alarm signal
• Switch off the hood and the lighting.
• Press the D-key until the display is unlit.
Replacing of the filter
• Open the comfort panels pulling them downwards.
• Remove the metal grease filters.
• Remove the saturated charcoal filter by releasing the fixing
hooks
• Fit the new filter and fasten it in its correct position.
• Put the metal grease filters in their seats.
• Close the comfort panels.

EN 2
26
Lighting system
LIGHT REPLACEMENT
Upper Halogen Lights ( 20 W )
• Remove the snap-on lamp cover by levering it from under the
metal ring, supporting it with one hand
• Remove the halogen lamp from the lamp holder by pulling
gently.
• Replace the lamp with a new one of the same type, making
sure that you insert the two pins properly into the housings on
the lamp holder.
• Replace the snap-on lamp cover
Lower Halogen Lights (20 W )
• Find the cut side of the snap-on cover ring by pressing gently
toward the centre of the spot light; it will be released.
• Remove the snap-on cover and the glass, being careful not to
drop it.
• Remove the halogen lamp from the lamp holder by pulling
gently.
• Replace the lamp with a new one of the same type, making
sure that you insert the two pins properly into the housings on
the lamp holder.

436002991_ver3
Bitte geben Sie unserem Kundendienst folgende Angaben bei einer
Störung an:
If your appliance has a fault, please contact our service engineer and
state the following numbers:
Veuillez donner les indications suivantes à notre service après-vente en
cas de panne:
Qualora constataste un difetto vi preghiamo di comunicare i seguenti
dati al nostro servizio tecnico assistenza clienti:
Geef onze klantenservice bij een storing de volgende gegevens op:
E-Nr. 610
F-Nr.
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
© Copyright by AEG
Dir. 89/336/CEE
73/23/CEE
93/68/CEE
