Electrolux EFR9406 User manual

User manual
EFP 9406
UK
All manuals and user guides at all-guides.com
all-guides.com

2
Contents
Safety warnings......................................................................................................................................................3
For the installer........................................................................................................................................................3
For the user .............................................................................................................................................................. 4
Description of the appliance ................................................................................................................................. 5
Extraction mode....................................................................................................................................................... 5
Recirculation mode..................................................................................................................................................5
Control Panel .........................................................................................................................................................6
Correct ventilation ................................................................................................................................................... 6
Maintenance and care ...........................................................................................................................................7
Cleaning the hood ....................................................................................................................................................7
Metal grease filter....................................................................................................................................................7
Charcoal filter ..........................................................................................................................................................8

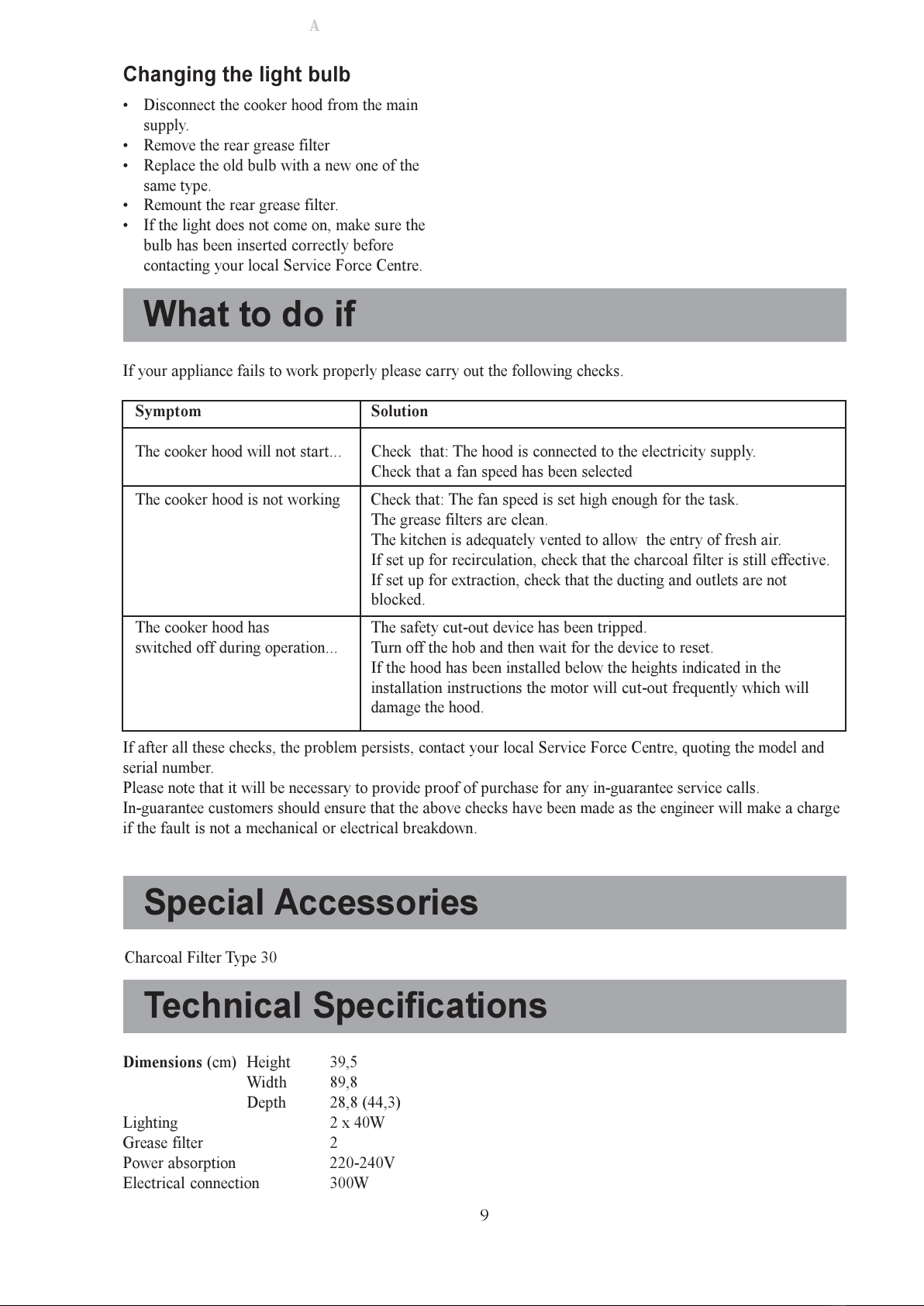

Changing the light ul ...........................................................................................................................................9
What to do if .......................................................................................................................................................... 9
Special Accessories ................................................................................................................................................9
echnical Specifications ........................................................................................................................................ 9
echnical assistance service ................................................................................................................................10
Service and Spare Parts ...................................................................................................................................... 10

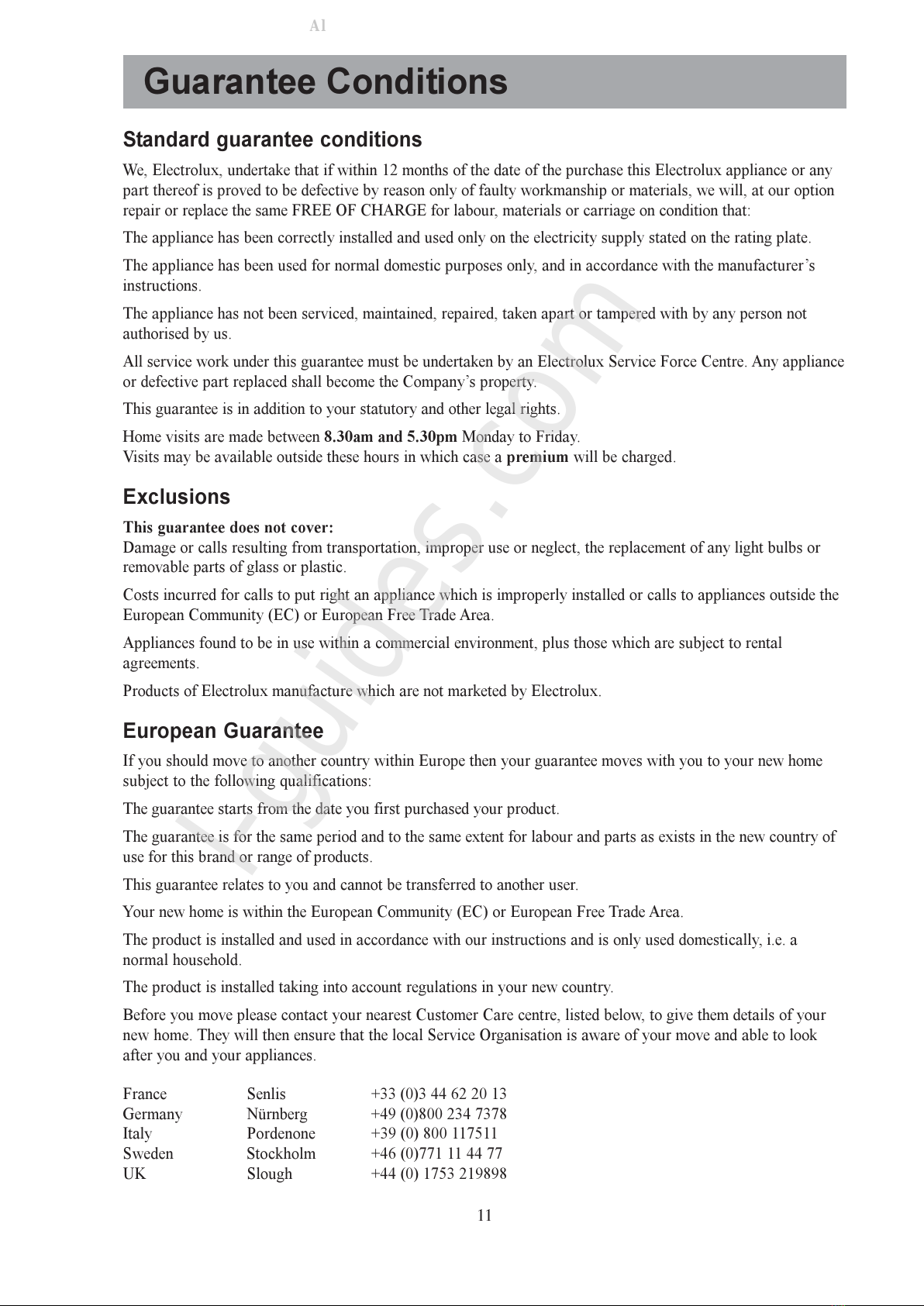

Guarantee Conditions ......................................................................................................................................... 11
Installation ........................................................................................................................................................... 12
Unpacking .............................................................................................................................................................. 12
Fitting .................................................................................................................................................................... 12
Electrical connection ............................................................................................................................................. 12
Installation ............................................................................................................................................................. 13
Extracta le drawer adjustment ..............................................................................................................................13
Connection to the outlet hose ................................................................................................................................13
Before installing or using this appliance please read this instruction ook carefully paying particular attention to
the safety warnings on the following page.
If you have any queries regarding this appliance please contact Customer Care for advice.
Please keep this instruction ook for future reference and pass it on to any future owner of the appliance.
All manuals and user guides at all-guides.com

3

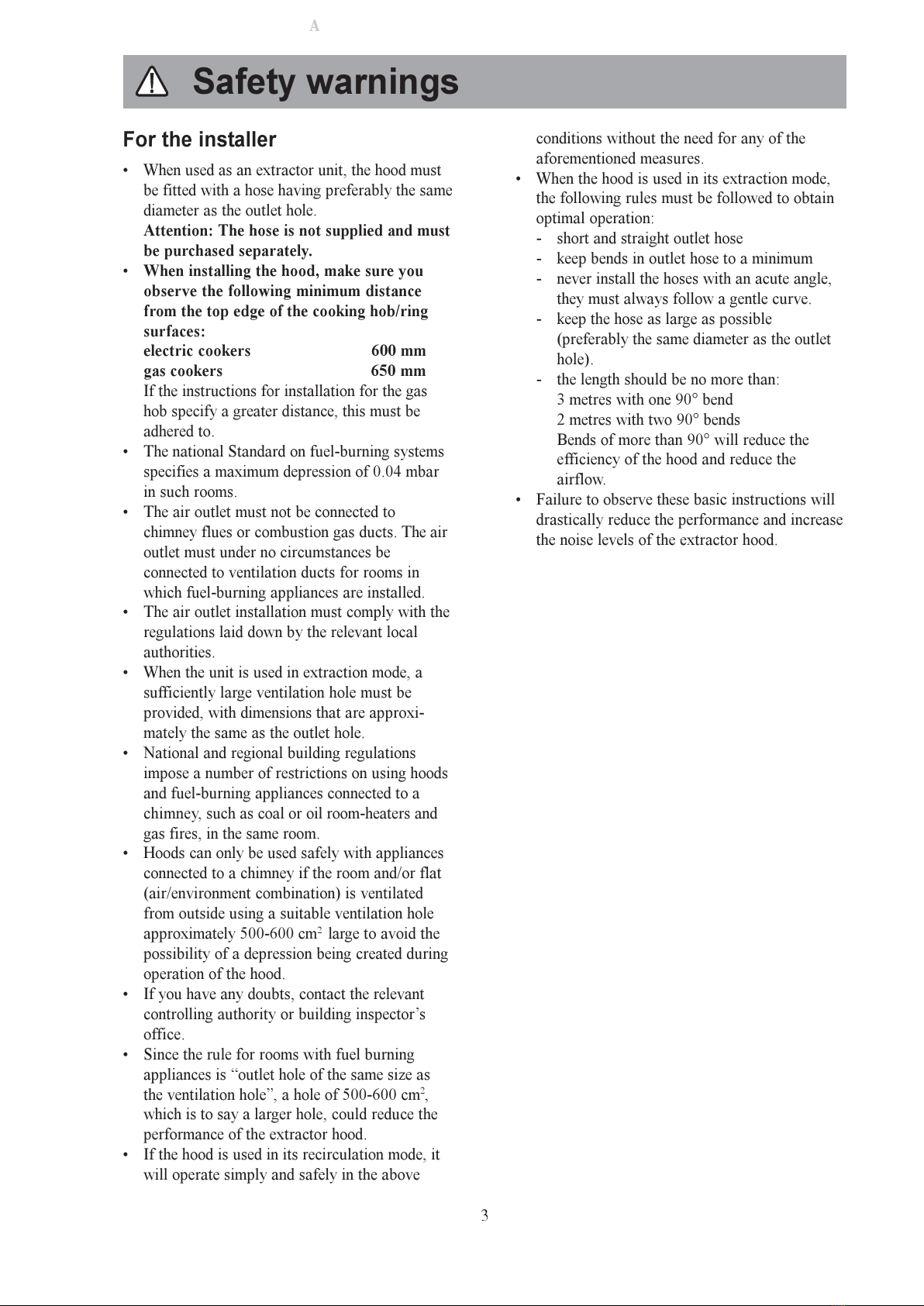

Safety warnings
For the installer
 When used as an extractor unit, the hood must
e fitted with a hose having prefera ly the same
diameter as the outlet hole.
Attention: he hose is not supplied and must
be purchased separately.
When installing the hood, make sure you
observe the following minimum distance
from the top edge of the cooking hob/ring
surfaces:
electric cookers 600 mm
gas cookers 650 mm
If the instructions for installation for the gas
ho specify a greater distance, this must e
adhered to.
 The national Standard on fuel- urning systems
specifies a maximum depression of 0.04 m ar
in such rooms.
 The air outlet must not e connected to
chimney flues or com ustion gas ducts. The air
outlet must under no circumstances e
connected to ventilation ducts for rooms in
which fuel- urning appliances are installed.
 The air outlet installation must comply with the
regulations laid down y the relevant local
authorities.
 When the unit is used in extraction mode, a
sufficiently large ventilation hole must e
provided, with dimensions that are approxi-
mately the same as the outlet hole.
 National and regional uilding regulations
impose a num er of restrictions on using hoods
and fuel- urning appliances connected to a
chimney, such as coal or oil room-heaters and
gas fires, in the same room.
 Hoods can only e used safely with appliances
connected to a chimney if the room and/or flat
(air/environment com ination) is ventilated
from outside using a suita le ventilation hole
approximately 500-600 cm2 large to avoid the
possi ility of a depression eing created during
operation of the hood.
 If you have any dou ts, contact the relevant
controlling authority or uilding inspectors
office.
 Since the rule for rooms with fuel urning
appliances is outlet hole of the same size as
the ventilation hole, a hole of 500-600 cm2,
which is to say a larger hole, could reduce the
performance of the extractor hood.
 If the hood is used in its recirculation mode, it
will operate simply and safely in the a ove
conditions without the need for any of the
aforementioned measures.
 When the hood is used in its extraction mode,
the following rules must e followed to o tain
optimal operation:
- short and straight outlet hose
- keep ends in outlet hose to a minimum
- never install the hoses with an acute angle,
they must always follow a gentle curve.
- keep the hose as large as possi le
(prefera ly the same diameter as the outlet
hole).
- the length should e no more than:
3 metres with one 90° end
2 metres with two 90° ends
Bends of more than 90° will reduce the
efficiency of the hood and reduce the
airflow.
 Failure to o serve these asic instructions will
drastically reduce the performance and increase
the noise levels of the extractor hood.
All manuals and user guides at all-guides.com

4

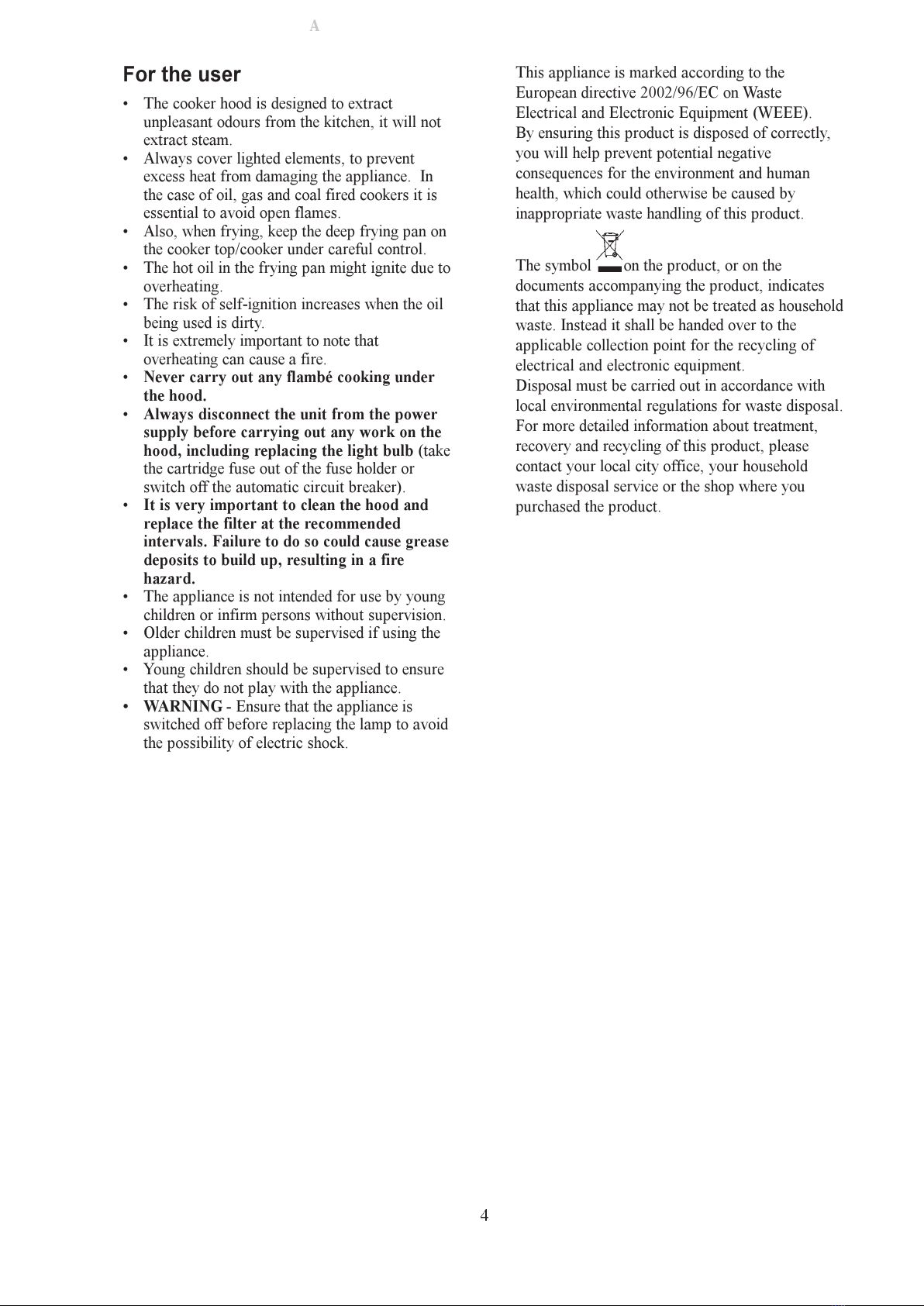

For the user
 The cooker hood is designed to extract
unpleasant odours from the kitchen, it will not
extract steam.
 Always cover lighted elements, to prevent
excess heat from damaging the appliance. In
the case of oil, gas and coal fired cookers it is
essential to avoid open flames.
 Also, when frying, keep the deep frying pan on
the cooker top/cooker under careful control.
 The hot oil in the frying pan might ignite due to
overheating.
 The risk of self-ignition increases when the oil
eing used is dirty.
 It is extremely important to note that
overheating can cause a fire.
Never carry out any flambé cooking under
the hood.
Always disconnect the unit from the power
supply before carrying out any work on the
hood, including replacing the light bulb (take
the cartridge fuse out of the fuse holder or
switch off the automatic circuit reaker).
It is very important to clean the hood and
replace the filter at the recommended
intervals. Failure to do so could cause grease
deposits to build up, resulting in a fire
hazard.
 The appliance is not intended for use y young
children or infirm persons without supervision.
 Older children must e supervised if using the
appliance.
 Young children should e supervised to ensure
that they do not play with the appliance.
 WARNING - Ensure that the appliance is
switched off efore replacing the lamp to avoid
the possi ility of electric shock.
This appliance is marked according to the
European directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly,
you will help prevent potential negative
consequences for the environment and human
health, which could otherwise e caused y
inappropriate waste handling of this product.
The sym ol on the product, or on the
documents accompanying the product, indicates
that this appliance may not e treated as household
waste. Instead it shall e handed over to the
applica le collection point for the recycling of
electrical and electronic equipment.
Disposal must e carried out in accordance with
local environmental regulations for waste disposal.
For more detailed information a out treatment,
recovery and recycling of this product, please
contact your local city office, your household
waste disposal service or the shop where you
purchased the product.
All manuals and user guides at all-guides.com

5
A
Description of the appliance
he cooker hood is designed to extract
unpleasant odours from the kitchen, it will
not extract steam.
 The hood is supplied as an extractor unit and
can also e used with a recirculation mode y
fitting a charcoal filter.
 You will need an original charcoal filter for this
function (Availa le from your local Service
Force Centre).
Extraction mode
 In this mode fumes are extracted to the outside
via a hose connected to the coupling ring A.
Bajonet fixing with one screw. Fig. 1.
 In order to o tain the est performance the hose
should have a diameter equal to the outlet hole.
Recirculation mode
 The air is filtered through a charcoal filter and
returned to the kitchen.
 You will need an original charcoal filter for the
recirculation mode. (See Special Accessories).
Fig. 2
Fig. 1
All manuals and user guides at all-guides.com

6

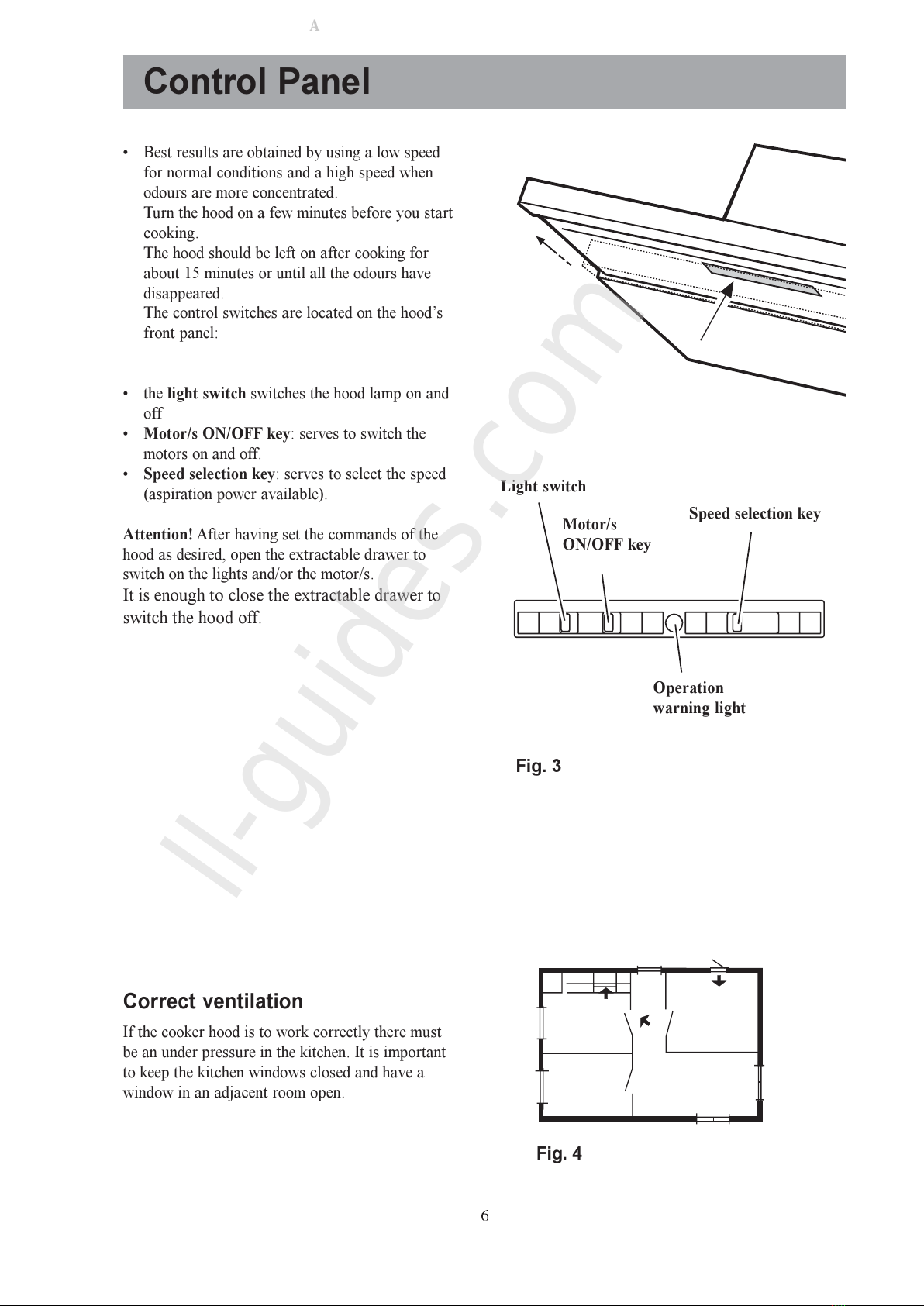

Control Panel
 Best results are o tained y using a low speed
for normal conditions and a high speed when
odours are more concentrated.
Turn the hood on a few minutes efore you start
cooking.
The hood should e left on after cooking for
a out 15 minutes or until all the odours have
disappeared.
The control switches are located on the hoods
front panel:
the light switch switches the hood lamp on and
off
Motor/s ON/OFF key: serves to switch the
motors on and off.
Speed selection key: serves to select the speed
(aspiration power availa le).
Attention! After having set the commands of the
hood as desired, open the extracta le drawer to
switch on the lights and/or the motor/s.
It is enough to close the extractable drawer to
switch the hood off.
Correct ventilation
If the cooker hood is to work correctly there must
e an under pressure in the kitchen. It is important
to keep the kitchen windows closed and have a
window in an adjacent room open.
Fig. 3
Fig. 4
Light switch
Speed selection key
Motor/s
ON/OFF key
Operation
warning light
All manuals and user guides at all-guides.com
all-guides.com

7
he hood must always be disconnected from the electricity supply before beginning any maintenance
work.

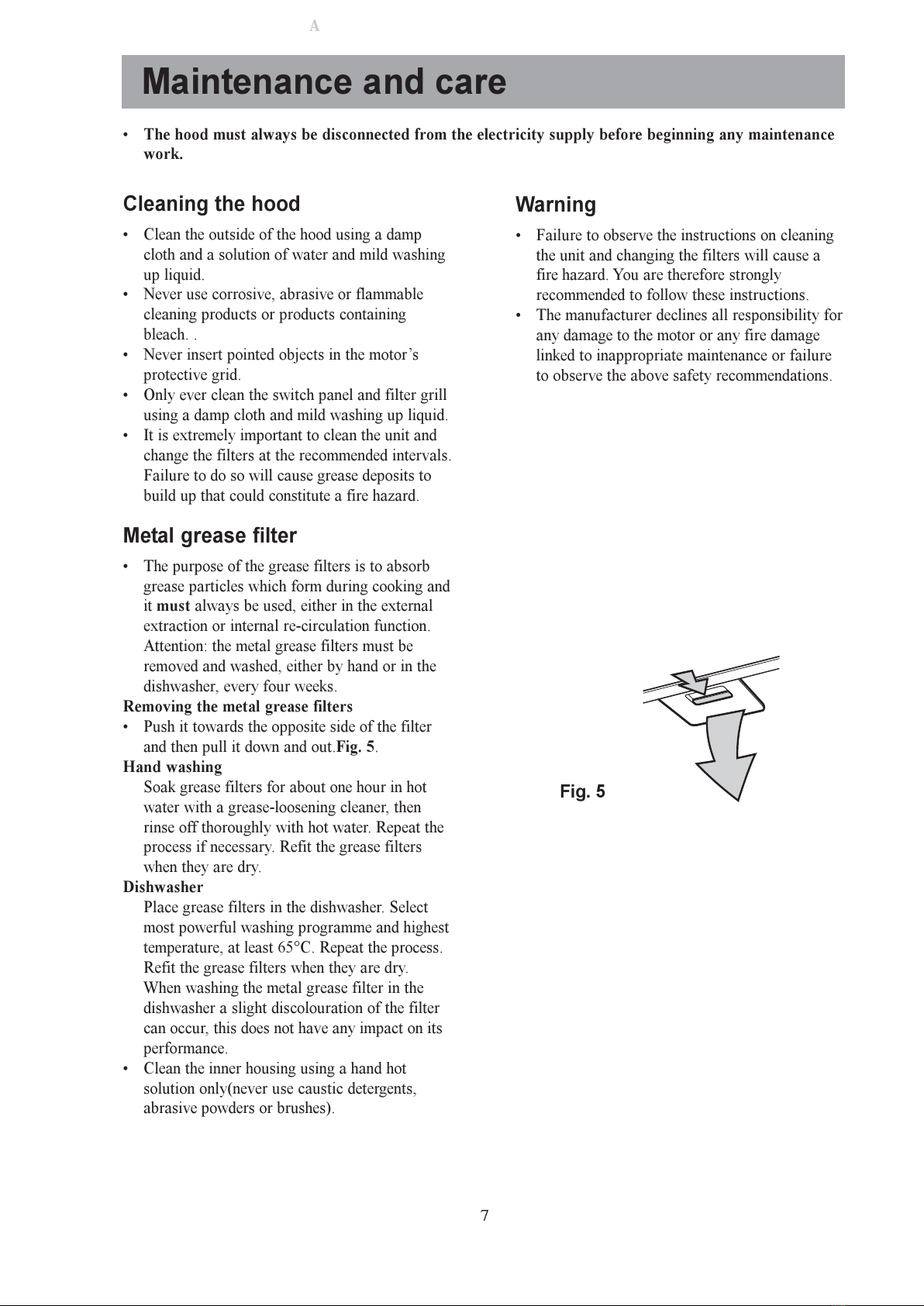

Maintenance and care
Cleaning the hood
 Clean the outside of the hood using a damp
cloth and a solution of water and mild washing
up liquid.
 Never use corrosive, a rasive or flamma le
cleaning products or products containing
leach. .
 Never insert pointed o jects in the motors
protective grid.
 Only ever clean the switch panel and filter grill
using a damp cloth and mild washing up liquid.
 It is extremely important to clean the unit and
change the filters at the recommended intervals.
Failure to do so will cause grease deposits to
uild up that could constitute a fire hazard.
Metal grease filter
 The purpose of the grease filters is to a sor
grease particles which form during cooking and
it must always e used, either in the external
extraction or internal re-circulation function.
Attention: the metal grease filters must e
removed and washed, either y hand or in the
dishwasher, every four weeks.
Removing the metal grease filters
 Push it towards the opposite side of the filter
and then pull it down and out.Fig. 5.
Hand washing
Soak grease filters for a out one hour in hot
water with a grease-loosening cleaner, then
rinse off thoroughly with hot water. Repeat the
process if necessary. Refit the grease filters
when they are dry.
Dishwasher
Place grease filters in the dishwasher. Select
most powerful washing programme and highest
temperature, at least 65°C. Repeat the process.
Refit the grease filters when they are dry.
When washing the metal grease filter in the
dishwasher a slight discolouration of the filter
can occur, this does not have any impact on its
performance.
 Clean the inner housing using a hand hot
solution only(never use caustic detergents,
a rasive powders or rushes).
Fig. 5
Warning
 Failure to o serve the instructions on cleaning
the unit and changing the filters will cause a
fire hazard. You are therefore strongly
recommended to follow these instructions.
 The manufacturer declines all responsi ility for
any damage to the motor or any fire damage
linked to inappropriate maintenance or failure
to o serve the a ove safety recommendations.
All manuals and user guides at all-guides.com

8
Fig. 6
Front cover
Charcoal filter
 The charcoal filter should only e used if you
want to use the hood in the recirculation
function.
 To do this you will need an original charcoal
filter (availa le from your local Service Force
Centre).
Replacing the charcoal filter
The charcoal filter cannot e washed nor
regenerated.
The charcoal filter should e replaced every 4
months under normal use.
Replacement filters are availa le from your
local Service Force Centre.
Fitting - Fig. 6
1. Open the front door to access the motor
housing.
Attention! The front door must always e
accessi le and dismounta le to allow access to
the motor housing.
In exceptional cases the carbon filter/s can be
installed from below, extracting the drawer and
removing the fat filters, but it is, in any case, a
more difficult operation.
2. Apply the car on filter/s to cover the grill that
protect/s the motor/s.
3. Turn clockwise until locking.
4. Remount the front door (or the fat filters).
o remove proceed in the reverse order.
 Clean the inner housing using a hand hot
solution only(never use caustic detergents,
a rasive powders or rushes).
 Always specify the hood model code num er
and serial num er when ordering replacement
filters. This information is shown on the
registration plate located on the inside of the
unit.
 The charcoal filter can e ordered from your
local Service Force Centre.
All manuals and user guides at all-guides.com

9
What to do if
If your appliance fails to work properly please carry out the following checks.
Symptom Solution
The cooker hood will not start... Check that: The hood is connected to the electricity supply.
Check that a fan speed has een selected
The cooker hood is not working Check that: The fan speed is set high enough for the task.
The grease filters are clean.
The kitchen is adequately vented to allow the entry of fresh air.
If set up for recirculation, check that the charcoal filter is still effective.
If set up for extraction, check that the ducting and outlets are not
locked.
The cooker hood has The safety cut-out device has een tripped.
switched off during operation... Turn off the ho and then wait for the device to reset.
If the hood has een installed elow the heights indicated in the
installation instructions the motor will cut-out frequently which will
damage the hood.
If after all these checks, the pro lem persists, contact your local Service Force Centre, quoting the model and
serial num er.
Please note that it will e necessary to provide proof of purchase for any in-guarantee service calls.
In-guarantee customers should ensure that the a ove checks have een made as the engineer will make a charge
if the fault is not a mechanical or electrical reakdown.
Special Accessories
Charcoal Filter Type 30
Changing the light bulb
 Disconnect the cooker hood from the main
supply.
 Remove the rear grease filter
 Replace the old ul with a new one of the
same type.
 Remount the rear grease filter.
 If the light does not come on, make sure the
ul has een inserted correctly efore
contacting your local Service Force Centre.
Technical Specifications
Dimensions (cm) Height 39,5
Width 89,8
Depth 28,8 (44,3)
Lighting 2 x 40W
Grease filter 2
Power a sorption 220-240V
Electrical connection 300W
All manuals and user guides at all-guides.com

10
Technical assistance service
You are welcome to telephone our technical assistance service (see list of technical assistance centres) whenever
you need information or in the unlikely event of a fault.
For service in Australia call 1300 650 020.
When calling, please e ready to specify:
1. he model code number
2. he serial number (E-Nr.)
3. he manufacturing number (F-Nr.)
his information is shown on the registration plate inside the unit behind the grease filter.
We reserve the right to change specifications and colours as a result of our policy of continuing technological
development.
Service and Spare Parts
In the event of your appliance requiring service, or if you wish to purchase spare parts, contact your local
Service Force Centre y telephoning: 08705 929 929
Your call will e automatically routed to the Service Centre covering your post code area. For the address of
your local Service Force Centre and further information a out Service Force, please visit the we site at
www.serviceforce.co.uk
Please ensure that you have read the section What to do if.... as the engineer will make a charge if the fault is
not a mechanical or electrical reakdown even the appliance is under warranty. Please note that proof of
purchase is required for in-guarantee service calls.
Help us to help you
Please determine your type of enquiry efore writing or telephoning.
When you contact us we need to know:
 Your name  Clear and concise details of the fault
 Address and post code  Name and model of the appliance*
 Telephone num er  E num er*
 Serial num er*
* This information can e found on the rating plate, which can e seen when the grease filters are removed.
If you require Customer Service in the Republic of Ireland please contact us at the address below:
Electrolux
Electrolux Group (Ire) Ltd
Long Mile Road
Du lin 12
Repu lic of Ireland
Tel: + 353 (0) 1 4090751
Email: [email protected]
CUSTOMER CARE EPARTMENT
For general enquiries concerning your ELECTROLUX appliance or for further information on ELECTROLUX
products, please contact our Customer Care Department y letter or telephone at the address elow or visit our
we site at www.electrolux.co.uk
Customer Care Department
Electrolux
55-77 High Street
Slough, Berkshire
SL1 1DZ
08705 950950 (*) * calls to this num er may e recorded for training purposes.
All manuals and user guides at all-guides.com

11
Guarantee Conditions
Standard guarantee conditions
We, Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux appliance or any
part thereof is proved to e defective y reason only of faulty workmanship or materials, we will, at our option
repair or replace the same FREE OF CHARGE for la our, materials or carriage on condition that:
The appliance has een correctly installed and used only on the electricity supply stated on the rating plate.
The appliance has een used for normal domestic purposes only, and in accordance with the manufacturers
instructions.
The appliance has not een serviced, maintained, repaired, taken apart or tampered with y any person not
authorised y us.
All service work under this guarantee must e undertaken y an Electrolux Service Force Centre. Any appliance
or defective part replaced shall ecome the Companys property.
This guarantee is in addition to your statutory and other legal rights.
Home visits are made etween 8.30am and 5.30pm Monday to Friday.
Visits may e availa le outside these hours in which case a premium will e charged.
Exclusions
his guarantee does not cover:
Damage or calls resulting from transportation, improper use or neglect, the replacement of any light ul s or
remova le parts of glass or plastic.
Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the
European Community (EC) or European Free Trade Area.
Appliances found to e in use within a commercial environment, plus those which are su ject to rental
agreements.
Products of Electrolux manufacture which are not marketed y Electrolux.
European Guarantee
If you should move to another country within Europe then your guarantee moves with you to your new home
su ject to the following qualifications:
The guarantee starts from the date you first purchased your product.
The guarantee is for the same period and to the same extent for la our and parts as exists in the new country of
use for this rand or range of products.
This guarantee relates to you and cannot e transferred to another user.
Your new home is within the European Community (EC) or European Free Trade Area.
The product is installed and used in accordance with our instructions and is only used domestically, i.e. a
normal household.
The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care centre, listed elow, to give them details of your
new home. They will then ensure that the local Service Organisation is aware of your move and a le to look
after you and your appliances.
France Senlis [phone]
Germany Nürn erg [phone]
Italy Pordenone [phone]
Sweden Stockholm [phone]
UK Slough [phone]
All manuals and user guides at all-guides.com
all-guides.com

12
Unpacking
Check that the cooker hood has no damages.
Transportation damages should immediately e
reported to the company responsi le for the
transportation.
Damages, faults and any missing parts or
documents should immediately e reported to the
retailer.
Take care of the packing materials so that small
children cannot play with them.
Fitting
The hood is to e mounted on the wall.
When installed, the hood must e not less than 60
cm. a ove electric urners or 65 cm. a ove gas or
mixed-fuel urners. Fig. 7.
The hood can e installed a ove these heights ut
for optimum performance it should e installed at
the distance quoted for the appropriate heat source.
Electrical connection
(not for UK)
Safety warnings for the electrician
Before connecting the appliance to the power
supply, check that the voltage indicated on the
rating plate corresponds to the mains power supply
availa le. Appliances fitted with a plug can e
connected to any standard power socket within
easy access.
Should it e necessary to provide a fixed
connection, the hood must only e installed y an
electrician authorised y the local electricity oard.
When installing, an omnipolar disconnector with a
distance of at least 3 mm etween contacts must e
provided.
Fixed connection of the appliance must only e
carried out y an authorised electrician.
Installation
Min
65 cm
Min
60 cm
Fig. 7
Electrical connection for UK only
WARNING: DOUBLE INSULA ED DO
NO EAR H
Electrical Requirements
Any permanent electrical installation must comply
with the latest I.E.E. Regulations and local Elec-
tricity Board regulations. For your own safety this
should e undertaken y a qualified electrician e.g.
your local Electricity Board, or a contractor who is
on the roll of the National Inspection Council for
Electrical Installation Contracting (NICEIC) or a
suita ly competent person.
Electrical Connection
Before connecting to the mains supply ensure that
the mains voltage corresponds to the voltage on the
rating plate inside the cooker hood.
This appliance is fitted with a 3 core mains ca le
and must e permanently connected to the electric-
ity supply via a dou le-pole switch having 3mm
minimum contact gap on each pole. A Switched
Fuse Connection Unit to BS1363 Part 4, fitted with
a 5 Amp time delay fuse, is a recommended mains
supply connection accessory to ensure compliance
with the Safety Requirements applica le to fixed
wiring instructions.
This appliance conforms to BS 800: 1988 and EEC
Directive No. 78 308 regarding suppression of
radio and television interference.
Safety warnings for the electrician
he following is valid in Ireland only:
- the wire which is coloured lue must e
connected to the terminal which is marked with
the letter N,
- the wire which is coloured rown must e
connected to the terminal which is marked with
the letter L.
All manuals and user guides at all-guides.com

13
Installation
Mounting accessories included
1 allen spanner (for TORX screws).
4 Spacers
1 screw for coupling ring
4 screws 4,5 x 16 for side fixing
1 Flange Ø120mm
Additional screws may e supplied, this are
supplied for servicing purpose.
Installation
Attention!
Check that, once installed, it is possible to
open the front door (see fig.6) of the hood to
access the motor housing.
 Fit the drilling template which comes with the
hood on the inner right side of the ca inet
making sure printed arrow coincides with ack
part (Fig. 8).
 Make holes as indicated on template (Fig. 8 -
choose 2 of the 3 holes availa le).
 Perform the same operations on the inner left
side.
 In case of side panels with a thickness of 16
mm, fit 4 spacers G on the slots of the fan
housing used for side fixing (Fig. 9).
 Use screws F (4.5x16) to fasten the hood to the
ca inet (Fig. 9).
Extractable drawer adjustment
The hood can e installed in ca inets
with different depths, the front of the ox must
always e in line with the ca inet.
For alignment adjust the ack stops of the drawer
(Fig. 10).
For ox adjustment, loosen screws M and slide
square plates P as necessary and tighten screws M.
Connection to the outlet hose
Fix the outlet hose appropriately to the flange on
the upper side of the hood (hose not included, to
e purchased).
Direct the hose outside (Extraction mode).
Fig. 8
1
2
3
4
G
F
Fig. 9
Fig. 10
M
P
All manuals and user guides at all-guides.com

14
All manuals and user guides at all-guides.com

15
All manuals and user guides at all-guides.com

LI2PB A E d. 06/05
The Electrolux Group. The world´s No.1 choice.
The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million
Electrolux Group products (such as refrigerators, cookers, washing machines,vacuum cleaners, chain saws and lawn mowers are sold each
year to a value of approx. USD 14 billion in more than 150 countries around the world.
© Electrolux 2003
All manuals and user guides at all-guides.com
all-guides.com
