Electrolux EFP 629 User manual

User Manual
EFP 629
UK

2
Contents
Safety instructions................................................................................................................. 3
Description of the appliance ................................................................................................. 4
Function ...................................................................................................................................................................4
Special accessories ............................................................................................................... 5
Active carbon filter..................................................................................................................................................5
Installation .............................................................................................................................. 5
Unpacking................................................................................................................................................................5
Placement ................................................................................................................................................................5
Electrical connection ...............................................................................................................................................5
Mounting under wall cabinet...................................................................................................................................5
Exhausting mode .....................................................................................................................................................6
Recirculation mode (with carbon filter) ..................................................................................................................6
Using the hood ....................................................................................................................... 6
Speed regulation ......................................................................................................................................................6
Work light ................................................................................................................................................................6
Correct ventilation ...................................................................................................................................................6
Maintenance ........................................................................................................................... 7
Grease filter .............................................................................................................................................................7
Carbon filter.............................................................................................................................................................7
Cleaning...................................................................................................................................................................7
Changing the lighting elements ...............................................................................................................................7
If the hood does not function................................................................................................ 8
Technical data ........................................................................................................................ 9

3
Congratulations to your new Cooker Hood
Thank you for your choice of an Electrolux product. We are convinced that you will have great use
and pleasure from your new cooker hood.
Before you use the cooker hood we recommend that you read through the whole user manual
giving a direct description of the cooker hood and its functions.
To avoid the risks, that are always present when you use a product driven by electricity, it is impor-
tant that the cooker hood is installed correctly and that you read the safety instructions carefully to
avoid misuse and hazard.
Save the instruction manual and keep it available at use of the cooker hood
Safety instructions
At installation and service
●The cooker hood is made for normal households
with normal cooking. If it is used for other
purposes there is a risk of damage which is not
covered by the warranty.
●All eventual electric installation has to be
carried out by a qualified electrician. The
installation of the hood should be made by a
person with enough knowledge. Installation
made otherwise could lead to loss of perform-
ance and even injuries and /or damage on
properties.
●The hood cannot be connected to flues of other
appliances that run on energy sources other than
electricity.
Please, keep to the provisions of official direc-
tives regarding the question of fumes discharge.
●When the hood is used at the same time of other
appliances that run on energy sources other than
electricity, provision must be made for an
adequate supply of air.
●When installed, the hood must be not less than
65 cm. above electric burners or 75 cm. above
gas or mixed-fuel burners. (Fig. 3).
●The power cord should be drawn so that there is
no risk of damage. Hazard!
At use of cooker hood
●No food must be cooked flambé underneath the
hood.
●The use of an unprotected flame is dangerous
for the filters and could cause fires.
●Never leave the deep-frying or frying pan over a
cooker/hob. The oil contained in the pan may
spontaneously ignite through overheating.
●Observe the filter change or cleaning intervals.
Failure to observe these intervals may cause the
risk of fire through fat deposition.
Note! If a fire starts; Switch of the cooker hood
and the heating zone; Cover the fire , Never use
water.
At disposal
●Help to avoid damages even when the cooker
hood should be disposed. Disconnect the power
plug and cut the power cord at hood inlet. Check
with the authorities for information of how to
proceed for disposal.

4
1. Motor speed switch
2. Light switch
3. Extractible drawer
4. Suction grid with grease filter
5. Hob light
Standard accessories included:
●Template for mounting under cupboard
●Screws:
●Duct with no return valve

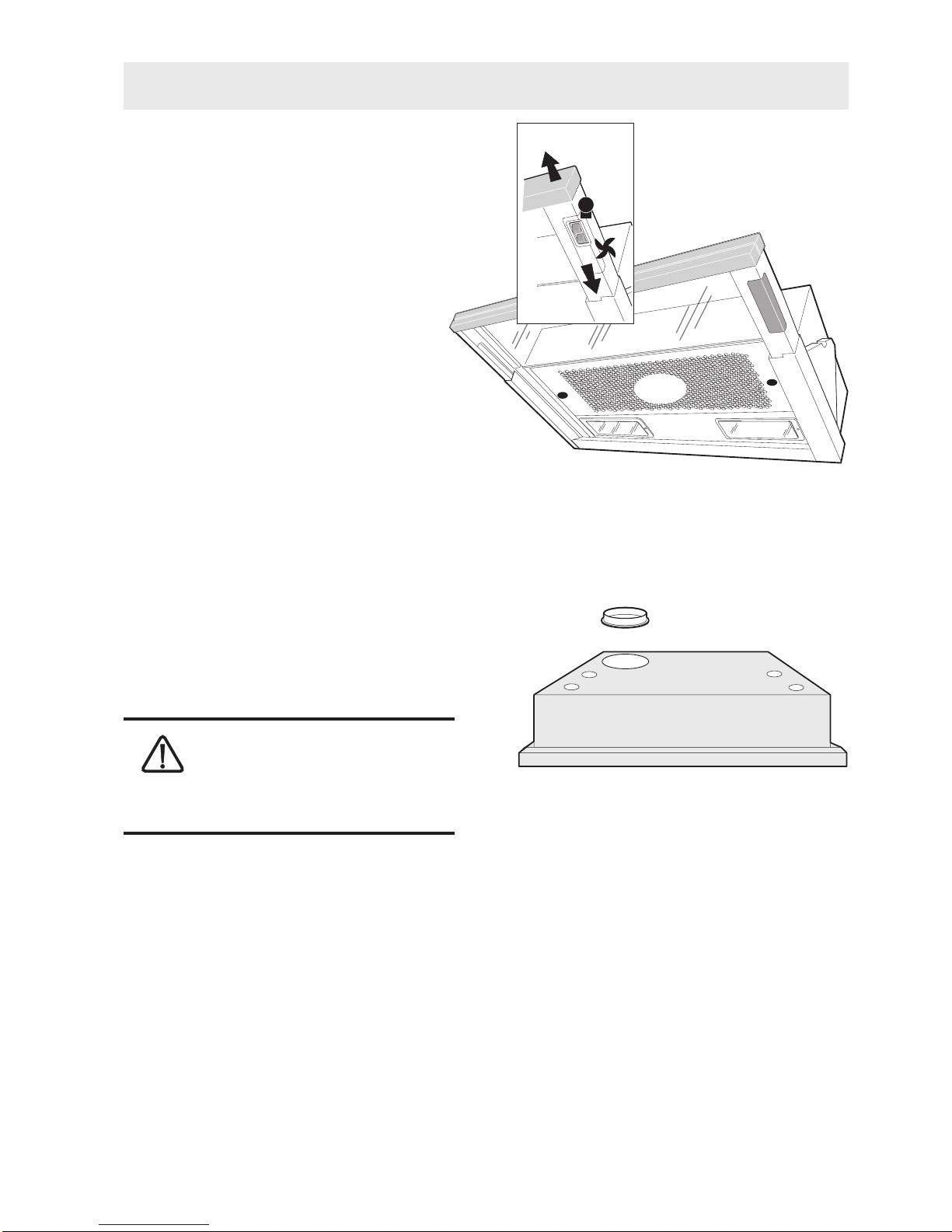

Function
The hood may be used as follows:
- For air exhausting
- For air recycling
Exhausting
The air is vented outside by means of a Ø 120 mm
pipes to be connected to the coupling ring Bwith
no return valve (Fig.2).
Attention! In the horizontal runs the duct must be
slightly slanted (about 10°) and directed upwards
to vent the air easily from the room to the outside.
The hood cannot be connected to flues
of other appliances that run on energy
sources other than electricity.
Please, keep to the provisions of official directives
regarding the question of fumes discharge.
Recycling
The air is filtered through a carbon filter and
recirculated into the room. The filtered air is
discharged by means of a Ø120 mm pipe which
goes through the cupboard and whose outlet is
above the cupboard.
This version is used when there is no exhaust duct
for venting outdoors or when it is impossible to
install one.
Description of the appliance
Fig. 1
4
55
3
OFF
ON
1
2
B
Fig. 2

5
F
Unpacking
Check that the cooker hood has no damages.
Transportation damages should immediately be
reported to the one responsible for the transport
Damages, faults and eventually missing details
should immediately be reported to the seller.
Take care of the packing material so that small
children cannot play with it.

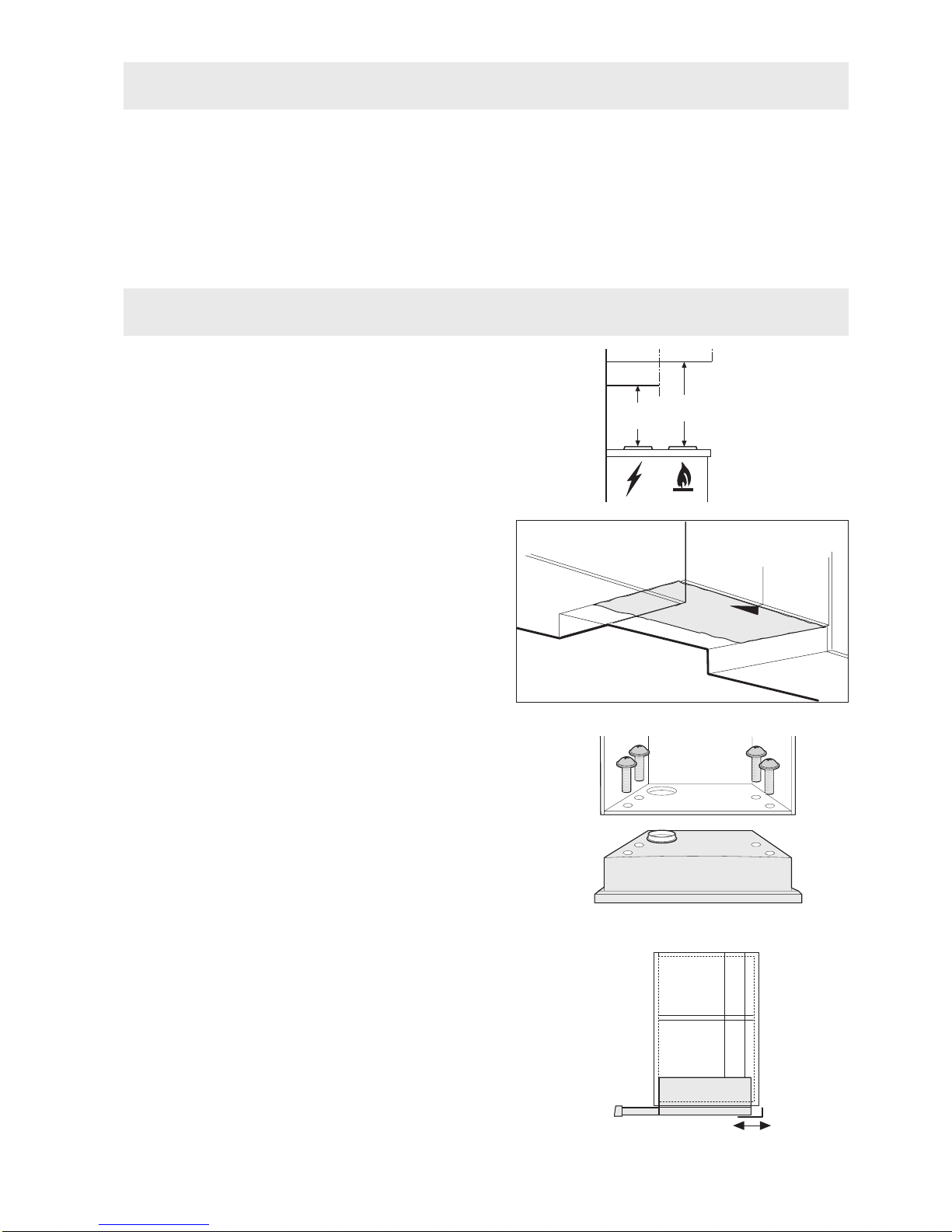

Placement
The hood is to be mounted in a wall cupboard.
When installed, the hood must be not less than 65
cm. above electric burners or 75 cm. above gas or
mixed-fuel burners. (Fig. 3).
Electrical connection
The hood has a power cord with moulded plug
with earth connection to be connected to a wall
outlet of 230 V.
The power cord length is 1,25 m.
Mounting under wall cabinet
●Drill holes on the bottom of the cupboard as
shown in the supplied drilling diagram (Fig. 4),
do not consider the thickness of the front panel
of the cupboard.
●From inside the cupboard, insert the four 4.2x35
screws C(Fig.5) supplied with the unit and
screw them onto nuts F(Fig.5).
●By means of the appropriate screws, fit the
angle iron E(Fig.6) so that it is tightly fixed to
the wall.
●Make an hole on the top of the cupboard for the
passage of the discharge (see the drilling
diagram for diameter).
Installation
Special accessories
Active carbon filter
When the hood is used in recirculation mode an
active carbon filter should be used.
Order by the retailer
PNC 955 101 117
Fig. 6
Min
65 cm
Min
75 cm
Fig. 3
Fig. 4
Fig. 5
C
CCC
FF
F
E

6

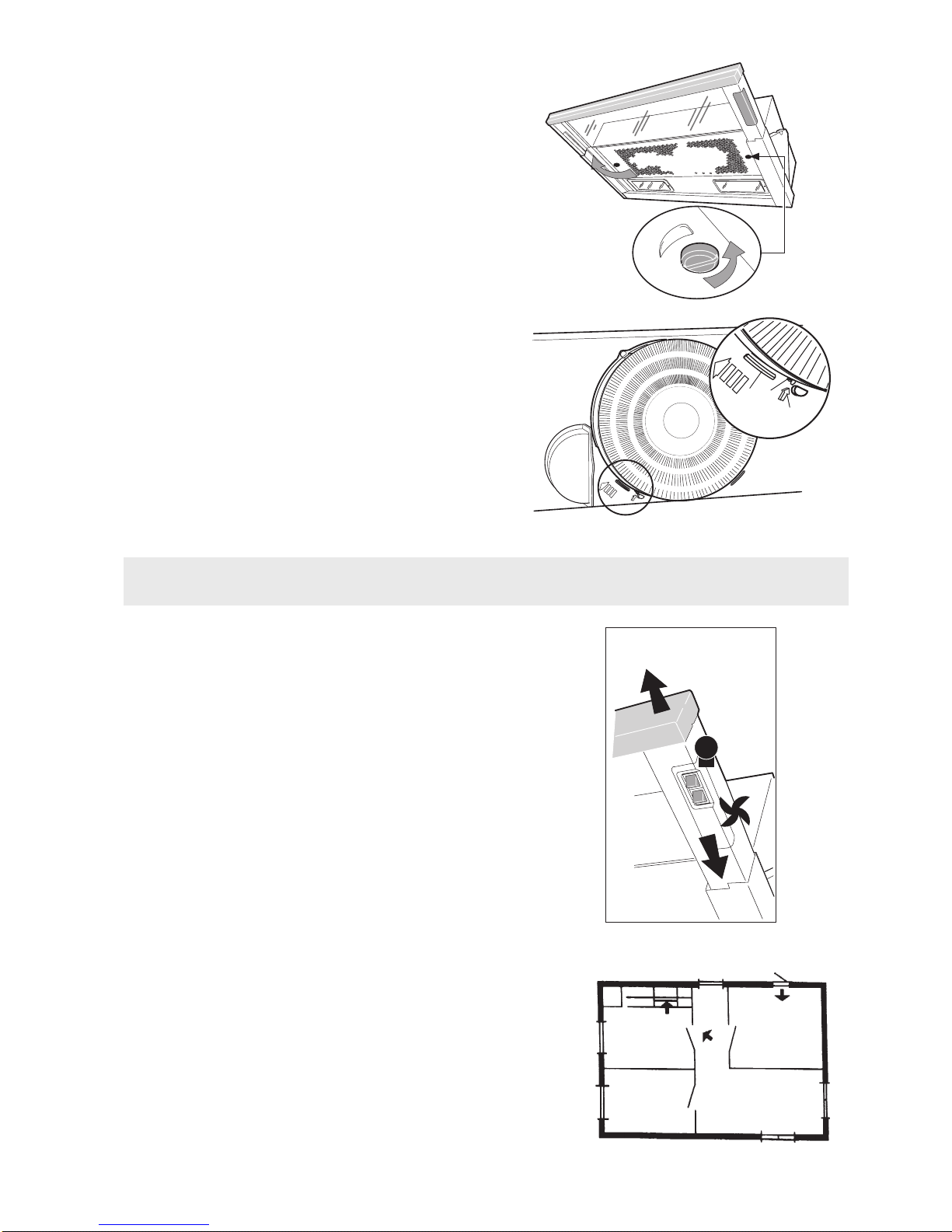

Exhausting mode
●Connect the air outlet to the smoke exhaust hose
Recirculation mode (with carbon
filter)
●Open the grid (A- Fig. 7).
●Insert the filter into points I(Fig. 8) by making
point Lmatch up with point Mand turn it in a
clockwise direction, as indicated by the arrow
D, until it is secured.
●Refit the suction grid.
Fig. 8
A
A
Fig. 7
LM
I
Speed regulation
The hood has a two speed motor (fig. 9) regulated
with a switch. For the best performance, we recom-
mend using the high speed in particular cases of
strong odour and vapour concentration.
Speed can be switched ON and OFF opening or
closing the extractible drawing.
We recommend starting up the hood a few minutes
before cooking and keeping it running until all the
odours have been eliminated.
The hood is equipped with a micro switch that
activates the pre-selected fan speed when the
drawer is opened.
Work light
The hood has two lamps 40 W (E 14). Switch on
and off with the lamp switch.Also the lamp will
when switched on work automatically with help of
the drawer micro switch.
Correct ventilation
To have the cooker hood working correctly the
windows in the kitchen should be closed. In stead a
window in an adjacent room should be open.
OFF
ON
Using the hood
Fig. 9
Fig. 10

7
Maintenance
Before performing any maintenance
operation, disconnect the hood from
the electricity.

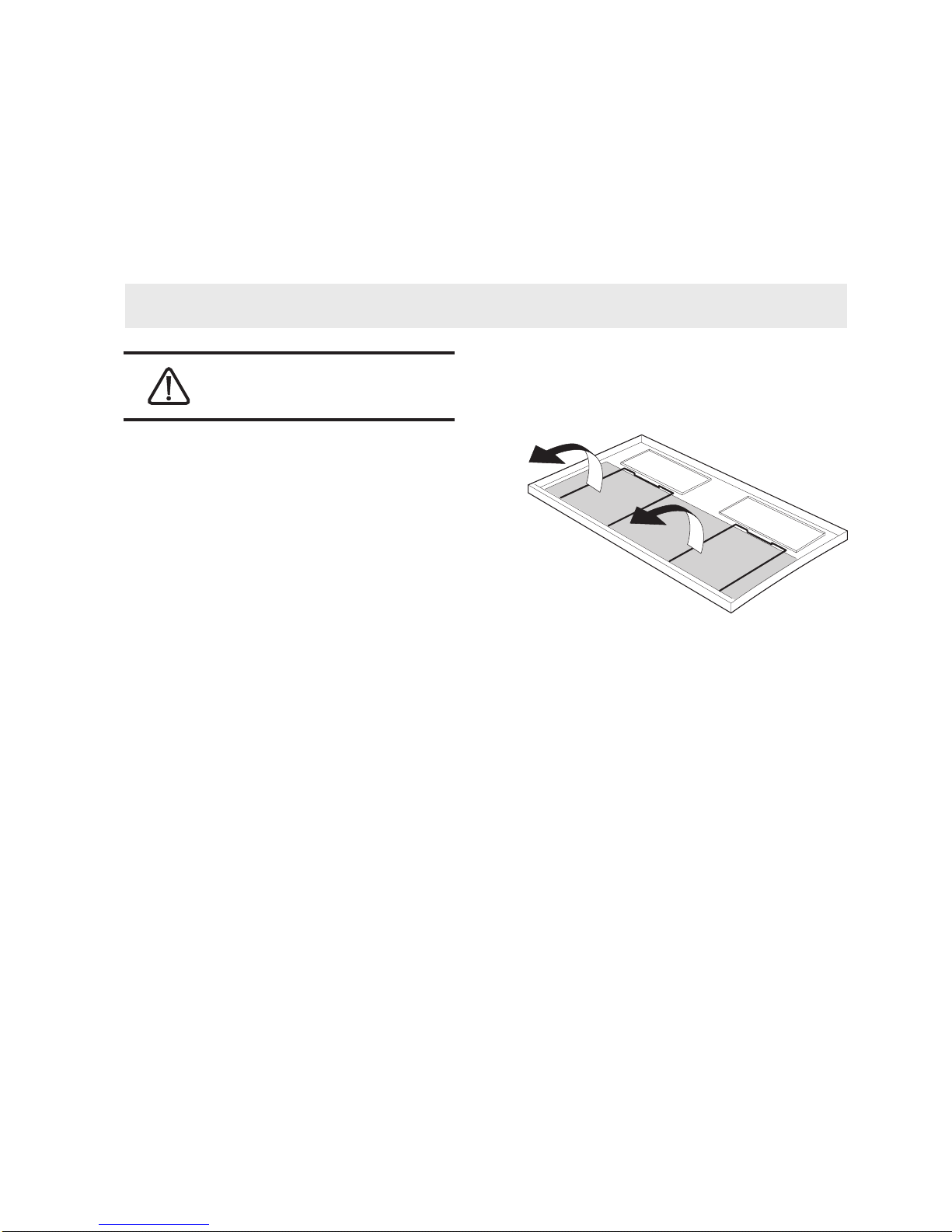

Grease filter
This serves to hold the grease particles in suspen-
sion. The metal filter should be washed every
month with warm soapy water or, if possible, in the
dishwasher (60°C).
To remove:
●Open the grid (A- fig. 7).
● Remove the stops (fig. 11).
Leave to dry before refitting it.
Clean the grid too as well as the grease filter.
Carbon filter
This filter dissolves cooking odours.
It should be changed every 4-5 months in normal
use.
The carbon filter must never be washed.
In order to remove it turn the filter anti-clockwise
until it becomes unhooked from its seat. (Fig. 9).
Attention
Failure to observe the rules for cleaning the appli-
ance and changing and cleaning the filters may
cause fires. Therefore, we recommend observing
these instructions.
Important to know
If the hood is run at the same time as a burner or
fireplace that depend on ambient air (for example
gas, Diesel, coal or wood heaters, water heaters,
etc.) be careful, because the hood, when it exhausts
the air, removes the ambient air required by the
burner or fireplace for combustion.
Not valid if the cooker hood is used in
recirculation mode.
Fig. 11
Cleaning
To clean the outside of the hood use a cloth mois-
tened with denatured alcohol or neutral liquid
detergents. Never use products containing
abrasives.
Changing the lighting elements
●Disconnect the hood from the electricity.
●Open the grid (Fig. 7).
●Replace the damaged part with one of equal
rating.

8
If the hood does not function
Before you make contact to
service
Check that the power plug is connected to the wall
power outlet and that no fuse is blown. Do not do
any operations that can cause hazard or damage to
the product. If the problem remains contact your
dealer or an approved service company
Remember to save the purchase recite and the
Warranty card (only used in some countries)
Service and spare parts
Service and spare parts you will get via your dealer
or service company.
When you order service or spare parts you should
be ready to give the product number and model
denomination. This information you will find on
the rating label.
Take away the grease filter and you will find the
rating label behind.
Model:
Product number:
Date of purchase:

9
Technical data
Model EFP 629
Capacity Max 240 m3/h x) 185m3/h
Min. 175 m3/h
Dimension Height 175 mm
Width 598 mm
Depth 300 mm
Light 2 x 40 W E 14
Grease filter 1 pc
Mains Voltage 230 V
Electric safety class Class 1
Power rating total 220 W
x) Valid when the hood is used with carbon filter (recirculation)
598
44 44 24
20 20028010-20
13540
78
17,5 138 17,5
Ø 99
==
2822428

1007 AHS L 712 Ed. 03/96
