Electrolux EFC 6441 User manual

User manual
EFC 6441
EFC 9441

electrolux 3electrolux 3
electrolux 3electrolux 3
electrolux 3
GB
WW
WW
Welcome to the world of Electrelcome to the world of Electr
elcome to the world of Electrelcome to the world of Electr
elcome to the world of Electroluxolux
oluxolux
olux
Thank you for choosing a first class
product from Electrolux, which
hopefully will provide you with lots of
pleasure in the future. The Electrolux
ambition is to offer a wide variety of
quality products that make your life
more comfortable. You find some
examples on the cover in this manual.
Please take a few minutes to study this
manual so that you can take advantage
of the benefits of your new machine.
We promise that it will provide a
superior User Experience delivering
Ease-of-Mind. Good luck!

44
44
4 electrelectr
electrelectr
electroluxolux
oluxolux
olux contents
GB
Contents
Safety warnings ................................ 5
Description of the Appliance ............. 7
Control Panel ................................... 8
Maintenance and Care ................... 10
Special accessories ........................ 15
Something Not Working ................. 15
Installation ...................................... 16
The following symbols are used in this user manual:
Important information concerning your personal safety and information on
how to avoid damaging the appliance.
General information and tips.
Environmental information.

electroluxelectrolux
electroluxelectrolux
electrolux safety warnings 55
55
5
GB
Safety warnings
• When used as an extractor unit, the
hood must be fitted with a hose
having preferably the same diameter
as the outlet hole.
• Should there already be a pipe of
diameter 125 or 120 mm that ducts
to the outside through the walls, it is
possible to use the 150/125-120 mm
reduction flange provided.
In this case the hood will be slightly
noisier.
Attention:Attention:
Attention:Attention:
Attention: The hose is not supplied
and must be purchased separately.
• The distance between the
cookware support surface on top
of the cooking appliance and the
lowest part of the cooker hood
must be at least 40 cm40 cm
40 cm40 cm
40 cm for
electric cookers or, where a gas
hob is fitted,
if the cooker hood is the 60 cmif the cooker hood is the 60 cm
if the cooker hood is the 60 cmif the cooker hood is the 60 cm
if the cooker hood is the 60 cm
size (EFC 6441 model):size (EFC 6441 model):
size (EFC 6441 model):size (EFC 6441 model):
size (EFC 6441 model):
installation above a 60 cm gas
hob - minimum distance 40 cm
installation above a 70 cm gas
hob - minimum distance 55 cm
installation above gas hobs larger
than 70 cm is not possible
if the cooker hood is the 90 cmif the cooker hood is the 90 cm
if the cooker hood is the 90 cmif the cooker hood is the 90 cm
if the cooker hood is the 90 cm
size (EFC 9441 model):size (EFC 9441 model):
size (EFC 9441 model):size (EFC 9441 model):
size (EFC 9441 model):
installation above a 60 cm or 70
cm gas hob - minimum distance
40 cm
installation above gas hobs larger
than 70 cm - minimum distance
55 cm
If the instructions for installation
for the gas hob specify a greater
distance, this must be adhered
to.
• Before any cleaning or maintenance
operation, disconnect the hood from
the mains by removing the plug or
disconnecting the home mains
switch.
• The appliance is not intended for use
by children or persons with impaired
physical, sensorial or mental
faculties, or if lacking in experience or
know-how, unless they are under
supervision or have been trained in
the use of the appliance by a person
responsible for their safety.
• Children should be monitored to
ensure that they do not play with the
appliance.
• Never use the hood without
effectively mounted grating.!
• The hood must NEVER be used as a
support surface unless specifically
indicated.
• The premises must be sufficiently
ventilated, when the kitchen hood is
used together with other gas
combustion devices or other fuels.
• The suctioned air must not be
conveyed into a conduit used for the
disposal of the fumes generated by
appliances that combust gases or
other fuels.
• The flaming of foods beneath the
hood itself is severely prohibited.

66
66
6 electrelectr
electrelectr
electroluxolux
oluxolux
olux safety warnings
GB
• The use of exposed flames is
detrimental to the filters and may
cause a fire risk, and must therefore
be avoided in all circumstances.
• Any frying must be done with care in
order to make sure that the oil does
not overheat and burst into flames.
• As regards the technical and safety
measures to be adopted for fume
discharging it is important to closely
follow the relations provided by the
competent authorities.
• The hood must be regularly cleaned
on both the inside and outside (AT
LEAST ONCE A MONTH, it is in any
event necessary to proceed in
accordance with the maintenance
instructions provided in this manual)..
• Failure to follow the instructions as
concerns hood and filter cleaning will
lead to the risk of fires.
• Do not use or leave the hood without
the lamp correctly mounted because
of the possible risk of electric shocks.
• We decline any responsibility for any
problems, damage or fires caused to
the appliance as the result of the
non-observance of the instructions
included in this manual.
This appliance is marked according to
the European directive 2002/96/EC on
Waste Electrical and Electronic
Equipment (WEEE).
By ensuring this product is disposed of
correctly, you will help prevent potential
negative consequences for the
environment and human health, which
could otherwise be caused by
inappropriate waste handling of this
product.
The symbol on the product, or on
the documents accompanying the
product, indicates that this appliance
may not be treated as household
waste. Instead it shall be handed over
to the applicable collection point for the
recycling of electrical and electronic
equipment.
Disposal must be carried out in
accordance with local environmental
regulations for waste disposal.
For more detailed information about
treatment, recovery and recycling of
this product, please contact your local
city office, your household waste
disposal service or the shop where you
purchased the product.

electroluxelectrolux
electroluxelectrolux
electrolux description of the appliance 77
77
7
GB
Description of the Appliance
• The cooker hood is supplied ready
for use as a recirculation hood and
may be used for extraction by
removing the charcoal filter which
has been fitted inside the cooker
hood.
Extraction modeExtraction mode
Extraction modeExtraction mode
Extraction mode
• In this mode fumes are extracted to
the outside via a hosehose
hosehose
hose connected to
the coupling ringcoupling ring
coupling ringcoupling ring
coupling ring.
• In order to obtain the best perfor-
mance the hose should have a
diameter equal to the outlet hole.
• Should there already be a pipe of
diameter 125 or 120 mm that ducts
to the outside through the walls, it is
possible to use the 150/125-120 mm
reduction flange provided.
In this case the hood will be slightly
noisier.
RecirRecir
RecirRecir
Recirculation modeculation mode
culation modeculation mode
culation mode
• The air is filtered through a charchar
charchar
charcoalcoal
coalcoal
coal
filterfilter
filterfilter
filter and returned to the kitchen.
• You will need an original charcoal
filter for the recirculation mode. (See
Special Accessories).
• Fix the deflector using 2 screws Ø
3.5x9.5 mm.
deflector
coupling ring
reduction flange

88
88
8 electrelectr
electrelectr
electroluxolux
oluxolux
olux control panel
GB
Control Panel
• Best results are obtained by using a low speed for normal conditions and a high
speed when odours are more concentrated.
Turn the hood on a few minutes before you start cooking.
The hood should be left on after cooking for about 15 minutes or until all the
odours have disappeared.
• The hood can also be commanded from the control panel or the remote
control. (the remote control is a special accessory and is ordered separately).
• The control panel consists of a knob and 2 LEDs; it is located
at the bottom right-hand side of the cooker hood.
•Hob light:Hob light:
Hob light:Hob light:
Hob light:
Press the knob briefly to select the various options, in the following sequence:
Full power lighting - Soft lighting - No lighting.
•Room lighting:Room lighting:
Room lighting:Room lighting:
Room lighting:
Press and hold the knob to switch the room lighting on and off.
•TT
TT
To select an available suction speed (power) level:o select an available suction speed (power) level:
o select an available suction speed (power) level:o select an available suction speed (power) level:
o select an available suction speed (power) level:
Turn the knob in a clockwise direction to increase the suction speed (power);
turn it in an anticlockwise direction to decrease the power until the hob is
switched off.
The cooker hood is fitted with an LED (L1) which indicates the suction speed
(power) selected by displaying different colours:
•Light ofLight of
Light ofLight of
Light off:f:
f:f:
f:
Suction motor switched off.
•Fixed grFixed gr
Fixed grFixed gr
Fixed green light:een light:
een light:een light:
een light:
Cooker hood operating at power level 1 (minimum).
•Fixed orange light:Fixed orange light:
Fixed orange light:Fixed orange light:
Fixed orange light:
Cooker hood operating at power level 2 (medium).
•Fixed rFixed r
Fixed rFixed r
Fixed red light:ed light:
ed light:ed light:
ed light:
Cooker hood operating at power level 3 (maximum).
•Flashing rFlashing r
Flashing rFlashing r
Flashing red light:ed light:
ed light:ed light:
ed light:
Cooker hood operating at an intensive power level (for a duration of 5 minutes,
after which the appliance automatically selects power level 3).
L1
L2

electroluxelectrolux
electroluxelectrolux
electrolux control panel 99
99
9
GB
Filter checking deviceFilter checking device
Filter checking deviceFilter checking device
Filter checking device
The cooker hood is fitted with a
device which indicates when the filter
must be cleaned or replaced.
Usually the device, which signals
when the carbon filter needs
maintenance work, is deactivateddeactivated
deactivateddeactivated
deactivated.
To activate it, proceed as follows:
Switch off the cooker hood.
Press the knob and rotate it by 90° in
a clockwise direction.
The L2L2
L2L2
L2 LED begins to flash in green
and after approximately 2 seconds
the L2L2
L2L2
L2 LED will also begin to flash in
orange, to indicate that the device,
which indicates when it is necessary
to perform carbon filter maintenance,
has been activatedactivated
activatedactivated
activated.
L2 LED - grL2 LED - gr
L2 LED - grL2 LED - gr
L2 LED - grease filter indicatorease filter indicator
ease filter indicatorease filter indicator
ease filter indicator
The LED lights up in green when the
grease filter needs to be cleaned; this
happens approximately every 40
hours of operation.
Every time the cooker hood is used,
check whether the L2L2
L2L2
L2 LED is lit.
L2 LED - carbon filter indicatorL2 LED - carbon filter indicator
L2 LED - carbon filter indicatorL2 LED - carbon filter indicator
L2 LED - carbon filter indicator
The LED lights up in orange when
the carbon filter needs to be cleaned/
replaced; this happens approximately
every 160 hours of operation.
Every time the cooker hood is used,
check whether the L2L2
L2L2
L2 LED is lit.
Resetting the filter saturation warResetting the filter saturation war
Resetting the filter saturation warResetting the filter saturation war
Resetting the filter saturation warningning
ningning
ning
After cleaning or replacing the filters,
switch on the cooker hood at any
suction speed (power), then press
and hold the knob for more than 3
seconds, until you hear a beep
indicating that the reset procedure
has been performed successfully.
The L2L2
L2L2
L2 LED and the cooker hood
both switch off.
In some situations (for example,
when the L2L2
L2L2
L2 LED is indicating that
the grease filters and the carbon filter
are saturated), the procedure
described above must be repeated.

1010
1010
10 electrelectr
electrelectr
electroluxolux
oluxolux
olux maintenance and care
GB
Maintenance and Care
••
••
•BeforBefor
BeforBefor
Before performing any maintenance operation, isolate the hood fre performing any maintenance operation, isolate the hood fr
e performing any maintenance operation, isolate the hood fre performing any maintenance operation, isolate the hood fr
e performing any maintenance operation, isolate the hood from theom the
om theom the
om the
electrical supply by switching ofelectrical supply by switching of
electrical supply by switching ofelectrical supply by switching of
electrical supply by switching off at the connector and rf at the connector and r
f at the connector and rf at the connector and r
f at the connector and removing the connectoremoving the connector
emoving the connectoremoving the connector
emoving the connector
fuse.fuse.
fuse.fuse.
fuse.
Or if the appliance has been connected thrOr if the appliance has been connected thr
Or if the appliance has been connected thrOr if the appliance has been connected thr
Or if the appliance has been connected through a plug and socket, then theough a plug and socket, then the
ough a plug and socket, then theough a plug and socket, then the
ough a plug and socket, then the
plug must be rplug must be r
plug must be rplug must be r
plug must be removed fremoved fr
emoved fremoved fr
emoved from the socket.om the socket.
om the socket.om the socket.
om the socket.
Metal grMetal gr
Metal grMetal gr
Metal grease filterease filter
ease filterease filter
ease filter
• The purpose of the grease filters is to
absorb grease particles which form
during cooking and it mustmust
mustmust
must always be
used, either in the external extraction
or internal re-circulation function.
Attention:Attention:
Attention:Attention:
Attention: the metal grease filters
must be removed and washed, either
by hand or in the dishwasher, every 4
weeks.
The front panels should also be
washed by hand every 4 weeks using
a neutral liquid detergent. Do not use
aggressive detergents.
• To access the grease filter, first
remove the front panels which
conceal the grease filter.
Removing the frRemoving the fr
Removing the frRemoving the fr
Removing the front panels:ont panels:
ont panels:ont panels:
ont panels:
Extract the small panel, rotate upwards
and unhook.
Repeat the operation for all the small
panels.
Extract
Unhood

electroluxelectrolux
electroluxelectrolux
electrolux maintenance and care 1111
1111
11
GB
Removing the metal grRemoving the metal gr
Removing the metal grRemoving the metal gr
Removing the metal grease filterease filter
ease filterease filter
ease filter

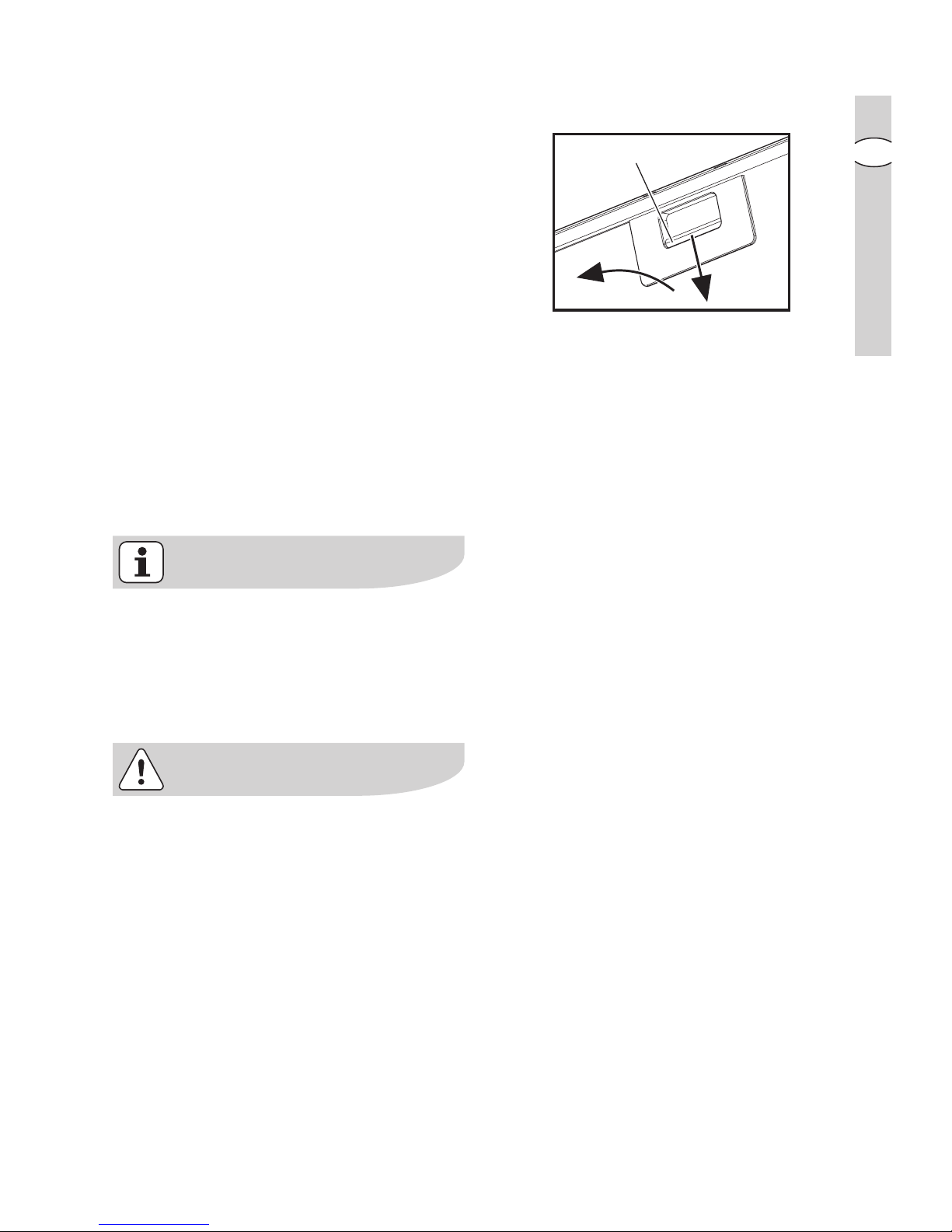

Pull the handle downards, then
extract the filter.
Hand washingHand washing
Hand washingHand washing
Hand washing
Soak grease filters for about one
hour in hot water with a grease-
loosening cleaner, then rinse off
thoroughly with hot water. Repeat the
process if necessary. Refit the grease
filters when they are dry.
DishwasherDishwasher
DishwasherDishwasher
Dishwasher
Place grease filters in the dishwasher.
Select most powerful washing
programme and highest temperature,
at least 65°C. Repeat the process.
Refit the grease filters when they are
dry.
When washing the metal grease filter
in the dishwasher a slight
discolouration of the filter can occur,
this does not have any impact on its
performance.
• Clean the inner housing using a hand
hot solution only(never use caustic
detergents, abrasive powders or
brushes).
Unhook

1212
1212
12 electrelectr
electrelectr
electroluxolux
oluxolux
olux maintenance and care
GB
CharChar
CharChar
Charcoal filtercoal filter
coal filtercoal filter
coal filter
• The charcoal filter should only be
used if you want to use the hood in
recirculation mode.
• To do this you will need an original
charcoal filter (available from your
local Service Force Centre).
•Cleaning/rCleaning/r
Cleaning/rCleaning/r
Cleaning/replacing the chareplacing the char
eplacing the chareplacing the char
eplacing the charcoal filtercoal filter
coal filtercoal filter
coal filter
Unlike other charcoal filters, the
LONGLIFE charcoal filter can be
cleaned and reactivated.
With normal use the filter should be
cleaned every second month (when
using the hood 2,5 hours per day,on
avarage). The best way to clean the
filter is in the dishwasher. Use normal
detergent and choose the highest
temperature (65º C). Wash the filter
separately so that no food parts gets
stuck on the filter and later causes bad
odours. To reactivate the charcoal, the
filter should be dried in an oven for 10
minutes with a maximum temperature
of 100º C.
After approximately three years of use,
the charcoal filter should be replaced
with a new one, as the odour reduction
capacity will be reduced.
•FittingFitting
FittingFitting
Fitting

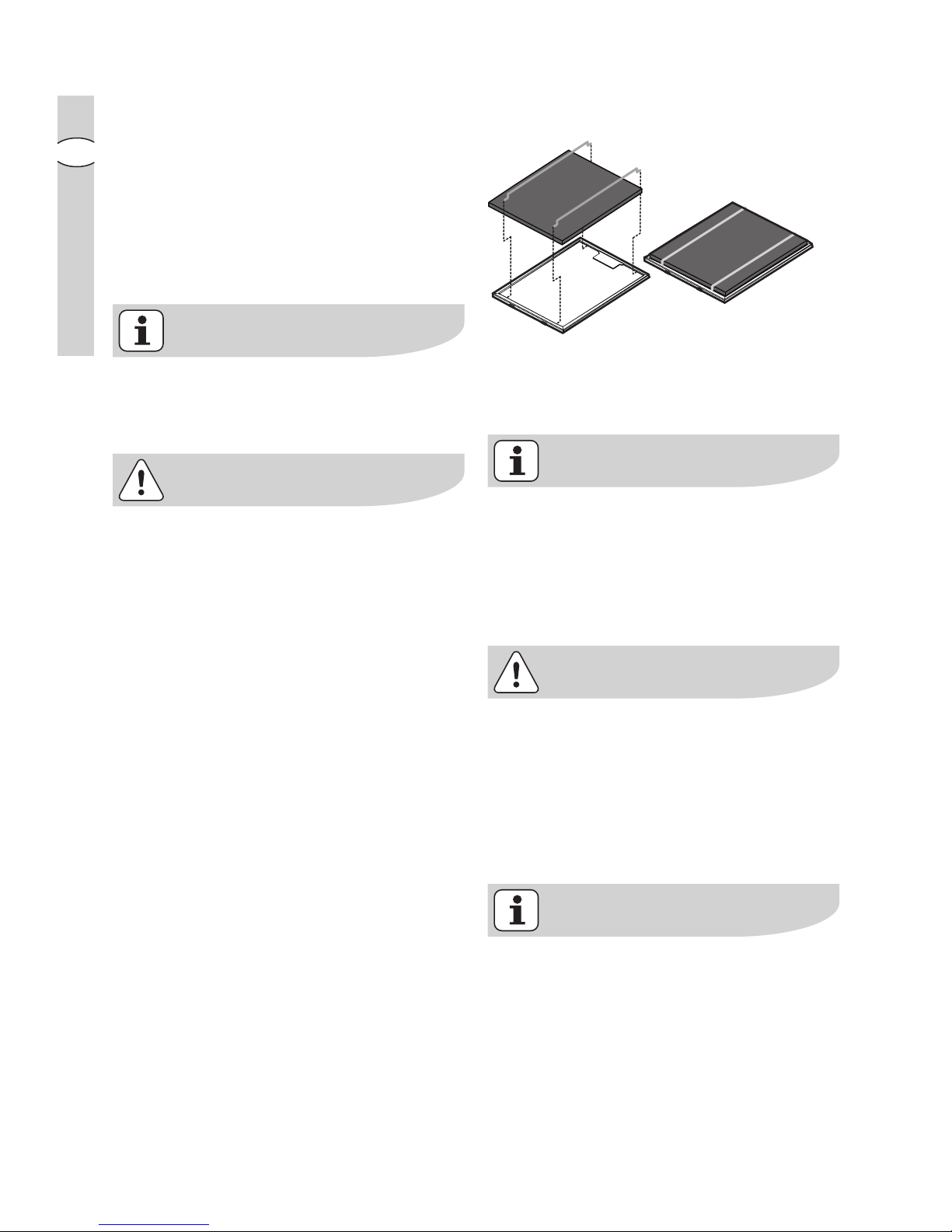

Fit the charcoal filter on the rear side
of the grease filter, fix it with metal
wires.
The metal wires are included in the
carbon filter packing and not on the
hood
•TT
TT
To ro r
o ro r
o removeemove
emoveemove
emove proceed in the reverse
order.
• Always specify the hood model code
number and serial number when
ordering replacement filters. This
information is shown on the rating
plate located on the inside of the unit.
• The charcoal filter can be ordered
from your local Service Force Centre.
EFC 6441:EFC 6441:
EFC 6441:EFC 6441:
EFC 6441: 1 carbon filter should be
ordered for this model.
EFC 9441:EFC 9441:
EFC 9441:EFC 9441:
EFC 9441: 2 carbon filters should be
ordered for this model.

electroluxelectrolux
electroluxelectrolux
electrolux maintenance and care 1313
1313
13
GB
WW
WW
Warar
arar
arningning
ningning
ning
• Failure to observe the instructions on
cleaning the unit and changing the
filters will cause a fire hazard. You are
therefore strongly recommended to
follow these instructions.
• The manufacturer declines all
responsibility for any damage to the
motor or any fire damage linked to
inappropriate maintenance or failure
to observe the above safety
recommendations.
Changing the light bulb(s)Changing the light bulb(s)
Changing the light bulb(s)Changing the light bulb(s)
Changing the light bulb(s)
•Disconnect the cooker hood frDisconnect the cooker hood fr
Disconnect the cooker hood frDisconnect the cooker hood fr
Disconnect the cooker hood fromom
omom
om
the mains supplythe mains supply
the mains supplythe mains supply
the mains supply..
..
.
••
••
•Prior to touching the light bulbsPrior to touching the light bulbs
Prior to touching the light bulbsPrior to touching the light bulbs
Prior to touching the light bulbs
ensurensur
ensurensur
ensure they are they ar
e they are they ar
e they are cooled down.e cooled down.
e cooled down.e cooled down.
e cooled down.
• Remove the damaged lamp.
• Replace the old bulb with a new one
of the same type.
• If the light does not come on, make
sure the bulb has been inserted in
correctly before contacting your local
Service Force Centre.

1414
1414
14 electrelectr
electrelectr
electroluxolux
oluxolux
olux maintenance and care
GB
Cleaning the hoodCleaning the hood
Cleaning the hoodCleaning the hood
Cleaning the hood
• Clean the outside of the hood using a
damp cloth and a solution of water
and mild washing up liquid.
• Never use corrosive, abrasive or
flammable cleaning products or
products containing bleach.
• Never insert pointed objects in the
motor’s protective grid.
• Only ever clean the switch panel and
filter grill using a damp cloth and mild
washing up liquid.
• Clean all the plastic parts with a soft
cloth soaked in warm water and
neutral soap.
• It is extremely important to clean the
unit and change the filters at the
recommended intervals. Failure to do
so will cause grease deposits to build
up that could constitute a fire hazard.

electroluxelectrolux
electroluxelectrolux
electrolux special accessories 1515
1515
15
GB
Special accessoriesSpecial accessories
Special accessoriesSpecial accessories
Special accessories
CharChar
CharChar
Charcoal filtercoal filter
coal filtercoal filter
coal filter Type 14
Remote contrRemote contr
Remote contrRemote contr
Remote controlol
olol
ol RM 7000
Inox TInox T
Inox TInox T
Inox Telescopic chimneyelescopic chimney
elescopic chimneyelescopic chimney
elescopic chimney K 8004 M
Aluminium TAluminium T
Aluminium TAluminium T
Aluminium Telescopic chimneyelescopic chimney
elescopic chimneyelescopic chimney
elescopic chimney (for extraction mode only) K 8004-A
Something Not Working
If your appliance fails to work properly please carry out the following checks.
SymptomSymptom
SymptomSymptom
Symptom
The cooker hood will not start...
The cooker hood is not working
The cooker hood has switched off
during operation...
SolutionSolution
SolutionSolution
Solution
Check that:Check that:
Check that:Check that:
Check that: The hood is connected to
the electricity supply.
Check that a fan speed has been
selected.
Check that:Check that:
Check that:Check that:
Check that: The fan speed is set high
enough for the task.
The grease filters are clean.
The kitchen is adequately vented to
allow the entry of fresh air.
If set up for recirculation, check that the
charcoal filter is still effective.
If set up for extraction, check that the
ducting and outlets are not blocked.
The safety cut-out device has been
tripped. Turn off the hob and then wait
for the device to reset. If the hood has
been installed below the heights
indicated in the installation instructions
the motor will cut-out frequently which
will damage the hood.
If after all these checks, the problem persists, contact your local Service Centre,
quoting the model and serial number.
Please note that it will be necessary to provide proof of purchase for any in-
guarantee service calls.
In-guarantee customers should ensure that the above checks have been made
as the engineer will make a charge if the fault is not a mechanical or electrical
breakdown.

1616
1616
16 electrelectr
electrelectr
electroluxolux
oluxolux
olux installation
GB
Installation
TT
TT
Technical Detailsechnical Details
echnical Detailsechnical Details
echnical Details
EFC 6441EFC 6441
EFC 6441EFC 6441
EFC 6441 EFC 9441EFC 9441
EFC 9441EFC 9441
EFC 9441
Dimensions (in cm):Dimensions (in cm):
Dimensions (in cm):Dimensions (in cm):
Dimensions (in cm):
Height : 65 65
Width: 59,8 89,8
Depth: 30,4 30,4
MaximumMaximum
MaximumMaximum
Maximum absorbedabsorbed
absorbedabsorbed
absorbed power:power:
power:power:
power: 255 W255 W
255 W255 W
255 W 275 W275 W
275 W275 W
275 W
Motor: 175 W 175 W
Lighting: 4 x 20 W 5 x 20 W
Length of the cable:Length of the cable:
Length of the cable:Length of the cable:
Length of the cable: 150 cm150 cm
150 cm150 cm
150 cm 150 cm150 cm
150 cm150 cm
150 cm
Electrical connection:Electrical connection:
Electrical connection:Electrical connection:
Electrical connection: 220 - 240 V220 - 240 V
220 - 240 V220 - 240 V
220 - 240 V 220 - 240 V220 - 240 V
220 - 240 V220 - 240 V
220 - 240 V
Fuse rating:Fuse rating:
Fuse rating:Fuse rating:
Fuse rating: 5A5A
5A5A
5ATT
TT
T5A5A
5A5A
5ATT
TT
T
Mounting accessories includedMounting accessories included
Mounting accessories includedMounting accessories included
Mounting accessories included
11
11
1 deflector
11
11
1 fixing bracket for motor unit
22
22
2 flange Ø 150 mm (tall and short)
44
44
4 screws 5 x 45 mm
44
44
4 dowels Ø 8 mm
22
22
2 screws M5x18
22
22
2 screws 3.5 x 9.5
22
22
2 screws 3.5 x 32
22
22
2 caps
11
11
1 rubber strip
22
22
2 spacers
22
22
2 screwdriver bits (for TORX screws)
11
11
1 reduction flange

electroluxelectrolux
electroluxelectrolux
electrolux installation 1717
1717
17
GB
Electrical connection
Safety warSafety war
Safety warSafety war
Safety warnings for the electriciannings for the electrician
nings for the electriciannings for the electrician
nings for the electrician
The mains power supply must
correspond to the rating indicated on
the plate situated inside the hood. If
provided with a plug connect the hood
to a socket in compliance with current
regulations and positioned in an
accessible area. If it not fitted with a
plug (direct mains connection) or if the
plug is not located in an accessible
area apply a bi-polar switch in
accordance with standards which
assures the complete disconnection of
the mains under conditions relating to
over-current category III, in accordance
with installation instructions.
IMPORIMPOR
IMPORIMPOR
IMPORTT
TT
TANT!ANT!
ANT!ANT!
ANT! Before re-connecting the
hood circuit to the mains supply and
checking the efficient function, always
check that the mains cable is correctly
assembled.
IMPORIMPOR
IMPORIMPOR
IMPORTT
TT
TANT!ANT!
ANT!ANT!
ANT! Power cable
replacement must be undertaken by
the authorised service assistance
centre or similar qualified person.

1818
1818
18 electrelectr
electrelectr
electroluxolux
oluxolux
olux installation
GB
Installation
Make surMake sur
Make surMake sur
Make sure that the cooker hood is disconnected fre that the cooker hood is disconnected fr
e that the cooker hood is disconnected fre that the cooker hood is disconnected fr
e that the cooker hood is disconnected from the power supply beforom the power supply befor
om the power supply beforom the power supply befor
om the power supply beforee
ee
e
carrying out the installation.carrying out the installation.
carrying out the installation.carrying out the installation.
carrying out the installation.
The hood is supplied with halogen
bulbs, above and below. Foresee
sufficient space between the hood and
the kitchen furniture in order to avoid
the bulbs and the furniture panels
overheating.
Also leave sufficient space to allow
opening and removing the front panels.
• Place the three rubber strips on
the back of the cooker hood.
Where necessary mount the two
spacers provided on the drill holes for
definitive fixing.
The spacers are useful when the wall
which is to house the cooker hood is
not perfectly vertical (for example:
where it is partially covered with wall
tiles).
rubber strips
spacers
definitive
fixing
rubber
strips
rubber strips
definitive
fixing

electroluxelectrolux
electroluxelectrolux
electrolux installation 1919
1919
19
GB
• Mark the wall with a centre line, this
will aid mounting procedure (1)(1)
(1)(1)
(1),
position the template so that the mid
line printed on the template matches
with the centre line previously
marked, the lower side of the
template corresponds to the lower
side of the hood once mounted
(2)(2)
(2)(2)
(2).
• Drill two holes Ø 8mm and fix the
support bracket with two wall plugs
and screws (3)(3)
(3)(3)
(3).
• Remove the front panels (see
paragraph “Removing the front
panels”) and the grease filter.
• Hang the hood (4)(4)
(4)(4)
(4) adjust its position
(5-6)(5-6)
(5-6)(5-6)
(5-6) and from the inside of the hood
sign two points for definitive fixing (7)(7)
(7)(7)
(7),
remove the hood and drill two holes
Ø 8mm (8)(8)
(8)(8)
(8), fit two wall plugs, hang
the hood again and fix it securely
with two screws (9)(9)
(9)(9)
(9). Cover the drill
holes for screws with the two screw
caps provided.
• Make electrical connection (10)(10)
(10)(10)
(10), but
leave the hood disconnected from
the home mains circuit.
• In the case that it is decided to use
the cooker hood in the mains circuit,
then place one of the two flanges
provided in the exit hole (1111
1111
11 –
Extraction). Attention! The tall flange
should be used when a telescopic
chimney is required to be mounted
(this item should be ordered – see
special accessories), the short flange
is to be used in all other cases.
• Remount the grease filter and the
front panels (12a-b-c12a-b-c
12a-b-c12a-b-c
12a-b-c).
11
11
10
12a
12b
12c
Extraction mode
Recirculation mode
1
2
3
4
4
5
6
6
7
8
8
9
(5x18)
(5x18)
5
