Electrolux EFP 60202 Specification sheet

EFP 60202
UK
Operating and Installation Instructions
EFP 90202

2
Contents UK
Before you use the cooker hood we recommend that you read through the whole user manual giving a direct
description of the cooker hood and its functions.
To avoid the risks, that are always present when you use a product driven by electricity, it is important that the
cooker hood is installed correctly and that you read the safety instructions carefully to avoid misuse and hazard.
Save the instruction manual and keep it available at use of the cooker hood.
Safety warnings......................................................................................................................................................3
For the installer ........................................................................................................................................................3
For the user ..............................................................................................................................................................4
Description of the appliance .................................................................................................................................5
Extraction mode.......................................................................................................................................................5
Recirculation mode ..................................................................................................................................................5
Description of the hood .........................................................................................................................................5
Control Panel .........................................................................................................................................................6
Correct ventilation ................................................................................................................................................... 6
Maintenance and care ...........................................................................................................................................7
Cleaning the hood ....................................................................................................................................................7
Metal grease filter ....................................................................................................................................................7
Charcoal filter ..........................................................................................................................................................8
Changing the light bulb ...........................................................................................................................................9
What to do if ..........................................................................................................................................................9
Special Accessories ................................................................................................................................................9
Technical assistance service ................................................................................................................................10
Service and Spare Parts ......................................................................................................................................10
Customer Care Department ...................................................................................................................................10
Guarantee Conditions ............................................................................................................................................ 11
Standard guarantee conditions ............................................................................................................................... 11
Exclusions.............................................................................................................................................................. 11
European Guarantee ........................................................................................................................................... 11
Technical Specifications ......................................................................................................................................12
Installation .............................................................................................................................................................12
Unpacking .............................................................................................................................................................. 12
Fitting ....................................................................................................................................................................12
Electrical connection .............................................................................................................................................12
Mounting accessories included .............................................................................................................................13
Preparing the wall unit - Extraction mode .............................................................................................................13
Outlet hole .............................................................................................................................................................13
Spice rack ..............................................................................................................................................................14
Installing the extractor hood in the wall unit .........................................................................................................14
Fitting the charcoal filter for Recirculation mode .................................................................................................15
Removing the hood from the wall unit .................................................................................................................. 15
Adjusting the extractor part ...................................................................................................................................15

3
Safety warnings
• If the hood is used in its recirculation mode, it
will operate simply and safely in the above
conditions without the need for any of the
aforementioned measures.
• When the hood is used in its extraction mode,
the following rules must be followed to obtain
optimal operation:
- short and straight outlet hose
- keep bends in outlet hose to a minimum
- never install the hoses with an acute angle,
they must always follow a gentle curve.
- keep the hose as large as possible
(preferably the same diameter as the outlet
hole).
- the length should be no more than:
3 metres with one 90° bend
2 metres with two 90° bends
Bends of more than 90° will reduce the
efficiency of the hood and reduce the
airflow.
• Failure to observe these basic instructions will
drastically reduce the performance and increase
the noise levels of the extractor hood.
For the installer
• When used as an extractor unit, the hood must
be fitted with a hose having preferably the same
diameter as the outlet hole.
Attention: The hose is not supplied and must
be purchased separately.
•When installing the hood, make sure you
observe the following minimum distance
from the top edge of the cooking hob/ring
surfaces:
electric cookers 430 mm
gas cookers 650 mm
If the instructions for installation for the gas
hob specify a greater distance, this must be
adhered to.
• The national Standard on fuel-burning systems
specifies a maximum depression of 0.04 mbar
in such rooms.
• The air outlet must not be connected to
chimney flues or combustion gas ducts. The air
outlet must under no circumstances be
connected to ventilation ducts for rooms in
which fuel-burning appliances are installed.
• The air outlet installation must comply with the
regulations laid down by the relevant local
authorities.
• When the unit is used in extraction mode, a
sufficiently large ventilation hole must be
provided, with dimensions that are approxi-
mately the same as the outlet hole.
• National and regional building regulations
impose a number of restrictions on using hoods
and fuel-burning appliances connected to a
chimney, such as coal or oil room-heaters and
gas fires, in the same room.
• Hoods can only be used safely with appliances
connected to a chimney if the room and/or flat
(air/environment combination) is ventilated
from outside using a suitable ventilation hole
approximately 500-600 cm2 large to avoid the
possibility of a depression being created during
operation of the hood.
• If you have any doubts, contact the relevant
controlling authority or building inspector’s
office.
• Since the rule for rooms with fuel burning
appliances is “outlet hole of the same size as
the ventilation hole”, a hole of 500-600 cm2,
which is to say a larger hole, could reduce the
performance of the extractor hood.

4
For the user
• The cooker hood is designed to extract
unpleasant odours from the kitchen, it will not
extract steam.
• Always cover lighted elements, to prevent
excess heat from damaging the appliance. In
the case of oil, gas and coal fired cookers it is
essential to avoid open flames.
• Also, when frying, keep the deep frying pan on
the cooker top/cooker under careful control.
• The hot oil in the frying pan might ignite due to
overheating.
• The risk of self-ignition increases when the oil
being used is dirty.
• It is extremely important to note that
overheating can cause a fire.
•Never carry out any flambé cooking under
the hood.
•Always disconnect the unit from the power
supply before carrying out any work on the
hood, including replacing the light bulb (take
the cartridge fuse out of the fuse holder or
switch off the automatic circuit breaker).
•It is very important to clean the hood and
replace the filter at the recommended
intervals. Failure to do so could cause grease
deposits to build up, resulting in a fire
hazard.
• The appliance is not intended for use by young
children or infirm persons without supervision.
• Older children must be supervised if using the
appliance.
• Young children should be supervised to ensure
that they do not play with the appliance.
• WARNING - Ensure that the appliance is
switched off before replacing the lamp to avoid
the possibility of electric shock.
This appliance is marked according to the
European directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly,
you will help prevent potential negative
consequences for the environment and human
health, which could otherwise be caused by
inappropriate waste handling of this product.
The symbol on the product, or on the
documents accompanying the product, indicates
that this appliance may not be treated as household
waste. Instead it shall be handed over to the
applicable collection point for the recycling of
electrical and electronic equipment.
Disposal must be carried out in accordance with
local environmental regulations for waste disposal.
For more detailed information about treatment,
recovery and recycling of this product, please
contact your local city office, your household
waste disposal service or the shop where you
purchased the product.

5

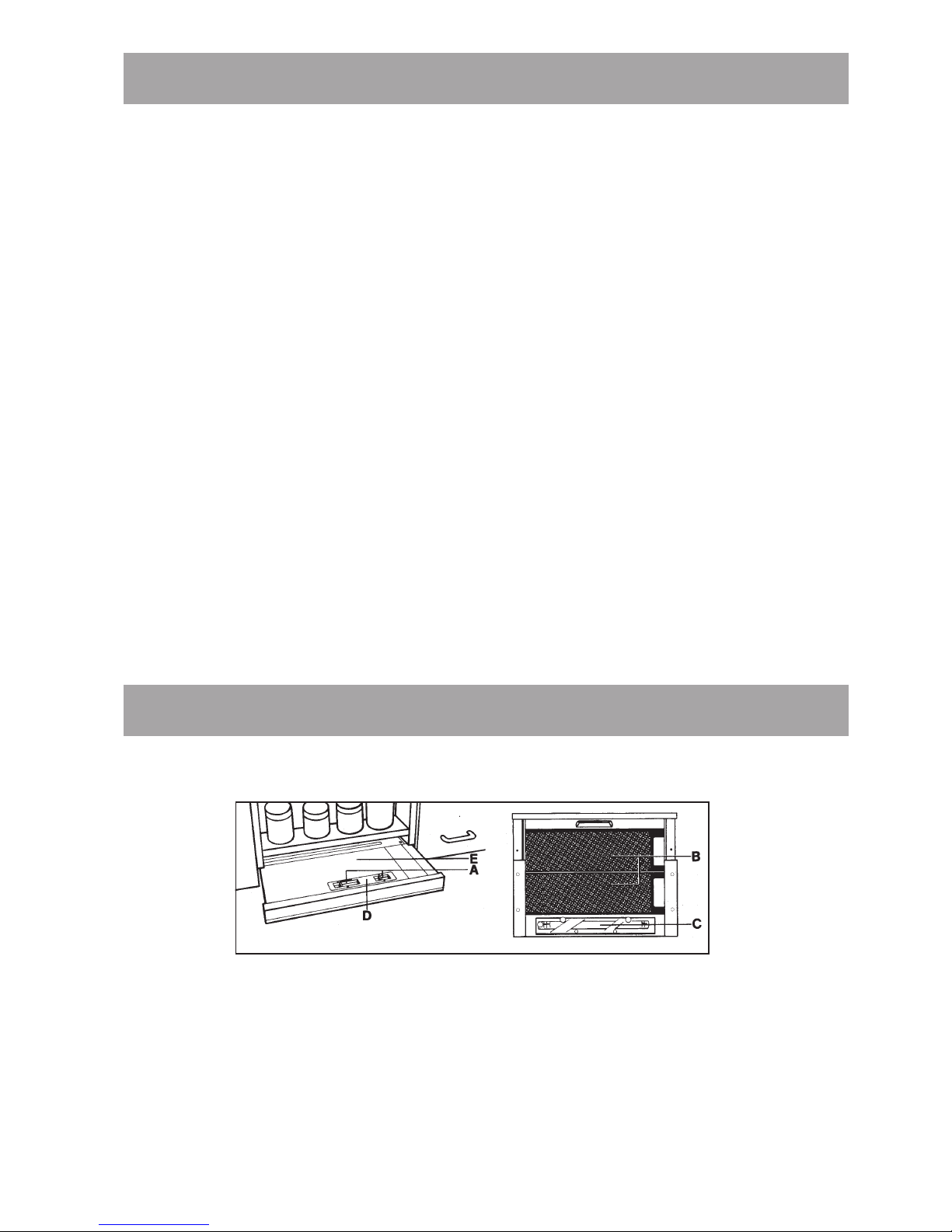

Description of the hood
A = ON/OFF switches (Motor, light)
B = Grease filter
C = Light
D = Control panel
E = Visor (Removable)
Fig. 1
Description of the appliance
•The cooker hood is designed to extract
unpleasant odours from the kitchen, it will
not extract steam.
• The charcoal filter is supplied. The hood,
therefore, can be used immediately in the
recirculation mode. We advise removing the
charcoal filter to use the hood in the extraction
mode.
Extraction mode
• In this mode fumes are extracted to the outside
via a hose connected to the coupling ring .
• In order to obtain the best performance the hose
should have a diameter equal to the outlet hole.
Recirculation mode
• The air is filtered through a charcoal filter and
returned to the kitchen.
• You will need an original charcoal filter for the
recirculation mode. (See Special Accessories).

6
Fig. 2

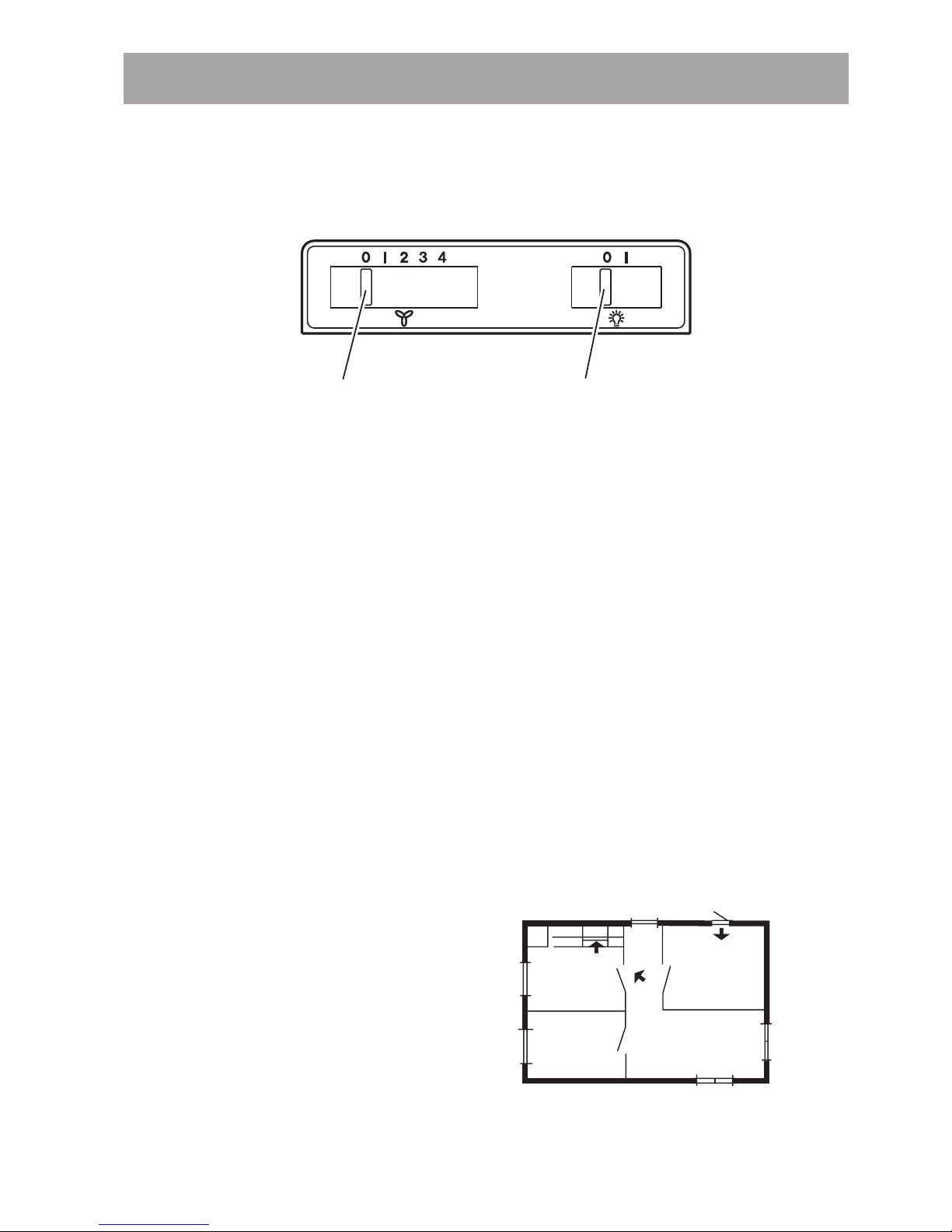

Control Panel
• The best results are obtained using low speed with normal cooking and a higher speed in the case of a
particular concentration of fumes.
The switches are mounted on the upper right side of the visor (Fig. 1 - E - Fig. 2).
The fan is controlled by moving the motor switch.
The extractor part (visor) of the hood is used to
switch the fan on and off when the appliance is
switched on (Motor).
When the visor of the appliance is withdrawn, the
fan automatically switches on.
If the visor is pushed in without operating the
switches, the fan is switched off.
The lighting can be separately switched on and off
with the light switch.
Turn the hood on a few minutes before you start
cooking then you will get an underpressure in the
kitchen. It should be left on after cooking for about
15 minutes or until all odours have disappeared.
Correct ventilation
If the cooker hood is to work correctly there must
be an under pressure in the kitchen. It is important
to keep the kitchen windows closed and have a
window in an adjacent room open.
Light switchMotor switch

7
Fig. 3

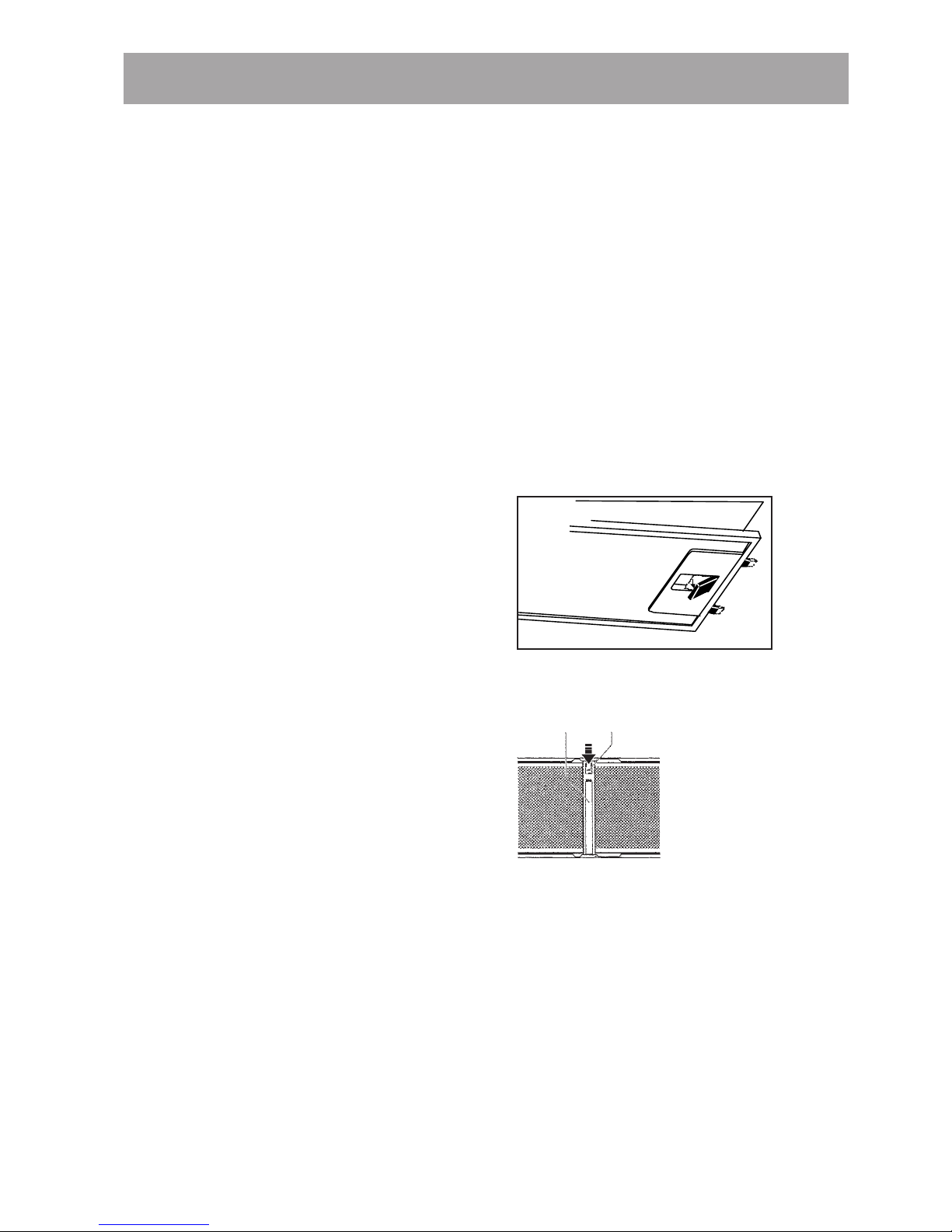

Maintenance and care
•The hood must always be disconnected from the electricity supply before beginning any maintenance
work.
Cleaning the hood
• Clean the outside of the hood using a damp
cloth and a solution of water and mild washing
up liquid.
• Never use corrosive, abrasive or flammable
cleaning products or products containing
bleach. .
• Never insert pointed objects in the motor’s
protective grid.
• Only ever clean the switch panel and filter grill
using a damp cloth and mild washing up liquid.
• It is extremely important to clean the unit and
change the filters at the recommended intervals.
Failure to do so will cause grease deposits to
build up that could constitute a fire hazard.
Metal grease filter
• The purpose of the grease filters is to absorb
grease particles which form during cooking and
it must always be used, either in the external
extraction or internal re-circulation function.
Attention: the metal grease filters must be
removed and washed, either by hand or in the
dishwasher, every four weeks.

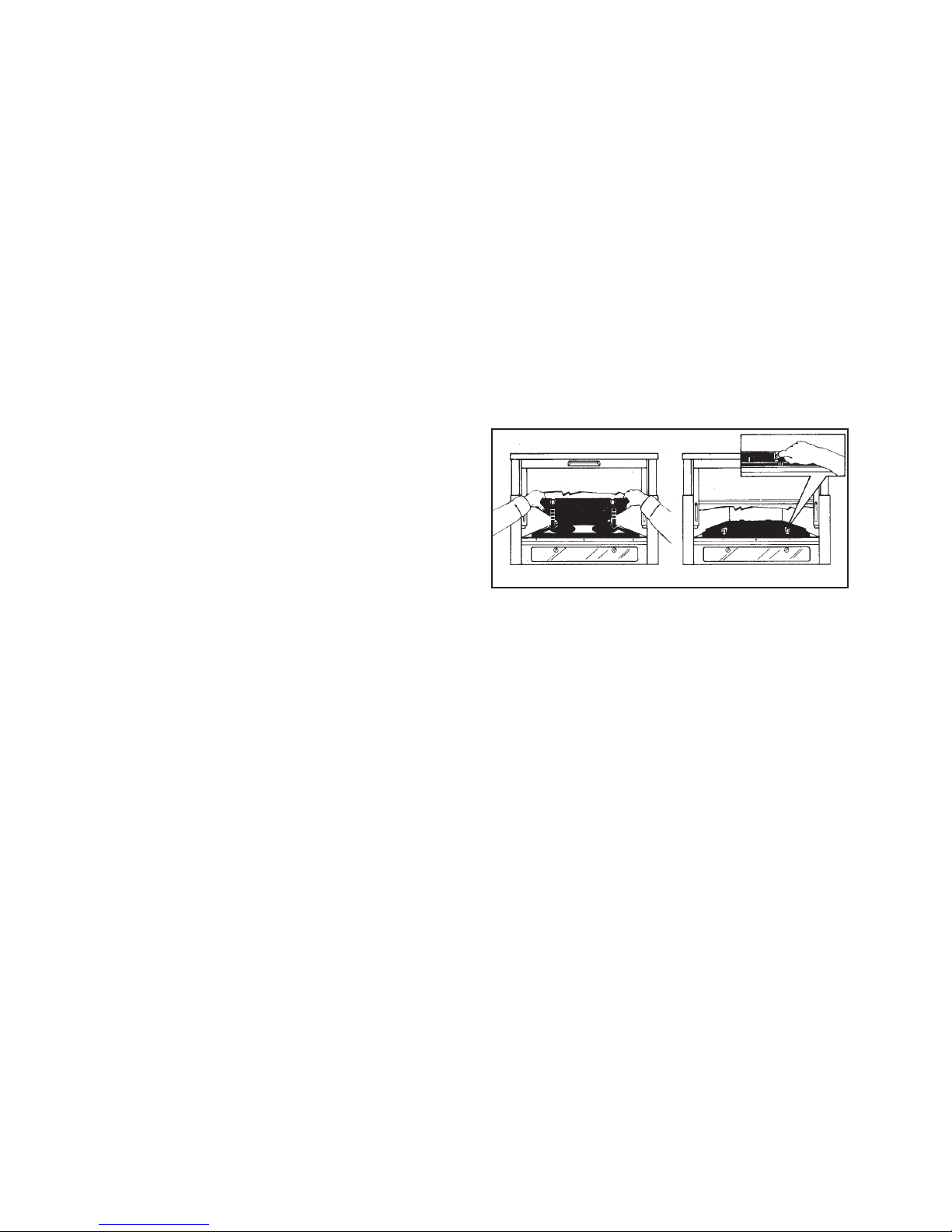

Removing the metal grease filters
• Pull out the visor, remove the rear grease filter
pulling the handle designed for this purpose,
then proceed in the same way to remove the
front grease filter. Fig. 3.
EFP90202 only: pull tab Wand remove central
plastic strip Zto free the two filter panels Fig.
3a.
Hand washing
Soak grease filters for about one hour in hot
water with a grease-loosening cleaner, then
rinse off thoroughly with hot water. Repeat the
process if necessary. Refit the grease filters
when they are dry.
Dishwasher
Place grease filters in the dishwasher. Select
most powerful washing programme and highest
temperature, at least 65°C. Repeat the process.
Refit the grease filters when they are dry.
When washing the metal grease filter in the
dishwasher a slight discolouration of the filter
can occur, this does not have any impact on its
performance.
• Clean the inner housing using a hand hot
solution only(never use caustic detergents,
abrasive powders or brushes).
Warning
• Failure to observe the instructions on cleaning
the unit and changing the filters will cause a
fire hazard. You are therefore strongly
recommended to follow these instructions.
• The manufacturer declines all responsibility for
any damage to the motor or any fire damage
linked to inappropriate maintenance or failure
to observe the above safety recommendations.
Fig. 3a
ZW

8
Fig. 4
Charcoal filter
• The charcoal filter should only be used if you
want to use the hood in the recirculation
function.
• To do this you will need an original charcoal
filter (available from your local Service Force
Centre).
•Replacing the charcoal filter Type 150
This filter cannot be cleaned or reused.
As a general rule, the activated charcoal filter
should be changed once every 4 months.
•Cleaning/replacing the charcoal filter Type
150 LONG LIFE
Unlike other charcoal filters, the LONGLIFE
charcoal filter can be cleaned and reactivated.
At normal use the filter should be cleaned every
second month (when using the hood 2,5 hours
per day, on avarage). The best way to clean the
filter is in the dishwasher. Use normal detergent
and choose the highest temperature (65º C).
Wash the filter separately so that no food parts
gets stuck on the filter and later causes bad
odours. To reactivate the charcoal, the filter
should be dried in an oven for 10 minutes with
a maximum temperature of 100ºC.
After approximately three years of use, the
charcoal filter should be replaced with a new, as
the odour reduction capacity will be reduced.
•Fitting
1. Pull out the visor (Fig. 1 - E).
2. Remove first the rear then the front grease
filters.
3. Insert the charcoal filter into the lugs of the
frame above using the 2 red clips to retain it,
press the red clips inwards, and insert the
charcoal filter in the frame. Fig. 4.
•Removing:
1. Press both red lugs upwards (towards the
inside of the housing) and remove the charcoal
filter downwards.
2. Clean the internal housing only with warm
washing-up liquid’ suds (never use any abrasive
cleaners, brushes, or scouring agents).
• Always specify the hood model code number
and serial number when ordering replacement
filters. This information is shown on the
registration plate located on the inside of the
unit.
• The charcoal filter can be ordered from your
local Service Force Centre.

9
Changing the light bulb
• Disconnect the cooker hood from the main
supply.
• Open the lamp cover by pushing simultaneously
two unlocking button R.
Disengage the lamp cover from its hanging rails
(Fig. 5).
• Replace the old light bulb(s) with a new light
bulb of the same kind.
• Refit the lamp cover.
• If the light does not come on, make sure the
bulb has been inserted correctly before
contacting your local Service Force Centre.
What to do if
If your appliance fails to work properly please carry out the following checks.
Symptom Solution
The cooker hood will not start... Check that: The hood is connected to the electricity supply.
Check that a fan speed has been selected
The cooker hood is not working Check that: The fan speed is set high enough for the task.
The grease filters are clean.
The kitchen is adequately vented to allow the entry of fresh air.
If set up for recirculation, check that the charcoal filter is still effective.
If set up for extraction, check that the ducting and outlets are not
blocked.
The cooker hood has The safety cut-out device has been tripped.
switched off during operation... Turn off the hob and then wait for the device to reset.
If the hood has been installed below the heights indicated in the
installation instructions the motor will cut-out frequently which will
damage the hood.
If after all these checks, the problem persists, contact your local Service Force Centre, quoting the model and
serial number.
Please note that it will be necessary to provide proof of purchase for any in-guarantee service calls.
In-guarantee customers should ensure that the above checks have been made as the engineer will make a charge
if the fault is not a mechanical or electrical breakdown.
Special Accessories
Charcoal filter Type 150 LONG LIFE Available from your retailer as an accessory
Charcoal filter Type 150 Available from your retailer as an accessory
Finishing strip* ET-NR.: 502 426 420 02
Clips for finishing strip (3x)* ET-NR.: 502 302 940 06
* ET-NR. contact our Service Force Centre
Fig. 5
R

10
Technical assistance service
You are welcome to telephone our technical assistance service (see list of technical assistance centres) whenever
you need information or in the unlikely event of a fault.
For service in Australia call 1300 650 020.
When calling, please be ready to specify:
1. The model code number
2. The serial number (E-Nr.)
3. The manufacturing number (F-Nr.)
This information is shown on the registration plate inside the unit behind the grease filter.
We reserve the right to change specifications and colours as a result of our policy of continuing technological
development.
Service and Spare Parts
In the event of your appliance requiring service, or if you wish to purchase spare parts, contact your local
Service Force Centre by telephoning: 08705 929 929
Your call will be automatically routed to the Service Centre covering your post code area. For the address of
your local Service Force Centre and further information about Service Force, please visit the website at
www.serviceforce.co.uk
Please ensure that you have read the section „What to do if....“ as the engineer will make a charge if the fault is
not a mechanical or electrical breakdown even the appliance is under warranty. Please note that proof of
purchase is required for in-guarantee service calls.
Help us to help you
Please determine your type of enquiry before writing or telephoning.
When you contact us we need to know:
• Your name • Clear and concise details of the fault • Serial number*
• Address and post code • Name and model of the appliance*
• Telephone number • E number*
* This information can be found on the rating plate, which can be seen when the grease filters are removed.
If you require Customer Service in the Republic of Ireland please contact us at the address below:
Electrolux
Electrolux Group (Ire) Ltd
Long Mile Road
Dublin 12
Republic of Ireland
Tel: + 353 (0) 1 4090751
Email: [email protected]
CUSTOMER CARE DEPARTMENT
For general enquiries concerning your ELECTROLUX appliance or for further information on ELECTROLUX
products, please contact our Customer Care Department by letter or telephone at the address below or visit our
website at www.electrolux.co.uk
Customer Services Department
Major Appliances
Electrolux
Addington Way
Luton
Bedfordshire
LU4 9QQ
08705 950 950 (*) * calls to this number may be recorded for training purposes.

11
Guarantee Conditions
Standard guarantee conditions
We, Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux appliance or any
part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option
repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:
The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer’s
instructions.
The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not
authorised by us.
All service work under this guarantee must be undertaken by an Electrolux Service Force Centre. Any appliance
or defective part replaced shall become the Company’s property.
This guarantee is in addition to your statutory and other legal rights.
Home visits are made between 8.30am and 5.30pm Monday to Friday.
Visits may be available outside these hours in which case a premium will be charged.
Exclusions
This guarantee does not cover:
Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or
removable parts of glass or plastic.
Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the
European Community (EC) or European Free Trade Area.
Appliances found to be in use within a commercial environment, plus those which are subject to rental
agreements.
Products of Electrolux manufacture which are not marketed by Electrolux.
European Guarantee
If you should move to another country within Europe then your guarantee moves with you to your new home
subject to the following qualifications:
The guarantee starts from the date you first purchased your product.
The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of
use for this brand or range of products.
This guarantee relates to you and cannot be transferred to another user.
Your new home is within the European Community (EC) or European Free Trade Area.
The product is installed and used in accordance with our instructions and is only used domestically, i.e. a
normal household.
The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care centre, listed below, to give them details of your
new home. They will then ensure that the local Service Organisation is aware of your move and able to look
after you and your appliances.
France Senlis [phone]
Germany Nürnberg [phone]
Italy Pordenone [phone]
Sweden Stockholm [phone]
UK Luton [phone]

12
Technical Specifications
Model EFP 60202 EFP 90202
Dimensions (in cm):
Height: 39,5 39,5
Width: 59,8 89,8
Depth: 27,5 (+ front panel) 27,5 (+ front panel)
Grease filter: 2 2
Power absorption: 235 W 235 W
Lighting: 11 W (PL) 11 W (PL)
Electrical connection: 220 - 240 V 220 - 240 V
Subject to change without notice.
Installation
Unpacking
Check that the cooker hood has no damages.
Transportation damages should immediately be
reported to the company responsible for the
transportation.
Damages, faults and any missing parts or
documents should immediately be reported to the
retailer.
Take care of the packing materials so that small
children cannot play with them.
Fitting
When installed, the hood must be not less than 43
cm. above electric burners or 65 cm. above gas or
mixed-fuel burners. Fig. 6.
The hood can be installed above these heights but
for optimum performance it should be installed at
the distance quoted for the appropriate heat source.
Electrical connection (not for UK)
Safety warnings for the electrician
Before connecting the appliance to the power
supply, check that the voltage indicated on the
rating plate corresponds to the mains power supply
available. Appliances fitted with a plug can be
connected to any standard power socket within
easy access.
Should it be necessary to provide a fixed
connection, the hood must only be installed by an
electrician authorised by the local electricity board.
When installing, an omnipolar disconnector with a
distance of at least 3 mm between contacts must be
provided.
Fixed connection of the appliance must only be
carried out by an authorised electrician.
Min
65 cm
Min
43 cm
Fig. 6
Electrical connection for UK only
Safety warnings for the electrician
Connect the hood to the mains supply via a double
pole switch which has 3 mm minimum separation
between the contacts.
The switch must be accessible at all times.
The following is valid in the United Kingdom
only:
- the wire which is coloured green and yellow
must be connected to the terminal which is
marked with the letter E or by the earth symbol
( ), or coloured green or green and yellow;
- the wire which is coloured blue must be
connected to the terminal which is marked with
the letter N or coloured black, -
- the wire which is coloured brown must be
connected to the terminal which is marked with
the letter L or coloured red.

13
Mounting accessories included
1 allen spanner for torx screws
1 deflector
4 spacers for 16mm side walls
2 screws 2,9 x 13 to fix flange or deflector
4 screws 4,5 x 16 mm for fixing to side walls
1 Flange Ø 120 mm
1 charcoal filter frame + 2 screws 3,5x9,5
Preparing the wall unit ceiling
Extraction mode
• Before installing the hood, drill a hole in the
roof of the wall unit
(see Fig. 7). This hole is to allow passage of the
outlet pipe and the power cable, and to facilitate
servicing.
• The wall unit must have a minimum body depth
(without door) of 300 mm with recessed light
screen and min. 370 mm with flush-mounted
light screen. The unobstructed internal height
must be at least 370 mm.
Recirculation mode
• Before installation of the hood in the wall unit,
a 115x115 mm hole for the deflector should be
cut in the ceiling of the wall unit. Fig. 8.
• Depending on the wall unit height, you need for
return air operation a pipe union or additionally
a non-flammable length of pipe as far as the
ceiling of the wall unit.
Outlet hole
Extraction mode
• When used as an extractor unit, the hood must
be fitted with a 120mm diameter hose.
• Fix the flange on the hood outlet hole. Bajonett
attachment. Fig. 9
Recirculation mode
• Fix the deflector on the outlet hole of the hood
(Fig. 10) or on top of the wall unit ceiling. Fig.
11.
190
238
172
Fig. 7
Fig. 8
Fig. 9
Fig. 10 Fig. 11

14
Spice rack
• If a spice rack is to be incorporated in front of
the hood, a minimum distance of 5 mm must be
provided between the front edge of the fume
extractor hood and the spice rack wall (this air
gap being necessary for air circulation).
• The upper part of the spice rack rear wall
should be detachable (access for exhaust air
hose or adjustment of furniture housing).
Installing the extractor hood in
the wall unit - extraction mode
(Recirculation mode with charcoal filter)
• Fix the drilling template to the inside wall of
the wall unit on the right and left sides, and
mark out and predrill Ø 2 mm mounting holes
as well as 2 x Ø 6 mm - 5 mm depth holes for
the mounting claws (installation aids).
• Fully withdraw the visor of the hood.
•Important: Detach and insert the grease filters
only when the visor is fully withdrawn.
Remove the grease filters. First remove the rear
and then the front grease filter.
• Mount the hood with 4 or 6 x Ø 4 mm screws.
Fig. 12.
Note - For 16 mm side walls: clip the spacer
discs on the appliance body in correspondance
with screws passages.
• Insert the hood in the furniture housing and
engage both mounting claws (installation aids)
on the right and left sides in the side wall of the
wall unit and firmly hold the hood for further
mounting.
Then fix the hood with the 4 or 6 x Ø 4 mm
screws supplied.
• Refit the grease filters. Push-in the visor.
•If the cupboard is deeper than 300 mm, cover
the gap between the hood and the wall with a
finishing strip (special accessory).
To install it, proceed as follows:
Measure the wall distance and apply the
covenng strip over the necessary width (wall
distance plus 5 to 8 mm), kinking the covering
strip at the appropriate notches and tearing off
the surplus material (removing the protective
foil).
Then fasten the strip to the bottom part of the
hood with three clips (special accessories).
Apply pressure. Fig. 13.
Fig. 12
Fig. 13

15
Fitting the charcoal filter for
recirculation mode
If the extractor hood is installed as a return air
appliance (Recirculation
mode - air outlet above the wall unit), the charcoal
filter (available from
your local Service Force Centre) must be fitted
before the grease filters are fitted.
Installation sequence:
1. Insert the holding frame for the charcoal filter
in the shaft of the hood with the 2 lugs facing
upwards and then clip into the lower holes.
2. Fix the holding frame on the lower part of the
housing of the hood with the 2 screws supplied.
Fig. 14.
3. Fit the charcoal filter (see paragraph “Charcoal
filter”)
4. Refit the grease filters. Push-in the visor.
Removing the hood from the wall
unit
If, for technical reasons (extraction mode/
recirculation mode conversion) the extractor hood
has to be removed from the wall unit, proceed as
follows:
• Fully withdraw the visor and remove the grease
filter.
• Loosen the 4 or 6 mounting screws of the hood
(wall unit mounting).
• To loosen both mounting claws (installation
aids), place a max 3 mm dia. Phillips screw-
driver in the spring opening and simultaneously
press the springs inwards (towards the
appliance housing). Fig. 15.
Important: Hold the hood firmly!
Adjusting the extractor part (E -
Fig. 1) - Fig. 16
On wall units with a body depth of 275 mm to 335
mm, the visor depth can be adjusted as follows:
• Remove both grease filters.
• Loosen the screws on both end-stop brackets
and set the visor depth (min. 275 mm, max. 335
mm).
• Refit the screws.
• Refit the grease filters.
Fig. 14
Fig. 15
Fig. 16

LI2XZBEd. 03/07
The Electrolux Group. The world´s No.1 choice.
The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux
Group products (such as refrigerators, cookers, washing machines,vacuum cleaners, chain saws and lawn mowers) are sold each year to a value
of approx. USD 14 billion in more than 150 countries around the world.
© Electrolux 2003
