INSTRUCTION BOOK
FOR ELECTROLUX
COOKER HOOD
EFI 625 and EFI 630
cod. 4329618 04 - 010911
UK

2
Thank you for buying an Electrolux product.
To enable you to use your appliance effectively and safely, please read this instruction book carefully before using
the appliance and retain for future reference. If you require guidance in the use of the appliance or require further
information on Electrolux Products, please contact our Customer Care epartment. For general enquiries concerning
your Electrolux appliance or for further information, visit our website at http:\\www.electrolux.co.uk
Customer Care epartment
Electrolux
55 - 77 High Street
Slough
Berkshire Tel: [phone]
SL1 1 Z
To register ownership, please ensure you complete and return the guarantee card supplied with the appliance.
For the User
Important Sa ety In ormation
Your Appliance
Operating Instructions
Cooker Hood Controls
To Operate
Recirculation
Extraction
Maintenance and Cleaning
External Cleaning
Synthetic Paper Grease Filter
To Replace the Synthetic Paper Grease Filter
Charcoal Filter
To Remove the Charcoal Filter
Changing a Lamp
Something Not Working
Service and Spare Parts
Guarantee Conditions
For the Installer
Installation Instructions
Technical Information
Electrical Connections
Electrical Requirements
Electrical Connection
Installing the Cooker Hood
Installation Requirements
ucting
Clearance Height
Unpacking
The fixing kit comprises
Fitting the Wall Brackets
Venting
To Fit the ucting
Recirculation
Fitting the Cooker Hood to the Wall
ecor Panel
Fitting a ecor Panel to the Hood Visor
To Refit the Hood With ecor Panel Attached
Adjustment
Service Force Centres
Guide to use the instruction book
The following Symbols will be found in the text to guide you through the instruction book
Safety instructions Step by step instructions

3
IMPORTANT SAFETY INFORMATION
These warnings are provided in the interests o your sa ety. Ensure that you understand them all be ore
installing or using this appliance. Your sa ety is o paramount importance. I you are unsure about any o
the meanings o these warnings contact the Customer Care Department.
Installation
• Any installation work must be undertaken by a
qualified electrician or a competent person.
• This hood must be installed in accordance with the
installation instructions and all measurements must
be adhered to.
• If the cooker hood is installed for use above a gas
appliance then the provision for ventilation must be
in accordance with the Gas Safety Codes of Practice
BS.6172, BS.5440 and BS.6891 (Natural Gas) and
BS.5482 (LP Gas) 1994, the Gas Safety (Installation
& Use) Regulations, the Building Regulations issued
by the epartment of the Environment, the Building
standards (Scotland) (Consolidated) Regulations
issued by the Scottish evelopment epartment.
• The fan motor of this cooker hood incorporates a cut-
out device which will operate if the cooker hood is
installed below the minimum height recommended
under section ‘Clearance Height’, or if the motor
becomes overheated. If the cut-out device is
activated, switch off the fan motor and allow the
cooker hood to cool. The cut-out device will reset
itself when the fan motor has cooled significantly.
• It is dangerous to alter the specifications or modify
this product in any way.
• When installed between adjoining wall cabinets the
wall cabinets must not overhang the hob.
• If the room where the hood is to be used contains a
fuel burning appliance such as a central heating boiler
then its flue must be of the room sealed or balanced
flue type.
• If other types of flue or appliances are fitted ensure
that there is an adequate supply of air to the room.
• The ducting system for this appliance must not be
connected to any existing ventilation system which
is being used for any other purpose.
• o not install above a cooker with a high level grill.
Child Sa ety
• This appliance is designed to be operated by adults.
Children should not be allowed to tamper with the
controls or play with the appliance.
During Use
• This product is for domestic use only.
• Never leave frying pans unattended during use as
over-heated fats and oils might catch fire.
• Never do flambé cooking under this cooker hood.
• o not leave naked flames under the hood.
Maintenance and Service
• This appliance can be a hazard if the synthetic paper
and charcoal filters are not replaced as
recommended.
• Under no circumstances should you attempt to repair
the appliance yourself. Repairs carried out by
inexperienced persons may cause injury or more
serious malfunction. Refer to your local Electrolux
Service Force Centre. Always insist on genuine spare
parts.

4
YOUR APPLIANCE
OPERATING INSTRUCTIONS
This cooker hood is designed to extract unpleasant
odours from the kitchen, it will not extract steam.
To obtain the best performance it is advisable to switch
on the hood a few minutes before you start cooking and
leave it running for approximately 15 minutes after
finishing.
Cooker Hood Controls
S. Automatic Microswitch
The microswitch overrides the controls and
switches off the hood when the visor is closed.
When the visor is opened the hood will resume
the function of previoussetting.
M. Fan Speed Control
Position 0 - Off
Position 1 - Low
Position 2 - Normal
Position 3 - Boost
L. Light ON/OFF control
Position 0 - Off
Position 1 - On

5
To Operate
Open the visor and select the required functions.
The appliance can be installed to recirculate or extract
contaminated air. The cooker hood is more effective
when used in the extraction mode.
Recirculation
The hood is supplied specified for use in the recirculation
mode with the charcoal filter/s fitted.
The contaminated air is cleaned by passing through the
filters and then back into the kitchen.
Extraction
The contaminated air enters the hood passing through
the grease filter and out through the ducting into the
atmosphere.
When the extraction mode is selected the charcoal
filter is not required.
Never do flambé cooking under this cooker
hood.
Take extra care when frying and never leave
frying pans unattended during use, as over-
heated fats and oils can catch fire.
Do not leave naked flames under the cooker
hood.
nsure the visor is open when using the hob,
even if the fan on the hood is not switched on.
nsure heating areas on your hob are covered
with pots and pans when using the hob and
cooker hood simultaneously.

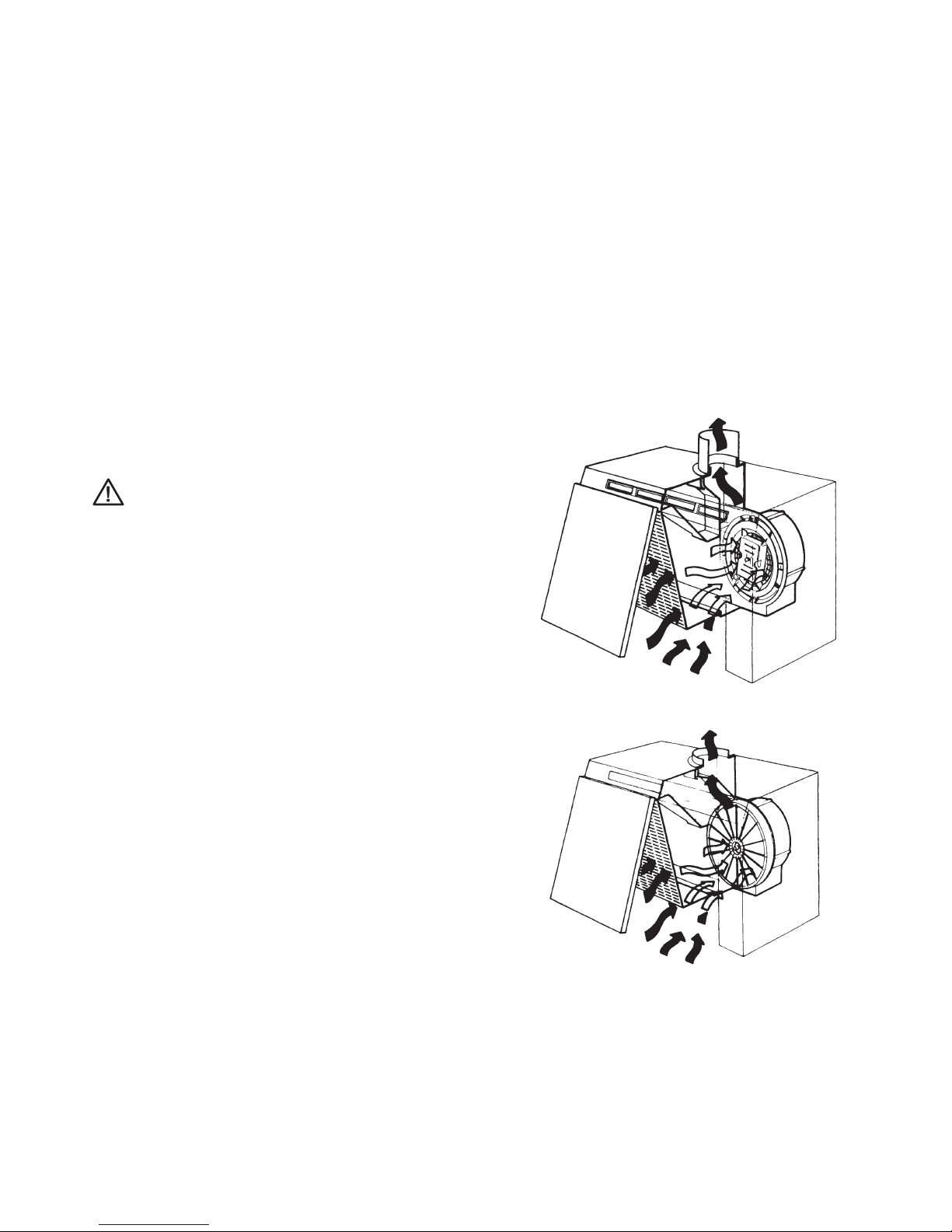

Extraction Mode
Recirculation Mode

6
MAINTENANCE AND CLEANING
Before carrying out any maintenance or
cleaning isolate the cooker hood from the
mains supply.
The cooker hood must be kept clean, as a
build up of grease or fat can be a fire hazard.
External Cleaning
Wipe the cooker hood frequently with warm soapy water
using a mild detergent.
Always wear protective gloves when cleaning
the hood.
Never use scouring pads or abrasive cleaners.
Never use excessive amounts of water when
cleaning particularly around the control panel.
Synthetic Grease Filter
The synthetic grease filter cannot be cleaned. It should
be replaced approximately every three months or more
often if the hood is used for more than three hours per
day.
It cannot be washed.
To replace the synthetic paper grease
ilter
1. Open the visor.
2. Press inwardly on the two slide catches and lower
the grille to the stop position. Raise the front edge
of the grille through a 45° angle until it detaches
itself from the guides.
3. Carefully ease out the metal wire retaining clips.
4. Clean the metal grille and clips before replacing
the grease filter.
Charcoal Filter
The charcoal filter/s absorb the odours from cooking.
They will slowly become saturated and gradually less
effective.
The charcoal filter cannot be cleaned, it should be
replaced approximately every three months or more often
if the hood is used for more than three hours per day.
To Remove/Replace the Charcoal
Filter/s
1. Remove the metal inlet grille.
2. Carefully turn the disk (C) anti-clockwise and
remove the charcoal filter/s (B) from the motor
support/s (A) as illustrated opposite.

7
3. Clean the metal inlet grille/s and motor support/
s before replacing the charcoal filter/s.
4. Place the new charcoal filter/s (B) over the motor
support/s (A), and while holding the filter securely
insert the disk (C) and turn clockwise.
This appliance can be a fire hazard if the
grease and charcoal filters are not replaced as
recommended.

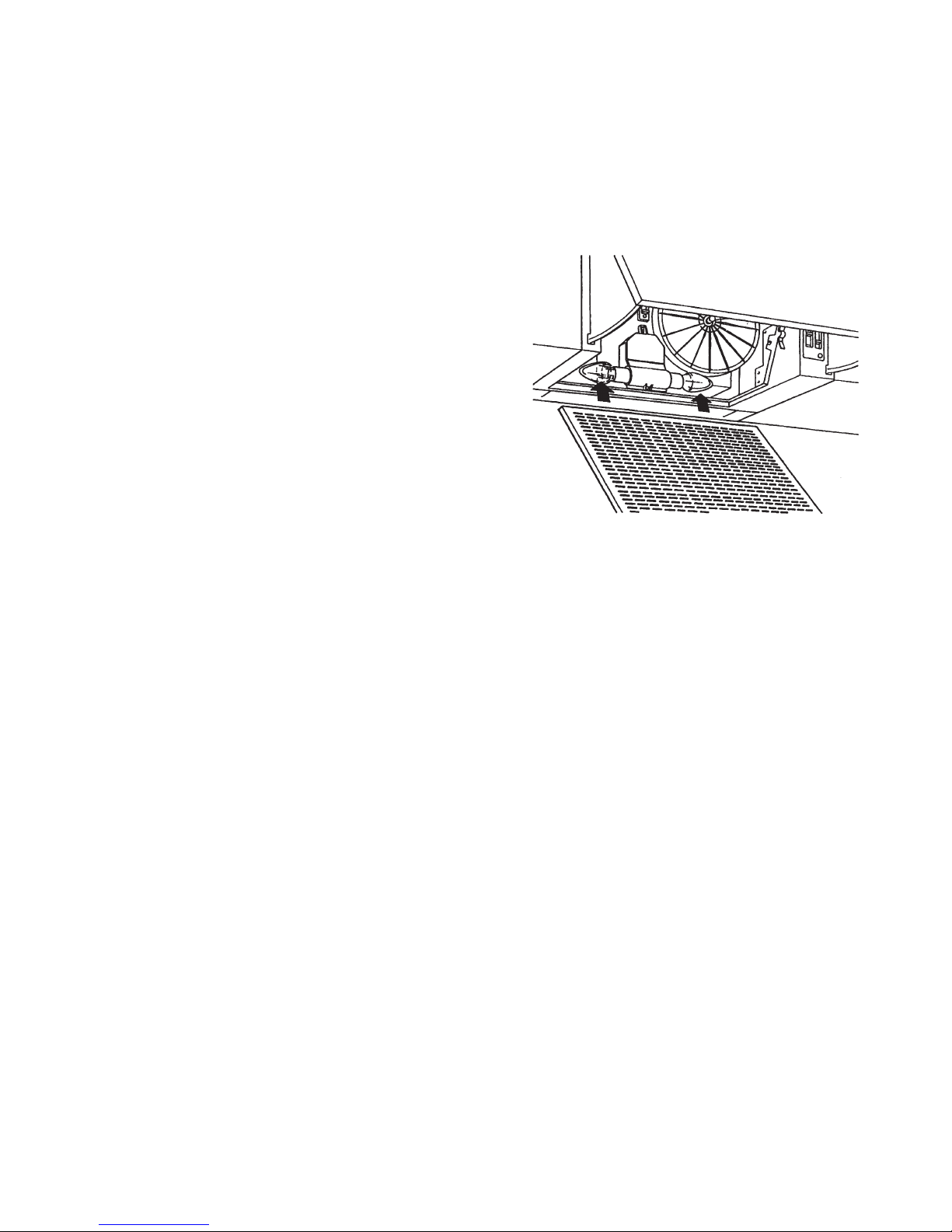

Changing the Lamps
If a lamp fails to function check that the lamp is securely
screwed into the holder. To tighten the lamps turn
clockwise, but ensure not to over tighten them and bre-
ak the lens.
When changing the lamps an identical replacement must
be fitted to ensure the safe working of the cooker hood.
The replacement lamps are specified 220-240 volt 40
watt clear cylindrical shape lens with a small (E14) screw
thread.
Replacement charcoal ilters, grease ilters and
lamps can be obtained rom your local Service Force
Centre.

8
SOMETHING NOT WORKING
SERVICE AND SPARE PARTS
If, having followed these instructions carefully, your cooker hood fails to work properly please carry out
the following checks.
Symptom
The cooker hood will not start
The cooker hood is not working e ectively
The cooker hood has switched o during
operation
If after all these checks, the problem persists,
contact your local Service Force Centre,
quoting the model and serial number.
Please note that it will be necessary to
provide proof of purchase for any
in-guarantee service calls.
Solution
• Check the hood is connected to the electricity supply.
• Check that the fan speed control is set to 1, 2 or 3.
• The fan speed is set high enough for the task.
• The grease filter is clean.
• The kitchen is adequately vented to allow the entry
of fresh air.
• If set up for recirculation, check that the charcoal
filter is still effective.
• If set up for extraction, check that the ducting and
outlets are not blocked.
• The safety cut-out device has been tripped.
• Turn off the hob and then wait for the device to reset.
In-guarantee customers should ensure
that the above checks have been made as
the engineer will make a charge i the ault
is not a mechanical or electrical
breakdown.

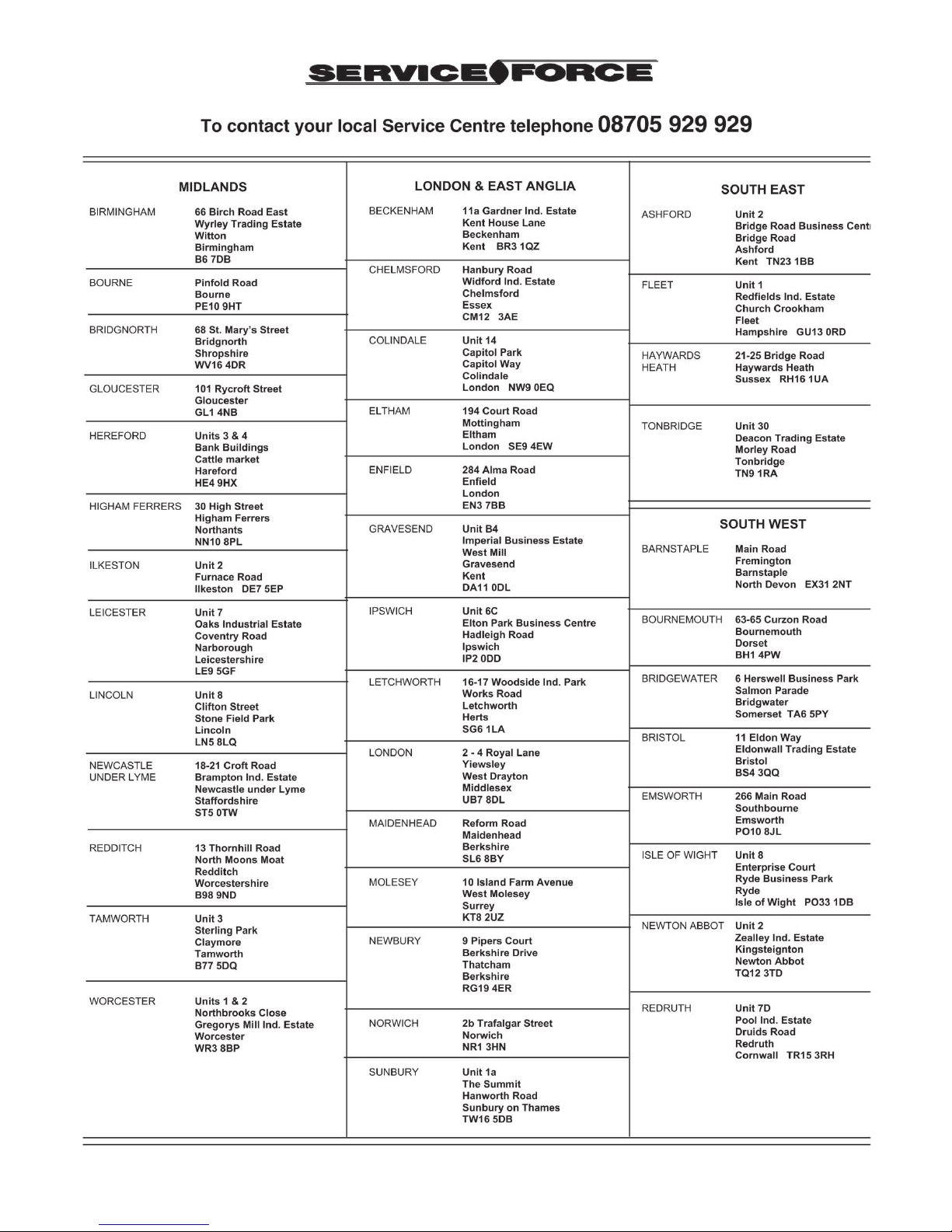

If you require an engineer or wish to purchase spare
parts contact your local Service Force Centre by
telephoning:
08705 929929
Your telephone call will be routed to your local
Service Force Centre. For further details please see the
the back of this book.
For general assistance with your appliance or for
information on Electrolux products please contact our
Customer Care epartment.
Customer Care epartment,
Electrolux
55 - 77 High Street
Slough
Berkshire
SL1 1 Z
Tel: [phone]*
* calls to this number may be recorded for training
purposes.

9
GUARANTEE CONDITIONS
STANDARD GUARANTEE CONDITIONS
We, Electrolux, undertake that if within twelve months of the date of the purchase this Electrolux built-in appliance or
any part there of is proved to be defective by reason only of faulty workmanship or materials, the company will, at
our option repair or replace the same FREE OF ANY CHARGE for labour, materials or carriage on condition that:
• The appliance has been correctly installed and used only on the electrical supply stated on the rating plate.
• The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer’s
operating and maintenance instructions.
• The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not
authorised by us.
• All service work under this guarantee must be undertaken by Electrolux Service Force Centre.
• Any appliance or defective part replaced shall become the property of this company.
Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours
in which case a premium will be charged.
EXCLUSIONS
This Guarantee does not cover:
amage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or removable
parts of glass or plastic.
• Costs incurred for calls to put right appliances improperly installed or calls to appliances outside the United
Kingdom.
• Appliances found to be in use within a commercial environment, plus those which are the subject of rental
agreements.
• Products of Electrolux manufacture which are not marked by Electrolux.
This guarantee is in addition to your statutory and legal rights.
ELECTROLUX EUROPEAN GUARANTEE
If you should move to another country within Europe then your guarantee moves with you to your new home subject
to the following qualifications:
• The guarantee starts from the date you first purchased your product.
• The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of
use for this brand or range of products.
• This guarantee relates to you and cannot be transferred to another user.
• Your new home is within the European Community (EC) or European Free Trade Area.
• The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal
household.
Be ore you move please contact your nearest Customer Care Centre, listed below, to give them details o
your new home. They will then ensure that the local Service Organisation is aware o your move and able to
look a ter you and your appliances.
France Senlis [phone]
Germany Nurnberg [phone]
Italy Pordenone [phone]
Sweden Stockholm [phone]
UK Slough [phone]

10
INSTALLATION INSTRUCTIONS
It is dangerous to alter the specifications or attempt to modify this product in any way.
Technical In ormation
DIMENSIONS HEIGHT: 350mm
WI TH: 598mm
EPTH: 270-360mm
EPTH WITH VISOR OPEN: 540-630mm
WEIGHT GROSS: EFI 625 12,5 kg - EFI 630 14 kg
NET: EFI 625 10,9 kg - EFI 630 12,5 kg
ELECTRICAL SUPPLY: Voltage (~50Hz) 220-240 V
POWER CONSUMPTION: EFI 625 190 W - EFI 630 225 W
FAN MOTOR: EFI 625 145 W - EFI 630 110 W
LAMP: 2 x 40 W 80 W
SUITABLE FOR INSTALLATION
ABOVE: ELECTRIC HOB: 7 KW (max)
GAS HOB: 10 KW (max)
SLOT-IN GAS COOKER 13.5 KW (max)
SLOT-IN ELECTRIC COOKER 12.4 KW (max)
CHARCOAL FILTER/S: Supplied
Note: CE Marking certi ies that this appliance complies with the requirements
laid down in EEC directive 89:336. (Electromagnetic compatibility) and
subsequent modi ications and Low Voltage directive 72/23/E.
ELECTRICAL CONNECTIONS
WARNING: DOUBLE INSULATED DO NOT
EARTH
Electrical Requirements
Any permanent electrical installation must comply with
the latest I.E.E. Regulations and local Electricity Board
regulations. For your own safety this should be
undertaken by a qualified electrician e.g. your local
Electricity Board, or a contractor who is on the roll of
the National Inspection Council for Electrical
Installation Contracting (NICEIC).
Electrical Connection
Before connecting to the mains supply ensure that the
mains voltage corresponds to the voltage on the rating
plate inside the cooker hood.
This appliance is fitted with a 2 core mains cable and
must be permanently connected to the electricity
supply via a double-pole switch having 3mm minimum
contact gap on each pole. A Switched Fuse
Connection Unit to BS1363 Part 4, fitted with a 3 Amp
fuse, is a recommended mains supply connection
accessory to ensure compliance with the Safety
Requirements applicable to fixed wiring instructions.
This appliance conforms to BS 800: 1988 and EEC
irective No. 78 308 regarding suppression of radio
and television interference.

11
INSTALLING THE COOKER HOOD
Please ensure that when the appliance is installed
it is easily accessible to an engineer in the event o
a breakdown.
All installations must comply with the local
authorities requirements for the discharge of
exhaust air.
Incorrect installation may affect the safety of
this cooker hood.
Installation Requirements
Before installation check the wall to which the
cooker hood is to be fitted for electric cables,
water pipes or gas.
If it is necessary to fix the hood to a hollow
construction plaster or partition board structure then it
should be sufficiently reinforced to be quite rigid in the
area of the cooker hood mounting brackets, and the
appropriate rawl plugs used for this type of fixing (not
supplied).
Ducting
The ducting must be fire retardant (EFI 625) 100mm
(4ins), and (EFI 630) 125mm (5ins) in diameter and
the length should be no more than:
3 metres with one 90° bend
2 metres with two 90° bends
Bends of more than 90° will reduce the efficiency of the
hood and reduce the airflow.
Clearance Height
The cooker hood is designed to be fitted over a
cooking appliance at the clearance heights stated,
providing the maximum output of the appliance
beneath does not exceed the maximums quoted in the
Technical Specifications.
If the output of the appliance below the cooker hood
exceeds the maximum outputs quoted, please refer to
the cooker manufacturer’s installation instructions.

12
A: Built-in Electric Hob: 650mm minimum clearance
B: Built-in Gas hob: 700mm minimum clearance
C: Slot-in Electric Cooker: 685mm minimum clearance
: Slot-in Gas Cooker: 787mm minimum clearance
Hob
Clearance Height
A minimum clearance height of 650mm (25 1/2 ”) is
required when installed above a built-in electric hob, or
700mm (27 1/2 ”) when installed above a built-in gas
hob.
A minimum clearance height of 685mm (27”) is
required when installed above a slot-in electric cooker,
or 787mm (30 1/2 ”) when installed above a slot-in gas
cooker.
When installed between adjoining wall cabinets, the
wall cabinets must not overhang the hob and the
distance between the underside of the cabinet and the
worktop must be 450mm. If the height of the wall
cabinet is less than 450mm, a gap of 50mm must be
maintained either side of the hob.
This cooker hood must not be installed above a
cooking appliance with a high level grill.
Unpacking
The fittings supplied to install this cooker hood can be
found with the instruction book inside the packaging.
The ixing kit comprises:
2 - Wall fixing brackets
6 - ecor panel fixing screws
4 - Security fixing screws
Fitting the Wall Brackets
1. Use the paper template provided to mark the
hole positions on the wall for the bracket fixing
screws (not supplied).
2. Check the hole distances are correct with a
tape measure as stated on the template.
3. At this stage it is important to allow 15mm (1/2
ins) clear space above the cooker hood to
enable it to be hooked onto the brackets and
for subsequent removal for decorating or
servicing.

13
Venting
The hood is more effective when used in the
extraction setting (ducted to the outside).
Venting kits may be purchased through your
retailer or DIY store, and must be ducted to an
outside vent o (EFI 625) 100mm (4 ins) or (EFI
630) 125mm (5 ins) minimum.
The ducting used must be manufactured from
fire retardant material.
When the cooker hood is ducted externally the
charcoal filter/s must be removed.
To Fit the Ducting
1. Open the grille by pressing inwardly on the
actuator bolts at each side of the grille, while
pulling the grille panel downwards. The grille
panel will slide into the intermediate position.
Raise the lower edge of the grille forward
through 45° angle until the grille becomes
detached from the slide mechanism.
2. Align the flat sides on the spigot with the
recesses in the top of the casing. Insert and
snap fix the spigot into the casing.
3.1 EFI 625 - Connect the 100mm (4 ins) ducting
to the spigot and make an air tight seal.
3.2 EFI 630 - Fit the 120 to 125mm flange to the
spigot, then connect the 125mm (5 ins) ducting
to the spigot and make an air tight seal.
4. Remove the charcoal filters.
Recirculation
The cooker hood is supplied specified for use in the
recirculation mode with the charcoal filter/s fitted.
In the recirculation mode contaminated air is passed
through the charcoal filter/s to be purified and
recirculated into the kitchen through the outlet on the
top of the cooker hood.

14

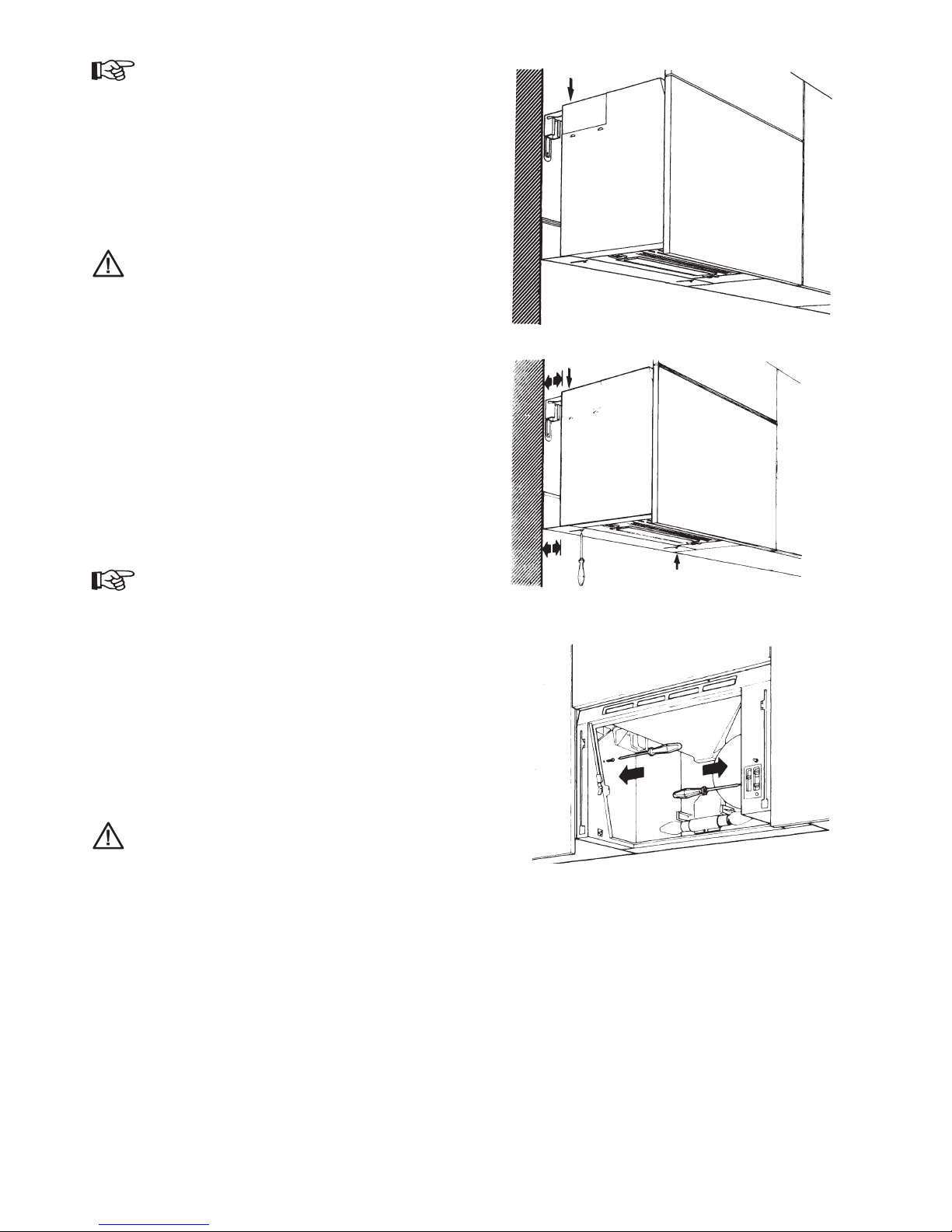

Fitting the Cooker Hood to the Wall
1. Fit the brackets with the round ends facing
downwards using the plastic rawl plugs and
screws provided.
2. Once the brackets are secured, lift the hood
squarely to the wall slightly higher than the
brackets and lower the cooker hood until it is
located onto the two brackets.
nsure that the cooker hood is correctly
located before letting go.
3. By loosening the screws in the extension arm
the hood can be aligned with the front of the
adjoining wall cabinets.
4. The hood should be secured on each side to
the adjoining wall cabinets using the 4 x 15mm
(1/2 ins) security screws provided.
5. Adjust the lower spacer panel at the rear of the
hood to close the gap to the wall.
Decor Panel
The dimensions of the door panel should be 596mm
(23 1/2 ins) wide by 350mm (13 3/4 ins) in height.
Fitting a Decor Panel to the Hood
Visor
1. Remove the complete visor assembly by first
pulling the visor open while simultaneously
pressing down on the release catch located
behind the visor on the left hand side of the
casing.
2. Using the paper template provided, mark the
screw hole positions on the reverse side of the
decor panel. Ensure that the paper template is
aligned with the top edge of the decor panel.
Failure to align the top edge of the decor panel
with the template will prevent the visor from
opening when installed.
3. Before drilling, use a tape measure to check
the distances of the screw holes (as given on
the template). The template may have altered
due to dampness after manufacture.
4. Use the 6 x 15mm (1/2 ins) round headed
screws provided to attach the decor panel to
the hood visor.

15
To Re it the Hood with Decor Panel
Attached
1. Insert the upper visor guides into the upper
track in the front of the casing.
2. Pull down the bottom edge of the visor and
insert the lower guides into the track in the
bottom of the casing.
3. Push the visor in until an audible click is heard.
4. The visor can now be opened and closed in its
normal function.
Adjustment
If a heavy door is fitted or if the visor will not stay
closed it may be necessary to make an adjustment to
the closing mechanism of the visor.
Insert a small flat bladed screw driver through the hole
(the friction assembly) on either side of the casing
indicated by the letter “V” and turn clockwise to apply
pressure on the guide.
Both friction assemblies should be adjusted by the
same amount to ensure the visor opens smoothly.
Care should be taken when removing the visor
with the decor panel for cleaning or servicing,
as the visor is now extremely heavy and should
it be dropped, it could damage the appliance
beneath and adjoining work surfaces.

16

17

18

19

55 - 77 High Street - Slough
BERKSHIRE SL1 1DZ
© Electrolux Household Appliances Limited 2001
