Electrolux EFT 540-640-740 User manual

EFT 540-640-740
User manual

electroluxelectrolux
electroluxelectrolux
electrolux safety warnings 33
33
3
GB
WW
WW
Welcome to the world of Electrelcome to the world of Electr
elcome to the world of Electrelcome to the world of Electr
elcome to the world of Electroluxolux
oluxolux
olux
Thank you for choosing a first class
product from Electrolux, which
hopefully will provide you with lots of
pleasure in the future. The Electrolux
ambition is to offer a wide variety of
quality products that make your life
more comfortable. You find some
examples on the cover in this manual.
Please take a few minutes to study this
manual so that you can take advantage
of the benefits of your new machine.
We promise that it will provide a
superior User Experience delivering
Ease-of-Mind. Good luck!

44
44
4 electroluxelectrolux
electroluxelectrolux
electrolux contents
GB
Contents
Safetywarnings .................................5
Description of the Appliance ..............7
Control Panel ....................................8
Maintenance and Care ......................9
Special accessories.........................14
Something Not Working...................15
Installation.......................................16
The following symbols are used in this user manual:
Important information concerning your personal safety and information on
how to avoid damaging the appliance.
General information and tips.
Environmental information.

electroluxelectrolux
electroluxelectrolux
electrolux safety warnings 55
55
5
GB
Safety warnings
• When used as an extractor unit, the
hood must be fitted with a hose
having preferably the same diameter
as the outlet hole.
Attention:Attention:
Attention:Attention:
Attention: The hose is not supplied
and must be purchased separately.
• The minimum distance between the
supporting surface for the cooking
vessels on the hob and the lowest
part of the range hood must be not
less than 40cm40cm
40cm40cm
40cm from electric
cookers and 65cm65cm
65cm65cm
65cm from gas or
mixedcookers.
If the instructions for installation for
the gas hob specify a greater
distance, this must be adhered to.
• Before any cleaning or maintenance
operation, disconnect the hood from
the mains by removing the plug or
disconnecting the home mains
switch.
• The appliance is not intended for use
by children or persons with impaired
physical, sensorial or mental
faculties, or if lacking in experience
or know-how, unless they are under
supervision or have been trained in
the use of the appliance by a person
responsible for their safety.
• Children should be monitored to
ensure that they do not play with the
appliance.
• Never use the hood without
effectively mounted grating.!
• The hood must NEVER be used as a
support surface unless specifically
indicated.
• The premises must be sufficiently
ventilated, when the kitchen hood is
used together with other gas
combustion devices or other fuels.
• The suctioned air must not be
conveyed into a conduit used for the
disposal of the fumes generated by
appliances that combust gases or
other fuels.
• The flaming of foods beneath the
hood itself is severely prohibited.
• The use of exposed flames is
detrimental to the filters and may
cause a fire risk, and must therefore
be avoided in all circumstances.
• Any frying must be done with care in
order to make sure that the oil does
not overheat and burst into flames.
• As regards the technical and safety
measures to be adopted for fume
discharging it is important to closely
follow the relations provided by the
competent authorities.
• The hood must be regularly cleaned
on both the inside and outside (AT
LEAST ONCE A MONTH, it is in any
event necessary to proceed in
accordance with the maintenance
instructions provided in this manual)..
• Failure to follow the instructions as
concerns hood and filter cleaning will
lead to the risk of fires.
• Do not use or leave the hood without
the lamp correctly mounted because
of the possible risk of electric
shocks.
• We decline any responsibility for any

66
66
6 electroluxelectrolux
electroluxelectrolux
electrolux safety warnings
GB
problems, damage or fires caused to
the appliance as the result of the
non-observance of the instructions
included in this manual. This appliance is marked according to
the European directive 2002/96/EC on
Waste Electrical and Electronic
Equipment (WEEE).
By ensuring this product is disposed of
correctly, you will help prevent potential
negative consequences for the
environment and human health, which
could otherwise be caused by
inappropriate waste handling of this
product.
The symbol on the product, or on
the documents accompanying the
product, indicates that this appliance
may not be treated as household
waste. Instead it shall be handed over
to the applicable collection point for the
recycling of electrical and electronic
equipment.
Disposal must be carried out in
accordance with local environmental
regulations for waste disposal.
For more detailed information about
treatment, recovery and recycling of
this product, please contact your local
city office, your household waste
disposal service or the shop where you
purchased the product.

electroluxelectrolux
electroluxelectrolux
electrolux description of the appliance 77
77
7
GB
Description of the Appliance
•The cooker hood is designed toThe cooker hood is designed to
The cooker hood is designed toThe cooker hood is designed to
The cooker hood is designed to
extract unpleasant odours fromextract unpleasant odours from
extract unpleasant odours fromextract unpleasant odours from
extract unpleasant odours from
the kitchen, it will not extractthe kitchen, it will not extract
the kitchen, it will not extractthe kitchen, it will not extract
the kitchen, it will not extract
steam.steam.
steam.steam.
steam.
• The hood is supplied as an extractor
unit and can also be used with a
recirculation mode by fitting a
charcoal filter.
• You will need an original charcoal
filter for the recirculation mode. (See
Special Accessories).
Extraction modeExtraction mode
Extraction modeExtraction mode
Extraction mode
• In this mode fumes are extracted to
the outside via a hosehose
hosehose
hose connected to
the coupling ringcoupling ring
coupling ringcoupling ring
coupling ring.
• In order to obtain the best perfor-
mance the hose should have a
diameter equal to the outlet hole.
Recirculation modeRecirculation mode
Recirculation modeRecirculation mode
Recirculation mode
• The air is filtered through a charcoalcharcoal
charcoalcharcoal
charcoal
filterfilter
filterfilter
filter and returned to the kitchen.
• You will need an original charcoal
filter for the recirculation mode. (See
Special Accessories).

88
88
8 electroluxelectrolux
electroluxelectrolux
electrolux control panel
GB
Control Panel
• Best results are obtained by using a
low speed for normal conditions and
a high speed when odours are more
concentrated.
Turn the hood on a few minutes
before you start cooking.
The hood should be left on after
cooking for about 15 minutes or until
all the odours have disappeared.
• The control panel is under the cooker
hood.
Off switch.
Switch for low speed.
Switch for high speed.
Lighting switch, on and off.

electroluxelectrolux
electroluxelectrolux
electrolux maintenance and care 99
99
9
GB
Maintenance and Care
••
••
•Warning! Before performing any maintenance operation, isolate theWarning! Before performing any maintenance operation, isolate the
Warning! Before performing any maintenance operation, isolate theWarning! Before performing any maintenance operation, isolate the
Warning! Before performing any maintenance operation, isolate the
hood from the electrical supply by switching off at the connectorhood from the electrical supply by switching off at the connector
hood from the electrical supply by switching off at the connectorhood from the electrical supply by switching off at the connector
hood from the electrical supply by switching off at the connector
and removing the connector fuse.and removing the connector fuse.
and removing the connector fuse.and removing the connector fuse.
and removing the connector fuse.
Or if the appliance has been connected through a plug and socket,Or if the appliance has been connected through a plug and socket,
Or if the appliance has been connected through a plug and socket,Or if the appliance has been connected through a plug and socket,
Or if the appliance has been connected through a plug and socket,
then the plug must be removed from the socket.then the plug must be removed from the socket.
then the plug must be removed from the socket.then the plug must be removed from the socket.
then the plug must be removed from the socket.
Metal grease filterMetal grease filter
Metal grease filterMetal grease filter
Metal grease filter
• The purpose of the grease filters is to
absorb grease particles which form
during cooking and it mustmust
mustmust
must always
be used, either in the external
extraction or internal re-circulation
function.
Attention:Attention:
Attention:Attention:
Attention: the metal grease filters
must be removed and washed, either
by hand or in the dishwasher, every
four weeks.
Removing the metal grease filterRemoving the metal grease filter
Removing the metal grease filterRemoving the metal grease filter
Removing the metal grease filter
• Grab hold of the handle and push the
filter backwards.
• Pulling the filter down at the front and
removing it forwards.
Hand washingHand washing
Hand washingHand washing
Hand washing
Soak grease filters for about one hour
in hot water with a grease-loosening
cleaner, then rinse off thoroughly with
hot water. Repeat the process if
necessary. Refit the grease filters
when they are dry.
DishwasherDishwasher
DishwasherDishwasher
Dishwasher
Place grease filters in the dishwasher.
Select most powerful washing
programme and highest temperature,
at least 65°C. Repeat the process.
Refit the grease filters when they are
dry.
When washing the metal grease filter
in the dishwasher a slight
discolouration of the filter can occur,
this does not have any impact on its
performance.
• Clean the inner housing using a hand
hot solution only(never use caustic
detergents, abrasive powders or
brushes).

1010
1010
10 electroluxelectrolux
electroluxelectrolux
electrolux maintenance and care
GB
Charcoal filterCharcoal filter
Charcoal filterCharcoal filter
Charcoal filter
The charcoal filter should only be used
if you want to use the hood in
recirculation mode.
The LONG LIFE carbon filter (special
accessory) for this hood is fitted instead
of the grease filter.
The LONG LIFE carbon filter is both a
grease and carbon filter for reduction of
cooking smells.
•Cleaning/replacing the charcoalCleaning/replacing the charcoal
Cleaning/replacing the charcoalCleaning/replacing the charcoal
Cleaning/replacing the charcoal
filterfilter
filterfilter
filter
Unlike other charcoal filters, the
LONGLIFE charcoal filter can be
cleaned and reactivated.
With normal use the filter should be
cleaned every second month (when
using the hood 2.5 hours per day,on
avarage). The best way to clean the
filter is in the dishwasher. Use normal
detergent and choose the highest
temperature (65º C). Wash the filter
separately so that no food parts gets
stuck on the filter and later causes
bad odours. To reactivate the
charcoal, the filter should be dried in
an oven for 10 minutes with a maxi-
mum temperature of 100º C.
After approximately three years of
use, the charcoal filter should be
replaced with a new one, as the
odour reduction capacity will be
reduced.
• Always specify the hood model code
number and serial number when
ordering replacement filters. This
information is shown on the rating
plate located on the inside of the
unit.
• The charcoal filter can be ordered
from your local Service Force Centre.

electroluxelectrolux
electroluxelectrolux
electrolux maintenance and care 1111
1111
11
GB
Cleaning the motor coverCleaning the motor cover
Cleaning the motor coverCleaning the motor cover
Cleaning the motor cover
It is also possible to clean the motor
cover (see picture):
••
••
• Remove the grease filter.
••
••
• Remove the anti-intrusion grille (A).
••
••
• Remove the inlet ring (B) by turning it
anticlockwise.
••
••
• Remove the fan wheel by unscrewing
the centre nut (C) on the fan wheel.
Use gloves when removing the fan
wheel.
Clean all the plastic and metal parts
with warm water and washing dergent.
Replace in reverse order.
WarningWarning
WarningWarning
Warning
• Failure to observe the instructions on
cleaning the unit and changing the
filters will cause a fire hazard. You
arethereforestronglyrecommended
to follow these instructions.
• The manufacturer declines all
responsibility for any damage to the
motor or any fire damage linked to
inappropriate maintenance or failure
to observe the above safety
recommendations.
A
B
C

1212
1212
12 electroluxelectrolux
electroluxelectrolux
electrolux maintenance and care
GB
Changing the light bulb(s)Changing the light bulb(s)
Changing the light bulb(s)Changing the light bulb(s)
Changing the light bulb(s)
•Disconnect the cooker hoodDisconnect the cooker hood
Disconnect the cooker hoodDisconnect the cooker hood
Disconnect the cooker hood
frfr
frfr
from the mains supplyom the mains supply
om the mains supplyom the mains supply
om the mains supply..
..
.
••
••
•Prior to touching the light bulbsPrior to touching the light bulbs
Prior to touching the light bulbsPrior to touching the light bulbs
Prior to touching the light bulbs
ensure they are cooled down.ensure they are cooled down.
ensure they are cooled down.ensure they are cooled down.
ensure they are cooled down.
• Remove the lampglass by pushing
the two snaps forwards (see picture).
• Replace the damaged part with one
of equal rating.
To remove the light without damaging
it, place a finger on the end of the light
and pull gently.
• If the light does not come on, make
sure the bulb has been inserted in
correctly before contacting your local
Service Force Centre.

electroluxelectrolux
electroluxelectrolux
electrolux maintenance and care 1313
1313
13
GB
Cleaning the hoodCleaning the hood
Cleaning the hoodCleaning the hood
Cleaning the hood
• Clean the outside of the hood using a
damp cloth and a solution of water
and mild washing up liquid.
• Never use corrosive, abrasive or
flammable cleaning products or
products containing bleach.
• Never insert pointed objects in the
motor’s protective grid.
• Only ever clean the switch panel and
filter grill using a damp cloth and mild
washing up liquid.
• Clean all the plastic parts with a soft
cloth soaked in warm water and
neutral soap.
• It is extremely important to clean the
unit and change the filters at the
recommendedintervals.
Failure to do so will cause grease
deposits to build up that could
constitute a fire hazard.

1414
1414
14 electroluxelectrolux
electroluxelectrolux
electrolux special accessories
GB
Special accessoriesSpecial accessories
Special accessoriesSpecial accessories
Special accessories
•VV
VV
Venting kit:enting kit:
enting kit:enting kit:
enting kit: When the cooker hood is to be connected to an evacuation
channel use the venting kit containing one ventilation pipe, one roof connecting
metal flange and two clamps.
PNC391 414 201.
•LONG LIFE charcoal filter:LONG LIFE charcoal filter:
LONG LIFE charcoal filter:LONG LIFE charcoal filter:
LONG LIFE charcoal filter: The charcoal filter is to be used when the hood
is connected to the recirculation system.
For new installations: PNC 391 834 201 (50 cm), 391 834 200 (60/70 cm).
•VV
VV
Venting grid:enting grid:
enting grid:enting grid:
enting grid: Venting grid for recirculation.
PNC391 433 101.

electroluxelectrolux
electroluxelectrolux
electrolux special accessories 1515
1515
15
GB
SymptomSymptom
SymptomSymptom
Symptom
The cooker hood will not
start...
The cooker hood is not
working
The cooker hood has
switchedoffduring
operation...
SolutionSolution
SolutionSolution
Solution
Check that:Check that:
Check that:Check that:
Check that: The hood is connected to the
electricity supply.
Check that a fan speed has been selected.
Check that:Check that:
Check that:Check that:
Check that: The fan speed is set high enough
for the task.
The grease filters are clean.
The kitchen is adequately vented to allow the
entry of fresh air.
If set up for recirculation, check that the
charcoal filter is still effective.
If set up for extraction, check that the ducting
and outlets are not blocked.
The safety cut-out device has been
tripped. Turn off the hob and then wait for the
device to reset. If the hood has been installed
below the heights indicated in the installation
instructions the motor will cut-out frequently
which will damage the hood. If after all these
checks, the problem persists, contact your local
Service Centre, quoting the model and serial
number.
Please note that it will be necessary to provide proof of purchase for any in-
guarantee service calls.
In-guarantee customers should ensure that the above checks have been made as
the engineer will make a charge if the fault is not a mechanical or electrical
breakdown.
Something Not Working
If your appliance fails to work properly please carry out the following checks.

1616
1616
16 electroluxelectrolux
electroluxelectrolux
electrolux installation
GB
Installation
TT
TT
Technical Detailsechnical Details
echnical Detailsechnical Details
echnical Details
EFT 540EFT 540
EFT 540EFT 540
EFT 540 EFT 640EFT 640
EFT 640EFT 640
EFT 640 EFT 740EFT 740
EFT 740EFT 740
EFT 740
Dimensions (in cm):Dimensions (in cm):
Dimensions (in cm):Dimensions (in cm):
Dimensions (in cm):
Height: 4,5 4,5 4,5
Width: 49,8 59,8 69,8
Depth: 46,4 46,4 46,4
MaximumMaximum
MaximumMaximum
Maximum absorbedabsorbed
absorbedabsorbed
absorbed power:power:
power:power:
power:111 W111 W
111 W111 W
111 W 111 W111 W
111 W111 W
111 W 111 W111 W
111 W111 W
111 W
Motor: 110 W 110 W 110 W
Lighting: 1x11W(PL) 1x11W(PL) 1 x11W (PL)
Length of the cable:Length of the cable:
Length of the cable:Length of the cable:
Length of the cable: 130 cm130 cm
130 cm130 cm
130 cm 130 cm130 cm
130 cm130 cm
130 cm 130 cm130 cm
130 cm130 cm
130 cm
Electrical connection:Electrical connection:
Electrical connection:Electrical connection:
Electrical connection: 230 V230 V
230 V230 V
230 V 230 V230 V
230 V230 V
230 V 230 V230 V
230 V230 V
230 V
Fuse rating:Fuse rating:
Fuse rating:Fuse rating:
Fuse rating: 5A5A
5A5A
5ATT
TT
T5A5A
5A5A
5ATT
TT
T5A5A
5A5A
5ATT
TT
T
Mounting accessories includedMounting accessories included
Mounting accessories includedMounting accessories included
Mounting accessories included
1 Spanner for Torx screws
2 Fixing brackets
4 hole plug caps
4 washers Ø 5.3 x 10 mm
4 washers Ø 5.3 x 15 mm
1 vapours non-return valve
4 spacers
4 nuts
4 screws Ø 3.9 x 60 mm
4 screws Ø 5 x 35 mm
4 screws Ø 5 x 45 mm
4 rawl plugs Ø 8 mm

electroluxelectrolux
electroluxelectrolux
electrolux installation 1717
1717
17
GB
Electrical connection
Safety warnings for theSafety warnings for the
Safety warnings for theSafety warnings for the
Safety warnings for the
electricianelectrician
electricianelectrician
electrician
The mains power supply must
correspond to the rating indicated on
the plate situated inside the hood. If
provided with a plug connect the hood
to a socket in compliance with current
regulations and positioned in an
accessible area. If it not fitted with a
plug (direct mains connection) or if the
plug is not located in an accessible
area apply a bi-polar switch in
accordance with standards which
assures the complete disconnection of
the mains under conditions relating to
over-current category III, in accordance
with installation instructions.
Before re-connecting the hood circuit
to the mains supply and checking the
efficient function, always check that
the mains cable is correctly
assembled.
Mains supply replacement must be
undertaken by your local Service
Force Centre.

1818
1818
18 electroluxelectrolux
electroluxelectrolux
electrolux installation
GB
Do not connect the appliance toDo not connect the appliance to
Do not connect the appliance toDo not connect the appliance to
Do not connect the appliance to
the mains until the installation isthe mains until the installation is
the mains until the installation isthe mains until the installation is
the mains until the installation is
fully complete.fully complete.
fully complete.fully complete.
fully complete.
Mounting of cooker hood in aMounting of cooker hood in a
Mounting of cooker hood in aMounting of cooker hood in a
Mounting of cooker hood in a
cupboard, Alt. 1cupboard, Alt. 1
cupboard, Alt. 1cupboard, Alt. 1
cupboard, Alt. 1
• Cut an opening and drill 4 holes in
the underside of the cupboard. Use
the template printed on the
packaging.
• Mount the locknuts (A) on the cooker
hood (see picture).
• Mount the cooker hood with four
screws (B) and washers (C).
Mounting of cooker hood in aMounting of cooker hood in a
Mounting of cooker hood in aMounting of cooker hood in a
Mounting of cooker hood in a
cupboard, Alt. 2cupboard, Alt. 2
cupboard, Alt. 2cupboard, Alt. 2
cupboard, Alt. 2
• Cut an opening in the underside of
the cupboard. Use the template
printed on the packaging.
• Mount the cooker hood with two
screws (A) and the spacers (B) (see
picture).
• Fit the plastic covers (C).

B
A
C

electroluxelectrolux
electroluxelectrolux
electrolux installation 1919
1919
19
GB

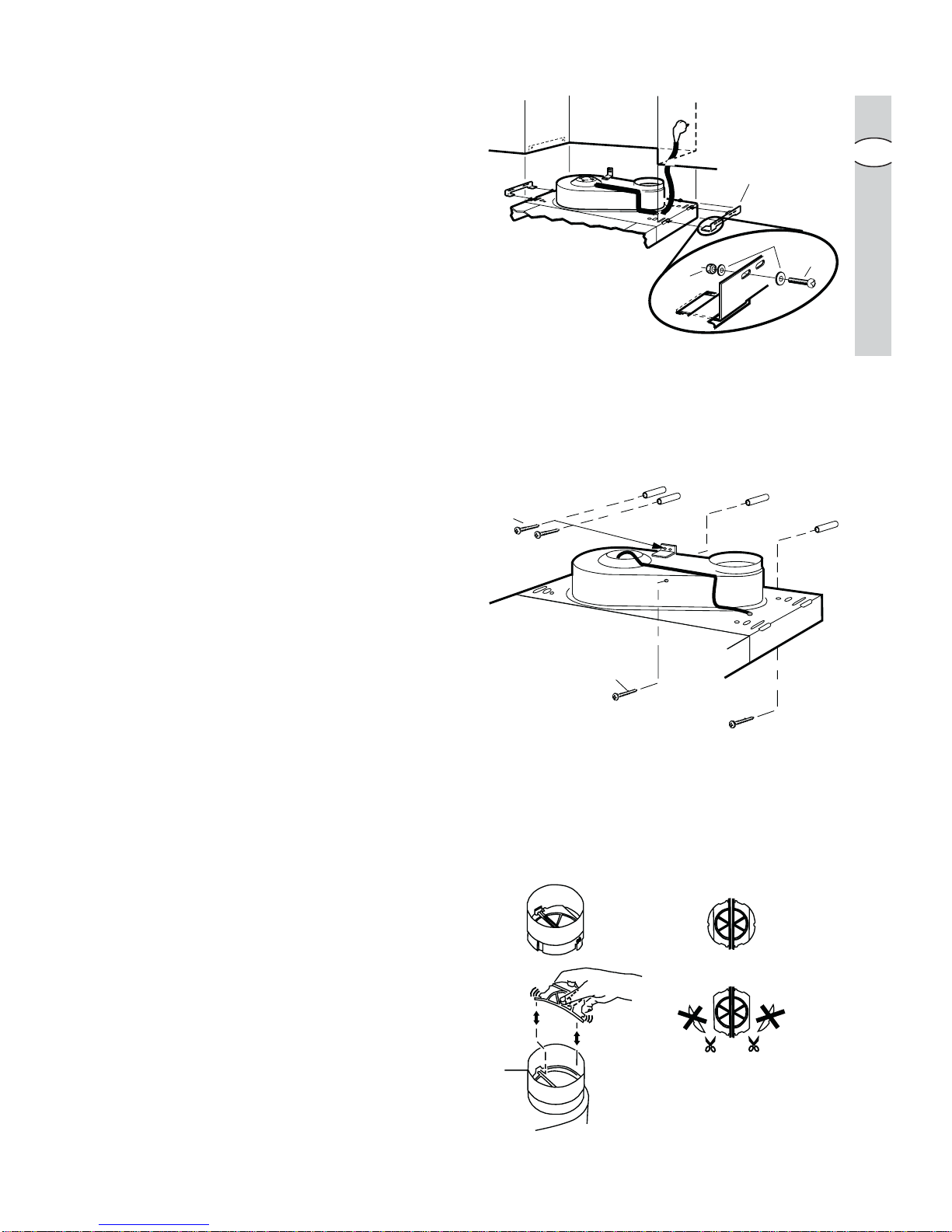

Mounting of cooker hood betweenMounting of cooker hood between
Mounting of cooker hood betweenMounting of cooker hood between
Mounting of cooker hood between
cupboardscupboards
cupboardscupboards
cupboards
• Fit the two brackets (A) on the
cooker hood (see picture).
• Mark out the exact location to drill in
the sides of the cupboards.
• Mount the cooker hood with four
screws (B), washers (C) and the nuts
(D).
Mounting of cooker hood on wallMounting of cooker hood on wall
Mounting of cooker hood on wallMounting of cooker hood on wall
Mounting of cooker hood on wall
• Mark out where the 4 holes shall be
drilled on the wall. Drill in the
markings with an Ø8 mm drill and fit
rawl plugs into the holes. Use the
template printed on the packaging.
• Fix the screws (A) (see picture).
Leave about 5 mm distance between
the screws and the wall.
• Hook the cooker hood on the screws
(A).
• Remove the grease filter and mount
the screws (B) in the two lower
holes. Remove the grease filter by
pulling it backwards (against the
wall) and then downwards.
• Tighten the screws (A).
• Mount the grease filter.
Mounting the cold air valveMounting the cold air valve
Mounting the cold air valveMounting the cold air valve
Mounting the cold air valve
Not applicable for recirculation. The
cold air valve consists of a damper seat
with two valves, which shall be fitted
into the hood outlet (see picture).
If there is no other form of ventilation to
expel air from the kitchen than the
hood, the outer end of the valves
should be clipped off and removed.
Insert a pen or something similar
between the valves. These should
open up easily now.
A
C
B
D
AB
C
A
B

2020
2020
20 electroluxelectrolux
electroluxelectrolux
electrolux installation
GB
Fitting the carbon filterFitting the carbon filter
Fitting the carbon filterFitting the carbon filter
Fitting the carbon filter
Only applicable for recirculation. The
LONG LIFE carbon filter (special
accessory) for this hood is fitted instead
of the grease filter. The LONG LIFE
carbon filter is both a grease and
carbon filter for reduction of cooking
smells.
An opening must be made at the top
or front of the cupboard (min. 100 cm²)
where the hood is fitted, so the cleaned
air can freely circulate back into the
kitchen.
Use venting grid PNC 391 433 101
(extra equipment).
Mounting the venting kitMounting the venting kit
Mounting the venting kitMounting the venting kit
Mounting the venting kit
Extend the duct hose correctly.
A duct hose which is too long or has
too many bends can reduce cooker
hood efficiency by fifty per cent.
Shorten the hose if it is too long, and
avoid unnecessary bends in it.
A complete venting kit is available as
an optional extra.
The ventilation pipe (A) is pulled over
the hood’s evacuation flange (B) and is
held firmly in place with a clamp.
Make sure the pipe is as straight as
possible and does not hinder the
movement of the valve flaps.
The pipe is connected to the mouth of
the duct with the metal flange (C)
which is included in the kit.

B
C
A
