Electrolux Eqaxf1bxwg User manual

EQAXF1BXWG

EQAXF1BXSG

USER MANUAL 1EN

Safety ..................................................................................................................3

Product description ............................................................................................5

Installation ..........................................................................................................6

How to use ..........................................................................................................8

Care and cleaning .............................................................................................11

Troubleshooting .................................................................................................13

Technical informations ........................................................................................15

1 2

Environmental advice

The packaging material used is recyclable; we

recommend that you separate plastic, paper

and cardboard and give them to recycling

companies.

According to WEEE (Waste of Electrical and

Electronic Equipment) guidelines, waste from

electrical and electronic devices should be

collected separately.

If you need to dispose of this appliance in the

future, do NOT throw it away with the rest of

your domestic garbage.

Instead, please take the appliance to the

nearest WEEE collection point, where

available. • The appliance that you have bought may be slightly different from the one

illustrated in this manual. Please refer to the information related to the model

you have.

• The appliance you have may carry a different plug than the one illustrated in

this manual. The plug that comes with the product follows the electrical

specification of the country where it is sold.

• Contact the authorised service technician for repair or maintenance of this

unit.

• If the power cord is to be replaced, replacement work shall be performed by

authorised personnel only.

• This product was developed for regions with an altitude of approximately

2000 meters. For a higher region, the water boiling point might be too low

and cause product damages.

Thank you for choosing Electrolux.

Our water dispensers are developed with high technical and quality standards,

with features to offer you even more comfort.

Read all instructions before using this appliance. This book contains valuable

information about operation, care and service. Keep it in a safe place.

You expect all this from Electrolux.…and we deliver.

Inside you will find many helpful hints on how to use and maintain your water

dispenser properly. Just a little preventive care on your part can save you a

great deal of time and money over the life of your Water Dispenser. You'll find

many answers to common problems in the chart of troubleshooting tips. If you

review our chart of Troubleshooting Tips first, you may not need to call for

service at all.

Contents

Welcome

Attention

SafetyFor children• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge only if they have been given supervision or instruction concerning using the appliance in a safe way and understanding the hazards involved.• Do not let children play with the appliance.• Keep all packaging items away from children.• If the appliance has a child safety device, we recommend you activate it.• Cleaning and user maintenance shall not be made by children without supervision.• Children of less than 8 years should be kept away unless continuously supervised.General safety• It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move to another house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant warnings.• Correct functioning of your appliance does not only depend on product quality, but on correct installation by a qualified professional.• Never remove or damage stickers, warning labels or nameplates attached to the appliance.• A qualified technician carrying out the installation is obliged to observe applicable national standards and regulations concerning connection to the water distribution system and the electric network. The manufacturer is not responsible for any unprofessional or incorrect installation.Electrical connection• Only plug the water dispenser directly in the current if it is correctly grounded and with the certain voltage.• Choose a place that is near a grounded electrical outlet.To reduce risk of injury and property damage, user must read this entire guide before assembling, installing and operating dispenser.Failure to execute the instructions in this manual can cause personal injury or property damage.This product dispenses water at very high temperatures. Failure to use properly can cause personal injury.When operating this dispenser, always exercise basic safety precautions, including the following:• Check that the specifications written on the appliance’s identification plate are the same as those of the electrical power supply.• This appliance is manufactured and tested in accordance with valid regulations.Installation• Obey the installation instruction supplied with the appliance.• Remove all the Packaging items.• Do not install or use a damaged appliance.• Before first time starting up, check the appliance for any damage incurred during transport.• Never remove or damage stickers, warning labels or nameplates attached to the appliance.Water connection• Make sure to use a new water bottle.• Make sure the water bottle not faulty - no leakage or holes.• Make sure to install the bottle as in Catalogue.• Make sure to use the proper capacity (<20) litre for the water bottle.• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable or plug (if applicable) can make the terminal become too hot.• Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact our Authorised Service Centre or an electrician.• Do not use multi-plug adapters and extension cables.• Make sure not to cause damage to the mains plug (if applicable) or to the mains cable. Contact our Authorised Service Centre or an electrician to change a damaged mains cable.• The Appliance have electrical switch in the rear side which is set to turn ON or OFF the water heating system only.34

Product description Installation

Placement

Use the appliance indoors, where is no likelihood of rain or bad weather, as

there is damage risk to the product electrical system.

Place dispenser upright The product must be installed in an easily accessible

location in case of repairs.

Place dispenser upright on a flat surface and keep a minimum distance of

25cm from the wall. Make sure that the ventilation openings of the product are

not being obstructed.

Assemble

1. Remove drip tray from door and place the grid on top.

2. Snap drip tray and grid assembly into door.

Do not install the water dispenser in a

location where there is a direct impact

of sunlight or near heat sources, as a

stove, oven, etc.

Do not plug in the device unless the

water bottle is already installed.

Parts names

Never turn the appliance upside down

or tilt it more than 45°.

Child safety switch

Hot water button

Ambient water button

Cold water button

Spout

Water collector grid

Storage space

Cooling switch

Heating switch

Power cord

Outlet of hot water

Condenser

Max. 45°

5 6

Important

Warning

Attention

To avoid a hazard due to instability of

the appliance, it must be fixed in

accordance with the instructions:

1. Use 13 mm screw to fix the fixing

bracket on the middle of bottom

cover.

2. Drill out a screw hole(6 mm) on the

floor.

3. Insert a screw anchor (wall plug)

into the drilled hole.

4. Move water dispenser, Align fixing

bracket hole with screw hole of the

floor

5. Put the 25mm screw into the screw

hole of fixing bracket.

6. Tighten the screw.

Install water bottle

1. Open dispenser door.

2. Place probe assembly on probe

hanger.

3. Place fresh bottle outside of

cabinet.

4. Remove the entire plastic cap from

top of bottle.

5. Clean outside of new bottle with a

cloth.

6. Place probe into bottle.

7. Slide collar down until it clicks in

place.

8. Push head down until tubes hit

bottom of bottle.

9. Slide bottle into cabinet and close

door.

Head

Collar

Head

Collar

Provide electricity

Plug cord into a properly grounded wall outlet.

At this time the pump will begin to move water from the bottle to the hot and

cold tanks. It will take up to 12 minutes to fill the tanks for the first time. During

this period the pump will run continuously. This is normal.

How to use

Activate heating and cooling

This unit will not dispense hot or cold

water until the switchers are activated.

To activate, push top side of power

switches in to start heating and

cooling water.

- If you do not want to heat water,

push bottom side of red switch in.

- If you do not want to cool water,

push bottom side of green switch in;

Sometimes when water is dispensed for more than 2 minutes, the pump fails to

take the necessary amount of water, and gets block, in this case the lack of

water indicator light on control panel will turn on. If this happens, just open the

cabinet door, then close it, and wait for 2 minutes, then the dispenser will

return to dispense water.

When the bottle is empty, replace it with a new bottle. (see instructions of how

on page 10).

Dispensing water

This unit has been tested and sanitized prior to packing and shipping. During

transit dust and odors can accumulate in the tank and lines. Dispense and

dispose at least one quart of water to prior to drinking any water.

7 8

Attention

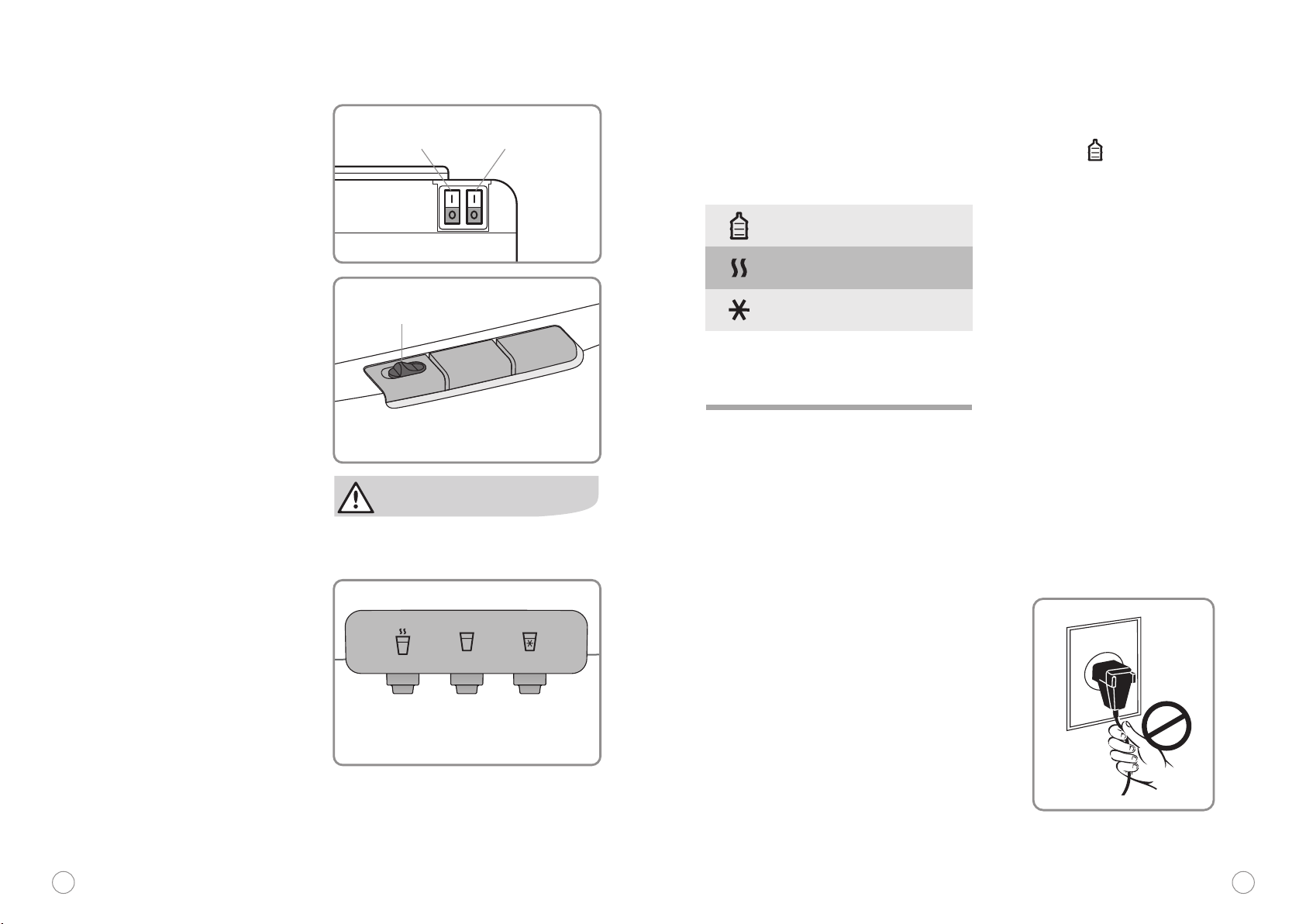

• When the machine is under the ice point and blocked by ice, the cooling switch must be closed for 4 hours before turning it on again to continue its operation.• This machine should not be turned on until 3 minutes later after turning off the power switch.• Do not operate or stop the appliance plugged in by the power cord or by pulling on the power cord. Unplug the power cord by holding it by the plug.• Do not operate or stop the appliance plugged in by the power cord or by pulling on the power cord. Unplug the power cord by holding it by the plug.The indicator lights show that the device is working correctly. After connecting the device, check if the indicators are on.Light indicatorsIndicates when the bottle is

empty.

Indicates that the water in the

reservoir is being heated.

Indicates that water in the

reservoir is being chilled. Changing bottlesThe indicator ( ) lights up when the bottle is empty. Replace the bottle as soon as possible. Do not dispense hot, cool or cold water if the red light is flashing as you could empty the tanks and cause the dispenser to overheat.1. Open the dispenser door.2. Slide empty bottle out of cabinet.3. Remove probe assembly from empty bottle. Place probe assembly on probe hanger.4. Set empty bottle aside.5. Place fresh bottle outside of cabinet. Remove entire plastic cap from top of bottle. Clean outside of new bottle with a cloth.6. Place probe into bottle. Slide collar down until it clicks in place. Push head down until tubes hit bottom of bottle.7. Slide bottle into cabinet and close door. Never press more than one button at the same time.Warning

Child safety switchHot waterswitch (red)Cold waterswitch (green)

HOT NORMAL COLD

Activate heating and cooling This unit will not dispense hot or cold water until the switchers are activated.To activate, push top side of power switches in to start heating and cooling water: • If you do not want to heat water, push bottom side of red switch in.• If you do not want to cool water, push bottom side of green switch in.Dispensing waterThis unit has been tested and sanitized prior to packing and shipping. During transit dust and odors can accumulate in the tank and lines. Dispense and dispose at least one quart of water prior to drinking any water.Hot waterTo get the hot water: slide the child safety switch to right, and press hot water button simultaneously.Normal waterTo get the room temperature water: put the cup on the water collector grid and press the natural water button.Cold waterTo obtain chilled water put the cup on the water collector grid and press the cold water button.hotwateroutletnormalwateroutletcoldwateroutlet9 10

Warning

To avoid accident, cut off the power supply before operation according to the following instruction.The machine had been disinfected before departed from factory. Cleaning the dispenser prior to installing a full bottle of water for the first time.Cleaning and draining instructions:1. Making sure the power switch in the 0(off) position and unplug the water dispenser before cleaning.2. Twist out the two screws, then take down top cover, cold tank cover and separator. 3. Fill 0,6 gallons pure water into cold tank to clean it.4. Place a large water bucket beneath the drain outlet which on the back of water dispenser, then, remove the drain cover and drain the water.5. Reposition the drain cover, separator, cold tank cover and top cover after draining. Ensure the pipe and wires are connected properly, then you can use the machine normally.The cleaning must be under the guidance of professional staff.The dispenser heats water to a temperature of approximately 85°C. It can cause severe burns. Please operate it carefully. Cleaning and maintenanceSanitizingThe machine should be disinfected with disinfectant separately bought from drugstore or marketplace according to the instruction manual of the disinfectant and then clean it with water (see cleaning and draining instructions). Generally this should be done every three months.To remove mineral depositsMix 1 gallon of water with half pound of citric acid crystals, inject into the machine and make sure the water can flow out of the hot water tap. Switch on the power and heat it about 10 minutes, 30 minutes later, drain off the liquid and clean it with water two or three times. Generally this should be done every six months.Never disassemble this machine by yourself to avoid risk of damaging machine.1112WarningAttention

TroubleshootingCertain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling the service technicians, before contacting the service centre please carry out the check listed below.ProblemPossible cause(s)SolutionDoes not worka) Electric plug out of the socket.b) Bonded in different voltage.c) Lack of electric power or fuse blown.d) Make sure cold water switch in the rear side of dispenser is ON.e) Voltage drop.a) Plug in.b) Connect in correct voltage.c) Wait for electric power ON or change fuse.d) Push the switches to the ON position.e) Use a voltage stabilizer.Water not cold from cold tanka) Plug in.b) Wait one hour for the cold water supply.c) Push the cold water switch (green) to the ON position.Excessive heating around dispenserbodya) The appliance very close to a wall.b) Ventilation vents obstructed.a) The appliance must be at least 25 cm from the wall.b) Clear the ventilation vents.Noisea) Product leaning on the wall.b) Uneven placement.a) The appliance must be at least 25 cm from the wall.b) Even the appliance.Water leakagea) A hole or a crack in the bottle.b) Overflow in the water collector.c) Drainage cap not well tightened.a) Replace the water bottle.b) Empty the water collector.c) Tighten the cap.Unpleasant taste of watera) Cleaning is made with non recommended material.b) Poor-quality water.c) Water bottle shoddy.a) Follow cleaning/sterilization procedure correctly.b) Make sure that the mineral water supplier is of good quality.c) Replace the water bottle.ProblemPossible cause(s)SolutionSteam coming out of dispensera) Excessive heating inside the hot water tank.a) Disconnect the main power source and call service centre.Water not hotfrom hot tanka) Electric plug out of the socket.b) After setup, it will take up to 1 hour to chill the water until minimal set temperature.c) Make sure cold water switch in the rear side of dispenser is ON.a) Electric plug out of the socket.b) After setup, it will take up to 15-20 min to heat the water until maximal set temperature.c) Make sure hot water switch in the rear of dispenser is ON.a) Plug in.b) Wait 15-20 min. for the heat water supply.c) Push the hot water switch (red) to the ON position.1314
