Electrolux E24WC48EPS0 User manual

Use _ Care Guide
W in c Co o !c_'_
6u_a de Uso y Cuidado
Guide d'utiJJsation et d'entretien
Wine Cooler

IPLEASEREADANDSAVETH SGUDE
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
Thank you for choosing EJectrolux, the new premium brand in home appliances.
This Use & Care Guide is part of our commitment to customer satisfaction and
product quality throughout the service life of your new wine cooler.
We view your purchase as the beginning of a relationship. To ensure our ability to
continue serving you, please use this page to record key product information.
Once you have your unit installed, we suggest you keep this manual in a safe
place for future reference. Should any problems occur, refer to the
Troubleshooting section of this manual. This information will help you quickly
identify a problem and get it remedied. In the event you require assistance, please
contact the dealer where you purchased your unit.
MAKEA RECORDFOR@UCKREFERENCE
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
Whenever you call to request information or service, you will need to know your
model number and serial number. You can find this information on the serial plate
located on the inside wall of your unit and on the product registration card.
@2004 Eiectrolux Home Products, Inc.
Post Office Box 212378, Augusta, Georgia 30917, USA
All rights reserved. Printed in the USA

IIPBODU BEGII BATION6£
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
The package containing this manual also includes your product registration
information. Warranty coverage begins at the time your Electrolux wine coobr was
purchased.
Phase record the purchase date of your Electrolux unit and your dealer's name,
address and tebphone number.
Purchase Date
Electrolux Model Number
Electrolux Serial Number
Dealer Name
Dealer Address
Dealer Telephone
Keep this manual and the sales receipt together in a safe place for further
refe re hoe.
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
For tolPfree telephone support in the U.S. and Canada:
1-877- 4ELEOTROLUX (1-877-435-3287)
For online support and lnternet product information:
www.ebctroluxusa.com

TABLEOIF'CONN
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
Finding Information ...........................................2
PleaseReadAndSaveThisGuide...................2
MakeARecordForQuickReference................2
Questions?........................................................3
TableOfContents..............................................4
Safety ...................................................................5
ImportantSafetyInstructions..............................5
Installation ..........................................................7
Site Preparation..................................................7
WoodTrim ...........................................................9
Leveling ..............................................................11
Door Reversal....................................................12
DoorAdjustment ...............................................14
Built-in Installation ..........................................16
Operation...........................................................17
TheRightTemperatureforWine......................17
ProperStorage...............................................17
ControlSettings...............................................17
LightSwitchandBulb ......................................17
Start-up .............................................................18
TemperatureControl .........................................18
Storage ..............................................................20
DisplayRack...................................................20
StockingRecommendations.............................20
Maintenance......................................................21
MaintainingYourWineCooler.........................21
ExteriorCleaning............................................21
StainlessSteel.................................................21
interiorCleaning..............................................22
CondenserCleaning.......................................22
WineRackRemoval/Installation.......................23
BulbReplacement...........................................23
Troubleshooting ...............................................24
ifServiceIsRequired......................................24
Warranty Information .......................................26

IIM £NT S£F Y IINS U _ONS
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
Safety Precautions
Do not attempt to install or operate your unit until you have read the safety
precautions in this manual. Safety items throughout this manual are labeled with a
Danger, Warning or Caution based on the risk type.
Definitions
A This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible injury
or death.

GeneramPrecautions

Your Ebctrolux wine coobr has been designed for either free-standing or buibin
installation(refer to the BuHtdn Installation section of this manual for instructions).
tn either case, the front grille must NOT be obstructed.

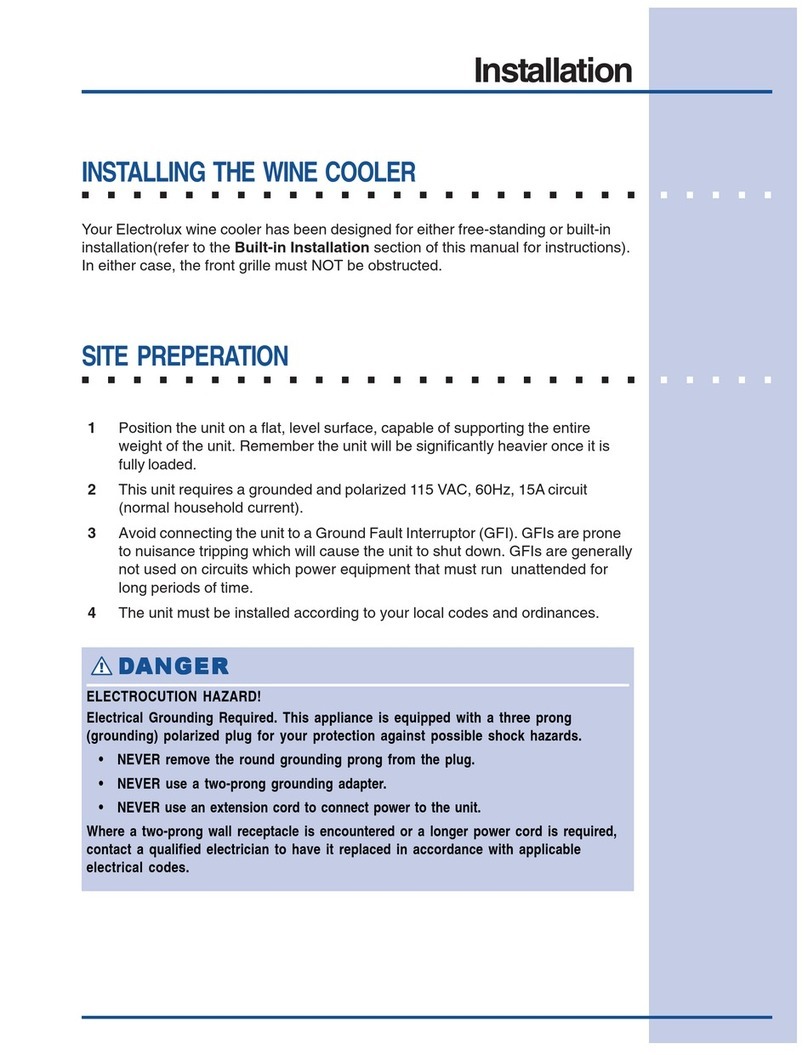

lIP P ATIIION
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
1 Position the unit on a flat, level surface, capable of supporting the entire
weight of the unit. Remember the unit will be significantly heavier once it is
fully loaded.
2 This unit requires a grounded and polarized 115 VAC, 60Hz, 15A circuit
(normal household current).
3 Avoid connecting the unit to a Ground Fault lnterruptor (GH). GFIs are prone
to nuisance tripping which will cause the unit to shut down. GFIs are generally
not used on circuits which power equipment that must run unattended for
long periods of time.
4 The unit must be installed according to your local codes and ordinances.

Figure 1
0"
CLEARANCE
NEEDED
UL124A
CABmNET
WALL
2 - 3/4"
CLEARANCE
NEEDED
Figure 2
5 Position the unit to allow free air flow
through the front grille (see Figure 3).
6 Wipe out inside of unit with a damp cloth.
7 Final finish of the wooden wine rack trim
must be applied at least 24 hours before re-
installing the wooden rack trim into the
cabinet.
8Be sure to install the Anti-Tip brackets.
Follow the instructions provided with the
Anti-Tip bracket kit.
INTAKE
Figure 3
EXHAUST

W NERACKSW THWOOD
[] [] m m m m [] [] [] [] m m m [] [] [] [] m m m m []
Your Ebctrolux wine cooler is equipped with a natural wood trim on the wine racks
for appearance and durability. The wood trim has been coated at the factory with a
clear vinyl sealer, which will adequately protect the wood in normal usage.
You have 3 options regarding the wood trim on the wine racks.
(1) You can leave as is, (2) add a final finish coat or (3) you may stain the wood
trim. The final finish coat was not applied at the factory so that the wood trim could
be stained. YOU CANNOT STAIN THE WOOD TRiM ONCE YOU APPLY THE
RNAL FiNiSH. Review the following guidelines when staining and or sealing the
wood to ensure proper adhesion and durability of the finish.
To add a final finish coat:
Remove five racks with wood trim from unit, see RACK REMOVAL/
INSTALLATION.
2 Remove screws securing wood trim to racks.
3 Lightly scruff sand the molding with 280 grit 3M TrPMqte@ sand@aper.
4 Remove sanding dust with a clean, dry cloth.
5 Apply a thin coat of a clear protective finish; the factory-applied seal is
compatible with virtually all finishes. A low odor, water clean up, quick drying
finish such as Minwax Polycrylic@ is recommended. Follow container label
for directions.
6 Lightly sand and reapply if desired.

TostainforadifferentwoodcoUor:
2
3
4
5
6
Removefive rackswithwoodtrimfromunit,see RackRemovaV
lnstallatiorL
Remove screws securing wood trim to racks.
AppUy Minwax Water-Based Wood Stain® to wood with a synthetic foam
brush. Stain must penetrate approximateUy 3 minutes. After this period, while
stain is still wet, take a stain dampened rag and remove aUlexcess stain.
Wipe in the direction of the grain with medium pressure to achieve the
desired stain coUor.
After 2 hours, repeat step three. This will even out the coUor of the wood.
AHow stain to dry for a minimum of 3 hours before finishing.
tf desired sand the wood with very fine sandpaper to smooth the surface from
the staining process.
Remove aUUdust from the wood. Apply one coat of Minwax Ultra Fast-Drying
Polycrylic Protective Finish® with a synthetic foam brush to the wood. This
finish should be applied in a thin coat following the direction of the grain. First
apply the finish to the back and sides of the wood. Allow this to dry for two
hours. Next apply the finish to the front side of the wood and allow to dry for
two hours. Sand with very fine sandpaper (220 grit). Reapply in the same
manner 3 times total. After the third coat do not sand the surface.
Allow the final coat to dry for 24 hours before installing the wood to the wine
cooler racks.

L£V THEUNiT
[] [] m m m m [] [] [] [] m m m [] [] [] [] m m m m []
Position the unit on a fiat, level surface, capabb of supporting the entire weight of
the unit when full.
This unit contains four adjustable leveling legs. Turn the legs clockwise to raise and
counterclockwise to lower (see Figures 4 and 5).
Figure 4
_//.TURN FOOT TO ADJUST
Figure 5

REVERSINGTHE DOOR
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
Figure 6
AH EbctroUux wine coobr modeb are fieUd reversibb for bft or
right hand opening. The door opening is easily reversed by
moving the hinge hardware to the opposite side (see Figure 6).
To reverse the door:
Remove top hinge screw pin (7/64" AUlen wrench)
from cabinet (see Figure 7).
Remove door by tilting forward and lifting off bottom
hinge pin.
Remove pUastic screw plugs (3 top and 3 bottom)
from new hinge location (see Figure 8), and remove
hinge pin hob plug in top of door (see Figure 9). Do
not discard.
Figure 7
PLASTIC
PLUGS
Figure 8 Figure 9

3 Remove top hinge (3 screws), reinstall hinge screw pin, and
remount on opposite side BOTTOM (see Figure 10).
4 Remove the two door cUoser pUastic inserts from the existing
bottom hinge and install as shown on the new bottom hinge
(see Figure 11).
5 Remove existing bottom hinge (3 screws) and remount on
opposite side TOR Remove top hinge screw pin.
6 With bottom of door facing up, remove pivot pUate (2 screws),
flip over, and remount on opposite side of door (see Figure 12).
7 HoUding door upright with top of door tilted forward, place hoUeof
door pivot pUate on bottom hinge screw pin (see Figure 13). Be
sure that the bosses on the closers align with hoUes in hinge
and hinge pUate.
8 Tilt top of door into position in top hinge and install top hinge
screw pin.
9 tn empty hinge holes, install plastic screw plugs (3 top and 3
bottom) and door hole plug (1 ,door top) removed in step 2.
Figure 10
Figure 12
CLROO008

ADJUSTINGTHEOR
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
Your door is aligned at the factory before shipment. OccasionaU re=adjustment may
be necessary, especially if an overlay paneU is installed. The following procedure
will correct for up to 1/4" alignment.
The door shouUd never be flush with the top of the cabinet. Even when ReveU,the top
edge of the door will be 1/8" below the top of the cabinet (see Figure 14).
,_1/8"
t
Figure 14
Toadjust :
1 Compare the top edge of the door (opposite the
hinges) to the top edge of the cabinet and note the
type (up or down) of adjustment needed.
2 Remove the top hinge pivot pin with a 7/64" hex
wrench (see Figure 15) and lift door off bottom
hinge pin. Be careful not to lose door closers (see
Figure 17).
3 With door upside-down, loosen but do not remove
the two hinge plate screws.
Figure 15
f

4 tf door edge opposite the Nnges needs to
move up, move plate toward outside of
door. tf door edge needs to move down,
move plate toward inside of door (see
Figure 16). Repeat until top edge of door is
parallel with top of cabinet and tighten
screws securely.
5 After adjustment is complete, remove the
door closers from the bottom hinge, clean
thoroughly and apply petroleum jelly to the
mating surfaces of the closers (see
Figure 17). Be sure that bosses on closers
align with holes in Mnge and hinge plate.
Mount door and install top hinge pivot pin.
MOUNTING _ IS NOTCH
HOLES _
RAISE _LOWER
OUTSIDE OUTSIDE
DOOR EDGE DOOR EDGE
CLRCOOOla
DOOR
BOSS
Figure 17 UL3!2

Your Electrolux wine cooler has been designed for either free-standing or builtqn
installation. When builtqn, your wine cooler does not require additional air space
for top, sides or rear. However, the front grille must NOT be obstructed.
Unit Dimensions
Model Width Height Depth
E24WC48 E 23=15/16" 34=1/8" 23-1/4"
See Figure 18 for dimensions in inches and millimeters.
I 23 - 15116"
(60.6)
34 oI/8"
(86.7)
FULL
RETRACT
HEIGHT
Figure 18

T RIGHTTEMPERATUREIIi'';'ORWINE
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
Your Electrolux wine cooler has a unique, triple temperature zone permitting
storage of your finest wines at approximately 60°F (15°C in the top portion of the
cabinet for reds, 50-55°F (10-120C) in the middle for wNtes and 45°F (7°C) on the
bottom for sparkling wines). Temperatures noted are product temperatures and not
air temperatures.
IIPRO R STORAGE
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
Model E24WC48E will accommodate 48 bottles (750 ML size). Specially designed
wine racks allow for proper horizontal storage of the wine. The cork remains moist,
which keeps air from entering the bottle.
COH OL SE INGS
[] [] [] [] [] [] [] [] [] [] [] [] [] [] []
Your wine cooler is shipped in the ON position, however,
you may turn it ON or OFF using the control knob
located in the center of the grille.
Turn the control knob clockwise for ON,
counterclockwise for OFR To turn the unit OFF, rotate
the control knob counterclockwise all the way toward
warmer until it stops (until "click" is heard). The ON/OFF
switch located to the right of the control knob is used to
turn the inside light on and off (see Figure 19).
[] [] [] [] [] []
IIIL,,,,,IGHTSW TCHANDILB
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
Your wine cooler has an interior light that is illuminated when the door is opened, tf
you wish to display your wines for those "special occasions" while the door is
closed, just depress the switch located to the right of the control dial on the grille to
the ON position. Please note when the light is on for an extended period of time it
will increase the cabinet temperature, especially at the top.

re
£ _NGT UNIT
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
EbctroUux wine coobrs are designed to provide different temperature zones within
the cabinet so different types of wine may be maintained at varying temperatures.
The coobst temperature is at the bottom, and the warmest is at the top of the
cabinet.
ADJUSTINGTHETE_PEBATU CONTBO_..........
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
To accurateUy check the temperature, insert an reliable thermometer into a plastic
(non-breakabb) bottle, partially filled with water. Tighten the bottle cap securely
(see Figure 20).
Place the bottle in the desired area for 24 hours. Refrain from opening the unit
during the testing period. After 24 hours, check the temperature of the water. Adjust
the control knob if necessary and retest.

Yourwinecoolerispresetfor amid-point
setting(4)inorderto achievethe
recommendedtemperaturerangewhen
installedina72°Fambientroomtemperature
(seeFigure21).Adjustthetemperature
gradually;movethecontrolknobinsmall
incrementsandallowthetemperatureto
stabilize.Forawarmertemperature,movethe
knobtowardsWarmest(counterclockwise/
lowernumber).Foracoldertemperature,
movethe knobtowardsColdest (clockwise/
highernumber).
Factorswhichaffecttheinternaltemperatures
ofthecabinetinclude:
1 Temperaturesetting.
2 Roomtemperaturewhereinstalled.
3 Numberoftimesthedoorisopenedanddosed.
4 Amountoftimetheinternallightisilluminated.Thisaffectsprimarilywineson
thetopracks.
5 Installationindirectsunlightornearaheatsource.

[] [] [] [] [] [] [] [] [] [] [] [] [] [] []
The bottom rack in your wine coobr is designed for
storage as well as for dispUay purposes (see Figure 22).
ModeU E24WC48E hoUds eight bottbs in the display rack.
OCK NG BECOMMENDAT ONS
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
The wine racks allow for the proper horizontaU storage of wine. The bottles are
properly positioned so that the wine remains in contact with the cork to assure that
the cork does not become dry. Use the procedure listed below to stock your wine
cooler. White and sparkling wines should be maintained on the bottom to middle
racks and red wine on the top racks.
Your wine cooler, models 2015WC and 2075WC, -Delete parenthetical should be
stocked beginning with the bottom display rack, at the back and work forward.
Stagger the bottles as shown in Figure 23. Subsequent racks should be stocked
similarly, starting with the back of each rack (see Figure 24).
