1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible if an incorrect installation and use causes
injuries and damages. Always keep the instructions with
the appliance for future reference.
1.1 Children and vulnerable people safety
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Cleaning and user maintenance shall not be made by
children without supervision.
1.2 General Safety
• This appliance is intended to be used in household
and similar applications such as:
- Farmhouses;sta󻉒kitchenareasinshops,offices
and other working environments
- By clients in hotels, motels, bed and breakfast and
other residential type environments
• Use this appliance for storage of wine only.
• Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food stor-
age compartments of the appliance, unless they are of
the type recommended by the manufacturer.

4 www.electrolux.com
• Do not use water spray and steam to clean the appli-
ance.
• Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
• Do not store explosive substances such as aerosol
canswitha󻉔ammablepropellantinthisappliance.
• If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly quali-
fiedpersonsinordertoavoidahazard.
2. SAFETY INSTRUCTIONS
2.1 Installation
Warning! Onlyaqualifiedperson
must install this appliance.
• Remove all the packaging.
• Do not install or use a damaged appli-
ance.
• Obey the installation instruction sup-
plied with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Make sure the air can circulate around
the appliance.
• Wait at least 4 hours before connec
ting the appliance to the power supply.
Thisistoallowtheoilto󻉔owbackin
the compressor.
• Do not install the appliance close to
radiators or cookers, oven or hobs.
The rear of the appliance must
stand against the wall.
• Do not install the appliance where
there is direct sunlight.
• Do not install this appliance in areas
that are too humid or too colds, such
as the construction appendices, ga-
rages or wine cellars.
• When you move the appliance, lift it
by the front edge to avoid scratching
the󻉔oor.
2.2 Electrical connection
Warning! Riskoffireandelectrical
shock.
• The appliance must be earthed.
• All electrical connections should be
madebyaqualifiedelectrician.
• Make sure that the electrical informa-
tion on the rating plate agrees with
the power supply. If not contact an
electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the electrical components (e.g. mains
plug, mains cable, compressor). Con-
tact the Service or an elect rician to
change the electrical components.
• The mains cable must stay below the
level of the mains plug.
• Connect the mains plug to the mains
socket only at the end of the installa-
tion. Make sure that there is access to
the mains plug after the installation.
• Do not pull the mains cable to discon-
nect the appliance. Always pull the
mains plug.

5ENGLISH
2.3 Use
Warning! Riskoffireandelectrical
shockorfire.
• Donotchangethespecificationofthis
appliance.
• Do not put electrical appliances (e.g.
ice cream makers) in the appliance
unless they are stated applicable by
the manufacturer.
• Be careful not to cause damage to the
refrigerant circuit. It contains isobutane
(R600a), a natural gas with a high level
of environmental compatibility. This gas
is󻉔ammable.
• If damage occurs to the refrigerant
circuit, make sure that there are no
󻉔amesandsourcesofignitioninthe
room. Ventilate the room.
• Do not let hot items to touch the plastic
parts of the appliance.
• Donotstore󻉔ammablegasandliquid
in the appliance.
• Donotput󻉔ammableproductsor
itemsthatarewetwith󻉔ammable
products in, near or on the appliance.
• Do not touch the compressor or the
condenser. They are hot.
2.4 Care and cleaning
Warning! RRisk of injury or damage
to the appliance.
• Before maintenance, deactivate the ap-
pliance and disconnect the mains plug
from the mains socket.
• This appliance contains hydrocarbons
inthecoolingunit.Onlyaqualified
person must do the maintenance and
the recharging of the unit.
• Regularly examine the drain of the
appliance and if necessary, clean it. If
the drain is blocked, defrosted water
collects in the bottom of the appliance.
2.5 Disposal
Warning! Riskofinjuryorsu󻉒oca-
tion.
• Disconnect the appliance from the
mains supply.
• Cuto󻉒themainscableanddiscardit.
• Remove the door to prevent children
and pets to be closed inside of the
appliance.
• The refrigerant circuit and the insula
tion materials of this appliance are
ozone-friendly.
• Theinsulationfoamcontains󻉔amm
able gas. Contact your municipal
authority for information on how to dis-
card the appliance correctly.
• Do not cause damage to the part of
the cooling unit that is near the heat
exchanger.
3. ENVIRONMENTAL CONCERNS
Recycle the materials with the symbol
Put the packaging in applicable
containe to recycle it. Help protect the
environment and human health and to
recycle waste of electrical and electronic
appliances. Do not dispose appliances
marked with the symbol with the
household waste. Return the product
to your local recycling facility or contact
yourmunicipalo󻌗ce.

6 www.electrolux.com
4. PRODUCT DESCRIPTION
2345
7
86
1
5. CONTROL PANEL
1 Handle
2 Gasket
3 Door
4 Fastening bar
5 Shelves
6 Telescopic runners
7 Control panel
8 Rating plate
2
1 3 4 5
1 ON/OFF button
2 Light button
3 Display
4 Temperature warmer button
5 Temperature colder buton

7ENGLISH
5.1 Switching on
To switch on the appliance follow these
steps:
1. Connect the mains plug to the power
socket.
2. Press the ON/OFF button if the dis-
playiso󻉒.
3. The display shows the set default
temperature (5°C).
Toselectadi󻉒erentsettemperature
refer to “temperature regulation”.
5.2 Switchingo󻉒
Toswitcho󻉒theappliancefollowthese
steps:
1. Press the ON/OFF button for 3 sec-
onds.
2. Thedisplayswitcheso󻉒.
3. To disconnect the appliance from the
power disconnect the mains plug from
the power socket.
5.3 Temperature regulation
The set temperature of the wine cellar
may be adjusted by pressing the
temperature regulators.
Each press once the or button, the
temperature setting will increase or lower
1ºC, When the temperature setting reach
the upper limit 20ºC and lower limit 5ºC,
the temperature setting will not increase
or lower.
5.4 Light Button
When the door is opened,the LED light is
on,whenclosediso󻉒.Ifyouwanttokeep
the light on with the door closed, open the
door,pressthelightbuttontoturno󻉒the
light, then press the light button again to
turn onthe light.
If you want to restore the standard
conditions, press the light button to turn
o󻉒thelight.
LED Light is equipped with a
smoothshuto󻉒systemlasting3
sec onds.
5.5 Door open alarm
An acoustic alarm will sound if the door is
not completely close d after 5 minutes.
When the door is closed the alarm will
stop.
5.6 Temperature Alarm
• If the inner temperature is higher than
23°C,“HI” is shown in display panel,
and the buzzer rings for one hour
continuously.
• If the inner temperature is lower than
0°C, “LO” is shown in display panel
and blinks. The buzzer rings at the
same time.
5.7 Temperature Recollection
Function
In the event of a power interruption, the
wine cellar can remember the previous
temperature settings, and when power is
recovered, the temperature will go back
to the original.
6. DAILY USE
6.1 Cleaning
Before using the appliance for the
firsttime,washtheinteriorandall
internal accessories with lukewarm
water andsome neutral soap in order to
remove thetypical smell of a brand-new
product,then dry thoroughly.
Do not use detergents or abrasive
powders, as these will damage the
finish.

8 www.electrolux.com

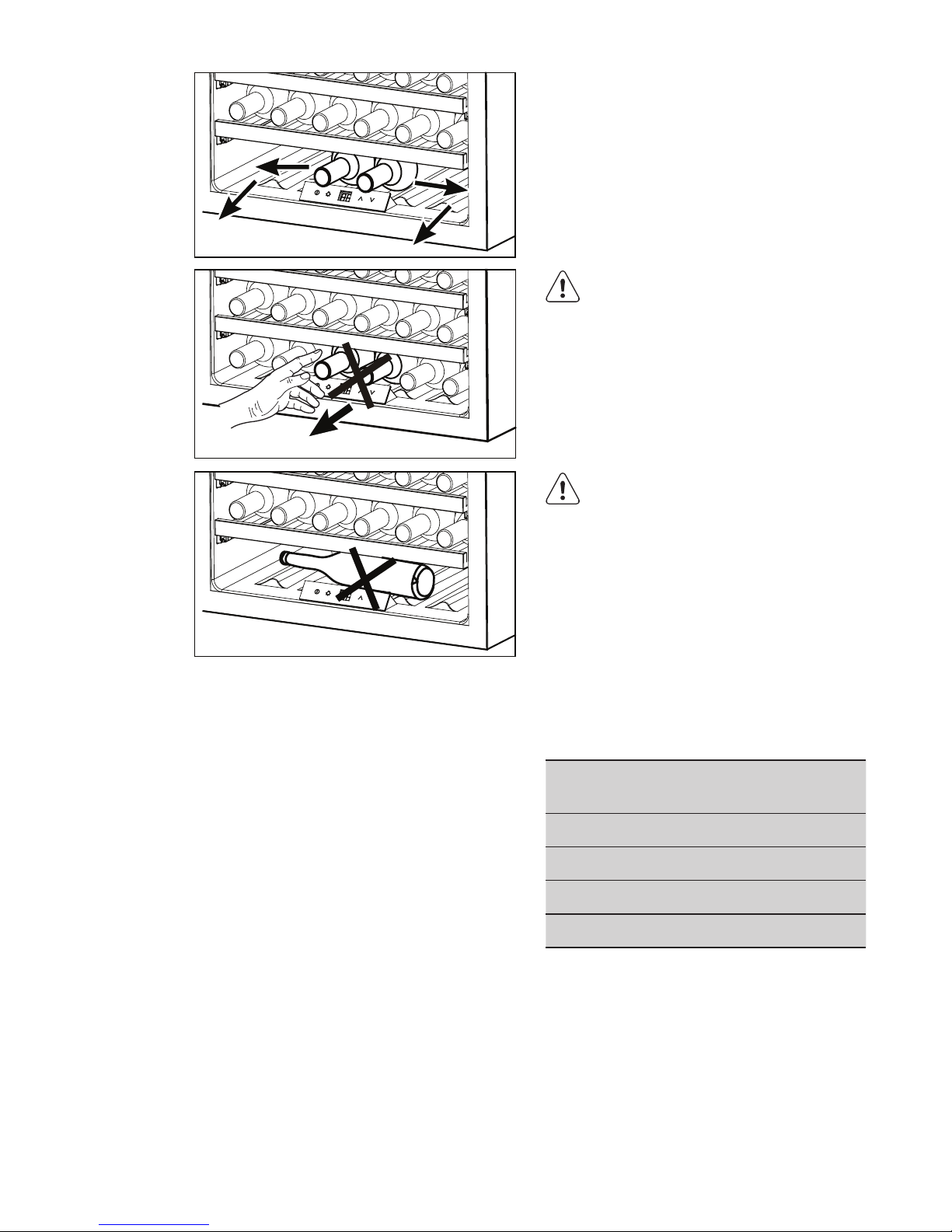

6.2 Wine Storage
(for 750 ml Bordeaux bottles)
Total: 24 bottles
The temperature can be adjusted between
+5 and + 20°C. That is ideal for wines.
The storage time for wine depends
onageing, the type of grapes,
alcoholiccontent and level of fructose
and tannin contained in it. At the time
of purchase,check if the wine is already
aged or if it will improve over time.
Preservation temperature suggested:
- Champagne/Prosecco and Sparkling
wines +6 to +8°C
- White Wines +10 to +12°C
- Rosé wines +12 to +16°C
- Red Wines +14 to +18°C
6.3 Wine Shelves
• For easy access to the contents, pull
the shelves approximately 1/2 out
of the rail compartment.This unit is
designed with the telescopic runners
for easy sliding the shelves.
To prevent damaging the door
gasket, make sure that the door is
fully opened when pulling shelves
out.
• Toremoveorfitthewoodenshelves
lift the shelf upward as per the dia-
gram and simply pull out or push in
the shelf till it sits on the telescopic
runner securely.

9ENGLISH
6.4 Possibleconfigurations
• Standard
To store up to 24 bordeaux bottles
(0.75cl) placing 6 bottles each level.
2
1
3
4
Thefirstlevelhasbeendesignedto
accomodate larger and longer bottles.
By removing shelves 2/3/4 is possible
to increase the capacity as shown in the
pictures below.
Warning! Please ensure in
this case that the bottles do
not come in contact with the
backwall of the cavity.
• Horizontal
Suitable for large bottles like
Prosecco and Champagne taller
than 310mm.
2
1
3
4
2
1
3
4
To store tall/large bottles, remove shelves
3 or 4 and place bottles on lower level.

10 www.electrolux.com
The space behind control panel can
store 2 bottles of wine, but please pay
attention that put bottles in/out have to
move around the control panel.
Do not pull out the bottles directly
behind the control panel as it may
damage it.
Do not store bottles crossways on
level 1! As, bottles may fall out when
the appliance door is opened and
this may cause injury or material
damage.
7. INSTALLATION
7.1 Positioning
Adequate air circulation should be around
the appliance, to prevent overheating. To
achievesu󻌗cientventilationfollowthe
instructions relevant to installation.
Install this appliance at a location where
the ambient temperature corresponds to
the climate class indicated on the rating
plate of the appliance:
Climate class Ambient
temperature
SN +10 °C to +32 °C
N +16 °C to +32 °C
ST +16 °C to +38 °C
T +16 °C to +43 °C

11ENGLISH
7.2 Electrical Connection
Caution! Any electrical work
required to install this appliance
shouldbecarriedoutbyaqualified
electrician or competent person.
Warning! This appliance must be
earthed. The manufacturer declines
any liability should these safety
measures not be observed.
Consultaqualifiedelectricianorservice
technician if the grounding instructions
are not completely understood, or if doubt
exists as to whether the appliance is prop-
erly grounded.
Warning! We recommend that you
wait 4 hours before connecting and
installing the appliance to allow the
refrigerantto󻉔owbackintothe
compressor.
Before plugging in, ensure that the volt-
age and frequency shown on the rating
plate correspond to your domestic power
supply.
The appliance must be grounded.
The power supply cable plug is provided
with acontact for this purpose.
If the domestic power supply socket is
not grounded, connect the appliance to a
separate ground in compliance with cur-
rent regulation.
Consultaqualifiedelectrician.
7.3 Installation dimensions (mm) and ventilation requirements
560
min. 200 cm
2
450
550
min. 200 cm
2
537
555
450 443
594
21
448
5
Theair󻉔owbehindtheappliancemustbe
su󻌗cient.
Make sure that the mains cable can
move freely.

12 www.electrolux.com
Follow the below procedure:
- Place the appliance in the niche with
door closed and align depth to the front
of the kitchen cabinet.
- Openthedoorandfixthefasteningbar
with the 3 screws provided.
7.4 Door adjustment
Please follow the below procedure for
door adjustment.
- Hold the door whilst loosening the top
and bottom screws
- Align the door
- Tighten the screws.
7.5 Fixing in the niche

13ENGLISH
8. CARE AND MAINTENANCE
Caution! Unplug the appliance
before carrying out any mainte-
nance operation.
This appliance contains hydrocar-
bons in its cooling unit; mainte-
nance and recharging must
therefore only be carried out by
authorized technicians.
8.1 Periodic cleaning
The equipment has to be cleaned regu-
larly:
Do not pull, move or damageany
pipes and/or cables insidethe
cabinet.
Never use detergents, abrasive-
powders, highly perfumed cleaning
products or wax polishes toclean
the interior as this will damage the
surface and leave astrong odour.
• Wash the inside surfaces with a warm
water and baking soda solution. The
solution should be about 2 tablespoons
of baking soda to a quart of water.
• Wash the shelves with a mild detergent
solution.
• Wring excess water out of the sponge
or cloth when cleaning area of the
controls, or any electrical parts.
• Wash the outside cooler with warm
water and mild liquid detergent.
• Clean the condenser (black grill) and
the compressor at the back of the ap-
pliance with a brush. This operation will
improve the performance of the appli-
ance and save electricity consumption.
• Clean the inside and accessories with
lukewarm water and some neutralsoap.
• Regularly check the door seals and
wipe clean to ensure they are clean
and free from debris.
• Rinse and dry thoroughly.
Take care of not to damage the
cooling system.
After cleaning, reconnect the equipment to
the mains supply.
8.2 Periods of non-operation
When the appliance is not in use for long
periods, take the following precautions:
• disconnect the appliance from electric-
ity supply
• remove all items.
• clean the appliance and all accesso-
ries.
• leave the door open to prevent un-
pleasant smells.
8.3 Power Failure
Most power failures are corrected within a
fewhoursandshouldnota󻉒ectthetem-
perature of your appliance if you minimize
the number of times the door is opened.
Ifthepowerisgoingtobeo󻉒foralonger
period of time, you need to take the
proper steps to protect your contents.
The Wine cellar should be located
in the coolest area of the room,
away from heat producing appli-
ances, and out of the direct
sunlight.

14 www.electrolux.com
9. TROUBLE SHOOTING GUIDE
You can solve many common Wine cellar
problems easily, saving you the cost of a
possible service call. Try the suggestions
below to see if you can solve the problem
before calling the servicer.
Problem Possible cause Solution
Wine cellar does
not operate.
Not plugged in. Please connnect the appliance.
Theapplianceisturnedo󻉒. Please turn ON the appliance.
The circuit breaker tripped or a
blown fuse.
Turn on the circuit breaker or
change the fuse.
Interior lighting
does not work.
Check the temperature control
setting.
Verify the set temperature.
The door is not completely
closed.
Review the door adjustment
procedure. (par. 7.4)
The door gasket does not seal
properly.
Clean the door gasket with a
humid sponge using neutral
detergent and water.
The compressor
operates
continually.
The room temperature is
hotter than normal.
Verify the room temperature.
The door is opened too often. Do not keep the door open
longer than necessary.
The door is not completely
closed.
Verify that the door is completely
closed.
The door gasket does not seal
properly.
Verify the gasket condition and
in case clean it with a humid
sponge using neutral detergent
and water.
The light does not
work.
Not plugged in. Please connnect the appliance.
The circuit breaker tripped or a
blown fuse.
Turn on the circuit breaker or
change the fuse
The LED has burned out. Contact the service.
The light button is not
operating.
Contact the service.
Too much
vibration.
Check that the wine cellar is
level.
Level the appliance.
Too much noise. The rattling noise may come
fromthe󻉔owoftherefrigerant,
which is normal.
Contraction and expansion
of the inside walls may cause
popping and crackling noises.
If the noises become louder
contact the service.
The wine cellar is not level. Level the appliance.
The door does not
close properly.
The wine cellar is not level. Level the appliance.
Thedoorwasfixednot
properly.
Review the door adjustment
procedure (par. 7.4)
The gasket is dirty. Clean the door gasket with a
humid sponge using neutral
detergent and water.

15FRANÇAIS






Visitez notre site Internet pour :

www.electrolux.com

www.electrolux.com/productregistration


www.electrolux.com/shop




 
 
 


1.  
2.  
3.  
4.  
5.  
6.  
7.  
8.  
9.  

16 www.electrolux.com
1. 
 




1.1 
 





 
 
 

1.2 
 

 


 

 
 


 


 
 

17FRANÇAIS


 
 



 

 


2. 
2.1 
Avertissement ! 


 
 

 

 


 

 


 




 

 



 


2.2 
Avertissement ! 

 
 

 



 

 

 





 

 



 



18 www.electrolux.com
3. 
 





 



2.3 
Avertissement ! 

 

 


 




 



 

 

 



 

2.4 
Avertissement ! 


 


 




 




2.5 
Avertissement ! 

 

 

 


 


 



 



19FRANÇAIS
4. 
2345
7
86
1
5. 
1 
2 
3 
4 
5 
6 
7 
8 
2
1 3 4 5
1 
2 
3 
4 

5 


20 www.electrolux.com
5.1 


1. 

1. 

2. 




5.2 


1. 

2. 
3. 


5.3 




  






5.4 













5.5 





5.6 
 



 



5.7 






6. 
6.1 






 



