ELECTROSEA CLEARLINE CL-2000-X2.0 User manual

Installation Manual Model CL-2000-X2.0
CLEARLINE System
®
[phone]
[phone]
[email protected]
www.electrosea.com

1
U.S. and Foreign Patents Pending
COPYRIGHT © 2020
No part of this publication may be reproduced, translated, stored in a retrieval system, or transmitted in any form or by any means electronic, mechanical, photocopying, recording or otherwise
without prior written consent by ElectroSea, LLC. Every precaution has been taken in the preparation of this manual to ensure its accuracy. ElectroSea assumes no responsibility for errors and
omission. Neither is any liability assumed for damages resulting from the use of this product and information contained herein.
1Table of Contents
Introduction
Table of Contents 1
ElectroSea® and CLEARLINE® 2
Components 3
Safety and Pre-Installation Descaling 4
Optimal Performance & Maintenance
Optimal Performance and Flow Alert 5
Internal Screen and Cell Indicator 6
Installation Overview
Electrical Connection Overview 7
Seawater Connection Overview 8
ClearCell®Installation
Canister Preparation 9
Mounting Options 10
Canister and Flow Sensor 11-12
Optional Strainer Return Line 13
ClearCell Reassembly 14
CLEARLINE Control Unit Installation
Mounting and Wiring 15
Wiring to Inhibit 16
Pump Control, Mode and Time 17
Pump Control Wiring 18
Pump Control Schematic Example 19-20
Specifications
Specifications 21
Warranty
Warranty Terms and Conditions 23-24

2
U.S. and Foreign Patents Pending
ELECTROSEA®
ElectroSea was created when the owners of a sportfishing yacht invented “a better way” to prevent unwanted marine growth in their
seawater lines. Solving complex technical problems is their expertise. With more than 100 issued U.S. patents and 350+ foreign patents
in advanced technologies, our Executive Management Team has been developing innovative solutions for more than 50 years. With an
expert team of ‘old salts’ who eat, sleep, and breathe boating, ElectroSea will improve your time on the water.
Introduction
CLEARLINE® System
CLEARLINE is an innovative marine electrochlorination system that prevents biofouling and barnacle growth in your vessel’s seawater lines.
CLEARLINE keeps your air conditioners, chillers and refrigerators operating at maximum flow rates, and sea strainers clean longer. The patent
pending CLEARLINE System includes CLEARLINE Control Unit which is the brain, and ClearCell® which is the heart of the system.
CLEARLINE operates automatically 24x7x365 and is built for flawless and reliable performance.
2
Quick Start Installation Guide, Installation Manual and Operators Manual
The CLEARLINE System includes a detailed Quick Start Installation Guide, Installation Manual and Operators Manual. READ all
manuals in their entirety before proceeding with installation.

3
U.S. and Foreign Patents Pending
CLEARLINE System
ClearCell

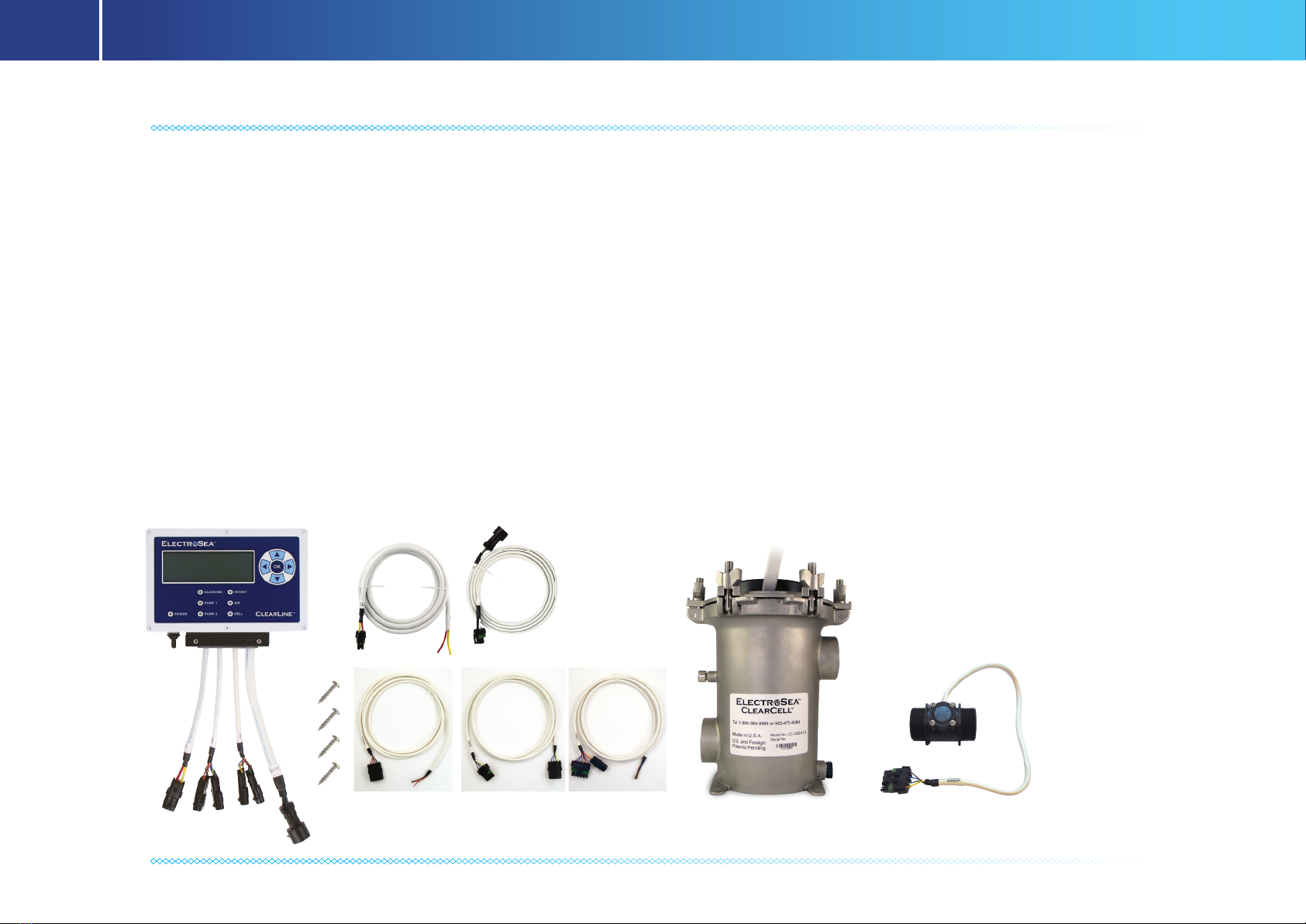

The CLEARLINE System includes the Control Unit, ClearCell, and all components listed below:
CLEARLINE Control Unit
• (1) ClearCell
• (1) Flow Sensor
• (1) Union
• (3) Hose Connectors
• (1) Top Side Mounting Bracket
• (1) Bottom Side Mounting Bracket
• (4) Mounting Screws #12 x 1.25” (3.2cm) Round Head
• (4) Mounting Screws #12 x 1.25” (3.2cm) Flat Head
• (4) Machine Screws M5 x 12mm Round Head
Components
3
Items not included
• Optional Base Tab Bracket
• Optional Strainer Accessory Kit
• Marine Grade Seawater Hose
• Stainless Steel Hose Clamps
• PTFE Tape & Paste
• Other Fittings
Major components shown above
• (1) Control Unit
• (5) Cables
— (1) Power Cable 20' (6.1m)
— (1) CLEARCELL Cable 20’ (6.1m)
— (1) Flow Sensor Cable 20’ (6.1m)
— (1) Inhibit Cable 40' (12.2m)
— (1) Pump Cable 40' (12.2m)
• (4) Mounting Screws #10 x 1" (2.54cm)

4
U.S. and Foreign Patents Pending
Safety Considerations
Improper installation can result in unsatisfactory performance, premature failure, damage to systems in the seawater circuit and/or to the vessel.
WARNING Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
NOTICE Indicates a hazardous situation which can cause damage to personal property, environment, or equipment.
Pre-installation Descaling of Seawater Conduits
Pre-installation descaling ensures any existing barnacles, biofilm, and marine growth that have accumulated on the interior seawater lines are removed.
If seawater lines are impacted with barnacles and marine growth, then ElectroSea recommends professional descaling prior to installing the CLEARLINE System.
By starting with descaled and clean seawater lines, you will realize the full benefit of the CLEARLINE System. For new vessels, descaling is not necessary.

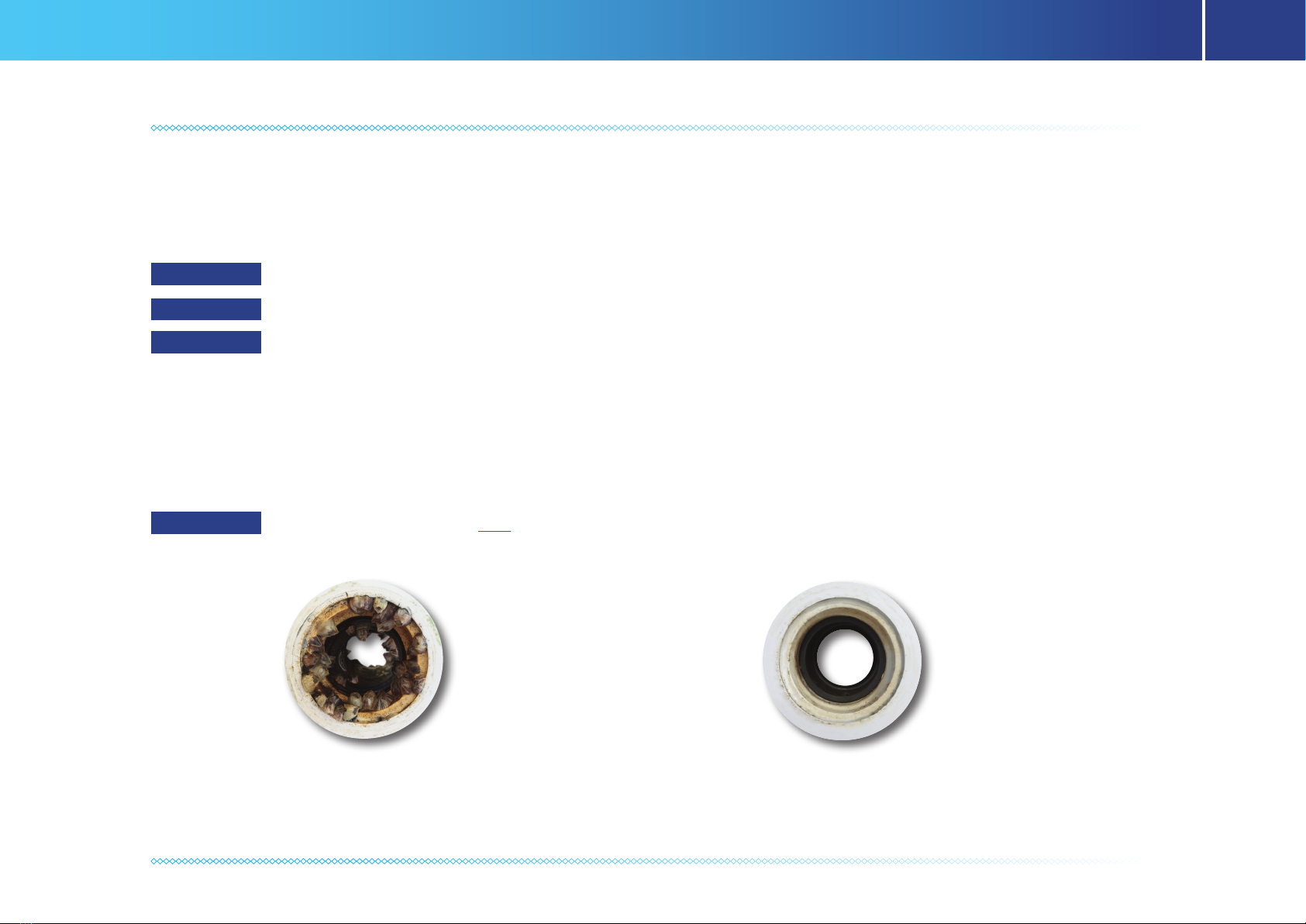

uWithout CLEARLINE
 ■ Hours–Complex multispecies microbial biofilm forms
 ■ Days–Secondary colonizers arrive and multiply
 ■ Weeks–Macroscopic communities of algae and invertebrates grow
uWith CLEARLINE
The advanced CLEARLINE electrochlorination system continuously
prevents barnacles and biofilm build-up
Safety and Pre-Installation 4
NOTICE DO NOT perform acid descaling after the CLEARLINE System has been installed. Descaling acids will damage the ClearCell
canister, ClearCell Electrode and void the Warranty.

5
U.S. and Foreign Patents Pending
Optimal Performance and Flow Alert
5
Flow Alert: The Flow Alert feature monitors seawater flow through the ClearCell. This feature allows the user to set a minimum flow rate threshold value and time
duration. If the seawater flow rate drops below a minimum value for a period of time, then “Flow Alert” will appear on the display (no audible alert).
This feature notifies the user that some part of the seawater circuit such as the intake, strainer, pump, or internal screen on the ClearCell requires cleaning or is
not functioning properly. Flow rate can be set in GPM or LPM, and time duration in minutes. To set the Flow Alert value go to MENU, Flow Alert, and enter desired
threshold flow rate and time duration for notification.
Flow Alert feature is default OFF from ElectroSea and must be set-up by the installer or end user.
CLEARLINE will continue generating chlorine even after a Flow Alert occurs. Flow Alert does not prevent CLEARLINE from operating.
If a Flow Alert occurs:
1. Check vessel’s strainers and intake grates for blockage
2. Check seawater pump operation
3. Check ClearCell Internal Screen (see Operation Manual, Pg. 10)
Optimal Performance
Constant Chlorinated Seawater Flow: The CLEARLINE System should be powered ON and have seawater flowing through the ClearCell at all times.
This provides the vessel’s seawater circuit with constant chlorinated seawater to prevent unwanted marine growth. Intermittent or stagnant
seawater that is not continuously electrochemically treated allows growth of marine microorganisms. Barnacles have the innate ability to close themselves
off and survive intermittent exposure to biocidal agents.
• DO NOT turn off seawater pumps, air conditioner, or chiller for an extended period of time.
Inspect the vessel for problem areas:
• Pre-existing biofouling in seawater lines prior to CLEARLINE installation.
• Clogged seawater strainers and intakes.
• Impacted, blocked or occluded lines from debris lodged in plumbing.
• Sporadic demand valve areas; depending on the system, valves that turn on and off can foster unwanted marine growth.
Flow Alert
>-Flow Alert -Update
-Display
-Cell
-Default -Exit
NOTICE
NOTICE

6
U.S. and Foreign Patents Pending
6
Internal Screen and Cell Indicator
The ClearCell contains an internal screen to catch debris before it reaches the Flow Sensor (debris, tiny
shells, or other foreign materials that pass through the vessel’s main strainer). The internal screen
should be cleaned periodically, and whenever debris gets caught in the screen and decreases seawater
flow. See CLEARLINE Operation Manual, Pg. 10-15 for detailed instructions to clean internal screen.
CELL Indicator
Internal Screen
NOTICE
• DO NOT PERFORM ACID DESCALING OF SEAWATER CIRCUIT AFTER THE CLEARLINE SYSTEM
HAS BEEN INSTALLED.
• DESCALING ACIDS OR CLEANING CHEMICALS WILL DAMAGE THE CLEARCELL CANISTER,
CLEARCELL ELECTRODE AND VOID THE WARRANTY.
• DO NOT TOUCH THE CLEARCELL ELECTRODE PLATES OR USE ANY TYPE OF MECHANICAL BRUSH.
• THE CLEARCELL ELECTRODE PLATES CONTAIN A SPECIAL METAL OXIDE COATING THAT WILL BE
PERMANENTLY DAMAGED IF YOU HANDLE IT.
Low seawater flow may damage cooling system and other components that depend on this water for proper operation. It is the owner’s
responsibility to monitor the vessel’s seawater flow and perform any maintenance on the vessel’s seawater pumps, strainers, and screen in ClearCell.
NOTICE
CELL Indicator: The Control Unit will display “SALINITY/CELL”, % OUTPUT and illuminate the red CELL LED in various conditions. This is not an immediate cause for
concern and may be temporary depending on seawater salinity level. CLEARLINE will continuously attempt to generate chlorine and automatically resume standard
operation when conditions are resolved. The CELL indicator will be illuminated during installation if any of the following conditions occur:
• Water salinity is below 20 parts per thousand (most common cause of CLEARLINE CELL indicator notice)
• ClearCell cable or its connectors has been compromised
See CLEARLINE Operation Manual, Pg. 9 for CELL Indicator Troubleshooting.
Spray screen with
freshwater
to remove debris

7
U.S. and Foreign Patents Pending
Installation Overview
7

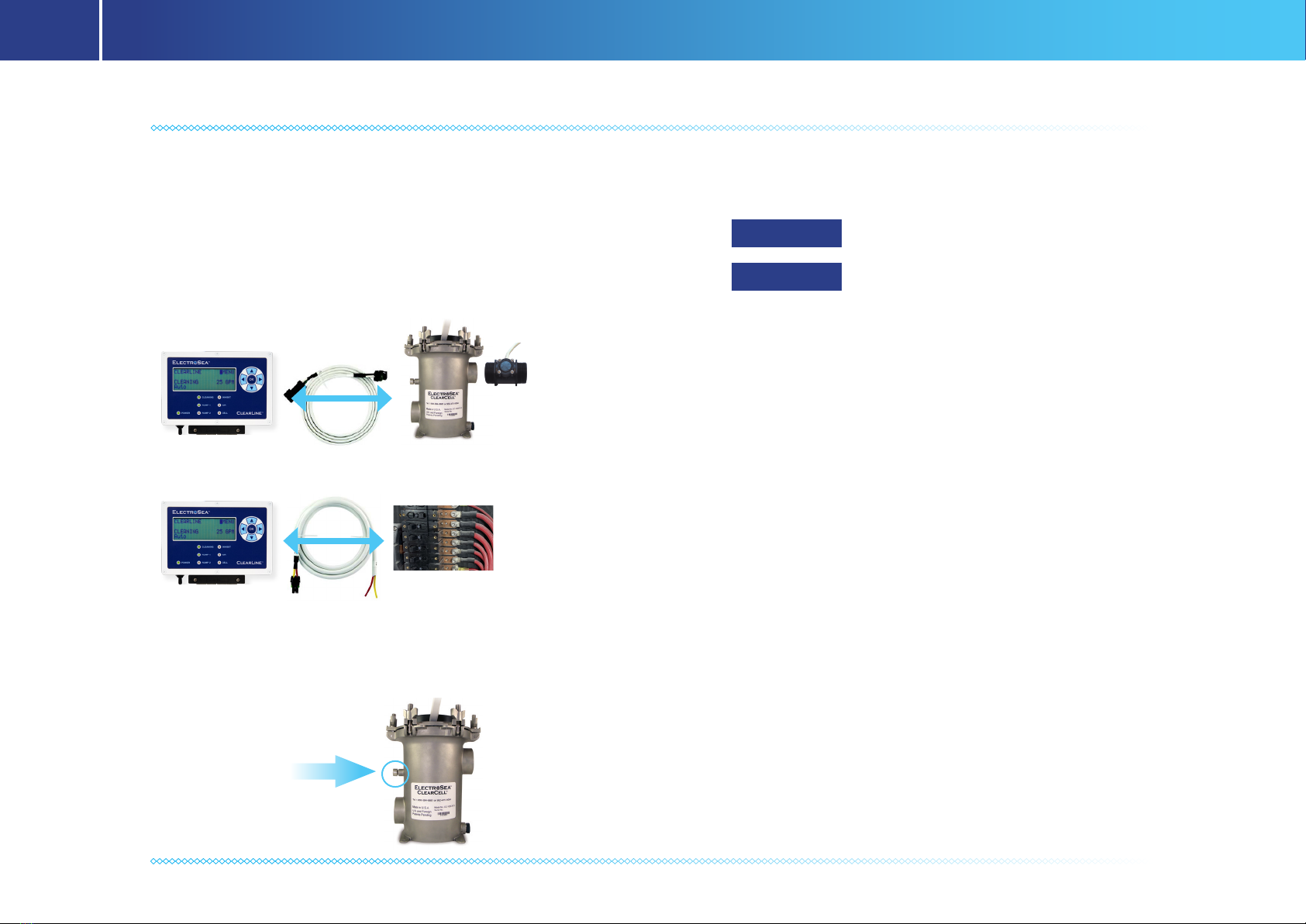

1. CLEARLINE Control Unit must be located:
• Within 20ft. (6.1m) of ClearCell
• Within 20ft. (6.1m) of Flow Sensor
• Within 20ft. (6.1m) of 24VDC power source
2. ClearCell must be connected to vessel’s bonding circuit.
Electrical Connection Overview
DO NOT cut, extend, or splice the 20’ (6.1m) ClearCell cable.
DO NOT connect multiple ClearCell cables together.
Modification of ClearCell cable will impair CLEARLINE operation.
NOTICE
NOTICE
Bonding wire to
vessel ground
20’ (6.1m)
24VDC
20’ (6.1m)

8
U.S. and Foreign Patents Pending
Seawater Connection Overview
1. Locate the vessel’s seawater intake pump, strainer, and seacock shut-off valve.
2. Turn OFF ALL seacock shut-off valves in the seawater circuit at or below the
water line. This includes any output seacocks to prevent back siphoning.
3. The ClearCell should be installed after the seawater strainer and pump, and
before any seawater cooled equipment such as air conditioners, chillers, etc.
The ClearCell should be installed at or below the water line.
4. The optional CLEARLINE treated strainer return line should be connected after
the ClearCell Flow Sensor output and before the strainer and after the seacock.
Installation Overview 8
Air Conditioner
Thru-hull
Intake
Cooling Condenser
Raw Water
(Outflow)
CLEARLINE
Treated Seawater
DC Power
Supply
Secondary CLEARLINE Treated
Strainer Line
Primary CLEARLINE Treated
Cooling Line
Seawater
Pump Strainer
Seacock
CLEARLINE
CONTROL UNIT
All ClearCell seawater plumbing connections must be
performed by a qualified marine installation professional.
Failure to turn OFF all seacock valves in the seawater
circuit could result in sinking the vessel.
DO NOT decrease seawater flow below manufacturer’s
specifications for downstream cooling equipment.
Limit the use of 90° elbows as they restrict flow and
cause pressure drop.
Use marine grade hose and double clamp with two
stainless steel clamps, reversing the clamps. Failure to properly secure
seawater connections could result in sinking the vessel.
DO NOT exceed the ClearCell pressure specifications.
The ClearCell is made of 2205 Duplex Stainless Steel for
high corrosion resistance. Do not connect dissimilar metals to the ClearCell.
Use only original parts supplied by ElectroSea. They are
made of special titanium, stainless and other high quality materials. Use of
non-factory or substitute parts will void the Warranty.
CLEARLINE is not for use with engines or generators.
NOTICE
WARNING
NOTICE
NOTICE
NOTICE
WARNING
NOTICE
WARNING
NOTICE
DO NOT USE DESCALING SOLUTIONS, ACIDS OR CLEANING
CHEMICALS AFTER CLEARLINE HAS BEEN INSTALLED. THIS WILL DAMAGE THE
CLEARLINE SYSTEM AND VOID THE WARRANTY.
NOTICE

9
U.S. and Foreign Patents Pending
ClearCell Installation
9
ClearCell Canister Preparation

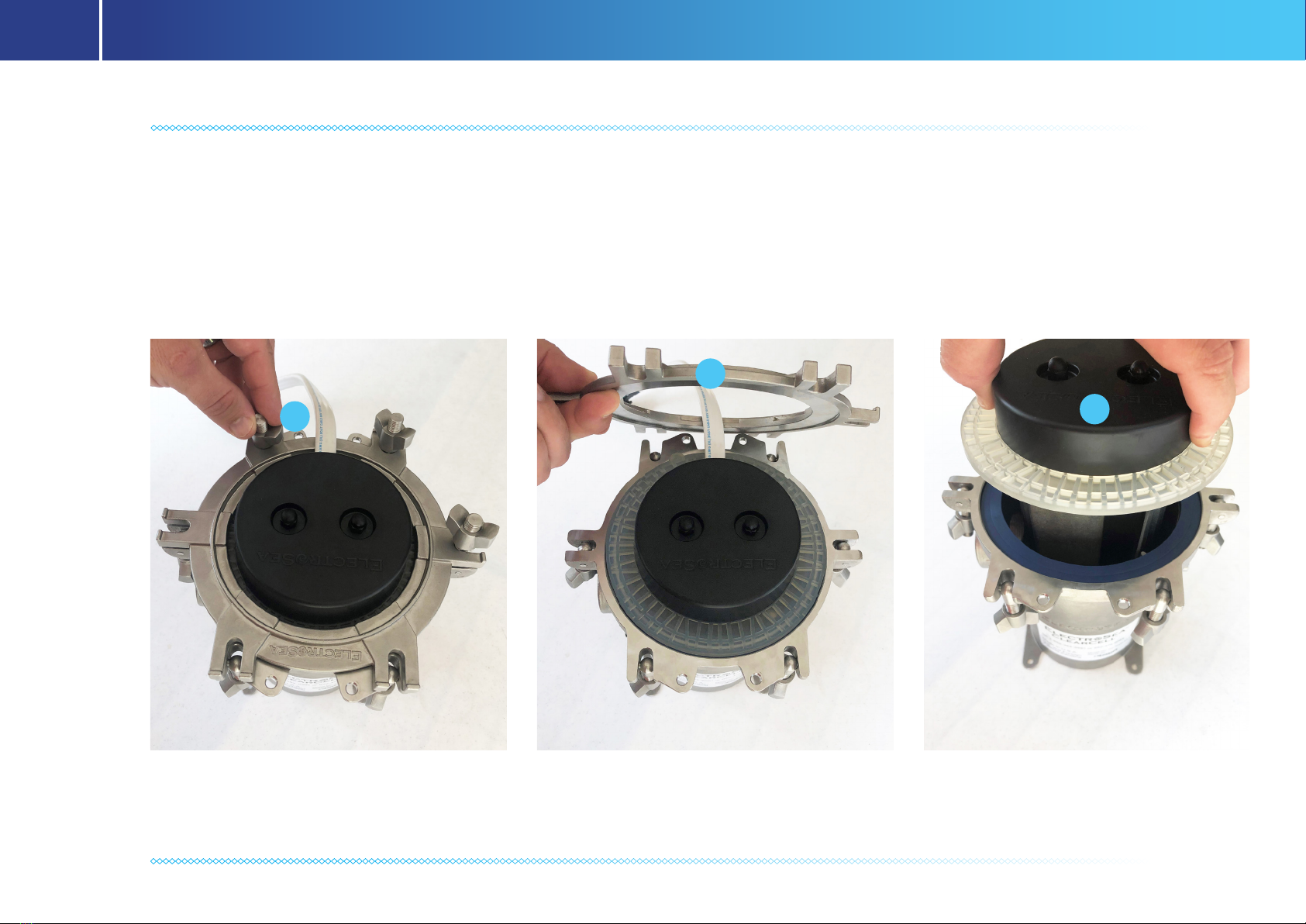

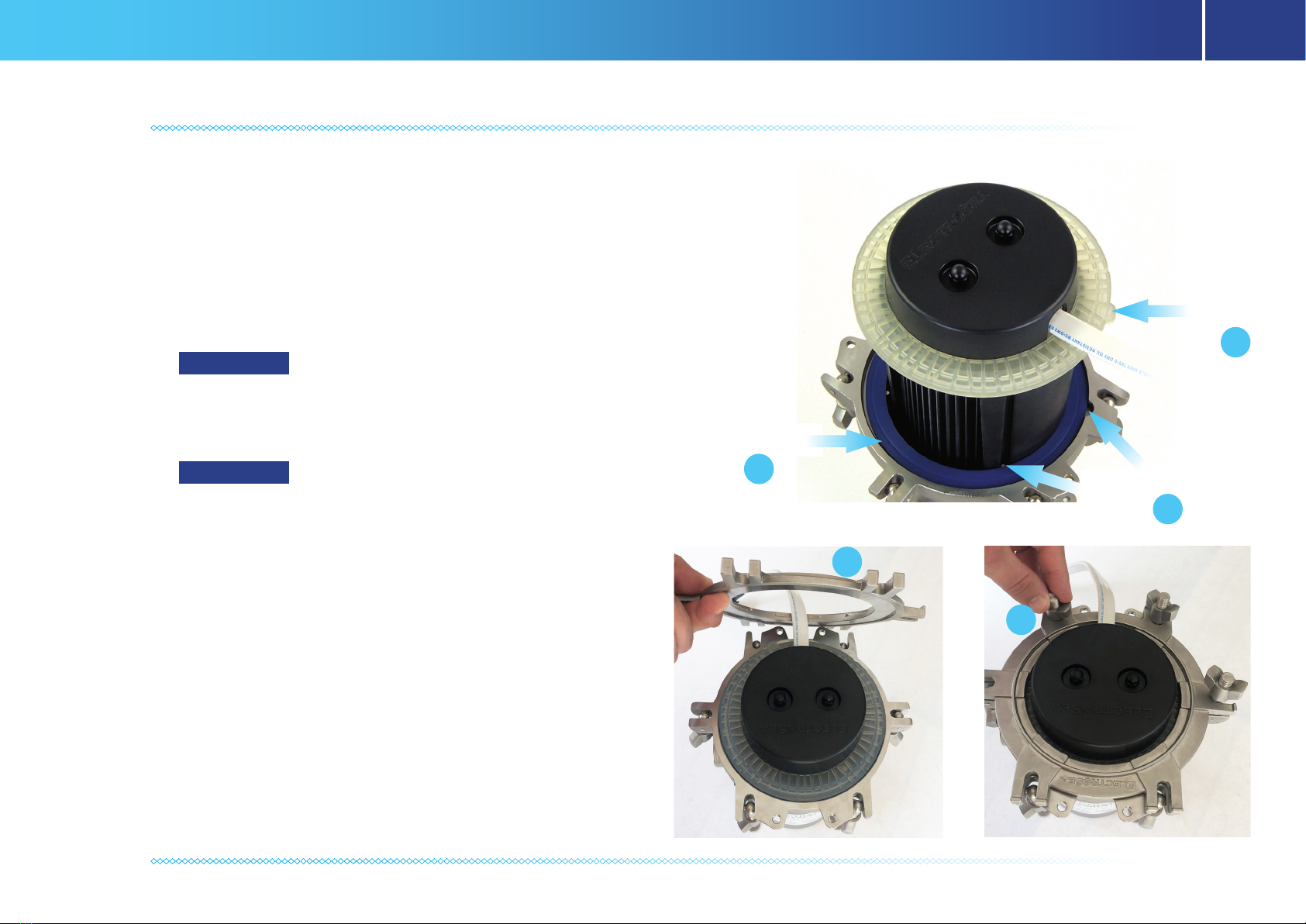

1. Unsecure the pressure ring by turning the wing
nuts counterclockwise.
3. Remove the Electrode Assembly. Lift by the
black plastic cover. Do not lift or pull on the
cable. Set the assembly aside in a safe location.
1
2
2. Remove the pressure ring.
3

10
U.S. and Foreign Patents Pending
1. The ClearCell canister must be installed so it is level and at or below the waterline.
2. The ClearCell can be mounted using several different options as shown below:
ClearCell Installation 10
ClearCell Mounting Options
OPTION A
Base Tab Mounting
1. Mount canister to flat interior engine room surface.
2. Insert (4) #12 round head screws into base tab
to secure the ClearCell canister.
3. Do not screwthrough hull of boat.
WARNING
WARNING
1. Attach Top and Bottom Side mount brackets to
the canister with (4) M5 machine screws.
2. Secure to stringer or other appropriate load
supporting vertical surface with (4) #12 round
head screws and (4) #12 flat head screws.
OPTION B
Side Mounting
(Optional Mounting Accessory)
1. Mount canister on Base Tab Extension Brackets.
OPTION C
Base Tab Extension Bracket
Top Bracket
Bottom
Bracket
1Mount
ClearCell Level
PART
NUMBER DESCRIPTION
BTEB-5.5 Extension bracket that connects to
mounting feet tabs on ClearCell canister
Failure to mount the ClearCell level could result in the accumulation of harmful gas.

11
U.S. and Foreign Patents Pending
Output
1
ClearCell Installation
11
ClearCell Canister and Flow Sensor
— 4x turns of Hercules® MEGATAPE™ PTFE or equivalent
— Hercules® REAL-TUFF™ Thread Sealant or equivalent
1. The ClearCell canister and Flow Sensor have directional INPUT and OUTPUT requirements.
Seawater MUST enter at the INPUT port and flow through the ClearCell and Flow Sensor
according to the marked labels.
Failure to route seawater in the direction of the ClearCell and
Flow Sensor INPUT and OUTPUT labels will result in improper operation of the
CLEARLINE System.
2. Connect the Flow Sensor after the ClearCell output port. The Flow Sensor is made of
glass filled nylon for superior strength, however, this makes the threads less malleable
and rougher than other plastics. When sealing to this component, it is recommended
that multiple turns of PTFE tape and paste are used.
Flow Sensor
Input
DO NOT place 90°elbows or other flow restrictive plumbing
fittings BEFORE the Flow Sensor. This will alter the measured flow and cause
improper operation of the CLEARLINE System.
NOTICE
2
NOTICE
2Flow Sensor must be
oriented so seawater
follows direction of
flow arrow

12
U.S. and Foreign Patents Pending
3. Connect the threaded female PVC hose connector to Flow Sensor output.
Use PTFE tape and thread sealant.
4. Connect male PVC hose connector to threaded Union. The Union provides
quick access to the Flow Sensor as necessary. Use PTFE tape and thread
sealant.
5. Add flexible hose of desired length and join hose connector on Flow Sensor
output to hose connector on Union. Use two hose clamps (not included),
reversing the clamps, over the flexible hose connections.
6. Add flexible hose hanger, hose strap or hose support bracket within
12” (30.5cm) of Flow Sensor. Make sure the Flow Sensor and Union are
properly supported.
Failure to use hose clamps could result in a
seawater leak or hose disconnection causing damage to property
and/or the vessel sinking.
ClearCell Installation 12
ClearCell Canister and Flow Sensor
WARNING
DO NOT let the weight of the hose or any plumbing
hang unsupported on the Flow Sensor. Use hose hangers, hose straps
or hose support brackets that are attached securely to a bulkhead,
stringer or other solid object to relieve any force on the Flow Sensor
when connected to ClearCell. Excessive force could crack the Flow
Sensor and/or Union.
WARNING
Flow Sensor connected to ClearCell
Option with Flow Sensor connected to Union
Union
All seawater flowing through the ClearCell must
flow through the Flow Sensor. DO NOT split or divert seawater before
the Flow Sensor.
NOTICE
Support
weight of hose
3
4
6
5
Flow
Sensor
Flow
Sensor Union

13
U.S. and Foreign Patents Pending
ClearCell Installation
13
Optional Strainer Return Line
PART NUMBER DESCRIPTION
DSA-2.0 Arctic Steel Arctic Steel 2” (5cm)
Dual Strainer Accessory
DSA-SP-2.0 SCOT Pump 2” (5cm)
Dual Strainer Accessory
2A
Air Conditioner
Thru-hull
Intake
Cooling Condenser
Raw Water
(Outflow)
CLEARLINE
Treated Seawater
DC Power
Supply
Secondary CLEARLINE Treated
Strainer Line
Primary CLEARLINE Treated
Cooling Line
Seawater
Pump Strainer
Seacock
CLEARLINE
CONTROL UNIT
2A
2B
1
1. OPTIONAL: Add a CLEARLINE treated strainer return line with a tee-fitting and ball valve, after the ClearCell Flow Sensor that goes back to
the strainer. This CLEARLINE treated strainer return line should be connected after the ClearCell Flow Sensor output and return to the
strainer lid or after the seacock. The CLEARLINE treated return line to the strainer should be 1/2” (1.3cm) ID flexible hose and should
include a ball valve to adjust return flow as necessary.
DO NOT connect the return line source before the pump on the suction side.
2. There are two options to install the CLEARLINE treated return line to the strainer:
2A. Use CLEARLINE Strainer Accessory Kit to plumb the return line directly to the top of the strainer lid.
The CLEARLINE Strainer Accessory Kit includes a custom strainer lid, ball valve, tubing, connectors and fittings.
DO NOT drill through the top of any strainer lid.
The lid will crack and/or fail over time and could resulting in sinking of the vessel.
2B. Use the appropriate plumbing fittings to connect the return line after the seacock and
before the strainer. Make sure to use a ball valve.
NOTICE
WARNING

14
14
U.S. and Foreign Patents Pending
ClearCell Reassembly
Canister
Keys
Gasket
Lid Key
ClearCell Installation
1
2
2
3
3
1. Ensure the gasket is in the top of the ClearCell canister.
2. The Electrode Assembly and lid are keyed and can be inserted in only one
direction. The plates of the ClearCell Electrode will be parallel to the seawater
input. Align the Electrode Assembly and insert it into the ClearCell canister.
DO NOT touch the metal ClearCell Electrode surface
with your hands or any metal tools. The ClearCell Electrode has a
proprietary coating. This may damage the ClearCell Electrode and affect
its performance.
DO NOT use chemicals, acids, descaling solutions
or zincs in the ClearCell canister or on the ClearCell Electrodes. This will
damage the ClearCell Electrode.
3. Add the pressure ring and tighten down the wing nuts evenly. Do not use
tools to perform this tightening process. Work in a star pattern so all are
evenly secure.
4. Double check all fittings, hose clamps and wing nuts are secure. Open the
seacock valves and verify there are no leaks.
5. Bleed excess air from the ClearCell canister, then re-tighten wing nuts.
NOTICE
NOTICE

15
U.S. and Foreign Patents Pending
CLEARLINE Location and Mounting
• Mount the CLEARLINE Control Unit (1) on a bulkhead in the engine room using four #10
stainless steel Mounting Screws provided. CLEARLINE is designed for marine engine rooms
with a maximum environmental temperature of 50°C (122°F). Do not mount CLEARLINE in
an area that receives excessive heat.
CLEARLINE to 24VDC Power Supply
1. Power OFF the CLEARLINE Control Unit (2) before beginning the wiring process below.
2. Locate an always on, 24VDC power source on the vessel. Connect the RED (+) and
YELLOW (-) wires of the Power Cable to this source according to the appropriate
electrical standards (i.e. ABYC). Connect the Power Cable (A) to the CLEARLINE Control Unit.
Failure to Power OFF the CLEARLINE Control Unit during the wiring
process could result in damage to the CLEARLINE System.
CLEARLINE to ClearCell
• Connect the ClearCell cable (B) between the CLEARLINE Control Unit and the ClearCell.
CLEARLINE to Flow Sensor
• Connect the Flow Sensor cable (C) to the CLEARLINE Control Unit and the Flow Sensor.
ClearCell Bonding
• Connect vessel bonding wire to ClearCell bonding terminal according to appropriate
bonding standards (i.e. ABYC).
Failure to bond ClearCell will void Warranty.
NOTICE
CLEARLINE Control Unit Installation
15
AC
CLEARLINE Control Unit Mounting and Wiring
NOTICE
B
A
2
A
B
ClearCell
Sample Vessel
24VDC Source
1
C
C
Bonding
Terminal

16
U.S. and Foreign Patents Pending
CLEARLINE to Inhibit Lines (Reverse Osmosis Water System and Baitwell)
The CLEARLINE System can be wired to receive a signal from one (1) 12VDC or 24VDC, and one (1) 120AVC
or 240VAC input from equipment such as a Baitwell or Reverse Osmosis (R.0.) System that are not
compatible with chlorinated seawater. These wired inputs will tell the CLEARLINE System to “inhibit” (stop)
the generation of chlorine. This is an optional feature and is not required for CLEARLINE to operate.
1. Locate the Baitwell or R.O. Water System controls. See the table below for connection.
Power Type Wire Color
24VDC or 12VDC Black and Brown
240AVC or 120VAC Red and Orange
2. Connect the Inhibit Cable (D) to the CLEARLINE Control Unit and the designated
R.O. Water System or Baitwell equipment.
Reverse Osmosis (R.O.) system membranes are easily damaged by chlorine in
the feed water. DO NOT CONNECT CLEARLINE TO AN R.O. SYSTEM UNLESS THE INHIBIT WIRES
ARE CONNECTED TO TURN CLEARLINE OFF WHEN THE R.O. IS OPERATING.
16CLEARLINE Control Unit Installation
CLEARLINE Wiring to Inhibit
D
D
R.O. WATER MAKERBAITWELL
NOTICE

17
U.S. and Foreign Patents Pending
CLEARLINE Control Unit Installation
17
Pump Mode: The Pump Mode should be set-up during the installation process. Pump Mode and Time are optional features and not required for CLEARLINE
to operate properly. The table below shows the Pump Mode options. Refer to the CLEARLINE CL-2000-X2.0 Operation Manual to set the Pump Mode and Time.
Pump Time: This is an optional feature used on some vessels that have dual seawater inlet pumps that are manually cycled. This feature sets the duration
of time that Pump #1 or Pump #2 operates. The Pump Time can be set to 10 minutes, and 1 hour intervals up to 24 hours, 48 hours, and 72 hours.
CLEARLINE Pump Control, Mode and Time
Mode Description Wiring
Required
Pump Sense Not Used
Pump sensing is not being used. This is the factory default mode. (Note: If your vessel does not have
dual pumps and/or cannot be connected to CLEARLINE’s automatic pump cycling feature, then set
Pump Mode to “Pump Sense Not Used”)
No
Pump #1 and Pump #2
Alternating
Two seawater intake pumps are wired to the CLEARLINE System. Pump #1 and Pump #2 can be
alternated at a specific time duration from 10 minutes to 72 hours. The CLEARLINE System is
controlling the ON/OFF operation of both pumps.
Yes
Pump #1 and Pump #2
Monitors
Two seawater intake pumps are wired to the CLEARLINE System. Pump #1 and Pump #2 can be
monitored. The CLEARLINE System is monitoring only and is NOT controlling the ON/OFF operation
of both pumps.
Yes
Pump #1 ONLY Monitor One seawater intake pump is wired to the CLEARLINE System. Pump #1 is used for monitoring
purposes only. Yes
FOR VIKING YACHTS
The Pump Mode and Time feature automates the manual process of alternating the operation of
Pump #1 and Pump #2 for a specific time duration (i.e. every 4 hours). CLEARLINE alternates
seawater pumps when both Centralized Seawater Control switches are in the “OFF” position.
OFF = Default position when CLEARLINE operating
AUTO = bypass CLEARLINE
MANUAL = bypass CLEARLINE to force pumps ON

18
U.S. and Foreign Patents Pending
ElectroSea CLEARLINE Control Unit Cable Wiring Table – Pump Monitor and Control
Wire Name Wire Color Wire Description Pump Switch Wire Connection
Pump #1 Monitor Black Switch #1 voltage sensing-normally open
relay 1 pole 1 closure Connect to common (center pin) for switch #1 pole 1
Pump #2 Monitor Brown Switch #2 voltage sensing-normally open
relay 2 pole 1 closure Connect to common (center pin) of switch #2 pole 1
Pumps Main Relay Orange Common for relay #1 and #2 pole 1 Connects to Auto pin of pole 1
Pumps Secondary Relay Green Common for relay #1 and #2 pole 2 Connects to common (center pin) of switch #1 pole 2
Pump #1 On Blue Switch #1 voltage sensing-normally open
relay 1 pole 2 closure Connects to common (center pin) of switch #2 pole 2
Pump #2 On Violet Switch #2 voltage sensing-normally open
relay 2 pole 2 closure Connects to Auto pin of pole 2
Pump 24VDC Red Positive DC power for switch control Connect to 24VDC positive
Negative 24VDC Yellow Negative DC power for switch control Connect to 24VDC negative
CLEARLINE Pump Control Wiring
CLEARLINE to Seawater Intake Pumps
The CLEARLINE System includes an option to make a wired connection to the vessel’s centralized seawater intake pump(s) for monitoring
and/or to control the process of alternating pumps for a specific duration. This optional feature is useful for vessels that have two seawater
intake pumps that require scheduled manual cycling. The Pump Mode and Time feature automate the manual process of alternating the
operation of Pump #1 and Pump #2 for a specific time duration (i.e. every 24 hours).
NOTE: Connection to Seawater Intake Pumps is optional.
1. Locate Seawater Intake Pump control system to be monitored and controlled. See the table below and wiring diagram on page 19 for
details. Connect the Pump cable (E) to the CLEARLINE Control Unit Pump Monitor and the vessel’s pump controls. E
E
Sample
Pump Control
18CLEARLINE Control Unit Installation

19
U.S. and Foreign Patents Pending
Example CLEARLINE Pump Control to Viking Centralized Seawater Control System Wiring Schematic
1
1
2
2
3
3
4
4
D D
C C
B B
A A
CLEARLINEBlue Wire
CLEARLINE Violet Wire
CLEARLINEGreen Wire
No part of this publication may be reproduced, translated, stored in a retrieval system, or transmitted in any form or by any means electronic, mechanical, photocopying, recording or otherwise without prior written consent by ElectroSea, LLC. Every precaution has
been taken in the preparation of this document to ensure its accuracy. ElectroSea assumes no responsibility for errors and omission. Neither is any liability assumed for damages resulting from the use of this product and information contained herein. CONFIDENTIAL
DC NEGATIVE24VDC YELLOW
CLEARLINEBlack Wire
DC POSITIVE24VDC RED TO BREAKERCLEARLINERed Wire
CLEARLINE Yellow Wire
CLEARLINEOrange Wire
A
C
M
Pump 1
A
C
M
A
C
M
Pump1
A
C
M
A
C
M
Pump2
CLEARLINEBrown Wire
DC NEGATIVE24VDC YELLOW
CLEARLINEBlack Wire
DC POSITIVE24VDC RED TO BREAKERCLEARLINERed Wire
CLEARLINE Yellow Wire
CLEARLINEOrange Wire
CLEARLINEBrown Wire
A
C
M
Pump 2
85
87a
87
30
86
Pump Relay 1
External Relay
85
87a
87
30
86
Pump Relay 2
External Relay
PUMP CNTRL # 1 OUT
PUMP CNTRL # 2 OUT
DC NEGATIVE24VDC YELLOW
CLEARLINEBlack Wire
TIME DELAY RELAY (Pin A2)
DC POSITIVE24VDC RED TO BREAKER
CLEARLINEBrown Wire
CLEARLINERed Wire
CLEARLINE Yellow Wire
External Relays
24VDC
10A SPDT
TE V23234-A104-X050 or equivalent
Viking DIN Rail
Double Pole Switches
Single Pole Switches
A
C
M
Pump 1.
A
C
M
Pump 2.
CLEARLINEBlue Wire
CLEARLINEGreen Wire
CLEARLINE Violet Wire
Single Pole Switches with External VFDs
1
1
2
2
3
3
4
4
D D
C C
B B
A A
CLEARLINEBlue Wire
CLEARLINE Violet Wire
CLEARLINEGreen Wire
No part of this publication may be reproduced, translated, stored in a retrieval system, or transmitted in any form or by any means electronic, mechanical, photocopying, recording or otherwise without prior written consent by ElectroSea, LLC. Every precaution has
been taken in the preparation of this document to ensure its accuracy. ElectroSea assumes no responsibility for errors and omission. Neither is any liability assumed for damages resulting from the use of this product and information contained herein. CONFIDENTIAL
DC NEGATIVE24VDC YELLOW
CLEARLINEBlack Wire
DC POSITIVE24VDC RED TO BREAKERCLEARLINERed Wire
CLEARLINE Yellow Wire
CLEARLINEOrange Wire
A
C
M
Pump 1
A
C
M
A
C
M
Pump1
A
C
M
A
C
M
Pump2
CLEARLINEBrown Wire
DC NEGATIVE24VDC YELLOW
CLEARLINEBlack Wire
DC POSITIVE24VDC RED TO BREAKERCLEARLINERed Wire
CLEARLINE Yellow Wire
CLEARLINEOrange Wire
CLEARLINEBrown Wire
A
C
M
Pump 2
85
87a
87
30
86
Pump Relay 1
External Relay
85
87a
87
30
86
Pump Relay 2
External Relay
PUMP CNTRL # 1 OUT
PUMP CNTRL # 2 OUT
DC NEGATIVE24VDC YELLOW
CLEARLINEBlack Wire
TIME DELAY RELAY (Pin A2)
DC POSITIVE24VDC RED TO BREAKER
CLEARLINEBrown Wire
CLEARLINERed Wire
CLEARLINE Yellow Wire
External Relays
24VDC
10A SPDT
TE V23234-A104-X050 or equivalent
Viking DIN Rail
Double Pole Switches
Single Pole Switches
A
C
M
Pump 1.
A
C
M
Pump 2.
CLEARLINEBlue Wire
CLEARLINEGreen Wire
CLEARLINE Violet Wire
Single Pole Switches with External VFDs
1
1
2
2
3
3
4
4
D D
C C
B B
A A
CLEARLINEBlue Wire
CLEARLINE Violet Wire
CLEARLINEGreen Wire
No part of this publication may be reproduced, translated, stored in a retrieval system, or transmitted in any form or by any means electronic, mechanical, photocopying, recording or otherwise without prior written consent by ElectroSea, LLC. Every precaution has
been taken in the preparation of this document to ensure its accuracy. ElectroSea assumes no responsibility for errors and omission. Neither is any liability assumed for damages resulting from the use of this product and information contained herein. CONFIDENTIAL
DC NEGATIVE24VDC YELLOW
CLEARLINEBlack Wire
DC POSITIVE24VDC RED TO BREAKERCLEARLINERed Wire
CLEARLINE Yellow Wire
CLEARLINEOrange Wire
A
C
M
Pump 1
A
C
M
A
C
M
Pump1
A
C
M
A
C
M
Pump2
CLEARLINEBrown Wire
DC NEGATIVE24VDC YELLOW
CLEARLINEBlack Wire
DC POSITIVE24VDC RED TO BREAKERCLEARLINERed Wire
CLEARLINE Yellow Wire
CLEARLINEOrange Wire
CLEARLINEBrown Wire
A
C
M
Pump 2
85
87a
87
30
86
Pump Relay 1
External Relay
85
87a
87
30
86
Pump Relay 2
External Relay
PUMP CNTRL # 1 OUT
PUMP CNTRL # 2 OUT
DC NEGATIVE24VDC YELLOW
CLEARLINEBlack Wire
TIME DELAY RELAY (Pin A2)
DC POSITIVE24VDC RED TO BREAKER
CLEARLINEBrown Wire
CLEARLINERed Wire
CLEARLINE Yellow Wire
External Relays
24VDC
10A SPDT
TE V23234-A104-X050 or equivalent
Viking DIN Rail
Double Pole Switches
Single Pole Switches
A
C
M
Pump 1.
A
C
M
Pump 2.
CLEARLINEBlue Wire
CLEARLINEGreen Wire
CLEARLINE Violet Wire
Single Pole Switches with External VFDs
Double Pole Switches Single Pole Switches Single Pole Switches with External VFDs
CLEARLINE Pump Control Wiring
19
Sample Double Pole Wiring
