Operation Manual Model CL-2000-X2.0
CLEARLINE®System

Table of Contents
1
U.S. and Foreign Patents Pending
COPYRIGHT © 2020
No part of this publication may be reproduced, translated, stored in a retrieval system, or transmitted in any form or by any means electronic, mechanical, photocopying, recording or otherwise
without prior written consent by ElectroSea, LLC. Every precaution has been taken in the preparation of this manual to ensure its accuracy. ElectroSea assumes no responsibility for errors and
omission. Neither is any liability assumed for damages resulting from the use of this product and information contained herein.
1
Introduction
Table of Contents 1
ElectroSea® and CLEARLINE® 2
Safety Considerations 2
System Features
User Interface 3
Operating Modes and Feature Overview 4-5
Inhibit Mode, Pump Mode and Time 6-7
Optimal Performance and Flow Alert 8
CELL Indicator 9
ClearCell®
ClearCell Internal Screen Care 10
ClearCell Internal Screen Access 11-15
CLEARLINE® System Updates
Factory Default and Firmware Updates 16
Inspection
Periodic Inspection 17
Important Information
Specifications 18
Modes & Troubleshooting
Table of Modes, Descriptions and Actions 19-20
Warranty
Warranty Terms and Conditions 21-22

2
U.S. and Foreign Patents Pending
Introduction 2
ELECTROSEA®
ElectroSea was created when the owners of a sportfishing yacht invented “a better way” to prevent unwanted marine growth in their
seawater lines. Solving complex technical problems is their expertise. With more than 100 issued U.S. patents and 350+ foreign patents
in advanced technologies, our Executive Management Team has been developing innovative solutions for more than 50 years. With an
expert team of ‘old salts’ who eat, sleep, and breathe boating, ElectroSea will improve your time on the water.

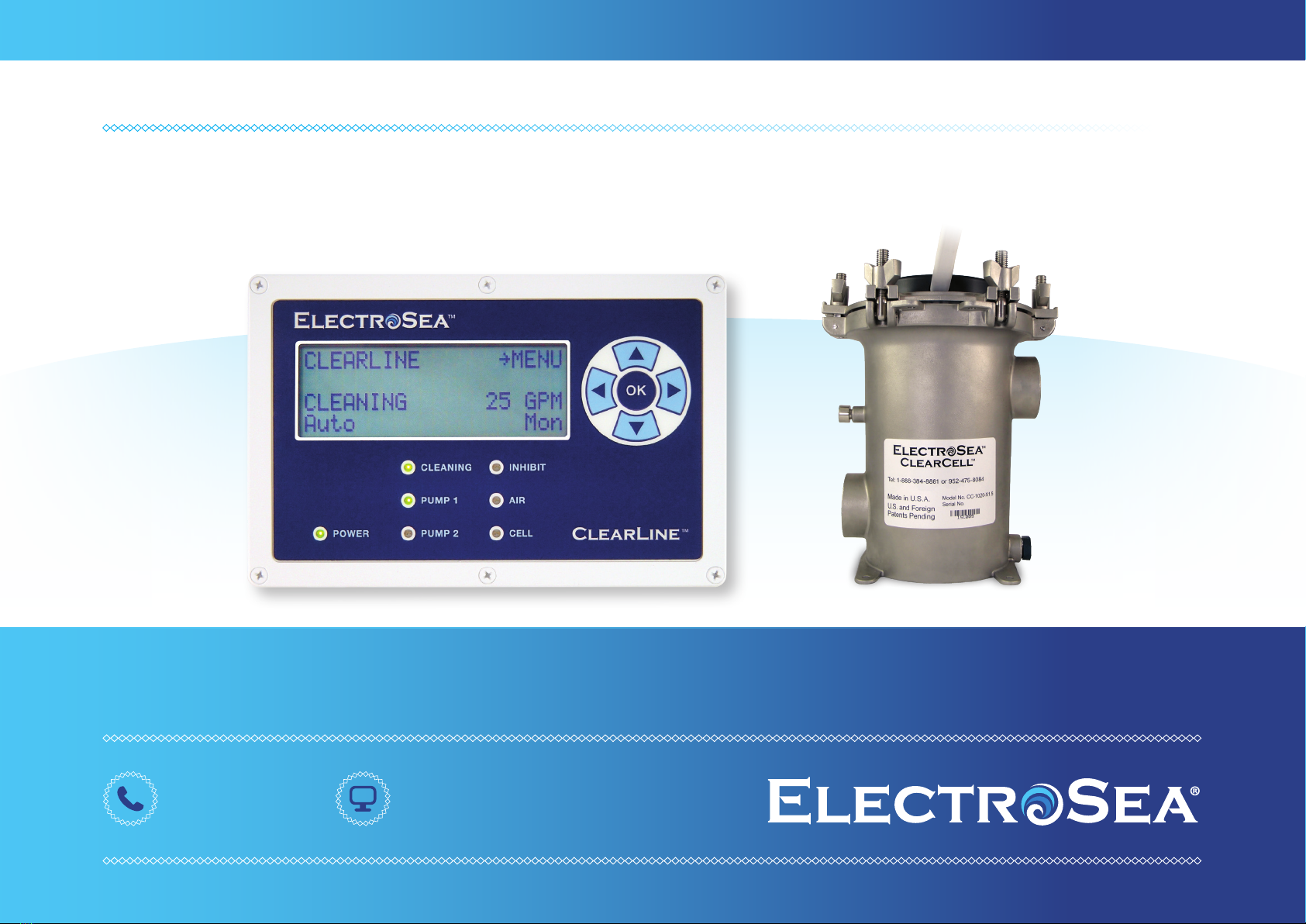

CLEARLINE®System
CLEARLINE is an innovative marine electrochlorination system that prevents biofouling and barnacle growth in your vessel’s seawater lines.
CLEARLINE keeps your air conditioners, chillers and refrigerators operating at maximum flow rates, and sea strainers clean longer. The patent
pending CLEARLINE System includes CLEARLINE Control Unit which is the brain, and ClearCell® which is the heart of the system.
CLEARLINE operates automatically 24x7x365 and is built for flawless and reliable performance.
WARNING Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
Indicates a hazardous situation which can cause damage to personal property, environment, or equipment.
Safety Considerations
NOTICE

3
U.S. and Foreign Patents Pending
Status Screen
Operating Mode
Circuit Breaker
User Interface
Features and Functions
1. Power on CLEARLINE. The Control Unit will complete a diagnostic self-test and then the green “POWER” light will be illuminated.
2. The main status screen will be displayed.
User Interface
3
Selection Buttons
ON/OFF
USB Port
Programming Menu
Flow Rate

4
U.S. and Foreign Patents Pending
Operating Modes
Modes and Features 4
The Operating Mode displays the state of the CLEARLINE System. Modes include:
• OFF: CLEARLINE is powered, but is in the OFF mode and not Cleaning.
• START-UP: CLEARLINE is performing a diagnostic self-test. This mode lasts for approximately 30 seconds.
• CLEANING: CLEARLINE is ON and Cleaning. This is the normal operating mode for the CLEARLINE System.
• FLOW ALERT: CLEARLINE is ON and Cleaning, but the flow rate measured is less than or equal to the value set manually in the Flow Alert feature.
• CELL INDICATOR: CLEARLINE will continuously attempt to generate chlorine and automatically resume standard operation when conditions are resolved.
Feature Overview
• Flow Rate (GPM): Monitors the flow rate in gallons per minute (GPM) or liters per minute (LPM) of seawater at the output of the CLEARLINE System. The flow rate is
displayed for values of 4–99 GPM (15.1–374.8 LPM). CLEARLINE CL-2000-X2.0 should not be used with flow rates >75 GPM (>283.9 LPM).
• Pump Mode: Optional feature for vessels with two seawater intake pumps that require manual alternating of the pumps on a regular schedule.
This feature automates the manual process of alternating between Pump #1 and Pump #2. When Pump #1 or Pump #2 is operating, the green Pump light will be illuminated.
• Pump Time: Optional feature for vessels with two seawater intake pumps that are manually cyclFed. This feature sets the desired duration of time that Pump #1 or Pump
#2 operates. Alternating time periods range from 10 minutes to 72 hours.
• Flow Alert: An alert that indicates the flow rate is at or below a threshold level for a period of time. Flow Alert is manually set by the user.
• Display Contrast, Backlight, Imperial and Metric Units: Adjustment of LCD display contrast and backlight levels from Lo to Hi. Selection of Imperial and Metric units for
flow in GPM or LPM.
• Default Update: Process to restore CLEARLINE to original factory default settings. Allows the user to update CLEARLINE Control Unit firmware from a USB memory drive
supplied by ElectroSea.

Modes and Features
5
5
U.S. and Foreign Patents Pending
During normal operation the Control Unit will flash “Cleaning” and the green Cleaning LED will be illuminated. This indicates the CLEARLINE System is electrochemically
generating chlorine to prevent biofouling in the vessel’s seawater circuit. The System will display the flow rate at the output of the CLEARLINE System in gallons per minute
(GPM) or liters per minute (LPM). If the flow rate drops below 4 GPM (15 LPM), then the display will indicate Min Flow. The CLEARLINE System will automatically stop generating
chlorine if Min Flow (1–3 GPM/3.8–11.4 LPM), or No Flow (0 GPM).
Power ON and Start-up Delay
Auto Mode
CLEARLINE -Menu
Cleaning XX GPM
Auto
Set Backlight, Contrast, or Units: The LCD display backlight, contrast, and imperial / metric units can be set. Use the Up or Down arrows to select and change settings.
Display Backlight, Contrast and Imperial / Metric Units
Cleaning Mode
Power ON the CLEARLINE System. The Control Unit will complete a diagnostic self-test and then the green “POWER” LED will be illuminated. “START-UP” will be displayed for 30 seconds.
The CLEARLINE System automatically and continuously calculates the optimal level of chlorinated seawater to prevent biofouling in lines based on multiple input parameters
including seawater flow rates, key electrical parameters, and environmental temperature.
>

Modes and Features 6
6
U.S. and Foreign Patents Pending
Inhibit Mode: The CLEARLINE System can be wired to receive a signal from (1) 24VDC or 12VDC, and/or (1) 240VAC or 120VAC input from equipment such as a Baitwell
or Reverse Osmosis (R.0.) Water System that are incompatible with chlorine. These wired inputs trigger the CLEARLINE System to “inhibit” (stop) generating chlorine.
CLEARLINE will flash the word Inhibit on the status screen and the green Inhibit LED will be illuminated.
Pump Mode and Time
Pump Mode: The CLEARLINE System can be wired to the vessel’s seawater intake pump controller for monitoring and/or to automate the seawater pump alternating
process. This optional feature is useful for vessels that have two seawater intake pumps that require scheduled manual cycling. The Pump Mode and Time feature automates
the manual process of alternating the operation of Pump #1 and Pump #2 for a specific time duration (i.e. every 24 hours).
Inhibit Mode
NOTE: Pump Mode and Time is an OPTIONAL feature. It is NOT REQUIRED for the CLEARLINE System to operate properly. See CLEARLINE Installation
Manual for details.
NOTE: Inhibit is an OPTIONAL feature. It is NOT REQUIRED for the CLEARLINE System to operate properly. See CLEARLINE Installation Manual for details.
>
CLEARLINE -Menu
Inhibit XX GPM
Auto
>-Pump Mode -Cell
-Pump Time -Default
-Flow Alert -Update
-Display -Exit
Pump Mode
-Pump#1 AND Pump#2
Alternating
OK to Exit

Modes and Features
7
7
U.S. and Foreign Patents Pending
The Pump Mode should be set up during the installation process. Refer to the table below to verify the Pump Mode is set correctly. Use the Up or Down arrow to
select Pump Mode.
Mode Description Wiring
Required
Pump Sense Not Used
Pump sensing is not being used. This is the factory default mode. (Note: If your vessel does not have
dual pumps and/or cannot be connected to CLEARLINE’s automatic pump cycling feature, then set Pump
Mode to “Pump Sense Not Used”).
No
Pump#1 and Pump #2
Alternating
Two seawater intake pumps are wired to the CLEARLINE System. Pump #1 and Pump #2 can be alternated
at a specific time duration from 10 minutes to 72 hours. The CLEARLINE System is controlling the ON/OFF
pump operation.
Yes
Pump#1 and Pump #2
Monitors
Two seawater intake pumps are wired to the CLEARLINE System. Pump #1 and Pump #2 can be monitored.
The CLEARLINE System is only monitoring and is NOT controlling the ON/OFF pump operation. Yes
Pump #1 ONLY Monitor One seawater intake pump is wired to the CLEARLINE System. Pump #1 is for monitoring only. Yes
Set Pump Time: This is an optional feature for vessels that have dual seawater intake pumps that are manually cycled. This feature sets the desired duration of
time that Pump #1 or Pump #2 operates. The Pump Time can be set to 10 minutes, and 1 hour intervals up to 24 hours, 48 hours, and 72 hours.
Use the Up or Down arrow to select Pump Time.
Pump Mode and Time continued
>
-Pump Mode -Cell
-Pump Time -Default
-Flow Alert -Update
-Display -Exit
Pump Time
24 hours
OK to Exit

Modes and Features 8
8
U.S. and Foreign Patents Pending
Flow Alert: The Flow Alert feature monitors seawater flow through the ClearCell. This feature allows the user to set a minimum flow rate threshold value and time
duration. If the seawater flow rate drops below a minimum value for a period of time, then “Flow Alert” will appear on the display (no audible alert).
This feature notifies the user that some part of the seawater circuit such as the intake, strainer, pump, or internal screen on the ClearCell requires cleaning or is
not functioning properly. Flow rate can be set in GPM or LPM, and time duration in minutes. To set the Flow Alert value go to MENU, Flow Alert, and enter desired
threshold flow rate and time duration for notification.
Flow Alert feature is default OFF from ElectroSea and must be set-up by the installer or end user.
CLEARLINE will continue generating chlorine even after a Flow Alert occurs. Flow Alert does not prevent CLEARLINE from operating.
If a Flow Alert occurs:
1. Check vessel’s strainers and intake grates for blockage
2. Check seawater pump operation
3. Check ClearCell Internal Screen (see Pg. 10-15)
>
-Pump Mode -Cell
-Pump Time -Default
-Flow Alert -Update
-Display -Exit
Optimal Performance
Constant Chlorinated Seawater Flow: The CLEARLINE System should be powered ON and have seawater flowing through the ClearCell at all times.
This provides the vessel’s seawater circuit with constant chlorinated seawater to prevent unwanted marine growth. Intermittent or stagnant
seawater that is not continuously electrochemically treated allows growth of marine microorganisms. Barnacles have the innate ability to close themselves
off and survive intermittent exposure to biocidal agents.
• DO NOT turn off seawater pumps, air conditioner, or chiller for an extended period of time.
Inspect the vessel for problem areas:
• Pre-existing biofouling in seawater lines prior to CLEARLINE installation.
• Clogged seawater strainers and intakes.
• Impacted, blocked or occluded lines from debris lodged in plumbing.
• Sporadic demand valve areas; depending on the system, valves that turn on and off can foster unwanted marine growth.
Flow Alert
NOTICE
NOTICE

9
U.S. and Foreign Patents Pending
CELL Indicator
9
CELL Indicator: The Control Unit will display “SALINITY/CELL”, “% OUTPUT” and illuminate the red CELL LED in various conditions. This is not an immediate cause for concern
and may be temporary depending on seawater salinity level. CLEARLINE will continuously attempt to generate chlorine and automatically resume standard operation when
conditions are resolved. The CELL indicator will be illuminated if any of the following conditions occur for multiple consecutive days:
• Water salinity is below 20 parts per thousand (most common cause of CLEARLINE CELL indicator notice)
• ClearCell cable or its connectors has been compromised
• ClearCell Electrode has excessive mud or other debris
• ClearCell Electrode is at the end of its useful life

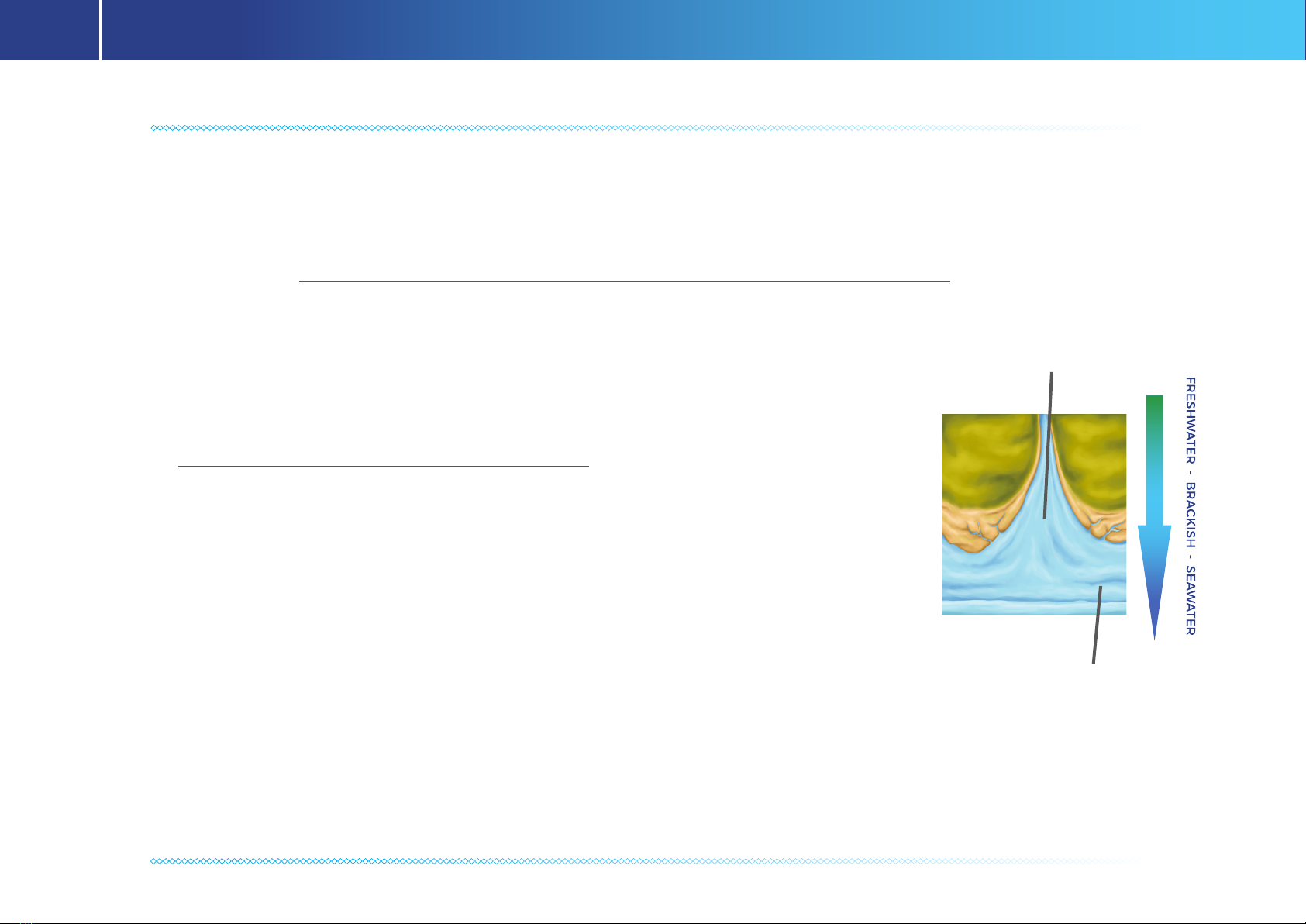

Water Salinity
• Vessels often encounter brackish or freshwater when cruising inland, and from extended storms and freshwater run-off.
• Low salinity is the most frequent cause of CLEARLINE CELL Indicator.
• CLEARLINE will not display “CLEANING” or generate chlorine while vessel is operating in freshwater.
RESOLUTION: Vessel returns to seawater with adequate salinity.
ClearCell Cable
• The ClearCell cable and connections must not be spliced, cut, compromised, or damaged.
• Inspect the Control Unit to ClearCell cable carefully. Look for any corrosion at the connectors.
RESOLUTION: Replace the ClearCell cable if it is compromised.
Excessive Mud or Other Debris
• If there is excessive mud or other debris, then the ClearCell Electrode may require a brief rinse with freshwater.
RESOLUTION: Follow instructions on Pg. 10-15.
ClearCell Electrode at End of Life
• When the ClearCell Electrode has reached the end of its useful life it can no longer generate chlorine. The ClearCell Electrode life is dependent on flow rate, hours of use,
seawater quality and other factors. The ClearCell Electrode will be effective for many years before replacement is required.
RESOLUTION: Contact your CLEARLINE dealer or ElectroSea directly.
CELL Indicator
ESTUARY
OCEAN

10
U.S. and Foreign Patents Pending
ClearCell 10
Low seawater flow may damage cooling system and
other components that depend on this water for proper operation. It is
the owner’s responsibility to monitor the vessel’s seawater flow and
perform any maintenance on the vessel’s seawater pumps, strainers,
and screen in ClearCell.

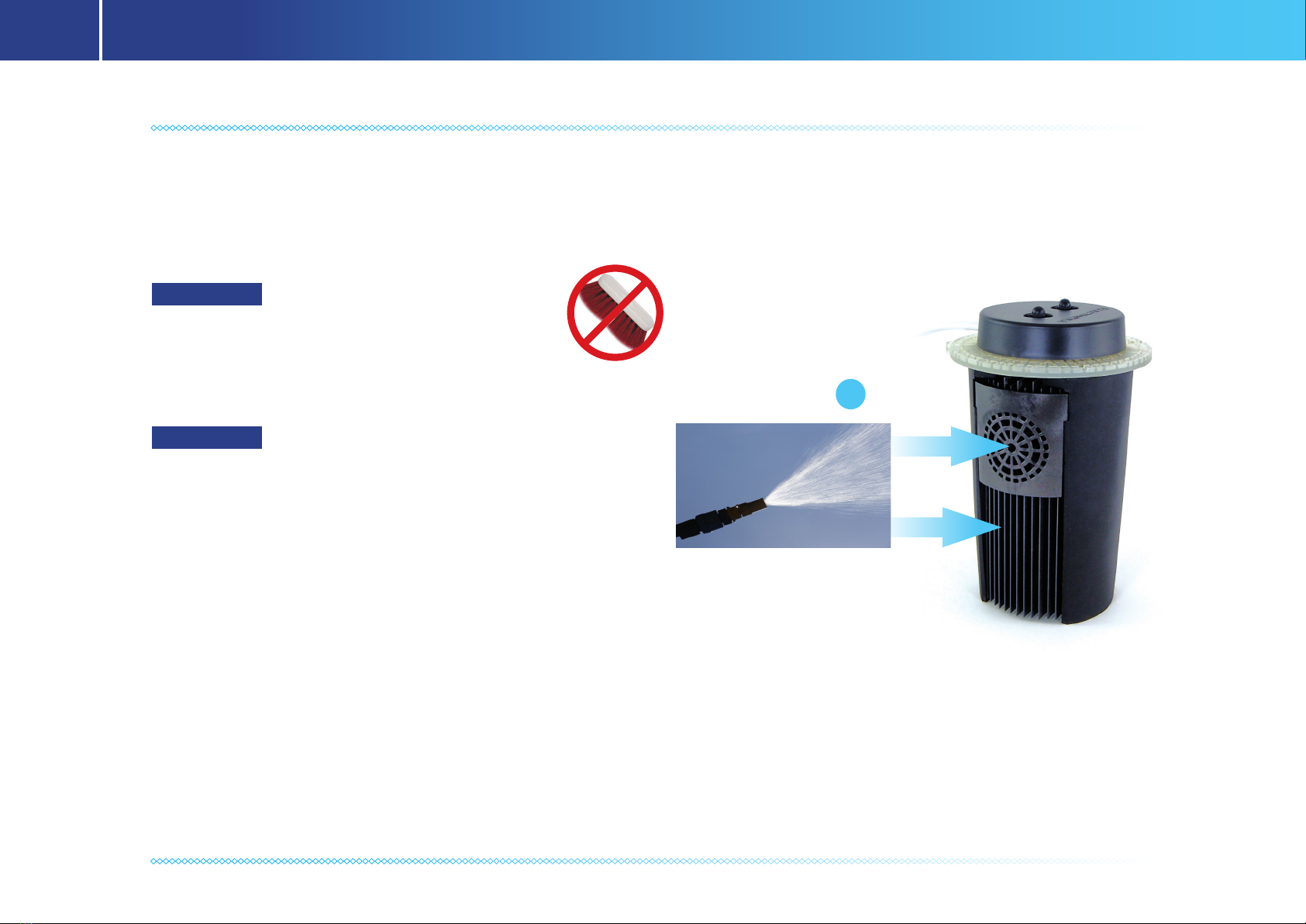

Internal Screen: The ClearCell contains an internal screen to catch debris before it reaches the flow sensor (debris, tiny shells, or other foreign materials that
pass through the vessel’s main strainer). The internal screen should be cleaned periodically, and whenever debris gets caught in the screen and decreases
seawater flow. Before accessing the ClearCell Electrode, double-check the list of Alerts and Indicators on Pg. 8 and 9 because the ClearCell infrequently requires
rinsing.
NOTICE Low Salinity is the most frequent cause of a CELL Indicator notice. Do not open ClearCell canister if you suspect the CELL indicator notice is
due to low salinity.
Internal Screen
NOTICE
Spray screen with
freshwater
to remove debris
NOTICE
• DO NOT PERFORM ACID DESCALING OF SEAWATER CIRCUIT AFTER
THE CLEARLINE SYSTEM HAS BEEN INSTALLED.
• DESCALING ACIDS OR CLEANING CHEMICALS WILL DAMAGE THE
CLEARCELL CANISTER, CLEARCELL ELECTRODE AND VOID THE WARRANTY.
• DO NOT TOUCH THE CLEARCELL ELECTRODE PLATES OR USE ANY TYPE OF
MECHANICAL BRUSH.
• THE CLEARCELL ELECTRODE PLATES CONTAIN A SPECIAL METAL OXIDE
COATING THAT WILL BE PERMANENTLY DAMAGED IF YOU HANDLE IT.

ClearCell
11
11
U.S. and Foreign Patents Pending

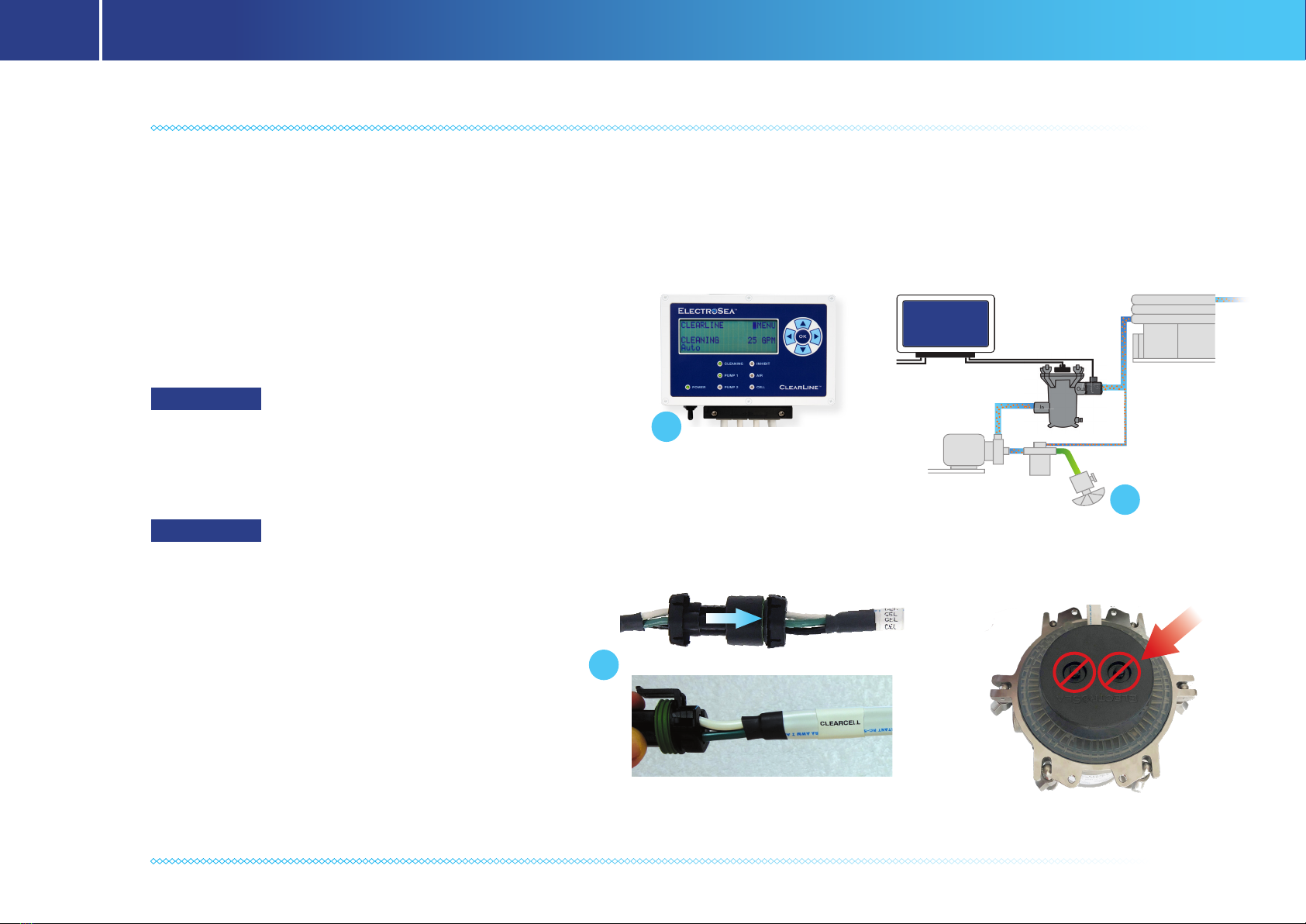

Before accessing the ClearCell Electrode, double-check the list of Alerts and Indicators on Pg. 8 and 9 because the ClearCell infrequently requires rinsing.
To access ClearCell Electrode:
1. Power OFF the CLEARLINE Control Unit.
2. Turn OFF ALL seacock valves in the seawater circuit at or below the
waterline. This includes any output seacocks to prevent back siphoning.
Failure to turn OFF ALL seacock valves
in the seawater circuit could result in sinking the vessel.
3. Disconnect the 1’ (30.5cm) cable labeled CELL that is located at the top
of the ClearCell unit. To disconnect this cable, do so at the cable connector.
DO NOT UNSCREW THE TWO BLACK PLASTIC CAP
1
2
3
DO NOT UNSCREW
PLASTIC CAP NUTS
Internal Screen Access
WARNING
NOTICE

ClearCell 12
12
U.S. and Foreign Patents Pending
4. Remove the pressure ring by turning
the wing nuts counterclockwise.
5. Remove the pressure ring.
4
5
6
6. Remove the Electrode Assembly by
lifting it straight up by the sides of
the black plastic top. Do not lift or
pull on the top cable connectors.

ClearCell
13
13
U.S. and Foreign Patents Pending
Spray plates and screen with freshwater
7
7. Spray the ClearCell Electrode Assembly with freshwater to remove any dirt or mud
between the plates or debris in the internal screen.
DO NOT TOUCH THE SURFACE BETWEEN THE
ELECTRODE PLATES, OR USE ANY TYPE OF MECHANICAL BRUSH.
THE CLEARCELL ELECTRODE PLATES CONTAIN A SPECIAL METAL
OXIDE COATING THAT WILL BE PERMANENTLY DAMAGED IF YOU
HANDLE IT.
DO NOT PUT ANY CHEMICALS, ACIDS,
DESCALING SOLUTIONS OR ZINCS IN THE CLEARCELL CANISTER
OR ON THE ELECTRODES. THIS WILL DAMAGE THE ELECTRODE.
NOTICE
NOTICE

ClearCell 14
14
U.S. and Foreign Patents Pending
8. Insert the ClearCell Electrode Assembly back into ClearCell canister.
The Electrode Assembly and Canister are keyed and only can be inserted in one
direction. Align the Electrode Assembly key and the ClearCell canister key and
insert it into the ClearCell canister.
9. Add the pressure ring and begin tightening down the wing nuts evenly.
Bleed all air out of the ClearCell canister, and then finish securing the wing nuts.
DO NOT use any tools to perform this tightening process. Work in a star pattern so
they are all evenly secure.
10. Double check to ensure all fittings, hose clamps and wing nuts are secure.
9
9
Lid Key
8
Canister
Keys
8

ClearCell
15
15
U.S. and Foreign Patents Pending
11
12
13
11. Reconnect the ClearCell Cable to the CLEARLINE Control Unit.
12. Open the seacocks and check for any leaks.
13. Turn the seawater intake pumps ON. The seawater intake pumps must be ON and
pumping seawater at normal flow rates for CLEARLINE to operate.
14. Turn ON the CLEARLINE System. The CLEARLINE Cleaning LED should be illuminated in
green and the display should state it is in Cleaning mode.
15. If the CELL Indicator is still active, then one of the following conditions still persists:
• Water salinity is below 20 parts per thousand
• ClearCell cable or its connectors has been compromised
• ClearCell Electrode has excessive mud or other debris
• ClearCell Electrode is at the end of its useful life
For further troubleshooting, see Pg.9 or Pg. 20; or contact your
CLEARLINE dealer or ElectroSea.
Any air trapped in the ClearCell canister must be bled out.
Cycle the seawater intake pump and/or loosen the ClearCell canister wing nuts to
bleed out excess air then re-tighten the ClearCell canister.
DO NOT restrict seawater flow to ClearCell canister.
14
NOTICE
NOTICE

Factory Default and Firmware Updates 16
16
U.S. and Foreign Patents Pending
-Pump Mode -Cell
-Pump Time -Default
-Flow Alert -Update
-Display -Exit
1. Default: This is the process to restore CLEARLINE to its original factory default settings. The user will press and hold the Up & Down arrows
simultaneously for 10 seconds to restore factory default settings.
2. Update: This allows the user to update the firmware using a USB memory drive supplied by ElectroSea. To perform a firmware update:
a. Insert the ElectroSea USB memory drive.
b. Go to the Update menu. Line 1 displays the current firmware version of the unit. Line 2 displays the available firmware version that
is on the USB memory drive. It is possible to upgrade or downgrade the firmware version.
c. Press and hold the Up & Down keys simultaneously for 10 seconds, then release the keys once the update begins.
d. During the update, the Control Unit is in a locked mode and cannot be used. The bottom line of the display will show the update progress.
e. Once the update is complete, the Control Unit will reboot.
f. Confirm the update was successful by going back to the Update menu. The display will show that the FW X.X is up to date.
In the event that the firmware update fails, the Control Unit maintains a redundant copy of the existing firmware. The
screen will display a result message at the end of an update attempt to confirm the update was successful. Repeat the steps above to
retry the firmware update if required.
Factory Default and Firmware Updates
>
Reset to Factory
HOLD UP & DOWN
for 10 seconds
OK to Exit
FW X.X Current
OK to Exit
NOTICE
-Pump Mode -Cell
-Pump Time -Default
-Flow Alert -Update
-Display -Exit
>

Inspection
17
17
U.S. and Foreign Patents Pending
The CLEARLINE System should be viewed during regular inspection of the vessel’s engine room. During normal operation, the CLEARLINE System status
screen will flash the message “Cleaning” and the green LED will be illuminated. This indicates the CLEARLINE System is generating a safe and effective low
level of chlorine preventing unwanted marine growth, barnacles, and biofilm in the seawater lines.
If there are any concerns during the regular inspection noted above, then perform a more thorough process:
• Visually inspect all wires and connections between the CLEARLINE Control Unit and the ClearCell.
• Disassemble the ClearCell and thoroughly flush and clean the internal screen (See Pg. 10-15)
• Visually inspect the Flow Sensor.
• Visually inspect seawater conduits to confirm marine growth prevention.
Inspection and maintenance are the responsibility of the vessel owner.
Periodic Inspection
NOTICE

Specifications 18
18
U.S. and Foreign Patents Pending
Specifications
CLEARLINE SYSTEM
Power: 24VDC
7 Amp Max Peak Current
Normal Operating Flow: 35 – 75 GPM (132.5–283.9 LPM)
Maximum Pressure: 70 psi
CLEARCELL
Size: 10.2 inches (26cm) – height
8.4 inches (21.3cm) – diameter / width
CLEARLINE CONTROL UNIT
Size: 10.0 inches (25.4cm) – width
7.0 inches (17.8cm) - height (without cables)
3.25 inches (8.3cm) - depth

Summary Modes & Trouble-Shooting
19
19
U.S. and Foreign Patents Pending
Modes and Troubleshooting
Mode Description Action
OFF Unit is powered ON, but is in the OFF state. No seawater is flowing
through the system. This is a normal operating mode provided there is no seawater flow.
Cleaning The mode for cleaning and preventing biofouling by chlorinating
seawater. This is a normal operating mode. See Pg. 5 for Cleaning.
Auto
The mode for automatically optimizing the level of chlorinated
seawater based on multiple input parameters including flow rate,
key electrical parameters, and environmental temperature.
This is a normal operating mode. See Pg. 5 for Auto Mode.
Min Flow The flow rate is 1–3 GPM (3.8–11.4 LPM), and is too low to
chlorinate seawater.
The Min Flow indicator will disappear when the seawater
flow rate >4 GPM (>15.1 LPM).
No Flow The flow rate is 0 GPM. The No Flow indicator will disappear when the seawater flow returns.
Inhibit
(1) 24VDC or 12VDC, and/or (1) 240VAC or 120VAC input from a
baitwell or Reverse Osmosis unit indicates that the CLEARLINE
System should not generate chlorine.
This is a normal operating state. See Pg. 6 for Inhibit.
Pump #1 Pump #1 is operating. This is a normal operating state. See Pg. 6-7 for Pump Modes.
Pump #2 Pump #2 is operating. This is a normal operating state. See Pg. 6-7 for Pump Modes.
