Element4 Club 240H F User manual

1
Element4 Gas Fireplaces Rev #01272020 www.EuropeanHome.com
Installation, Operation and Owner’s Manual
Direct Vent Gas Fireplaces
HOT GLASS WILL Une surface vitrée chaude
CAUSE BURNS. peut causer des brûlures.
DO NOT TOUCH GLASS Laisser refroidir la surface
UNTIL COOLED. vitrée avant d’y toucher.
NEVER ALLOW CHILDREN Ne permettez jamais á un enfant
TO TOUCH GLASS. de toucher la surface vitrée.
A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and shall be installed
for the protection of children and other at-risk individuals.
Une barrière conçu pour réduire le risque de brûlure par le verre de visualisation chaude est fournie avec cet appareil et doit
être installé pour la protection des enfants et autres personnes à risque.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
INSTALLATEUR: Laissez cette notice avec l’appareil.
CONSOMMATEUR: Conservez cette notice pour
consultation ultérieure.
- Do not store or use gasoline or other ammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call
the re department.
- Installation and service must be performed
by a qualied installer, service agency or the
gas supplier.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could
result in serious injury, death, or property damage.
- Ne pas entreposer ni utilizer d’essence ni d’autres vapeurs
ou liquides inammables dans le voisinage de cet appareil
ou de tout autre appareil.
- QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ
• Ne pas tenter d’allumer d’appareil.
• Ne touchez á aucan interrupteur. Ne pas vous servir des
téléphones se trouvant dans le bátiment ou vous trouvez.
• Quitter immédiatement le bâtiment.
• Appelez immédiatment votre fournisseur de gaz depuis
un voisin. Suivez les instructions du fournisseur.
• Si vous ne pouvez rejoindre le fournisseur de gaz
appelez le service des incindies.
- Installation et l’entretien doivent être e󰀨ectués par un
installateur qualié, une agence de service ou le fournisseur
de gaz.
AVERTISSEMENT:
INCENDIE OU D’EXPLOSION
Le non-respect des avertissements de sécurité à la
lettre pourrait entraîner de graves blessures , la mort
ou des dommages matériels.
January 2020
4006611
Club 240H F
Club 240H C
Club 240H T
Club 240H R

Important Safety Information............................................................................................. 4
Key Installation Points ........................................................................................................... 7
Planning Your Gas Fireplace... ............................................................................................. 8
User Information....................................................................................................................10

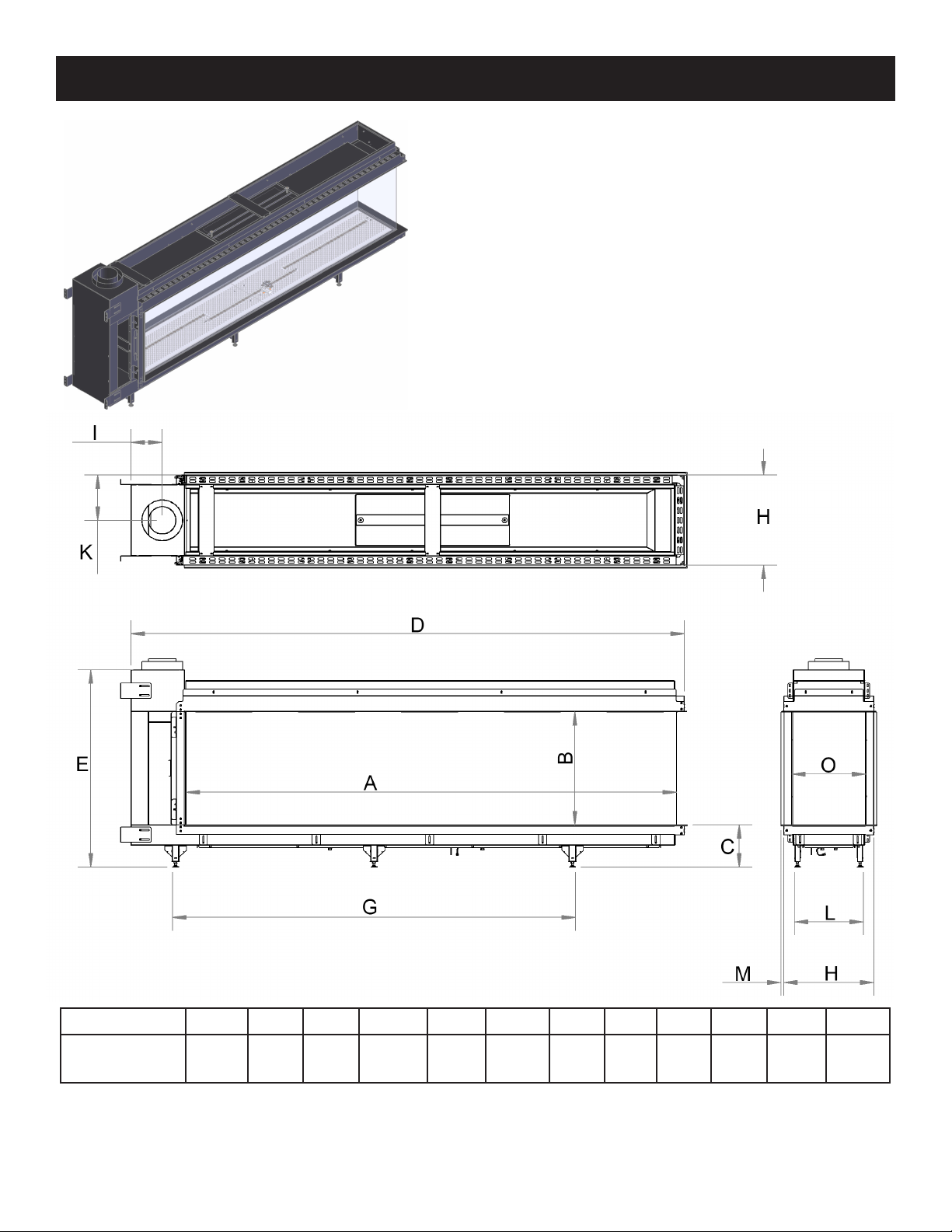

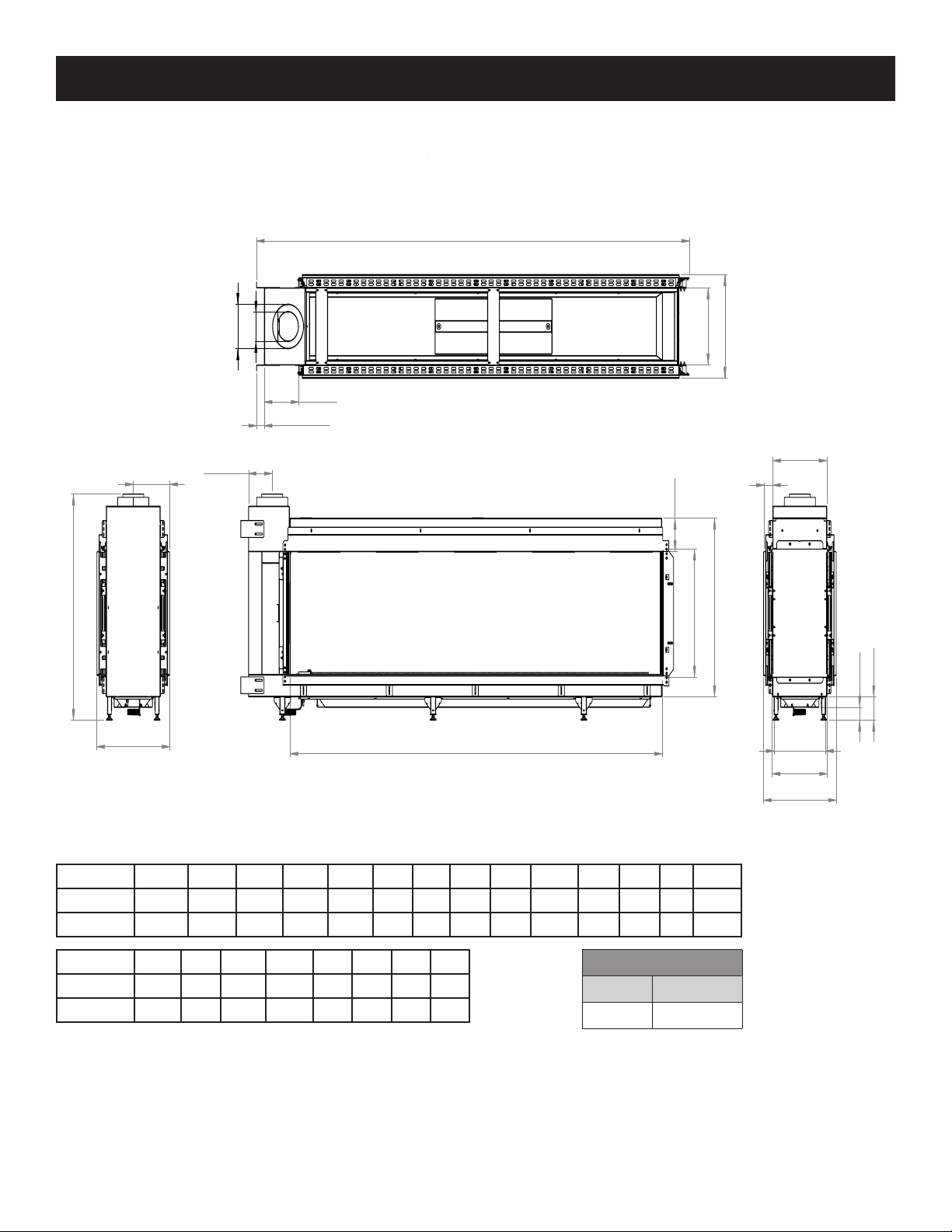

Specications and Dimensions........................................................................................11
Clearances................................................................................................................................18
Locating the Fireplace 18
Placing the Fireplace 18
Clearances to Combustibles 19
Clearances to Non-Combustibles 19

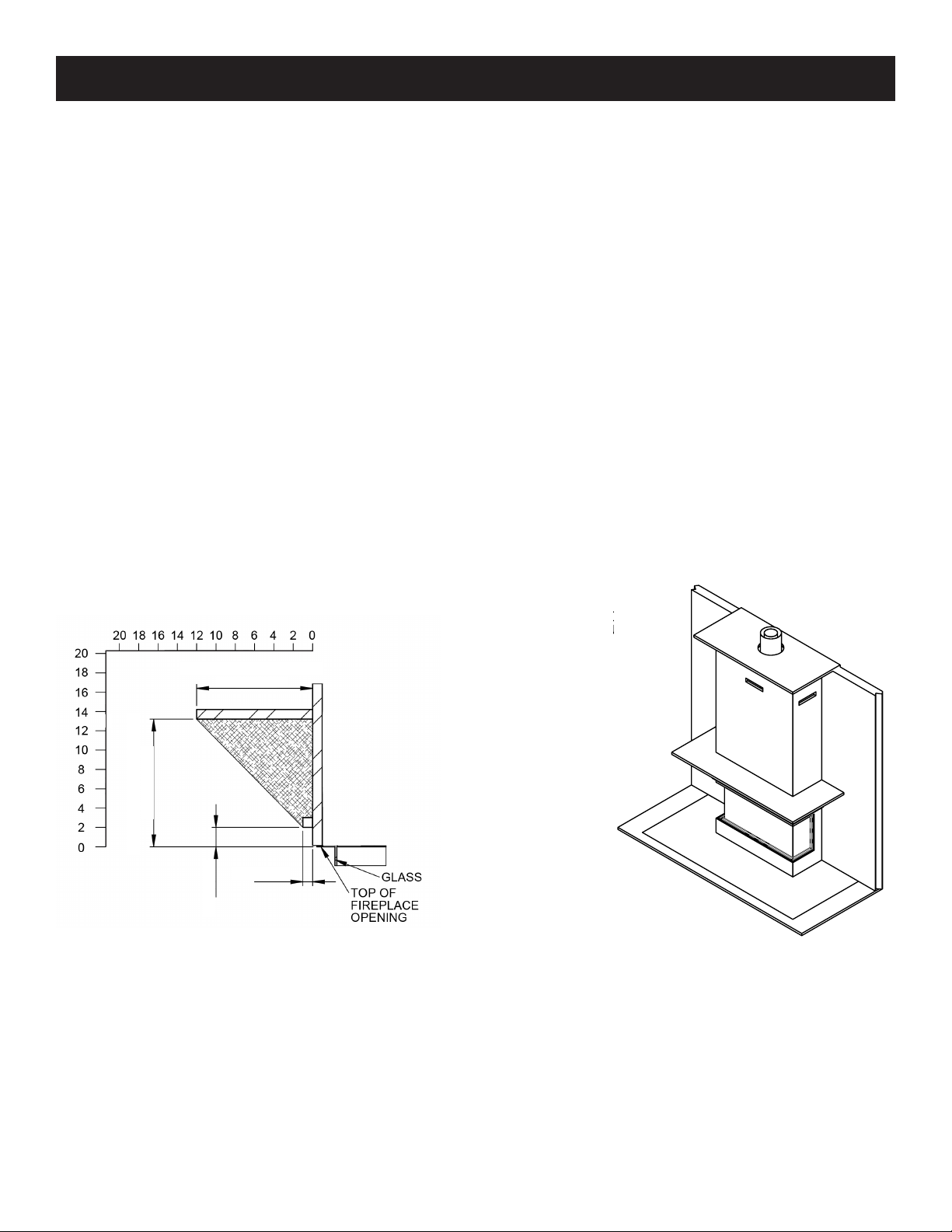

Mantel Clearances 20
Convection Clearances 21
Gas and Electric......................................................................................................................22
Venting......................................................................................................................................23
Conguration 23
Venting Charts 26
Venting Clearances 27
Enclosing the Fireplace .......................................................................................................29
Non-Combustible Materials List 29
Rough Opening Dimensions 32
Convection Air Opening 36
Cold Climate Installation 38
Wall Access Door (Locating and Mounting) 38
Installing the Fire Media .....................................................................................................40
Screen Installation.................................................................................................................41
Operating the Fireplace ......................................................................................................43
Maintenance ...........................................................................................................................51
Glass 51
Burner 54
Pilot 54
Thermocouple 55
Venting 55
Replacement Parts................................................................................................................56
Warranty ...................................................................................................................................62
Massachusetts Certication.......................................................................Appendix One
Troubleshooting ...........................................................................................Appendix Two
Connecting To A Smart Home System................................................Appendix Three
Installing the Optional Black Glass.........................................................Appendix Four
Error Codes.. ....................................................................................................Appendix Five
TABLE OF CONTENTS

4
Element4 Gas Fireplaces Rev #01272020 www.EuropeanHome.com
IMPORTANT SAFETY INFORMATION
CAUTION - HOT! HOT! HOT!
This appliance is a HEATING appliance and it does become very hot in operation.
UNDER ANY CIRCUMSTANCES, DO NOT PLACE any object, furniture, draperies or other item LESS THAN 36” (90 cm) IN
FRONT OF THE GLASS OF THE FIREPLACE.
CHILDREN AND PETS
Radiant heat can heat surfaces such as the surround and trims of the replace to temperatures that, although approved
safe, can be quite uncomfortable to touch - particularly for children and pets. Children and pets should always be
supervised when in the room where the appliance is located. Remote control handset should be kept out of reach of
children. In the presence of children, we STRONGLY RECOMMEND that you install in front of the replace: a re screen or,
to protect young toddlers, a “hearth gate”.
HOT SURFACES
Be aware that, although safe, some combustible materials and nishes, even though
installed at listed clearances may, over time, discolor, warp or show cracks.
Convective heat will exit the unit and travel up the wall surface if not impeded. Protruding
mantels and projections can help direct the heat away from the wall. AVOID placing heat
sensitive items such as televisions, paintings, decorations, etc. above replaces or near the
edge of protrusions unless appropriate.
SAVE THESE INSTRUCTIONS
Make yourself fully aware of all the following instructions and the many features of the Element4
direct vent gas replace appliance.
INSTALLER: Leave this manual with the appliance.
OWNER: Keep this manual for future reference.
Do not place furniture or other objects
within 36” of the replace glass.

5
Element4 Gas Fireplaces Rev #01272020 www.EuropeanHome.com
IMPORTANT SAFETY INFORMATION
WARNING
Children and adults should be alerted to the hazards of
high surface temperature and should stay away to avoid
burns or clothing ignition.
WARNING
This direct vent system appliance must be installed as an
OEM installation in manufactured homes (USA only) or
an aftermarket permanently located, or a mobile home,
where not prohibited by local codes and must be
installed in accordance with Manufacturer’s instructions
and the Manufactured Home Construction and Safety
Standard, Title 24 CFR, Part 3280, in the United States, or
the Standard for Installation in Mobile Homes, CAN/CSA
Z240 MH Series, in Canada.
If the information in these instructions is not followed
exactly a re or explosion may result causing property
damage, personal injury or death.
Do not store or use gasoline or other ammable vapors
and liquids in the vicinity of this appliance.
WARNING: Installation and Service
Installation and service must be performed by an
authorized qualied installer, service agency or gas
supplier.
Any alteration to the product that causes soot or carbon to
form and results in damage is not the responsibility of the
manufacturer.
ONLY a qualied person may open the door/remove the
glass.
Do not modify or substitute any part of this appliance.
WARNING: Glass Handling
The glass must only be removed by a qualied person.
Gloves should be worn when removing the glass.
WARNING: Electrical Grounding
These direct vent appliances must be electrically
grounded in accordance with the local codes or, in the
absence of local codes, with National Electric code, ANSI/
NFPA 70, or the Canadian Electric Code, CSA C22.1
WARNING: Gas Appliance
This appliance is only for use with the type of gas
indicated on the rating plate. These appliances are not
convertible for use with other gases unless a certied kit
is used and the conversion is performed by an authorized
qualied technician.
Applicable standards are ANSI Z21.50/CSA 2.22 (Vented
Gas Fireplaces) and CAN/CGA 2.17-M91 (Gas-red
Appliances for Use at High Altitudes.) If your installation
is at an elevation greater than 2000’ in the US or 4500’
in Canada, consult with the local authority having
jurisdiction for gas product installations to determine their
specic requirements for high altitude installations.
WARNING: Gas Supply Testing
This appliance and its appliance main gas valve must be
disconnected from the gas supply piping system during any
pressure testing of that system at test pressures in excess of
½ psi (3.5 kPa).
This appliance must be isolated from the gas supply piping
system by closing the equipment shuto valve during any
pressure testing of the gas supply piping system at test
pressures equal to or less than ½ psi (3.5 kPa).

6
Element4 Gas Fireplaces Rev #01272020 www.EuropeanHome.com
IMPORTANT SAFETY INFORMATION
This gas replace and vent assembly MUST be vented
directly to the outside and MUST NEVER be attached to a
chimney serving a separate solid fuel burning appliance.
Each gas appliance MUST BE a separate vent system.
Common vent systems are prohibited.
This unit MUST be used with a vent system as described
in this installation manual. NO OTHER VENT SYSTEM OR
COMPONENTS MAY BE USED.
INSPECT the external vent cap on a regular basis to make
sure that no debris, plants, trees, or shrubs are interfering
with the air ow.
NEVER OBSTRUCT the ow of ventilation air. Keep the
front of the appliance CLEAR of all obstacles and materials
for servicing and proper operation.
The glass panels MUST be in place and sealed before the
unit can be placed into safe operation.
DO NOT OPERATE this appliance with the glass panels
removed, cracked or broken. Replacement of the glass
panels should be performed by a licensed or qualied
service person. DO NOT strike or slam the glass panels.
The glass panels SHALL ONLY be replaced by units
supplied by the manufacturer. NO SUBSTITUTE panels
shall be used.
DO NOT USE abrasive cleaners on the panels. DO NOT
ATTEMPT to clean the glass panels when they are hot.
TURN OFF the gas before servicing the appliance. It is
recommended that a qualied service technician perform
an appliance check-up/service once a year.
Any safety screen or guard removed for servicing MUST BE
REPLACED before operating this appliance.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL, and must
only be used with gas supply conditions as indicated on
the rating label.
DO NOT USE this appliance if any part has been under
water. Immediately call a qualied service technician to
inspect the unit and to replace any part of the control
system and any gas control that has been under water.
DO NOT use this appliance as a temporary source of heat
during construction.
This appliance is a vented gas replace. It must not be
used for any other purposes such as drying clothes, etc.
If the pilot ame is extinguished either intentionally or
unintentionally, no attempt should be made to re-light the
gas until at least 3 minutes have elapsed.
Dimensions will appear as INCHES”/metric throughout
this manual. For convenience, the inches are rounded to
the nearest 1/16” when converted. If greater accuracy is
required, use the metric dimensions.
This appliance is for indoor use only.

7
Element4 Gas Fireplaces Rev #01272020 www.EuropeanHome.com
KEY INSTALLATION POINTS
IMPORTANT
INFORMATION
This page references the most important key installation points when installing any Element 4 replace. This
page DOES NOT substitute for reading the entire manual.
FRECORDS
The installer MUST record the serial number and venting conguration to use for any technical issues that
may arise.
FELECTRICAL
An approved 120V AC wall receptacle is required. The receiver MUST be powered by the AC adapter. Four
AA batteries may be used only for on-demand electrical requirement during power outage.
FFIRE MEDIA
When installing the re media make sure to NEVER mix dierent types of media or use media purchased
from another retailer. ALWAYS keep the second thermocouple AND pilot free from media.
FAIR OUTLETS
The warm air outlets MUST be installed BEFORE the rst light. The amount of square inches needed for the
opening varies from model to model.
FENCLOSING THE FIREPLACE
ONLY a tested and approved non-combustible wallboard that is specied in the manual may be used when
enclosing the replace.
FFRAMING
The dimensions are dierent between metal and wood framing. Know which material you are using and
know the framing requirements.
FVENTING
The venting MUST follow the model specic graph shown in the manual. A restrictor may or may not need
to be used based on venting run and rise.
FCONSTRUCTION DEBRIS
REMEMBER that if the replace is installed before the site is nished, construction debris MUST be cleaned
from the enclosure and around the unit prior to nishing and the test re.
FGAS PRESSURES
Gas pressures MUST be read with a manometer and conrmed with what is required in the installation
manual.
FFINISHING
A ⁄” (3 mm) gap between the ange and the enclosing wallboard MUST be maintained to prevent cracking
from heat expansion and contraction.
6

8
Element4 Gas Fireplaces Rev #01272020 www.EuropeanHome.com
PLANNING YOUR GAS FIREPLACE

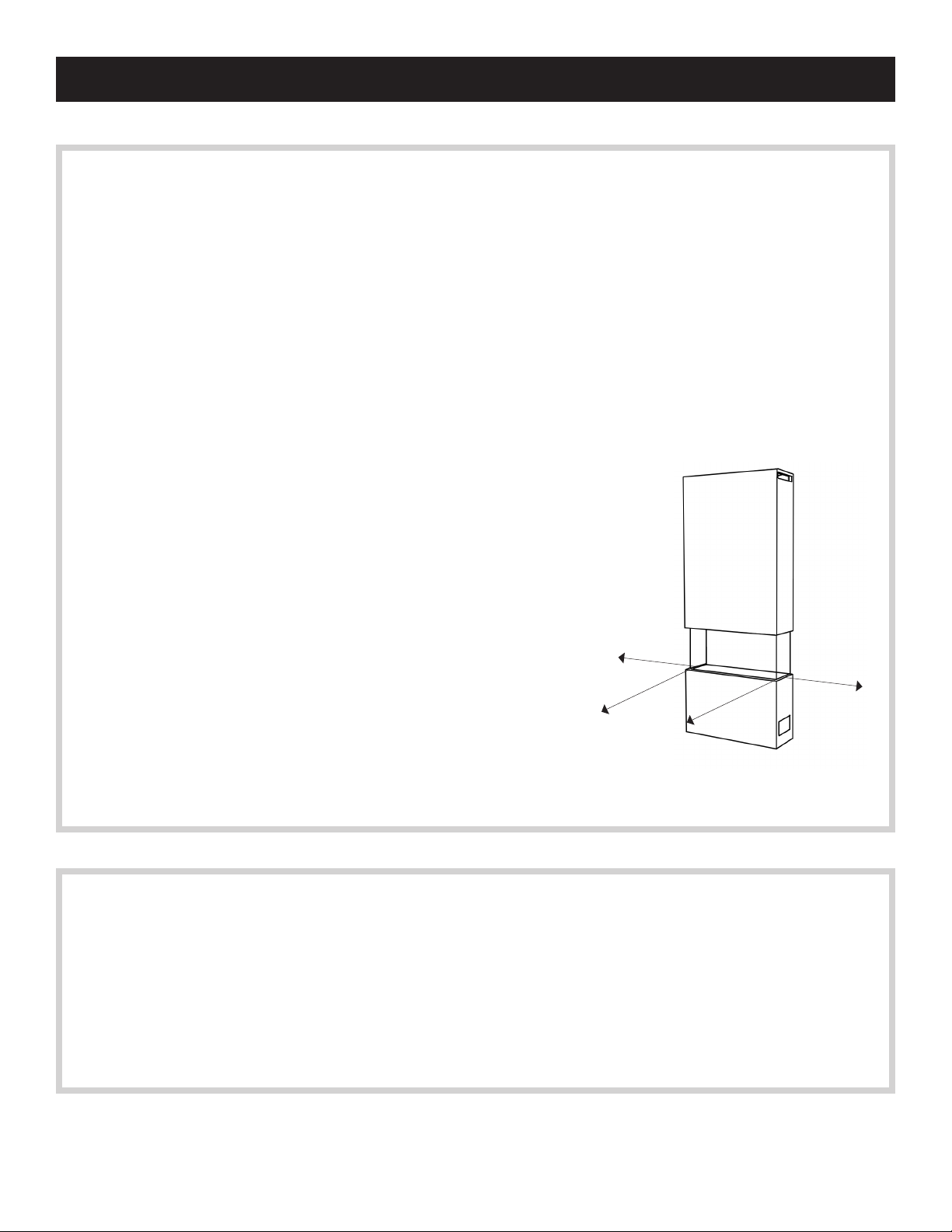

PLANNING YOUR GAS FIREPLACE
Element4 Gas Fireplaces EuropeanHome.com
1
Before You Begin
• Since the Element4 replaces are vented gas appliances they must be installed by a qualied installer.
Your sales representative can help you choose the appropriate professional.
Overall Design
• One of the many features of the Element4 replace is its use of convective air ow.
• As the air within the enclosing walls, or chase, is warmed by the replace it rises and then exits the
Convection Air Outlet(s). The warm air in the chase is then replaced by room air which enters through
the Room Air Inlets. As this warm air cools it falls toward the oor where it’s drawn into the inlet and the
cycle repeats.
• The Room Air Inlets are part of the replace and cannot be blocked or adjusted. The amount of square
area required for your Convection Air Outlet(s) is determined by the replace model and is listed in the
installation manual.
• As seen in the illustrations, below, the outlets may be placed in a number of locations to accommodate
all types of designs. In all cases, though, your design must allow the free ow of air through the chase.
Convection Air Outlets
near ceiling showing
warm air ow.
Half-wall conguration
with Convection Air
Outlet set into top.
Convection Air
Outlets set into
bottom of reveal.
Convection Air
Outlets set on
side walls.

9
Element4 Gas Fireplaces Rev #01272020 www.EuropeanHome.com
PLANNING YOUR GAS FIREPLACE
PLANNING YOUR GAS FIREPLACE
Element4 Gas Fireplaces EuropeanHome.com
2
Call our Technical Team if you have any Questions:
781-324-8383 x. 502
30 Log Bridge Road
Building 300 - Suite 303
Middleton, Ma 01949
www.EuropeanHome.com
Important Points
• The most important question to ask when locating your replace is,“Can it be eectively vented?”The
Element4 replaces are approved as “direct vent”appliances. This means that all of the air for combustion
comes directly from the outside and all of the ue gases are discharged directly to the outside by way of
co-axial 5” x 8”direct vent pipe.
• The venting can run vertically, horizontally or a combination of both. For example, it can be installed
near and vented through an exterior wall. Or it can be installed near the center of your home and vented
through the roof. In any case, the installation manual details the allowable congurations, distances and
clearances. If the venting falls outside of the vent graphs, a power vent is available.
• The next question to ask is,“Can I get my gas pipe to the replace?”The Element4 replaces burn either
natural gas (NG) or propane gas (LP.) Your sales representative will ask you for your requirement at the
time of order and your gas professional (usually your plumber) can advise you on the most eective
route for the gas supply within your home.
• In order to keep the look as contemporary as possible the replace controls are mounted away from the
replace but within a radius of approximately 50” (1250 mm) from center of the replace (on most mod-
els). These controls are attached to the frame behind an access door (included) which measures 8 3/8”
(213 mm) by 11 1/4”(285 mm) overall. This access door is then mounted in your wall lower than the level
of the replace opening, outside the combustible zone, or insulated from the heat of the replace. Your
design must take this access door into consideration.
• This sheet is not intended to replace the Element4 Installation Manual. In all cases, the information and
instructions in the Element4 Installation Manual must be followed. The Element4 Installation Manual is
included with your replace and is available at www.europeanhome.com Please call us if you have any
questions or are uncertain about any aspect of your installation!
Let Us Help
• European Home and its retail partners are here to assist you with your unique replace design. Let us
help you today!
PLANNING YOUR GAS FIREPLACE
Element4 Gas Fireplaces EuropeanHome.com
2
Call our Technical Team if you have any Questions:
781-324-8383 x. 502
30 Log Bridge Road
Building 300 - Suite 303
Middleton, Ma 01949
www.EuropeanHome.com
Important Points
• The most important question to ask when locating your replace is,“Can it be eectively vented?”The
Element4 replaces are approved as “direct vent”appliances. This means that all of the air for combustion
comes directly from the outside and all of the ue gases are discharged directly to the outside by way of
co-axial 5” x 8”direct vent pipe.
• The venting can run vertically, horizontally or a combination of both. For example, it can be installed
near and vented through an exterior wall. Or it can be installed near the center of your home and vented
through the roof. In any case, the installation manual details the allowable congurations, distances and
clearances. If the venting falls outside of the vent graphs, a power vent is available.
• The next question to ask is,“Can I get my gas pipe to the replace?”The Element4 replaces burn either
natural gas (NG) or propane gas (LP.) Your sales representative will ask you for your requirement at the
time of order and your gas professional (usually your plumber) can advise you on the most eective
route for the gas supply within your home.
• In order to keep the look as contemporary as possible the replace controls are mounted away from the
replace but within a radius of approximately 50” (1250 mm) from center of the replace (on most mod-
els). These controls are attached to the frame behind an access door (included) which measures 8 3/8”
(213 mm) by 11 1/4”(285 mm) overall. This access door is then mounted in your wall lower than the level
of the replace opening, outside the combustible zone, or insulated from the heat of the replace. Your
design must take this access door into consideration.
• This sheet is not intended to replace the Element4 Installation Manual. In all cases, the information and
instructions in the Element4 Installation Manual must be followed. The Element4 Installation Manual is
included with your replace and is available at www.europeanhome.com Please call us if you have any
questions or are uncertain about any aspect of your installation!
Let Us Help
• European Home and its retail partners are here to assist you with your unique replace design. Let us
help you today!

10
Element4 Gas Fireplaces Rev #01272020 www.EuropeanHome.com

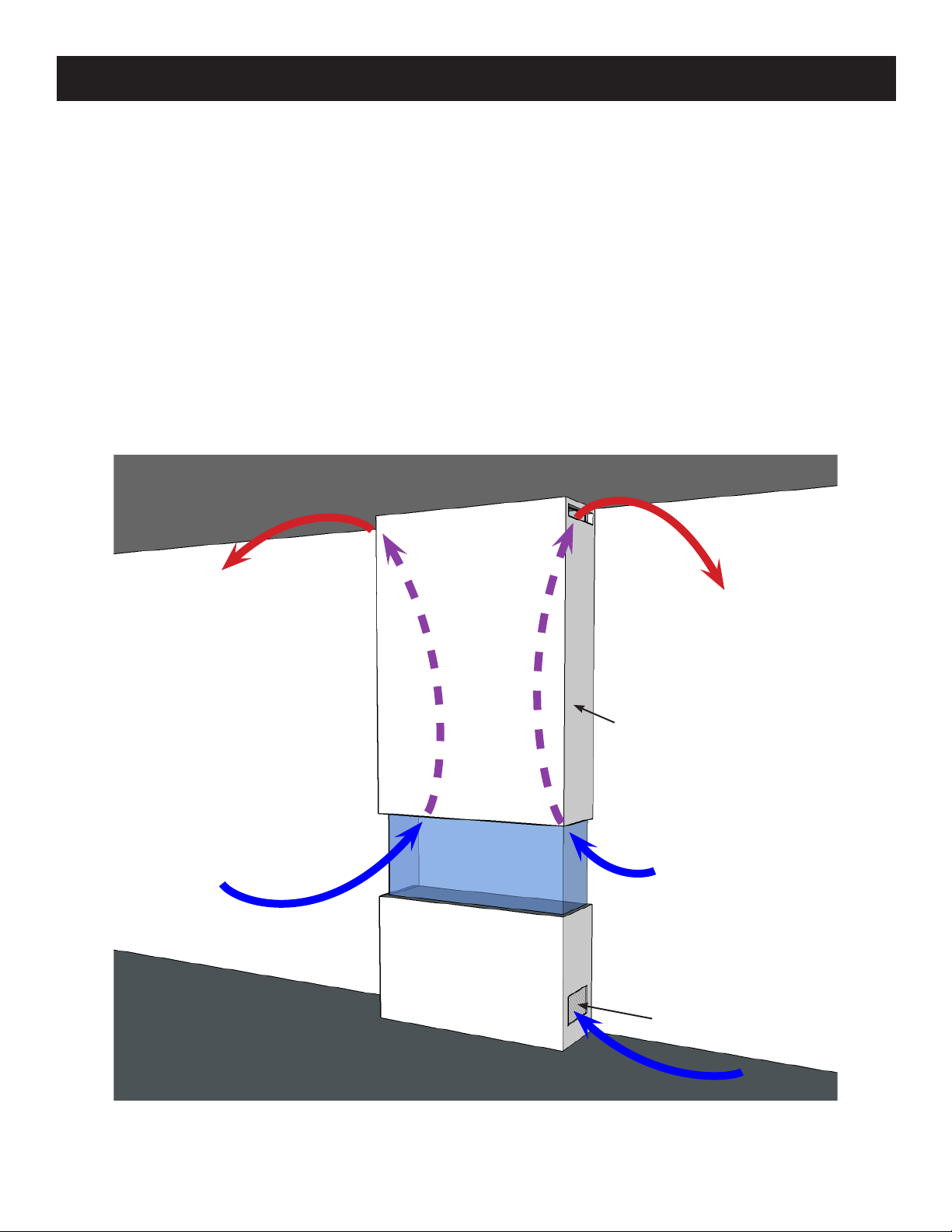

USER INFORMATION
Room Air In
WARMTH AND BEAUTY  HOW IT WORKS
Warm Air Out
Site-built Chase
Room Air In
Access Door
Room Air In
Warm Air Out
The Element4 replaces are direct vent replaces and, as such, the intake and exhaust are both handled through the vent pipe. The
replace also provides convection air to your room. The illustration shows one of the unique features of the Element4 replaces - its
use of warm, convection air ow.
Other replaces have louvered metal boxes around them to keep temperatures under control. The Element4 replaces use your
enclosing walls, or chase, to guide this warm air.
When the air within the chase is warmed by the replace, it exits through an air outlet that you have provided. This chase air is then
replaced by room air which enters through the Air Inlet (provided by the replace design) and through the Wall Access Door. As the
exiting warm air cools, it falls to the oor where it's drawn into the inlets and the cycle repeats.
The replace provides the inlet for room air as part of its design; you provide the warm air outlet as part of your design.
See the ENCLOSING the FIREPLACE section of this manual for more information.
Figure 1

11
Element4 Gas Fireplaces Rev #01272020 www.EuropeanHome.com

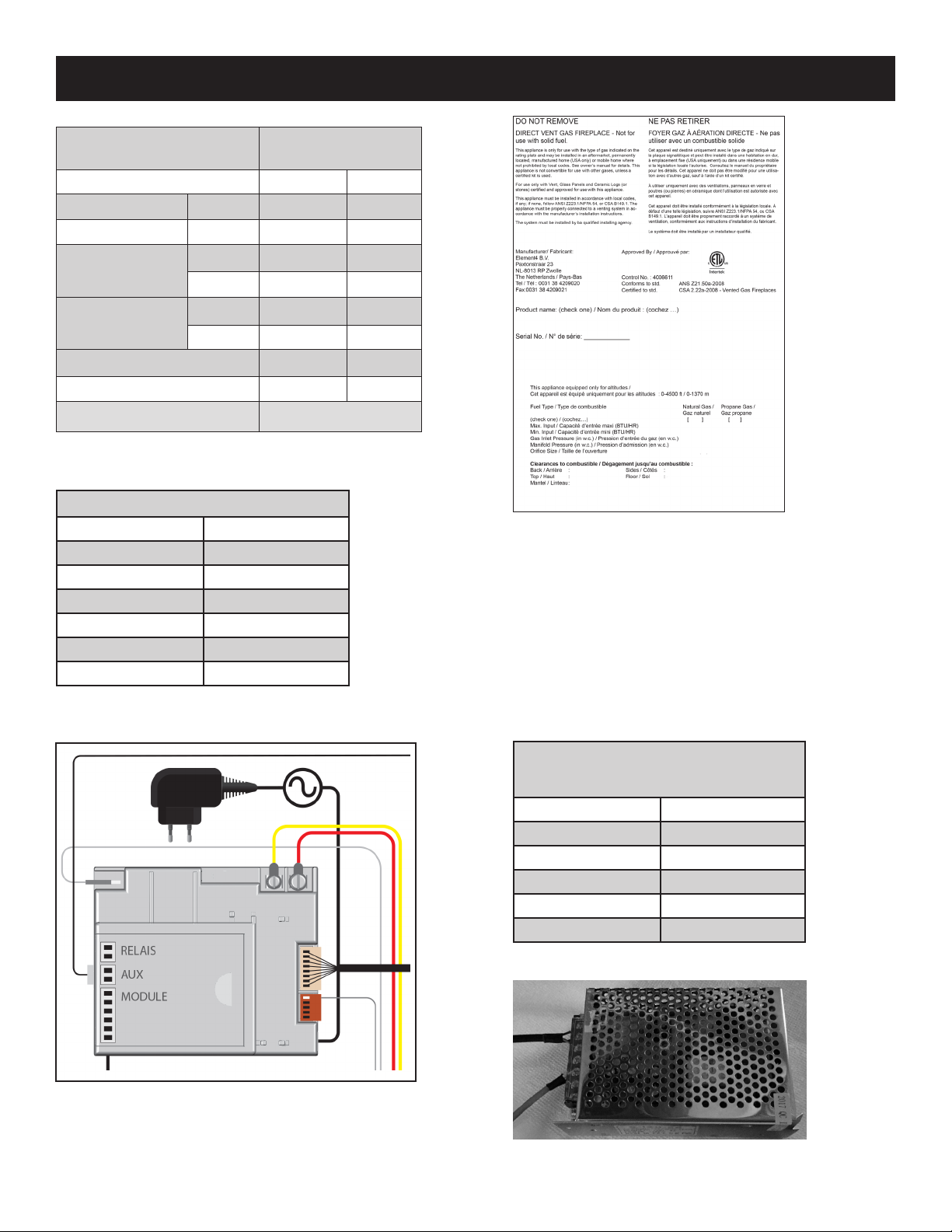

SPECIFICATIONS and DIMENSIONS
APPLIANCE RATINGS
ModelAll Club 240H Series
Gas Natural Gas Propane
Input Maximum Btu/hr 88,000 64,800
Input Minimum Btu/hr 26,000 19,500
Inlet Pressure in. w.c. 7 11
kpa 1.74 2.74
Manifold Pressure in. w.c. 3.4 10.6
kpa 0.85 2.64
Main Burner Injector Marking 1400 560
Pilot Injector Marking 31.2 27.1
Eciency 80.6%
AC ADAPTER SPECIFICATIONS
Input Voltage 120V AC
Input Power 9 W
Output Voltage 6V DC
Output Current 500 mA
Size 3.1”H x 2”W x 1.7”D
Output Cord Length 6 Feet
Agency Approvals UL, CSA
This product was tested and listed to
ANSI Z21.11.50a-2008 and CSA2.22a-2008
“Vented Gas Fireplaces” by Intertek Group.
(Figure 3)
A sample listing label image is shown
above. A metal listing label is attached
to every Element4 replace and contains
important certication information. The
listing label must not be removed from
24V POWER SUPPLY
SPECIFICATIONS
Input Voltage 120V AC
Input Power 120W
Output Voltage 24V DC
Size 1.7”H x 4”W x 6.25”D
Output Cord Length 3 Feet
Agency Approvals CE, FCC
8 LL
Figure 7: 24V Power Supply
Figure 5: AC Adapter Connection
Figure 2
Figure 3
Figure 4
Figure 6

12
Element4 Gas Fireplaces Rev #01272020 www.EuropeanHome.com
SPECIFICATIONS and DIMENSIONS
CLUB 240H F
(Vent can be ordered on either side)
Figure 8
manufactured by
Element4 B.V. Modore 240H Cut Sheet
01/2020
EuropeanHome
distributed by
This information is for reference only. Please consult the Installation Manual for all details prior to making any design decisions.
Conversions from millimeters are rounded to the nearest fraction. A DWG le is available at www.europeanhome.com
www.EuropeanHome.com
LETTER A B C D E G H I K L M
INCHES
[MILLIMETERS]
94 ¼
[2395]
21 ⁄
[550]
8 ⁄
[205]
107 ⁄
[2721]
37 ¾
[959]
77 ⁄
[1960]
16 ⁄
[423]
8
[204]
6
[152]
13 ⁄
[336]
½
[13]
CLUB 240H F

13
Element4 Gas Fireplaces Rev #01272020 www.EuropeanHome.com
SPECIFICATIONS and DIMENSIONS
A downloadable DWG le is available at www.europeanhome.com for dimensions not shown.
A A
D D
DRAWN
Club 240 Corner
E4-23
CLUB 240H RC (Club 240 LC is a mirror image)
(Vent is opposit side of side glass)
A
B
C
D
E
F
G
H
I
J
K
L
M
NOP
R
S
TU
V W
Letter A B C D E F G H I J K L M N O P R
Inches 108⁄ 8⁄ 2 6 93¾ 3 2½ 9⁄ 2⁄ 13⁄ 13 13⁄ 16½ 5⁄ 7⁄ 17⁄ 5⁄
Millimeters 2751 221 50 152 2381 75 64 233 60 346 330 352 418 130 200 436 150
Letter S T U V W
Inches 39⁄ 22⁄ 31½ 2⁄ 4⁄
Millimeters 1013 574 800 58 105
Unit Weight
Pounds Kilograms
551 250
Figure 9

14
Element4 Gas Fireplaces Rev #01272020 www.EuropeanHome.com
SPECIFICATIONS and DIMENSIONS
Figure 10
manufactured by
Element4 B.V. Lucius 240H Cut Sheet
01/2020
EuropeanHome
distributed by
This information is for reference only. Please consult the Installation Manual for all details prior to making any design decisions.
Conversions from millimeters are rounded to the nearest fraction. A DWG le is available at www.europeanhome.com
www.EuropeanHome.com
LETTER A B C D E G H I K L M O
INCHES
[MILLIMETERS]
93 ⁄
[2385]
21 ⁄
[550]
8 ⁄
[205]
105 ⁄
[2691]
37 ¾
[959]
77 ⁄
[1960]
17 ¼
[438]
6
[152]
8 ⁄
[219]
13 ⁄
[336]
½
[13]
14 ⁄
[360]
CLUB 240H R
CLUB 240H R

15
Element4 Gas Fireplaces Rev #01272020 www.EuropeanHome.com
SPECIFICATIONS and DIMENSIONS
CLUB 240H T
A downloadable DWG le is available at www.europeanhome.com for dimensions not shown.
574 800
150
152,05
2381
221
50
346
2770,50
465 130
200
1013
232,84
465,79
56
346
58
352
330,50
105
465,79
A A
B B
C C
D D
E E
F F
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
DRAWN
CHK'D
APPV'D
MFG
Q.A
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
SURFACE FINISH:
TOLERANCES:
LINEAR:
ANGULAR:
FINISH:
DEBURR AND
BREAK SHARP
EDGES
NAME
SIGNATURE
DATE
MATERIAL:
DO NOT SCALE DRAWING
REVISION
TITLE:
DWG NO.
SCALE:1:50 SHEET 1 OF 1
A3
SEE BOM
WEIGHT: 157587.41
E4-23
Tunnel
Letter A B C D E F G H I J K L M N
Inches 109⁄ 8⁄ 2 6 93¾ 18⁄ 16⁄ 2⁄ 13⁄ 13⁄ 18⁄ 7⁄ 5⁄ 13⁄
Millimeters 2771 221 50 151 2381 466 346 56 331 352 466 200 130 346
Letter O P Q R S T U V
Inches 18⁄ 2⁄ 4⁄ 5⁄ 39⁄ 39⁄ 31½ 9⁄
Millimeters 465 58 105 150 1013 574 800 233
Unit Weight
Pounds Kilograms
551 250
A
B
C
D
E
F
G
H
I
J
K
L M N O
PQ
R
STU
V
Figure 11

16
Element4 Gas Fireplaces Rev #01272020 www.EuropeanHome.com
SPECIFICATIONS and DIMENSIONS
PARTS OF THE FIREPLACE
88
11
77
99
44
66
55
1414
33
22

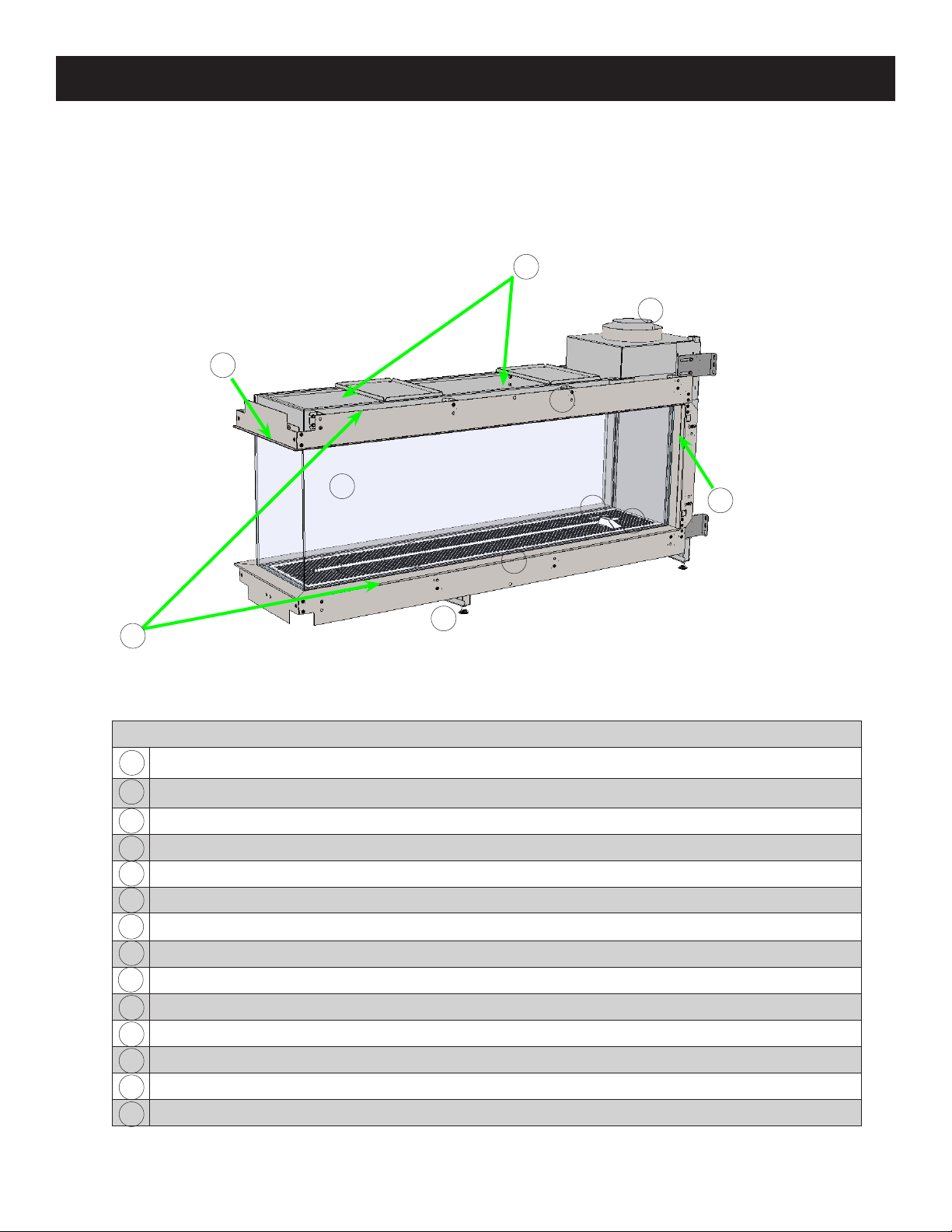

The various parts of the Club 240 RD replace are shown below. These parts are typical of any Element4 Club 240 replace.
Table of Fireplace Parts
Outer Frame Face - surrounds the glass panels and limits the non-combustible wall board
Exterior Glass Panel(s) - quantity varies by model
Support Feet - four adjustable feet allow the replace to be levelled
Hearth Panel - supports various Fire Media
Primary Burner - produces the ame
Flange
Pilot Burner - the part of the safety circuit which lights the Main Burner
2nd Thermocouple - the part of the safety circuit which monitors the Main Burner
Finish Trim - hides the Glass Clamps
Glass Gaskets - hidden, holds the Glass Panel in place (quantity varies by model)
Vent Collar - accepts the included North American Venting Adapter
Relief Door - part of the safety system. Do NOT block the operation.
Pilot Assembly
Upright Trim - quantity varies by model
10
9
8
7
6
5
4
3
2
1
11
12
13
14
1010
1111
1212
W
Figure 12
Figure 13

17
Element4 Gas Fireplaces Rev #01272020 www.EuropeanHome.com
SPECIFICATIONS and DIMENSIONS
1313
33
33
33
33

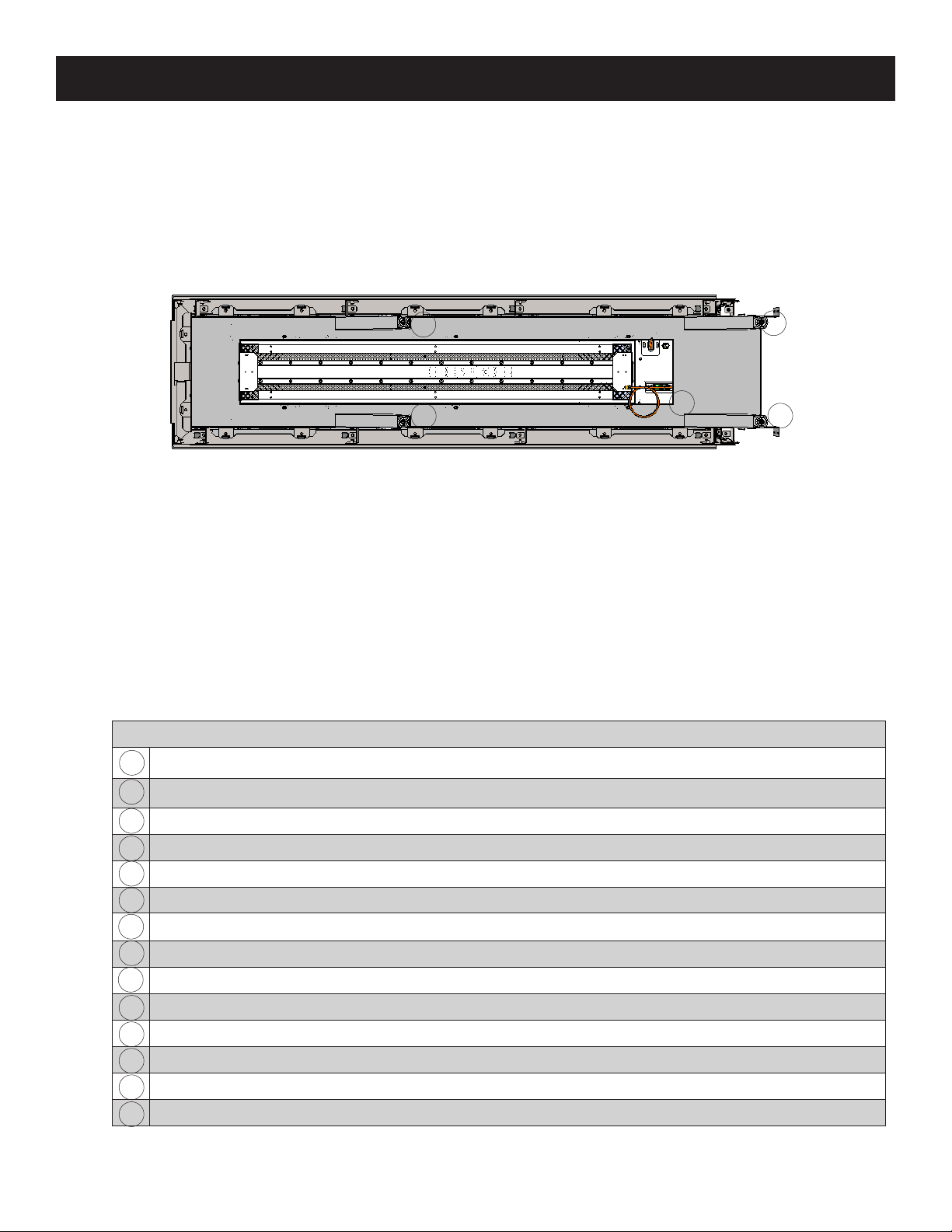

Figure 14: Fireplace from below
Table of Fireplace Parts
Outer Frame Face - surrounds the glass panels and limits the non-combustible wall board
Exterior Glass Panel(s) - quantity varies by model
Support Feet - four adjustable feet allow the replace to be levelled
Hearth Panel - supports various Fire Media
Primary Burner - produces the ame
Flange
Pilot Burner - the part of the safety circuit which lights the Main Burner
2nd Thermocouple - the part of the safety circuit which monitors the Main Burner
Finish Trim - hides the Glass Clamps
Glass Rope Gaskets - holds the Glass Panel in place (quantity varies by model)
Vent Collar - accepts the 5”x 8” venting adapter (included)
Relief Door - part of the safety system. Do NOT block the operation.
Pilot Assembly
Upright Trim - quantity varies by model
10
9
8
7
6
5
4
3
2
1
11
12
13
14
Figure 15

18
Element4 Gas Fireplaces Rev #01272020 www.EuropeanHome.com
CLEARANCES
These are NOT zero-clearance fireplaces. All clearances to
combustible AND non-combustible materials MUST be maintained
as described in this manual.
LOCATING THE FIREPLACE
When selecting a location for the replace:
• Ensure that all minimum clearances to combustible AND non-
combustible materials are met.
• Provide adequate clearances for servicing.
• Consider venting dimensions (rise, run and number of
elbows, etc.) when selecting the location for your replace.
• Locate the appliance out of trac and away from furniture
and draperies.
• Keep the location free of electrical, plumbing or other
heating/air conditioning ducting.
PLACING THE FIREPLACE
The base upon which the appliance rests (Figure __) must be sturdy,
level and built to safely support at least 800 pounds (363 kilograms).
The base may be the oor or a purpose-built raised platform, e.g.
wood, metal. When placed on a platform, an 8” (203 mm) x 6” (152
mm) opening must be cut through the platform top. The lineset
can be routed through this opening. Room air must be allowed
to ow through the Wall Access Door then through this platform
opening.
bottom of the feet.
MINIMUM CLEARANCE TO COMBUSTIBLES
• The appliance is approved with a minimum clearance to
combustible materials of 26” (660 mm) to the top, 11” (280
mm) on all sides and 4” (100 mm) to the bottom. Any spacer
or framing used closer than this dimension must be non-
combustible (e.g. metal).
• The minimum distance from the bottom of the appliance to
the room ceiling is 72” (1830 mm).
• When installing the venting, the following clearances to
combustible materials MUST be maintained:
a. 3” (76 mm) above any horizontal venting
b. 1” (25 mm) to venting sides or below any horizontal
venting
• Do not block or restrict the Air Inlet, located between the
stando frame and glass.
The minimum clearances (air spaces) to combustible materials
must be maintained. It is of the greatest importance that the
replace and vent system be installed only in accordance with
these instructions.
Clearance to combustibles summary:
Back: 11” (280 mm)
Front: 11” (280 mm)
Sides: 11” (280 mm)
Top: 26” (660 mm)
Floor: 4” (100 mm)
The Floor dimension (above) is measured from the bottom of
the rebox. When the adjustable feet are in their lowest position
the required clearance to the oor is maintained.
The feet on the appliance are designed to sit on a at platform,
however the appliance must not be installed on any combustible
material other than wood. For example, carpet or linoleum bases
are not permitted.
Do not place anything between the bottom of the rebox and the
ENSURE THAT THE LINESET (WHICH INCLUDES THE GASENSURE THAT THE LINESET (WHICH INCLUDES THE GAS
VALVE, ELECTRICAL WIRING, AND GAS LINES) DOES NOTVALVE, ELECTRICAL WIRING, AND GAS LINES) DOES NOT
IMPEDE THE FULL OPERATION OF THE RELIEF DOORS. IT ISIMPEDE THE FULL OPERATION OF THE RELIEF DOORS. IT IS
YOUR RESPONSIBILITY TO ENSURE THE SAFETY OF THESEYOUR RESPONSIBILITY TO ENSURE THE SAFETY OF THESE
CRITICAL COMPONENTS THROUGHOUT THE INSTALLATIONCRITICAL COMPONENTS THROUGHOUT THE INSTALLATION
PROCESS. REMOVE AND DISPOSE OF ALL WRAPS AND TIES.PROCESS. REMOVE AND DISPOSE OF ALL WRAPS AND TIES.
15
Figure 16

19
Element4 Gas Fireplaces Rev #01272020 www.EuropeanHome.com
CLEARANCES
No material of any kind is allowed between the bottom of the support feet and the bottom of the rebox (except for the
lineset).
No material of any kind is allowed within 2” (50 mm) of the top of the replace.
No material of any kind is allowed within 2” (50 mm) of the metal sides the replace.
Facing material should be installed against the outer frame of the replace, with an ⁄” (3 mm) vertical or horizontal clearance
TO THE FLANGE to allow for heat expansion.
Non-combustible materials may be installed to a zero clearance to the outer faces of the appliance outer frame face. However,
they must not cover (or prevent the removal of) the glass panels or other replace parts.
The appliance must not be installed on any combustible material other than wood.
These clearances are the same for ALL Element 4 Fireplaces, regardless of model.
We recommend that the replace be set into its nal location before building the enclosure.
Please refer to the “Reduced Clearance to Existing Combustible Wall” section for use of combustibles inside of the above clearances.
Clearances to Combustibles
Sides (Non-Glass Sides ONLY) 11”
Top 26”
Bottom 4”
Clearances to Non-Combustibles
Sides (Non-Glass Sides ONLY) 2”
Top 2”
Bottom 4”
CLEARANCES TO COMBUSTIBLE MATERIAL
CLEARANCES TO NON-COMBUSTIBLE MATERIAL
ALL MODELS
Figure 17
Figure 18

20
Element4 Gas Fireplaces Rev #01272020 www.EuropeanHome.com
CLEARANCES
A
A
BB
VENT OPENING
800cm² (124In²)
TOTAL MINIMUM
(2") 50
C
SECTION A-A
(36")
900
(36")
900
(36")
900
SECTION B-B
COMBUSTIBLE MATERIALS
NOT PERMITTED IN FRONT
OF GLASS
(2")
50
(11")
280
DETAIL C
SCALE 1 : 10
CONSTRUCTION
BEAMS NON-
COMBUSTIBLE
(TYPICAL)
TOP OF FIREPLACE
OPENING
GLASS
NON COMBUSTIBLE
MATERIAL
DETAIL C
CONVECTION GAP
CONSTRUCTION
BEAMS COMBUSTIBLE
(TYPICAL)
1”/25 mm
12”/300 mm
13”/330 mm
2”/50 mm
INCHES
Mantel Height
Mantel Depth
MANTELS
The graph below shows a range of allowable depths and heights for a combustible mantel installation.
As shown, the minimum allowable mantel height above the replace opening is 2” (50 mm) with a 1” (25 mm) deep mantel.
The maximum mantel depth is 12” (300 mm) at a minimum height above the replace opening of 13” (330 mm.)
All of the mantel height/depth combinations fall in between these extremes in accordance with the chart below.
Mantels made of non-combustible material are allowed inside these dimensions but they will be subjected to elevated
temperatures and may become too hot to touch.
A typical completed installation with mantel is shown in the diagram below, on the right.
17
Figure 19 Figure 20
