elero Combio-868/-915 Series User manual

181005306_EN_0214
Combio-868 /-915
Combio-868 JA /-915 28500.0006
Combio-868 RM /-915 28520.0006
Combio-868 RM/RevoLine /-915 28525.0006
Combio-868 JA Pulse /-915 28505.0006
Operating instructions (translation)
Please take care of the operationg instructions!
EN

Contents
2 | EN
Warnhinweise
Safety tips
EN | 3
Safety tips ...................................................... 3
General .......................................................... 4
Use in accordance with the regulations ...................... 4
Optimal use of the radio signal ............................. 5
Mounting options ............................................. 6
Combio-868 JA /-915 for venetian blind drives ........ 7
Combio-868 RM /-915 for tubular motors ............. 8
Connection and installation .................................. 9
Combio-868 JA /-915 for venetian blind drives ........ 9
The Combio-868 RM /-915 for elero tubular motors
with plug-in cable (limit switch drive)..................10
Combio-868 RM /-915 for tubular motors with
plug-in cable (ACS-E electronic drive) ................11
Combio-868 RM /-915 for tubular motors
with fixed cable (limit switch drive) ....................12
Combio-868 RM /-915 for elero tubular motors
with fixed cable (CSM-E electronic drive)
for textile sun protection...............................13
Technical data ................................................14
Tips for finding faults ........................................15
Important safety indications!
Observe the following Instructions.
Danger of injury due to electric shocks.
Connections to the mains supply must be car-
ried out by authorized, specialized personnel.
• Check the installations regularly for wear and
tear or damage.
• The regulations stipulated by the local power
supply company should be observed during
connection work, as well as the regulations for
wet and damp areas in accordance with
VDE 0100.
• Observe country-specific regulations.
• Only use unaltered elero original parts.
• Ensure that nobody is within the vicinity of the
installation until it is brought to a standstill.
• When carrying out work on the installation
(e.g. maintenance), always disconnect the
installation from the mains supply.
• Keep children away from controls.
• After installation, the control unit must not be
exposed to rain.
Warning!

4 | EN
Warnhinweise
General / Use in accordance with
the regulations
EN | 5
General information
The Combio-868 /-915 radio receiver allows the extension of
alternating current drives to a radio drive.
Use in accordance with the regulations
The Combio-868 JA/RM/RevoLine /-915 can only be used for
controlling roller shutters and sun protection systems such as
venetian blinds.
• Please observe that radio equipment cannot be operated in
areas with a high interference risk level (e.g. hospitals, airports).
• The remote control is only allowed for devices and installations in
which a malfunction in the hand-held transmitter or the receiver
does not represent a threat to persons, animals or things or for
installations in which this risk is excluded by other safety sys-
tems.
• The user does not have any protection from interferences from
other telecommunication and terminal equipment (e.g. including
radio equipment which is operated in accordance with the corre-
sponding regulations in the same frequency range).
• Connect radio receivers only to the devices and installations
authorized by the manufacturer.
Note: Radio installations which transmit with the same
frequency can cause reception interferences.
Please observe that the radio signal range is restricted
by the legislator and structural measures.
Optimal use of the radio signal
Optimal use of the radio signal
• Do not bend the antenna.
• Do not shorten or extend the antenna.
• If reception is poor, adjust the antenna.
• Install the antenna so that it is as exposed as possible.
• Antenna is not to rest on metal.
• Using a number of receivers may cause interference.

6 | EN
Warnhinweise
Mounting options
EN | 7
Combio-868 JA /-915
Combio-868 JA /-915 for venetian blind drives
The Combio-868 JA /-915 is suitable for the use with venetian
blind drives.
In order to carry out an exact slat tilting, the Combio-868 JA /-915
has a dead-man operating mode. If the button on the hand-held
transmitter is pressed until the LED goes out, the receiver acti-
vates the self-locking operating mode.
The handheld transmitter can be used to save an intermediate
position and tilting position for the slats (→refer to the transmitter
instructions).

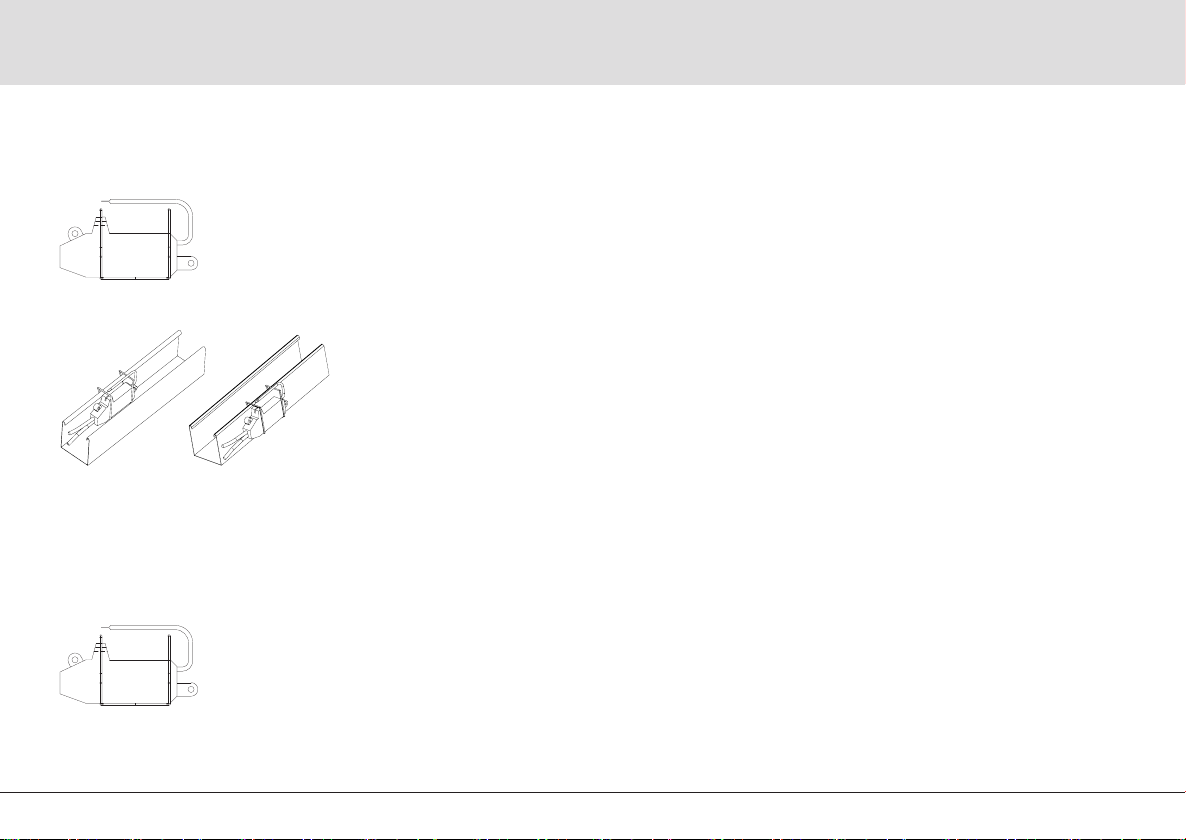

Mounting options
Combio-868 JA /-915
1. Put the Combio-868 /-915 into the
mounting clamp.
2. Fix the Combio-868 JA
/-915 + clamp to the
inside or outside of the
channel.
Mounting options
Combio-868 RM /-915
1. Stick the enclosed adhesive strip onto the
Combio-868 RM /-915.
2. Fix the Combio at an appropriate position.
Combio
with clip
Combio with
clip inner
Combio with
clip outer

8 | EN
Warnhinweise
Combio-868 RM /-915
EN | 9
Combio-868 RM /-915 for tubular motors
The Combio-868 /-915 is suitable for the use with tubular motors
for roller shutters and sun protection systems.
If a command is sent, the receiver immediately activates the
self-locking operating mode.
The hand-held transmitter can be used to program an intermediate
position.
For sun protection systems it is possible to additionally program a
fabric tautening and a ventilation position for roller shutters
(→refer to the transmitter instructions).

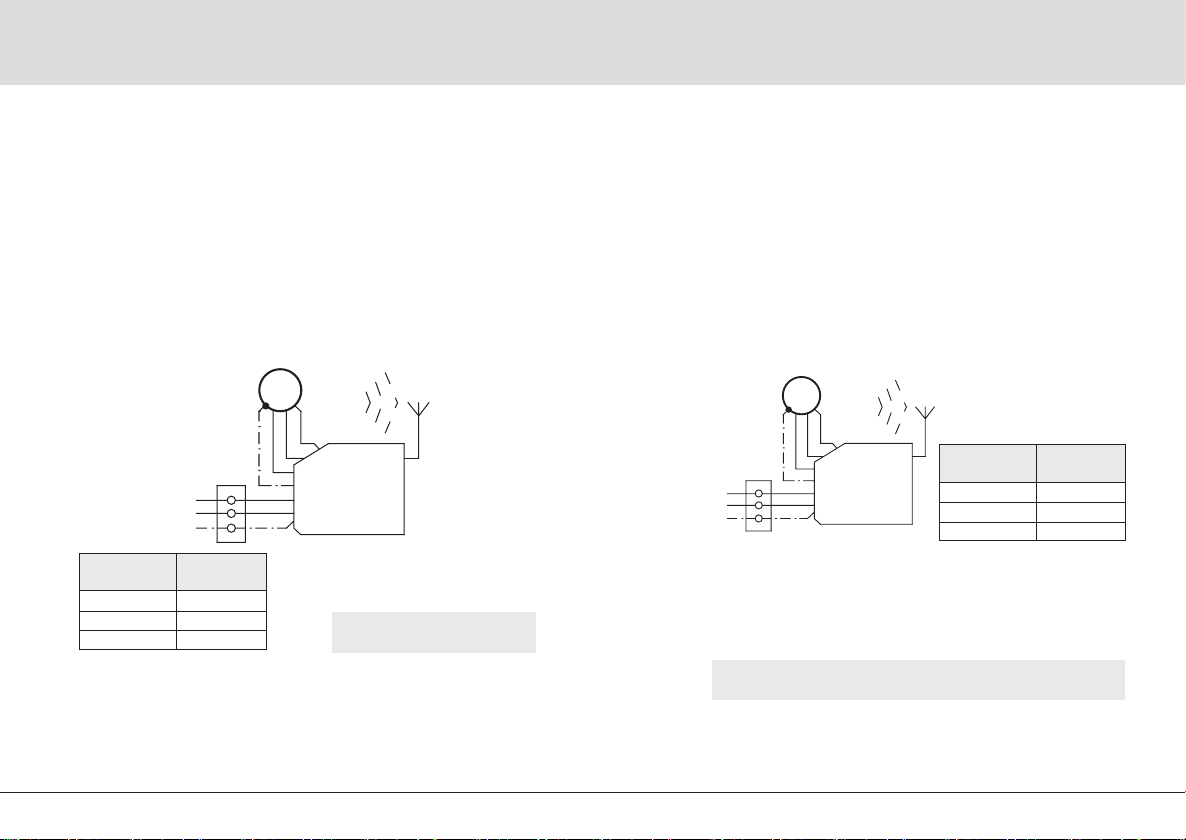

Connection and installation
Combio-868 JA /-915 for venetian blind drives
1. Put the drive into operation with the installation cable and
set the upper and lower limit switch.
2. Move the hangings with the installation cable to an
intermediate position.
3. Switch off the mains voltage.
4. Unplug the installation cable.
5. Connect the female Hirschmann-plug of the radio receiver
with the drive plug.
6. Connect the Hirschmann-plug of the radio receiver with the
female plug of the mains cable.
Combio-868
PE
L
N
1~
M
JA /-915
1
2
3
12 3
Antenna
Mains
230 V/50 Hz
7. Fix the radio receiver.
8. Switch the mains voltage on again.
9. Programme the transmitter
(→refer to the transmitter instructions).

10 | EN
Warnhinweise
Connection and installation
EN | 11
The Combio-868 RM /-915 for elero tubular motors with plug-
in cable (limit switch drive)
1. Switch off the mains voltage.
2. Press the locking mechanism of the drive plug towards the
cable with a screwdriver.
3. Pull out the plug.
4. Plug the motor cable of the radio receiver into the drive.
5. Connect the mains cable of the Combio-868 RM /-915 correctly
with the mains voltage.
RM /-915
Combio-868
PE
L
N
Antenna
1~
M
Mains
230 V/50 Hz
6. Fasten the radio receiver.
7. Switch the mains voltage on again.
8. Programme the transmitter (→refer to the transmitter
instructions).
9. Mount the hangings and set the limit switch.
Pin Wire colour
designation 230 V
L Brown
N Blue
PE Green/yellow
Connection and installation
Combio-868 RM /-915 for tubular motors with plug-in cable
(ACS-E electronic drive)
1. Switch off the mains voltage.
2. Press the locking mechanism of the drive plug towards the
cable with a screwdriver.
3. Pull out the plug.
4. Plug the motor cable of the radio receiver into the drive.
5. Connect the mains cable of the Combio-868 RM /-915 correctly
with the mains voltage.
RM /-915
Combio-868
PE
L
N
combio868rm
Antenna
1~
M
Mains
230 V/50 Hz
6. Fasten the radio receiver.
7. Switch the mains voltage on again.
8. Programme the transmitter (→refer to the transmitter
instructions).
Note: Rotate the winding shaft manually in the corresponding
direction.
9. Mount the hangings and operate the drive in the self-program-
ming mode.
Pin Wire colour
designation 230 V
L Brown
N Blue
PE Green/yellow
Note: Do not shorten or lengthen
the antenna.

12 | EN
Warnhinweise
Connection and installation
EN | 13

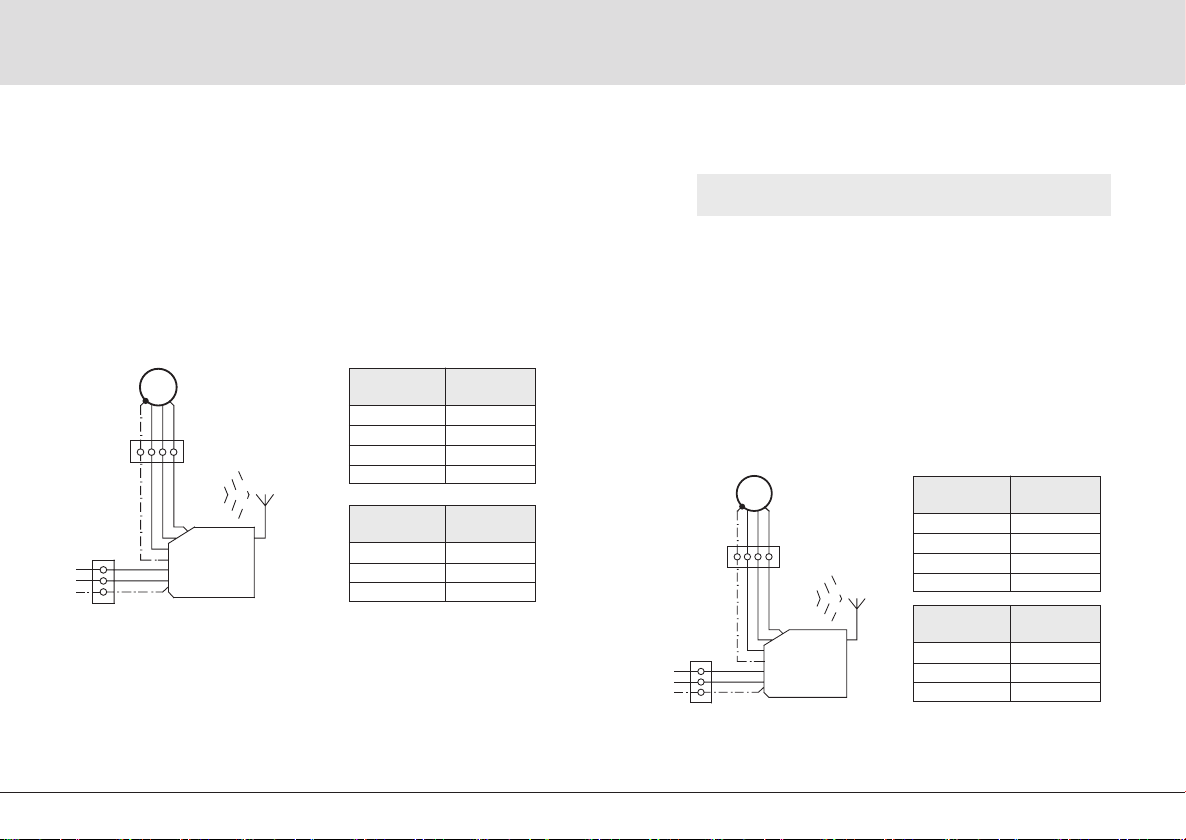

Combio-868 RM /-915 for tubular motors with fixed cable
(limit switch drive)
1. Switch off the mains voltage.
2. Cut off the plug of the radio receiver.
3. Prepare the cable for connection (remove cable jacket and strip).
4. Connect the motor cable of the drive and the cable of the
Combio-868 RM /-915 correctly (connect the same colours).
5. Connect the mains cable of the Combio-868 RM /-915 correctly
with the mains voltage.
RM /-915
PE
N
L
Combio-868
1~
M
Antenna
PE
N
br. bl.
Mains
230 V/50 Hz
6. Fasten the radio receiver.
7. Switch the mains voltage on again.
8. Programme the transmitter (→refer to the transmitter
instructions).
9. Mount the hangings and set the limit switch, provided that the limit
switches have not already been set using the installation cable.
Pin Wire colour
designation 230 V
∇/∆Brown
∆/∇Black
N Blue
PE Green/yellow
Pin Wire colour
designation 230 V
L Brown
N Blue
PE Green/yellow
Connection and installation
Combio-868 RM /-915 for elero tubular motors with fixed cable
(CSM-E electronic drive) for textile sun protection.
Note: CSM-E drives must not be connected using the connector
located on the Combio-868 RM /-915.
1. Put the drive into operation with the installation cable
(programme the end positions).
2. Move the hangings with the installation cable to an intermediate
position.
3. Switch off the mains voltage.
4. Disconnect the installation cable.
5. Cut off the plug of the radio receiver.
6. Prepare the cable for connection (remove cable jacket and
strip).
7. Connect the motor cable of the drive and the cable of the
Combio-868 RM /-915 correctly (connect the same colours).
8. Connect the mains cable of the Combio-868 RM /-915 correctly
with the mains voltage.
RM /-915
PE
N
L
Combio-868
1~
M
Antenna
PE
N
br. bl.
Mains
230 V/50 Hz
10. Fasten the radio receiver.
11. Switch the mains voltage on again.
12. Programme the transmitter (→refer to the transmitter
instructions).
Pin Wire colour
designation 230 V
∇/∆Brown
∆/∇Black
N Blue
PE Green/yellow
Pin Wire colour
designation 230 V
L Brown
N Blue
PE Green/yellow

14 | EN
Warnhinweise
Technical data Technical data / Tips for finding faults
EN | 15
Combio-868 JA /-915 (veneti-
an blind drives)
Combio-868 RM
/-915 (tubular
motors)
Nominal voltage 230 V 230 V
Frequency 50 Hz 50 Hz
Max. 450 W 450 W
Protection class IP56 IP56
Permitted ambi-
ent temperature
-20°C bis +70°C -20°C bis +70°C
Radio frequency 868 / 915 MHz frequency band 868 / 915 MHz
fequency band
Mains cable 0,5 m mit
Hirschmann plug
3 m
Motor cable 0,25 m mit
Hirschmann female plug
0,25 m with plug
Dimensions in
mm
L 100 x B 40 x H 15 L 100 x B 40 x H 15
Max. number for
transmitters 16 16
Troubleshooting
Problem Cause Solution
No radio reception 1. Transmitter ist not
programmed
2. No mains voltage
1. Program the trans-
mitter
2. Switch on the mains
suppy again
Bad radio recep-
tion
Unsuitable receiver
position
Change the location
oft the receiver or the
antenna
Inverted sense of
rotation
Sense are programmed
incorrectly
Delete transmitter and
program correctly
Combio-868 RM/RevoLine /-915
(tubular motors)
Nominal voltage 230 V
Frequency 50 Hz
Max. 450 W
Protection class IP56
Permitted ambient tem-
perature
-20°C bis +70°C
Radio frequency 868 / 915 MHz frequency band
Mains cable 3 m
Motor cable 0,25 m with Mini Plug
Dimensions in mm L 100 x B 40 x H 15
Max. number of trans-
mitters 16

Declaration of conformity
Declaration of conformity
elero hereby declares that Combio-868 /-915 wall transmitter is
in compliance with Directive 2014/53/EU. The full text of the EU
Declaration of Conformity is available at the following Internet
address: www.elero.de/downloads-service/
elero GmbH
Antriebstechnik
Maybachstr. 30
73278 Schlierbach
Fon: [phone]
Fax: [phone]
[email protected]
www.elero.com
