Elinz MG8HEAD User manual

www.elinz.com.au / [email protected] / 1300 881 773
Handheld Deep Tissue Massager
User manual

www.elinz.com.au / [email protected] / 1300 881 773
USAGE INSTRUCTIONS
Please read this carefully prior to use
CHARGING
1. Fully charge the battery up to 3.5hs before firstuse.
2. LED indicator on battery flashes to show the charging status and batterylevel.
3. When the battery is fully charge, all LED indicators stop flashing and remain
fully illuminated.
4. Battery can be recharged at any time and at any batterylevel.
5. It is not recommended to fully deplete the battery to red LEDlevel.
6. The average battery life is 3+ hours depending on speed level and pressure
applied during using.

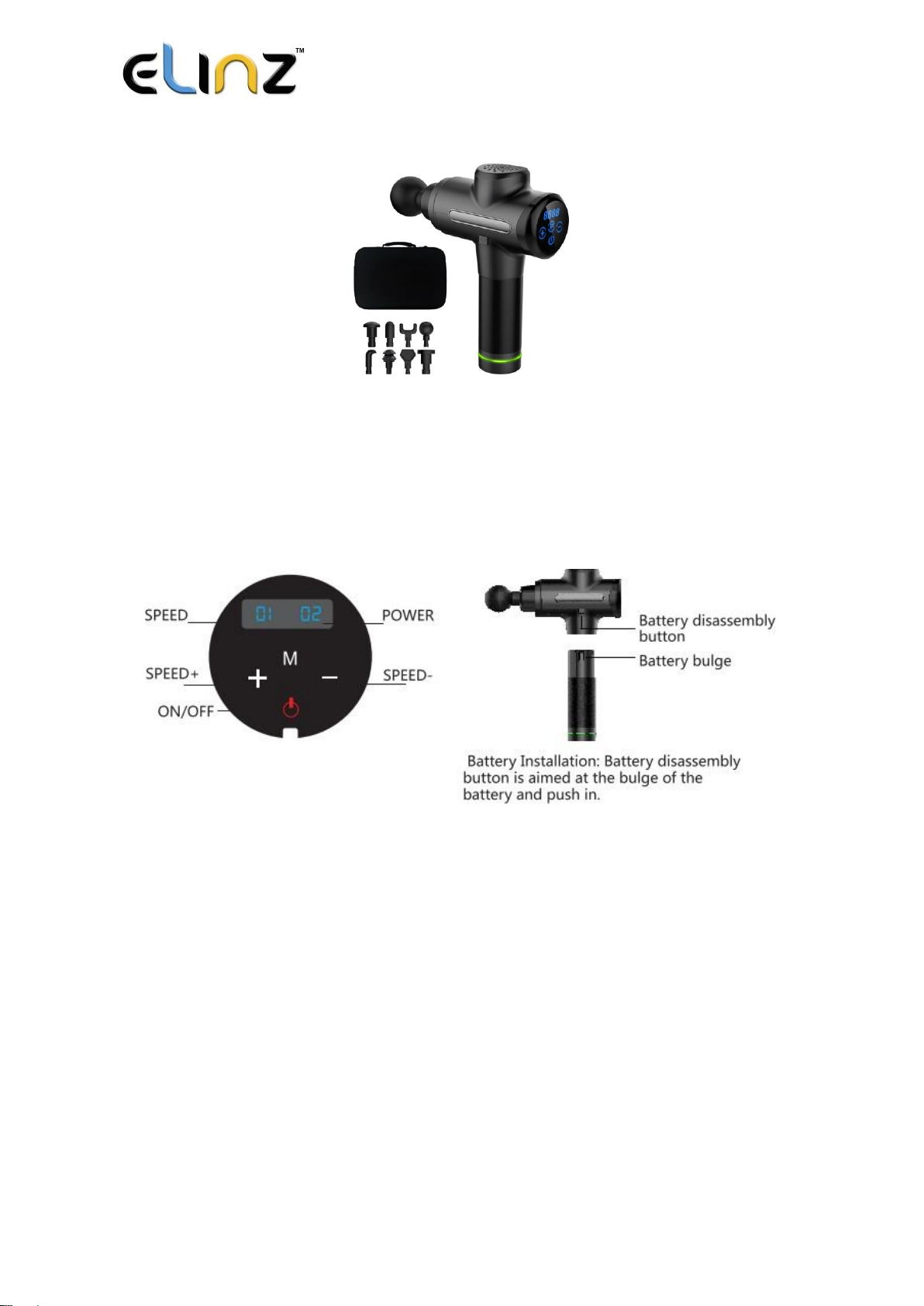

OPERATING
1. Align and attach battery into base of unit-ensure it is securely locked inplace.
2. Power device on by moving the power switch on the bottom of the battery to
the ON position. Power device off by moving the power switch to the OFF
position.
3. Press + and - button to adjust machine speed.
4. Massage the desired body part at the desired speed applying pressure as
needed.
5. To remove the battery, lightly press the battery release button with thumb.
Firmly pull downwards on the battery/handle with the other hand.
MAINTENANCE, CLEANING & STORAGE
1. Use a slightly damp towel to clean the device and dry with a softcloth.
2. For storage or travel, please remove the battery and store in supplied carton
box.
TECHNICAL PARAMETERS
Model
No.
Description
Rated
Voltage
Rated
Frequency
Battery
life
Charge
Voltage
Battery
Amplitude
MG8HEAD
Massage
Device
16.8V
20-58Hz
4H
16.8V
4 Batteries
（2500mAh）
10MM

www.elinz.com.au / [email protected] / 1300 881 773
INTRODUCTION
The deep muscle fascia massage device is a portable rechargeable vibration
device with large torque and long adjustment. It can effectively reduce the pain
caused by the accumulation of lactic acid after intense exercise, and relieve the
discomfort of muscles in the sedentary and long-lyingpopulation.
1. Turn on the power switch at the bottom of the device.
2. Press the start button and the device starts to run
3. Press "+" and "-" buttons to adjust the speed. Press "M" button to choose the
three programs：P0/P1/P2/P3
4. When the battery power is less than 20%, the light line at the bottom of the
device shows red; when the battery power is less than 10%, the power display
window shows E1, which means you need to charge the battery in time
5. When the battery is fully charged, the light line at the bottom of the device turns
to green.

www.elinz.com.au / [email protected] / 1300 881 773
INSTRUCTION OF MASSAGE APPLICATOR
1.Round Shape
Round spherical design produces a power output of propagating and diffusing
type between receiving and pushing. Strength is even and soft. It is suitable
for massage and relaxation of waist, abdomen, buttocks and legs. As well as
muscle relaxation before and after exercise, it is also recommended to use in
these light weight fitness enthusiasts who like dancing, yoga, aerobics and so
on.
2.Flat-head Shape
Small and brief design, on the basis of the plane, a small arc which fits the body
modeling mechanism is added and make it feel better. Suitable for the inside
and outside muscles of the abdomen, chest and legs of the human body.
3.Arc Shape
A large arc suitable for human body modeling mechanism makes its massage
more powerful and better touch experience. Suitable for the inside and outside
muscles of the abdomen, chest and legs of the human body.

www.elinz.com.au / [email protected] / 1300 881 773
4.U Shape
The force path between the two points is even, the stimulation is in place and
powerful, which can effectively carry out some simple acupoint massage.
Reasonable U-shaped width size perfectly avoids the human spine and cervical
vertebra, and achieves a better sense of experience. Suitable for shoulder,
cervical spine and bilateral muscles. (Attention: It cannot directly hit the cervical
spine and spine, otherwise it will cause physical injury)
5.Conical Shape
Simple shape, full of impact experience, direct pressure to the depths. Suitable
for meridians, soles of feet, palms,Achilles tendons, rhomboid muscles of back,
etc.
6.Thumb Shape
Thumb shaped massage applicator, is very suitable for acupressure massage.
It is used for relaxation of various muscle, such as the palm of your hand and
sole.

www.elinz.com.au / [email protected] / 1300 881 773
7.Air compression soft head
Suitable for cushioning shock of most muscle groups, which prevents damage
to sensitive muscle groups.
8.Shovel shape
It is mainly be used for relaxing soft tissues and sensitive muscle groups,
suitable for sculpting and relaxing abdominal lines
CAUTION
1. Do not immerse in water. Keep away from liquids or heat sources. Keep
ventilation ports free from dust and debris.
2. Do not remove any screws or attempt to disassemble.
3. Do not operate continuously for more than one hour. Allow device to rest for
30 minutes before re-using.
4. Do not use the device on injured parts of the body.
5. For adult use only. Consult your doctor before using this product.

www.elinz.com.au / [email protected] / 1300 881 773
SAFETY INSTRUCTIONS
DANGER: TO REDUCE THE RISKS OF ELECTRIC SHOCK, FIRE AND PERSONAL
INJURY, THIS PRODUCT MUST BE USED IN ACCORDANCE WITH THE
FOLLOWINGINSTRUCTIONS.
1. For adult useonly.
2. Use only on a dry clean surface of the body over clothing by lightly pressing and
moving across the body for approximately 60 seconds per region.
3. Use the massage device only on the body’s soft tissue as desired without producing
pain or discomfort. Do not use on head or any hard and bony area of the body.
4. Use only the applicators that provide the best desiredeffect.
5. Bruising can occur regardless of control setting or pressure applied. Check treated
areas frequently and immediately stop at first sign of pain or discomfort.
6. Keep fingers, hair or any other body parts away from the shaft and backside of the
applicator as pinching may occur.
7. Do not place any objects into the ventilation holes of the MassageDevice.
8. Do not immerse in water or allow water to enter the ventilation holes of the Massage
Device.
9. Do not drop or misuse the Massage Device.
10. Only recharge with supplied 16.8V DC Massage Devicecharger.
11. Carefully examine device and battery before eachuse.
12. Do not tamper or alter Massage Device in anyway.
13. Never leave the Massage Device operating or chargingunattended.

www.elinz.com.au / [email protected] / 1300 881 773
DISCLAIMER
PLEASE DO NOT USE THE MASSAGE DEVICE OR ANY VIBRATION DEVICE
WITHOUT FIRST OBTAININGAPPROVAL FROM YOUR DOCTOR IF ANY OF THE
FOLLOWING APPLY.
Pregnancy, diabetes with complications such as neuropathy or retinal damage, wear
of pace-makers, recent surgery, epilepsy or spondylosis, recent joint replacements or
IUD, metal pins or plates or any concerns about your physical health. Frail individuals
and children should be accompanied by an adult when that you are not able to use a
vibration or exercise device but we advise you to consult a doctor first.
Ongoing research is being done to the effects of vibration exercise for specific medical
disorders. This will likely result in the shortening of the list of contra indications as
shown above. Practical experience has shown the integration of vibration exercise into
a treatment plan is advisory in a number ofcases.
This must be done on the advice of and in accompaniment with a doctor, specialist or
physiotherapist.
WARRANTY
WE WILL REPAIR OR REPLACE THE PRODUCT OR NECESSARY
COMPONENTS IF THIS PRODUCTS FAILS DUE TO A DEFECT IN MATERIAL OR
WORKMANSHIP WITHIN ONE YEAR FROM THE DATE OF PURCHASE.
This warranty excludes:
Damage caused by accident, abuse, mishandling or transport;
Units subjected to unauthorized repair;
Units not used in accordance with instructions;
Damage exceeding the cost of the product;
Deterioration of the delivered product resulting from abnormal storage and /or
safeguarding conditions on the client’s premises;
Failure to provide the dated proof of purchase.
For any inquires, issue or comments concerning our products, please send us an email to
the address below and we will respond as soon as possible.
Feel free to contact us at 1300 881 773, send us an email at [email protected] or chat
with us.
