Elite Fitness RAZOR R11 User manual

ASSEMBLY MANUAL
Record serial number
Elite R11 Razor Rowing Machine
RAZOR

2
CONTENTS
Important Safety Instrucons 3-4
Product Specicaons 4
Assembly Instrucons 5-14
Storage & Transportaon 15-16
Care & Maintenance 17-18
Limited Warranty 19
Console 20-24
Limited Warranty 24
Warm Up & Rowing Techniques 25-27
Parts List 28-29
Exploded Drawing 30
Thank you for purchasing the Elite R11 Razor Rowing machine.
For over 20 years, Elite Fitness™ has been New Zealand’s largest supplier of tness equipment. Our
aim and vision is to provide you Elite™ branded products, tested to the highest standard for quality
and biomechanics at the best possible price.
Please read through this manual to familiarise yourself with the operaon of your new Elite R11
Rowing Machine. Doing so will help to insure that you get the most out of your machine, enjoying
a safe and eecve workouts ahead.
Even though we go to great eorts to ensure the quality of each product we produce, occasional
errors and or omissions do occur. In any event should you nd this product to have either a
defecve or a missing part, please contact us for a replacement.
SERVICE & WARRANTY
For service and warranty assistance please visit: www.elitetness.co.nz/service
Online forms are available for Service, Warranty and Parts requests.
[phone] Service.
[phone] Parts.
Elite Fitness HQ
28 Morrin Road
St Johns,
Auckland, New Zealand
info@elitetness.co.nz
0800 2 438 348
www.elitetness.co.nz

3ELITE ROWING MACHINE ASSEMBLY MANUAL
The following denion applied to the word “WARNING” when used in this manual:
Used to call aenon to POTENTIAL hazards that could
result in personal injury or loss of life.
READ ALL INSTRUCTIONS BEFORE USING THE MACHINE
This product has been designed for home use only. Product liability and warranty condions will
not be applicable to products being subjected to professional use or products being used in a
commercial environment. e.g Gym Centre
This exercise machine is built for opmum safety. However, certain precauons apply whenever
you operate a piece of exercise equipment. Be sure read the enre manual before you assemble or
operate your machine. In parcular, note the following safety precauons.
— Read all instrucons in this manual before using this equipment.
— Use the machine only for its intended use as described in this Manual.
— Inspect and ghten all the loose parts before this equipment is used.
— Keeps hands away from moving parts.
— Keep children and pets away from the machine at all me. DO NOT leave children unaended
in the same room with the machine.
— Before using the machine to exercise, always do stretching exercises to properly warm up.
— Inspect the machine before each use; make sure all of the connecons are ghtly secured.
— Only one person at a me should use the machine.
— If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms, STOP
the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.
— Posion the machine on a clear, levelled surface. DO NOT use the machine near water or
outdoors.
— Always wear appropriate workout clothing when exercising. DO NOT wear robes or other
clothing that could become caught in the machine. Sporng shoes are recommended when
using the machine.
— Do not place any sharp object around the machine.
— Disabled persons should not use the machine without a qualied person or physician in
aendance.
— Never operate the machine if the machine is not funconing properly.
— Only carry out training work on the equipment when it is in perfect working order. Only use
original spare parts in the event of a repair.
— Do not use strong solvents for cleaning, and only use the tools supplied, or suitable ones of
your own, for any repairs that may be required. Please dispose of the packaging and any parts
that have to be replaced subsequently (all parts for the unit) at suitable collecng points or
containers with a view to saving the environment.
— Not for therapeuc use.
IMPORTANT SAFETY INSTRUCTIONS

4
WARNING: Before beginning any exercise program, consult your physician. This is especially
important for persons with pre-exisng health problems. The seller assumes no responsibility for
personal injury or property damage sustained by or through the use of this product.
SERVICE HINTS: The high quality standard of this product only will be kept if you on a regular
basis check all screw-connecons and moving parts on proper ng. Damaged parts have to be
changed immediately. During the me of repair the product must not be used by anybody.
IMPORTANT HINTS:
A) This product has been tested in accordance with the requirements of EN 957-1/A1, EN 957-5,
standard, Class HA (HOME USE). The maximum load is limited to 130KGS.
B) Parents should be aware of the risk factor of young children playing on tness equipment
unaended. Make sure that the children are instructed properly in the use of the product
and in the controlled execuon of the dierent exercise. Misuse of the product could result in
serious injury
PRODUCT SPECIFICATIONS
User Weight Capacity: 130kg
Dimensions: 2445 x 596 x 1162 mm
Shipping Weight: 54.2kg
Net Weight: 48.5kg
Power Requirements DC 9V 1.0A Adaptor

5ELITE ROWING MACHINE ASSEMBLY MANUAL
ASSEMBLY INSTRUCTIONS
STEP 1
Ensure you have enough clear working space to begin unpacking your new
Elite R11 Razor Rowing Machine.
STEP 2
Open the carton as shown in the diagram below. NOTE: To protect
the Rower while assembling we suggest that you do not remove the
Protecve Packing. Material unl it is absolutely necessary.

6
STEP 3
a) Reverse the Aluminium Beam [1] and place it on top of the Carton Lid
as shown in the diagram below.
b) Remove 4 x Bolt [72] from Seat[ 35] with the tool provided.
c) Assemble the Seat[ 35] and the Seat Carriage [ 7] with 4X Bolt[ 72] .
d) Assemble the Carriage Cover [33] and 2 x Seat Carriage[ 7] with 4 x
Bolt[67]

7ELITE ROWING MACHINE ASSEMBLY MANUAL

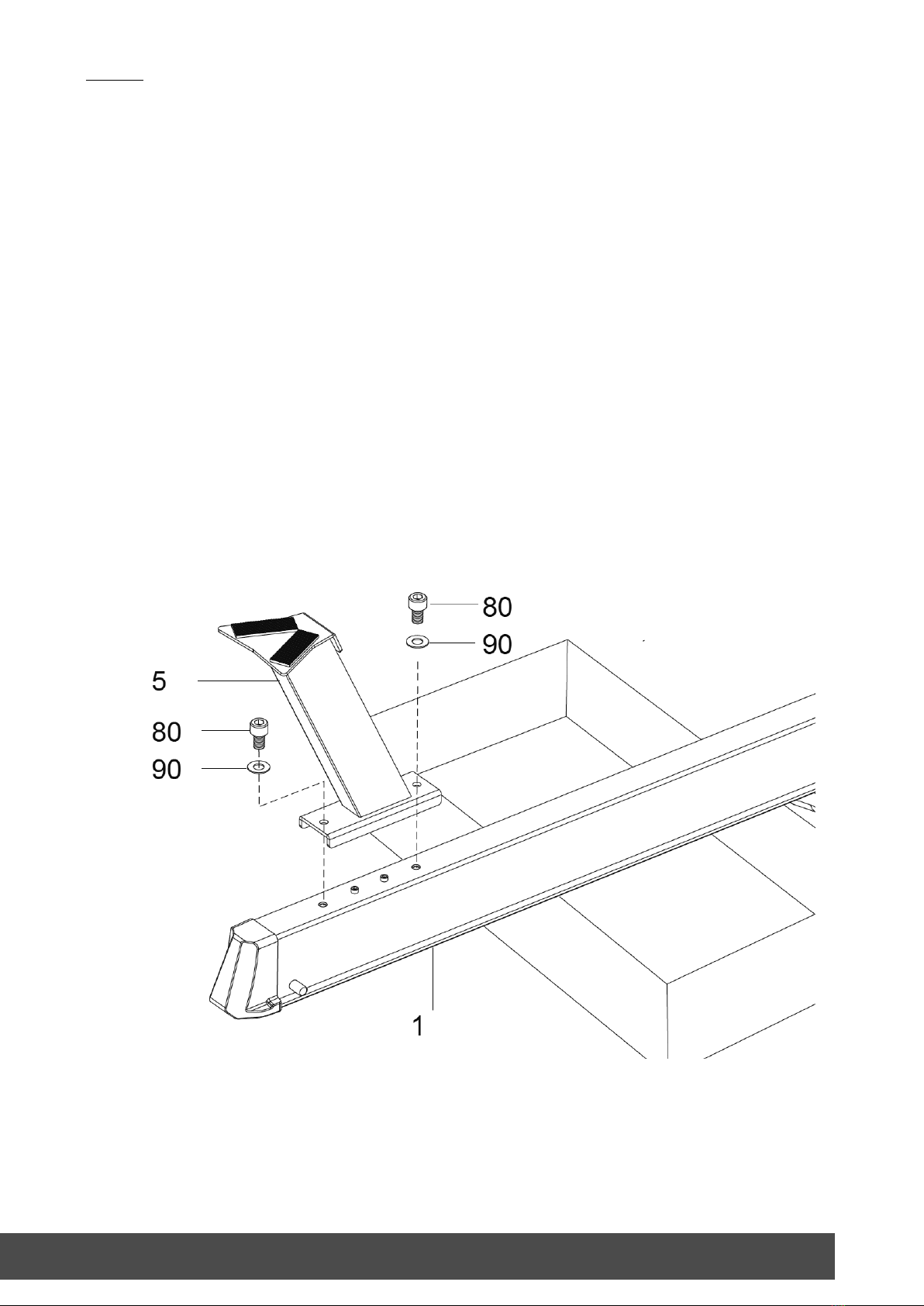

STEP 4
a) Remove 2x Bolt [80] from Aluminium Beam [1] with the tool provided.
b) Assemble the Rear Stabiliser [5] and the Aluminium Beam[1] with 2 x
Bolt [80] and 2x Washer[90] using the tool provided and ghten rmly.

8

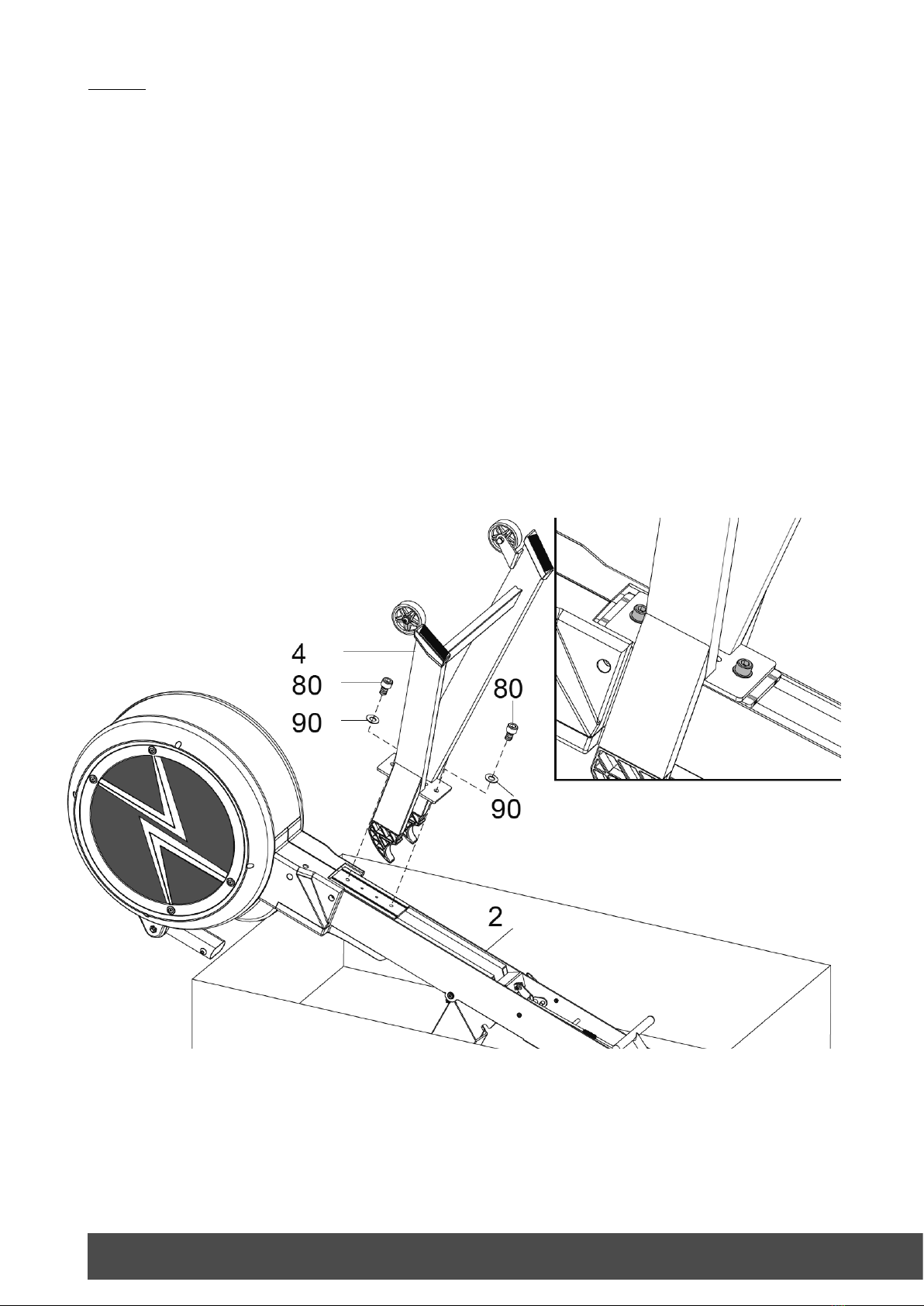

STEP 5
a) Remove 2 x Bolt [80] from Main Frame [2] with the tool provided.
b) Assemble the Front Stabiliser[5] with 2 X Bolt [80] and 2 X Washer[90]
using the tool provided and ghten rmly.

9ELITE ROWING MACHINE ASSEMBLY MANUAL

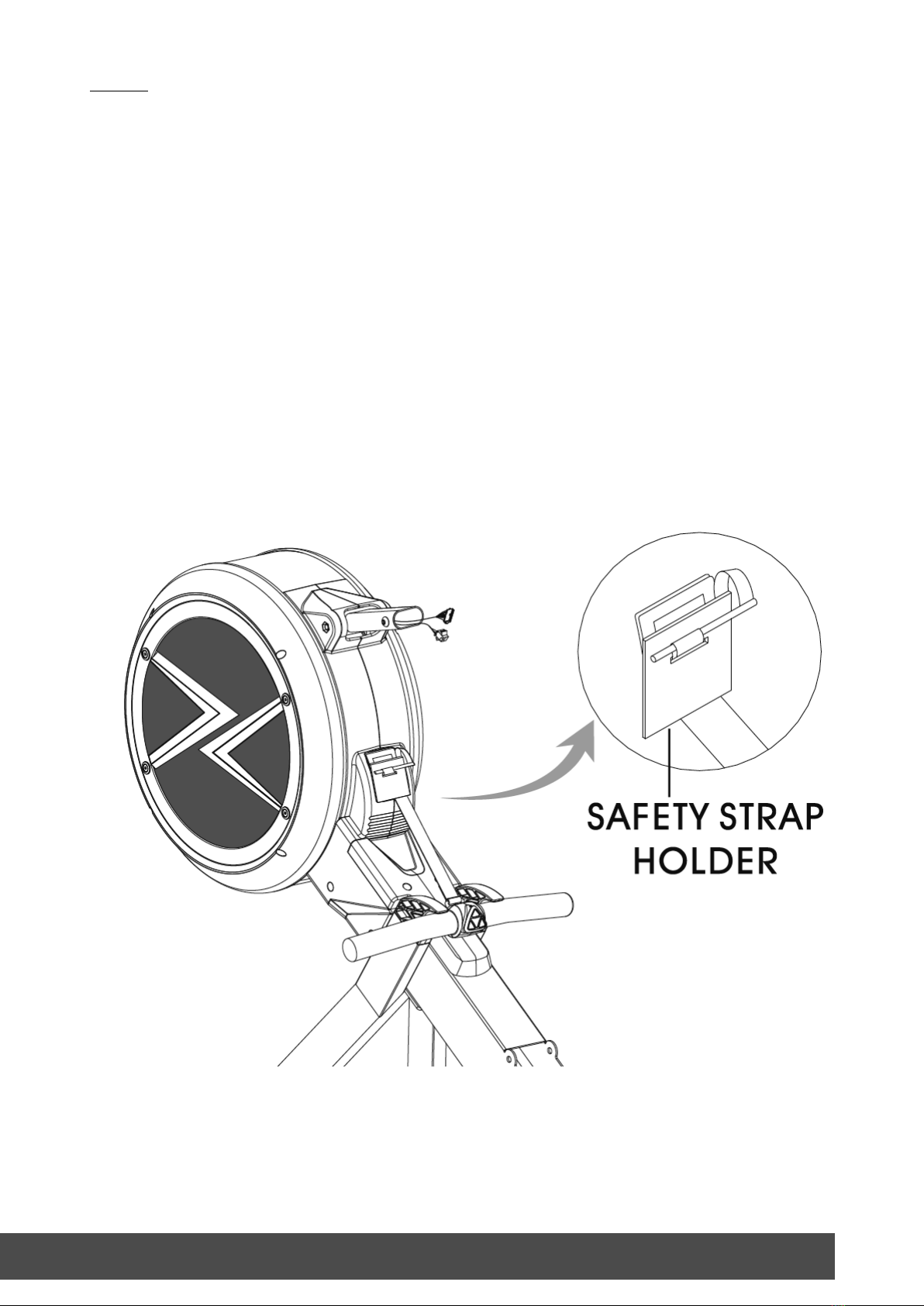

STEP 6
a) Remove the Safety Strap Holder and discard.
b) Place the handle bar in it’s Holder.

10

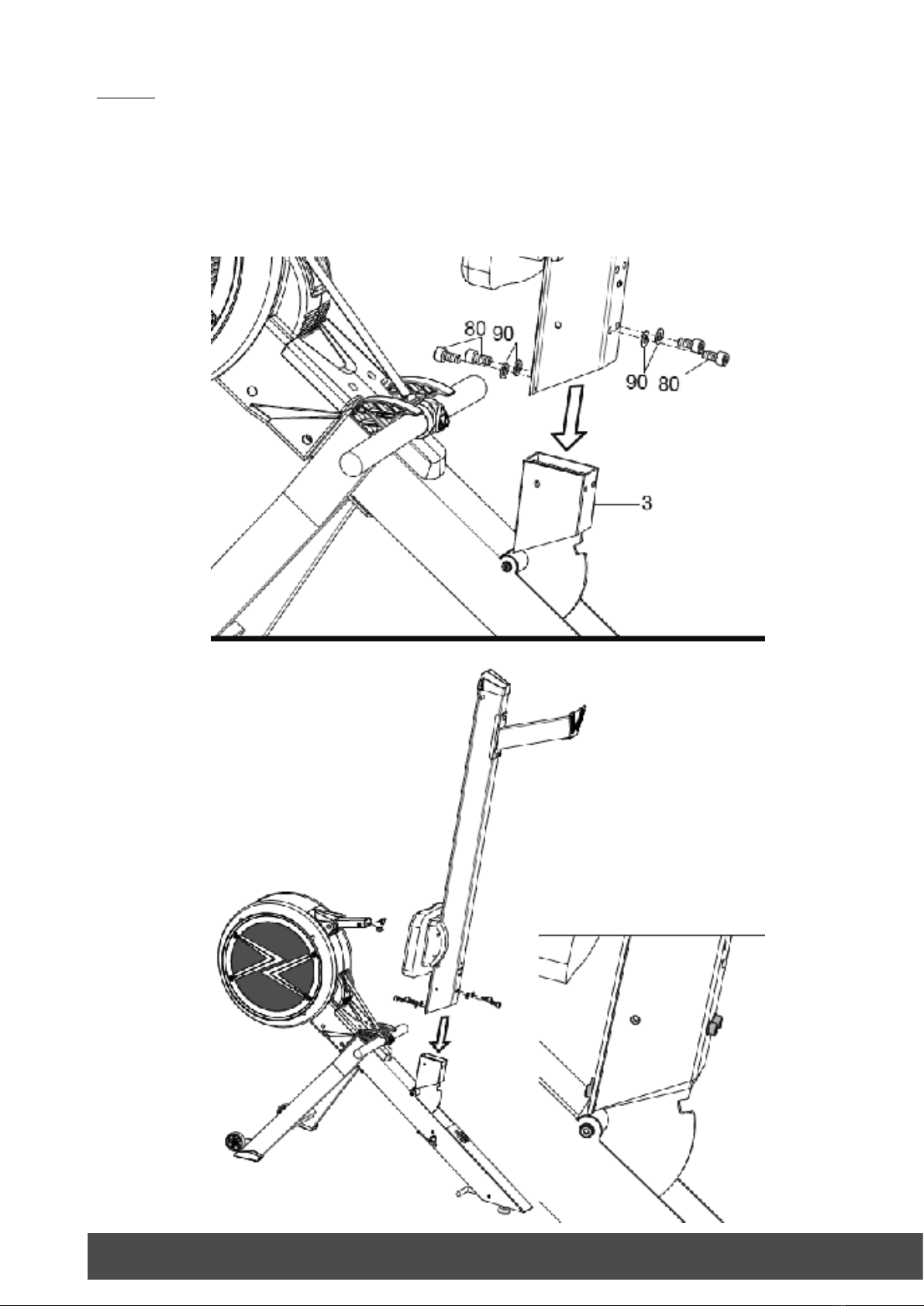

STEP 7
a) Remove 4xBolt [80] from Metal Support [3] with the tool provided.
b) Assembly the Aluminium Beam [1] into Metal Support [3] with 4xBolt
[80] and 4xWasher [90] using the tool provided and and ghten rmly.

11ELITE ROWING MACHINE ASSEMBLY MANUAL

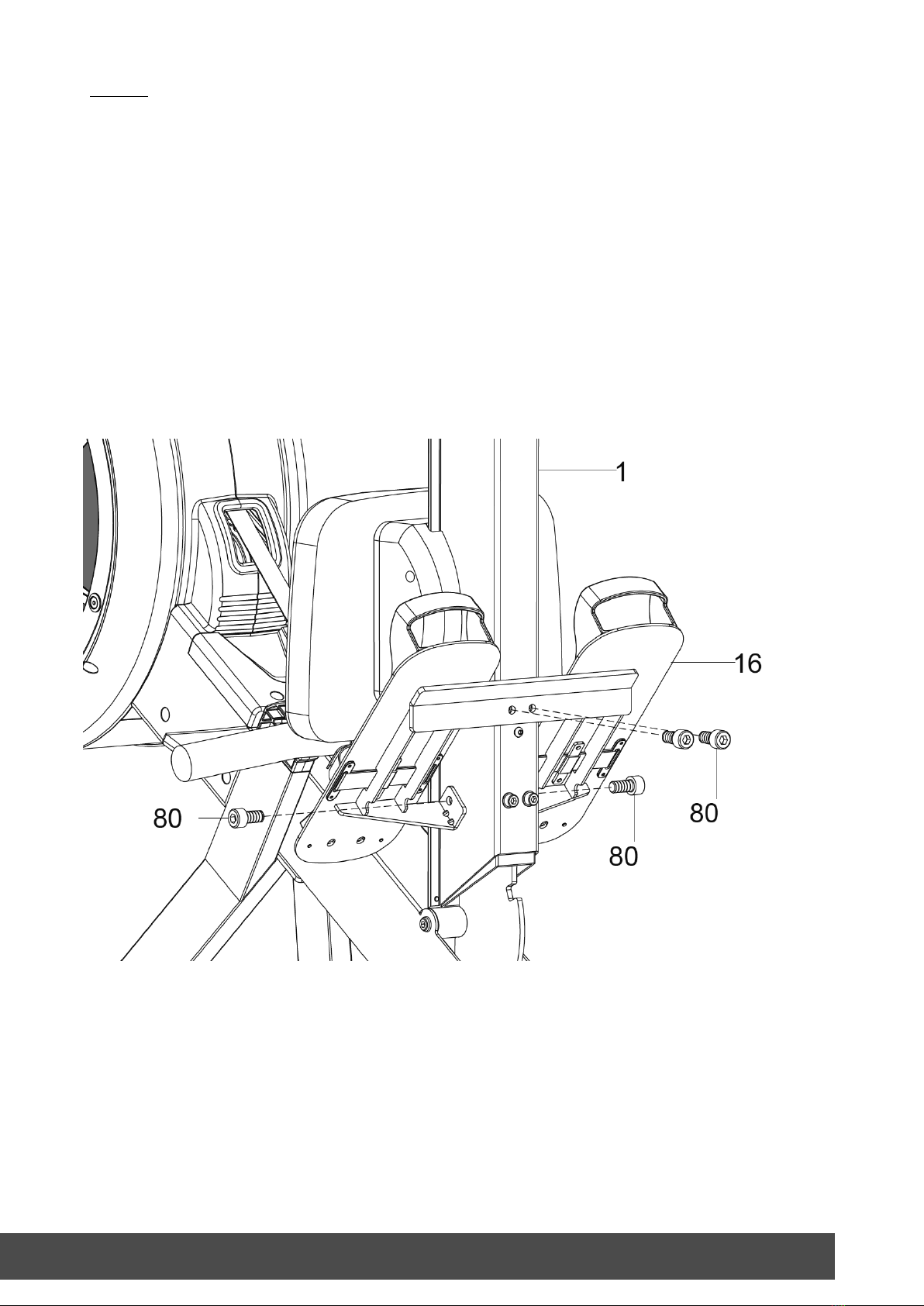

STEP 8
a) Assemble the Pedal [16 ] and Aluminium Beam [1] with 4 x Bolt[80]
using the using the Allen key provided and ghten rmly.

12
STEP 9
a) Remove the Safety Pin
b) Step on the Fold-Foot-Lever[28] and lower
the Aluminium Beam [1] to the oor unl you hear and feel it “LOCK”.
NOTE: Hold the Aluminium Beam [1] with your hand and gently lower it .

13ELITE ROWING MACHINE ASSEMBLY MANUAL
STEP 10
a) Remove the 2 x Bolt[71] from Computer[108].
b) Connect Computer Cable [102] and [104] and assemble
Computer[108] to Computer Arm[13] with 2 x Bolt[71].
c) Cut the Cable Tie.
d) Connect the AC Adaptor [109] into the main power socket.
e) Tighten all Bolts and Washers rmly using the Tool provided.
NOTE: Be Careful not to pinch the wires in the frame.

14
CONGRATULATIONS
Assembly of your Elite R11 Rowing Machine is now complete! Be sure to fully inspect your
machine before using it for the rst me.
Failure to visually check and test and tech the assembly before use can cause damage to
the Elite R11 Rowing machine and serious injury to users and bystanders and can also
compromise the eecveness of your exercise program.

15ELITE ROWING MACHINE ASSEMBLY MANUAL

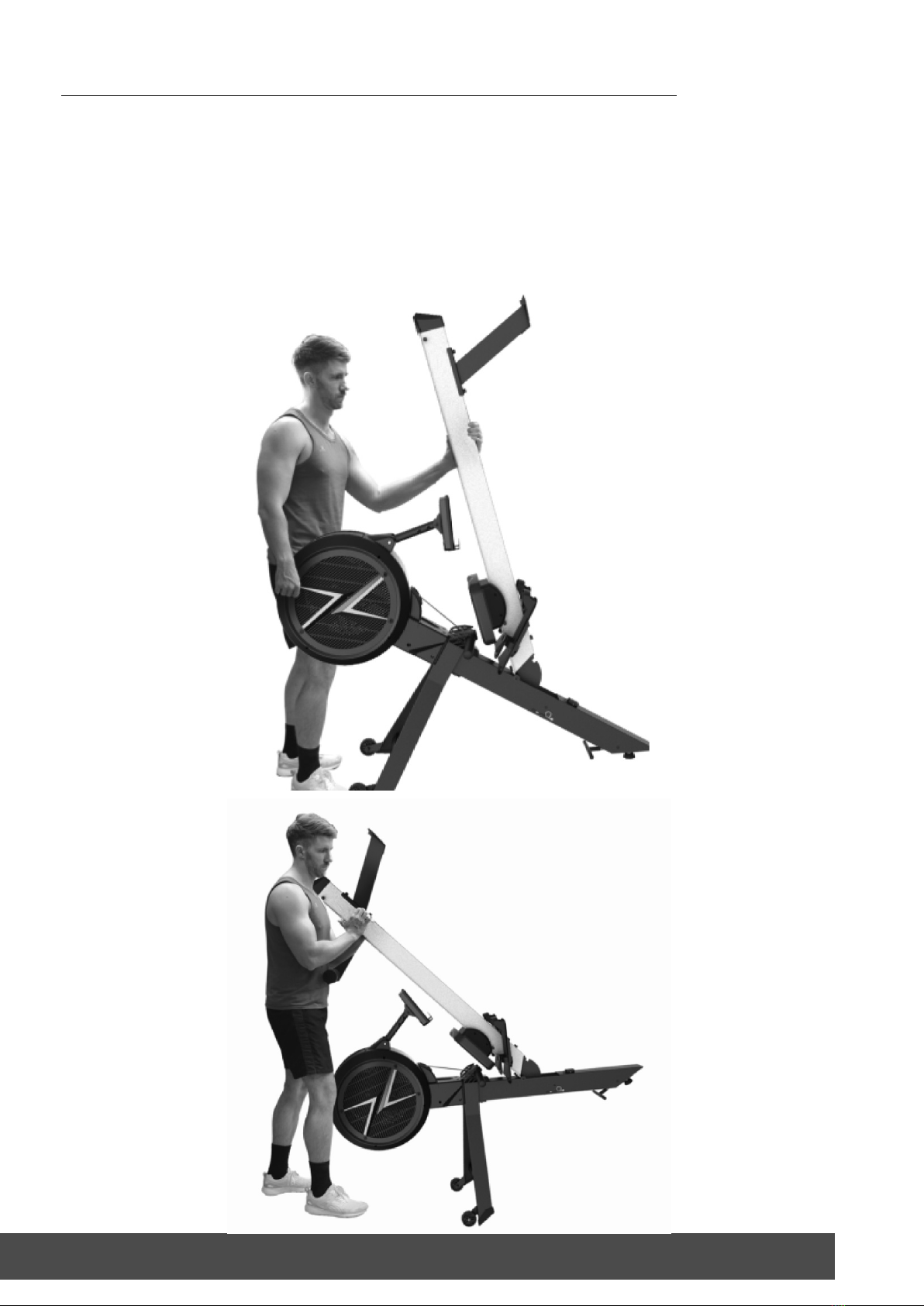

MOVING THE MACHINE
1) Posion yourself as shown in Fig 1 and hold up the rower with two hands. Slowly p the rower
towards the front and hold up to support the weight.
2) Once balanced (see Fig 2), you can transport the bike to the desired locaon with ease.
ADJUSTMENT GUIDE & STORAGE INSTRUCTIONS
FIG. 1
FIG. 2

16
STORAGE
When the rower is not in use, you can fold up the machine to save the space .
1) With the Rower in the at posion, remove the FOLD SAFETY PIN (97).
2) With a rm grasp of the ALUMINIUM BEAM [1] press the FOLD - FOOT LEVER (23) down
releasing the safety lock.
3) Allowing the ALUMINIUM BEAM (1) to be lied up.
4) With the Rower in the folded posion, reinsert the FOLD SAFETY PIN (97) to ensure the rower
CANNOT be unfolded.
Aenon: When unfolding and folding the Rower, keep your ngers and hands away from folding
hinge points to avoid injury.
1.1.
3.3. 4.4.
COMPUTER ANGLE ADJUSTMENT
The rotaon angle of computer post can be adjusted to obtain
the best view of the Computer LCD screen.
PEDAL ADJUSTMENT
The pedal strap is adjustable and can be personalised to t the
user’s foot size.
2.2.

17ELITE ROWING MACHINE ASSEMBLY MANUAL
At least once a year, the cover on your rowing machine should be removed and any dust or debris
vacuumed up to maintain the smooth operaon of the drive system. Contact the Elite Fitness
Service Department for further informaon on servicing your rowing machine.
Prolong the life of your rower by performing periodic maintenance checks. Not only does this
ensure your machine is in full working order to ensure they connue to run smoothly and reliably,
but it will save you service costs in the long run.
Cleaning
General cleaning of the unit aer use will protect the rowers powder-coated framework and
prevent unnecessary corrosion stains and damage to the structural components from sweat and
perspiraon. During this me check for any cracks and damage.
Guide Rail:
This area needs aenon every week. It needs to be kept free of dust and debris. If the wheels roll
over dust and debris it ingrains itself in either the wheel or the rail itself. Over me this will pit the
wheels or guide rail making for a bumpy workout.
Chain:
If you have a chain aached to your rowing handle once every 6 months you should give it a light
oiling. The chain should be free of build-up before re-greasing if it is dirty use an automove
degreaser and paper towel to remove the build-up.
To oil the chain; pull the chain to its full extent and while holding the handle use a clean paper
towel to rub lubricant along the length of the chain. 3 in 1 oil or 20W motor oil are recommended.
About 1 teaspoon of lubricant is plenty.
Adjust the End cap & How to fold the unit
To fold the aluminium rail, pull out the lock pin from the joint. Secure the rail by the lock pin.
Correct Exercising Position
When exercising, hold the handlebar ghtly and relax your back. Try and use the product in a
rhythmical and smooth moon. If you nd yourself feeling uncomfortable, or experiencing a
surging type feeling, adjust the tension down to a more comfortable seng.
CARE AND MAINTENANCE

18
eg:
MAINTENANCE LOG
Prolong the life of your rowing machine by performing periodic maintenance checks. Not only does
this ensure your machine is in full working order, but it will save you service costs in the long run.
Every me you perform maintenance, record the date and if applicable, the distance and hours
operated.
DATE GENERAL FRAME SERVICE
COMMENTS
Lubricated Tighten Cleaned Joints Guide Rail
01/06 √√√ none

19ELITE ROWING MACHINE ASSEMBLY MANUAL
Warranty Registration
It is recommended you register your warranty online at www.elitetness.co.nz/service/online-
forms/warranty to ensure you receive the correct user maintenance informaon for your
product before use. This will enable you to receive any addional or helpful informaon from the
manufacturer or Elite Fitness Equipment about your product.
Warranty Range
Damage in correct maintenance and normal operaons (not facous factors). Warranty card to
the original purchaser, shall not be transferred.
Warranty Time
HOME USE
— 10 Year Frame
— 1 Year Parts and Labour
The following conditions are not under warranty range:
a)As a result of abuse, neglect, accident, or unauthorized modicaon;
b)The damage due to incorrect adjustment of the machine;
Repair and Maintenance Service
Please contact our Elite Fitness Service Department at eliteservice@elitetness.co.nz or visit
www.elitetness.co.nz for any service related issues or advice on preventave maintenance
servicing procedures.
LIMITED WARRANTY

20
CONSOLE
FUNCTION DESCRIPTION SPECS
TIME The me of each workout ,when starng exercise. 0M:00S ~ 99M:59s
TIME/500m The me of each 500 metre at the current stroke velocity. 0M:00S ~ 99M:59s
DISTANCE The distances of each workout ,when starng exercise. 0.0 ~ 9999 KM
PULSE Heart rate during each workout. 30-230 BPM
CALORIE The calories burned of each workout, when starng exercise. 0 ~ 9999KCAL
SPM The strokes per minute, when starng exercise. 0 ~ 999 RPM
STROKES The strokes of each workout, when starng exercise. 0~9999
WATTS Workout power consumpon. 0~999
OPERATION:
POWER ON: Plug in power supply, computer will power on
and display all segments on LCD for 2 seconds.
DISPLAY FUNCTIONS
