EliteSteam ES-12 User manual

02/18 Pub. No. 1037-B
- 1 -
Optional Auto
Drain Installed
Model AD-240
Water Inlet
⅜" Compression
Fitting
¾" Safety
Relief Valve
¾" Steam
Outlet
Electrical
Panel Cover
Knockouts for
Electrical
Supply Line
Knockouts for
Control Cable
Install Upright
and Level
Plumbing Installation Instructions
Steambath Generators Models: ES-12 and ES-15
The EliteSteam “ES” Generator comes factory assembled,
carefully wired and tested.
WARNING: All electrical power should be turned OFF when
working with Steam Generator.
IMPORTANT: The Plumbing Installation must conform to local
and national codes.
1. Pre-Installation
a) Be sure that the proper size Steam Generator has been
selected by using the sizing page in the “The Generator
Sizing Guide”.
CAUTION: An improperly sized Steam Generator may NOT
produce the amount of steam necessary to reach selected
temperature.
b) For optimum performance, the Steam Generator should
be located as close as possible to the Steamroom,
Shower or tub enclosure using a ¾” copper pipe (1/2”
copper pipe is also acceptable, but not preferred). If the
steam pipe exceeds ten feet, it should be insulated using
appropriate pipe insulation rated for a minimum of 212º F.
Maximum steam pipe distance should not exceed a total
of fifty linear feet. Refer to Installation Suggestions on
page 4.
CAUTION: Do NOT install near flammable material such as
paints, thinners, gasoline, etc.
CAUTION: Steam generators must NOT be installed outdoors, in
moist, humid areas, in areas prone to freezing, or extreme heat
such as an unventilated attic. To do so will void the warranty.
c) The steam line and safety valve reach a temperature of
212°F during operation and should be appropriately
protected to prevent personal injury by accidental
contact.
2. Plumbing Rough-in
Plumbing rough-in is required for the water supply and
steam line; this should be completed before the walls
are closed. For operation, the “ES” Steam Generator
requires a ⅜" O.D. copper tubing to the fitting on the
generator for water inlet and a ¾" copper or brass pipe
for steam outlet.
NOTE: Safety Valve should be connected using a union to a
minimum ¾" indirect waste or as required by local plumbing
codes. In the unlikely event this valve should open, the discharge
must be directed to prevent damage to the home. Do NOT
connect the Safety Valve output to the steam line.
a) Water Inlet - Rough in a water line, 120 PSI max,
to the hot or cold supply. A shut off valve with a
3/8” connection to the steam generator is to be
provided at the generator location (see Figure 4 on
page 3).
b) Steam Outlet - Rough in the steam line using a ¾”
Brass pipe or Copper tube with sweated fittings
only. Do NOT use plastic pipe or fittings. Do not
use any push-fit, snap-fit or anything else that is
not specifically rated for 212ºF steam. Do NOT use
Black Iron or Galvanized pipe to avoid rust and
discoloration to steam room. The steam head
location should be 12” to 18” above the steam
room floor or 6” above a rim of a bathtub and as far
from the seating area as possible.
CAUTION: No shutoff valve can be installed in the steam
line. Do NOT create traps or valleys in this line which would
trap condensation and block the flow of steam. The steam
pipe should be pitched toward the Steam Generator
allowing condensation to run back toward the Steam
Generator (preferred), or toward the steamhead. If the
steam generator is equipped with a drain valve, do NOT
connect the drain pipe to the steam line.
Figure 1- Steam Generator
IMPORTANT: The warranty of this product is voided if it is used in a commercial application or for anything other than a residential
steambath installation. This product is not intended for use with Home Automation systems.
Important: Locate Publication No. 199ES “Steam Bath Important Safety Instructions”. This publication includes a
Warning label which the Installer must secure to the wall near the entrance to the steam room in a highly visible location.
This label and its additional safety information are packaged with the generator in the envelope containing the installation
instructions. If it is lost or missing contact EliteSteam (800-555-6890) for a replacement Publication No. 199ES. This
publication along with all documents must be left with the owner.
!

02/18 Pub. No. 1037-B
- 2 -
Steam
Generator
Shutoff Valve
Electric Water
Solenoid Valve
Cold Incoming
Water Supply
120 PSI Max
Tank
Steam Line
IMPORTANT: Install
steamhead 12" to 18"
above the shower floor or
6" above the rim of the
bathtub.
Union
(Required)
Water
Level
Probe
Pressure Safety Valve
Connect to indirect waste or as
required by local codes.
Optional Auto Drain Valve
Connect to indirect waste or as
required by local codes.
Union
(Required)
Union
(Required)
Plumbing Installation Instructions
3. Steam Generator Installation
The Steam Generator should be mounted in a location conve-
nient for hook-up and service by the plumber and electrician.
CAUTION: The Steam Generator is designed to be used
ONLY in an upright and level position; to do otherwise would
damage the unit and void the warranty.
a) The Steam Generator can be mounted to a wall or
set on the floor. However, the unit must be secured.
To secure the unit to a vertical wall, loosen the two
screws holding the electrical access cover, remove
cover (see Figure 1). Located inside the cabinet
near the top left and right corners are mounting
holes. Place top cover back and secure.
Figure 2 - Plumbing Diagram
Installation Instructions Models: ES-12 and ES-15
b) Connect the ⅜" water inlet to a shut off valve as
described in Section 2.a. The valve must be kept in
an open position during normal operation. In an area
where water hammer is a problem install a water
hammer arrestor in the line. Refer to Figure 2.
IMPORTANT: Do NOT use a “saddle valve” or
piercing type valve for water connection.
c) Connect the steam line from rough-in location
described in Section 2 to the ¾" nipple on the
Steam Generator using a union.

02/18 Pub. No. 1037-B
- 3 -
Steam Outlet Pipe - Use a ¾" Copper or Brass pipe.
CAUTION: Do NOT install a shutoff valve on the steam outlet pipe. Do NOT create traps or valleys in this line which
would prevent the flow of steam. The steam outlet pipe should be pitched toward the Steam Generator (preferred),
allowing condensation to run back into the Steam Generator or toward the steamhead. If the steam pipe exceeds ten
feet, use an appropriate pipe insulation rated for a minimum of 212°F.
IMPORTANT: Union MUST be used on Steam Line, Safety Relief Valve, and Drainline.
The Plumbing Instructions must be given to the homeowner for future use.
EC-120
Auxilary Outside
Control
START
STOP
Safety Valve
Connect ¾" pipe to an
indirect waste or as
required by local codes.
Auto Drain Ready
½" Capped Line
..
.
.
.
..
.
..
.
.....
.
.
.
..
.
..
.
.....
.
.
.
..
.
..
.
.....
.
.
.
..
.
..
.
.....
.
.
.
..
.
..
.
.....
.
.
.
..
.
..
.
.....
.
.
.
..
.
..
.
.....
.
.
.
..
.
..
.
.....
.
.
.
..
.
..
.
.....
.
.
.
..
.
..
.
.....
.
.
.
..
.
..
.
.....
.
.
.
..
.
..
.
.....
.
.
.
.
..
.
...
.
.
.
..
.
..
.
.....
.
.
.
..
.
..
.
.....
.
.
.
.
..
.
.
.
.
.
.
.
..
.
.
..
.
.
.
..
.
.
.
.
...
..
.
.
.
..
.
.
.
.
...
..
.
.
.
..
.
.
.
.
...
..
.
.
.
..
.
.
.
.
...
..
.
.
.
..
.
.
.
.
...
..
.
.
.
..
.
.
.
.
...
..
.
.
.
..
.
.
.
.
...
..
.
.
.
..
.
.
.
.
...
..
.
.
.
..
.
.
.
.
...
..
.
.
.
..
.
.
.
.
...
..
.
.
.
..
.
.
.
.
...
..
.
.
.
..
.
.
.
.
...
..
.
.
.
.
.
.
.
.
..
.
.
.
..
.
.
.
.
...
..
.
.
.
..
.
.
.
.
...
..
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
..
.
.
.
..
.
..
.
.....
.
.
.
..
.
..
.
...
..
.
.
.
..
.
.
...
..
.
.
.
.
.
.
.
.
.
..
.
.
..
.
.
.
.
..
..
.
.
.
..
.
.
.
.
...
..
.
.
..
.
.
.
.
...
TEMPERATURE
START
STOP
Steamhead Installation
Steamhead should be mounted 12"
to 18" above the finished floor or 6"
above the rim of the tub as far from
the bather as possible.
Union
Required
⅜" Shutoff Valve
Keep in open
position during
normal operation.
Connect to Hot or
Cold water supply
EC-150 Control MUST
be installed inside the
steam room.
Plumbing Installation Instructions

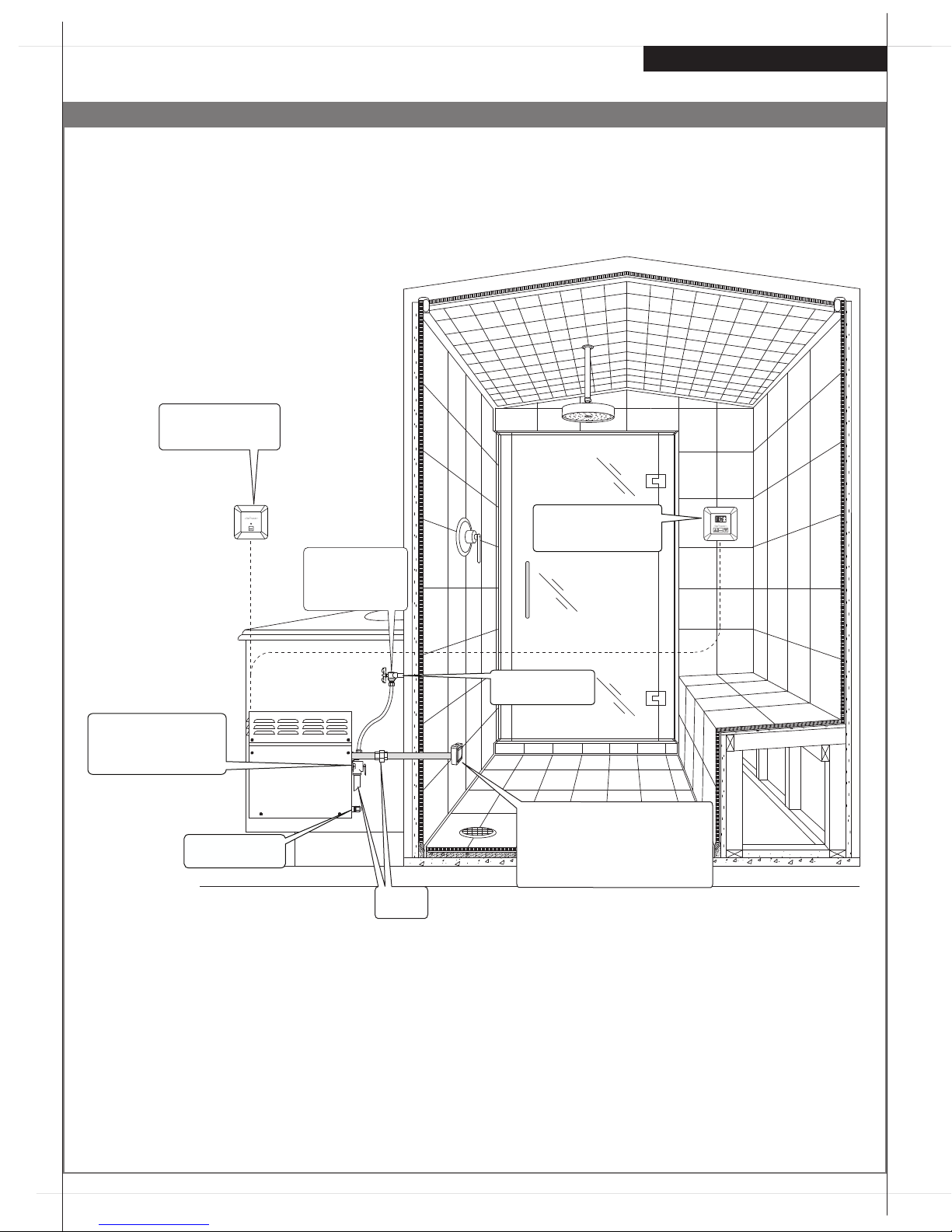

Figure 4 - Typical Installation Models: ES-12 and ES-15

02/18 Pub. No. 1037-B
- 4 -
Use 35" with
Optional Auto Drain
35"
28"
22"
18"
*Alternate Attic Location
(See CAUTION below)
*Alternate Basement Location
(See CAUTION below)
STOP
2
12
1
TIME
TEMP
IM
STOP
Vanity
Location
Closet
Location
*CAUTION: Steam generators must NOT be installed outdoors, in moist, humid areas, in areas prone to freezing, or
extreme heat such as an unventilated attic. To do so will void the warranty.
Plumbing Installation Instructions
Select a location for mounting the Steam Generator that is
accessible for installation and service. The access requirement
indicates the minimum space for convenient access to Steam
Generator.
CAUTION: All models must be installed INDOORS, in a DRY,
NON-FREEZING location away from flammable materials such
as: Gasoline, Paints, Thinners, Etc.
NOTE: This steam generator is NOT intended to be used for
space heating purposes.
IMPORTANT: Steam Generator must be installed upright and level.
The serial number info should be visible and the Steam Generator
should be accessible for service.

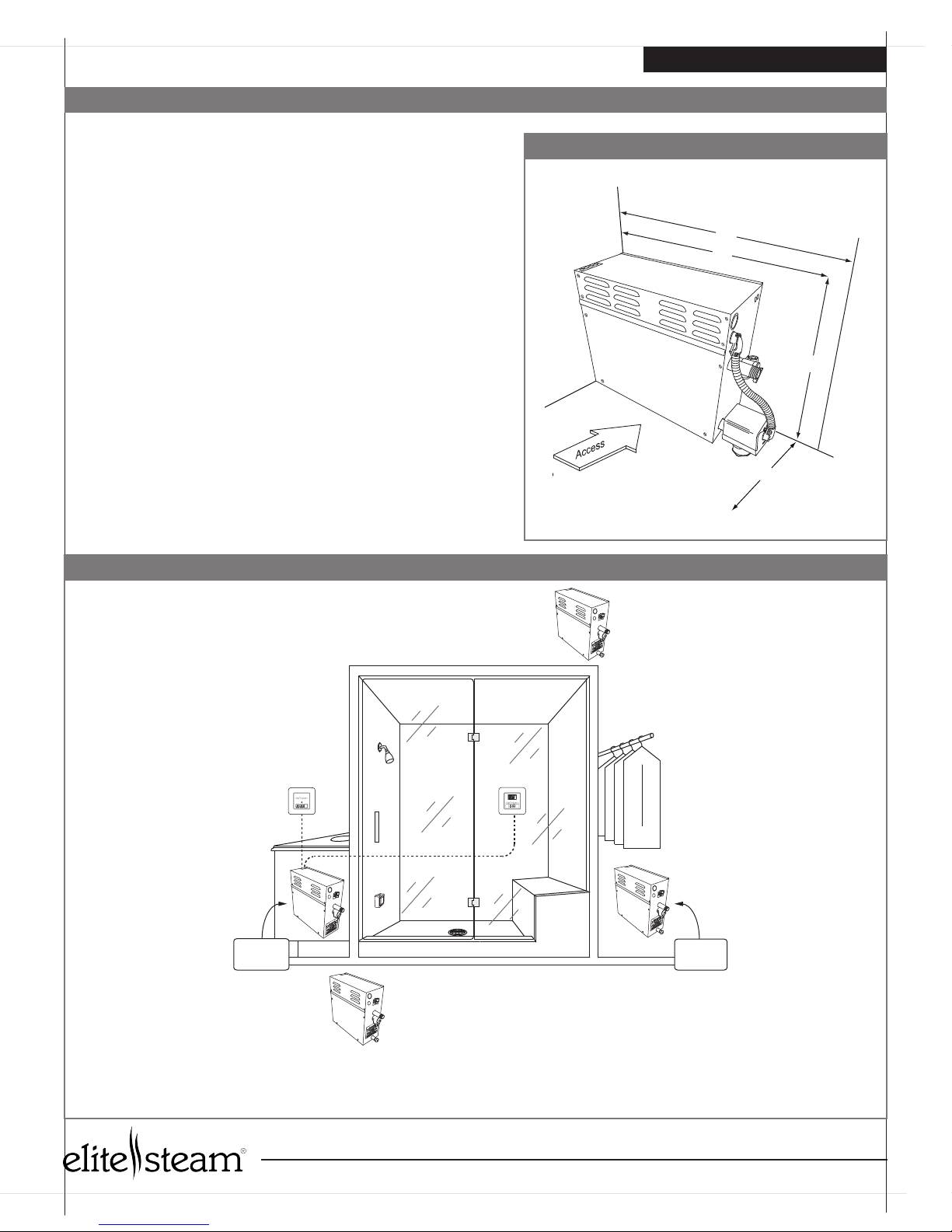

Figure 5
Access Requirements Models: ES-12 and ES-15
Installation Suggestions
