Elkay LKEC2031AS Operating instructions

You choose the flow rate!
This faucet ships with an
eco-friendly 1.5GPM flow regulator
installed.
If you desire higher flow rate, a
2.2GPM flow regulator has also
been included in the box.
Switching the flow regulator is
simple! See the "Flow Regulator
Replacement" section for details.
Sealant Tape
Groove joint pliers
SAVE FOR CONSUMER
(2) 1/2 in Supply Lines
Wrench Screwdriver Plumber's Putty
OPTIONAL 2.2GPM FLOW
REGULATOR
INSTALLATION / OWNER'S MANUAL
Model # LKEC2031
Single Handle Kitchen Faucet
Important!
From underneath the sink,align block ①
and tabs ② on quick connects.Push quick
connect housing firmly upward and snap
onto receiving block. Pull down
moderately to ensure connection has
been made. If it is necessary to remove
quick connect, squeeze tabs on hose
between index finger and thumb, then pull
down to disconnect. After connecting the
hose, install the weight ③ at the lowest
point of the hose.
Place faucet through the hole in top of
sink. From underside, assemble rubber
washer ①,metal washer ② and nut ③
onto long shank ④ and tighten nut ③.
Firmly tighten the nut ③ to metal washer
②. Do not overtighten.
Shut off water supplies.Clean sink surface.
Place washer ② and flange ① on the sink ③.
If you do not use flange,please use
escutcheon ④ and gasket ⑤ to replace
flange and washer.
Important: after installation is completed,
turn on hot and cold water supplies. Pull
the hose assembly out of the spout and
remove the spray head by unscrewing it
from the hose counterclockwise. Be sure
to hold the end of the hose down into the
sink and turn the faucet on to the warm
position where it mixes hot and cold
water. Flush water lines for one minute.
Check for leaks. Re-tighten any
connections if necessary, but do not
overtighten. Reinstall spray head by hand
tightening it back onto the spray hose.
Make connections to water lines with 3/8"
female compression supply hoses.
If additonal length is needed,attach incuded
1/2" MIP thread adaptors ② to the supply
hoses ①.Use 1/2" I.P.S. faucet connections
③ or use coupling nuts ⑤
with 3/8" O.D.ball-nose riser ④ to make
connections to the water lines. Do not
overtighten.
34
5
1
2
WARNING: Please carefully read and properly follow the instructions for installation found in this manual.
4
5
3
2
1
Ø 1 3/8''
Ø35mm
1
3
2
4
3
2
1
STEPS:
FOR CARE AND MAINTENANCE:
·The water in certain areas of the world can be very caustic -
standing water around the product can cause damage. Be
sure to remove standing water with a dry, soft cloth as soon
as possible.
·For polished brass finishes, as often as once a week, you
can apply a paste wax or special, non-abrasive, brass
coating (DO NOT APPLY POLISH).
·Before applying a protective coating, gently brush the entire
fixture using a soft tooth brush. This will remove any dirt or
deposit build-up.
·These simple steps will add temporary protective coating to
your faucet and extend the life of the finish.
Failure to follow care and cleaning will void your warranty.
For additional information, please visit elkayusa.com .
Congratulations on your purchase of an Elkay product.
Although your product is extremely durable, attention should
be given to the care, cleaning and maintenance of this
product. Cleaning agents and abrasives may cause damage,
which may result in oxidation and discoloration.
By following these simple guidelines for proper care and
cleaning, it will give you years of enjoyment:
TO CLEAN: Simply wipe gently with a damp cloth and blot dry
with a soft towel. A common rule of thumb is: when you dry off,
dry off your product.
· Avoid build-up of soap, toothpaste or mineral deposits, as
these tend to have an adverse effect on the appearance of
the product.
· NEVER use cleaning products of any kind on this product -
especially those containing ammonia, bleach or alcohol - or
those with any form of abrasive.
CARE AND CLEANING INSTRUCTIONS
Loosen sleeve ① by turning it counter-clockwise and lift out
the cartridge ②.Position the cartridge back to the faucet body
and retighten the cartridge nut. Reinstall the handle.
The faucet ships with a 1.5GPM aerator installed. An
optional 2.2 GPM aerator is also included in the box.
To switch the flow rate of the faucet:
1. Disassemble the quick connect assembly by
separating the connector ① and quick connect ②.
2. Replace 1.5 GPM connector(green) with the 2.2GPM
connector.
3. Reinstall quick connect assembly.
1
1
2
1
2
Shut off water supply! .With valves in "closed" position,
unscrew fastener ⑥ and remove handle (5) from valve stem
②. Loosen the screw ③ from valve stem ②. Loosen the cap
④ from the sleeve ①.
FLOW REGULATOR REPLACEMENT
6
CARTRIDGE REPLACEMENT
34 5
21
12
P05140* Aerator Assembly
RP70261 Cartridge Nut
P05134 1.5GPM Flow Regulator
P05135 2.2GPM Flow Regulator
Elkay
elkayusa.com
©2011 Elkay
Model # LKEC2031
P99358(Rev. date: 05/2011)
RP80283* Cap
P01317* Handle
P38111 Set Screw
P46466 Block
P37142 O-ring
RP80284* Single Hole Escutcheon
P35296 Rubber Washer
P35309 Metal Washer
P36171 Mounting Nut
P44278 Weight
P76468 Quick Connect
P37144 O-ring
Spout Base
P01308* Handle Kit
P46472 Thread Adapter
What is not covered:
1. Damage caused by accident, negligence, misuse, abuse, improper
installation or operation or failure to follow care or installation instructions
enclosed with your product.
2. Damage occurring during shipment of the product (claims must be
presented to the carrier).
3. Normal wear and tear.
4. Labor charges, costs of removal and reinstallation, and any damages
to other property.
5. All industrial, commercial and business use whose purchasers are
hereby extended a limited lifetime on mechanical parts and 5 years on
finish.
ELKAY LIMITED LIFETIME WARRANTY
Elkay warrants that all parts and finishes of the Elkay Residential brand
faucets are free from defects in materials and workmanship for the life of
the product, if purchased after 1996. This warranty covers the
original consumer purchaser of the product only.
If the product should leak or drip during normal use, Elkay will provide,
free of charge, a replacement cartridge. For other defects in material or
workmanship, Elkay will, at its option, supply replacement parts (or if no
longer available a comparable product). Elkay reserves the right to
examine product in question and its installation prior to replacement.
P51006* Hand Spray
P48046* Hand Spray Hose
Note:Hand s pray includes
aerator assembly
REPLACEMENT PARTS
THIS LIMITED WARRANTY IS EXPRESSLY IN LIEU OF ANY
OTHER WARRANTIES, EXPRESSED IMPLIED, ARISING BY LAW
OR OTHERWISE, INCLUDING WITHOUT LIMITATION, ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE. THIS LIMITED WARRANTY MAY NOT
BE ALTERED, VARIED, OR EXTENDED, EXCEPT BY A WRITTEN
INSTRUMENT EXECUTED BY ELKAY. THE REMEDY OF REPAIR
OR REPLACEMENT AS PROVIDED UNDER THIS LIMITED
WARRANTY IS EXCLUSIVE. IN NO EVENT SHALL THE
MANUFACTURER BE LIABLE FOR ANY CONSEQUENTIAL OR
INCIDENTAL DAMAGES TO ANY PERSON, WHETHER OR NOT
OCCASIONED BY NEGLIGENCE OF ELKAY, INCLUDING WITHOUT
LIMITATION DAMAGES FOR LOSS OF USE, COSTS PROPERTY
DAMAGE OR OTHER MONETARY LOSS.
Some states do not allow the exclusion or limitation of incidental or
consequential damages or limitations on how long an implied warranty
lasts, so the above limitations or exclusions may not apply. This
warranty gives you specific legal rights and you may also have other
rights which vary from state to state.
This warranty covers product installed in the United States and Canada.
What you must do to obtain warranty service:
Either write to Elkay, attention Customer Care, 2222 Camden Court,
Oak Brook, IL 60523 or call 1-800-223-5529. Please provide date of
purchase and installation, description of nature of the defect, and
model number or description of model and/or component part.
ELKAY LIMITED LIFETIME WARRANTY
WARRANTY
RP60075 O-ring
RP60076 Ring
P29248 Cartridge
P36168 Screw
Spout
RP64166* Insert

This manual suits for next models

1

Other Elkay Plumbing Product manuals

Elkay Pacemaker PSLVR1916 User manual

Elkay

Elkay Pacemaker PSLVR1916 User manual

Elkay LK4000 Operating instructions

Elkay

Elkay LK4000 Operating instructions

Elkay EWMA4820SACMC User manual

Elkay

Elkay EWMA4820SACMC User manual

Elkay Lustertone DRKAD2217 User manual

Elkay

Elkay Lustertone DRKAD2217 User manual

Elkay SHL-2 Instruction Manual

Elkay

Elkay SHL-2 Instruction Manual

Elkay DRKR14C Installation manual

Elkay

Elkay DRKR14C Installation manual

Elkay LKEC2031 Operating instructions

Elkay

Elkay LKEC2031 Operating instructions

Elkay Avado EFU471810DB User manual

Elkay

Elkay Avado EFU471810DB User manual

Elkay Sturdibilt SS8230 User manual

Elkay

Elkay Sturdibilt SS8230 User manual

Elkay LK105 Operating instructions

Elkay

Elkay LK105 Operating instructions

Elkay Avado LKAV1031CR Operating instructions

Elkay

Elkay Avado LKAV1031CR Operating instructions

Elkay Vivo LKS6265 User manual

Elkay

Elkay Vivo LKS6265 User manual

Elkay Harmony LKHA3042CR Operating instructions

Elkay

Elkay Harmony LKHA3042CR Operating instructions

Elkay EDF10C*A Series Installation manual

Elkay

Elkay EDF10C*A Series Installation manual

Elkay EZS8WSSVP Installation manual

Elkay

Elkay EZS8WSSVP Installation manual

Elkay LKAV3031 Operating instructions

Elkay

Elkay LKAV3031 Operating instructions

Elkay SC1515 Series User manual

Elkay

Elkay SC1515 Series User manual

Elkay EHWM17C*A series Instructions for use

Elkay

Elkay EHWM17C*A series Instructions for use

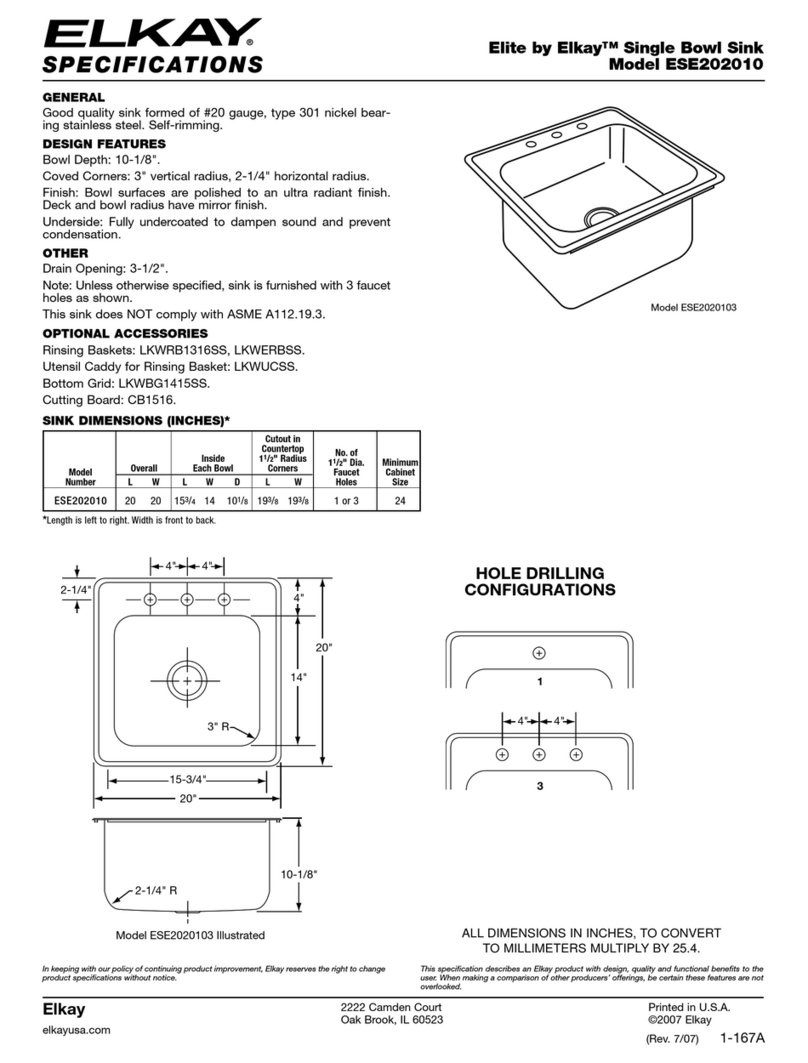

Elkay Elite ESE202010 User manual

Elkay

Elkay Elite ESE202010 User manual

Elkay ELV2219SACC User manual

Elkay

Elkay ELV2219SACC User manual

Elkay LK133 Operating instructions

Elkay

Elkay LK133 Operating instructions

Elkay Lustertone ELUH3120L User manual

Elkay

Elkay Lustertone ELUH3120L User manual

Elkay LZOTL8WSLK Instructions for use

Elkay

Elkay LZOTL8WSLK Instructions for use

Elkay LKDC2085 User manual

Elkay

Elkay LKDC2085 User manual

Popular Plumbing Product manuals by other brands

Kohler ALEO S 31240T-4 installation instructions

Kohler

Kohler ALEO S 31240T-4 installation instructions

ProFlo PFX3045 quick start guide

ProFlo

ProFlo PFX3045 quick start guide

Sanela SLZN 91E3 Instructions for use

Sanela

Sanela SLZN 91E3 Instructions for use

Inocal Traditional Sauna instruction manual

Inocal

Inocal Traditional Sauna instruction manual

Signature Hardware Rigi 948597 manual

Signature Hardware

Signature Hardware Rigi 948597 manual

CDA TC10 datasheet

CDA

CDA TC10 datasheet

American Standard Copeland 7005.801 installation instructions

American Standard

American Standard Copeland 7005.801 installation instructions

Grohe 24 044 manual

Grohe

Grohe 24 044 manual

Moen 8417 Series Product user manual

Moen

Moen 8417 Series Product user manual

Grohe Even 32 797 manual

Grohe

Grohe Even 32 797 manual

Grohe Chiara manual

Grohe

Grohe Chiara manual

Kohler K-2271 installation guide

Kohler

Kohler K-2271 installation guide

Moen L4701 Series manual

Moen

Moen L4701 Series manual

Triton HUMBER Installation and operating instructions

Triton

Triton HUMBER Installation and operating instructions

Kraus KAG-1 installation guide

Kraus

Kraus KAG-1 installation guide

Hans Grohe Tango C 04270 5 Series Installation/User Instructions/Warranty

Hans Grohe

Hans Grohe Tango C 04270 5 Series Installation/User Instructions/Warranty

Clou Flush 3 CL/03.36030 installation instructions

Clou

Clou Flush 3 CL/03.36030 installation instructions

Sterling Plumbing Seated Shower Receptor and Wall Surrounds with Backer Boards... Specification sheet

Sterling Plumbing

Sterling Plumbing Seated Shower Receptor and Wall Surrounds with Backer Boards... Specification sheet

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
