JPD-FR100
Digital Infrared Thermometer
Instruction Manual
PO Box 35 L-6701 Grevenmacher Luxembourg / EU
ELLEMKA S.à r.l.™
24, rue Principale L-6925 Flaxweiler Luxembourg / EU
[phone] [phone]
ellemka.com
[email protected] | [e-mail]
jumper-medical.com
5th Floor,Building No.34 , Baoyuan Industrial Zone,
Shenzhen Jumper Medical Equipment Co.,Ltd.
Xixiang Street,Baoan District, Shenzhen, Guangdon
[email protected] 0482

JUMPER MEDICAL JPD FR100 Digital Infrared Thermometer JUMPER MEDICAL JPD FR100 Digital Infrared Thermometer
I. NOTICES
©2016-2019 by ELLEMKA s.àr.l.™. All Rights Reserved
No part of the user's manual may be reproduced, transmitted, transcribed and
stored in any form, by any means, without written authorization from Ellemka.
And Ellemka will not be held liable for any damages resulting from the user of
this product.
Without prior notice, Ellemka reserves the right to change the specifications of
the hardware and software as described in this user's manual at any time. Please
check regularly for the pdf file format of this that can be downloaded easily from
the website.
While every effort has been made to ensure that the information is accurate and
comprehensive, we would appreciate your effort to inform Ellemka if any typo
errors can be found in this manual.
Please be sure to read thoroughly for your safety and be guided in using the unit.
II. QUICK START GUIDE
Follow these steps for a quick start with the JPD FR100 Digital Infrared Forehead
Thermometer
1. Unpack and check the packaging contents ( page 4).
2. Install the batteries ( page 11).
3. Power on ( page 12).
4. How to measure body temperature ( page 12).
5. How to measure milk temperature ( page 12).
6. Reading measured and displayed date on screen ( page 13-16).
7. Power off ( page 16).
01 02

JUMPER MEDICAL JPD FR100 Digital Infrared Thermometer JUMPER MEDICAL JPD FR100 Digital Infrared Thermometer
IV. PACKAGING
1. Digital Infrared Forehead Thermometer Unit
2. 2pcs. battery(AAA)
3. User Manual
Do not accept, if any of the specified items above are not completely enclosed inside
the packaging box or if any sign of damage is visible, refer to Customer Service and
Support section for specific details ( page 20).
III. SYMBOL AND CONVENTION
04 82
Refer to a specific page/section
Warning, Precaution and Caution
Note
BF-type application part (refer to IEC 60601-1:1995)
European Authorised Representative/Authorized Representative
European Conformity (CE) is a mandatory conformity marking for certain
products sold within the European Economic Area (EEA).
The product system conforms to essential requirement of the Medical
Oximeter Directive 93/42/EEC.
Postal Address
Headquarter Address
Fax Contact Number
Phone Number
Email Address
Website
Instagram
Twitter
Facebook
Pinterest
Manufacturer
Non-contact
Body Temperature Detection
Milk Temperature Detection
Degree Celcius
0403
Fareinheit Celcius

JUMPER MEDICAL JPD FR100 Digital Infrared Thermometer JUMPER MEDICAL JPD FR100 Digital Infrared Thermometer
B. Precaution:
1. The device is not used for newborn baby.
2. The device is not continuous monitoring device.
3. JPD-FR100 is not waterproof. Please do not douse it into the water or
other liquids. Cleaning and disinfection procedure shall be in comply with
the instructions specified in [cleaning and storage]
4. Do not spray, pour, spill any liquid on the unit and accessories, as this
could result in damage.
5. Please do not use the product if the temperature sensor or the forehead
thermometer shows any sign of damage.
6. JPD-FR100 consists of precision parts with high quality. Please prevent
the product from falling off. Protection shall be provided for no intense
shock and vibration. Do not twist the forehead thermometer and the
temperature sensor.
7. Do not directly expose your eyes to the light-emitting components of the
unit, as this could cause harm to your eyes.
8. Electromagnetic interference: JPD-FR100 contains sensitive electronic
component and shall not use under the condition with electromagnetic
interference, (such as the place nearby the mobile phones and microwaves)
9. Do not use the unit for purpose other than specified in this manual,
failure to follow the guidelines could result in minor incidents.
10. Do not use worn, different types of batteries. Otherwise, it might
leak, heat or break and cause injury.
11. Ask for medical care and advise if the measured value goes beyond the
normal range.
12. Properly consult relevant medical literatures or professionals for details
about clinical limitations and contraindications.
VI. SAFETY NOTES
A. Warning:
1. Do not use in the event of malfunction, turn off or remove the batteries
immediately if you notice smoke or unusual smell coming from the unit to
avoid burns.
2. Do not use the unit in the presence of inflammable gases, as this could
result in explosion or fire.
3. Do not leave the unit where it will be exposed to extremely high
temperature, failure to observe could result damage, skin burn or fire.
4. Do not use worn-out batteries or different specifications for two batteries
altogether. Otherwise, this may leak, hurt and cause injury.
5. Do not operate and use the unit when it is damp with overflow or water
vapor condensation, failure to observe could result in injury or damage.
6. Do not assemble or disassemble the unit, providing technical support
and maintenance internally could result injury or fault. In the event of
malfunction, only an authorized technician or qualified service personnel is
allowed to repair.
7. Keep the unit out of reach of children. If broken, any small parts could
cause injury, damage, choke or death if swallowed inside the mouth.
Consult a physician immediately if the child swallows any part of the unit.
8. Keep the battery out of reach of children, battery contains a poisonous
chemical. If broken, this could cause death or illness if taken inside the
mouth or body.
9. Keep the strap out of reach of children, playing or placing around the
neck could strangulate or choke the infant or child.
0605

JUMPER MEDICAL JPD FR100 Digital Infrared Thermometer JUMPER MEDICAL JPD FR100 Digital Infrared Thermometer
VII. INTRODUCTION
Jumper Medical JPD-FR100 digital infrared thermometer, is a contactless
measuring device that gives stable measurement without the interference from
ambient temperature.
The infrared digital thermometer JPD-FR100 can be used to measure the body
temperature, which is suitable for people of all ages. It can be used to measure
the temperature of milk as well.
VI. CONTENTS
I. Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01
II. Quick Start Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 02
III. Symbol and Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 03
IV. Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 04
V. Safety Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
A. Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 05
B. Precaution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 06
VI. Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 07
VII. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 08
VIII. Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
A. Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 09
B. Get to Know . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
IX. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
A. Battery Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
X. Operation Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
A. Power On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
B. How to Measure Body Temperature . . . . . . . . . . . . . 12
C. How to measure Milk Temperature . . . . . . . . . . . . . . 12
D. Operational method and instruction for displays . . . 13-16
XI. Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-18
XII. Product Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
XIII. Customer Service Support . . . . . . . . . . . . . . . . . . . . . . . . . . 20
0807

JUMPER MEDICAL JPD FR100 Digital Infrared Thermometer JUMPER MEDICAL JPD FR100 Digital Infrared Thermometer

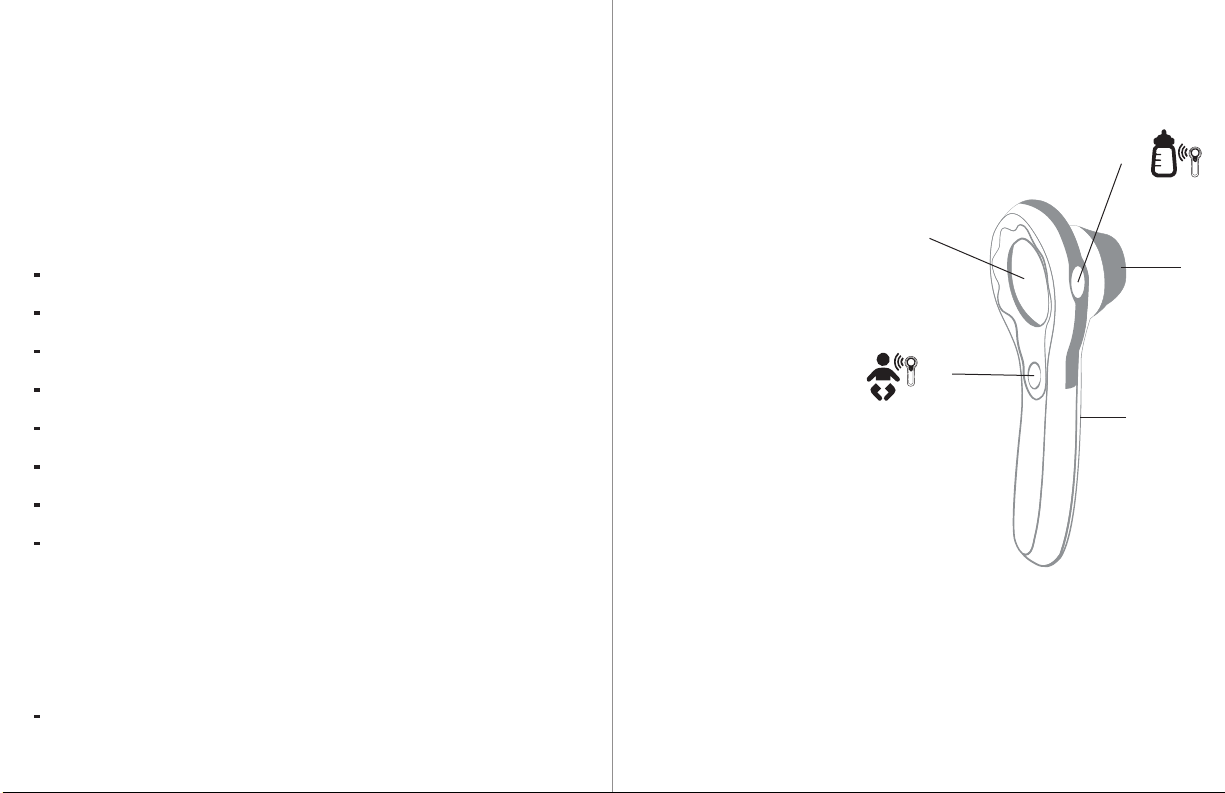

B. Get to Know
(1) Temperature sensor
(2) Body (forehead) Temperature
detection button
(3) Milk Temperature
detection button
(4) LCD display
(5) Battery compartment
VIII. OVERVIEW
JPD FR-100 Infrared Digital Thermometer measures the temperature of human
body according to the principle of receiving infrared. When using, it only requires
the sensor to align with the body (forehead) or milk liquid to be measured for its
temperature.
The product consists of ABS common plastics, TPR plastics, temperature sensor,
Infrared temperature measuring element, microcomputer controlled circuit and
LCD.
A. Features
-Multi-use (body or milk temperature detection)
-20 Readings Memory Recall
-Providing two temperature modes: °F/°C.
-LCD display resolution(definition): 0.1.
-LED Backlit
-Fever Warning for Forehead Temperature Test
-Non-contact detection (1-6cm)
-Range of measurement:
Body temperature:32.0ºC-42.2ºC.
Milk temperature:0.0ºC-100.0ºC.
Measurement error: ± 0.3ºC.
Repeatability:±0.2ºC.
Measurement time:0.5s.
Measurement distance:1cm-6cm.
-Auto-shutdown time:10s.
1009
1
2
3
4
5

JUMPER MEDICAL JPD FR100 Digital Infrared Thermometer JUMPER MEDICAL JPD FR100 Digital Infrared Thermometer
IX. INSTALLATION

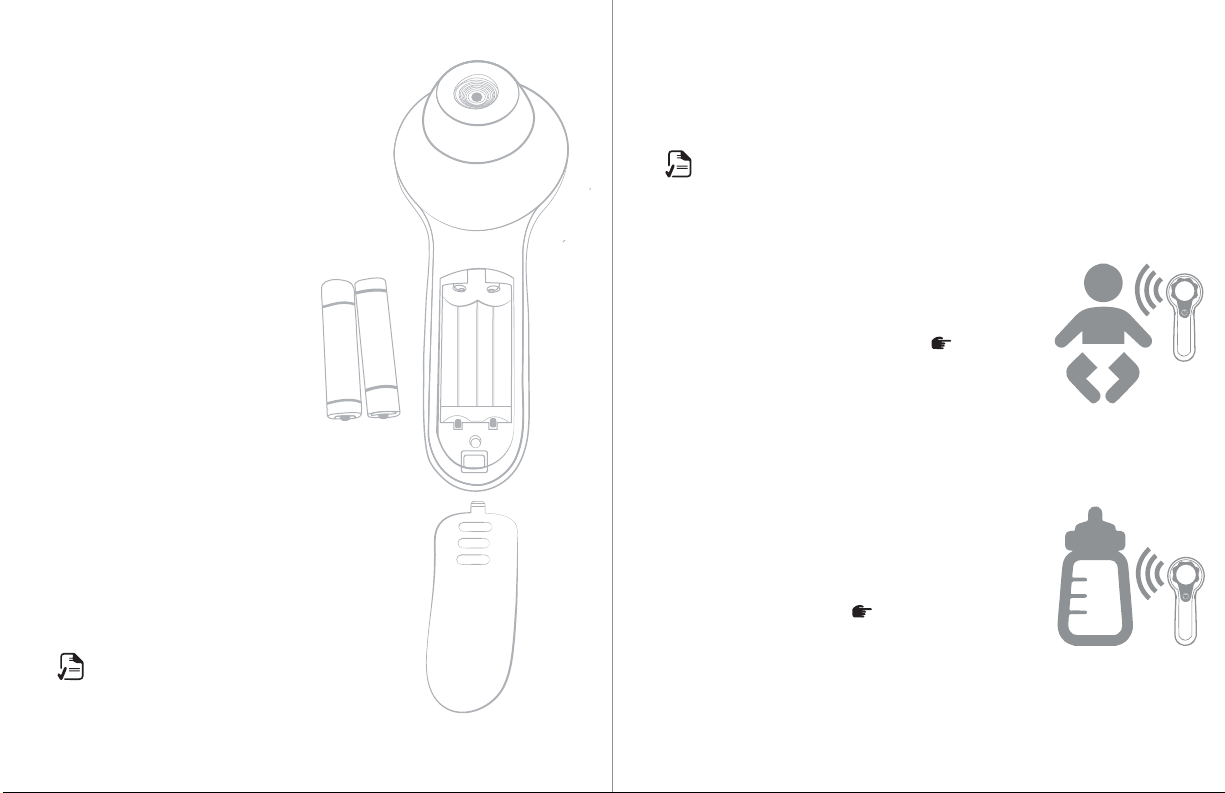

A. Battery Installation
1. Open the battery compartment
of the unit. Check and clear the
battery compartment from any
unwanted objects that may cause
any harm to the user or may cause
to explode or damage the unit.
2. Find and check 2 pieces of AAA
batteries provided to use inside the
packaging box, otherwise look for
the specified batteries to use.
3. Properly insert the batteries
into the battery compartment.
Check the correct polarity and
properly install each battery as
indicated inside the battery
compartment as (+) positive
and (-) negative. Otherwise, it
might leak, heat and cause injury.
4. Close the battery compartment
with the cover before using the unit.
For short time use of the unit,
please remove the batteries.
1211
X. OPERATION GUIDE
A. Power ON
To power on, use to buttons: Body Temperature detection button ( Page ) and Milk
Temperature detection button ( Page ).
Before using, check the power button of the unit if it is functioning and
batteries have enough power voltage to supply.
B. How to Measure Body Temperature
JPD-FR100 measures the infrared energy emitted
from forehead, which will focus through lens and
convert to temperature value by thermopile and
measuring circuit. It is recommended that you
press Body Temperature Detection button ( Page10 )
and scan the forehead from one side to another at
a distance from 1cm to 6cm, then release the button
with the maximum value displayed. Fixed point
measurement may result in error diagnosis.
C. How to Measure Milk Temperature
JPD-FR100 measures the infrared energy emitted
from feeding bottle, and it shall display the milk
temperature by transition calculation and emission
rate compensation. Please use the press Milk
Temperature Detection button ( Page10) for startup
when measuring.

JUMPER MEDICAL JPD FR100 Digital Infrared Thermometer JUMPER MEDICAL JPD FR100 Digital Infrared Thermometer
LCD DISPLAY INTRUCTION/METHOD SOUND AND BACKLIT
Body Temperature mode
a. Press the Body Temperature Detection Button
( Page 10)
b. Place the sensor at a distance of 1-6cm from the
forehead.
c. Hold down button upon measuring the body
temperature.
d. Then release the button when reading the
measured value. Move over the forehead when
measuring, the system will read
sequentially and record the maximum.
Milk Temperature Mode
a. Press Milk Temperature Detection Button
( Page 10).
b. Place the sensor at a distance of 1-6cm from the
milk within 4 seconds.
c. Press Milk or Body Temperature ( Page 10)
Detection button under startup mode and enter
measurement mode again.
d. Release the button when reading the measured
value.
There shall be 7 short rapid ticks when the measured
temperature exceed 37.5°C/99.5°F, which is a warning
for patients that he/she may have a fever.
Body Temperature Mode
a. When temperature
value is between
32.0°C / 89.6°F and
37.6°C / 99.6°F, there
shall be one long ring
and green backlit for 3
second.
b.When temperature
value is between
37.6°C / 99.6°F to
42.2°C / 107.9°F, there
shall be 7 short ticks
and red backlit for 3
seconds
Milk Temperature Mode
a. When the temp.
value is between
0.0°C / 32.0°F to
100.0°C / 212.0°F,
there shall be a long
tick and green backlit
for 3 seconds.
D. Operational method and instruction for displays
In order to get accurate readings/measurements:
1. Please make sure that there is no dirt in on the temperature sensor
2. Please make sure that there is no intense emotion and movement before
measuring. There shall be no water on the forehead.
3. If JPD-FR100 is transferred from one condition to another which has different
ambient temperature, it is suggested to deposit for more than 30 minutes.
4. Do not hold JPD-FR100 for long time as it is highly sensitive to heat.
5.JPD-FR100 has undergone clinical test, it is safe and accurate when using in
accordance with operation manual.
13
LCD DISPLAY INTRUCTION/METHOD SOUND AND BACKLIT
There shall be signal for relative mode under
measurement preparedness. The or signal shall
twinkle.
If the measurer presses button 2 or 3 ( Page 10)
again, the measurement mode is available.
OR
1.The measured value exceeds 100°C / 212.0°F under
milk temperature mode.
2.The measured value exceeds 42.2°C / 107.9°F under
body (forehead) temperature mode.
Three short tick and red
backlit for 3 seconds.
1. The measured value exceeds 0°C/32.0°F under
milk temperature mode.
2. The measured value exceeds 32°C/89.6°F under
body (forehead) temperature mode.
Three short tick and red
backlit for 3 seconds.
14

JUMPER MEDICAL JPD FR100 Digital Infrared Thermometer JUMPER MEDICAL JPD FR100 Digital Infrared Thermometer
LCD DISPLAY INTRUCTION/METHOD SOUND AND BACKLIT
Inquiry for memory data, Storing 20 groups of data
Click button 3 (Page ) for 4-8 seconds and LCD
displays “- - -” with“ M” signal twinkling.
Click button 3 (Page ) again and the LCD displays the
first data group with “M” signal twinkling.
Click button 3 (Page ) and it shall display the serial
number for 1 second and then display the measured
data. There are 20 groups of data.
The memory is forehead data only.
The LCD shall only display “- - - ”, °C/°F and M signal
with M signal twinkling if there is no test data.
silence
Celsius / Fahrenheit ( °C / °F ) Conversion
Press button 3 (Page ) for 8-12 seconds under
shutdown state, and the temperature unit shifts
automatically.
Press button 3 (Page ) within 5 seconds after release,
and the temperature unit shifts again unless the
release time exceeds 5 second.
The measuring device will be in milk temperature
mode, upon startup.
silence
LCD DISPLAY INTRUCTION/METHOD SOUND AND BACKLIT
Error Message
It shall display “Er1” when ambient temperature
exceeds 40.0°C/104°For drop below 10.0°C/50.0°F.
It shall display “ErC” if there is EEPROM data reading
error or the correcting process is not finished.Please
contact your supplier.
There shall be low-voltage signal(no twinkling) when
the battery voltage is below2.61V±2%.Please replace
the battery.
In any mode,if no operation for 10 seconds,it will
power off automatically.
Three short tick and red
backlit for 3 seconds.
Three short tick and red
backlit for 3 seconds.
silence
15 16
Electromagnetic interference: JPD-FR100 contains sensitive electronic component
and shall not use under the condition with electromagnetic interference, (such as the
place nearby the mobile phones and microwaves)

JUMPER MEDICAL JPD FR100 Digital Infrared Thermometer JUMPER MEDICAL JPD FR100 Digital Infrared Thermometer
17 18

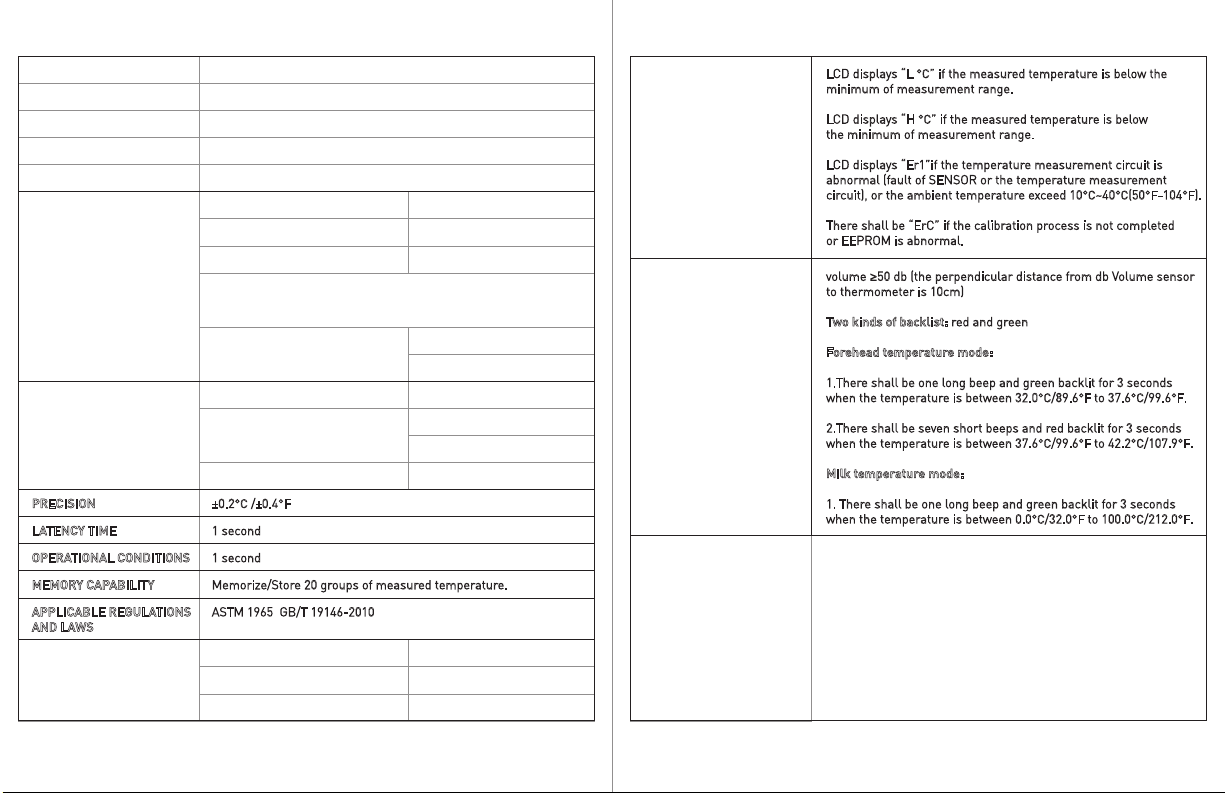

XI. TECHNICAL SPECIFICATIONS
PRODUCT NAME Digital Infrared Thermometer
PRODUCT MODEL JPD-FR100
PRODUCT VERSION Version
AVAILABLE COLOR Pink,Blue
CERTIFICATIONS FDA,CE
20.574 cm
7.112 cm
14.986 cm
Length
DIMENSIONS(cm) Width
Height
2 x AAA Alkaline Battery
Istand-by<2μA; Iworking<0.5mA;
Internal Power Type
POWER SUPPLY
AND CURRENT Current IBuzzer on<2mA；Ibanklight<15mA
10s±1sAuto Shutdown
DISPLAY
Screen Type
Temperature Unit
OLED (color)
Fahrenheit,Celsius
Temperature Mode Milk, Body (forehead)
LED backlit specifications
Red: ≥1.2cd/m2
Green: ≥2.0cd/m2
Forehead temperature mode:32.0°C-42.2°C / 89.6°F – 107.9°F
Milk temperature mode:0.0°C-100.0°C / 32.0°F – 212.0°F
ABNORMAL
STATE DISPLAY
SOUND AND BACKLIT
ACCURACY FOR CLINICAL
TEST
The maximum allowable error for clinical test is specified in
the formula below:
≤0.3°C/0.6°F (for 95%)
Among which:
T1 and T2 represent temperature value for thermometer
under test respectively, Tref represents the constant reference
temperature

JUMPER MEDICAL JPD FR100 Digital Infrared Thermometer JUMPER MEDICAL JPD FR100 Digital Infrared Thermometer
XII. PRODUCT HANDLING
A. Cleaning
1. Power off the unit and remove the batteries before cleaning.
2. Ensure that the unit is dirt and dust free before using.
3. Check the internal surface of the unit if it is free from any unwanted objects.
4. Clean the outer surface of the unit using a piece of dry soft cloth with 75%
medical alcohol.
B. Maintenance
1. When the battery power indication flashes, it indicates running out of power
supply. Turn off the unit and replace the AAA batteries with new ones (same
type) at the same time.
2. Properly install, remove and store the batteries before and after normal use.
3. If the product is not used or operated, remove the batteries inside the
battery compartment.
4. Properly dispose discarded unit, batteries or accessory in accordance with
the environment protection ordinances and regulations.
5. Periodically check the unit for any damage may it be in outer and internal
surface.
6. Avoid using the Digital Infrared Thermometer in an environment with
inflammable gases or in an environment where the temperature or humidity
is excessively high or low.
C. Storage
2019
XIII. CUSTOMER SERVICE SUPPORT
The device is under warranty for two years since the date of acquisition.
Application for repairing should be presented during the warranty period. The
damage caused by improper use is not under warranty scope. Batteries and
packaging are not under warranty scope as well.
A. Instructions for Amazon customers:
For customers who purchased the product from our Amazon based Online Shop,
please contact our after-sales service provider, namely Amazon Customer
Support for any questions or problems you may have with the device. Amazon
Customer Services will provide support and instructions on how to proceed.
Please follow the instructions provided below:
1. Go to http://www.amazon.co.uk.
2. Log into your Amazon customer account.
3. Scroll down to the “Let us help you” section on the right hand side of
the Amazon UK homepage.
4. Select the subject of interest.
5. Follow the instructions.
B. Instructions for Ellemka Website customers:
For customers who purchased the product from our website, please contact us
directly or visit our website and search relevant solutions from our Support Page.
Please follow the instructions provided below:
1. Go to https://ellemka.com/wp-content/uploads/2019/06/jumper-medi-
cal-JPD-FR100-infrared-digital-thermometer-user-manual.pdf
2. Find “Support Page”
3. Choose the specific category on what support are you searching for.
4. Select among the displayed results.
5. Then download the necessary files you will be needing.
6. Otherwise, contact Ellemka Customer Services directly.
Temperature
10ºC ~ +50ºC
Place
upward
Temperature
10ºC ~ +50ºC
Relative Humidity
10% ~ 95%
Temperature
10ºC ~ +50ºC
Atmospheric Pressure
50kPa ~ 106kPa
Non-hook
PO Box 35 L-6701 Grevenmacher Luxembourg / EU
ELLEMKA S.à r.l.™
24, rue Principale L-6925 Flaxweiler Luxembourg / EU
[phone] [phone]
ellemka.com
[email protected] | [e-mail]
