Elmicro VacuScope easy User manual

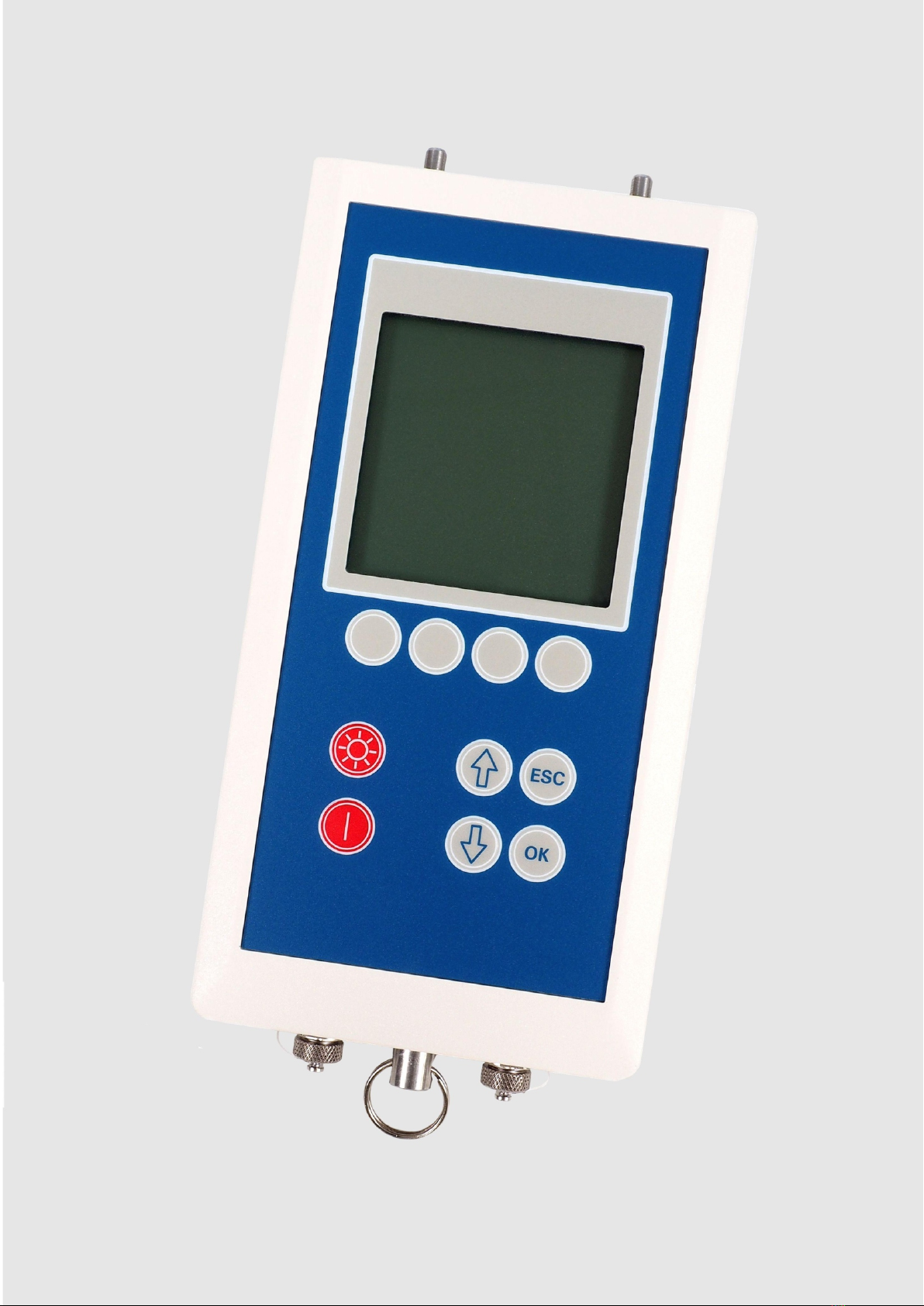

VacuScope easy
Milking Machine Test Device
Users Manual Version V1.1 April 2022

VacuScope easy Version V1.1
1
CONTENTS
1. Notes on the instruction manual …….…………………….……..……..
2. Safety instructions.…………..…………………………………………………….
3. Description….………………..……………….………………………………………..
3.1 Introduction..……………………………………………….…………………………..
3.2 Technical Data…………………………………………………………………………
4. First start…….…..………………………..……………………………………………..
4.1 Preparation……………………………….……………………………………………..
4.2 Switch device on….…………….……………………………………………………
5. Operating elements…..……….……………………………………………………
5.1 Key board….....……………………………………….……………………….……….
5.2 Screen…………………………………………………..…………………………….……
5.3 Interfaces…….…………..…………………………………………….………..………
6. Programmes………….………………………………………….…………………….
6.1 Operation………………..……………………………..…………………..………......
6.2 Main menu..………….………………………………………………………………….
6.3 Settings and Service…………………...………..………………………..………
6.4 Programme Pulsation……………………………………………..……………..
6.4.1 Menu Pulsation………………………………………………………………………..
6.4.2 Measurement of Pulsation…………………………..………………………….
6.4.3 Data memory of Programme Pulsation…………………………….……
6.5 Programme Fluctuation..…………….……….………….……………………..
6.5.1 Menu Fluctuation..…………………………………………………………………..
6.5.2 Measurement of Fluctuation………………………………………….……….
6.4.3 Data memory of Programme Fluctuation…..……………….…………
6.5 Programme Sensors.……………………………………………………………….
2
2
3
3
3
5
5
6
7
8
9
9
10
10
11
12
13
13
14
15
17
17
18
19
20

VacuScope easy Version V1.1
2
1. NOTES ON THE INSTRUCTIONS MANUAL
2. SAFETY INSTRUCTIONS
In the interest of proper functionality and your own safety, please
familiarize yourself with the contents of this operating manual before
use. It contains important information that will enable you to use the
device properly.
The manufacturer reserves the right to make technical changes in the
interest of further development.
These instructions are part of the scope of delivery.
For your personal safety and to protect your warranty claims, please
read the operating manual and follow the safety instructions before
starting up the equipment.
Only persons who have been instructed in the intended use of the
VacuScope easy and who are familiar with the operating instructions
are authorized to commission the device. Knowledge of the accident
prevention regulations and the generally recognized safety rules is
required to perform measurements.
The manufacturer is not liable for damage caused by improper use or
unauthorized tampering, especially with the electronic assemblies.

VacuScope easy Version V1.1
3
3. DESCRIPTION
3.1 INTRODUCTION
VacuScope easy is a handy device for checking pulsators and measuring the vacuum
curve in milking systems with outstanding product features:
•Visualization of the vacuum courses by a graphic display during testing
•Clear operation with fixed and adjustable keys
•Several interface connections for devices and sensors
•Large memory for storing measurement data and settings
Based on a wide range of programmes the device is used in development,
maintenance and servicing of milking units.
3.2 TECHNICAL DATA
Graphic display
LCD-Modul with 128 x 128 Pixel and
und LED-backlight
Number of keys
10
Measuring range
Vacuum 0…60 kPa
Measuring accuracy
0,6 kPa; 0,3 kPa (typ.)
Measuring solution
0,1 kPa
Overload vac. sensors
max. 200 kPa
Interfaces
RS 232 for printer, computer and air flow meter
0-5V-interface for external temperature sensor and
pressure sensor
Data memory
200 series in programme Pulsation
200 series in programme Fluctuation
Power supply
4 x AA, NiCd, NiMH
Protection
IP 65
Operating temperature
+5 bis +40 °C
Storage temperature
-20 bis +60 °C
Dimensioning
195 x 100 x 50 mm
Weight
420 g (w.o. batteries)
Tests
EN 61000-6-3, EN 61000-6-1

VacuScope easy Version V1.1
4
External Sensors (optional)
Measuring range
Measuring accuracy
Measuring solution
Vacuum sensor/
Pressure sensor
0…-50,0 kPa
0… 20,0 kPa
<0,6 kPa, <0,3 (typ)
<0,6 kPa, <0,3 (typ)
0,1 kPa
0,1 kPa
Temp. sensor
-20,0….140,0 °C
1,5%
0,1 K
AFM 600l
50-600 l/min
at 50 kPa
50…100l/min 5l/min
100…600l/min 5%
1 l/min
AFM 3000l
100-3000l/min
at 50 kPa
5%
1 l/min

VacuScope easy Version V1.1
5
4. FIRST START
4.1 PREPARATION
The battery compartment is on the back of the device. The instrument operates with
4 1,5V- batteries (AA) or 4 accumulators (NiMH, NiCd).
Attention !
Check the polarity when inserting the batteries.
Incorrect polarity can destroy the electronics of the unit.
Attention !
VacuScope easy is designed for the measuring of
atmospheric pressure. Avoid measuring of other media.
This could falsify the measurement results or destroy the
electronics. Clean and dry hoses are required to ensure
proper functioning of the pressure sensors.
Attention !
Before commissioning, all hose connections must be
checked for leaks.

VacuScope easy Version V1.1
6
4.2 SWITCH DEVICE ON
The VacuScope easy is started by pressing the button.
While starting the instrument, the measuring systems zero calibration is checked.
This defines the predominant air-pressure as zero level of the device.
Achtung !
Measuring failures may appear when the device is started
under pressure, vacuum or pulsation

VacuScope easy Version V1.1
7

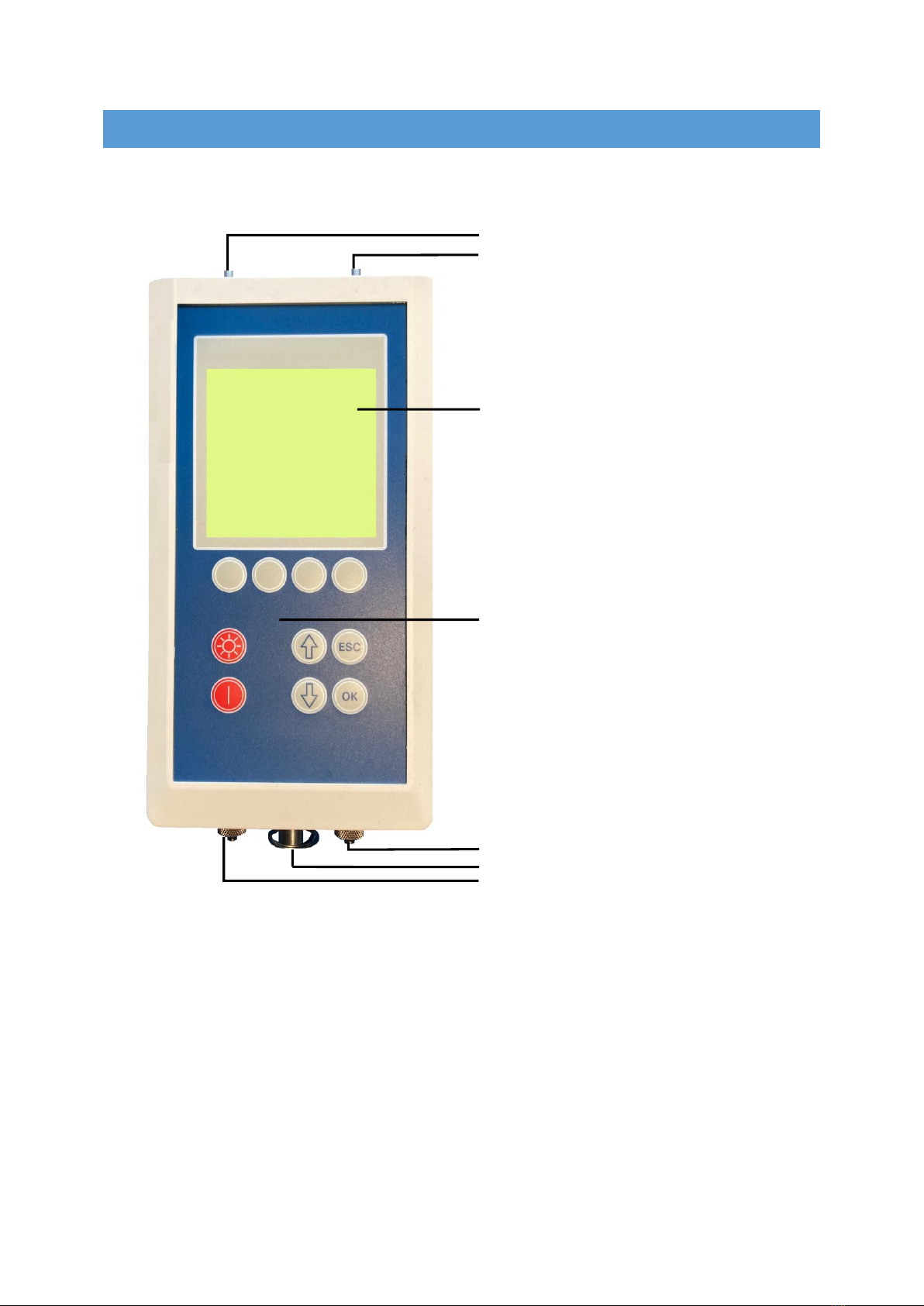

5. OPERATING ELEMENTS
Measuring channel 1 –CH1
Measuring channel 2 –CH2
LCD-Display 128 x 128
Key board
Interface RS 232
Belt holder
Sensor interface –CH3

VacuScope easy Version V1.1
8
5.1 KEY BOARD
The keys of the key board have the following meaning:
The function keys have the following meaning:
Switch on the device
Turn on / turn off the backlight of the display
Moving in the menu up, setting parameters
Moving in the menu down, setting parameters
ESC
Close programme, cancel action
OK
Start programme, confirm of action
Function key, function is displayed on screen

System setting (language, user, calibration values)

Delete Data

Print out Data
PC
Transfer Data to computer

Display measured data

Save settings or measurement results
12
Ruler, graphic tool

Next readings (data sheet)

Back to the first readings (first data sheet)

VacuScope easy Version V1.1
9
5.2 SCREEN
The instrument VacuScope easy has a backlit screen with a resolution of 128 x 128
pixels.
In the upper area of the menu windows, the current programme and the battery
charge status are displayed.
In the middle area are the menu items with the setting options for the respective
programmes.
The available functions are assigned to the function keys and displayed in the lower
part of the menu window.
5.3 INTERFACES
The VacuScope easy measuring device has a sensor interface (0-5V) for connecting a
temperature sensor or an external vacuum/pressure sensor.
The RS232 interface is used both to connect the air flow meter and to connect the
instrument to the computer.
The sensors, the air flow meter and the PC software are not included in the scope
of delivery of the meter and must be ordered separately.
Attention!
To ensure proper functioning of the external devices and
sensors, screw them tightly together with the meter.

VacuScope easy Version V1.1
10
6. PROGRAMMES

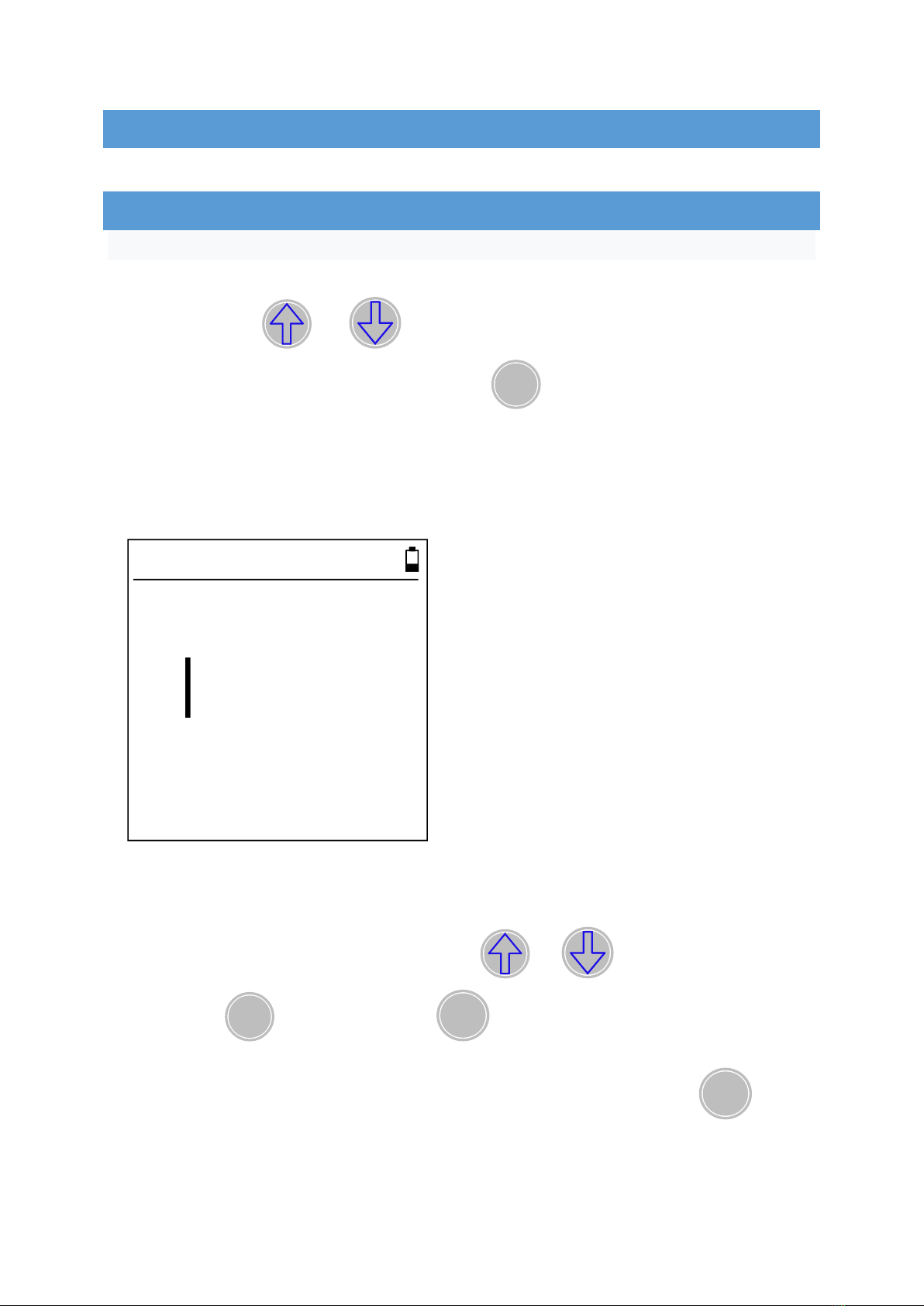

6.1 OPERATION
In the menu navigation, the programme items or the associated parameters are
selected with the and buttons (the current item is displayed inversely).
The selected program item is started with the
OK
button.
An input window opens for setting parameters (e.g. memory space).
The parameter can be changed with the keys and . To accept the set value
press the key
OK
to discard it press
ESC
.
To exit the menu and return to the higher-level menu press the button
ESC
.
5
MEMORY-NO.



VacuScope easy Version V1.1
11

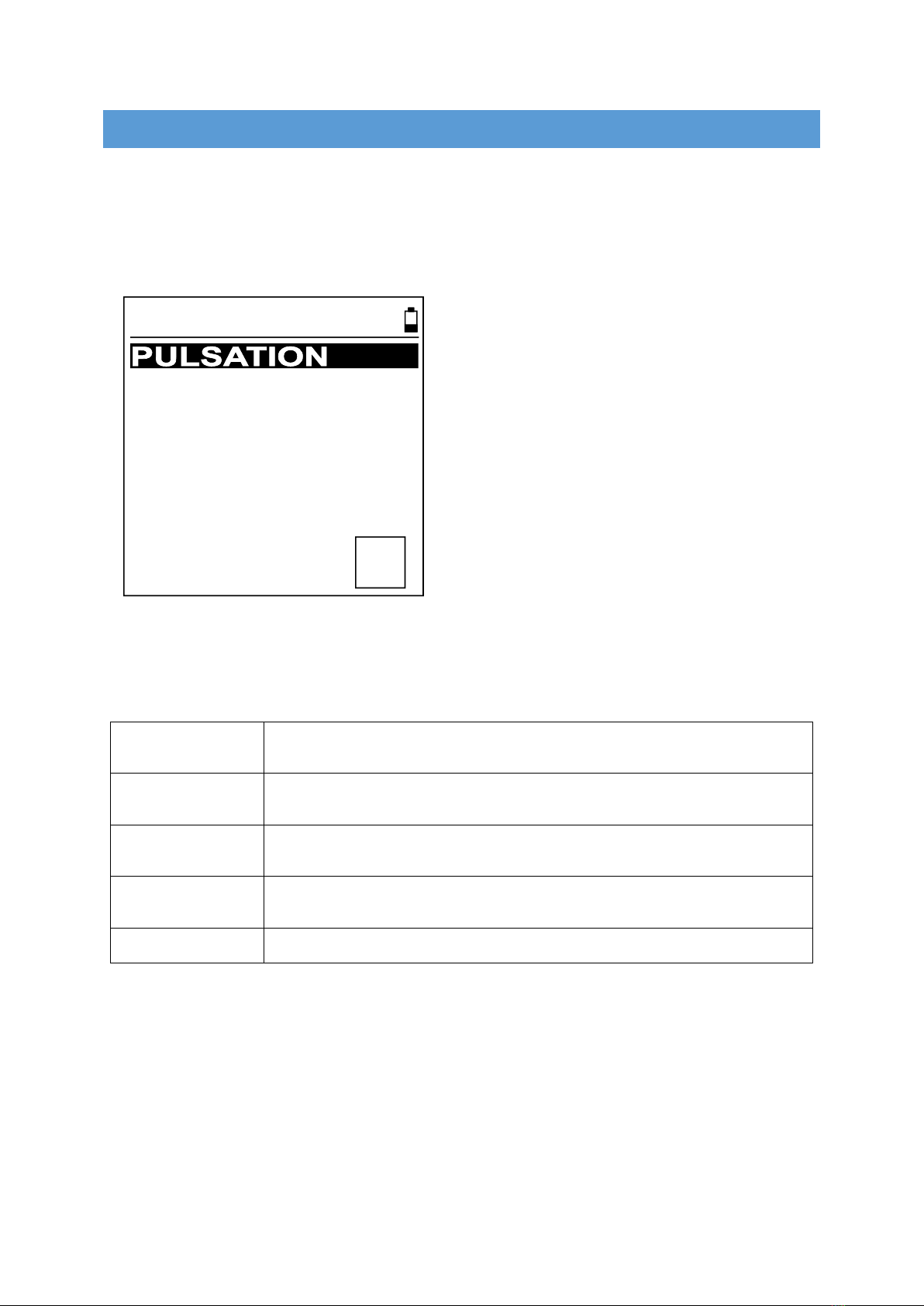

6.2 MAIN MENU
After switching on the device and zeroing the measuring system, the display shows
the main menu.
The programmes and functions in the main menu:
PULSATION
Testing of clusters according to milking system standards ISO
5705 and ISO 6690
FLUCTUATION
Measurement and display of vacuum curves with freely
selectable measurement settings
SENSORS
Measurement with the external sensors and devices, numerical
display of the measured values
EXIT
Turn off the instrument

System settings (language and user data), service programmes

FLUCTUATION
SENSORS
EXIT

VacuScope easy Version V1.1
12
6.3 SETTINGS AND SERVICE
In this programme, the operator can make settings and service activities.
Settings and functions in the SYSTEM programme:
ENGL,DEUT,FRANCE
ITALI,ESPAN,PYCK
Selection of language
NAME1
NAME2
Setting of user data (e.g. name, company, location)
This data will be used in the documentation
CALIBRIERUNG
Checking the sensors with suitable measuring devices
INSTALLATION
Configuration of the system, adjustment of the sensors
This programme is password protected and only accessible
to trained personnel.
NAME 1
NAME 2
CALIBRATION
INSTALLATION
SYSTEM

VacuScope easy Version V1.1
13
6.4 PROGRAMME PULSATION
6.4.1 MENU PULSATION
For the qualitative assessment of milking machines and systems, operators, service
personnel and control bodies may carry out an audit in accordance with ISO
5707/6690.
Settings and functions in the PULSATION programme:
MEMORY-NO.
Selection of the storage location for the pulsation
measurement, after saving, this value increases (+1)
Setting range: 1…200
PULSATOR-NO.
Selection of the pulsator number or the milking station in the
milking facility, after saving, this value increases (+1)
Setting range: 1…100
START
Start of the PULSATION measurement

Delete of stored pulsation measurements

Print out of stored pulsation measurements
PC
Data transfer of stored pulsation measurements to the PC

Display of stored pulsation measurements
MEMORY-NO.
PULSATOR-NO.
PULSATION
1
1
PC

VacuScope easy Version V1.1
14

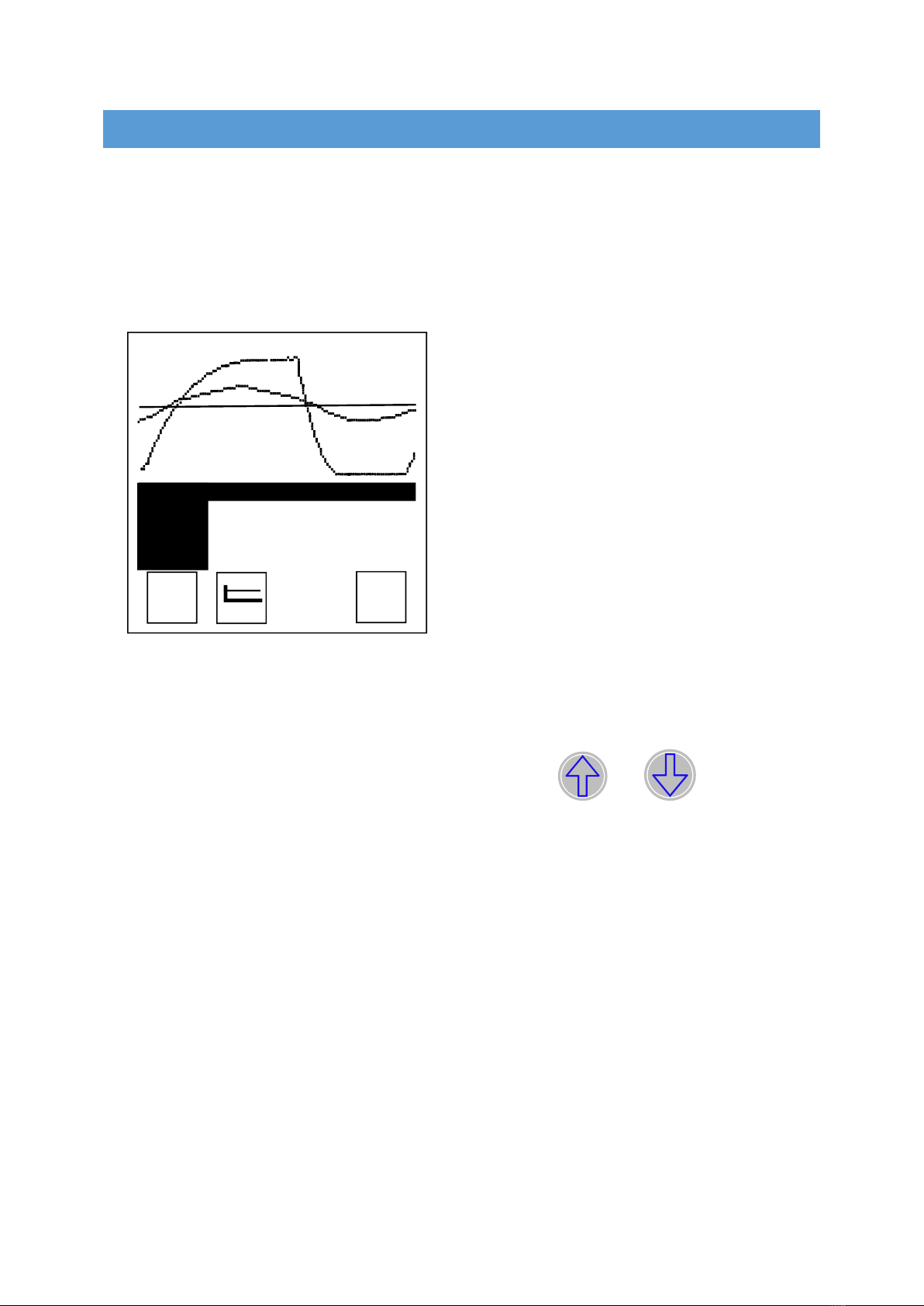

6.4.2 MEASUREMENT OF PULSATION
After starting the measurement, the pulsation is analyzed according to the
specifications of ISO 6690.
After completion of the pulse analysis, the measurement results are displayed
graphically and numerically in the 1st window.
The determined pulse phase values are displayed in the 2nd window.
The graphics and all measured values can be saved or printed out from both the first
and second window.

3
PULSE
MAX
MIN
BAL
CH1 CH2
60,1 60,2
42,6 42,6
0,0 0,0
0,1
4


3
A+B %
A %
B %
C %
D %
A+B MS
A MS
B MS
C MS
D MS
CH1 CH2
58,7 58,8
26,2 26,3
32,5 32,5
11,3 11,2
29,7 29,7
583 584
260 261
323 323
112 111
295 295
Pulsator-No.
Pulse rate
Maximum
Minimum
Limping
Memory-No.
Pulsator-No.
Suction phase A+B [%]
Phase A [%]
Phase B [%]
Phase C [%]
Phase D [%]
Suction phase A+B [ms]
Phase A [ms]
Phase B [ms]
Phase C [ms]
Phase D [ms]

VacuScope easy Version V1.1
15
Deviations from the specifications of ISO 5707:2010 are determined and displayed
flashing.
The target values for the pulse analysis according to ISO 5707:2010.
Limping [%]
< 5,0 %
Phase B [%]
>=30,0 %
Phase D [%]
> =150ms
The measuring window is closed with
ESC
.

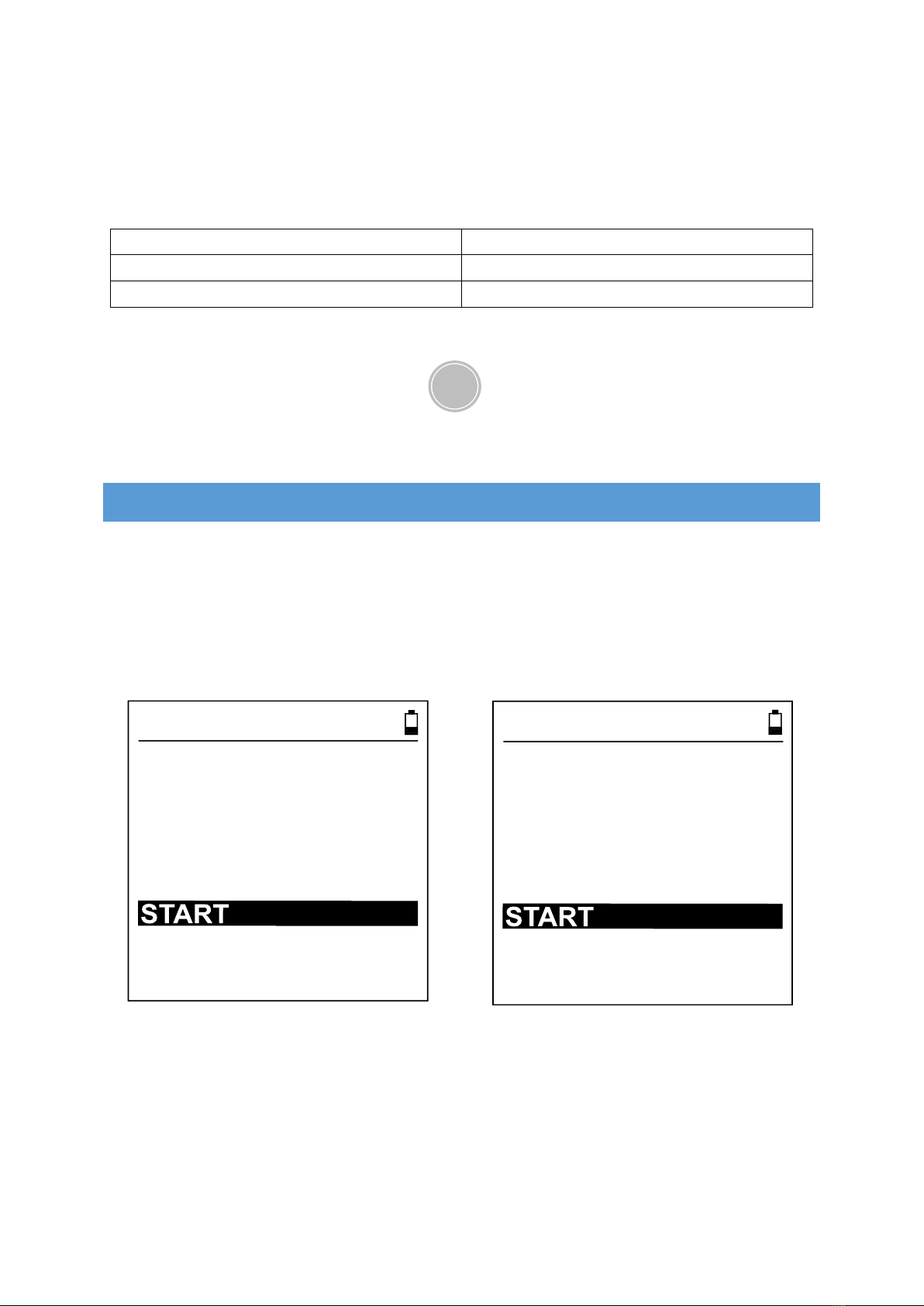

6.4.3 DATA MEMORY OF PROGRAMME PULSATION
One or more saved measurements can be sent to the PC for documentation or to an
external log printer. The first and last memory location to be transfered must be
entered beforehand.
PC software and printer are not included in the scope of delivery of the VacuScope
easy measuring device.
SEND FROM:
SEND TO:
TRANSFER DATA
48
12
PRINT FROM:
PRINT TO:
PRINT
4
1

VacuScope easy Version V1.1
16
One or more saved measurements can be deleted in the PULSATION menu. The first
and last memory location to be deleted must be entered beforehand.
Stored data can also be shown on the display in the PULSATION menu. The set
memory location can be called up with the function key .
Use the keys and to call up further measurements.
DELETE FROM:
DELETE TO:
CLEAR MEMORY
42
1
START

VacuScope easy Version V1.1
17
6.5 PROGRAMME FLUCTUATION
6.5.1 MENU FLUCTUATION
The FLUCTUATION programme is available to the user for the graphic analysis of
pulsation and vacuum curves:
Settings and functions in the FLUCTUATION programme:
VACUUM CH3
Selection of an external vacuum sensor
SCAN [MS]
Selection of the time interval between two measuring points
MEMORY-NO.
Selection of the storage location for the fluctuation
measurement, after saving, this value increases (+1)
Setting range: 1…200
START
Start of the fluctuation measurement

Delete of stored fluctuation measurements

Print out of stored fluctuation measurements
PC
Data transfer of stored fluctuation measurements to the PC

Display of stored fluctuation measurements
VACUUM CH3
SCAN [MS]
MEMORY-NO.
FLUCTUATION
1
7


OFF
PC

VacuScope easy Version V1.1
18
6.5.2. MEASUREMENT OF FLUCTUATION
In contrast to the PULSATION programme, the measuring parameters can be freely
selected in the FLUCTUATION programme. Fluctuating vacuum conditions in the
milking system can be displayed and analyzed here.
At the end of the vacuum curve, the pulse frequency is determined on channel 1 and
the maximum and minimum on all connected measuring channels.
The measurements can be stored in the measurement memory.
The measuring window is closed with
ESC
.

PULSE
MAX
MIN
CH1 CH2 CH3
60,1 0,0
42,6 0,0 32,4
0,0 0,0 19,2

VacuScope easy Version V1.1
19
6.5.3 DATA MEMORY OF PROGRAMME FLUCTUATION
Stored data can also be shown on the display in the FLUCTUATION menu. The set
memory location can be called up with the function key . In this window, the graph
with its measured values can be printed out and also deleted.
The RULER function can be used ti display a selected vacuum level as a comparison.
Further measurements can be called up with the keys and from the data
memory of the FLUCTUATION programme.
PULSE
MAX
MIN
CH1 CH2 CH3
60,1 0,0
42,6 0,0 32,4
0,0 0,0 19,2

25
