ELP PS-SS200 User manual

PS-SS200
All details and specifications shown in this document are deemed correct at time of publication. The right to modify
equipment, change specifications and instructions without notice, is reserved as part of the Emergency Lighting
Products Limited policy of continuous development and improvement. We endeavour to keep all our customers
informed of any alterations as and when they occur.
TECHNICAL DATA: 08/2013
Infrared Sensor
The PS-SS200 sensor is an active motion detector with
adjustable sensitivity, daylight detection and ‘On’ period. The
detector utilises an infrared sensor to detect thermal
movement within the detection zone. An internal
microprocessor then triggers and connects a Live supply to
the lighting loads connected to the detector (‘On’ command).
The PS-SS200 infrared detector is designed for installation
in ceilings up to 3.5metres high and movement can be
detected within quite large detection zones (up to 10metres
diameter).
The PS-SS200 infrared detector is ideal for switching one or
more lighting loads local to the detector when someone
enters an area.
While there is movement in the area, the sensor will hold the
load on. The sensor can be adjusted so that when
movement stops the load will switch off after 8seconds to
12minutes.
GENERAL SPECIFICATION
Supply voltage 230V 50Hz
Transmission system Infrared
Transmission output <0.5W
aximum load 1200W (resistive) 600W (inductive)
Detection angle 360°
Range (Clear area) 2-10m adjustable
‘ON’ period 8sec to 12min
Lux detection 2-2000 Lux
Ambient conditions -10 - 40°C
Dimensions Ceiling plate: 105mm dia
Recess depth: 40mm
Ceiling cut-out: 60mm dia
Fixing 4 keyhole slots

Emergency Lighting Products Limited
Parbrook House, Gillmans Industrial Estate, Natts Lane Billingshurst, West Sussex RH14 9EZ
Telephone: [phone] Fax: [phone] e-mail:[email protected] www.elp.uk.com
TECHNICAL DATA: 08/2013
Infrared Sensor
ORDER CODES Description
PS-SS200 Infrared motion detector
Setting sensitivity (range)
The range is the distance of the circular detection
zone produced on the ground in an open area
adjacent to where the PS-SS02 sensor is mounted.
Minimum range — (approx. 2m) — is achieved with
the sensitivity control turned fully clockwise.
Maximum range — (approx. 10m) — is set with the
control turned full anticlockwise.
Note: The above detection distances are based on
movement at a speed of 0.6 – 1.5m/sec.
Time ‘On’ setting S
The luminaire can be set to stay ON for any period of
time between approx. 8sec (control turned fully
clockwise) and a maximum of 12min (control turned
fully anticlockwise).
Any movement detected before the set time has
elapsed will re-start the timer therefore holding the
lighting on.
Note: After the light switches OFF, it takes approx.
1second before the sensor will to start detecting
movement again.
Daylight control setting
The light response threshold can be adjusted from
approx. 2Lux to 2000Lux. Rotate the control fully
clockwise to select dusk-to-dawn operation at about
2lux. Turn it fully anticlockwise to select daylight
operation at about 2000lux.
Set-up/walk test
Set the Time ‘on’ control to minimum (fully clockwise)
and the Daylight control to maximum (fully
anticlockwise) to adjust the sensitivity/range. Adjust
the Sensitivity control, walk in the required detection
area then re-adjust until the area is correctly
monitored. Then adjust the daylight control to suit an
appropriate ambient light level and finally set the ‘on’
time.
(NB: with fluorescent lamps it is advisable to let them
operate for approx. 10minutes from each start).
Note: Adjust the rotational controls with care because
the three potentiometers are connected directly to a
PCB.
The 'stops' built into each of these components can
easily be damaged.

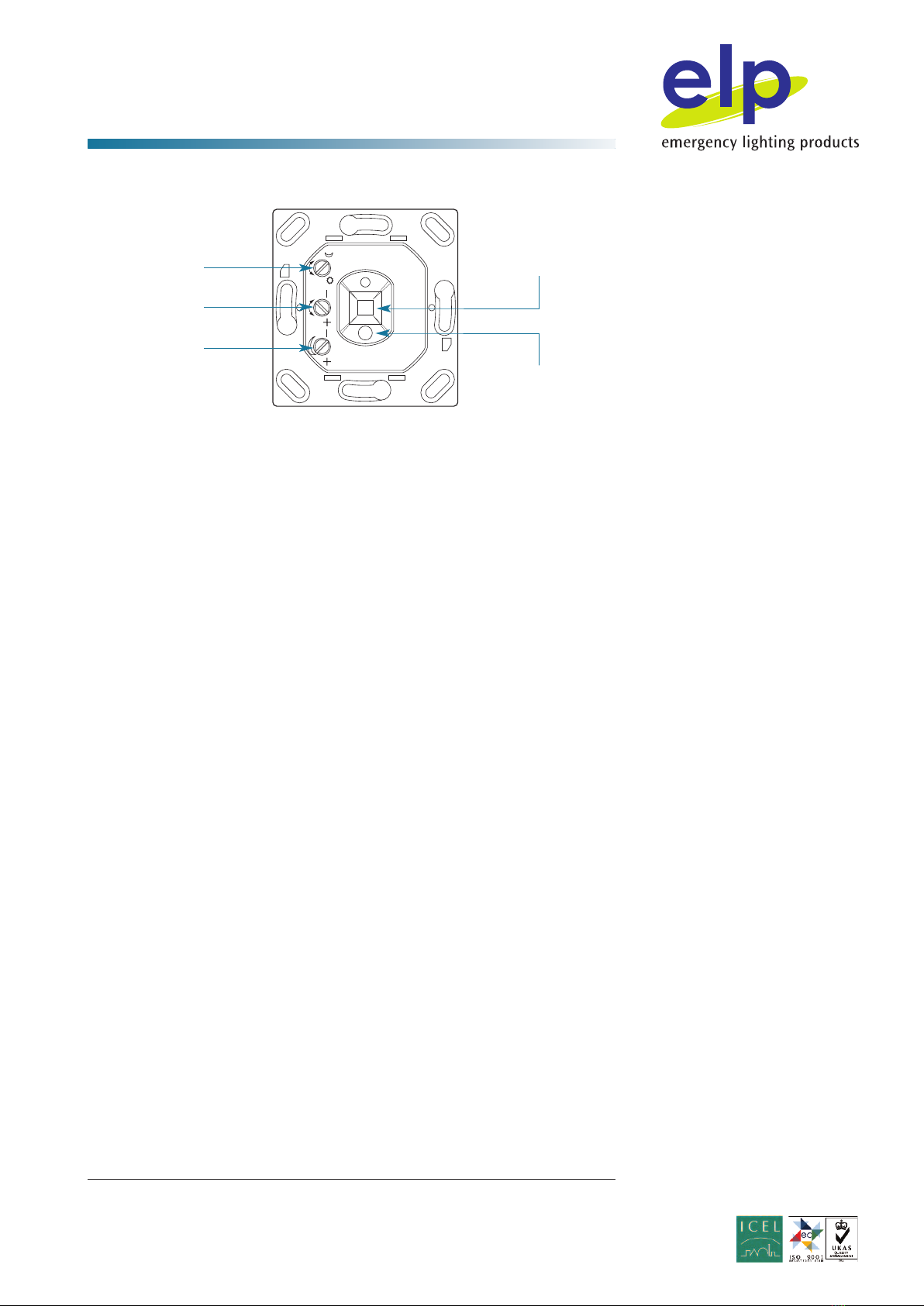

INSTALLATION
LUX SENS
TIME
Daylight control
Sensitivity (range)
Time ‘on’ setting
In rared sensor
Light sensor
