ELPRO KM03-HE02 Series User manual

1
RS232 to USB Keyboard/Mouse Converter for HDBaseT Extender
ITEM N .: KM03-HE02 RS232 to USB Keyboard Mouse Converter
KM03-HE02 is a special design for HDBaseT extender with extra USB ey board
mouse solution. Using HDBaseT RS232 port to convert signal to USB interface
which allow USB eyboard mouse application on HDBaseT extender.
KM03-HE02 RS232 to USB Key Board Converter for HDBaseT
Extender
Convert the RS-232 signal to USB keyboard/mouse signal.
The keyboard/mouse can ull speed without any delay.
LED display or easy status monitoring.
Compatible with all HDBaseT Extender systems.
Easy to Use: Install in seconds, no need o setting.
Provide a magnetic pad to simpli y installation

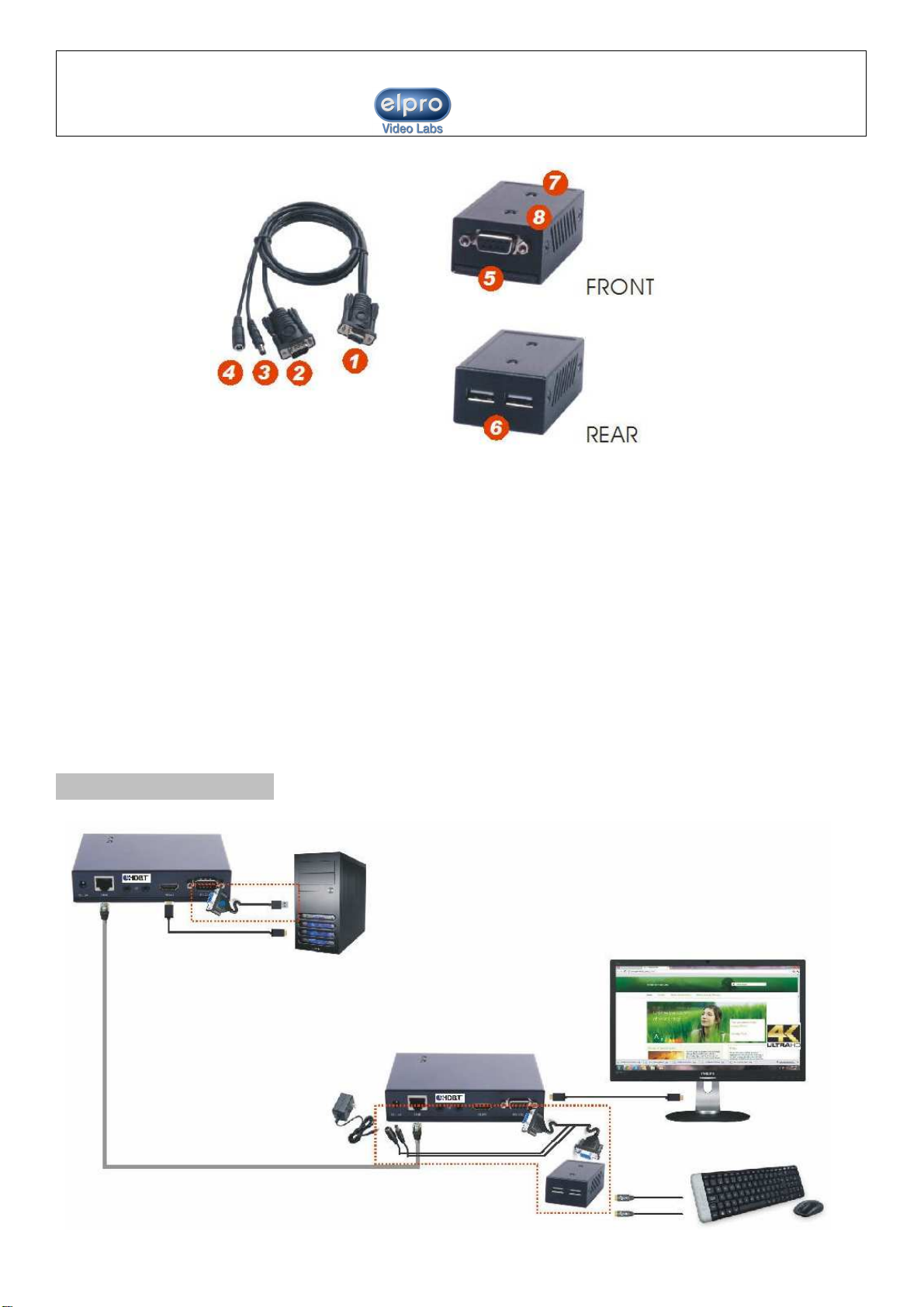

Installation View:

2
LED Indication:
TX
Blue: lin ing
Red: unlin
RX
Blue: lin ing
Red: unlin
USB Status :
Green: lin ing
Panel View:
Troubleshooting:
1. This product only works with HDBaseT extender with RS232 port and the USB converter
only works or keyboard and mouse, not able to compatible with any other USB devices.
Specification:
ITEM NO.
KM03-HE02 TX KM03-HE02 RX
Input USB Type A (Male)
Output DB9 (Male ) DB9 (Female)
Power Consumption
No 2VA
Power Adapter
DC5V 1AMP
Temperature
Operation: 0 to 55, Storage: -20 TO 85, Humi ity: up to 95%
Dimensions W x H x D mm
Weight g
Rev.A
