1 Introduction
2User’s Guide Flatpack2 Rectifier Modules, 350002.013, 7v0-2010-09
Information in this document is subject to change without notice and does not represent a commitment
on the part of Eltek Valere.
No part of this document may be reproduced or transmitted in any form or by any means — electronic
or mechanical, including photocopying and recording — for any purpose without the explicit written
permission of Eltek Valere.
Copyright ©: Eltek Valere, 2010
Safety Precautions

The equipment described in this manual must only be operated by
Eltek Valere
personnel or by persons who have attended a suitable
Eltek Valere training course

The equipment represents an energy hazard and failure to observe this
could cause terminal injury and invalidate our warranty

There are hazardous voltages inside the power system. As the modules
incorporate large charged capacitors, it is dangerous to work inside the
system even if the mains supply is disconnected
 Produc
ts into which our components are incorporated have to comply with a
number of requirements. Installation is to be in accordance with the
recommendations herein
Please read the manual carefully before using the equipment
350002.013 Issue 7.0, 2010 Sep
Published 2010-09-07
Mafe
NS-EN ISO 14001 Certified
Certificate No:
11276-2007-AE-NOR-NA
NS-EN ISO 9001 Certified
Certificate No:
4072-2007-AQ-NOR-NA

1 Introduction
User’s Guide Flatpack2 Rectifier Modules, 350002.013, 7v0-2010-09 3
Table of Contents
1. Introduction 4
About this Guide .............................................................................................................4
System Diagrams Flatpack2 DC Power Systems ......................................................4
Flatpack2 PS System ~ Telecom ..............................................................................4
Flatpack2 PS System ~ Hybrid Solar........................................................................5
Flatpack2 PS System ~ Industrial..............................................................................6
2. Flatpack2 Rectifier 7
Key Features...................................................................................................................7
Typical Applications ........................................................................................................7
Module Options...............................................................................................................8
Heat Management ~ Front-to-Back Air Flow ............................................................................8
Flatpack2 Rectifier 24V, 2000W................................................................................8
Flatpack2 Rectifier 24V, 2000W WOR......................................................................8
Flatpack2 Rectifier 24V, 1800W HE..........................................................................9
Flatpack2 Rectifier 48V, 1800W................................................................................9
Flatpack2 Rectifier 48V, 2000W................................................................................9
Flatpack2 Rectifier 48V, 3000W................................................................................9
Flatpack2 Rectifier 48V, 2000W HE..........................................................................9
Flatpack2 Rectifier 48V, 3000W HE........................................................................10
Flatpack2 Rectifier 48-60V, 2000W HE...................................................................10
Flatpack2 Solar Charger 48V, 1500W HE – (Solar)................................................10
Flatpack2 Rectifier 110VDC, 2000W HE WOR - (Industrial)...................................11
Flatpack2 Rectifier 220VDC, 2000W HE WOR - (Industrial)...................................11
Heat Management ~ Back-to-Front Air Flow ..........................................................................12
Flatpack2 Rectifier 48V, 2000W BF ........................................................................12
Flatpack2 Rectifier 48V, 2000W HE, BF .................................................................12
3. Installation of Flatpack2 Rectifiers 13
Safety Precautions........................................................................................................13
Mounting and Removing Rectifiers................................................................................. 13
Removing Blind Panels.................................................................................................13
Connections........................................................................................................................ 14
CAN Bus Addressing (plug-and-play)............................................................................. 14
Correct Rectifier Position in Power Shelves ...........................................................................14
Firmware Upgrade of the Rectifier Modules ...........................................................................14
4. Operation 15
Front Panel Interface........................................................................................................ 15
LED Indicators .................................................................................................................. 15
5. Technical Specifications 16
Specifications Flatpack2 Rectifier 24V, 2000W ............................................................16
Specifications Flatpack2 Rectifier 24V, 2000W WOR...................................................17
Specifications Flatpack2 Rectifier 24V, 1800W HE ......................................................18
Specifications Flatpack2 Rectifier 48V, 1800W ............................................................19
Specifications Flatpack2 Rectifier 48V, 2000W ............................................................20
Specifications Flatpack2 Rectifier 48V, 3000W ............................................................21
Specifications Flatpack2 Rectifier 48V, 2000W HE ......................................................22
Specifications Flatpack2 Rectifier 48V, 3000W HE ......................................................23
Specifications Flatpack2 Rectifier 48-60V, 2000W HE.................................................24
Specifications Flatpack2 Solar Charger 48V, 1500W HE – (Solar) ..............................25
Specifications Flatpack2 Rectifier 110VDC, 2000W HE WOR - (Industrial).................26
Specifications Flatpack2 Rectifier 220VDC, 2000W HE WOR - (Industrial).................27
Specifications Flatpack2 Rectifier 48V, 2000W HE, BF................................................28

1 Introduction
4User’s Guide Flatpack2 Rectifier Modules, 350002.013, 7v0-2010-09
1.Introduction
The Flatpack2 rectifier module is a powerful and cost-effective power supply used in
Eltek Valere’s Flatpack2 DC power systems.
About this Guide
This booklet provides users of Flatpack2 DC power systems with the required information
to install and operate the Flatpack2 rectifier modules. The booklet also presents the
rectifiers’ technical specifications, such as input voltage range, output power, operating
temperature range, etc.
Read also the generic and site specific documentation that was delivered with your
Flatpack2 DC power system.
For detailed functionality description, browse and search through WebPower or
PowerSuite Online Help.
System Diagrams Flatpack2 DC Power Systems
The Flatpack2 modules are the building blocks of Flatpack2 PS systems, used for DC
power supply of telecom and industrial equipment, in grid-fed sites or hybrid solar sites.
Flatpack2 PS System ~ Telecom
The example in Figure 1 represents a typical Flatpack2 PS system for DC power supply of
telecom equipment. The system is fed from an external AC mains supply, and consists of
rectifiers in power shelves, a controller and DC distribution unit. Battery banks, LVD
contactors, etc. are typically also a part of the system. The system controller monitors
the whole system, and serves as the local user interface. You can configure the system
from a standard web browser, or installing the PowerSuite application in a computer.
Figure 1Typical Flatpack2 PS system for DC power supply of telecom equipment
Flatpack2
Cabinetized
Battery string #1
AC mains
supply
selector
Symmetry
Alarm &
Temp. Sensor
LVLD
LVBD
Fuse Alarm
Telecom
equipment
Alarm Outputs NC-C-NO
Digital Inputs
Battery
Fuses
Load Fuses
& MCBs
Smartpack
controller
Flatpack2
rectifiers
PowerSuite
Application
CAN Bus
USB cable
DC
distribution
Remote
Monitoring
AC Mains Grid
(230VAC or 400VAC)
AC Supply
(Single- or three-
phase)
DC Supply
(24V, 48V or 60V)

1 Introduction
User’s Guide Flatpack2 Rectifier Modules, 350002.013, 7v0-2010-09 5
Flatpack2 PS System ~ Hybrid Solar
The example in Figure 2 represents a typical hybrid, solar Flatpack2 PS system for DC
power supply of telecom and industrial equipment.
The system is fed from strings of solar panels (DC feed), and uses a diesel generator as
AC feed backup at night and during cloudy days, thus ensuring extra battery charging.
Extra AC feed backup can also be supplied by wind turbines or from the Mains grid.
The hybrid, solar system consists of paralleled solar chargers and rectifiers in power
shelves, Smartpack2-based system controllers and DC distribution unit. Battery banks,
LVD contactors, etc. are typically also a part of the system.
The Smartpack2 Master controller serves as the local user interface, while the
Smartpack2 Basic controller monitors the system’s internal wiring. The I/O Monitor2 CAN
node provides the system with input monitoring and output controlling signals.
You can configure the system from a standard web browser, via WebPower, or installing
the PowerSuite application in a computer.
Figure 2Typical hybrid, solar Flatpack2 PS system for DC power supply of telecom or
industrial equipment
Battery string #1
AC mains
supply
selector
Temp.
Sensors
LVLD
LVBD
Fuse Alarm
Battery
Fuses
Load Fuses
& MCBs
Flatpack2 HE
Rectifiers
CAN Bus
DC
Distribution
DC Supply
(48V)
Flatpack2
Hybrid Solar
System
Ethernet
cable
Internet
Telecom and
Industrial
equipment
Smartpack2
Master Controller
Smartpack2
Basic Controller
Alarm Outputs NC-C-NO
Config. Inputs
WebPower
(web-based
user interface)
I/O Monitor2
CAN node
Flatpack2 HE
Solar Chargers
Wind Turbine
AC Mains Grid
(230VAC or 400VAC)
AC Generator
Solar Panels
AC Supply
(Single- or three-
phase)
DC Supply
(170-230VDC)

1 Introduction
6User’s Guide Flatpack2 Rectifier Modules, 350002.013, 7v0-2010-09
Flatpack2 PS System ~ Industrial
The example in Figure 3 represents a typical Flatpack2 PS system for DC power supply of
industrial equipment, in all areas of the industry, power generation and distribution.
The system is fed from an external AC mains supply, and consists of rectifiers in power
shelves, a system controller and DC distribution unit. Battery banks, LVD contactors, etc.
are typically also a part of the system.
The system controller monitors the whole system, and serves as the local user interface.
You can configure the system from computer, installing the MMT application.
Figure 3Typical Flatpack2 PS system for DC power supply of industrial equipment
Flatpack2
Cabinetized
Battery string #1
AC mains
supply
selector
Symmetry
Alarm &
Temp. Sensor
LVLD
LVBD
Fuse Alarm
DC Load
Industrial
Equipment
Alarm Outputs NC-C-NO
Digital Inputs
Battery
Fuses
Load Fuses
& MCBs
UPC4
controller
MMT
Application
CAN Bus
USB cable
DC
distribution
Remote
Monitoring
Flatpack2 HE
rectifiers
AC Mains Grid
(230VAC or 400VAC)
AC Supply
(Single- or three-
phase)
DC Supply
(24V, 48V, 60V,
110V, 125V, 220V)

2 Flatpack2 Rectifier
User’s Guide Flatpack2 Rectifier Modules, 350002.013, 7v0-2010-09 7
2.Flatpack2 Rectifier

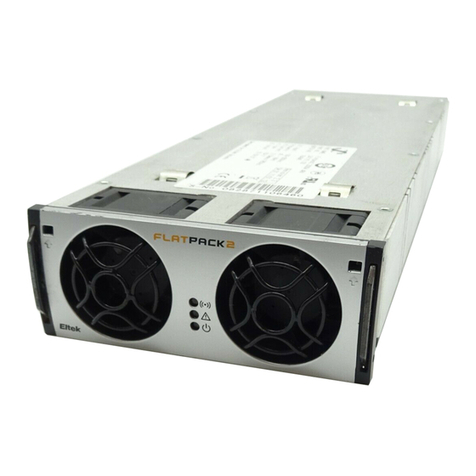

The Flatpack2 rectifier module is a hot-pluggable, digitally controlled switch mode power
supply. The module is designed for battery charging and supplying of high quality DC
power to telecom, industrial, solar hybrid equipment and similar applications.
The rectifier works in stand-alone mode or in parallel with other rectifiers, then
communicating via CAN bus with the system’s main controller and other connected
rectifiers. Flatpack2 DC power systems are implemented by mounting the rectifiers in 23”
or 19” power shelves (4 rectifiers across).
A wide range of features are implemented in the Flatpack2 rectifier, as mentioned below.
Key Features
Highest efficiency in minimum space
Resonant topology makes the module efficiency industry leading, and
contributes to the rectifier’s ultra compact dimensions.
Specially, the Flatpack2 HE rectifier stands out with 96.5% efficiency.
Digital controllers
Primary and secondary controls are digitalized, enabling excellent monitoring
and control characteristics. Also, the number of components has been reduced
by 40% compared to previous rectifier generation - for highly reliable, long
life, trouble free DC power systems.
Heat management
Front-to-back and back-to-front air flow modules, with chassis-integrated
heat sinks, gives the module the most suitable working environment and no
limitations in the scalability of the desired system solution.
CAN bus networked
The Flatpack2 rectifier is connected in a CAN bus network for communication
with the controller and other rectifiers.
Unique connection
A true plug-and-play connection system: reducing time-to-install related cost.
Global approvals
Flatpack2 is CE marked, UL recognized and NEBS certified for worldwide
installation
Typical Applications
Wireless, fiber and fixed line communication
Today’s communications demand state-of-the-art, cost efficient and compact DC power
systems. Flatpack2 rectifiers deliver industry leading power density and superb reliability
at lowest lifetime cost.
Broadband and network access
Increasing network speed demands flexible and expandable DC power solutions. The
Flatpack2 rectifier is your key building block for future needs.
Industrial and Solar Hybrid sites
Also appropriate for power supply facilities with or without battery in all areas of
industry, power generation and power distribution The solar charger option is suitable for
any telecom site with autonomous (solar only) or hybrid solar power.
Flatpack2 rectifier
Flatpack2 HE rectifier

2 Flatpack2 Rectifier
8User’s Guide Flatpack2 Rectifier Modules, 350002.013, 7v0-2010-09
Module Options
The Flatpack2 rectifier is available in various options, offering different performance and
characteristics.
Heat Management ~ Front-to-Back Air Flow
The following Flatpack2 rectifier options are always to be installed
in power systems designed for Front-to-Back Air Flow heat
management.
Flatpack2 Rectifier 24V, 2000W
Part number 241115.200. Refer to chapter “Specifications
Flatpack2 Rectifier 24V, 2000W” on page 16.
Flatpack2 Rectifier 24V, 2000W WOR
Part number 241115.250. This rectifier’s Wide Output voltage
Range is optimized for charging any type of batteries.
Refer to chapter “Specifications Flatpack2 Rectifier 24V,
2000W WOR” on page 17.
Air Flow
CAUTION:
Do not install rectifiers with Back-to-Front heat management in power systems
designed for Front-to-Back heat management; otherwise the product guaranty
becomes invalidated.
Device
Hazard
!
Flatpack2 Module Options ~ Overview
241115.200 Flatpack2 Rectifier 24V, 2000W
241115.250 Flatpack2 Rectifier 24V, 2000W WOR
241115.205 Flatpack2 Rectifier 24V, 1800W HE
241115.001
Flatpack2 Rectifier 48V, 1800W
241115.100 Flatpack2 Rectifier 48V, 2000W
241119.100 Flatpack2 Rectifier 48V, 3000W
241115.105 Flatpack2 Rectifier 48V, 2000W HE
241119.105 Flatpack2 Rectifier 48V, 3000W HE
241115.705 Flatpack2 Rectifier 48-60V, 2000W HE
241115.650 Flatpack2 Solar Charger 48V, 1500W HE – (Solar)
241115.805
Flatpack2 Rectifier 110VDC, 2000W HE WOR - (Industrial)
241115.815
Flatpack2 Rectifier 220VDC, 2000W HE WOR - (Industrial)
241115.110 Flatpack2 Rectifier 48V, 2000W BF
241115.115 Flatpack2 Rectifier 48V, 2000W HE, BF
CAUTION:
Never install Flatpack2 rectifiers in power shelves with different output voltage than the rectifier’s. The rectifier’s
output voltage and the power system’s output voltage must always be the same.
Device
Hazard
!

2 Flatpack2 Rectifier
User’s Guide Flatpack2 Rectifier Modules, 350002.013, 7v0-2010-09 9
Flatpack2 Rectifier 24V, 1800W HE
Part number 241115.205. For a description, refer to chapter
“Flatpack2 Rectifier 48V, 2000W HE”, page 9. For technical
data, read chapter “Specifications Flatpack2 Rectifier 24V,
1800W HE”, page 18.
Flatpack2 Rectifier 48V, 1800W
Part number 241115.001. Refer to chapter “Specifications
Flatpack2 Rectifier 48V, 1800W” on page 19
Flatpack2 Rectifier 48V, 2000W
Part number 241115.100. Refer to chapter “Specifications
Flatpack2 Rectifier 48V, 2000W” on page 20
Flatpack2 Rectifier 48V, 3000W
Part number 241119.100. Flatpack2 DC power systems using
these modules are implemented by mounting the rectifiers in
dedicated High Current racks (4AC-HC-3kW Power Shelves,
Part 222058).
Refer to chapter “Specifications Flatpack2 Rectifier 48V,
3000W” on page 21.
Flatpack2 Rectifier 48V, 2000W HE
Part number 241115.105. The combination of innovative
design, efficiency and reliability makes the Flatpack2 HE
rectifier stands out. With an efficiency of up to 96.5%, the
losses have been reduced by 50% compared to the current
industry standard.
Also, the Flatpack2 HE rectifier has an extremely high
efficiency at low load, which historically has been a drawback
with most modern soft switching technologies.
Refer to chapter “Specifications Flatpack2 Rectifier 48V,
2000W HE” on page 22.
P (W)
Temp (°C)
+45
Flatpack2 Rectifier 48V, 2000W
Operating Temperature
Output voltage vs. Temperature
+75
2000
1350
CAUTION: Do not install 3kW rectifiers in power systems implemented with 2kW
power racks (4AC Power Shelves or 2AC Power Shelves); otherwise the product
guaranty becomes invalidated.
Device
Hazard
!

2 Flatpack2 Rectifier
10 User’s Guide Flatpack2 Rectifier Modules, 350002.013, 7v0-2010-09
Flatpack2 Rectifier 48V, 3000W HE
Part number 241119.105. Flatpack2 DC power systems using
these modules are implemented by mounting the rectifiers in
dedicated High Current racks (4AC-HC-3kW Power Shelves,
Part 222058) or in High Current & Voltage racks (4AC-HC-
HVDC Power Shelves, Part 268035).
Refer to chapters “Flatpack2 Rectifier 48V, 2000W HE”, page
9, for the High Efficiency feature, and to “Specifications
Flatpack2 Rectifier 48V, 3000W HE”, page 23.
Flatpack2 Rectifier 48-60V, 2000W HE
Part number 241115.705. In addition to the High Efficiency
feature — refer to chapter “Flatpack2 Rectifier 48V, 2000W
HE”, page 9 — the rectifier’s Wide DC Output Range (WOR)
enables support for battery banks of both NiCd and Pb. From
the controller, you can configure from 38 to 40 cells in NiCd
battery banks, and 24 or 30 cells in Pb battery banks.
The module will detect and auto-adjust its voltage mode at
start up.
For technical data, read chapter “Specifications Flatpack2
Rectifier 48-60V, 2000W HE” page 24.
Flatpack2 Solar Charger 48V, 1500W HE – (Solar)
Part number 241115.650. With the Maximum Peak Power
Tracking (MPPT) algorithm ensuring close to 100% panel
utilization and efficiency up to 96.5%, the galvanic isolated
solar charger sets new standards for renewable power in
totally green telecom sites.
The charger uses a digitalized advanced control algorithm
that finds the solar panel voltage that generates the
maximum power independent of sun availability. The
charging is continuous according to performance profile for
panels. In addition to finding the profiles peak power a full
scan is performed at a fixed interval to stay on peak even
with panel failures and major shadings. This gives close to
100% panel utilization.
The Flatpack2 HE SOLAR charger is suitable for any telecom
site with autonomous (solar only) or hybrid solar power.
It can be used in parallel with any other Flatpack2 rectifiers
(front-to-back air flow systems only) fed by generator or
unreliable mains, on hybrid sites.
Solar chargers must be mounted in dedicated solar power
shelves with correct DC input feeding, see Figure 2, page 5.
Refer to chapter “Specifications Flatpack2 Solar Charger 48V,
1500W HE – (Solar)” on page 25.
CAUTION: Do not install 3kW rectifiers in power systems implemented with 2kW
power racks (4AC Power Shelves or 2AC Power Shelves); otherwise the product
guaranty becomes invalidated.
Device
Hazard
!

2 Flatpack2 Rectifier
User’s Guide Flatpack2 Rectifier Modules, 350002.013, 7v0-2010-09 11
Flatpack2 Rectifier 110VDC, 2000W HE WOR - (Industrial)
Part number 241115.805. High efficiency rectifier for DC
power supply facilities with or without battery in all areas of
industry, power generation and power distribution.
With efficiency up to 94.4%, the losses have been reduced
by 50% compared to the current industry standard.
The HE rectifier also has an extremely high efficiency at low
load, which historically has been a drawback with most
modern soft switching technologies.
The wide DC output range (WOR) can be used in both
110VDC and 125VDC systems, and is suitable for charging
both NiCd and lead acid battery banks. For NiCd battery
banks the any number cells from 84 to 105 are fully
supported.
The “Flatpack2 Rectifier 110VDC, 2000W HE WOR” is only to
be used in Smartpack2-based or UPC4-based power systems.
The rectifiers are to be mounted in dedicated High Current &
Voltage racks (4AC-HC-HVDC Power Shelves, Part 268035).
Flatpack2 Rectifier 220VDC, 2000W HE WOR - (Industrial)
Part number 241115.815. High efficiency rectifier for DC
power supply facilities with or without battery in all areas of
industry, power generation and power distribution.
With efficiency up to 95.3%, the losses have been reduced
by 50% compared to the current industry standard.
The HE rectifier also has an extremely high efficiency at low
load, which historically has been a drawback with most
modern soft switching technologies.
The wide DC output range (WOR) is suitable for charging
both NiCd and lead acid battery banks. For NiCd battery
banks the any number cells from 170 to 180 are fully
supported.
The “Flatpack2 Rectifier 220VDC, 2000W HE WOR” is only to
be used in UPC4-based power systems.
The rectifiers are to be mounted in dedicated High Current &
Voltage racks (4AC-HC-HVDC Power Shelves, Part 268035).

2 Flatpack2 Rectifier
12 User’s Guide Flatpack2 Rectifier Modules, 350002.013, 7v0-2010-09
Heat Management ~ Back-to-Front Air Flow
The following Flatpack2 rectifier options are always to be installed
in power systems designed for Back-to-Front Air Flow heat
management.
Flatpack2 Rectifier 48V, 2000W BF
Part number 241115.110
The technical specifications for “Flatpack2 Rectifier 48V,
2000W BF” are the same as for “Flatpack2 Rectifier 48V,
2000W”, except for their heat management and operating
temperatures, which are:
•“Flatpack2 Rectifier 48V, 2000W”
Heat management: Front-to-Back Air Flow
Operating Temperature: (see page 20)
•“Flatpack2 Rectifier 48V, 2000W BF”
Heat management: Back-to-Front Air Flow
Operating Temperature:
40 C to +65°C (40°F to +149°F)
For other specifications, refer to chapter “Specifications
Flatpack2 Rectifier 48V, 2000W” on page 20
Flatpack2 Rectifier 48V, 2000W HE, BF
Part number 241115.115. Refer to chapter “Specifications
Flatpack2 Rectifier 48V, 2000W HE, BF” on page 28.
Air Flow
CAUTION:
Do not install rectifiers with Front-to-Back heat management in power systems
designed for Back-to-Front heat management; otherwise the product guaranty
becomes invalidated.
Device
Hazard
!
Flatpack2 Rectifier 48V, 2000W BF
Operating Temperature
Output voltage vs. Temperature
P (W)
Temp (°C)
+50
+65
2000
1500
Fan direction icon:
counterclockwise
Fan direction icon:
counterclockwise

3 Installation of Flatpack2 Rectifiers
User’s Guide Flatpack2 Rectifier Modules, 350002.013, 7v0-2010-09 13
3.Installation of Flatpack2 Rectifiers
Safety Precautions
Get acquantied with the satety precautions on page 2, before installing or handling the
equipment.
Mounting and Removing Rectifiers
The Flatpack2 rectifiers incorporate handles that serve both to lock the modules into
position and to pull them out of their housings.
Mounting the Flatpack2 rectifier (hot-pluggable)
1. Open the handles
(insert a screwdriver into the holes to release the
spring mechanism)
2. Insert the module fully into the power shelf
3. Lock the handles
(push the handles up into their housings (locked
position), so that the module is securely locked)
Removing the Flatpack2 rectifier
1. Open the handles
(insert a screwdriver into the holes to release the
spring mechanism)
2. Remove the module
(use both handles to pull the module loose from the
connector; support from underneath)
Figure 4Flatpack2 rectifiers’s locking mechanism
WARNING: To replace installed rectifiers with new ones, remove the installed rectifiers and wait for the controller to
notify communication error with the extracted rectifiers. Push the new rectifiers firmly inwards — one module at a time,
allowing a 2s delay — to plug them in the power shelf. Start with the shelf position with lowest ID number. Lock their
handles.
Removing Blind Panels
Release the panel’s upper left and right corners by inserting a small screwdriver into the
panel’s upper left gap, and carefully press down and out to release the locking tabs.
Repeat on the upper right gap. Refer to the Flatpack2 system’s quick start guide for more
information.
Handle in locked position
Hole to release the
handle’s spring
mechanism
Handle in
unlocked position
Flatpack2
rectifier
CAUTION: Double Pole / Neutral Fusing. There is a Mains fuse in each line.
Device
Hazard
!
Electric
Shock
CAUTION: The rectifiers may be warm, but do not hand-carry them by their handles. Open the handles before
inserting them into the power shelves (hot-pluggable). Mount blind panels in unused module locations.
CAUTION: Do not relocate already hot-plugged rectifiers to other positions in the power shelf.
New Flatpack2 rectifiers must be hot-plugged in the power shelf, one at time, starting with position 1, 2, 3 and so on.
This is usually performed before shipment of the system. Read your system’s quick start guide for more information.
Device
Hazard
!

3 Installation of Flatpack2 Rectifiers
14 User’s Guide Flatpack2 Rectifier Modules, 350002.013, 7v0-2010-09
Connections
All connections are implemented by inserting the Flatpack2 module fully into the power
shelf, thus plugging the rectifier to the self’s back wiring card (hot-pluggable).
Figure 5Flatpack2 module’s rear plug-in connections to power shelf’s back wiring card
For details about other power shelf signals, type of power shelf, etc., please read the
system’s generic and specific documentation, or contact your dealer or Eltek Valere
representative.
CAN Bus Addressing (plug-and-play)
When a Flatpack2 rectifier is hot-plugged in the power shelf the first time, the system’s
main controller automatically assigns the rectifier with the next available ID number
(CAN bus address). The rectifier will retain its ID (and serial number), even after
removing and reinserting it in the power shelf.
The rectifiers’ IDs are assigned from 1 and upwards. When a module is plugged in, the
system’s main controller automatically increases the number of communicating rectifiers
in the CAN network.
Correct Rectifier Position in Power Shelves
Flatpack2 DC power systems are usually shipped from factory with the rectifier modules
already installed in the correct position in the power shelves, with respect to their CAN
bus address or ID number.
This relationship is very important for the correct monitoring of the mains three phases,
as the system’s main controller always uses rectifier ID 01, 02 and 03 to monitor mains
phase L1, L2 and L3 respectively. If these rectifiers malfunction, rectifier ID 04, 05 and
06 will automatically take over.
For example: accidentally inserting a rectifier with ID 02 in a power shelf position
internally connected to mains phase L1, will cause the controller to monitor L1 “thinking“
it monitors L2.
Firmware Upgrade of the Rectifier Modules
Please, contact Eltek Valere Service Dep. if you need to upgrade the rectifiers’ firmware.
Flatpack2 rectifier
(rear plug-in slot)
DC Output
Power shelf (-)
DC Output
Power shelf (+)
DC connection
Module (-)
DC connection
Module (+)
AC input
connection
Module (L1)
AC input
connection
Module (L2)
Bus connection
Module (CAN-H)
Bus connection
Module (CAN-L)

4 Operation
User’s Guide Flatpack2 Rectifier Modules, 350002.013, 7v0-2010-09 15
4.Operation
The Flatpack2 Rectifier Module is designed for parallel operation in a system. The front
panel LEDs provides information about the rectifier status and CAN bus activity.
Front Panel Interface
Figure 6Example of a Flatpack2 Rectifier Module’s front panel
The Flatpack2 Rectifier Module has the following LED indications:
•“Power” (green) indicates that the power supply is OFF, ON and communicating
•“Alarm” (red) indicates an alarm situation
•“Warning” (yellow) indicates an abnormal situation
LED Indicators
The following events will activate the Flatpack2 rectifier’s front LEDs:
LED Status Description
Power
(green) ON Rectifier is powered
Flashing System controller accessing information on the rectifier
OFF Mains are unavailable
Warning
(yellow)
ON
Rectifier is in Derating Mode (reduced output power) due to
high internal temperature, or
low input voltage, or
fan failure
The remote Battery Current Limit is activated
AC input voltage is out of range
Rectifier in stand-alone mode (or loss of communication
with the system’s main controller
Flashing Rectifier is in Over-voltage Protection Mode (AC input)
OFF No abnormal situation is present
Alarm
(red)
ON
Rectifier is in Shut-down Mode due to
low mains, or
high internal temperature, or
high output voltage
Internal rectifier failure (malfunction)
Fan failure (single or double fan malfunction)
Low output voltage

CAN bus failure
OFF No alarm situation is present
Refer also to chapter “Technical Specifications”, page 16.
Alarm
LED Lamp (red)
Warning
LED Lamp (yellow)
Power
LED Lamp (green)

5 Technical Specifications
16 User’s Guide Flatpack2 Rectifier Modules, 350002.013, 7v0-2010-09
Applicable Standards
Electrical safety IEC 60950-1
UL 60950-1
CSA 22.2
EMC
ETSI EN 300 386 V.1.3.2 (telecommunication network)
EN 61000-6-4 (emission, industry)
EN 61000-6-3 (emission, light industry)
EN 61000-6-2 (immunity, industry)
EN 61000-6-1 (immunity, light industry)
Telcordia NEBS GR1089 CORE
Mains Harmonics EN 61000-3-2
Environment ETSI EN 300 019-2
ETSI EN 300 132-2
Telcordia NEBS GR63 CORE Zone 4
RoHS compliant
Specifications are subject to change without notice 241115.200.DS3 v2
5.Technical Specifications
Specifications Flatpack2 Rectifier 24V, 2000W
AC Input
Voltage 85-290 VAC (Nominal 176 – 275 VAC)
Frequency 44 to 66Hz
Maximum
Current
13.0 Arms maximum at nominal input and
full load
Power Factor > 0.99 at 50% load or more
Input Protection
oVaristors for transient protection
oMains fuse in both lines
o
Disconnect above 290 VAC
DC Output
Voltage 26.7 VDC
(adj. range: 21.0-29.0 VDC)
Output Power o2000 W at nominal input
o1800 W at nominal input above
28.0 VDC
Maximum Current 84.0 Amps
at 24 VDC and nominal input
Current Sharing
±5% of maximum current from 10%
to 100% load
Static voltage
regulation
±0.5% from 10% to 100% load
Dynamic voltage
regulation
±5.0% for 10-90% or 90-10% load
variation, regulation time < 50ms
Hold up time > 20ms; output voltage > 21 VDC at
1000W load
Ripple and Noise < 100 mV peak to peak, 30 MHz
bandwidth
< 0.96 mV rms psophometric
Output Protection
oOvervoltage shutdown
oBlocking diode
oShort circuit proof
o
High temperature protection
Other Specifications
Efficiency Typical 89%
Isolation 3.0 KVAC – input and output
1.5 KVAC – input earth
0.5 KVDC – output earth
Alarms:
o
Low mains shutdown
oHigh temperature shutdown
oRectifier Failure
oOvervoltage shutdown on output
oFan failure, one or two fans.
oLow voltage alarm at 21.0V
o
CAN bus failure
Warnings: oLow temperature shutdown
oRectifier in power derate mode
oRemote battery current limit activated
oInput voltage out of range, flashing at
overvoltage
oLoss of CAN communication with
control unit, stand alone mode
Operating
temp
-40 to +75°C (-40 to +167°F)
Storage temp -40 to +85°C (-40 to +185°F)
Cooling 2 fans (front to back airflow)
Fan Speed Temperature and load regulated
MTBF > 240, 000 hours Telcordia SR-332 Issue I,
method III (a) (Tambient : 25°C)
Acoustic
Noise
< 65dBA at nominal input and 70% load
(Tambient < 30°C)
Humidity oOperating: 5% to 95%
RH non-condensing
oStorage: 0% to 99%
RH non-condensing
Dimensions 109 x 41.5 x 327mm (wxhxd)
(4.25 x 1.69 x 13”)
Weight 1.9 kg (3.97 lbs)

5 Technical Specifications
User’s Guide Flatpack2 Rectifier Modules, 350002.013, 7v0-2010-09 17
Applicable Standards
Electrical safety IEC 60950-1
UL 60950-1
CSA 22.2
EMC ETSI EN 300 386 V.1.3.2 (telecommunication network)
EN 61000-6-4 (emission, industry)
EN 61000-6-3 (emission, light industry)
EN 61000-6-2 (immunity, industry)
EN 61000-6-1 (immunity, light industry)
Telcordia NEBS GR1089 CORE
Mains Harmonics
EN 61000-3-2
Environment ETSI EN 300 019-2
ETSI EN 300 132-2
Telcordia NEBS GR63 CORE Zone 4
RoHS compliant
Specifications are subject to change without notice 241115.250.DS3 v3
Specifications Flatpack2 Rectifier 24V, 2000W WOR
AC Input
Voltage 85-300 VAC (Nominal 185 – 275 VAC)
Frequency
44 to 66Hz
Maximum
Current
12.5 Arms maximum at nominal input and
full load
Power Factor > 0.99 at 50% load or more
Input Protection
Varistors for transient protection
Mains fuse in both lines
Disconnect above 300 VAC
DC Output
Voltage
Adjustable range: 21.5-36.0VDC
Default voltage: 26.7 VDC
Output Power 2000 W at nominal input
Maximum Current
70.0 Amps at 29 VDC and nominal
input
Current Sharing ±5% of maximum current from 10% to
100% load
Static voltage
regulation
±0.5% from 10% to 100% load
Dynamic voltage
regulation
±5.0% for 10-90% or 90-10% load
variation, regulation time < 50ms
Hold up time > 20ms; output voltage > 21.5 VDC at
1500W load
Ripple and Noise < 100 mV peak to peak, 30 MHz
bandwidth
< 0.96 mV rms psophometric
Output
Protection
Overvoltage shutdown
Fuse on output
Short circuit proof
High temperature protection
Other Specifications
Efficiency Typical 91%
Isolation 3.0 KVAC – input and output
1.5 KVAC – input earth
0.5 KVDC – output earth
Alarms:
Low mains shutdown
High temperature shutdown
Rectifier Failure
Overvoltage shutdown on output
Fan failure, one or two fans.
Low voltage alarm at 21.0V
CAN bus failure
Warnings:
Low temperature shutdown
Rectifier in power derate mode
Remote battery current limit activated
Input voltage out of range, flashing at
overvoltage
Loss of CAN communication with
control unit, stand alone mode
Visual
indications
Green LED: ON, no faults
Red LED: rectifier failure
Yellow LED : rectifier warning
Operating
temp
-40 to +75°C (-40 to +167°F)
Storage temp -40 to +85°C (-40 to +185°F)
Cooling 2 fans (front to back airflow)
Fan Speed
Temperature and load regulated
MTBF > 200, 000 hours Telcordia SR-332 Issue I,
method III (a) (Tambient : 25°C)
Acoustic
Noise
< 65dBA at nominal input and 70% load
(Tambient < 30°C)
Humidity
Operating: 5% to 95% RH non-
condensing
Storage: 0% to 99% RH non-condensing
Dimensions
109 x 41.5 x 327mm (wxhxd)
(4.25 x 1.69 x 13”)
Weight
1.9 kg (3.97 lbs)

5 Technical Specifications
18 User’s Guide Flatpack2 Rectifier Modules, 350002.013, 7v0-2010-09
Applicable Standards
Electrical safety IEC 60950-1
UL 60950-1
CSA 22.2
EMC ETSI EN 300 386 V.1.3.2
EN 61000-6-1 (immunity, light
industry)
EN 61000-6-2 (immunity, industry)
EN 61000-6-3 (emission, light industry)
EN 61000-6-4 (emission, industry)
Telcordia NEBS GR1089 CORE
Mains Harmonics
EN 61000-3-2
Environment ETSI EN 300 019-2-1 Class 1.2
ETSI EN 300 019-2-2 Class 2.3
ETSI EN 300 019-2-3 Class 3.2
ETSI EN 300 132-2
Telcordia NEBS GR63 CORE Zone 4
RoHS compliant
Specifications are subject to change without notice
Efficiency
241115.205.DS3 – v2
85%
90%
95%
100%
200 400 600 800 1000 1200 1400 1600 1800
Output Load (W)
94%
95%
Specifications Flatpack2 Rectifier 24V, 1800W HE
AC Input
Voltage 85-300 VAC (Nominal 176 – 275 VAC)
Frequency
45 to 66Hz
Maximum Current 11.25 Arms maximum at nominal input
and full load
Power Factor > 0.99 at 50% load or more
Input Protection oVaristors for transient protection
oMains fuse in both lines
o
Disconnect above 300 VAC
DC Output
Voltage 26.7 VDC (adj. range: 21.7-28.8 VDC)
Output Power 1800 W at nominal input
Maximum Current 75 Amps at 24 VDC and nominal input
Current Sharing ±5% of maximum current from 10 to
100% load
Static voltage
regulation
±0.5% from 10% to 100% load
Dynamic voltage
regulation
±5.0% for 10-90% or 90-10% load
variation, regulation time < 50ms
Hold up time > 20ms; output voltage > 21 VDC at
1000W load
Ripple and Noise
o
< 250 mV peak to peak,
o30 MHz bandwidth
o
<2mV rms psophometric
Output Protection oOvervoltage shutdown
oHot plug-in - Inrush current limiting
oShort circuit proof
o
High temperature protection
Other Specifications
Efficiency >95% at 30-70% load
Isolation 3.0 KVAC – input and output
1.5 KVAC – input earth
0.5 KVDC – output earth
Alarms:
oLow mains shutdown
oHigh temperature shutdown
oRectifier Failure
oOvervoltage shutdown on output
oFan failure
oLow voltage alarm at 21.5V
o
CAN bus failure
Warnings:
o
Low temperature shutdown
oRectifier in power derate mode
oRemote battery current limit activated
oInput voltage out of range, flashing at
overvoltage
oLoss of CAN communication with
control unit, stand alone mode
Visual
indications
o
Green LED: ON, no faults
oRed LED: rectifier failure
o
Yellow LED : rectifier warning
Operating
temp
-40 to +75°C (-40 to +167°F)
Storage temp
-40 to +85°C (-40 to +185°F)
Cooling Fan (front to back airflow)
Fan Speed Temperature and current regulated
MTBF > 300, 000 hours Telcordia SR-332 Issue I,
method III (a) (Tambient : 25°C)
Acoustic
Noise
< 40dBA at nominal input and full load
(Tambient < 25°C)
< 58dBA at nominal input and full load
(Tambient > 40°C)
Humidity Operating: 5% to 95% RH non-condensing
Storage: 0% to 99% RH non-condensing
Dimensions 109 x 41.5 x 327mm (wxhxd)
(4.25 x 1.69 x 13”)
Weight 1.950 kg (4.3lbs)

5 Technical Specifications
User’s Guide Flatpack2 Rectifier Modules, 350002.013, 7v0-2010-09 19
Applicable Standards
Electrical safety IEC 60950-1
UL 60950-1
CSA 22.2
EMC ETSI EN 300 386 V.1.3.2 (telecommunication network)
EN 61000-6-4 (emission, industry)
EN 61000-6-3 (emission, light industry)
EN 61000-6-2 (immunity, industry)
EN 61000-6-1 (immunity, light industry)
Telcordia NEBS GR1089 CORE
Mains Harmonics EN 61000-3-2
Environment ETSI EN 300 019-2
ETSI EN 300 132-2
Telcordia NEBS GR63 CORE Zone 4
RoHS compliant
Specifications are subject to change without notice 241115.001.DS3 v8
Specifications Flatpack2 Rectifier 48V, 1800W
AC Input
Voltage 85-300 VAC (Nominal 185 – 275 VAC)
Frequency
45 to 66Hz
Maximum
Current
10.7 Arms maximum at nominal input and
full load
Power Factor > 0.99 at 20% load or more
Input
Protection
oVaristors for transient protection
oMains fuse in both lines
o
Disconnect above 300 VAC
DC Output
Voltage 53.5 VDC (adj. range: 43.5-57.6 VDC)
Output Power 1800 W at nominal input
Maximum Current
37.5 Amps at 48 VDC and nominal
input
Current Sharing ±5% of maximum current from 10%
to 100% load
Static voltage
regulation
±0.5% from 10% to 100% load
Dynamic voltage
regulation
±5.0% for 10-90% or 90-10% load
variation, regulation time < 50ms
Hold up time
> 20ms; output voltage > 43.5 VDC
at 1500W load
Ripple and Noise
o
< 100 mV peak to peak,
o30 MHz bandwidth
o
< 0.96 mV rms psophometric
Output Protection oOvervoltage shutdown
oBlocking diode
oShort circuit proof
o
High temperature protection
Other Specifications
Efficiency Typical 92%, min. 91% at 40-90% load
Isolation 3.0 KVAC – input and output
1.5 KVAC – input earth
0.5 KVDC – output earth
Alarms:
o
Low mains shutdown
oHigh temperature shutdown
oRectifier Failure
oOvervoltage shutdown on output
oFan failure, one or two fans.
oLow voltage alarm at 43.5V
o
CAN bus failure
Warnings:
o
Rectifier in power derate mode
oRemote battery current limit activated
oInput voltage out of range, flashing at
overvoltage
oLoss of CAN communication with
control unit, stand alone mode
Visual
indications
oGreen LED: ON, no faults
oRed LED: rectifier failure
o
Yellow LED : rectifier warning
Operating
temp
-40 to +70°C (-40 to +158°F)
Storage temp -40 to +85°C (-40 to +185°F)
Cooling 2 fans (front to back airflow)
Fan Speed Temperature and load regulated
MTBF > 405, 000 hours Telcordia SR-332 Issue I,
method III (a) (Tambient : 25°C)
Acoustic
Noise
< 50dBA at nominal input and 70% load
(Tambient < 30°C)
Humidity Operating: 5% to 95% RH non-condensing
Storage: 0% to 99% RH non-condensing
Dimensions 109 x 41.5 x 327mm (wxhxd)
(4.25 x 1.69 x 13”)
Weight 1.8 kg (3.97 lbs)

5 Technical Specifications
20 User’s Guide Flatpack2 Rectifier Modules, 350002.013, 7v0-2010-09
Applicable Standards
Electrical safety IEC 60950-1
UL 60950-1
CSA 22.2
EMC ETSI EN 300 386 V.1.3.2 (telecommunication network)
EN 61000-6-1 (immunity, light industry)
EN 61000-6-2 (immunity, industry)
EN 61000-6-3 (emission, light industry)
EN 61000-6-4 (emission, industry)
Telcordia NEBS GR1089 CORE
Mains Harmonics EN 61000-3-2
Environment ETSI EN 300 019-2 (-1, -2, -3)
ETSI EN 300 132-2
Telcordia NEBS GR63 CORE Zone 4
RoHS compliant
Specifications are subject to change without notice 241115.100.DS3 – v6
Specifications Flatpack2 Rectifier 48V, 2000W
AC Input
AC Voltage 85-300 VAC (Nominal 185 – 275 VAC)
Frequency 45 to 66Hz
Maximum Current 12.5 Arms maximum at nominal input
and full load
Power Factor > 0.99 at 50% load or more
DC Voltage 120-275VDC (Rated 140 – 250VDC)
Input Protection
Varistors for transient protection
Mains fuse in both lines
Disconnect above 300 VAC
DC Output
Voltage 53.5VDC (adj. range: 43.5-57.6VDC)
Output Power 2000 W at nominal input
Maximum
Current
41.7 Amps at 48 VDC and nominal input
Current Sharing
±5% of maximum current from 10% to
100% load
Static voltage
regulation
±0.5% from 10% to 100% load
Dynamic
voltage
regulation
±5.0% for 10-90% or 90-10% load
variation, regulation time < 50ms
Hold up time > 20ms; output voltage > 43.5 VDC at
1500W load
Ripple and
Noise
< 100 mV peak to peak,
30 MHz bandwidth
< 0.96 mV rms psophometric
Output
Protection
Overvoltage shutdown
Blocking diode
Short circuit proof
High temperature protection
Other Specifications
Efficiency Typical 92%, min. 91% at 40-90% load
Isolation 3.0 KVAC – input and output
1.5 KVAC – input earth
0.5 KVDC – output earth
Alarms:
Low mains shutdown
High temperature shutdown
Rectifier Failure
Overvoltage shutdown on output
Fan failure, one or two fans.
Low voltage alarm at 43.5V
CAN bus failure
Warnings:
Low temperature shutdown
Rectifier in power derate mode
Remote battery current limit activated
Input voltage out of range, flashing at
overvoltage
Loss of CAN communication with
control unit, stand alone mode
Visual
indications
Green LED: ON, no faults
Red LED: rectifier failure
Yellow LED : rectifier warning
Operating
temp
-40 to +75°C (-40 to +158°F)
Storage temp -40 to +85°C (-40 to +185°F)
Cooling 2 fans (front to back airflow)
Fan Speed Temperature and current regulated
MTBF > 350, 000 hours Telcordia SR-332 Issue I,
method III (a) (Tambient : 25°C)
Acoustic
Noise
< 55dBA at nominal input and full load
(Tambient < 30°C)
Humidity Operating: 5% to 95% RH non-condensing
Storage: 0% to 99% RH non-condensing
Dimensions 109 x 41.5 x 327mm (wxhxd)
(4.25 x 1.69 x 13”)
Weight 1.9 kg (4.19lbs)
