1. General Information
The primary switched mode rectifier type PSR06-W (named SMPS on the next pages) delivers an output power of
approx. 600W. Typical applications are DC power supplies and uninterruptable power supply with battery.
Rectifiers of type SMPS have good dynamic regulation properties concerning input voltage changes and load varia-
tions.
It works with an IV characteristic in accordance with DIN 41772 and it is a complete connectable module in a wall
cabinet. The operation elements and measurement instruments are located on the front panel, the input/output
connectors are located at the bottom of the module.
SNT modules also operates single side grounded or ungrounded at input and output.
2. Type Range
Type
Designation
PSR06/
Article code Input voltage range
(VAC)
Output-
voltage
(VDC)
Output-
current
(A)
24-20W 100-006-142.00 120-230 (-15/+10%) 24 20
48-10W 100-006-152.00 120-230 (-15/+10%) 48 10
60-8.2W 100-006-162.00 120-230 (-15/+10%) 60 8.2
110-4.5W 100-006-172.00 120-230 (-15/+10%) 108 4.5
Available options and accessories:
1) Temperature sensor lead LM 335 (sensor lead in M5 cable shoes with 2m wire); article code: 880-300-TMP.00
2) Temperature sensor lead LM 335 (sensor lead in M5 cable shoes with 4m wire); article code: 880-300-TMP.01

Rectifier
PSR06-W
User Manual
Page 7 (24)
ELTEK VALERE DEUTSCHLAND ©2009 UM_PSR06-W_E_R1.1
3. Start up procedure
Before connecting to the input voltage, it should be checked whether the voltage information on the rating plate
corresponds to the available voltage and also that the polarity corresponds to the connection plan of the plug. The
mains connection is done via terminals below the cabinet. The protective conductor should be generally connected
(protection class 1, leakage current ≤3.5mA).
The DC output contact has to be connected on terminal X1. The signalling contacts for monitoring, sense links and
active current are to be connected on terminal X2/X3.
Important:
The rectifier has big capacitors at the output. If you connect a switched off module to a battery or other modules
which operate in paralleling, there is a big capacitor charge current. This current may destroy the contacts on out-
put connectors.
WARNING! After switching off, the capacitors hold its voltage for several times. Do not touch!
The rectifier operates with convection cooling. The ambient temperature has to be less than +55°C. If there is a
higher temperature, the life time of the modules will be decreased.
The losses per module are approx. 40 to 80W (depends on type).
4. Operation

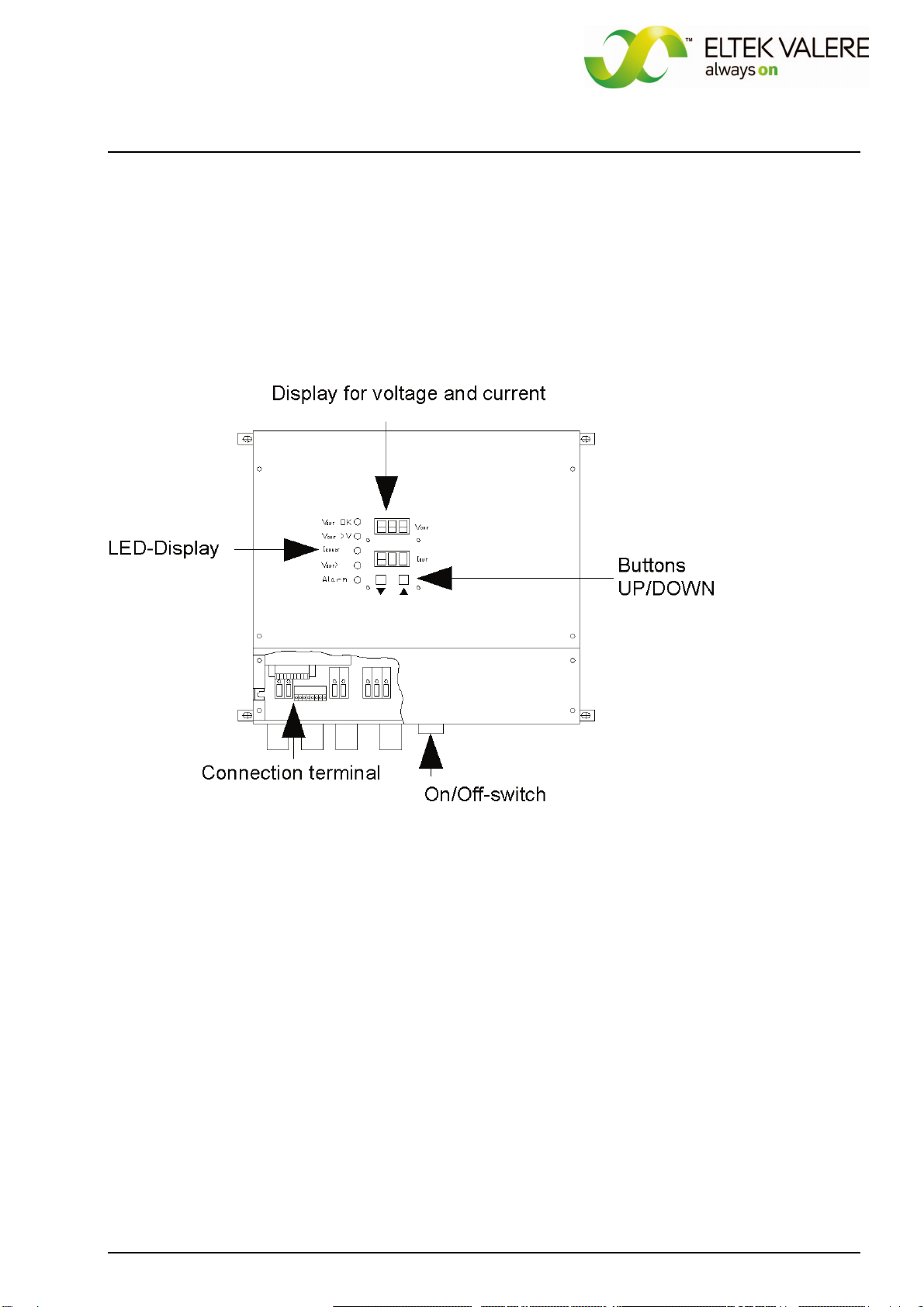

All operation elements are located on the front panel of the module. The function of each element is explained on
the following pages. See also the front panel drawing on section 7.1.

Rectifier
PSR06-W
User Manual
Page 8 (24)
5. Functions
5.1 Circuit diagram

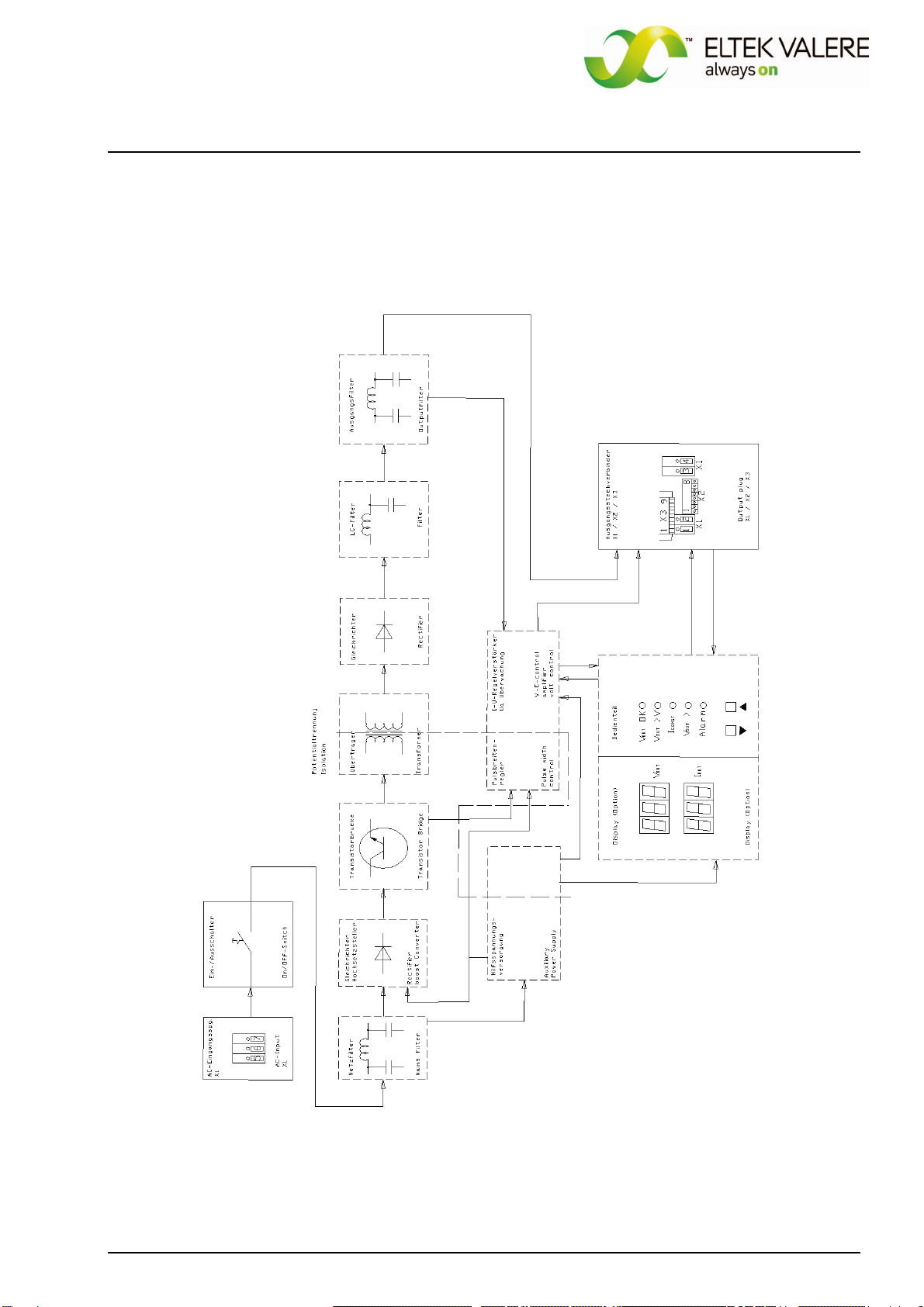

FIG. 1:
Block Diagram
PSR06-W
ELTEK VALERE DEUTSCHLAND ©2009 UM_PSR06-W_E_R1.1

Rectifier
PSR06-W
User Manual
Page 9 (24)
ELTEK VALERE DEUTSCHLAND ©2009 UM_PSR06-W_E_R1.1
5.2 Electrical function description
Rectifiers of type PSR consist of the following main parts:
1. Input filter suppressing the feedback of high frequency interference produced by the unit into the
mains as well as for the attenuation of the interference voltages and voltage transients superim-
posed on the mains.
2. Mains rectifier with switched step-up-converter (operation frequency 100kHz) to transform the
input voltage in a pre-regulated DC voltage of approx. 380V and to control the waveform of input
current (sinusoidal!). An additional function is the limitation of inrush current.
3. Transistor bridge to transform the 380VDC in a pulse width modulated AC voltage with an fre-
quency of 100KHz.
4. HF transformer for decoupling of primary and secondary part and to transport the power to sec-
ondary side.
5. Rectifier diodes to make a DC voltage from high frequency AC voltage.
6. LC-Filter to reduce the voltage ripple on rectifier output.
7. Output filter for RFI suppression and to reduce the noise level on DC line.
8. Internal power supply for supplying of primary and secondary control units with potential decoup-
ling.
9. Regulation line with decoupling through opto couplers.
10. Adjustment panel for adjustment of output parameters, signals and measurement instruments.
5.2.1 Electrical insulation
Through the construction of the module (also module parts) and separate wiring of mains input and DC output the
SMPS fulfils the following standards:
•devices with UO≤60VDC protection against shock current because of low voltage with safe electrical de-
coupling acc. to EN 60950 and VDE 0100.
•devices with UO> 60VDC safe electrical decoupling to UO= 220VDC acc. EN 60950 and VDE 0160.
5.2.2 Input
A one-pole mains switch is used to switch on and off the unit.
The unit is switched on by a run-up stage which limits the switch-on current to <Inom

Rectifier
PSR06-W
User Manual
Page 10 (24)
ELTEK VALERE DEUTSCHLAND ©2009 UM_PSR06-W_E_R1.1
5.2.3 Output
The output line is an IV characteristic acc. to DIN 41772 /DIN 41773 with factory set decreased charge line (-1% at
100% Inom); with factory set active current sharing as option.
The output is sustained short circuit proof (constant current controlling).
5.2.4 Dynamic Regulation of Output Voltage
At load jumps between 10 % and 90 % Inom / 90 % and 10 % Inom the dynamic voltage difference is max. ±3 % and
will be regulated within max. 1.5ms to static levels.
5.2.5 RFI Suppression
Modules of type PSR fulfil the standard VDE 0878 T1 and EN 55011/55022 class ‘B’. The output ripple is (measured
psophometric acc. to CCITT) < 1,2mV (24V),< 1.8mV (48V and 60V).
5.3 Monitoring
5.3.1 Mains Voltage Monitoring
The SMPS is designed for an operation in the specified range (see technical data sheet).
The unit is protected for input voltages up to 270VAC by a varistor at the input-side.
5.3.2 Operation Monitoring
Functional monitoring; signalling with LED "Vout OK", criterion: output voltage ≥97 % of adjusted output voltage
without constant current regulation and ≥85 % of adjusted output voltage with constant current regulation. The
signalling threshold of this monitoring automatically follows the adjusted nominal output voltage.
This signal is included in the collective failure signal of the rectifier. Additional there is an optocoupler signal (VO
O.K.)
At operation with internal decoupling diodes the voltage before diodes will be measured.

Rectifier
PSR06-W
User Manual
Page 11 (24)
ELTEK VALERE DEUTSCHLAND ©2009 UM_PSR06-W_E_R1.1
5.3.3 Output Voltage Low
Output voltage low monitoring; signalling with green LED "Vout>Vmin",
Criterion: output voltage is higher than adjusted level V<;
This signal has its own relay contact on signalling connector. If the voltage value is O.K. Pin 6 and Pin 7 of X2 are
closed.
5.3.4 Output Voltage High
Output voltage high monitoring; signalling with red LED "Vout>",
Criterion: output voltage higher than adjusted level V>;
This signal is included in collective failure signal of rectifier. If there is an error the LED is switched ON and the recti-
fier internally switches OFF. You have to reset the unit by ON/OFF switch.
5.3.5 Protection against Overheating
Protection against overheating; signalling with blinking red LED "Bell symbol", criterion: temperature of heat sink >
90°C. This protection reduces the output power if the temperature is on the limit. This signal is included in collec-
tive failure signal. If the temperature is normally the output power will be increased automatically.
5.3.6 Signals
The signals "VOOK", "Mains OK" and "Constant Current Mode Iconst" are opto coupler signals with a loading of 30
V/5mA. The opto couplers switches off at error. The collective failure signal is delayed for approx. 1sec. The relay
contacts between Pin 3 and Pin 5 of X2 are open and between Pin 4 and Pin 5 are closed at error.

Rectifier
PSR06-W
User Manual
Page 12 (24)
ELTEK VALERE DEUTSCHLAND ©2009 UM_PSR06-W_E_R1.1
5.4 Output and threshold adjustment
The adjustment of output values and monitoring thresholds are very easy. All values will be adjusted with front
keys by showing the actual value in the front side digital displays. The activation of the 2nd characteristic via an
external circuit is necessary for adjusting the boost charge voltage VO2.
In normal operation the top display shows the output voltage (VO1 and VO2) and the bottom display shows the out-
put current (IO).
For any adjustment please follow the following instructions:
•press both keys UP/DOWN (↑↓) together for a short time; the rectifier changes to adjustment mode
•press the key UP(↑) or DOWN (↓) to change the adjustment parameter (see also table on bottom)
•press both keys UP/DOWN (↑↓) together for a short time; the rectifier changes to value change mode
•press the key UP(↑) or DOWN (↓) to change the adjustment value (if you hold the key the value changes
quicker)
•press both keys UP/DOWN (↑↓) together for a short time; the rectifier changes back to the adjustment
mode (at this moment the changed value will be stored)
•press both keys UP/DOWN (↑↓) for approx. 3 sec. to change back to the operation mode
The adjustment mode is for:
•Adjustment of voltage VO1:
•Normal operation; adjust voltage with potentiometer UO1 to correct value (shown at the top display)
•Adjustment of voltage VO2:
•Switch over the unit to VO2-line by external switch (look chapter 6 for correct connecting of signal connec-
tor); adjust voltage with potentiometer VO2 to correct value (shown at the top display)
•Adjustment of monitoring threshold V<:
•Adjust voltage with potentiometer V< to correct value and measure this value on measurement sockets
U< in front of the unit
•Adjustment of monitoring threshold V>:
•Adjust voltage with potentiometer V> to correct value and
•measure this value on measurement sockets V> in front of the unit
•Adjustment of the current limit Iconst:
•The current limit Iconst is adjusted with the potentiometer Iconst by external load.
The measure value at the measure bushings V> and V< corresponds to V/cell for 2 cells, i.e. there is a voltage of
4.8V at the measure bushing for adjusting the V> to 2.4 V/cell.
The adjustment ranges and the adjustments in the factory should be picked up from the respective technical data
sheet.
Adjustable parameters in adjustment mode:
Display Parameter
Vo1 (=UA1) triple charge voltage
Vo2 (=UA2) boost charge voltage (look also cap. 6.4)
Io (=IA) output current
V< output voltage low threshold (look also cap. 5.3.3)
V> output voltage high threshold (look also cap. 5.3.4)
t coefficient of temperature for temperature
compensation of charge voltage (look also cap. 6.2)
The monitoring thresholds automatically follow the adjusted nominal values of output voltage. The monitoring
thresholds for mains/step-up-converter and over heating are not changeable.
Details about the adjustment ranges of several threshold values, see section “Technical Data”.

Rectifier
PSR06-W
User Manual
Page 13 (24)
ELTEK VALERE DEUTSCHLAND ©2009 UM_PSR06-W_E_R1.1
6. External Functions
6.1 Output voltage sensor leads
With sense links for output voltage you can compensate voltage losses over wires or diodes.
The max. regulation difference is approx. 4% of nominal voltage. Interruption on sense links, confusing of poles or
short circuit can not damage the rectifier. At interrupt it can be a voltage increase of max. 4%.
6.2 Temperature Compensation of the charging voltage
At using of closed batteries we recommend the temperature controlled compensation of charge voltage.
You have to connect an external active temperature sensor (option) on signalling connector. The coefficient of
temperature is normally -4mV/K per cell (at temperature range of 0-50 °C). The basic temperature is 20°C. The
coefficient can be adjusted between -1 to -6mV/K per cell.
The sensor will be connected with a 2-pole wire (0.25 mm2). It can be mounted directly on top of battery or on bat-
tery poles. At big distances (> 2m) we recommend a shielded wire with connection of the shield on rectifiers
ground.
6.3 External Switch On/Off
The rectifier can be switched on/off with an external signal. The input is free of potential by an opto coupler and
fulfils the supposition for safe electrical decoupling to mains and output side. The signalling voltage is 10-24V, the
internal resistance 2.7kOhm. The input is protected against confusing the poles. At higher supply voltages the
current in the control circuit has to be limited to 5-7mA using a resistor (for instance 6.8 kOhm at 48/60VDC).
6.4 Boost Charge Mode
The rectifier module has a second charge line (boost charge line). To select this mode connect a voltage to pin 1 of
output connector X3 (see cap. 7.3). The voltage value can be adjusted by the user.

Rectifier
PSR06-W
User Manual
Page 14 (24)
7. Operation Elements and Connectors
7.1 Front View / Operation Elements
7.2 Indication Instruments
The unit is equipped with LED- instruments 0-999 for current and voltage indication. The accuracy corresponds to
Class 1 with reference to the nominal output value of the unit. The indication instrument can be converted to the
indication of the adjusted theoretical value for the regulation and monitoring via an external circuit of the signal
plug.
ELTEK VALERE DEUTSCHLAND ©2009 UM_PSR06-W_E_R1.1

Rectifier
PSR06-W
User Manual
Page 15 (24)
7.3 Connection Table of Input and Output Terminals
The following picture shows the terminal area (terminal X1, X2, X3) of the rectifier:
Terminal X1:
X1/Pin Function
1 DC – Output L+
2 DC – Output L+
3 DC – Output L-
4 DC – Output L-
5 PE
6 N - Input
7 L1 - Input
Terminal X2:
X2/Pin Function
1 (+) – Sensor lead connection
2 Not connected
3 Signal relay general fault alarm, NO
4 Signal relay general fault alarm, NC
5 Signal relay general fault alarm COM 5)
6 Signal relay U<,COM 5)
7 Signal relay U< (total discharge), NO
8 (-) – Sensor lead connection
Terminal X3:
X3/Pin Function
1 Control input 2. charging–
characteristic/Discharge test 1)
2 (+) External On/Off 4)
3 Optocoupler common emitter
4 Optocoupler C ” UOpresent”
5 +15V DC
6 Optocoupler C "IO"
7 Temperature sensor lead (+) 2)
8 Compensating connection for current
distribution 3)
9 GND
ELTEK VALERE DEUTSCHLAND ©2009 UM_PSR06-W_E_R1.1

Rectifier
PSR06-W
User Manual
Page 16 (24)
ELTEK VALERE DEUTSCHLAND ©2009 UM_PSR06-W_E_R1.1
Legend:
1)
Pin 1 against +VO= second V-characteristic
Note:
At 60/108V units there is to be connected an additional resistor in the control wire to +VO(60V: 18kOhm;
108V: 56kOhm ).
2)
Connection of the TK sensor lead 2 >>connect to pin 7 and pin 9
Note:
If a TK-sensor controls several parallel connected modules, then the connection of the pin 7 to the entire parallel
circuit is necessary.
3)
At active current sharing mode of paralleled units the pin 8 and 9 of every module has to be connected together.
4)
External On/Off with opto coupler: internal resistor 2,7kOhm, Imin< = 5mA, Imax = 10mA
Note:
The input is potential free with safe electrical decoupling to primary side and with 500VDC to secondary side.
5)
The relay outputs are potential free with safe electrical decoupling to primary side and with 500VDC to secondary
side.
ATTENTION! If you have decoupling diodes in minus at output side the using of sense links are not allowed.
8. Maintenance
Due to the implemented components, the SMPS unit virtually is maintenance free. In case of operation in dusty
atmosphere, it is regularly advisable to control the dust inside of the unit and, if necessary, blow it out with com-
pressed air. Deposits of dust can result in reduced cooling and could also result in conductive impurities in combi-
nation with dew formation or high moisture.

Rectifier
PSR06-W
User Manual
Page 17 (24)
ELTEK VALERE DEUTSCHLAND ©2009 UM_PSR06-W_E_R1.1
9. Fault finding instructions
Only skilled and trained technical personnel should carry out all necessary operations at the unit.
9.1. Output voltage failure
- Input voltage present?
- Mains switch on?
- Is the input plug correctly inserted?
- Output terminal polarised or short-circuit at the output?
- Parallel operation condition: external decoupling diode polarised?
- Monitoring VO> responded (LED VO> lights up)?
>>Corrective action: Switch the unit ON/OFF and examine the adjustment VO>!
If the unit still does not work even though all checks have been done, contact your sales agent or the ELTEK
VALERE INDUSTRIAL service department.
9.2. Output voltage deviation
-Does the unit operate in the current limit due to overload?
Corrective action: Reduce the load!
- Adjustment value of VOcorrect?
Corrective action: Readjust the output voltage.
- If external sensors lead connection is used: is the sensor lead connection open?
- Are the decoupling diodes connected in the output circuit?
>>Corrective action: Correct the potential drop by increasing the output voltage of the unit!
If the unit still does not work even though all checks have been done, contact your sales agent or the ELTEK
VALERE INDUSTRIAL service department.

Rectifier
PSR06-W
User Manual
Page 18 (24)
ELTEK VALERE DEUTSCHLAND ©2009 UM_PSR06-W_E_R1.1
10. Technical Data
10.1. General Technical Data
Nominal input voltage range 120-230VAC (-15/+10%)
Frequency 47-63Hz
Nominal input current 2,7A @ 230VAC
Power Factor λ0.99: 100%>Pnom >
50%;
0.97: 50%> Pnom >
25%;
0.95: Pnom < 25%;
Characteristic curve IV characteristic according to DIN 41 772/ DIN 41773
RFI according to EN50081-1
Conduction related according to EN55011 / EN55022 limit value class "B"
Radiation according to EN 55011 / EN55022 limit value class "B"
EMC according to EN50082-2
Cabinet ESD-test according to EN61000-4 part 2;
6kVcontact;
8kVairdischarge
HF-field according to EN61000-4 part 3; 10V/m (30MHz - 1GHz)
Power cable Burst-test according to EN61000-4 part 4; 2kV
Surge-test according to EN61000-4 part 5;
4kV unsymmetrical;
2kVsymmetrical
Control cable Burst-test according to EN61000-4 part 4; 2kV
Surge-test according to EN61000-4 part 5;
2kV unsymmetrical
Function extra low voltage with safe insulation for UO≤60VDC according to VDE0100 part
410/11.83, Section. 4.3.2
Dynamic behaviour ≤3 % for load steps between 10% - 90% - 10% nominal output current
(transient time t ≤1 ms)
Short circuit behaviour sustained short circuit-proof, 1 x nominal output current
Function monitoring „VO1“ (green LED “Vout OK”)
threshold value
floating U
O≥97% of the adjusted output voltage
without current limit or UA≥85% of the adjusted output voltage
Monitoring output under-
voltage „U<„ green LED „Vout>Vmin“, with potential-free contact
Monitoring output over-
voltage „U>„ red LED “Vout>”

Rectifier
PSR06-W
User Manual
Page 19 (24)
ELTEK VALERE DEUTSCHLAND ©2009 UM_PSR06-W_E_R1.1
Constant current
operation „IO“ yellow LED “Iconst”
Over-temperature red LED “bell symbol”, blinking
Digital instruments:
Ammeter: Indication of 00.1 to 99.9ADC
Voltmeter: Indication of 00.1 to 999VDC
External functions:
Signal “V<” via potential-free contact (contact charge: 60VDC/1A)
General fault alarm signal via potential-free relay contact (1sec. time delay); contact charge:
60VDC/1A
Power measuring for active current sharing
Discharge test/boost charge voltage value adjustable
Voltage regulation Temperature compensated
Temperature coefficient 4mV/K per cell with external temperature sensor (optional);
temperature adjustable
External sensor lead connection
for output voltage “VO“ Signal via opto coupler VOpresent („VO1“ alternatively „VO2“)
constant current operation “IO“ Signal via opto coupler
External ON/OFF
Design Wall cabinet
Protection class IP 20
Cooling Convection cooling
Ambient temperature -20°C to +45°C
Storage temperature -40°C to + 85°C
Environmental conditions IEC 721 part 3-3 Class 3K3 / 3Z1 / 3B1 / 3C2 / 3S2 / 3M2
Max. operation altitude <1500m
Mechanical strength and
Shock-proof according to VDE 0160 issue 5.88 Pt. 7.2.2
Finish RAL 7035 (front plate)
Weight approx. 5.3kg
Dimensions 280 x 285 x 95mm (H x W x D)
Connection terminals:
AC-Input, DC-Output Terminal X1
Signalling Terminal X2/X3
Protective conductor connection Bolt M4/Terminal X1

Rectifier
PSR06-W
User Manual
Page 20 (24)
ELTEK VALERE DEUTSCHLAND ©2009 UM_PSR06-W_E_R1.1
10.2.Type Specific Data
Type:
PSR06/
24-20W
48-10W
60-8.2W
110-4.5W
Article code:
100-006-142.00
100-006-152.00 100-006-162.00 100-006-172.00
Output Voltage VO1
(Equalising charge)
Adjusted value
27.2VDC ± 1 %
Adjustment range
23.4 to 28.8VDC
54,5VDC ± 1 %
46,6 bis 57,6VDC
68.1VDC ±1%
58.5 to 72.0VDC
122.6VDC ±1%
105 to 130VDC
Output voltage VO2
(Boost charge)
Adjusted value
28.8VDC ± 1 %
Adjustment range
24 to 30VDC
57.6VDC ± 1 %
48 to 60VDC
72.0VDC ± 1 %
60 to 73VDC
129.6VDC ±1%
108 to 135VDC
Output current IO
Adjusted value
20ADC ± 2 %
Adjustment range
50-100% Inominal
10ADC ± 2 %
50-100% Inominal
8.2ADC ± 2 %
50-100% Inominal
4.5ADC ± 2 %
50-100% Inominal
Type of battery
Lead acid battery, 12 cells
24 cells 30 cells 54 cells
Efficiency
≥88 %
≥89 % ≥89 % ≥89 %
Voltage ripple
≤20mVpp
≤20mVpp ≤20mVpp ≤100mVpp
Noise voltage according to CCITT
≤1.2mV
≤1.8mV ≤1.8mV
---
Monitoring:
DC under voltage V<
Threshold value
20.4VDC
Adjustment range
19.2 to 24VDC
40.8VDC
38.4 bis 48VDC
51.0VDC
48 bis 60VDC
91.8VDC
86.4 bis 108VDC
DC over voltage V>
Threshold value
30VDC
Adjustment range
26 to 30VDC
60VDC
52 to 60VDC
75VDC
66 to 75VDC
135VDC
119 to 135VDC
