ELTEX RG-34-Wac User manual
____________________________________________________________________________________
____________________________________________________________________________________
2 Subscriber router RG-34-Wac
Document version
Release date
Description of changes
Version 1.6
16.02.2017
Changed:
4.3.5.2 ‘WAN interface’ submenu
Added:
4.3.10.5 ‘Access management’ submenu
Version 1.5
23.12.2016
Changed:
4.3.5.2 ‘WAN interface’ submenu
4.3.6.4 ‘Port forwarding’ submenu
Added:
4.3.10.4 ‘Port settings’ submenu
Version 1.4
13.09.2016
Changed:
4.3. The device control panel
Version 1.3
16.05.2016
Changed:
4.3.5.1 WAN Interface submenu
Version 1.2
13.04.2016
Changed:
4.3.4.1 WAN Interface submenu
Version 1.1
17.03.2016
Changed:
2.2 Features of the device
2.6 Reset of the device and factory reset
Added:
4.2 Application of configuration and cancellation of changes
4.3 Device control panel
Version 1.0
28.10.2015
First issue
Software version
Software version: 1.10.0-b8
Web interface version: 1.0.3
____________________________________________________________________________________
____________________________________________________________________________________
Subscriber router RG-34-Wac 3
CONTENTS
1 INTRODUCTION....................................................................................................................................................... 5
1.1 Annotation.......................................................................................................................................................5
1.2 Conventions .....................................................................................................................................................5
2 DESCRIPTION OF THE DEVICE..................................................................................................................................6
2.1 Purpose............................................................................................................................................................6
2.2 Device characteristics ......................................................................................................................................6
2.3 Main technical parameters..............................................................................................................................8
2.4 Form factor ......................................................................................................................................................9
2.4.1 Front panel of the device........................................................................................................................9
2.4.2 Back panel of the device.......................................................................................................................10
2.4.3 Side panel of the device........................................................................................................................10
2.5 Light indication ..............................................................................................................................................10
2.6 Reset of the device and factory reset............................................................................................................11
2.7 Operation by WPS button..............................................................................................................................11
2.8 Scope of supply..............................................................................................................................................12
3 INSTALLATION .......................................................................................................................................................13
3.1 Safety information.........................................................................................................................................13
3.2 Installation advices ........................................................................................................................................13
3.3 Switching On..................................................................................................................................................13
4 OPERATION OF THE DEVICE VIA WEB-CONFIGURATOR .......................................................................................14
4.1 Beginning the work........................................................................................................................................14
4.2 Application of configuration and cancellation of changes ............................................................................14
4.3 Device control panel ......................................................................................................................................15
4.3.1 Main elements of WEB-interface .........................................................................................................15
4.3.2 ‘Setting Wizard’ menu ..........................................................................................................................16
4.3.3 ‘Operation mode’ menu .......................................................................................................................16
4.3.4 ‘Wireless network’ menu......................................................................................................................17
4.3.4.1 ‘Main settings’ submenu ...................................................................................................................17
4.3.4.2 ‘Advanced settings’ submenu............................................................................................................19
4.3.4.3 ‘Security’ submenu ............................................................................................................................21
4.3.4.4 ‘Wi-Fi access control’ submenu .........................................................................................................22
4.3.4.5 ‘Network overview’ submenu............................................................................................................23
4.3.4.6 ‘WPS’ submenu..................................................................................................................................24
4.3.4.7 ‘Schedule’ submenu...........................................................................................................................25
4.3.4.8 ‘Air time Fairness’ submenu ..............................................................................................................27
4.3.5 ‘TCP/IP settings’ menu..........................................................................................................................27
4.3.5.1 ‘LAN Interface’ submenu ...................................................................................................................27
4.3.5.2 ‘WAN Interface’ submenu .................................................................................................................29
4.3.6 ‘Firewall’ menu .....................................................................................................................................32
4.3.6.1 ‘Port filtering’ submenu.....................................................................................................................32
4.3.6.2 ‘IP filtering’ submenu.........................................................................................................................33
4.3.6.3 ‘MAC filtering’ submenu....................................................................................................................34
4.3.6.4 ‘Port forwarding’ submenu................................................................................................................35
4.3.6.5 ‘URL filtering’ submenu .....................................................................................................................36
4.3.6.6 ‘DMZ’ submenu..................................................................................................................................36
4.3.7 ‘Quality of Service (QoS)’ menu............................................................................................................37
4.3.8 ‘Routing Setup’ menu ...........................................................................................................................38
4.3.9 ‘USB settings’ menu..............................................................................................................................39
4.3.9.1 ‘USB storage’ menu ...........................................................................................................................39
4.3.9.2 ‘FTP server’ submenu ........................................................................................................................39
4.3.10 ‘Management’ menu ..........................................................................................................................40
____________________________________________________________________________________
____________________________________________________________________________________
4 Subscriber router RG-34-Wac
4.3.10.1 ‘Status’ submenu................................................................................................................................40
4.3.10.2 ‘Statistics’ submenu ...........................................................................................................................41
4.3.10.3 ‘Time zone settings’ submenu ...........................................................................................................42
4.3.10.4 ‘Port configuration’ submenu ............................................................................................................42
4.3.10.5 ‘Access management’ submenu ........................................................................................................44
4.3.10.6 ‘Denial-of-Service’ submenu ..............................................................................................................45
4.3.10.7 ‘Log’ submenu....................................................................................................................................47
4.3.10.8 ‘Upgrade Firmware’ submenu ...........................................................................................................48
4.3.10.9 ‘Save/Load settings’ submenu ...........................................................................................................49
4.3.10.10 ‘TR-069 config’ submenu .................................................................................................................49
____________________________________________________________________________________
____________________________________________________________________________________
Subscriber router RG-34-Wac 5
1INTRODUCTION
1.1 Annotation
Modern tendencies of telecommunication development necessitate operators to search for the most
optimal technologies, allowing you to satisfy drastically growing needs of subscribers, maintaining at the same
time consistency of business processes, development flexibility and reduction of costs of various services
provision. Wireless technologies are spinning up more and more and have paced a huge way for short time from
unstable low-speed communication networks of low radius to broadband networks equitable to speed of wired
networks with high criteria to the quality of provided services.
RG-34-Wac device is a WI-FI Access Point with integrated router. Main intended purpose of RG-34-Wac is
installation of access point inside of buildings to various sources via wired and wireless networks of data
transmission.
The device is intended for use by home users and in little office rooms.
This instruction manual specifies intended purpose, main technical parameters, form-factor, installation
procedure, rules of configuration, monitoring and change of software of RG-34-Wac Access Point.
1.2 Conventions
Convention
Description
Semi-bold
Notes and warnings, chapter titles, headings and table headings are printed in
semi-bold.
Italic
Information which requires special attention is printed in italic.
Notes and warnings
Notes contain important information, advice or recommendation for use and
setting the device.
Warnings inform the user of situations that may incur damage to the device or user,
lead to failures in its work or loss of data.
____________________________________________________________________________________
____________________________________________________________________________________
6 Subscriber router RG-34-Wac
2DESCRIPTION OF THE DEVICE
2.1 Purpose
The subscriber router RG-34-Wac (“device”) is intended for provision of users’ access for high-speed, safe
network of data transfer.
RG-34-Wac device is a single point of access to modern interactive services via wired and wireless data
transfer networks: Internet and Full HD IPTV.
RG-34-Wac router is intended for connection of devices to wireless network of 802.11 a/b/g/n/ac
standards. RG-34-Wac is connected to the wired network by means of 10/100/1000M Ethernet-interface, and
generates wireless high-speed access for devices supporting Wi-Fi technology in the range between 2,4 and 5GHz
by means of radio interface. Up to four devices of wired network can be connected to the device. USB-plug is
used for connection of external memory or 3G/4G USB-modem.
RG-34-Wac supports modern requirements to quality of services and allows to transmit the most
important traffic in more priority turns compared to commonly used. The priority is provided on the basis of main
QoS technologies.
Extended functionality for stable work of IP-television in wireless network is realized in the device:
smoothness and persistence of video play is provided by means of special software functionality. The device
allows work on 2,4 and 5 GHz frequencies, as well as enables simultaneous transmission of video-streams and
data transfer.
2.2 Device characteristics
Interfaces:
LAN: 4 Ethernet ports RJ-45 10/100BASE-T;
WAN: 1 Ethernet port RJ-45 10/100/1000BASE-T;
WLAN: IEEE 802.11b/g/n 2,4 GHz и 802.11a/n/ac 5 GHz;
USB: 1 port USB2.0.
The device is powered via external 5V adaptor from 220 V power supply network.
Functions:
Power supply functions:
–Work in a bridge, router or wireless client mode;
–PPPoE support (PAP, SPAP and CHAP authorization, PPPoE compression);
–PPTP support;
–L2TP support;
–Static address and DHCP support (DHCP-client is on WAN side, DHCP-server is on LAN side);
–DNS support;
–NAT support;
–UPnP support;
–Firewall;
–MAC-address cloning on WAN-interface;
____________________________________________________________________________________
____________________________________________________________________________________
Subscriber router RG-34-Wac 7
–NTP support ;
–QoS mechanisms support;
–Port forwarding;
–Static and dynamic routing;
–Device access restriction via WAN and LAN.
Support of IPTV functions (IGMP-proxy, UDP-to-HTTP proxy);
Software update via web-interface;
TR-069;
Remote monitoring, configuration and setting: Web-interface, Telnet.
Please see the RG-34-Wac application flowchart on the figure 1.
Figure 1 –RG-34-Wac application flowchart
____________________________________________________________________________________
____________________________________________________________________________________
8 Subscriber router RG-34-Wac
2.3 Main technical parameters
Main technical parameters of the device are listed in the Table 1.
Table 1 –Main technical parameters
General parameters
Processor
Realtek 520 МHz
RAM DDR
128 Mb
ROM eMMC flash (system memory)
8 Mb
Operational system
Linux
WAN-interface Ethernet parameters
Number of ports
1
Electric plug
RJ-45
Speed of transmission, Mbit/s
10/100/1000, auto-sensing
Supported standards
BASE-T
Ethernet LAN-interface parameters
Number of interfaces
4
Electric plug
RJ-45
Speed of transmission, Мbit/s
10/100, auto-sensing
Supported standards
BASE-T
Wireless interface parameters
Standards
802.11 a/b/g/n/ac
Frequency range, MHz
2.4 ~ 2.4835 GHz, 5.15 ~ 5.35 GHz, 5.65 ~ 5.73GHz, 5.735 ~
5.835 GHz
Modulation
BPSK, QPSK, 16 QAM, 64 QAM, DBPSK, DQPSK, CCK
Speed of data transfer, Mbit/s
802.11b(CCK): 1, 2, 5.5 ,11
802.11g(OFDM): 6, 9, 12 , 18, 24, 36, 48, 54
811n (HT20, 800ns GI): 13, 26, 39, 78, 104, 117, 130
802.11n (HT40, 400ns GI): 30, 60, 90, 120, 180, 240, 270, 300
802.11n (HT40, 800ns GI): 27, 54, 81, 108, 162, 216, 243, 270
Maximal output of the transmitter
2,4 GHz (802.11 b/g/n): up to 15 dBm
5 GHz (802.11 a/n/ac): up to 17 dBm
Sensibility of the receiver
2,4 GHz:
802.11n(MCS0): -90 dBm
802.11n(MCS4): -79 dBm
802.11n(MCS7): -72 dBm
5 GHz:
802.11ac (MCS0): -92 dBm
802.11ac (MCS4): -82 dBm
802.11ac (MCS7): -76 dBm
Safety
64/128/152-bit WEP encryption of the data;
WEP, TKIP and AES
Control
Remote control
Web-interface, Telnet
Access restriction
Via password
General parameters
Power
Power adaptor 5V DC, 2,5 А.
Power consumption
Not more than 4 W
Range of working temperatures
from +5 to +40°С
Relative humidity at 25°С
Up to 80%
Overall dimensions
430x159x43,6 mm
Weight
Not more than 0,2 kg.
____________________________________________________________________________________
____________________________________________________________________________________
Subscriber router RG-34-Wac 9
2.4 Form factor
RG-34-Wac access point is produced in plastic casing with dimensions of 430x159x43,6 mm.
2.4.1 Front panel of the device
The appearance of RG-34-Wac front panel is represented on Figure 2
Figure 2 –Appearance of RG-34-Wac front panel
Following light indicators are located on the upper panel of RG-34-Wac, see Table 2.
Table 2 –Description of upper panel indicators
Upper panel element
Description
1
Power indicator
2
Device status indicator
3
External USB-device indicator (USB flash, external HDD)
4
WAN-interface indicator
5
2,4 GHz and 5 GHz wireless network indicator
6
LAN-interface ports indicator
____________________________________________________________________________________
____________________________________________________________________________________
10 Subscriber router RG-34-Wac
2.4.2 Back panel of the device
Appearance of RG-34-Wac back panel is represented on Figure 3.
Figure 3 –Appearance of RG-34-Wac back panel
Following plugs and controls are located on RG-34-Wac back panel, see Table 3.
Table 3 –Description of indicators and controls on RG2400 back panel
Back panel element
Description
1
LAN 10/100
4 ports 10/100BASE-T Ethernet (RJ-45 plug) for connection of network devices
2
WAN
port 10/100/1000BASE-T (RJ-45 plug) for connection to external network
3
USB
USB plug for connection of external USB-device (USB flash, HDD)
4
5V
Plug for supply adaptor
2.4.3 Side panel of the device
Appearance of RG-34-Wac side panel is represented on Figure 4.
Figure 4 –Appearance of RG-34-Wac side panel
Following controls are located on the side panel of RG-34-Wac, see Table 4
Table 4 –Description of RG-34-Wac side panel controls
Side panel element
Description
1
Wi-Fi On/Off button
2
Button for client’s WPS protocol connection
2.5 Light indication
____________________________________________________________________________________
____________________________________________________________________________________
Subscriber router RG-34-Wac 11
Current status of the device is represented by means of indicators paced on the upper panel. The indicator
statuses are listed in the Table 5.
Table 5 –Light indication of RG-34-Wac status
Indicator
Indicator status
Ddevice status
WLAN
green, continuously illuminating
Wi-Fi-network is active in the range of 2,4 GHz
and/or 5 GHz
green, flashing
Wireless data transfer in the range of 2,4 GHz
and/or 5 GHz
WAN
green (10, 100Mbps)/ orange (1000
Mbps)
Established connection between stationary
terminal and subscriber device
Flashing
Packet data transmission via WAN-interface
LAN
green, continuously illuminating
Established connection with connected
network device
flashing
Packet data transmission via LAN-interface
USB
green, continuously illuminating
USB-device is connected
Does not illuminate
USB-device is disconnected
Power
green, continuously illuminating
Power is on, normal operation
Status
red, continuously illuminating
Software is not downloaded, initial downloader
mode
red, flashing
Software download
red and green, flashing alternating
Factory reset
red, yellow and green, flashing
alternating
Software update
green, flashing
New software version is detected
yellow, continuously illuminating
No access to Internet
green, continuously operating
Normal operation
2.6 Reset of the device and factory reset
Functional button ‘F’is located on the lower panel of the device that enables to reset and reset it to the
factory settings. You may use the ‘F’button when the router is switched on and ready to work: ‘Power’indicator
illuminates green, ‘Status’indicator illuminates /flashes green or yellow.
Push and immediately release the ‘F’button for reset.
Push and hold the ‘F’button for more than 5 seconds for factory reset until ‘Status’indicator starts flashing
red/green. The devices resets automatically. In factory settings DHCP-client is started in WAN-interface, LAN
address is 192.168.1.1, subnet mask is 255.255.255.0;user name/web-interface access password:
admin/password.
2.7 Operation by WPS button
The device supports the function of WPS connection of clients to Wi-Fi network. For establishing
connection chose WPS as connection mode in client’s device and push WPS on the right side panel of the
device. The client will be connected to the router automatically.
WPS function is switched on by default. You may switch off this function on the page of
WPS setting. It is described in section 4.3.5.6 ‘WPS’Submenu.
____________________________________________________________________________________
____________________________________________________________________________________
12 Subscriber router RG-34-Wac
2.8 Scope of supply
The basic scope of supply of RG-34-Wac includes:
–Subscriber router;
–Power adaptor 220/5В2,5 А;
–User manual.
____________________________________________________________________________________
____________________________________________________________________________________
Subscriber router RG-34-Wac 13
3INSTALLATION
3.1 Safety information
1. Do not install the device near heat sources and in premises with environmental temperature below
5°С or above 40°С.
2. Do not use the device in premises with high moisture. Do not expose the device to fume, dust,
water, mechanical vibrations or shocks.
3. Do not dismantle the casing of the device. There are no elements inside it intended for
maintenance by the user.
No things shall be placed on the surface of the device to avoid overheating the device components
and failure of its operation.
3.2 Installation advices
1. Before installation and switching on the device it is necessary to check it on visible mechanical
damages. If the damages are present, you should terminate the installation, issue the respective
act and refer to your supplier.
2. If the device was exposed to low temperature for a long time, it is necessary to keep it for 2 hours
at room temperature before operation. After exposure of the device to high humidity conditions, it
is necessary to keep it in normal conditions for at least 12 hours.
3. The device shall be installed in horizontal position, in compliance with the instruction manual.
4. Consider following rules when you install the device to secure Wi-Fi coverage are with the best
possible characteristics:
a. Install the device in the center of wireless network;
b. Minimize the number of obstacles (walls, ceilings, furniture and others) between RG-34-
Wac-RG-34-Wac and other wireless network devices;
c. Do not install the device close (about 2 m) to electric, radio devices;
d. It is not advised to use radio-phones and other devices, working on frequency of 2,4 GHz,
5GHz, within a range of Wi-Fi wireless network;
e. Obstacles, such as glass/metal constructions, brick/concrete walls, as well as water tanks
and mirrors may significantly decrease the range of Wi-Fi network.
3.3 Switching On
1. Connect network Ethernet cable of your Internet provider to WAN RG-34-Wac plug, see figure 3.
2. If RG-34-Wac will be used as home cable router, connect network Ethernet cable to LAN RG-34-
Wac plugs of the router and your network device (PC, printer, set-top box etc).
3. Connect the adaptor cable to the power supply plug 5Vof the device. Connect the adaptor to the
power source, see figure 3.
4. After connection of the access point to power supply network wait for complete boot of the device
(it may take about a minute).
____________________________________________________________________________________
____________________________________________________________________________________
14 Subscriber router RG-34-Wac
4OPERATION OF THE DEVICE VIA WEB-CONFIGURATOR
4.1 Beginning the work
To begin the work you should connect to the device via LAN interface using Web-browser:
1. Open Web-browser, e.g. Firefox, Opera, Chrome.
2. Enter the IP address of the device in the address line.
Factory IP-address of the device: 192.168.1.1, subnet mask: 255.255.255.0

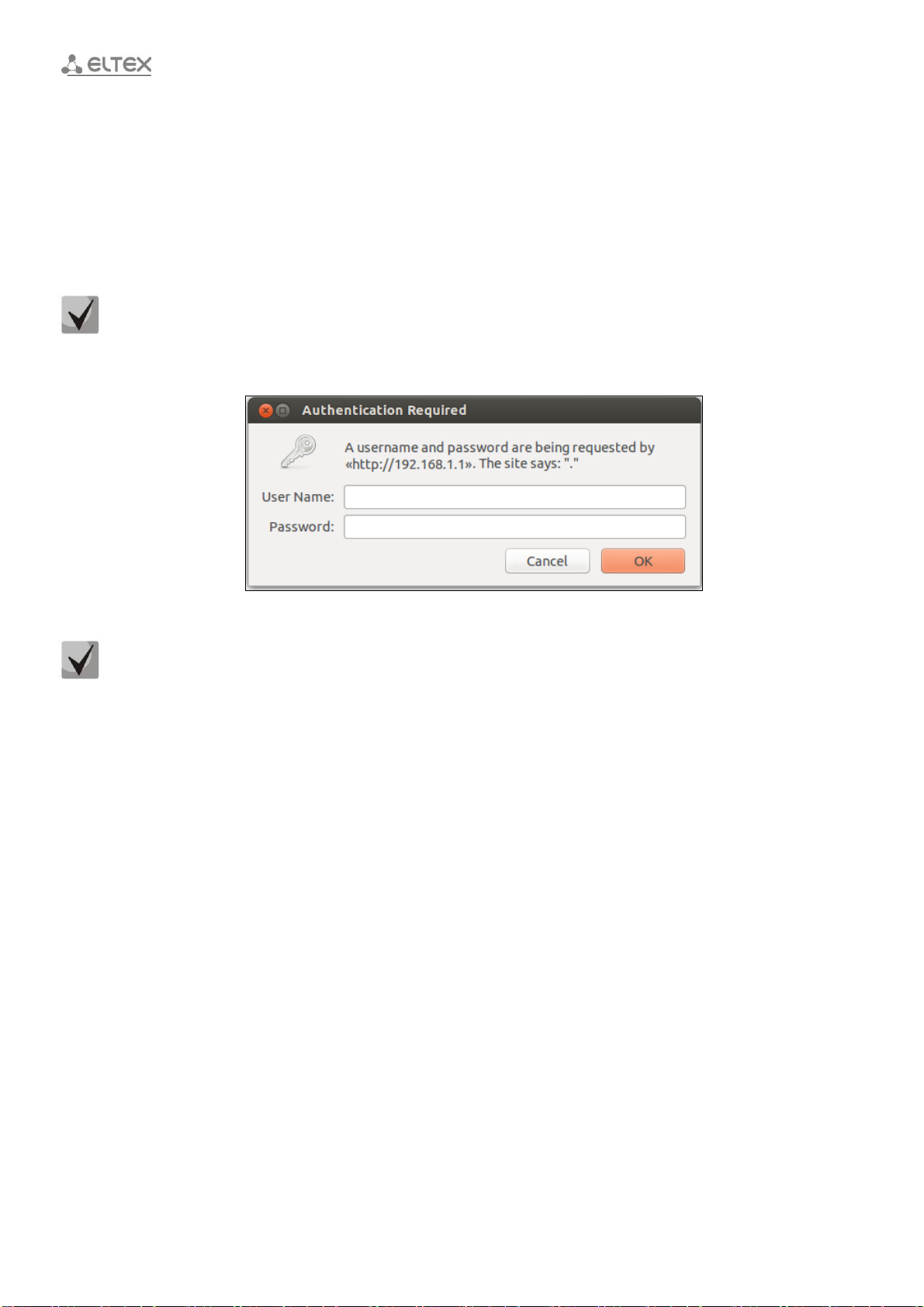

After successful detection of the device you will see the page with request for user name and password in
the browser window.
3. Enter user name in the line ‘User name’and password in the line ‘Password’.
4. Click ‘Enter’.A ‘About device’menu appears in browser window.
4.2 Application of configuration and cancellation of changes
1. Application of configuration
After clicking ‘Apply changes’the configuration is saved to flash-memory of the device and new settings
apply. Some settings will apply after reboot of the device only. The system issues a warning about it by clicking
the button.
2. Cancellation of changes
The changes are cancelled only before clicking on ‘Apply’. In this case the parameters changed on the
page will be updated by current values, recorded in the memory of the device. No return to previous settings is
possible after clicking on ‘Apply changes’.
Factory settings: name: admin, password: password.
____________________________________________________________________________________
____________________________________________________________________________________
Subscriber router RG-34-Wac 15
4.3 Device control panel
All device setting changes apply by means of ‘Control panel’tabs, at the left of WEB-interface.
4.3.1 Main elements of WEB-interface
Figure 5 –Web-configurator navigation elements
1. Buttons of configuration application, device reload and change of WEB-interface language.
2. Tab tree for settings.
3. Main field of settings of the device, corresponding to selected tab from the field 2.
4. Buttons of configuration changes save and cancellation of changes to previous unsaved values.
____________________________________________________________________________________
____________________________________________________________________________________
16 Subscriber router RG-34-Wac
4.3.2 ‘Setting Wizard’menu
At the first switch on the device use the settings wizard to set main operating parameters of the device.
Master allows you to make following setting step by step:
Operation mode;
Time synchronization;
LAN-interface parameters;
WAN-interface parameters (Internet);
Wi-Fi parameters of networks of 2.4 GHz and 5 GHz.
After completion of all settings in the wizard, the device will reboot for application of new configuration.
4.3.3 ‘Operation mode’menu
____________________________________________________________________________________
____________________________________________________________________________________
Subscriber router RG-34-Wac 17
The device supports 2 main operation modes:
Gateway –the device works as an usual home router with activated NAT (Network Address
Translation) function, all devices connected to LAN network have access to the network through single IP
address, assigned to WAN port. Following modes are accessible: DHCP client, Static IP, PPPoE, PPTP, L2TP.
Bridge –in this mode all Ethernet ports and wireless interfaces work in a single network, NAT function
is off. WAN port settings and Firewall is not available.
Connection to the provider via wireless network (WISP) - In this mode one of the Wi-Fi modules (2,4
GHz or 5GHz) proceeds to client mode, connects to provider’s wireless network and operates like WAN port.
4.3.4 ‘Wireless network’menu
In ‘Wireless network’menu wireless Wi-Fi network settings are performed. The settings are performed for
Wi-Fi network at frequency of 2.4GHz or 5 GHz. The device supports the work in both frequency ranges
simultaneously.
4.3.4.1 ‘Main settings’submenu
____________________________________________________________________________________
____________________________________________________________________________________
18 Subscriber router RG-34-Wac
—Disable Wireless LAN interface –if the flag is set, Wi-Fi network for 2.4 GHz or 5 GHz is switched
off;
—Band –allows you to choose operation mode for wireless interface in accordance with Wi-Fi
802.11 standard series.
For 2.4 GHz:
2.4 GHz (B) –if all wireless clients support 802.11b standard, maximal speed according to the
standard is 11 Mbit/s;
2.4 GHz (G) –according to 802.11g standard, maximal speed is 54 Mbit/s;
2.4 GHz (N) –802.11n standard provides maximal speed up to 150 Mbit/s;
2.4 GHz (B+G) –if wireless clients with support of 802.11b and 802.11g are present in the network,
maximal speed according to 802.11g standard is 54 Mbit/s;
2.4 GHz (G+N) –if wireless clients with support of 802.11g and 802.11n are present in the network,
maximal speed makes 150 Мbit/s;
2.4 GHz (B+G+N) –if wireless clients with support of 802.11b, 802.11g and 802.11n are present in
the network.
For 5 GHz:
5 GHz (A) –maximal speed makes 54 Мbit/s;
5 GHz (N) –this standard provides maximal speed up to 150 Mbit/s;
5 GHz (A+N) –the standard support operation of devices with 802.11a and 802.11n;
5 GHz (AC) –the standard provides maximal speed up to 433 Мbit/s;
5 GHz (N+AC) –the standard supports operation of devices with 802.11n and 802.11ac;
5 GHz (A+N+AC) –the standard supports operation of devices with 802.11a, 802.11n and 802.11ac
with maximal speed of 433 Mbit/s.
—Network Name (SSID) –name of wireless network, is used for connection to the device. Maximal
length of the name is 32 characters, entering upon consideration of keyboard case. This parameter
may consist of figures, Latin characters, spaces, as well as such symbols as “-“, “_”, “.”, “!”, “;”, “#”,
at that the symbols “!”, “;” , “#” and space cannot be initial;
—Channel Width –the width of frequency range of the channel, on which wireless access network is
working, accepts values of 20, 40 МHz at frequency 2,4 GHz or 20, 40, 80 МHz at frequency 5 GHz;
—Channel –channel number for work of wireless network. By selection of «auto» the channel with
minimal noise emission level is detected automatically;
—Hide network name (SSID) –if the flag is set, access point will be hidden on the air. It can be
connected through its SSID previously known;
—Switch on Wi-Fi Multimedia (WMM) –if the flag is set, function WiFi Multimedia is on, which allows
to optimize transmission of multimedia traffic wirelessly;
—Tx restrict –allows to set restriction of traffic to Wi-Fi clients;
—Show Active Clients –opens a table with list of all clients connected to Wi-Fi network in a new
window;
—MultipleAP –allows you to configure one or several open visited networks with access restriction
to speed and network resources
____________________________________________________________________________________
____________________________________________________________________________________
Subscriber router RG-34-Wac 19
4.3.4.2 ‘Advanced settings’submenu
—Fragment Threshold –maximal size of continuous data block for its transmission via wireless
network. The data of larger size will divided into parts —fragmented; takes values from 256 to
2346;
—RTS Threshold –maximal requested size of data for transmission. In CSMA/CA technology RTS
packets (request to send) are sent to the base station before transmission of real data. If a free
window is available, the base responds with CTS packet (clear to send) and the client sends he
packet of requested size. The less RTS size is, the more is the probability to receive permission
from base station, the quicker is the network recovery after collisions, but the less is the
performance of the network as a whole. Takes values from 0 tо 2347;
—Beacon Interval –time interval between service messages (beaconing) in wireless network. Service
messages transmit parameters of frequencies, protocols, safety, transmitted powers, delays etc.
Takes values from 20 to 1024;
—IAPP –IAPP protocol (Inter-Access Point Protocol) allows to use roaming of clients between
multiple access points within one network segment;
____________________________________________________________________________________
____________________________________________________________________________________
20 Subscriber router RG-34-Wac
—Protection –is a special mechanism for 802.11 b/g networks. Activation of the mechanism secures
the performance of slow devices of b standard in the media with multiple high-speed devices of g
standard. It is reached by increase of service time of old clients, assigning lower RTS window for
them, decreasing general network performance;
—Aggregation –includes possibility of unifying some little packets for transmission in one big packet;
—Short GI –mean of decrease errors by interaction of radio devices —empty interval between
transmitted sixteen-digit symbols (0,1,...E,F). Standard long guard interval (Long GI) lasts 800ns. It
is considered that a signal approaches the receiver during the time considering all delays and
reflections. Upon expiration of this interval, the next symbol is transmitted. Short GI lasts 400ns.
Use of short GI increases general wireless network performance by approximately 11%, but leads
sometimes to increase of transmission/receiving errors;
—WLAN Partition –activation of restriction to interact for wireless clients with each other;
—STBC –activation of Space Time Block Coding (STBC) mechanism, is used in wireless networks for
transmission of data flow copies via multiple aerials and for securing receipt of different versions of
data block for increase of data exchange durability. It is known that radio signal is spread in the
media according to complex traces and exposed to reflection, refraction, dissemination, as well as
aberration through heat noise of the receiver, which finally leads to the situation when one copies
of transmitted signal may occur as sufficiently better (less distorted) than the others. This
redundancy increases probability to decode the signal correctly from some of its copies at
receiving side. STBC technology unites all copies of received data block optimally for retrieval
maximal information from each of them;
—LDPC –use of correcting code with Low-density parity-check code (LDPC), which allows to detect
and correct possible errors at signal transmission via wireless interface more effective;
—TX Beamforming –a technology, providing formation of electromagnetic fields of basic station
aerial in far-filed region as narrow-band remote lobe, directed to subscriber device with possibility
of change of directed features by change in position of this equipment;
—Multicast to Unicast –allows to transmit a Unicast stream to wireless Multicast devices, provided
that UDP2HTTP option in WAN interface settings is switched on;
—RF Output Power –adjustment of access point signal strength in per cents from maximal level.
Table of contents
Other ELTEX Network Router manuals
