ELTEX RR-10 User manual
Wireless signal repeater
RR-10
User manual
Firmware version1.0.0
RR-10 wireless signal repeater. User manual
Contents – 2
Contents
Introduction ...................................................................................................................................... 4
Conventions ..........................................................................................................................................4
Product description .......................................................................................................................... 5
Purpose..................................................................................................................................................5
Device characteristic.............................................................................................................................5
Connection diagrams for RR-10 ................................................................................................ 5
2.4 GHz repeater:........................................................................................................................... 5
5 GHz repeater:.............................................................................................................................. 6
Access point:.................................................................................................................................. 6
Use case......................................................................................................................................7
Main technical parameters...................................................................................................................7
Form-factor ...........................................................................................................................................9
Front panel of the device. State indication .............................................................................. 9
Rear panel of the device. LAN connection indication ............................................................10
LAN connector indication ........................................................................................................... 10
Bottom panel of the device .....................................................................................................11
Resetting to factory settings...............................................................................................................11
Supply package...................................................................................................................................12
Installation ...................................................................................................................................... 13
Safety instructions ..............................................................................................................................13
Installation recommendations...........................................................................................................13
Connecting RR-10 to a network..........................................................................................................13
Method 1. UsingWPS button...................................................................................................13
Method 2. Via the web interface.............................................................................................. 14
Device management via the web interface ................................................................................... 15
Device control panel ...........................................................................................................................15
«Status» tab.........................................................................................................................................15
«Wi-Fi» tab ...........................................................................................................................................17

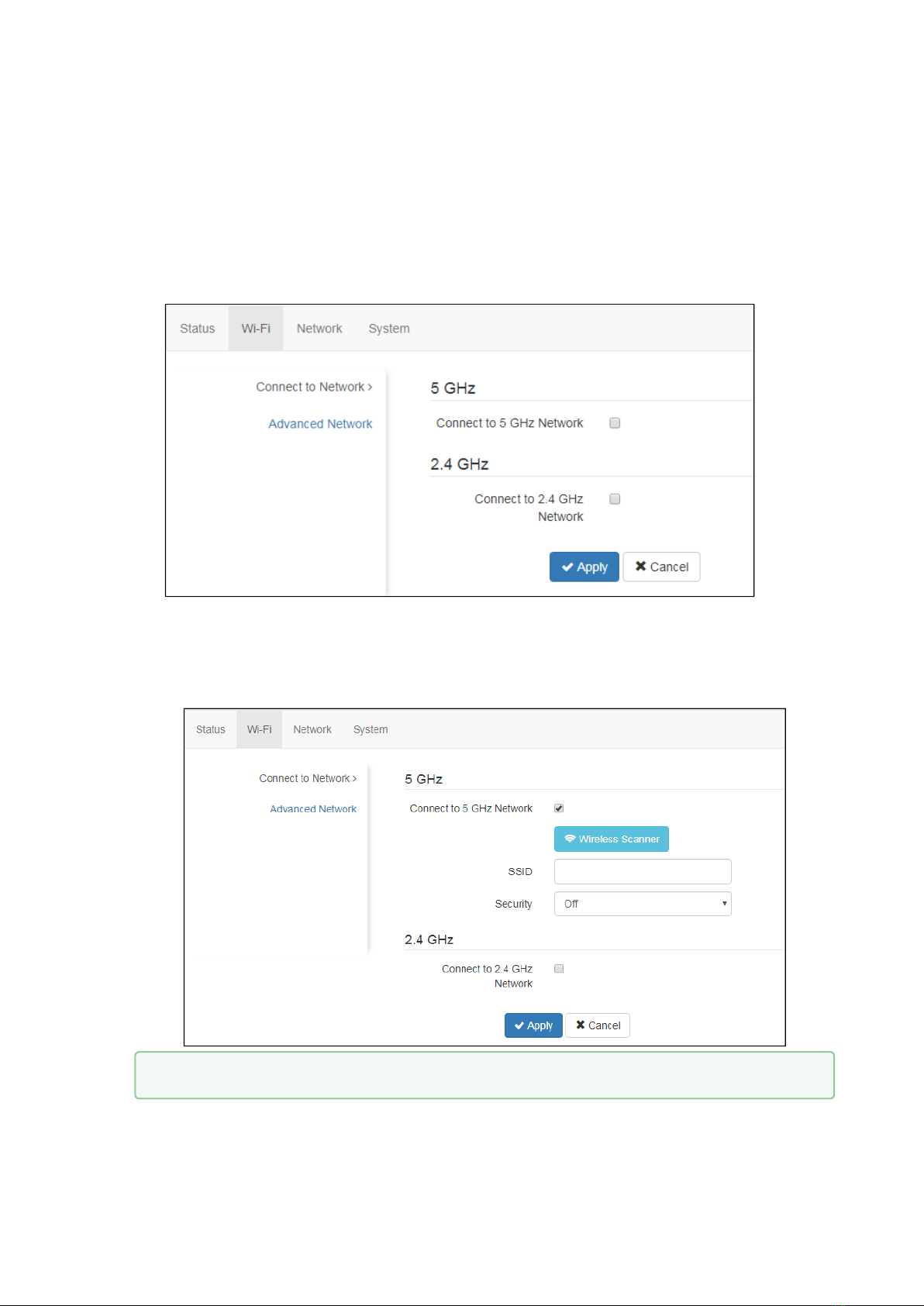

«Connect to Network» page ....................................................................................................17

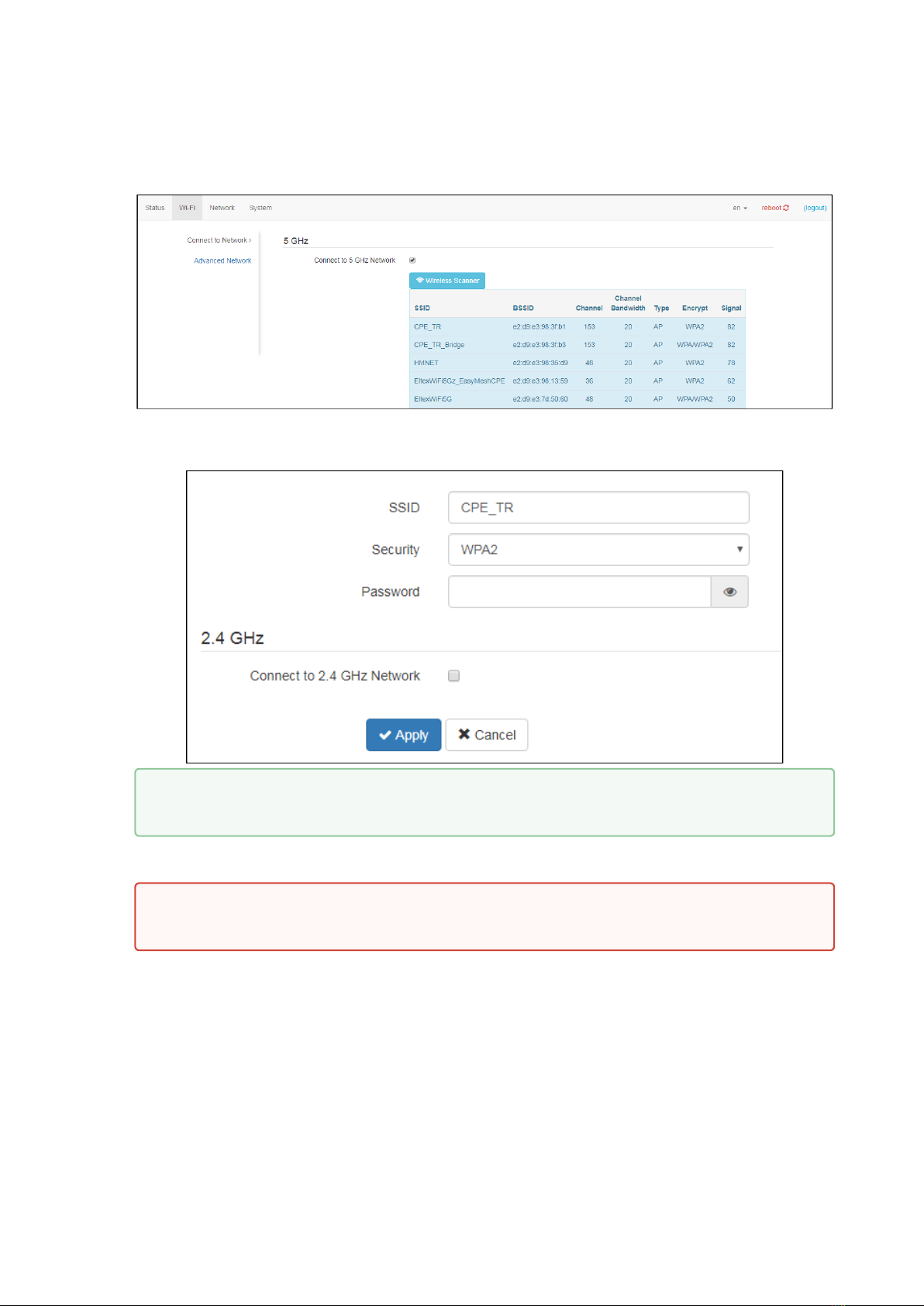

Connecting to the access point network ................................................................................... 17
«Advanced network» page.......................................................................................................18
RR-10 wireless signal repeater. User manual
Contents – 3
«Network» tab .....................................................................................................................................20
Connecting to the access point network ................................................................................ 20
«System» tab .......................................................................................................................................20
«Admin account» page.............................................................................................................20
«Firmware upgrade» page .......................................................................................................21
Problems and solutions.................................................................................................................. 22
RR-10 wireless signal repeater. User manual
Introduction – 4
Introduction
No matter how good modern access points are, the situation with insufficient coverage is still relevant.
There are several solutions, and one of the easiest in terms of installation and configuration is the use of
special network devices — repeaters.RR-10 is a device that is designed to expand the coverage area of
wireless networks and enhance Wi-Fi signal.RR-10 allows you to eliminate blind spots of networks in
private homes, multi-room apartments, and small offices.
This manual describes the purpose, main technical characteristics, design, installation procedure, rules
for configuring, monitoring, and changing the software of the RR-10 wireless signal repeater.
Conventions
Notes and warnings
Notes contain important information, tips, or recommendations for using and configuring your
device.
Warnings inform the user on situations that can harm the device or a person, lead to incorrect
operation of the device or loss of data.
RR-10 wireless signal repeater. User manual
Product description – 5
•
•
•
•
•
•
•
•
Product description
Purpose
RR-10 is a wireless signal repeater designed to extend the coverage area of wireless networks and
enhance Wi-Fi signal. The device allows you to eliminate blind spots and optimize the performance of
your Wi-Fi network. With support for IEEE 802.11n/ac standards, RR-10 repeater provides high data
transfer rates and is capable to provide high-quality multimedia transmission of 4K content.The use of
MIMO technology and internal antennas makes RR-10 a universal solution for expanding your home
network.
Device characteristic
The device is powered through an external 5.3 V adapter from a 220 V network.
Interfaces:
LAN: 1 Ethernet port 10/100/1000BASE-T (RJ-45);
WLAN: IEEE 802.11b/g/n 2.4 GHz and 802.11a/n/ac 5 GHz.
Functions:
Support for WPA/WPA2 encryption standards;
WMM;
WPS;
Wireless Multicast Forwarding;
Support WiFi IEEE 802.11a/b/g/n/ac;
MIMO 2x2 technology support.
Connection diagrams for RR-10
2.4 GHz repeater:
RR-10 wireless signal repeater. User manual
Product description – 6
5 GHz repeater:
Access point:
RR-10 wireless signal repeater. User manual
Product description – 7
Use case
Main technical parameters
General parameters
Processor Realtek RTL8197FS-VG
Clock frequency 1 GHz
RAM 128 MB
RR-10 wireless signal repeater. User manual
Product description – 8
ROM (system memory) 16 MB
Operating system Linux 3.10
Ethernet LAN interface parameters
Number of interfaces 1
Connector type RJ-45
Data rate, Mbps 10/100/1000, auto-negotiation
Standards supported BASE-T
Wireless interface parameters
Number of antennas 2
Antennas type internal
Standards 802.11a/b/g/n/ac
Frequency range 2412–2472 MHz,
5180–5320 MHz,
5660–5805 MHz
MIMO 2.4 GHz 2x2
5 GHz 2x2
Modulation 2.4 GHz: DSSS, CCK, BPSK, QPSK, 16QAM, 64QAM
5 GHz: BPSK, QPSK, 16QAM, 64QAM, 256QAM
Data rate 802.11b up to 11 Mbps
802.11a up to 54 Mbps
802.11g up to 54 Mbps
802.11n (HT20) up to 144 Mbps
802.11n (HT40) up to 300 Mbps
802.11ac (HT80) up to 866 Mbps
Maximum output power of the transmitter 2.4 GHz: -20 dBm
5 GHz: -20 dBm
Receiver sensitivity 2.4 GHz: -93 dBm
5 GHz: -93 dBm
Security WEP, WPA (TKIP+AES), WPA2 (TKIP+AES), WPA/WPA2
(TKIP+AES)
Management
Remote management web interface
RR-10 wireless signal repeater. User manual
Product description – 9
Access restriction by password
Physical specifications and ambient parameters
Power supply external power adapter 5.3 V DC, 2A
Power consumption no more than 4 W
Operating temperature range from +5 to +40°C
Operating relevant humidity at 25°C up to 80%
Dimensions (Diameter x Height) 100 x 23 mm
Weight 85 g
Form-factor
RR-10 wireless signal repeater is implemented in a plastic case with dimensions of Ø100 x 23 mm.
Front panel of the device. State indication
Front panel of RR-10
Description of front panel indicator
Indicator Indicator status Device status
1 LED shows the device
operation status
Solid red The device is launching (no more than 1 minute)
Flashing red The device is updating/reseting
Solid yellow The device is turned on, there is no connection to the
access point or the Internet
Flashing yellow The device is connecting to an access point through WPS
technology
Solid green The device has been connected to an access point and has
access to the Internet
RR-10 wireless signal repeater. User manual
Product description – 10
Rear panel of the device. LAN connection indication
Rear panel of RR-10
Rear panel element Description
1Button for connecting clients via WPS protocol
2 LAN 10/100/1000BASE-T port (RJ-45 connector) for connection to a network
3 LED LAN connector indicators
4 5 VDC Power adapter connector
LAN connector indication
LAN indicators state LAN connection state
Only green lights The connection is established at 10/100 Mbps
Green and orange lights The connection is established at 1000 Mbps
Flashes The process of packet data transmission over the LAN interface
RR-10 wireless signal repeater. User manual
Product description – 11
Bottom panel of the device
Bottom panel of RR-10
Description of bottom panel controls
Bottom panel element Description
1 F Button for reseting to factory settings
Resetting to factory settings
To reset the device to factory settings, press and hold the «F» button for more than 3 seconds until the
indicator on the front panel flashes red.The device will automatically restart within 5 seconds, and the
indicator will light up red. When the device is ready, the indicator lights yellow.
By default, the DHCP server is running on all interfaces;
LAN interface address is 192.168.0.1;
the subnet mask is 255.255.255.0;
the username/password for access via the web interface: admin/password.
RR-10 wireless signal repeater. User manual
Product description – 12
•
•
•
Supply package
The basic package of RR-10 includes:
RR-10 wireless signal repeater;
220/5.3V 2.0A power adapter;
Quick guide for installing and primary setup.
RR-10 wireless signal repeater. User manual
Installation – 13
1.
2.
3.
4.
1.
2.
3.
4.
a.
b.
c.
d.
e.
1.
2.
3.
Installation
Safety instructions
Do not install the device near heat sources or in places with ambient temperature below 5°C or
above 40°C.
Do not use the device in areas with high humidity.
Do not expose the device to smoke, dust, water, mechanical vibrations, or shock.
Do not open the device case. There are no user-serviceable items inside the device.
Installation recommendations
Before installing and turning on the device, check the device for visible mechanical damage. If
there is damage, stop installing the device, draw up a report and contact the supplier.
If the device has been kept at a low temperature for a long time, it should be kept at room
temperature for two hours before turning on and starting operation. After a long stay of the device
in high humidity conditions, keep it under normal conditions for at least 12 hours before turning
on.
The device is installed in a horizontal position, following the safety instructions.
When placing your device to provide the best Wi-Fi coverage, consider the following rules:
Install the device in the area of the router's wireless network;
Minimize the number of barriers (walls, ceilings, furniture, etc.) between RR-10, the router
and other wireless network devices;
Do not install the device near (about 2 m) electrical or radio devices;
It is not recommended to use radiotelephones and other equipment operating at the
frequency of 2.4 GHz, 5 GHz, within the range of a Wi-Fi network;
Obstacles in the form of glass/metal structures, brick/concrete walls, as well as water tanks
and mirrors can significantly reduce the coverage of the Wi-Fi network.
Connecting RR-10 to a network
To extend Wi-Fi coverage area, connect RR-10 to the network of your router (or access point).
Method 1. UsingWPS button
Connect RR-10 to 220V power network through the power adapter near the Wi-Fi router (or access
point) you want to connect to.
Press WPS button on the Wi-Fi router.
Press and hold WPS button on RR-10 untill the indicator on the front panel is yellow. When RR-10 is
connected to the Internet, the indicator turns green.
In order to prevent overheating of the device components and disruption of its operation, it is
forbidden to place objects on the surface of the equipment.
RR-10 wireless signal repeater. User manual
Installation – 14
1.
2.
a.
b.
3.
4.
5.
6.
Method 2. Via the web interface
Connect RR-10 to 220V power network through the power adapter near the Wi-Fi router (or access
point) you want to connect to.
Connect to RR-10 using smartphone or PC through Wi-Fi or Ethernet cable:
Through Wi-Fi: connect PC or smartphone to a Wi-Fi network of RR-10 — RR-WiFi-XXXX,
where XXXX is the last 4 characters of RR-10 MAC address, the MAC address is written on the
label on the device case.
Through Ethernet cable (only for PC): connect LAN port of RR-10 to LAN port of your PC
using Ethernet cable.
Open a web browser and type the address of the device to URL bar —http://rr.loc/orhttp://
192.168.0.1
Enter username and password to the authorization window. Default username and password are
admin and password correspondingly. Click «Log in».
Go to «Wi-Fi» tab, select needed frequency band and click «Wireless Scanner».
Select your Wi-Fi network in the displayed list and click on it. Use the password of your Wi-Fi
network to connect to it. Click «Apply».
Usually, you have 2 minutes after pressing WPS button on the router to press WPS on RR-10 for
successful connection.
The way of WPS connection may vary for different routers. Please, read the manual for your
router.
RR-10 wireless signal repeater. User manual
Device management via the web interface – 15
1.
2.
3.
4.
5.
6.
Device management via the web interface
Device control panel
All changes to the device settings are made using the «control panel» tabs located at the top of the web
interface and links to pages located on the left side of the web interface.
Main elements of the web interface
Navigation and control elements of the web interface
Top horizontal tab menu.
Button for changing a web interface language.
Buttons for restarting the device and exiting the web interface.
The left vertical menu of the selected tab.
The main device settings field corresponding to the selected page from field 4.
Buttons for applying or cancelling configuration changes on the page.
«Status» tab
This tab displays information on the device's wireless interfaces.
Default data for accessing the web interface
Address to enter to a URL bar:http://rr.loc/orhttp://192.168.0.1
Username: admin
Password: password
RR-10 wireless signal repeater. User manual
Device management via the web interface – 16
1.
2.
3.
4.
5.
«Status» tab
The «Network» section contains information on the networks which the repeater might be connected to.
The «Extended network» block contains information on access points of the repeater. Repeater clients
connect to this network.
Information on connecting to an access point in the 5 GHz band.
Information on connecting to an access point in the 2.4 GHz band.
Basic information on the "Extended network" parameters in the 5 GHz band.
Basic information on the "Extended network" parameters in the 2.4 GHz band.
List of the device's wireless clients.
RR-10 wireless signal repeater. User manual
Device management via the web interface – 17
1.
«Wi-Fi» tab
«Connect to Network» page
On «Connect to Network» page, you can configure RR-10 to connect to an access point.
«Connect to the Network» page
Connecting to the access point network
Select the required band.
After selecting the necessary band, the other band becomes unavailable for selecting.
RR-10 wireless signal repeater. User manual
Device management via the web interface – 18
2.
3.
4.
To search for wireless networks, click the «Wireless scanner» button. After clicking, a table listing
the available Wi-Fi networks and their parameters for the selected bandwill be displayed.
Select necessary Wi-Fi network and enter the password for that network. The SSID and network
encryption type fields will be filled in automatically.If your Wi-Fi network uses the SSID hiding
feature, fill in the «SSID», «Security», and «Password» fields manually.
Click the «Apply» button to save and apply the settings, or the «Cancel» button to return to the
saved device settings.
«Advanced network» page
On the «Advanced Network» page, you can change the basic settings for RR-10 wireless interfaces.
If your Wi-Fi network uses the hidden SSID feature, fill in the «SSID», «Security», and
«Password» fields manually.
To avoid failures of device operation, it is not recommended to turn off the device while
settings are being applied.
RR-10 wireless signal repeater. User manual
Device management via the web interface – 19
•
•
•
•
•
•
•
•
•
•
•
•
•
«Advanced network» page
Advanced Network 5GHz— when checked, the Wi-Fi network for 5GHz frequency band is enabled;
Advanced Network2.4 GHz — when checked, the Wi-Fi network for 2.4GHz frequency band is
enabled;
SSID — a name of the wireless network used to connect to the device. The maximum length of the
name is 32 characters, with case-sensitive keyboard input.This parameter can consist of numbers,
Latin letters, spaces, and symbols"-", "_", ".","!", ";", "#", in this case, the characters"!" ,";", "#"and
a space cannot be placed first;
Copy Network SSID button helps to copy the SSID of the network which the RR-10 is connected to;
Hide SSID — if selected, the extended network will not be detected by devices. You will be able to
connect to this network only by specifying the SSID manually;
Security — network authentication type. The following authentication types are available:
Off — open authentication, without using encryption and password;
WEP — authentication with a shared key using WEP encryption;
WPA — WPA authentication using PSK key and TKIP+AES encryption;
WPA2 — WPA2 authentication using PSK key and TKIP+AES encryption;
WPA/WPA2 (Mixed) — mixed authentication type. When this value is selected, devices that
use WPA or WPA2 authentication type can connect to the wireless network.
Channel — the channel number for the wireless network. When «Auto» is selected, the channel
with less interference is automatically detected;
Channel Bandwidth — the bandwidth of the channel on which RR-10 extended network operates, it
takes values of 20, 20/40 MHz at 2.4 GHz or 20, 40, 80 MHz at 5 GHz.
It is recommended to use WPA2 and WPA/WPA2 (Mixed) security modes as the most secure.
RR-10 wireless signal repeater. User manual
Device management via the web interface – 20
•
•
•
•
1.
2.
«Network» tab
The «Network» tab contains the device's local network settings.
«Network» tab
DHCP — select the operation mode of the device interface;
IP address — the device's local IP address. By default — 192.168.0.1;
Netmask — the value of LAN subnet mask. By default — 255.255.255.0;
Default gateway — IP address of the gateway on the network.
The «DHCP server» option is available in the default settings only. After connecting the device to an
access point, this item becomes unavailable.
Connecting to the access point network
Select «Attain IP address automatically» and click «Apply».
Connect the repeater to the router using an Ethernet cable.
«System» tab
«Admin account» page
On the «Admin account» page, you may set login and password for accessing the device's web interface.
Other manuals for RR-10
1
Table of contents
Other ELTEX Repeater manuals
