ELUMEROS Colour Combat MP User manual

Colour Combat MP
USER MANUAL

User Manual version 1 | page 2
Elumeros.com | Specification subject to change without notice
Contents
User Manual version 1 | page
Elumeros.com | Specification subject to change without notice – product shown is quad chip variant
1) Introduction p3
2) Product overview p4
3) Mounting product p6
4) Electrical connections p7
5) RDM functionality
RGBW Fixtures p8
RGBL Fixtures p10
RGBA Fixtures P12
White Fixtures p13
Dynamic White Fixtures p13
6) Specifications
Colour Combat MP RGBW p14
Colour Combat MP Quad p15
Colour Combat MP White p16
Colour Combat MP Dynamic White p17

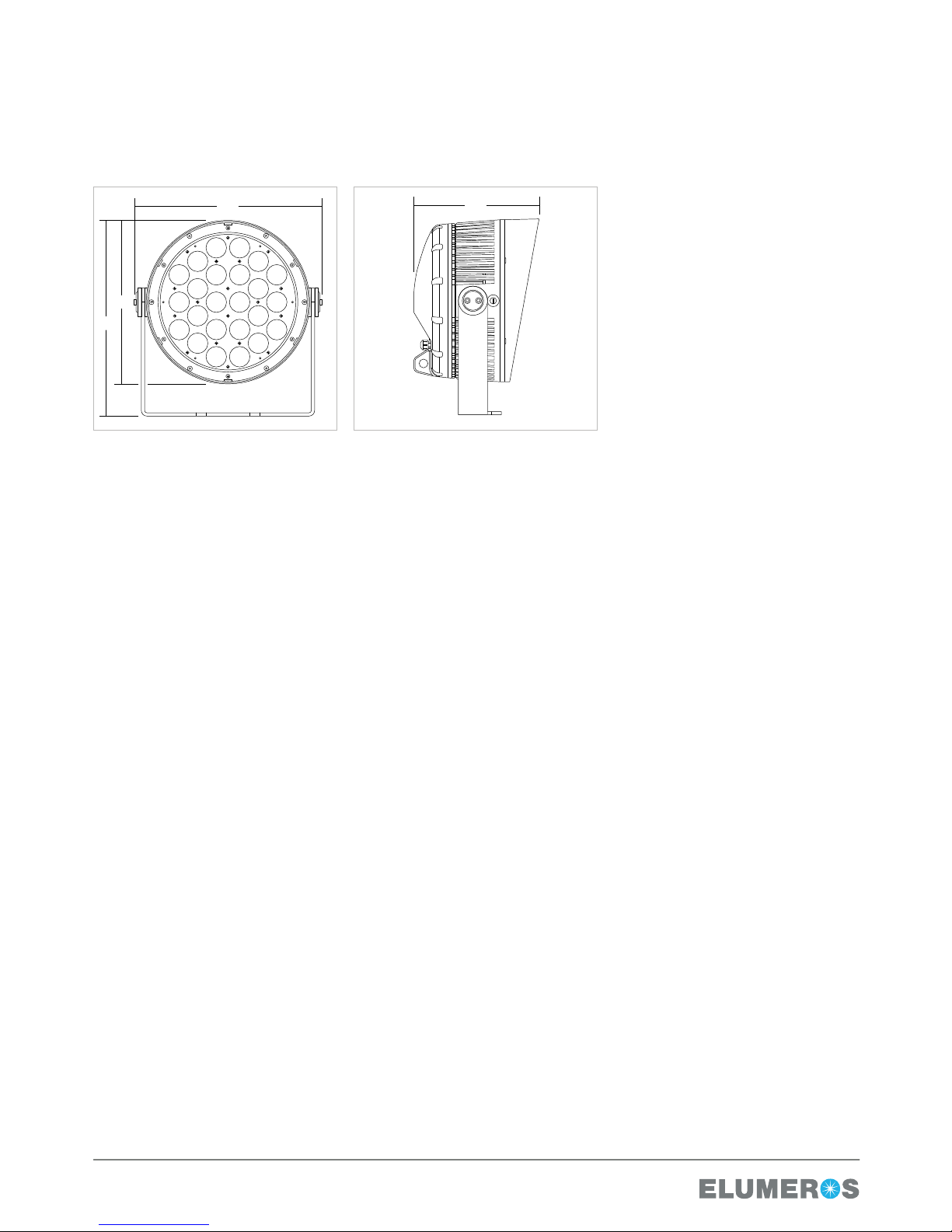

7) Dimensions p18
8) Trouble Shooting p19
9) Contact Details p20

User Manual version 1 | page 3
Elumeros.com | Specification subject to change without notice
Elumeros, sister company to EPS, is a leading architectural lighting manufacturer.
We deliver world-class lighting products, or as we prefer to say, progressive
solutions!
Our portfolio is an architectural lighting toolbox, furnishing you with everything you
need to create inspiring lighting installations, from floodlights and wall washers to
accent and spot lights, as well as GOBO projectors and video media products for
those specialised projects.
Designed from the ground up, our luminaires incorporate sophisticated, industry
leading technology, from the latest quad chip LEDs, to our renowned DMX and
RDM enabled integrated drivers, which work seamlessly with industry standard
DMX and RDM control systems.
Our passion for controls
Our passion lies with control systems and electronics. While many people
understand the benefits of controls they lack confidence in their purchases. Our
aim is to unravel the mystery of the controls world and make your decision easy,
informed and fun.
International knowledge
UK based, we work with an international network of partners and distributors. Our
in-house project team delivers internationally. Years of experience has built a sound
knowledge base helping us to understand the finite differences between standards
and applications across the globe. This allows us to support our network with
lighting design, controls, mechanical engineering and architectural planning, to the
highest standards.
Colour Combat® MP
Colour Combat® MP A high powered,
full colour luminaire suitable for both
floodlighting and wall washing – 14428
lumen output when using RGBL at
300W – High efficiency, 48.09 lm/W
when using RGBL, with high colour
quality – Single unit can used for RGB,
RGBW, RGBA, RGBL and Dynamic White
- When using RGBL variable white is
possible – Compatible with RDM/
DMX controls – Colour consistency
guaranteed through the
ElumerCheck System.
1. Introduction
Delivering Progressive Solutions

User Manual version 1 | page 4
Elumeros.com | Specification subject to change without notice

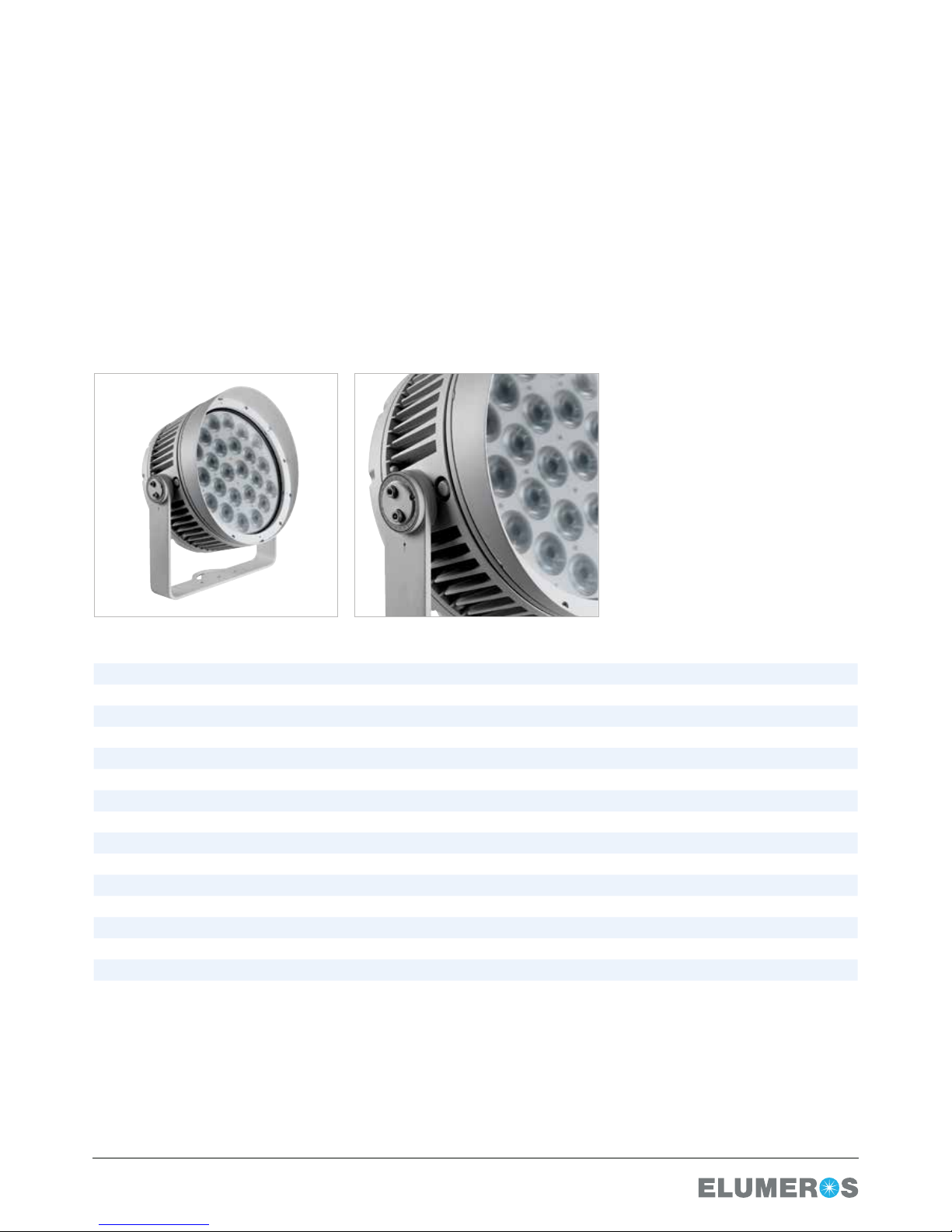

2. Product Overview
A high powered, full colour luminaire suitable for both
floodlighting and wall washing
- 14428 lumen output when using RGBL at 300W
- High efficiency, 48.09 lm/W when using RGBL, with high colour quality
- Single unit can used for RGB, RGBW, RGBA, RGBL and Dynamic White
- When using RGBL variable white is possible
- Compatible with RDM/DMX controls
- Colour consistency guaranteed through the ElumerCheck System
14°
20°
300W
IP66
14428
RGBL
11635
RGBA
12768
RGBW
11278
WARM
WHITE
11874
COOL
WHITE
OPTICS POWER
IP RATING
LUMENS
COLOUR COMBAT MP
DMX/RDM
RGBW
RGBW
(quad)
RGBL
(quad)
VARIOUS
CCTS
AVAILABLE
LED CHIP
TYPE
CONTROLS
DYNAMIC
WHITE
(1800
>5600K)
60°
30°
45°
3.6°
10°
10686
DYNAMIC
WHITE

User Manual version 1 | page 5
Elumeros.com | Specification subject to change without notice
This product left the place of manufacture in perfect condition.
In order to maintain this condition and for safe operation, the user must always
follow the instructions and safety warnings described in this user manual.
Safety Warning!
General
- This product must be installed by a qualified and competent professional.
- When working on the fixture, heat resistant gloves should be worn to provide
adequate user protection.
- Do not work on the product with wet hands.
- Always disconnect the power supply before attempting to maintain or service
the equipment.
- Always operate the equipment as described in this user manual.
- Do not stand close to the equipment and stare directly into the LED light source.
- Make sure that all parts of the equipment are kept clean and free of dust which
should be carried out as part of a maintenance cycle that’s appropriate for the
installation location of the product.
- When transferring the product, it is advisable to use the original packaging in
which the product left the factory.
- Shields, lenses, ultraviolet screens and pressure release valves should be
changed if they have become damaged to such an extent that their
effectiveness is impaired.
- The lamp (LED) should be changed if it has become damaged or thermally
deformed.
- The power supply (PSU), DMX/RDM driver and LED drivers should be changed if
they fail to operate.
Installation
- A minimum distance of 0.5m must be maintained between the equipment and
any combustible surface. The mounting surface must not be combustible.
- Always ensure the supporting structure is a flat and solid surface and can support
the weight of the product and any additional wind or shear force. The supporting
structure must be capable for the installation of luminaires, and advice must be
taken from an appropriately qualified and competent person to verify proposed
mounting positions and surfaces.
- Always make sure that the equipment is installed securely and ensure all safety
anchors are installed.
- The product must be installed within well-ventilated areas.
- The Earth wire MUST ALWAYS be connected.
- Local electrical and building regulations must be followed. If in doubt, please
contact Elumeros support.
- Avoid shaking or strong impacts to any part of the equipment.
- Always make sure that the power and data connections are connected correctly
and securely. If there is any malfunction of the equipment, contact Elumeros or
your local distributor immediately.
- This product comes with a pressure relief valve, which should be kept clean and
should not be submersed in water
- Although the product is IP66 rated, it should NOT be submersed in water, or
installed and/or operated in any location where any part of the fixture could be
submersed in water. Care should be taken to ensure adequate drainage of any
containment surrounding the fixture.
- This fixture should not be buried.
This user manual is intended to cover as
much detail as possible for this product,
and great care has been taken to ensure
this and the accuracy of the information
contained within, however should
additional information or clarification be
required that is not covered within this
manual or associated data sheets, or if
there are any uncertainties regarding
the installation and operation of this
product, Elumeros MUST be contacted
before any work is carried out on the
fixture or associated products.
FAILURE TO COMPLY WITH THIS
MANUAL AND LOCAL ELECTRICAL
AND CONSTRUCTION REGULATIONS
MAY RESULT IN SERIOUS INJURY OR
EVEN DEATH – ALWAYS ISOLATE
POWER BEFORE WORKING ON
ELECTRICAL PRODUCTS AND ENSURE
ADEQUATE MEASURES ARE TAKEN TO
MECHANICALLY SUPPORT FIXTURES AT
ALL TIMES.
Caution, risk of electric shock
The light source and other
electronic components
contained in this luminaire
shall only be replaced by
Elumeros or an approved
service agent.
Technical Support
Elumeros
25A, Little Boyton Hall Farm,
Boyton Cross, Chelmsford,
Essex CM1 4LN, UK
T [phone]
F [phone]
[e-mail]

User Manual version 1 | page 6
Elumeros.com | Specification subject to change without notice
3. Mounting Product
The Colour Combat MP can be mounted in any orientation to a flat, non-flammable,
structurally sound and capable surface. The fixture should be mounted away from
flammable materials, whilst also allowing adequate airflow over and around the
fixture at all times.
The Colour Combat MP weighs approximately 17.5Kg and as such the fixings and
mounting surfaces should be able to support this weight, and that of any wind
or other shear forces. There are 3 convenient holes in the fixture bracket for use
when fixing to a surface, which can be used to mount the fixture in any position.
Remember, this product is designed to be aimed in a direction in accordance with
a lighting design, therefore provision needs to be made for its angular adjustment
and care should be taken that the installation environment allows for the adequate
tilting of the fixture.
Please refer to Fig. 1, which shows the fixture and its mounting holes. When fixing
to any surface, fixings should be made through holes A (left), B (centre) and C
(right). It should be noted that installation onto certain supporting structures may
require different fixing methods, please contact Elumeros support for assistance.
IT IS VITALLY IMPORTANT FIXING SIZES AND THE TYPE OF FIXINGS ARE SPECIFIED
AND APPROVED BY AN APPROPRIATELY QUALIFIED AND COMPETENT PERSON!
The Colour Combat MP comes supplied with a safety fixing accessory (wire) for use
when mounting above ground (see Fig. 2). This safety wire must be affixed to the
fixture using the anchor hole as indicated to the right with the wire itself attached
to an appropriate load bearing anchor that corresponds to the weight of the fixture
with additional weight bearing capacity for any other forces that may be apparent.
The yoke of the fixture (which allows for its tilt) can be adjusted using a tool. There
is a convenient angular dial to assist with the tilt degree of the fixture. The screw
is indicated as shown (see Fig. 2). Care should be taken to not over tighten these
screws, and similarly care should be taken to ensure the screws are not over
loosened when the tilt is being adjusted.
The Colour Combat MP can also be installed onto a vertical post top with an
appropriate pole mount adaptor as shown to the right with fixings as indicated
(see Fig. 3). Please note that due to the weight of the Colour Combat MP, the pole
cannot be installed upside down in a hanging position, it must only be installed
vertically.
Please consult our technical support team for assistance with selecting the
appropriate type of pole, flange/base plate and accessories before using this
method of installation.
Note that this installation guide is limited to the installation of the fixture and the
electrical connection therefore before installing the product, it is recommended
to consult with an appropriately qualified and competent engineer to ensure the
correctness of the intended installation method.
- All fixings must be corrosion resistant.
- Separation washer(s) must be installed between any part of the fixture and
mounting surface(s).
- Avoid mounting the fixture in direct contact with other types of metal, as this
can cause galvanic corrosion. Care should be taken to ensure all fixings and
metal contact points will not cause galvanic corrosion. For guidance, please
contact Elumeros support.
A B C
Adjustable tilt
Safety fixing
accessory
(wire)
Pole bolts
Pan control
bolt
Main bolt
Fig. 1
Fig. 2
Fig. 3

User Manual version 1 | page 7
Elumeros.com | Specification subject to change without notice
4. Electrical Connections
The Colour Combat MP comes with 2 cables, one of which is a power cable and
the other a DMX cable to allow for intelligent control of the fixture (the length of
both the power and DMX cables are as standard 3 metres in length or they can be
supplied with custom lengths for custom orders).
The power cable is a 1mm 3 core cable, which should be adequately protected
using electrical protection devices according to local regulations.
Certain countries permit the landing of power and data cables into the same
enclosure, for tidiness of installation. Care should be taken to ensure power and
data cables are separated inside the enclosure, with barriers in place. This method
of installation should be done in accordance with local regulations. If in doubt,
please consult Elumeros support or a suitably qualified and experienced electrician.
Elumeros recommends the use of “snap down” type splicing connectors, such
as the those available from Wago (221 series). The appropriate type should be
selected in accordance with the electrical characteristics of the circuit.
All cables should be landed in appropriate enclosures and junction boxes using
suitable glands to ensure adequate IP ratings in accordance with local regulations.
The IP rating should be equal to or higher than the IP rating of this product. Note
that water can be sucked through the cables, this happens when the fixture warms
creating a pressure difference between the inside of the fixture and the enclosure
or junction box, therefore it is also recommended to fill enclosures and junction
boxes with potting compounds in and around cable entries.
DMX cabling between fixtures should be in accordance with the relevant DMX
standards that incorporate RDM (remote device management). It is important
to note that all DMX equipment, including DMX splitters, controllers, buffers,
repeaters, etc. MUST support bi-directional RDM. If in doubt, please contact
Elumeros support for design assistance.
Basic DMX Guidelines:
- DMX cabling should not exceed 300 metres in length in total without the use
of a DMX repeater/buffer or splitter and when such devices are used, instructions
should be followed to ensure cable lengths are within the remit of these devices
- No more than 32 devices should be connected onto the same DMX bus. If more
devices are required, the main DMX signal can be sent through an appropriate
splitter, which can deliver several outputs each with a capacity of 32 devices
(check specifics of product for the exact number of devices that can be
supported per output)
- DMX cables should be terminated with a 120 resistor at both ends and note
that most DMX controllers and splitters have their output ports terminated
already. Please check user manuals for these products for more information.
- DMX cables MUST be in compliance with the relevant DMX standards that include
RDM (remote device management).
- The correct polarity of cores must always be maintained.
CONTACT ELUMEROS SUPPORT FOR ASSISTANCE
Elumeros also has a range of Hybrid power and data cables, which can be used on
fixed installations to dramatically reduce installation time. These cables have power
and data within the same physical cable body. Please contact Elumeros or your
local distributor for more information.
Please note that some products supplied by Elumeros may have custom power and
data feed options, such as IP rated plugs and sockets. Please contact support for
more information surrounding these connectors.
Power cable
E = Green/yellow
N = Blue
L = Brown
DMX cable
Ground = braid of cable
Black = DMX Input –
White – DMX Input +
Green = DMX Output –
Red – DMX Output +
Power cable
DMX cable

User Manual version 1 | page 8
Elumeros.com | Specification subject to change without notice
5. RDM Functionality
The entire range of Elumeros products feature RDM (remote device management)
capabilities for addressing and commissioning purposes. A detailed breakdown of
the DMX personalities can be shown below.
CHANNEL VALUE FUNCTION
ARC 1
1 0 1255 RED
2 0 1255 GREEN
3 0 1255 BLUE
ARC 1 +D
1 0 1255 MASTER DIMMER
2 0 1255 RED
3 0 1255 GREEN
4 0 1255 BLUE
ARC 2
1 0 1255 RED
2 0 1255 GREEN
3 0 1255 BLUE
4 0 1255 WHITE
ARC 2+D
1 0 1255 MASTER DIMMER
2 0 1255 RED
3 0 1255 GREEN
4 0 1255 BLUE
5 0 1255 WHITE
SOLID
1 0 1255 CONTROL ALL LED
ARC FULL
1 0 1255 MASTER DIMMER
2 0 1255 RED
3 0 1255 GREEN
4 0 1255 BLUE
5
0 110 NO FUNCTION
11 130 RED 100%/GREEN UP/BLUE 0%
31 150 RED DOWN/GREEN 100%/BLUE 0%
51 170 RED 0%/GREEN 100%/BLUE UP
71 190 RED 0%/GREEN DOWN/BLUE 100%
91 1110 RED UP/GREEN 0%/BLUE 100%
111 1130 RED 100%/GREEN 0%/BLUE DOWN
131 1150 RED 100%/GREEN UP/BLUE UP
151 1170 RED DOWN/GREEN DOWN/BLUE 100%
RGBW Fixtures
CHANNEL VALUE FUNCTION
ARC FULL
5
171 1200 RED 100%/GREEN 100%/BLUE 100%
201 1205 WHITE1: 3200K
206 1210 WHITE2: 3400K
211 1215 WHITE3: 4200K
216 1220 WHITE4: 4900K
221 1225 WHITE5: 5600K
226 1230 WHITE6: 5900K
231 1235 WHITE7: 6500K
236 1240 WHITE8: 7200K
241 1245 WHITE9: 8000K
246 1250 WHITE10: 8500K
251 1255 WHITE11: 10000K
60 19 NO FUNCTION
10 1255 STROBE FROM SLOW TO FAST
70 19 NO FUNCTION
10 1255 STROBE FROM SLOW TO FAST
8
0 19 DIMMING SPEED
RETURN TO DIMMER
10 129 OFF (DIMMER SPEED OFF)
30 169 DIM1 (SPEED 1, THE FASTEST)
70 1129 DIM2 (SPEED 2)
130 1189 DIM3 (SPEED 3)
190 1255 DIM4 (SPEED 4, THE SLOWEST)
SPECIAL 1
1 0 1255 MASTER DIMMER
20 19 NO FUNCTION
10 1255 STROBE FROM SLOW TO FAST
3 0 1255 RED (GROUP 1)
4 0 1255 GREEN (GROUP 1)
5 0 1255 BLUE (GROUP 1)
6 0 1255 WHITE (GROUP 1)
7 0 1255 RED (GROUP 2)
8 0 1255 GREEN (GROUP 2)
9 0 1255 BLUE (GROUP 2)
10 0 1255 WHITE (GROUP 2)
11
0 19 DIMMING SPEED
RETURN TO DIMMER
10 129 OFF (DIMMER SPEED OFF)
30 169 DIM1 (SPEED 1, THE FASTEST)

User Manual version 1 | page 9
Elumeros.com | Specification subject to change without notice
CHANNEL VALUE FUNCTION
SPECIAL 1
11
70 1129 DIM2 (SPEED 2)
130 1189 DIM3 (SPEED 3)
190 1255 DIM4 (SPEED 4, THE SLOWEST)
SPECIAL 2
1 0 1255 MASTER DIMMER
2 0 1255 RED
3 0 1255 GREEN
4 0 1255 BLUE
5 0 1255 WHITE
6
0 110 NO FUNCTION
11 130 RED 100%/GREEN UP/BLUE 0%
31 150 RED DOWN/GREEN 100%/BLUE 0%
51 170 RED 0%/GREEN 100%/BLUE UP
71 190 RED 0%/GREEN DOWN/BLUE 100%
91 1110 RED UP/GREEN 0%/BLUE 100%
111 1130 RED 100%/GREEN 0%/BLUE DOWN
131 1150 RED 100%/GREEN UP/BLUE UP
151 1170 RED DOWN/GREEN DOWN/BLUE 100%
171 1200 RED 100%/GREEN 100%/BLUE 100%/
WHITE 100%
201 1205 WHITE1: 3200K
206 1210 WHITE2: 3400K
211 1215 WHITE3: 4200K
216 1220 WHITE4: 4900K
221 1225 WHITE5: 5600K
226 1230 WHITE6: 5900K
231 1235 WHITE7: 6500K
236 1240 WHITE8: 7200K
241 1245 WHITE9: 8000K
246 1250 WHITE10: 8500K
251 1255 WHITE11: 10000K
7
0 19 DIMMING SPEED
RETURN TO DIMMER
10 129 OFF (DIMMER SPEED OFF)
30 169 DIM1 (SPEED 1, THE FASTEST)
70 1129 DIM2 (SPEED 2)
130 1189 DIM3 (SPEED 3)
190 1255 DIM4 (SPEED 4, THE SLOWEST)

User Manual version 1 | page 10
Elumeros.com | Specification subject to change without notice
5. RDM Functionality
The entire range of Elumeros products feature RDM (remote device management)
capabilities for addressing and commissioning purposes. A detailed breakdown of
the DMX personalities can be shown below.
CHANNEL VALUE FUNCTION
ARC 1
1 0 1255 RED
2 0 1255 GREEN
3 0 1255 BLUE
ARC 1 +D
1 0 1255 MASTER DIMMER
2 0 1255 RED
3 0 1255 GREEN
4 0 1255 BLUE
ARC 2
1 0 1255 RED
2 0 1255 GREEN
3 0 1255 BLUE
4 0 1255 LIME
ARC 2+D
1 0 1255 MASTER DIMMER
2 0 1255 RED
3 0 1255 GREEN
4 0 1255 BLUE
5 0 1255 LIME
SOLID
1 0 1255 CONTROL ALL LED
ARC FULL
1 0 1255 MASTER DIMMER
2 0 1255 RED
3 0 1255 GREEN
4 0 1255 BLUE
5
0 110 NO FUNCTION
11 130 RED 100%/GREEN UP/BLUE 0%
31 150 RED DOWN/GREEN 100%/BLUE 0%
51 170 RED 0%/GREEN 100%/BLUE UP
71 190 RED 0%/GREEN DOWN/BLUE 100%
91 1110 RED UP/GREEN 0%/BLUE 100%
111 1130 RED 100%/GREEN 0%/BLUE DOWN
131 1150 RED 100%/GREEN UP/BLUE UP
151 1170 RED DOWN/GREEN DOWN/BLUE 100%
RGBL Fixtures
CHANNEL VALUE FUNCTION
ARC FULL
5
171 1200 RED 100%/GREEN 100%/BLUE 100%
201 1205 WHITE1: 3200K
206 1210 WHITE2: 3400K
211 1215 WHITE3: 4200K
216 1220 WHITE4: 4900K
221 1225 WHITE5: 5600K
226 1230 WHITE6: 5900K
231 1235 WHITE7: 6500K
236 1240 WHITE8: 7200K
241 1245 WHITE9: 8000K
246 1250 WHITE10: 8500K
251 1255 WHITE11: 10000K
60 19 NO FUNCTION
10 1255 STROBE FROM SLOW TO FAST
70 19 NO FUNCTION
10 1255 STROBE FROM SLOW TO FAST
8
0 19 DIMMING SPEED
RETURN TO DIMMER
10 129 OFF (DIMMER SPEED OFF)
30 169 DIM1 (SPEED 1, THE FASTEST)
70 1129 DIM2 (SPEED 2)
130 1189 DIM3 (SPEED 3)
190 1255 DIM4 (SPEED 4, THE SLOWEST)
SPECIAL 1
1 0 1255 MASTER DIMMER
20 19 NO FUNCTION
10 1255 STROBE FROM SLOW TO FAST
3 0 1255 RED (GROUP 1)
4 0 1255 GREEN (GROUP 1)
5 0 1255 BLUE (GROUP 1)
6 0 1255 LIME (GROUP 1)
7 0 1255 RED (GROUP 2)
8 0 1255 GREEN (GROUP 2)
9 0 1255 BLUE (GROUP 2)
10 0 1255 LIME (GROUP 2)
11
0 19 DIMMING SPEED
RETURN TO DIMMER
10 129 OFF (DIMMER SPEED OFF)
30 169 DIM1 (SPEED 1, THE FASTEST)

User Manual version 1 | page 11
Elumeros.com | Specification subject to change without notice
CHANNEL VALUE FUNCTION
SPECIAL 1
11
70 1129 DIM2 (SPEED 2)
130 1189 DIM3 (SPEED 3)
190 1255 DIM4 (SPEED 4, THE SLOWEST)
SPECIAL 2
1 0 1255 MASTER DIMMER
2 0 1255 RED
3 0 1255 GREEN
4 0 1255 BLUE
5 0 1255 LIME
6
0 110 NO FUNCTION
11 130 RED 100%/GREEN UP/BLUE 0%
31 150 RED DOWN/GREEN 100%/BLUE 0%
51 170 RED 0%/GREEN 100%/BLUE UP
71 190 RED 0%/GREEN DOWN/BLUE 100%
91 1110 RED UP/GREEN 0%/BLUE 100%
111 1130 RED 100%/GREEN 0%/BLUE DOWN
131 1150 RED 100%/GREEN UP/BLUE UP
151 1170 RED DOWN/GREEN DOWN/BLUE 100%
171 1200 RED 100%/GREEN 100%/BLUE 100%/
LIME 100%
201 1205 WHITE1: 3200K
206 1210 WHITE2: 3400K
211 1215 WHITE3: 4200K
216 1220 WHITE4: 4900K
221 1225 WHITE5: 5600K
226 1230 WHITE6: 5900K
231 1235 WHITE7: 6500K
236 1240 WHITE8: 7200K
241 1245 WHITE9: 8000K
246 1250 WHITE10: 8500K
251 1255 WHITE11: 10000K
7
0 19 DIMMING SPEED
RETURN TO DIMMER
10 129 OFF (DIMMER SPEED OFF)
30 169 DIM1 (SPEED 1, THE FASTEST)
70 1129 DIM2 (SPEED 2)
130 1189 DIM3 (SPEED 3)
190 1255 DIM4 (SPEED 4, THE SLOWEST)

User Manual version 1 | page 12
Elumeros.com | Specification subject to change without notice
5. RDM Functionality
The entire range of Elumeros products feature RDM (remote device management)
capabilities for addressing and commissioning purposes. A detailed breakdown of
the DMX personalities can be shown below.
CHANNEL VALUE FUNCTION
ARC 1
1 0 1255 RED
2 0 1255 GREEN
3 0 1255 BLUE
ARC 1 +D
1 0 1255 MASTER DIMMER
2 0 1255 RED
3 0 1255 GREEN
4 0 1255 BLUE
ARC 2
1 0 1255 RED
2 0 1255 GREEN
3 0 1255 BLUE
4 0 1255 AMBER
ARC 2+D
1 0 1255 MASTER DIMMER
2 0 1255 RED
3 0 1255 GREEN
4 0 1255 BLUE
5 0 1255 AMBER
SOLID
1 0 1255 CONTROL ALL LED
ARC FULL
1 0 1255 MASTER DIMMER
2 0 1255 RED
3 0 1255 GREEN
4 0 1255 BLUE
5
0 110 NO FUNCTION
11 130 RED 100%/GREEN UP/BLUE 0%
31 150 RED DOWN/GREEN 100%/BLUE 0%
51 170 RED 0%/GREEN 100%/BLUE UP
71 190 RED 0%/GREEN DOWN/BLUE 100%
91 1110 RED UP/GREEN 0%/BLUE 100%
111 1130 RED 100%/GREEN 0%/BLUE DOWN
131 1150 RED 100%/GREEN UP/BLUE UP
151 1170 RED DOWN/GREEN DOWN/BLUE 100%
RGBA Fixtures
CHANNEL VALUE FUNCTION
ARC FULL
5
171 1200 RED 100%/GREEN 100%/BLUE 100%
201 1205 WHITE1: 3200K
206 1210 WHITE2: 3400K
211 1215 WHITE3: 4200K
216 1220 WHITE4: 4900K
221 1225 WHITE5: 5600K
226 1230 WHITE6: 5900K
231 1235 WHITE7: 6500K
236 1240 WHITE8: 7200K
241 1245 WHITE9: 8000K
246 1250 WHITE10: 8500K
251 1255 WHITE11: 10000K
60 19 NO FUNCTION
10 1255 STROBE FROM SLOW TO FAST
70 19 NO FUNCTION
10 1255 STROBE FROM SLOW TO FAST
8
0 19 DIMMING SPEED
RETURN TO DIMMER
10 129 OFF (DIMMER SPEED OFF)
30 169 DIM1 (SPEED 1, THE FASTEST)
70 1129 DIM2 (SPEED 2)
130 1189 DIM3 (SPEED 3)
190 1255 DIM4 (SPEED 4, THE SLOWEST)
SPECIAL 1
1 0 1255 MASTER DIMMER
20 19 NO FUNCTION
10 1255 STROBE FROM SLOW TO FAST
3 0 1255 RED (GROUP 1)
4 0 1255 GREEN (GROUP 1)
5 0 1255 BLUE (GROUP 1)
6 0 1255 AMBER (GROUP 1)
7 0 1255 RED (GROUP 2)
8 0 1255 GREEN (GROUP 2)
9 0 1255 BLUE (GROUP 2)
10 0 1255 AMBER (GROUP 2)
11
0 19 DIMMING SPEED
RETURN TO DIMMER
10 129 OFF (DIMMER SPEED OFF)
30 169 DIM1 (SPEED 1, THE FASTEST)

User Manual version 1 | page 13
Elumeros.com | Specification subject to change without notice
CHANNEL VALUE FUNCTION
SPECIAL 1
11
70 1129 DIM2 (SPEED 2)
130 1189 DIM3 (SPEED 3)
190 1255 DIM4 (SPEED 4, THE SLOWEST)
SPECIAL 2
1 0 1255 MASTER DIMMER
2 0 1255 RED
3 0 1255 GREEN
4 0 1255 BLUE
5 0 1255 AMBER
6
0 110 NO FUNCTION
11 130 RED 100%/GREEN UP/BLUE 0%
31 150 RED DOWN/GREEN 100%/BLUE 0%
51 170 RED 0%/GREEN 100%/BLUE UP
71 190 RED 0%/GREEN DOWN/BLUE 100%
91 1110 RED UP/GREEN 0%/BLUE 100%
111 1130 RED 100%/GREEN 0%/BLUE DOWN
131 1150 RED 100%/GREEN UP/BLUE UP
151 1170 RED DOWN/GREEN DOWN/BLUE 100%
171 1200 RED 100%/GREEN 100%/BLUE 100%/
AMBER 100%
201 1205 WHITE1: 3200K
206 1210 WHITE2: 3400K
211 1215 WHITE3: 4200K
216 1220 WHITE4: 4900K
221 1225 WHITE5: 5600K
226 1230 WHITE6: 5900K
231 1235 WHITE7: 6500K
236 1240 WHITE8: 7200K
241 1245 WHITE9: 8000K
246 1250 WHITE10: 8500K
251 1255 WHITE11: 10000K
7
0 19 DIMMING SPEED
RETURN TO DIMMER
10 129 OFF (DIMMER SPEED OFF)
30 169 DIM1 (SPEED 1, THE FASTEST)
70 1129 DIM2 (SPEED 2)
130 1189 DIM3 (SPEED 3)
190 1255 DIM4 (SPEED 4, THE SLOWEST)
White Fixtures
CHANNEL VALUE FUNCTION
SOLID
1 0 1255 MASTER DIMMER
CHANNEL VALUE EFFECT
VW
1 0 1255 AMBER
2 0 1255 WHITE
VW + D
1 0 1255 MASTER DIMMER
2 0 1255 AMBER
3 0 1255 WHITE
SOLID
1 0 1255 CONTROL ALL LED
Dynamic White Fixtures

User Manual version 1 | page 14
Elumeros.com | Specification subject to change without notice
A high powered, full colour luminaire suitable for both
floodlighting and wall washing
- 14428 lumen output when using RGBL at 300W
- High efficiency, 48.09 lm/W when using RGBL, with high colour quality
- Single unit can used for RGB, RGBW, RGBA, RGBL and Dynamic White
- Compatible with RDM/DMX controls
- Colour consistency guaranteed through the ElumerCheck System
The ElumerCheck System
To ensure high colour consistency we have
implemented an ElumerCheck process at
the manufacturing stage of our products
development. It addresses many of the
everyday problems designers encounter
when realising their architectural lighting
schemes, right from the product build stage.
- Eradicates the colour offset problem
that often arises in different brightness
and temperatures
- Ensures colour consistency across all
manufacturing runs, e.g. the product
you buy today will give the same results
as one you purchase in six months
- You can create a hue or white by
setting the colour coordinates, which
translates across all products featuring
this technology
6. Colour Combat MP RGBW
SPECIFICATION – COLOUR COMBAT MP RGBW
Dimensions 284mm x 411mm x 433mm
Weight 17.5kg
Ambient operating temperature -40 – 45°C (operating), -20 – 45°C (startup)
Control options DMX/RDM
Bean angle 3.6, 10, 20 degree
Power consumption 300W
IP rating IP66
Certifications CE, RoHS
Product finish Off white (standard)
Operating voltage 100–277 VAC
Warranty 5 years limited
Lumens RGBW: 7496lm
Colour temperature RGBW (5600k white)
Housing material Die-cast aluminium
LED chip type Individual red, green, blue and white
Product shown is quad chip variant

User Manual version 1 | page 15
Elumeros.com | Specification subject to change without notice
6. Colour Combat MP Quad
A high powered, full colour luminaire suitable for both
floodlighting and wall washing
- 14428 lumen output when using RGBL at 300W
- High efficiency, 48.09 lm/W when using RGBL, with high colour quality
- Single unit can used for RGB, RGBW, RGBA, RGBL and Dynamic White
- Compatible with RDM/DMX controls
- Colour consistency guaranteed through the ElumerCheck System
The ElumerCheck System
To ensure high colour consistency we have
implemented an ElumerCheck process at
the manufacturing stage of our products
development. It addresses many of the
everyday problems designers encounter
when realising their architectural lighting
schemes, right from the product build stage.
- Eradicates the colour offset problem
that often arises in different brightness
and temperatures
- Ensures colour consistency across all
manufacturing runs, e.g. the product
you buy today will give the same results
as one you purchase in six months
- You can create a hue or white by
setting the colour coordinates, which
translates across all products featuring
this technology
SPECIFICATION – COLOUR COMBAT MP QUAD
Dimensions 284mm x 411mm x 433mm
Weight 17.5kg
Ambient operating temperature -40 – 45°C (operating), -20 – 45°C (startup)
Control options DMX/RDM
Bean angle 13, 30, 45, 60 degree (other options available, please ask support)
Power consumption 300W
IP rating IP66
Certifications CE, RoHS
Product finish Off white (standard)
Operating voltage 100–277 VAC
Warranty 5 years limited
Lumens RGBL: 14428lm, RGBW: 12768lm, RGBA: 11635lm
Colour temperature
Variable white (3200k – 10000k) is available when using RGBL
(red, green, blue, lime) variant.
Dynamic white available when using dynamic white variant.
Housing material Die-cast aluminium
LED chip type RGBL (Quad), RGBW (Quad, 5600k white), RGBA (Quad)
Product shown is quad chip variant

User Manual version 1 | page 16
Elumeros.com | Specification subject to change without notice
A high powered, full colour luminaire suitable for both
floodlighting and wall washing
- 14428 lumen output when using RGBL at 300W
- High efficiency, 48.09 lm/W when using RGBL, with high colour quality
- Single unit can used for RGB, RGBW, RGBA, RGBL and Dynamic White
- Compatible with RDM/DMX controls
- Colour consistency guaranteed through the ElumerCheck System
The ElumerCheck System
To ensure high colour consistency we have
implemented an ElumerCheck process at
the manufacturing stage of our products
development. It addresses many of the
everyday problems designers encounter
when realising their architectural lighting
schemes, right from the product build stage.
- Eradicates the colour offset problem
that often arises in different brightness
and temperatures
- Ensures colour consistency across all
manufacturing runs, e.g. the product
you buy today will give the same results
as one you purchase in six months
- You can create a hue or white by
setting the colour coordinates, which
translates across all products featuring
this technology
6. Colour Combat MP White
SPECIFICATION – COLOUR COMBAT MP WHITE
Dimensions 284mm x 411mm x 433mm
Weight 17.5kg
Ambient operating temperature -40 – 45°C (operating), -20 – 45°C (startup)
Control options DMX/RDM
Bean angle 3.6, 10, 20 degree
Power consumption 300W
IP rating IP66
Certifications CE, RoHS
Product finish Off white (standard)
Operating voltage 100–277 VAC
Warranty 5 years limited
Lumens Cool White: 11874lm, Warm White: 11278lm
Colour temperature Cool White (5600k), Warm White (3000k)
Housing material Die-cast aluminium
LED chip type Individual
Product shown is quad chip variant

User Manual version 1 | page 17
Elumeros.com | Specification subject to change without notice
6. Colour Combat MP Dynamic White
A high powered, full colour luminaire suitable for both
floodlighting and wall washing
- 14428 lumen output when using RGBL at 300W
- High efficiency, 48.09 lm/W when using RGBL, with high colour quality
- Single unit can used for RGB, RGBW, RGBA, RGBL and Dynamic White
- Compatible with RDM/DMX controls
- Colour consistency guaranteed through the ElumerCheck System
The ElumerCheck System
To ensure high colour consistency we have
implemented an ElumerCheck process at
the manufacturing stage of our products
development. It addresses many of the
everyday problems designers encounter
when realising their architectural lighting
schemes, right from the product build stage.
- Eradicates the colour offset problem
that often arises in different brightness
and temperatures
- Ensures colour consistency across all
manufacturing runs, e.g. the product
you buy today will give the same results
as one you purchase in six months
- You can create a hue or white by
setting the colour coordinates, which
translates across all products featuring
this technology
SPECIFICATION – COLOUR COMBAT MP DYNAMIC WHITE
Dimensions 284mm x 411mm x 433mm
Weight 17.5kg
Ambient operating temperature -40 – 45°C (operating), -20 – 45°C (startup)
Control options DMX/RDM
Bean angle 3.6, 10, 20 degree
Power consumption 300W
IP rating IP66
Certifications CE, RoHS
Product finish Off white (standard)
Operating voltage 100–277 VAC
Warranty 5 years limited
Lumens Dynamic White: 10686lm
Colour temperature Dynamic white achieved using amber and cool white
Housing material Die-cast aluminium
LED chip type Individual white and amber
Product shown is quad chip variant

User Manual version 1 | page 18
Elumeros.com | Specification subject to change without notice
7. Dimensions
443
368
423
423

User Manual version 1 | page 19
Elumeros.com | Specification subject to change without notice
8. Trouble Shooting
EVENT POSSIBLE RESOLUTION
No Light Output
Check power connection
Ensure DMX connections are cabled and terminated correctly with
the correct resistors installed at the end of the DMX bus
Check other fixtures on same power network or DMX bus for activity
RDM Functionality does not operate as expected, or
fixture operation appears to be erratic
Ensure DMX connections are cabled and terminated correctly with
the correct resistors installed at the end of the DMX bus
Ensure all DMX equipment (DMX splitters, controllers, buffers,
repeaters, etc) support bi-directional RDM communications
Use a hand-held tool (available from Elumeros) to check
functionality of a single fixture

Elumeros
25A Little Boyton Farm
Boyton Cross
Chelmsford
Essex CM1 4LN UK
t: [phone]
f: [phone]
e: [e-mail]
www.elumeros.com
Please note:
Lumen performance and colour
temperature ranges are typical values
and due to production processes and
the nature of LEDs and electronics,
values for output and electrical
characteristics can vary up to 10%.
Elumeros, Elumeros Progressive
Solutions and Colour Combat including
all associated logos are registered
trademarks of Elumeros Lighting.
