Elura AMP 50/6 User manual

model # AMP 50/6
model # AMP 50/12
multi-zone amplifiers
1 2 3 4 5 6
POW ER
BUS I N
L
A
B
ON
AUT O
POWER
MOD E
IN
OUT
TRIGGER
LIN E IN
LEVEL LEVEL LEVEL
LIN E IN LIN E IN LIN E IN
AAABBB
BUS BUS B US
ZON E 1 ZON E 2 ZON E 3
4/8Ω4/8Ω4/8Ω
NOR MAL NO RMAL N ORMA L
BRIDGED BRIDGED BRIDGED
FR FR
HP HP
IN I N
BRIDGED
IN
8ΩONLY 8ΩO NLY 8ΩON LY
SPEAKER SPEAKER SPEAKER
DC 12 V
---
+++
+++
---
+++
---
FR
LP
HP
R
L
OUT O UT
R
S/N:
(L)(L)(L) ( )( )( ) RRR
AMP 50/12
AMP 50/6
Overview.
Thank you for purchasing Elura
Amplifier products. Elura is a high
performance custom installed
product engineered for movie and
music enthusiasts. Each Elura
product is manufactured to the
highest quality standard using state
of the art components and built for
years of enjoyment.
Features.
• Multi-channel / multi-zone
• Digital high power amplification
• Low impedance
• Bridgeable
• Low Noise
• Small chassis
• Less Heat
• Efficient design
• Rack mountable
• Automation circuit
Contents.
• Amplifier
• Rack mounting hardware
• Power cord
• 1/8” stereo to RCA cable
• Manual
Warning.
To reduce the risk of electric shock,
do not expose this product to rain or
moisture. This product should not
be exposed to dripping or splashing
and avoid placing near any object
filled with water, such as a vase or
an aquarium.
Important Symbols.
The lighting flash arrowhead
triangular symbol is to alert the user
to the presence of uninsulated
‘dangerousvoltage’ within the
product sufficient enough to
constitute a risk of electric shock.
The arrowhead symbol with an
exclamation point is to alert the user
to the presence of an important
operational or maintenance
instruction.
Safety Instructions.
1. Read the instructions.
2. Keep the instructions.
3. Heed all warnings.
4. Follow the instructions.
5. Do not use near water.
6. Clean with a dry cloth.
7. Do not block ventilation slots.
8. Install in accordance to the
instructions.
9. Do not install near a heat source
or combustible source.
10. Do not defeat the polarized or
grounding plug.
11. Protect the power cord from
being crimped, cut or pinched.
12. Only attached accessories
specified within the instructions.
13. Use only on lower shelves with
a stand, cart or rack product
capable of holding the weight to
avoid injury from furniture tipping
over.

model # AMP 50/6
model # AMP 50/12
multi-zone amplifiers
BUS IN
L
A
B
ON
AUTO
POWER
MODE
IN
OUT
TRIGGER
LINE IN
LEVEL LEVEL LEVEL
LINE IN LINE IN LINE IN
AAABBB
BUS BUS BUS
ZONE 1 ZONE 2 ZONE 3
4/8Ω4/8Ω4/8Ω
NORMA L NO RMAL NO RM AL
BRIDGED BRIDGED BRIDGED
FR FR
HP HP
IN IN
BRIDGED
IN
8ΩONLY 8ΩON LY 8ΩON LY
SPEAKER SPEAKER SPEAKER
DC 12V
---
+++
+++
---
+++
---
FR
LP
HP
R
L
OUT OUT
R
S/N:
(L)(L)(L) ( )( )( ) RRR
1 2 3 4 5 6
POW ER

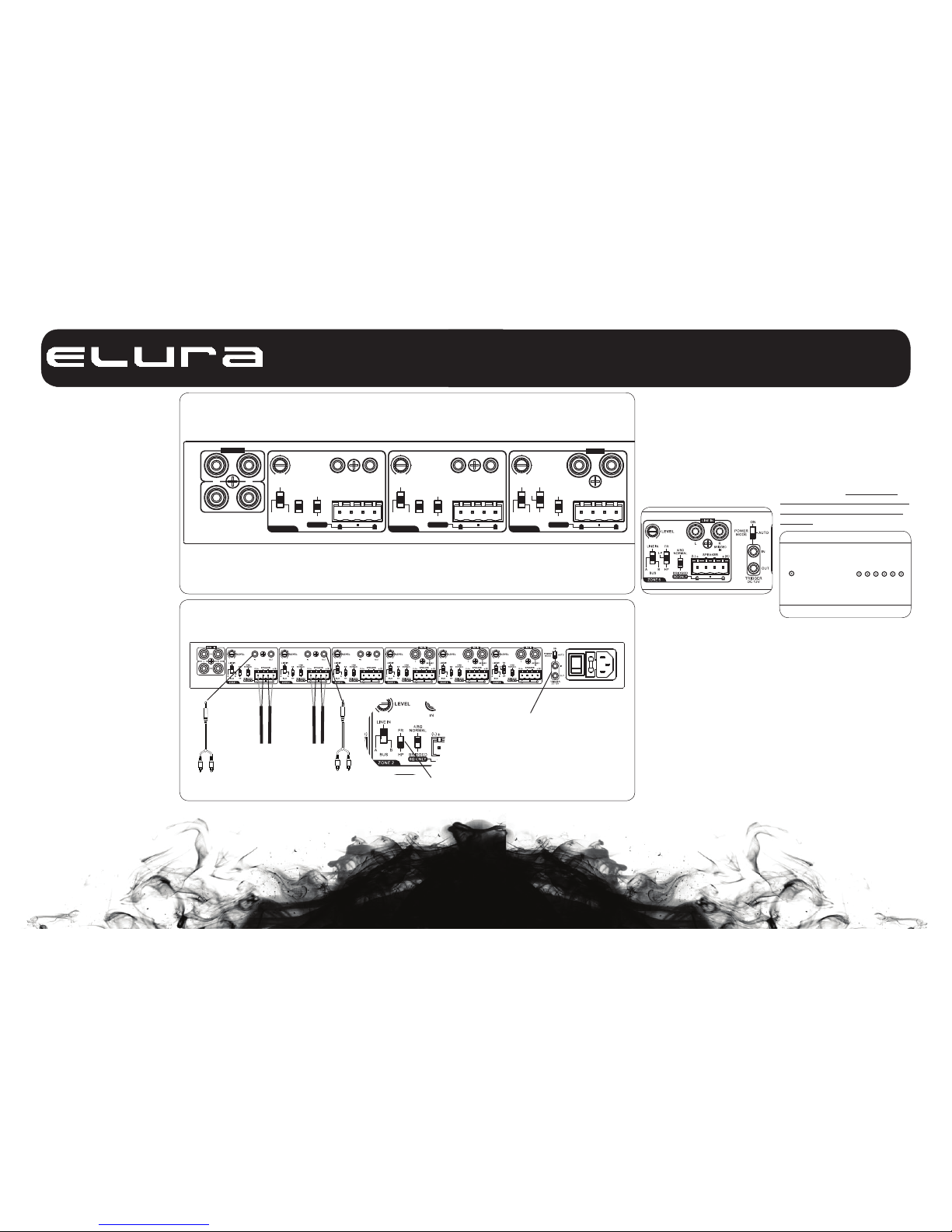

AMP 50/6 Rear Panel
Audio Connections
AMP 50/12 Rear Panel
L&R
Speakers
L&R
Speakers
use supplied 1/8” stereo mini jack to
RCA jacks to connect to mult-source
preamplifier zone outputs
extend and use to connect
to a subwoofer or external
amplifier in zone 2
switching to HF when connecting to a
subwoofer will improve performance of
speakers
1/8” mono jacks are used
to connect 12VDC trigger
inputs and outputs when
power mode switch is in
down position
Elura amplifiers have an in/out
12VDC trigger. The flexibility to
turn on the entire amplifier or trigger
other devices via an audio signal
offers additional control and auto-
mation options. Easily configure the
amplifiers to activate with a global
12v trigger or in Auto mode using a
sensitive audio sensing circuit.
Controls.
Each stereo zone of the amplifiers
can be adjusted allowing fine tuning
for the zone application. Each zone
offers an EQ switch. The EQ switch
changes the output to the speaker.
FR = Full Range, HP = High Pass
and LP = Low Pass. LP is only
available if RCA connections are
used on that zone. Each amplifier
zone with 1/8” stereo jacks in and
out has FR and HP. Plan your con-
nections by using the amplifier zone
that best fits the room requirement.
Example: If you plan on connecting
a Multisource preamplifier signal,
speakers and a powered subwoofer,
use a zone with 1/8” stereo jacks.
Use the 1/8” stereo out to connect
the subwoofer and select HP to
send only mid and high frequencies
to your speakers.
Automation.
Front Panel LEDs.
The Elura amplifiers have LEDs on
the front panel to indicate the ampli-
fier’s power state and channel
status. The Power LED indicates
the amplifier is ON. There is a LED
indicating the channel state. The
LEDs can be used to identify and
trouble shoot channels that are
not working. If a channel is in fault
mode, power down the amp, identify
and fix the issue. When complete
power up the amp to recheck it has
been resolved.
Power ON = Blue
Power OFF = Red
Channel Normal = Blue
Channel Fault = Red
Channel fault conditions are
shortcircuit, thermal, or overload
failures.
Placement / Installation.
Rack-mount ears and hardware are
included with every Elura amplifier.
This allows for table-top or 1U AV
rack-mount installation.
Connections.
All RCA audio connections on the
amplifiers are gold-plated, for
superior, non-corrosive, and long-
lasting performance. The removable
speaker connectors offer easier
wiring, faster installation, and
troubleshooting. Speaker wire up to
14 AWG work best with these type
of connectors. A detachable fused
EIC grounded power cable defeats,
noise, simplifies troubleshooting and
adds protection needed.
Some stereo zones use 1/8” stereo
jacks instead of RCA connections.
The smaller space taken up by the
stereo connection offers an in and
out preamplifier connection for add-
ing additional amplifiers, speakers or
subwoofers in each zone.
Input Options.
The amplifiers offer a bus input with
a loop output as well as channel
specific inputs. Installers have the
option to expand the zone amplifier
beyond only two channels, taking
one stereo input signal and
distributing it to up to a max of 6 or
12 stereo zones of audio pending
the model. They also have the op-
tion of using each amplifier channel
independently for multi-zone / multi-
source or home theater applications.
Audio Modes.
Elura multi-channel amplifiers are
organized into stereo pairs and each
pair has the option of being bridged
into 1 higher wattage mono channel.
Being able to bridge channels allows
an installer to use more power in
larger rooms or in outdoor spaces
to provide the optimum sound levels
and or coverage. Note, when in
Bridged Mode the amplifier channel
must be used only with an 8 Ohm
speaker.

model # AMP 50/6
model # AMP 50/12
multi-zone amplifiers
BUS IN
L
A
B
ON
AUTO
POWER
MODE
IN
OUT
TRIGGER
LINE IN
LEVEL LEVEL LEVEL
LINE IN LINE IN LINE IN
AAABBB
BUS BUS BUS
ZONE 1 ZONE 2 ZONE 3
4/8Ω4/8Ω4/8Ω
NORMAL NORMAL NORMAL
BRIDGED BRIDGED BRIDGED
FR FR
HP HP
IN IN
BRIDGED
IN
8ΩONLY 8ΩONLY 8ΩONLY
SPEAKER SPEAKER SPEAKER
DC 12V
---
+++
+++
---
+++
---
FR
LP
HP
R
L
OUT OUT
R
S/N:
(L)(L)(L) ( )( )( ) RRR
Warranty.
All Elura products come with a 2
year limited liability warranty. This
warranty includes parts and labor re-
pairs on all components found to be
defective in material or workmanship
under normal conditions of use. This
warranty shall not apply to products
which have been abused, modified
or disassembled. Warranty items
only by authorized resellers.
Warranty not eligible for products
purchased through non-authorized
online sellers.
A product that fails under conditions
other than those covered will be
repaired at the current price of parts
and labor in effect at the time of
repair. Such repairs are warranted
for 90 days from the day of
reshipment to the BUYER. If the unit
is delivered by mail, customers
agree to insure the unit or assume
the risk of loss or damage in transit.
Under no circumstances will a unit
be accepted without a return
authorization number. The warranty
is in lieu of all other warranties
expressed or implied, including
without limitations, any other implied
warranty or fitness or
merchantability for any particular
purpose, all of which are expressly
disclaimed. Proof of sale may be
required in order to claim warranty.
www.elura.audio
Low Impedance Design.
Each Elura amplifier channel is
stable down to 4 ohms. This design
allows for a pair of 8-ohm speakers
to be connected to each channel.
This feature is ideal for larger areas
requiring more coverage.
Specifications.
Output Power: AMP 50/6 50W x 6 @ 4Ω 1kHz
Output Power: AMP 50/12 50W x 6 @ 4Ω 1kHz
THD+N: @4Ω=0.9%/ @8Ω=1.0%
Input Sensitivity: 600mV
Frequency Response: 10Hz - 20kHz
High Pass Filter: 150Hz - 20kHz /-3dB
Low Pass Filter: 10Hz - 150Hz / -3dB
Signal to Noise Ratio: -75dB
Auto Turn ON: 5mV
Turn OFF Delay: 8min
Supply Voltage: AC230V / 50Hz
AC110V / 60Hz
